Brake Light Reversing Camera Kit for Citroen Berlingo Peugeot Partner MK2 MK3

Note: Please check the camera size carefully before make the order.

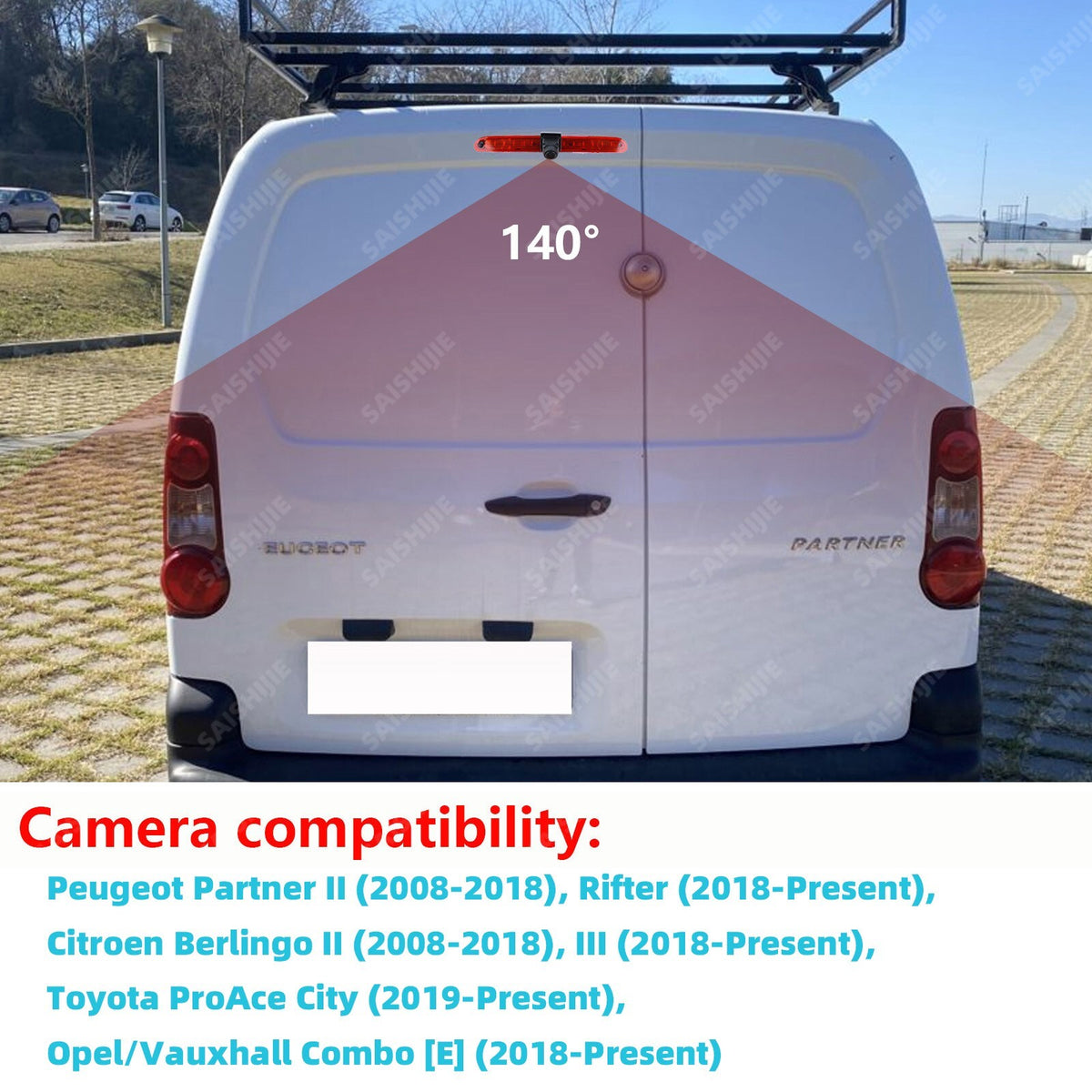

Camera Compatibility

✅Peugeot Partner II (2008-2018),

✅Peugeot Rifter (2018-Present),

✅Citroen Berlingo II (2008-2018), III (2018-Present),

✅Toyota ProAce City (2019-Present),

✅Vauxhall/ Opel Combo [E] (2018-Present)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

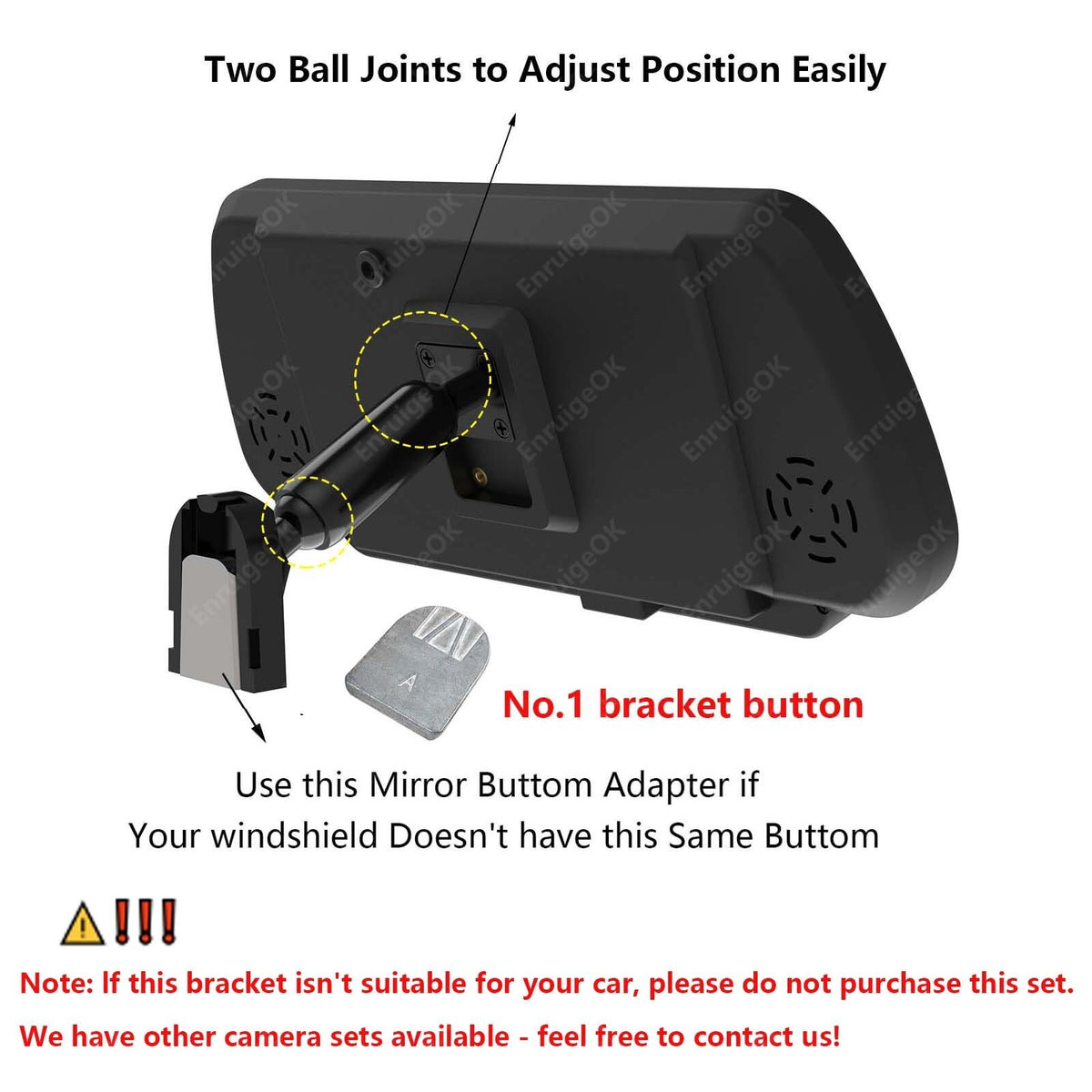

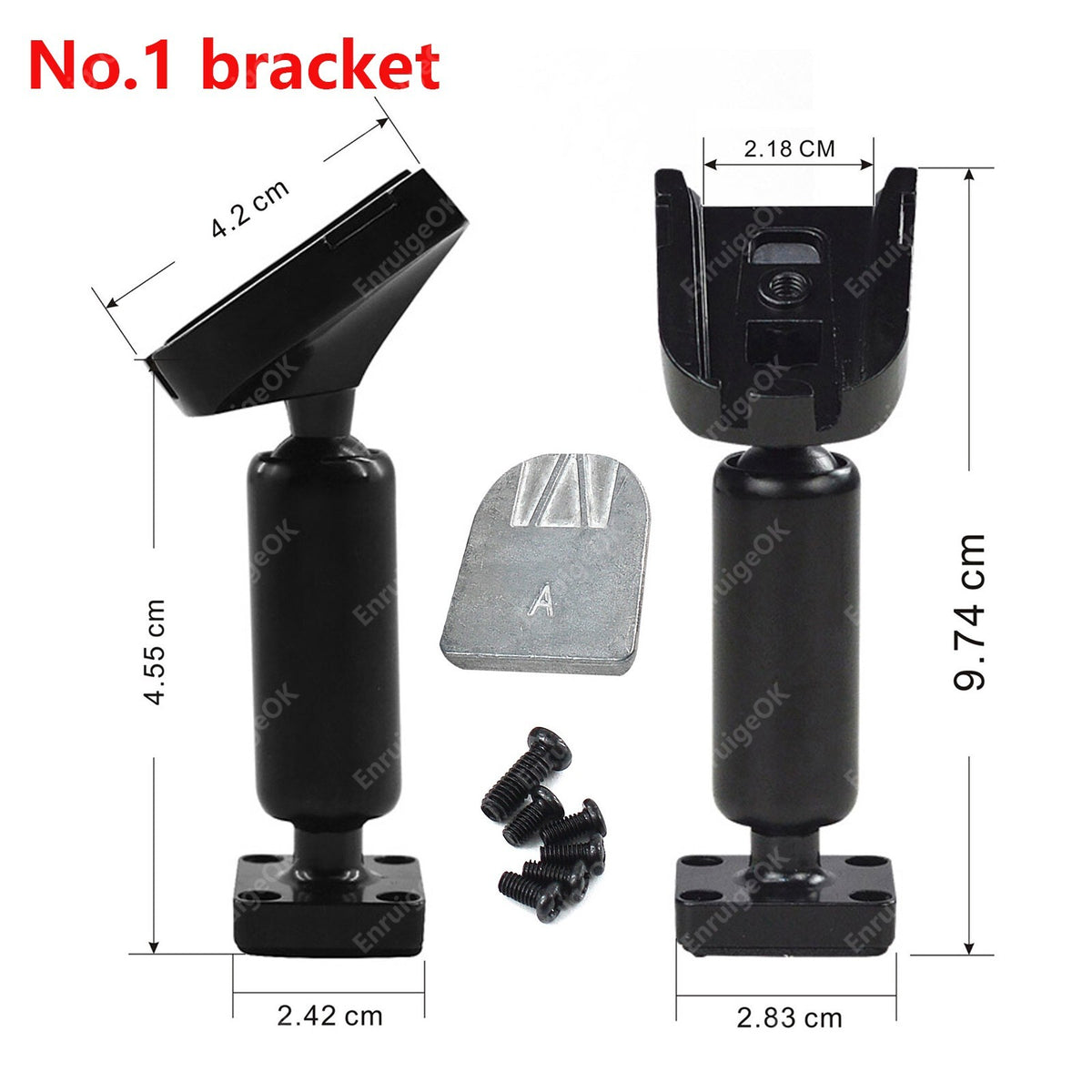

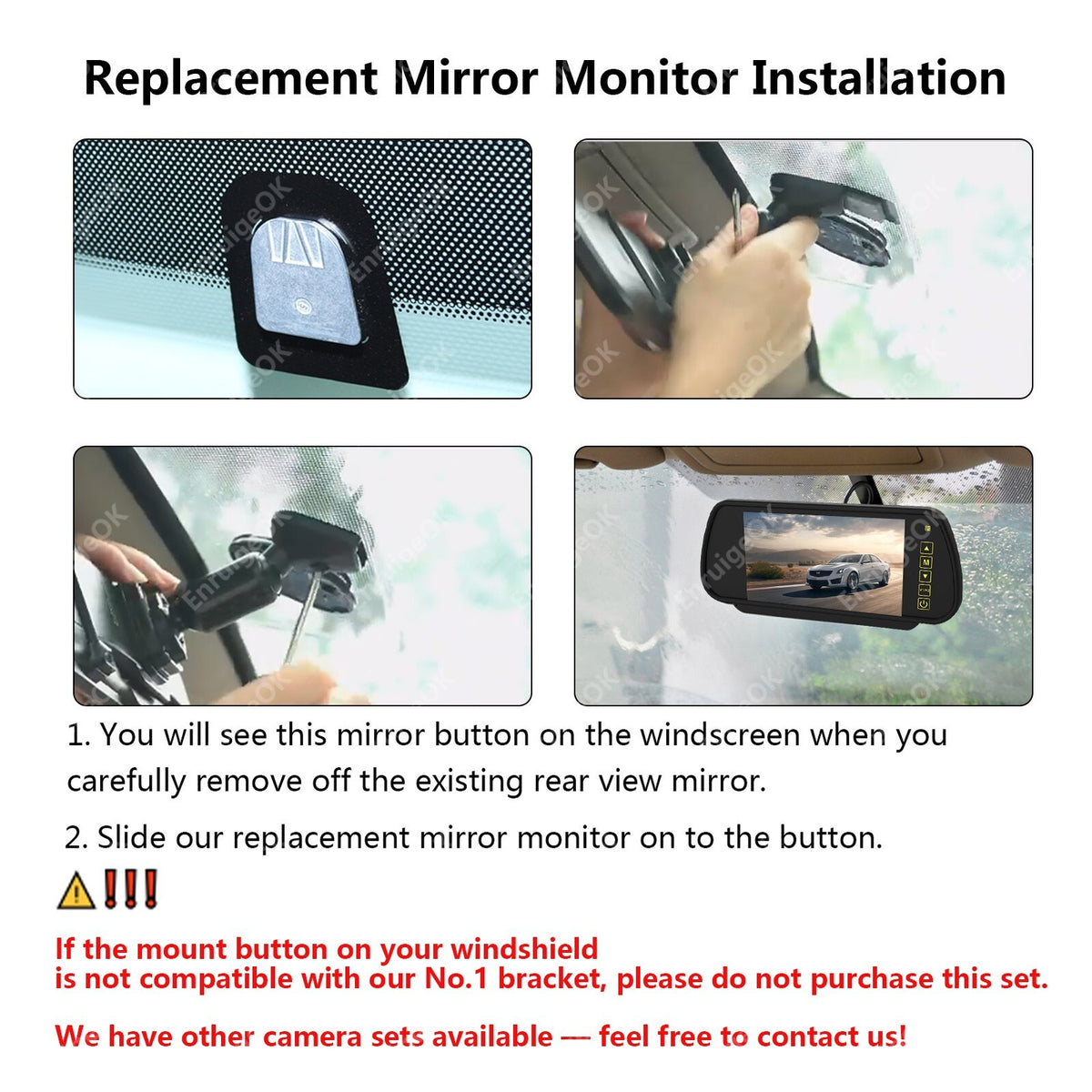

Monitor Bracket Note

This set comes with a #1 bracket by default. Please confirm compatibility by sending us a photo of your windshield button or mirror bracket if unsure.

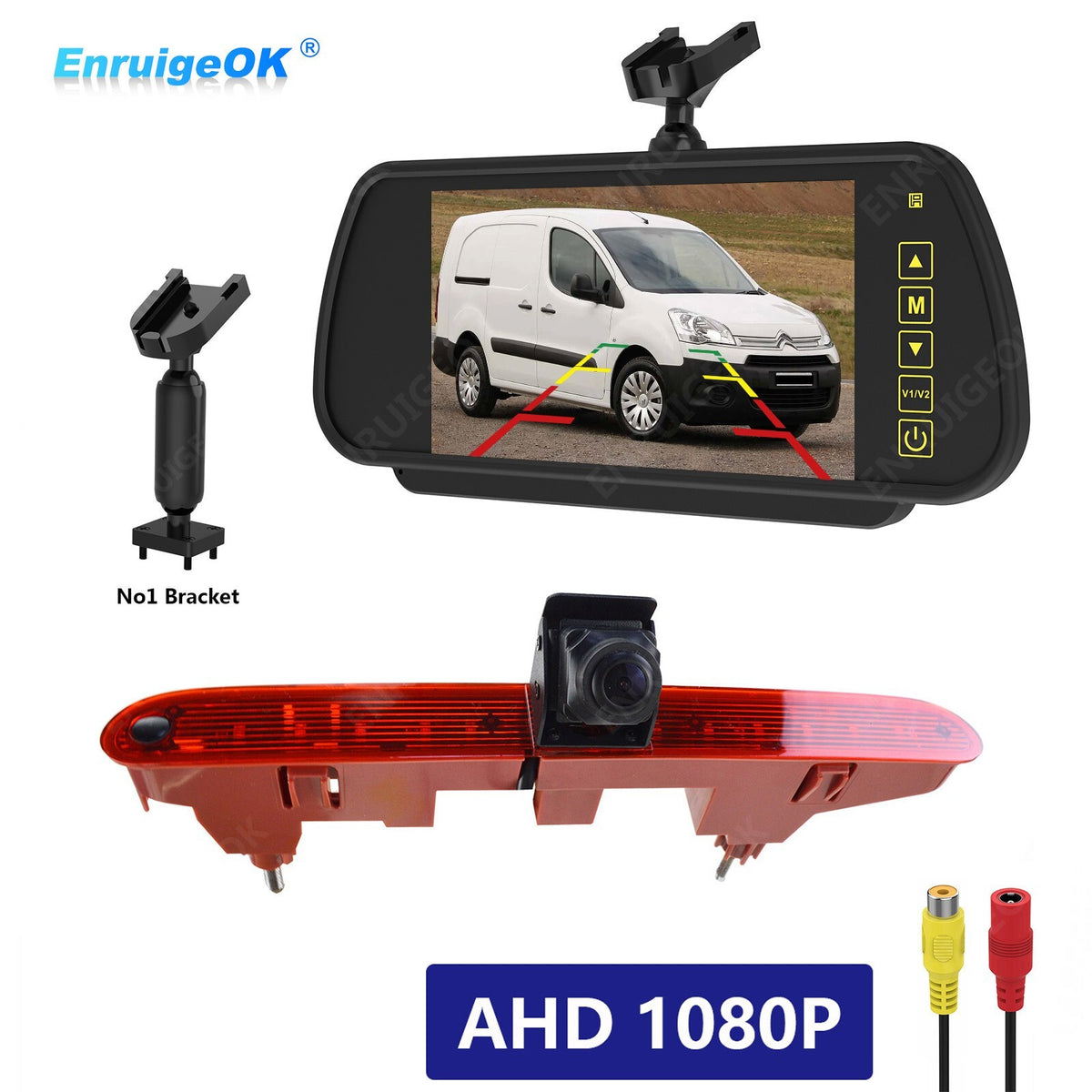

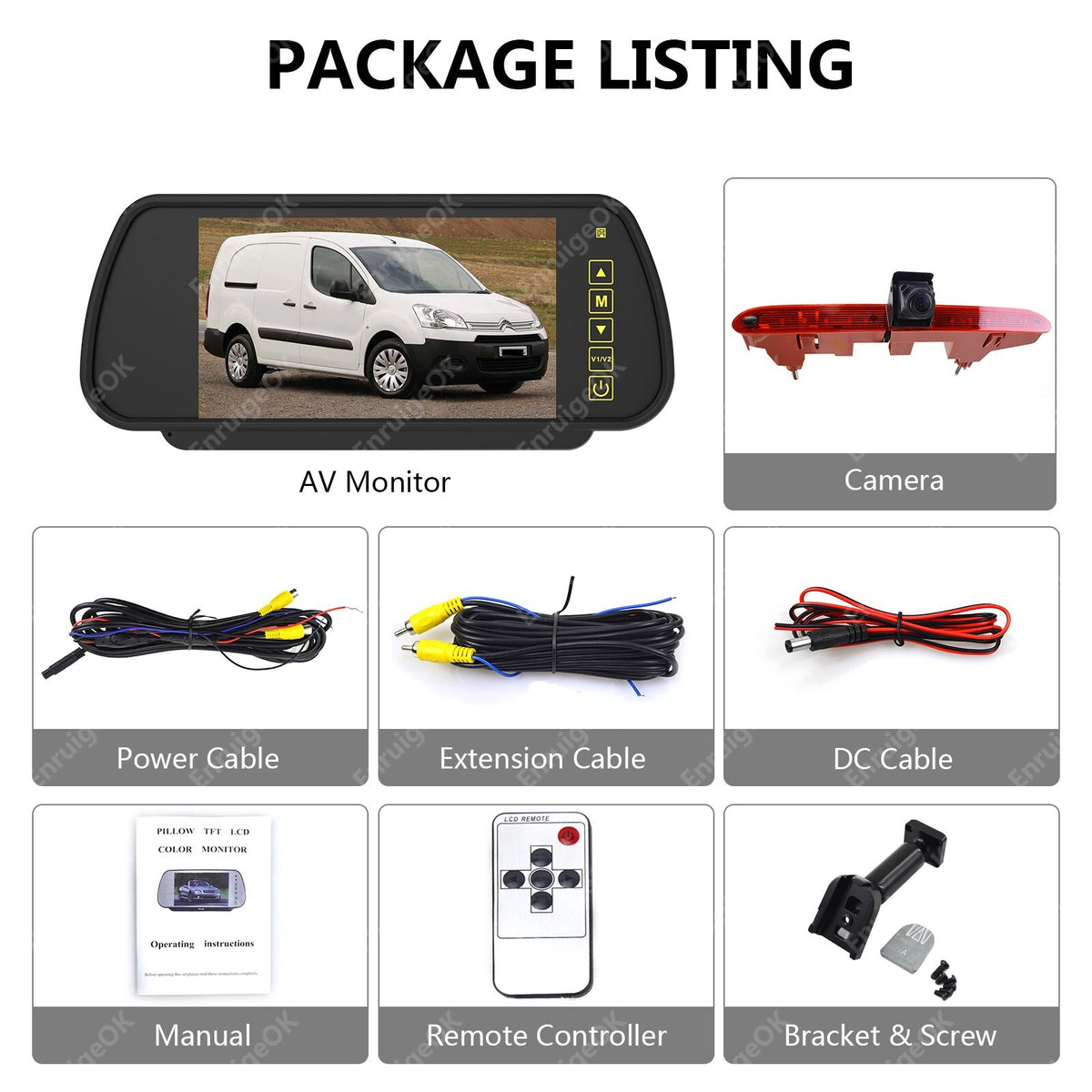

Package content

1 X Reversing camera

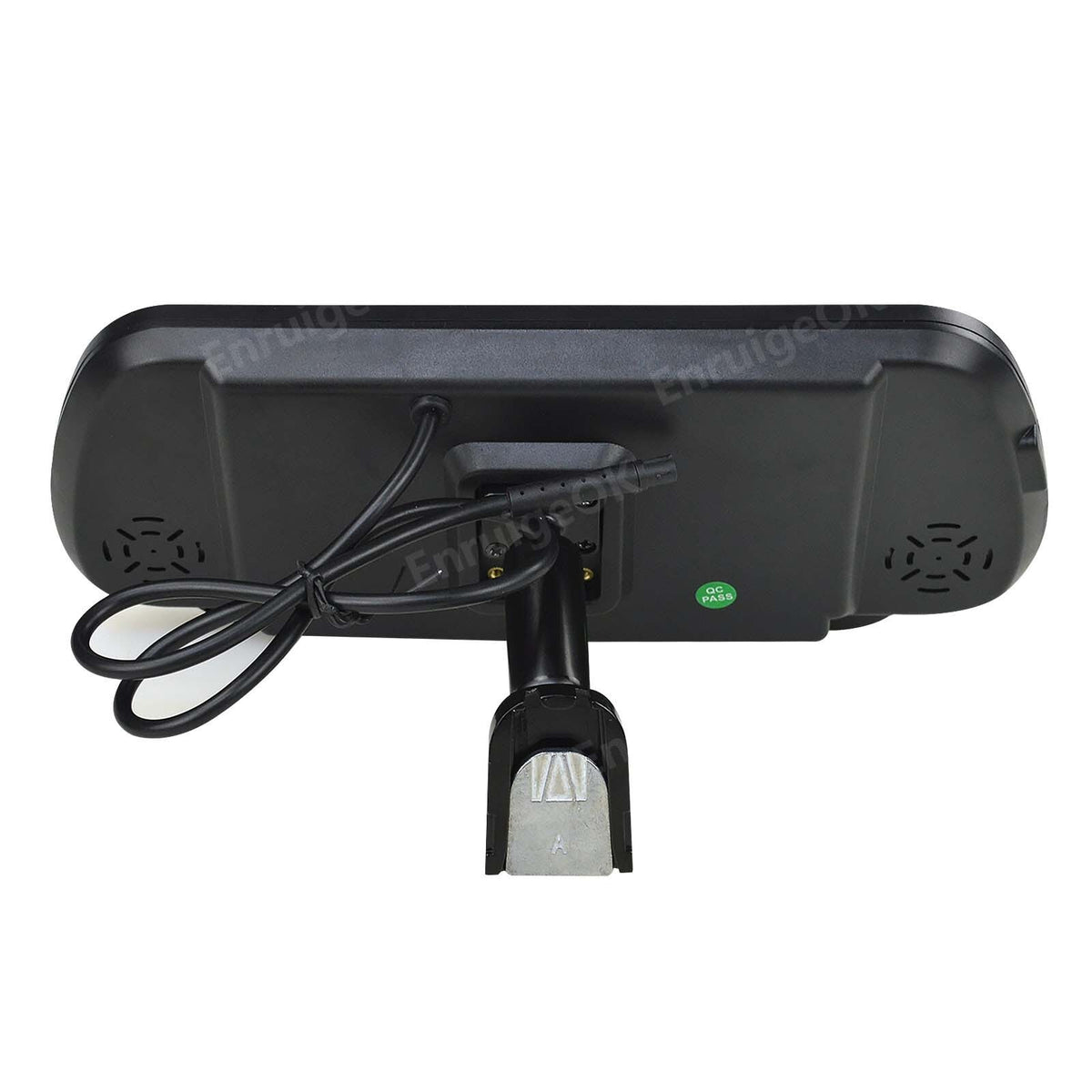

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

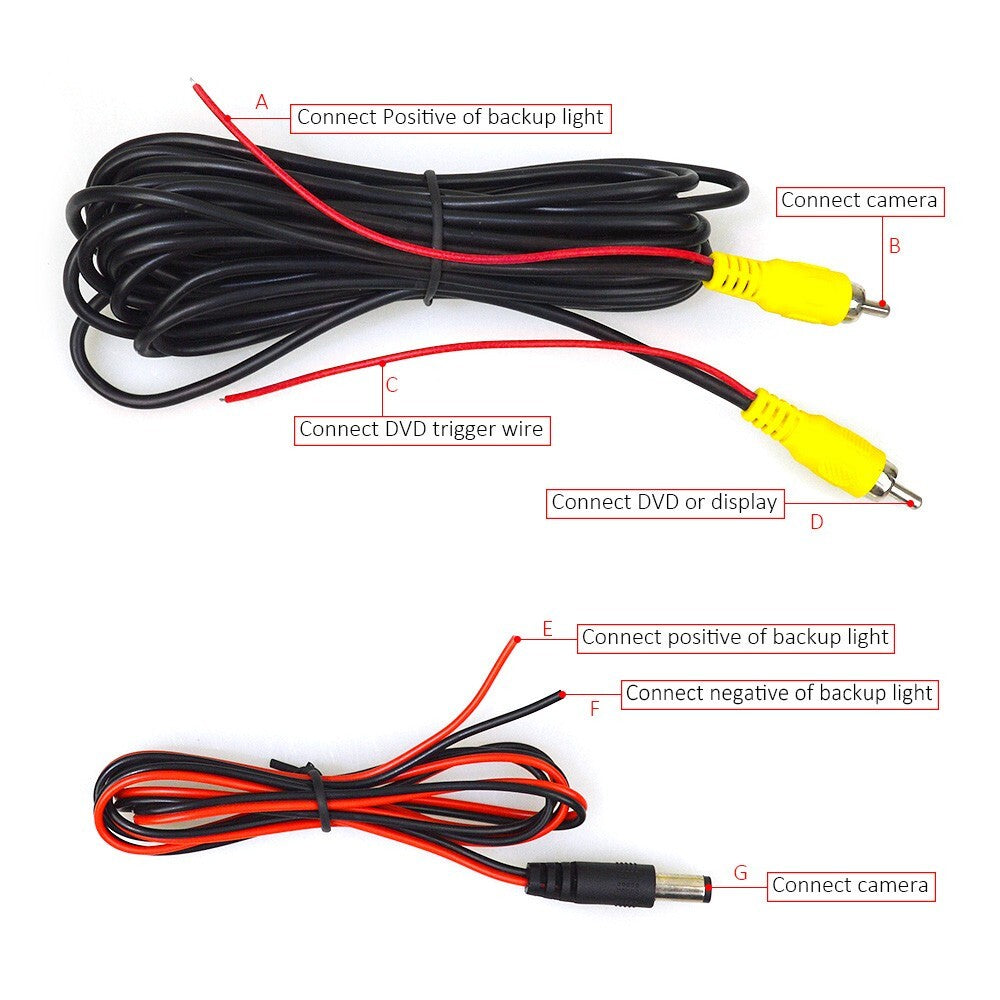

1 X 10m/33ft. extension cable

1 X Monitor power cable

1 X DC Power cable

1 X #1 bracket(check your windshield button)

1 X Manual

Features:

7" AHD Monitor: Features 1024×600 resolution and supports dual video inputs (AHD/CVBS).

AHD 1080P Camera & Monitor Kit: Includes a high-definition AHD brake light camera and 7" AHD monitor for clear, real-time rear view when reversing.

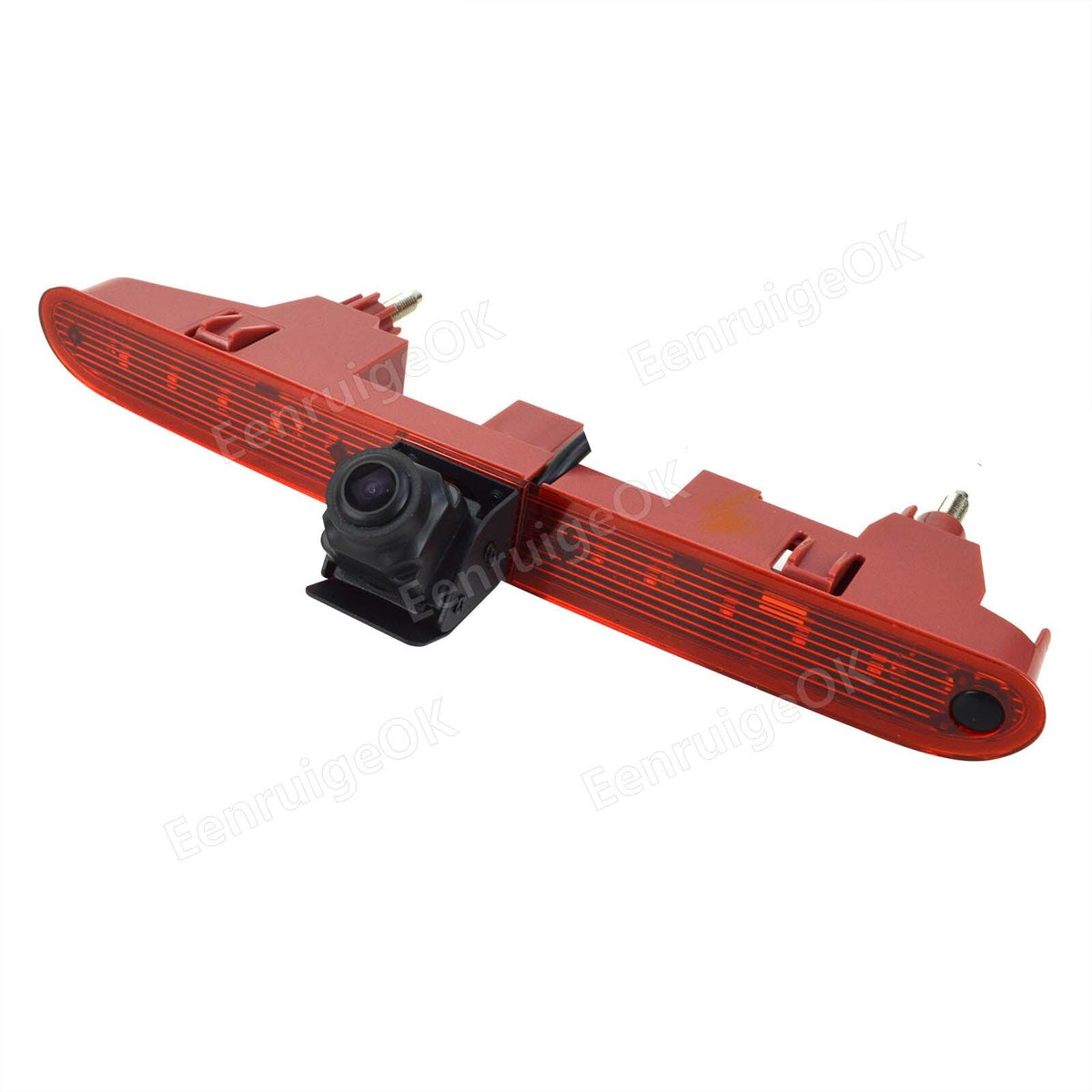

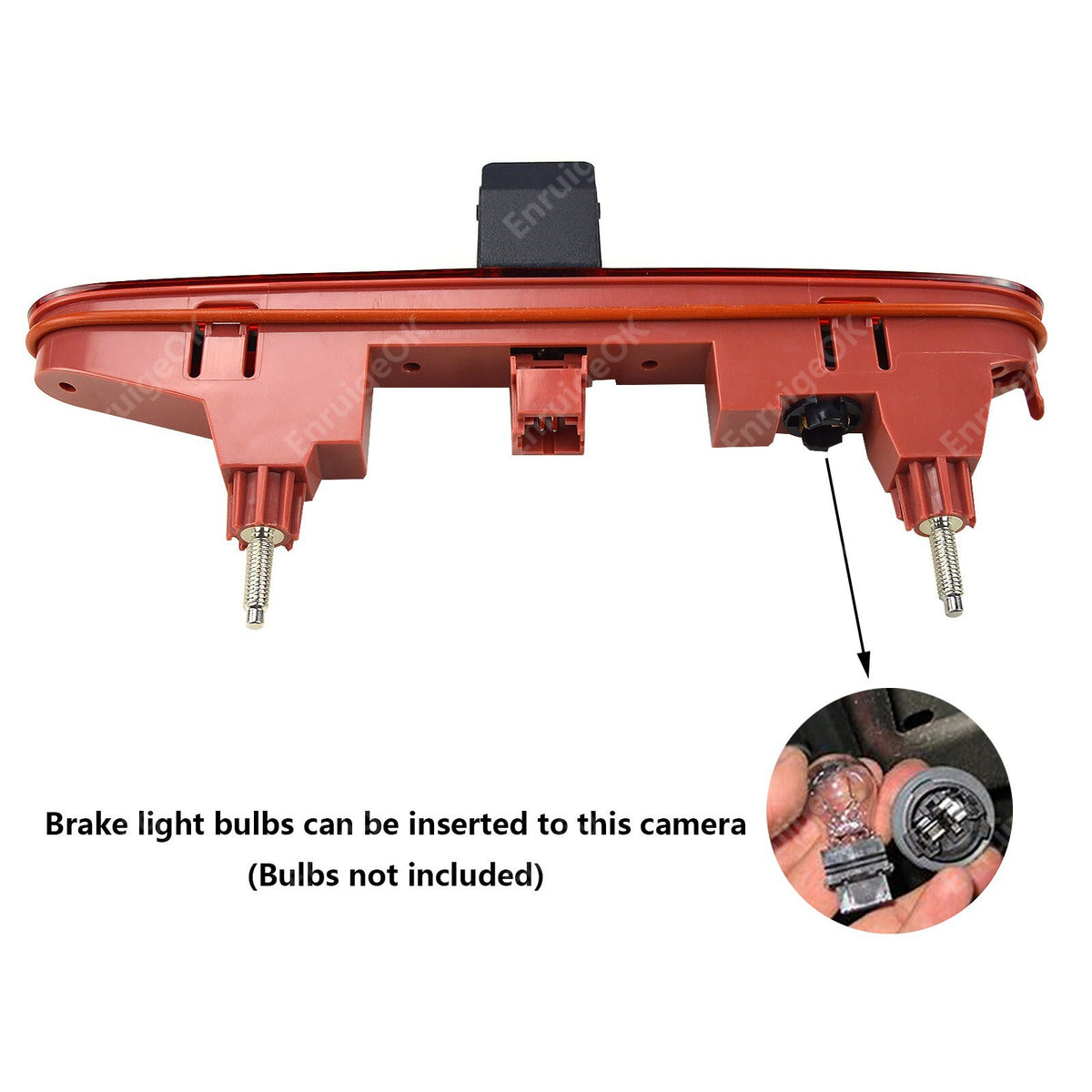

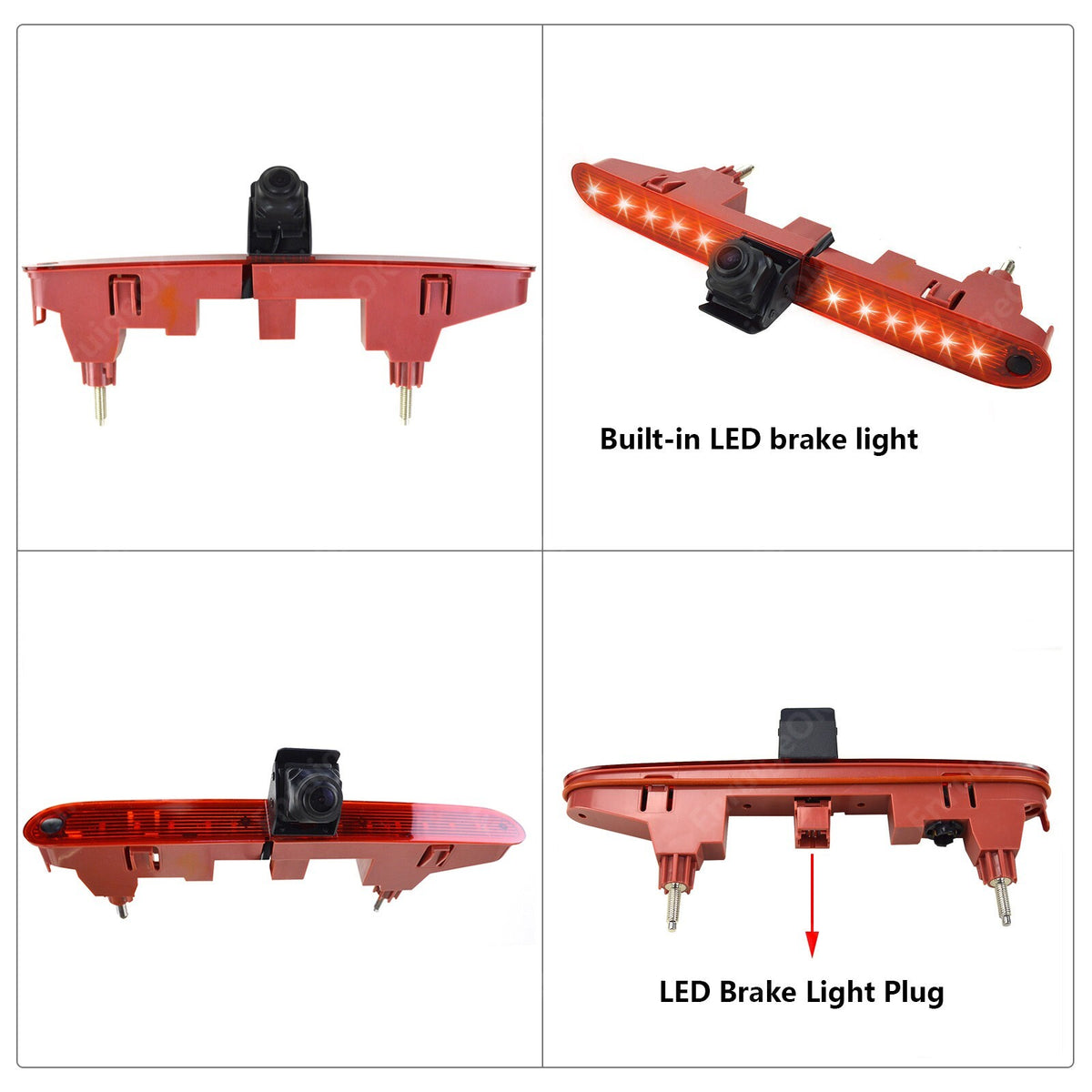

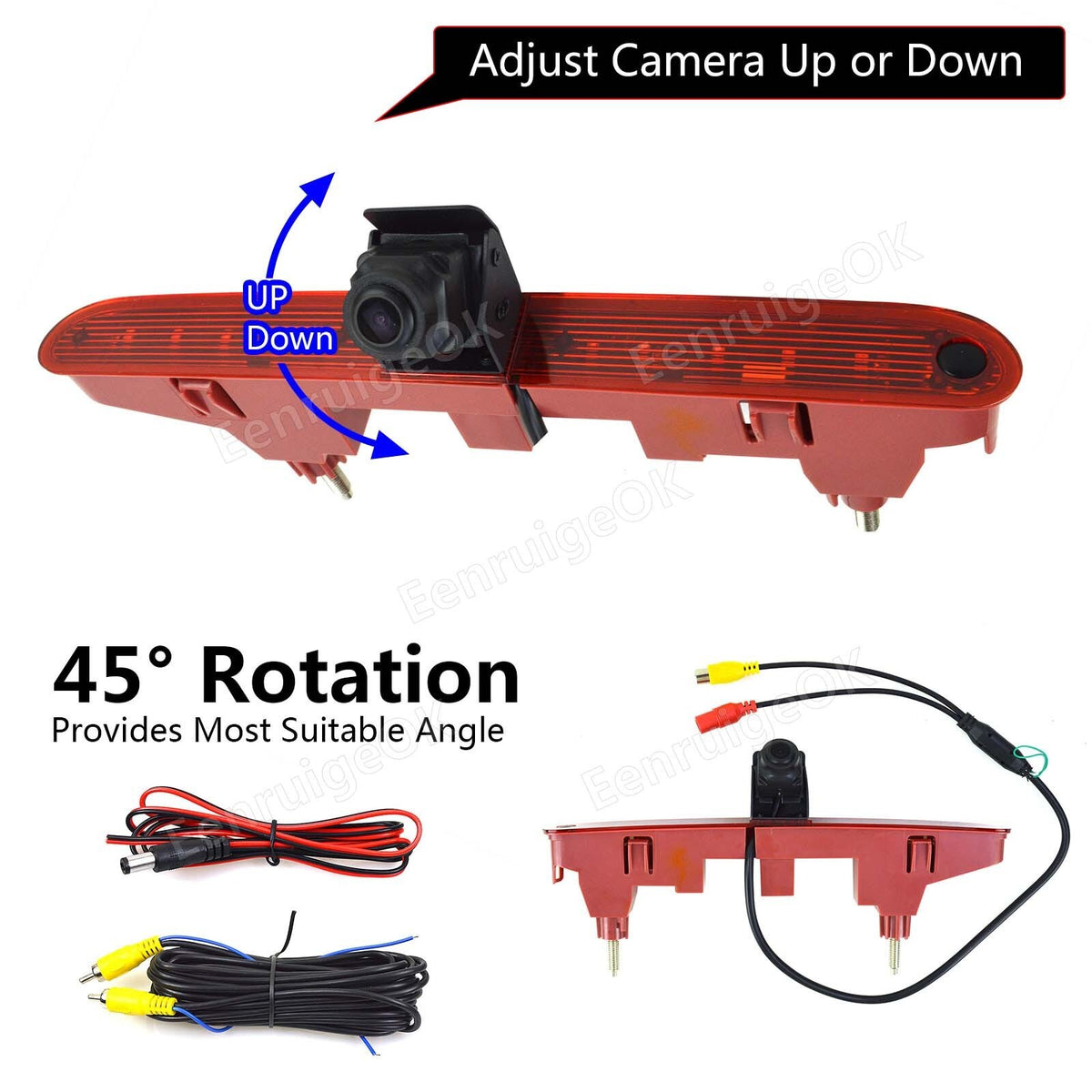

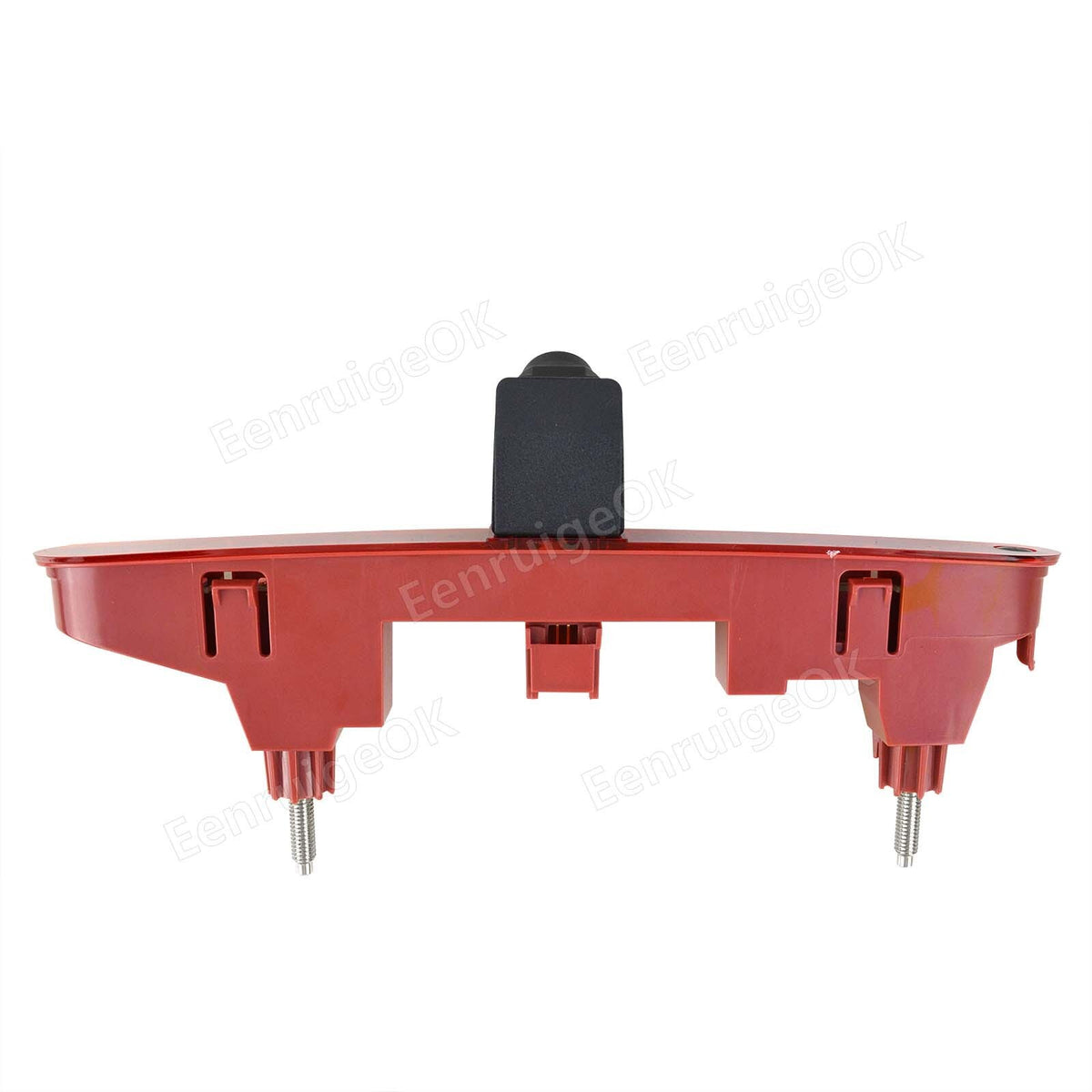

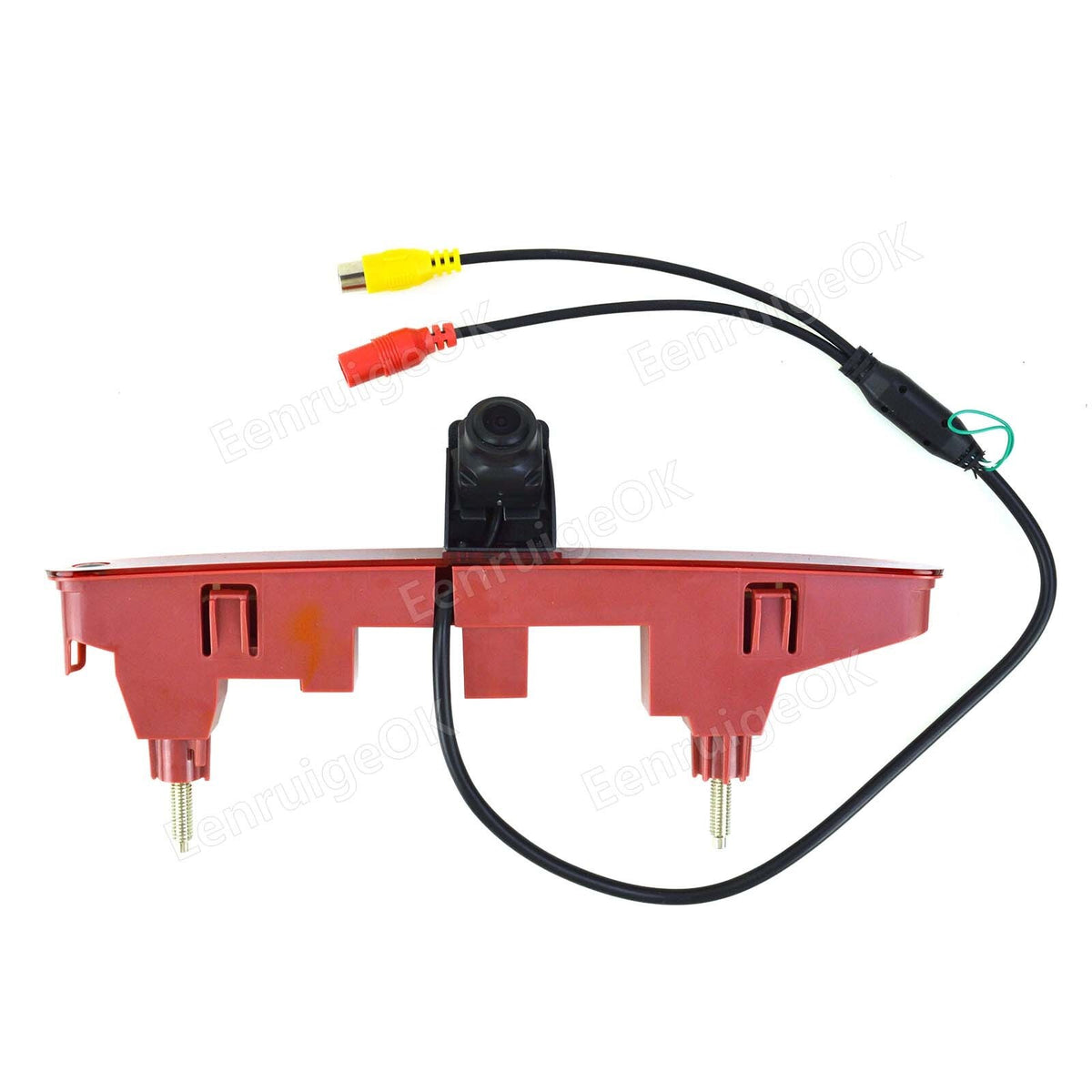

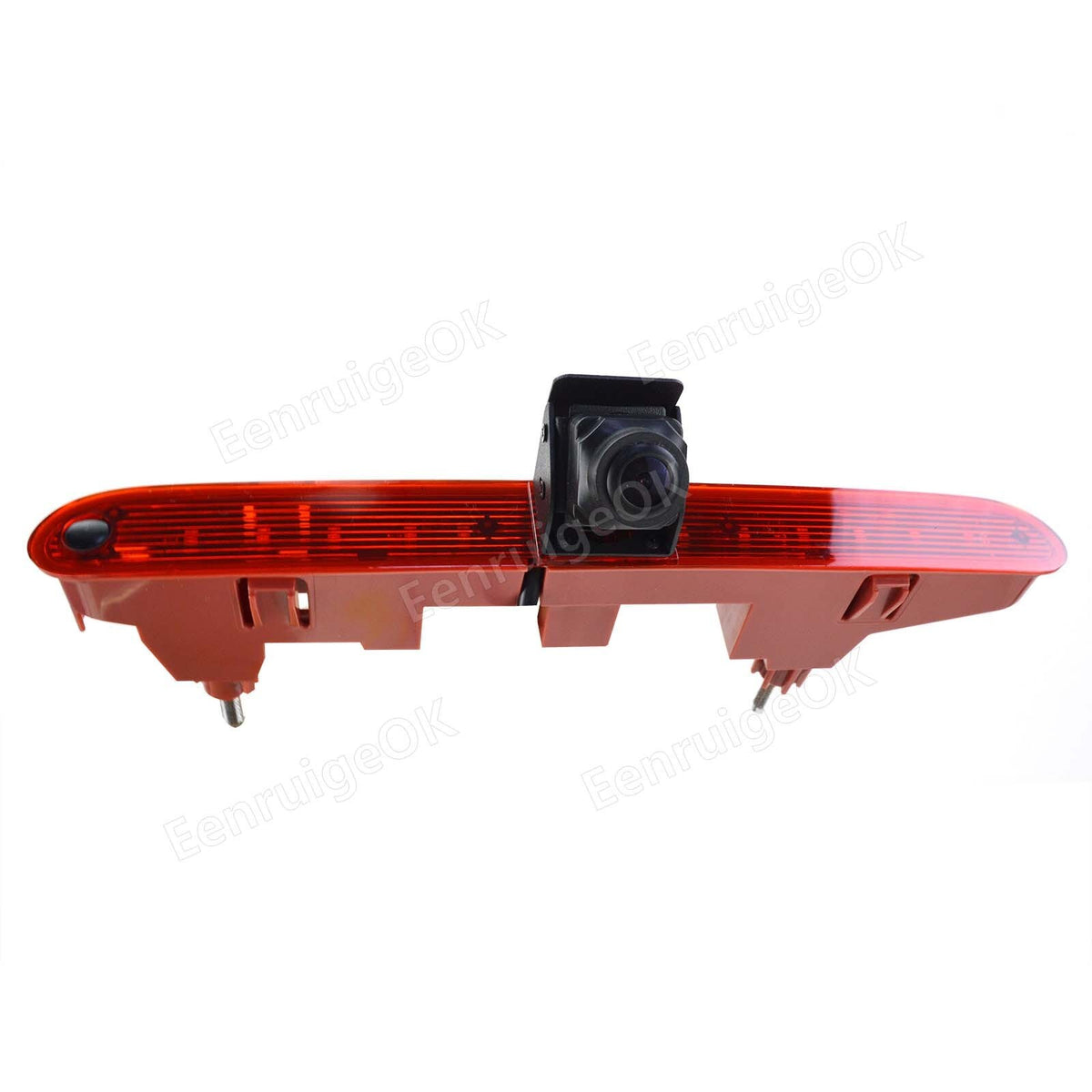

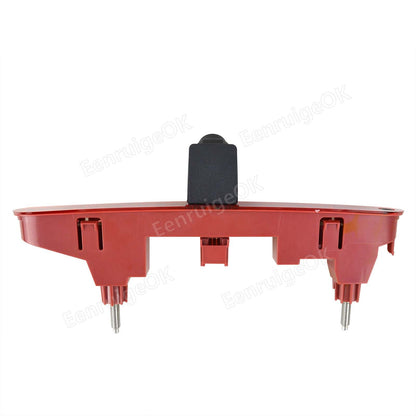

Brake Light Replacement Design: Directly replaces your original brake light for a factory-style installation.

HD Night Vision: 1/3" CMOS sensor and integrated in 6pcs LED light ensures sharp image quality day and night.

120° Wide Angle: Provides a broad rear view to reduce blind spots.

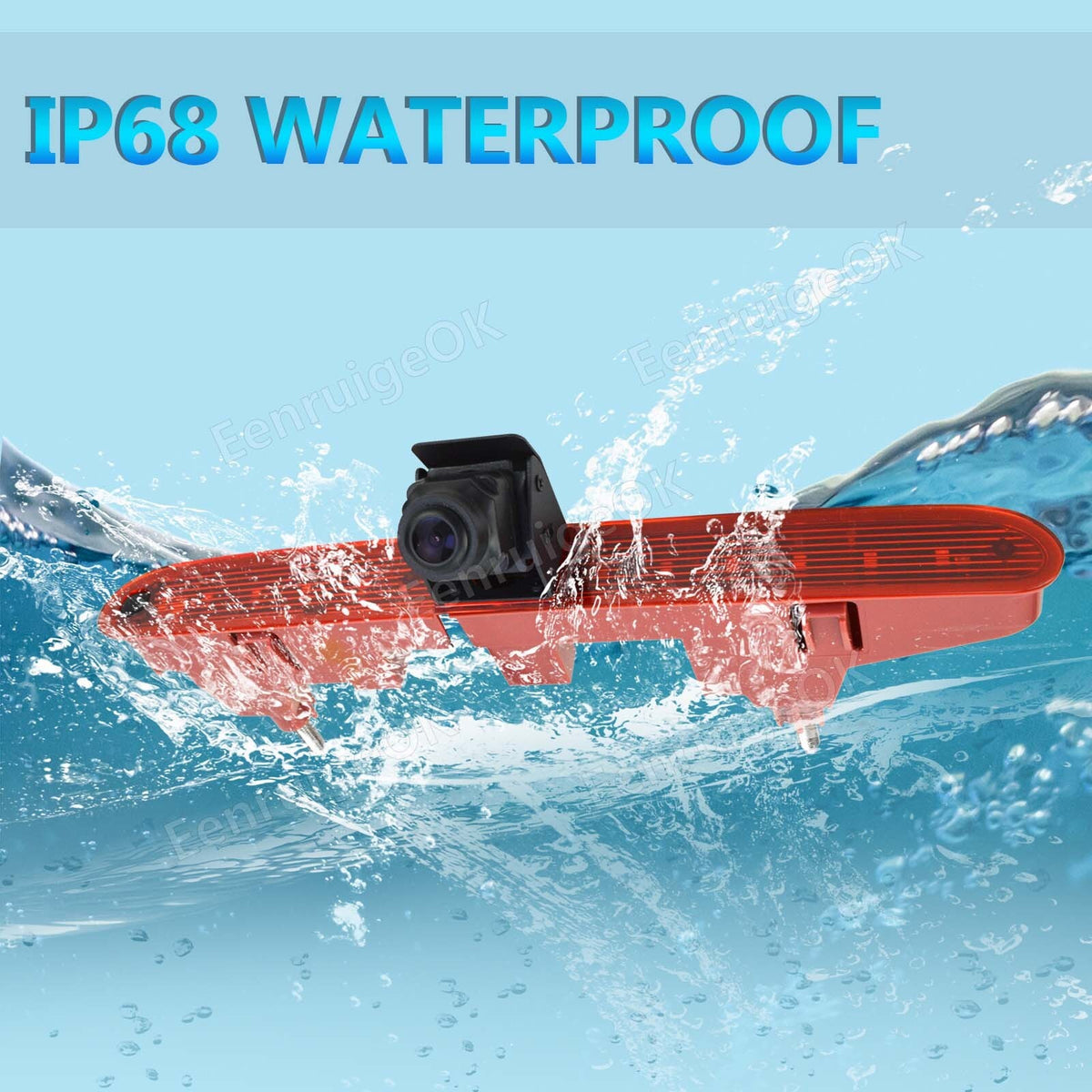

IP68 Waterproof: Fully sealed for all-weather use.

7" AHD Monitor: Features 1024×600 resolution and supports dual video inputs (AHD/CVBS).

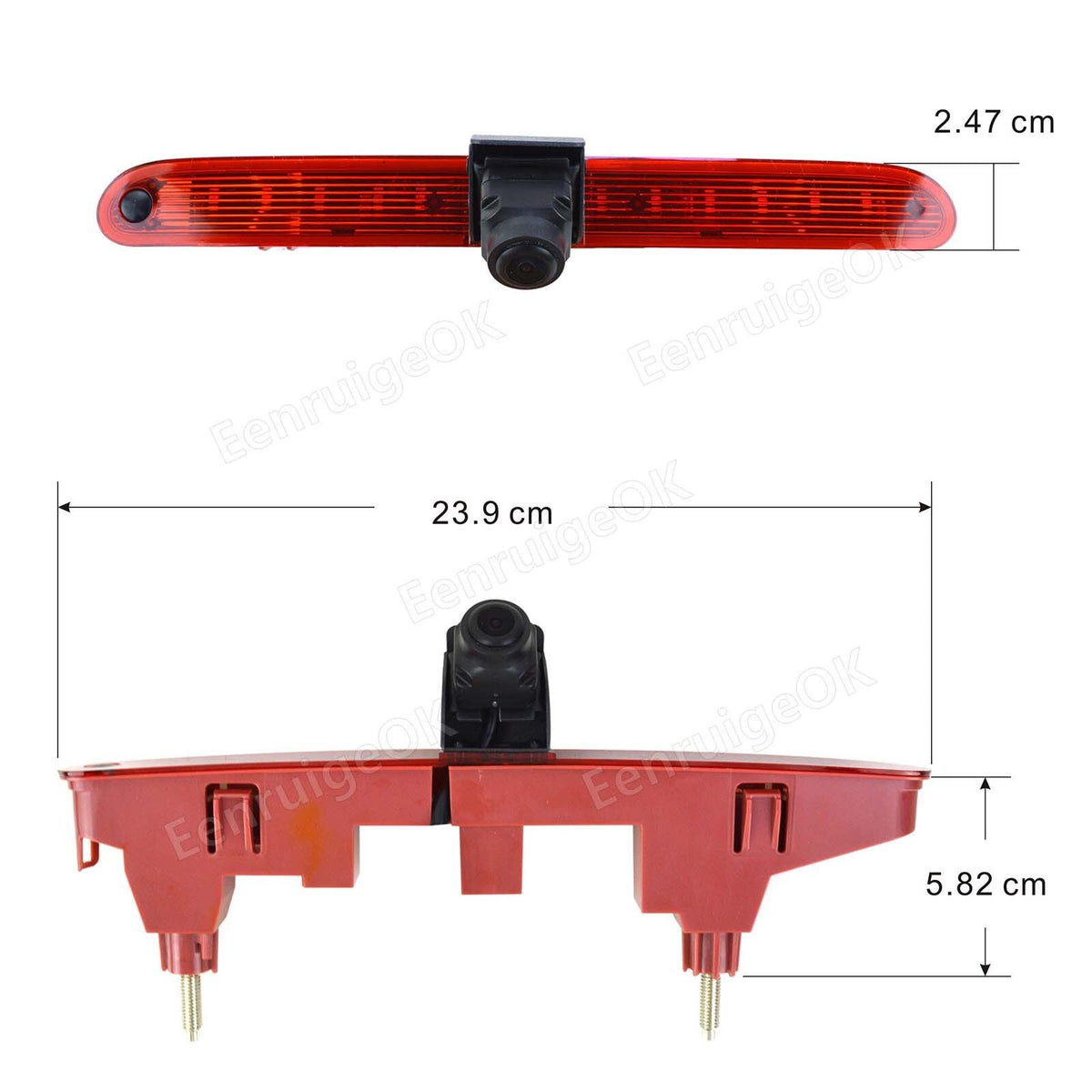

Camera Specifications

Sensor: 1/3" COMS

Effective pixel: 1920(H)x1080(V)

Resolution: AHD 1080P

TV Tystem: PAL/NTSC

Lens: 2.8mm

Min illumination: 0Lux (LED ON)

Waterproof: IP68

View angle: 120°

Power supply: DC 12V

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

S/N Ratio: > 48dB

Current consumption: < 150mA

Operating temperature: -20℃ to +70℃

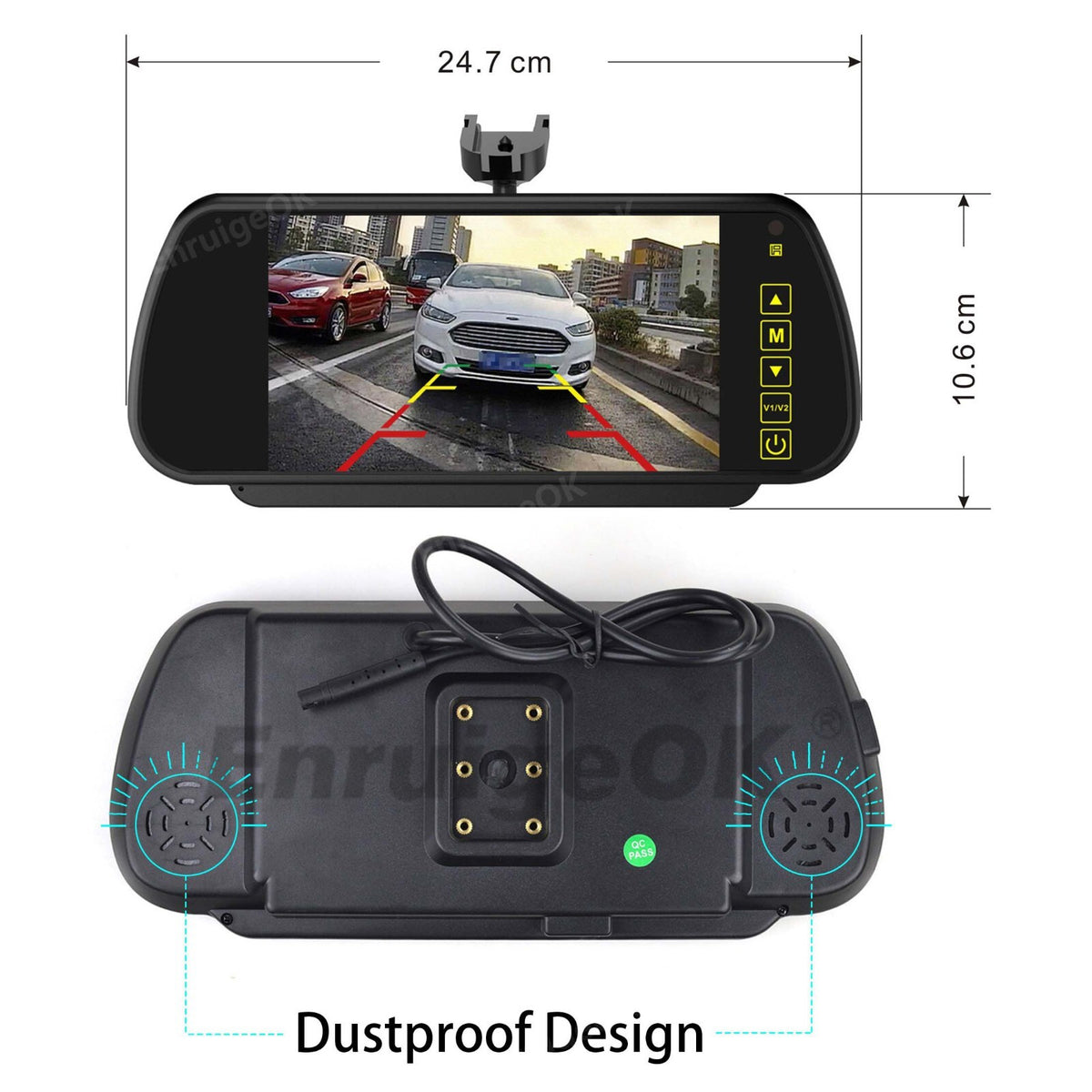

Monitor Specifications

Screen ratio 16:9/4:3 adjustable

Resolution: 1024*600(RGB)

TV System: PAL/NTSC auto

Video Input: 2-CH video input

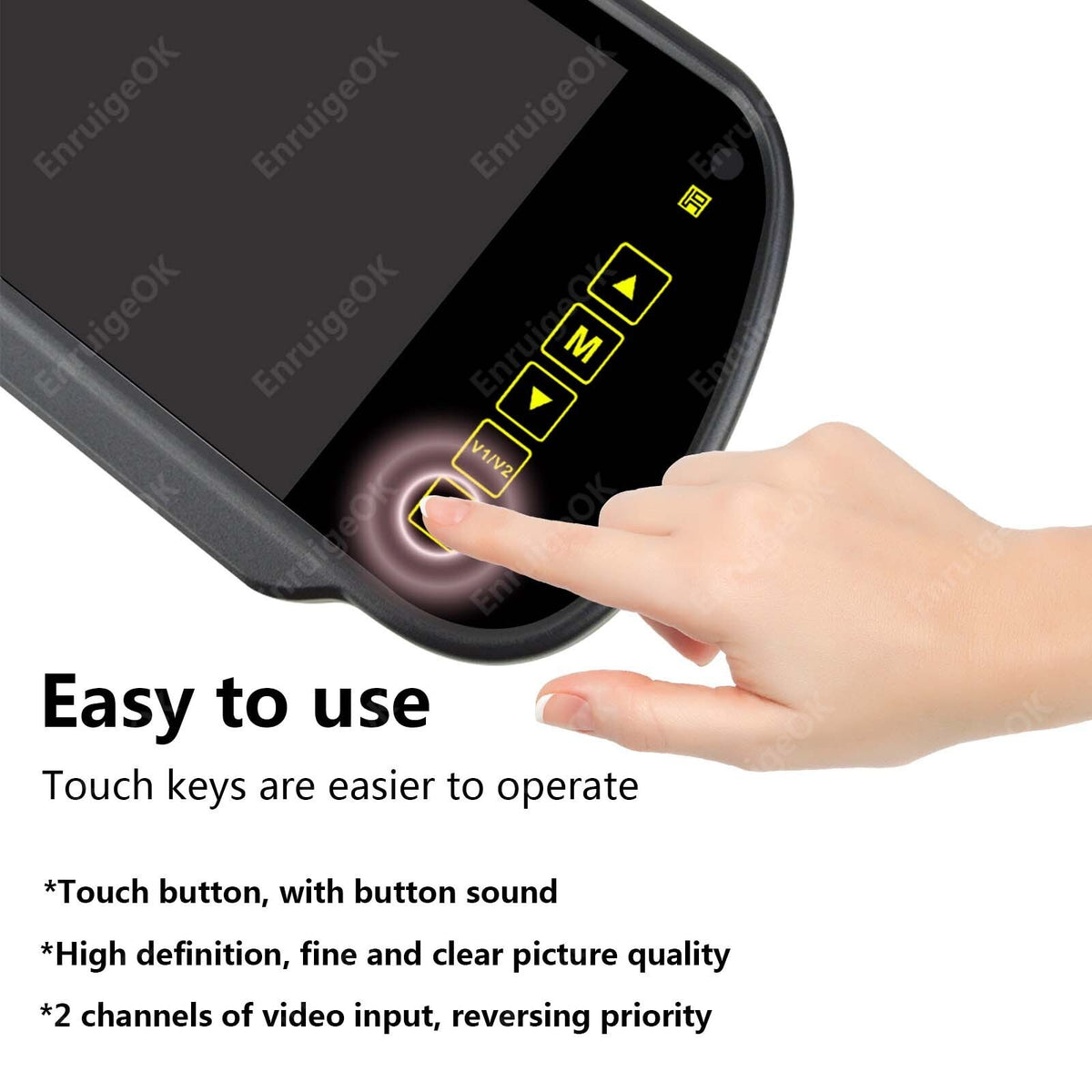

Control Mode: Touch button + Remote control

Power Supply: DC 9V/35V

Power Consumption: 6W

Video: Two-way video input

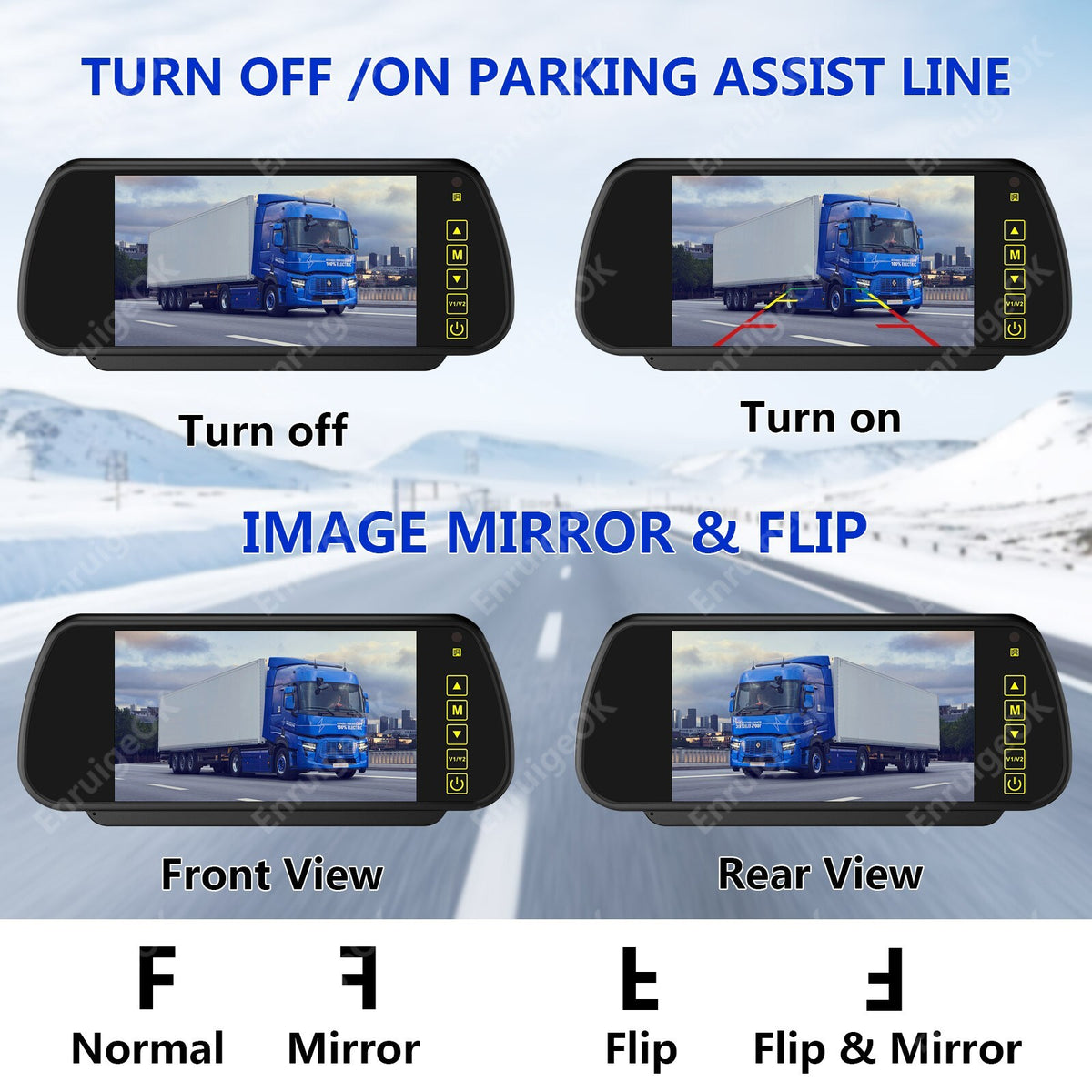

Rear watching: Image can be changed left and right

Operate mode: The key operation and remote control

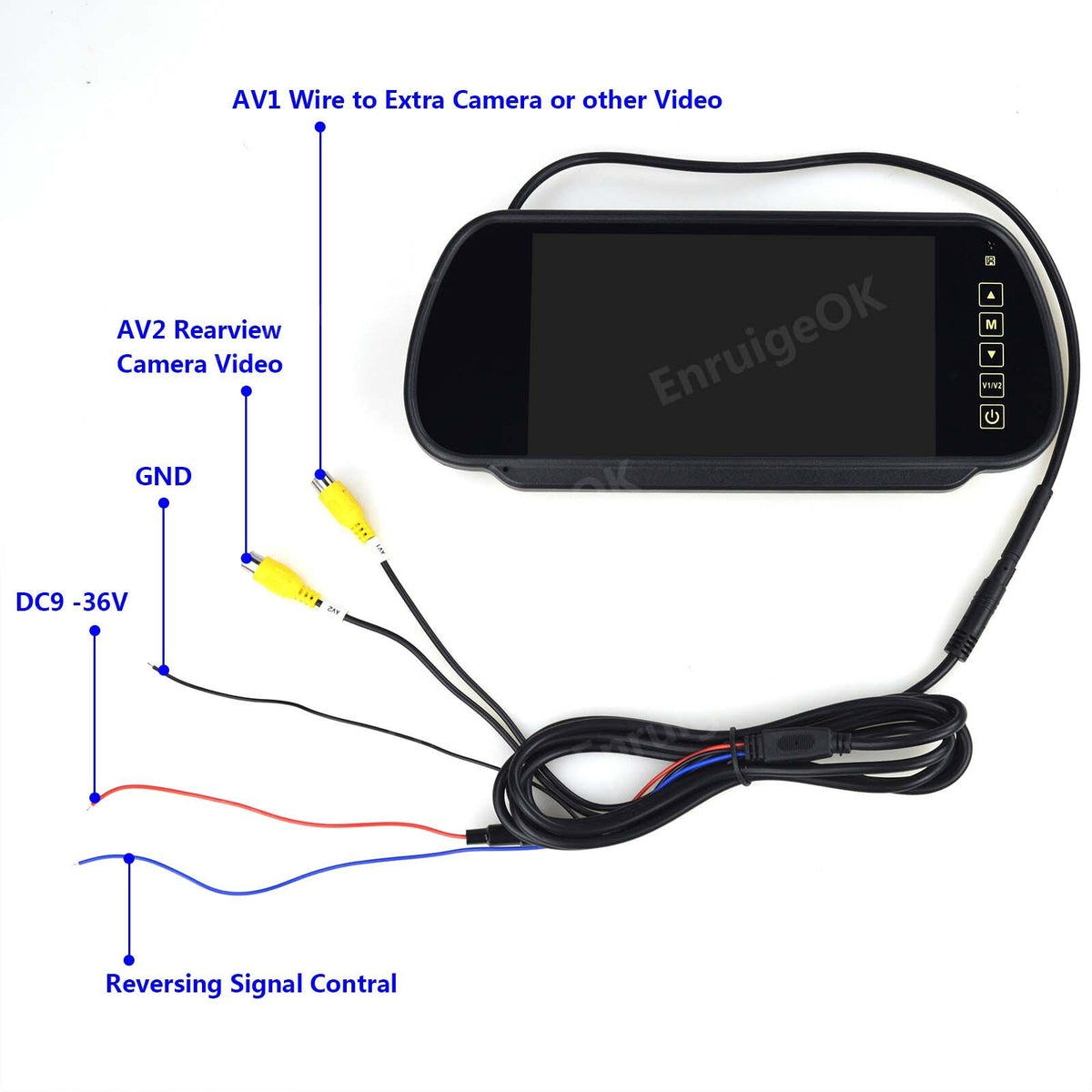

Dual video inputs: One For DVD/VCD/GPS/TV, the other for the rearview camera and parking sensor, automatically switch when reversing

Remote control: a CR2025 button battery (not included)

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
