Brake Light Reversing Camera for Mercedes-Benz V-Class V260 V260L & 7" Monitor

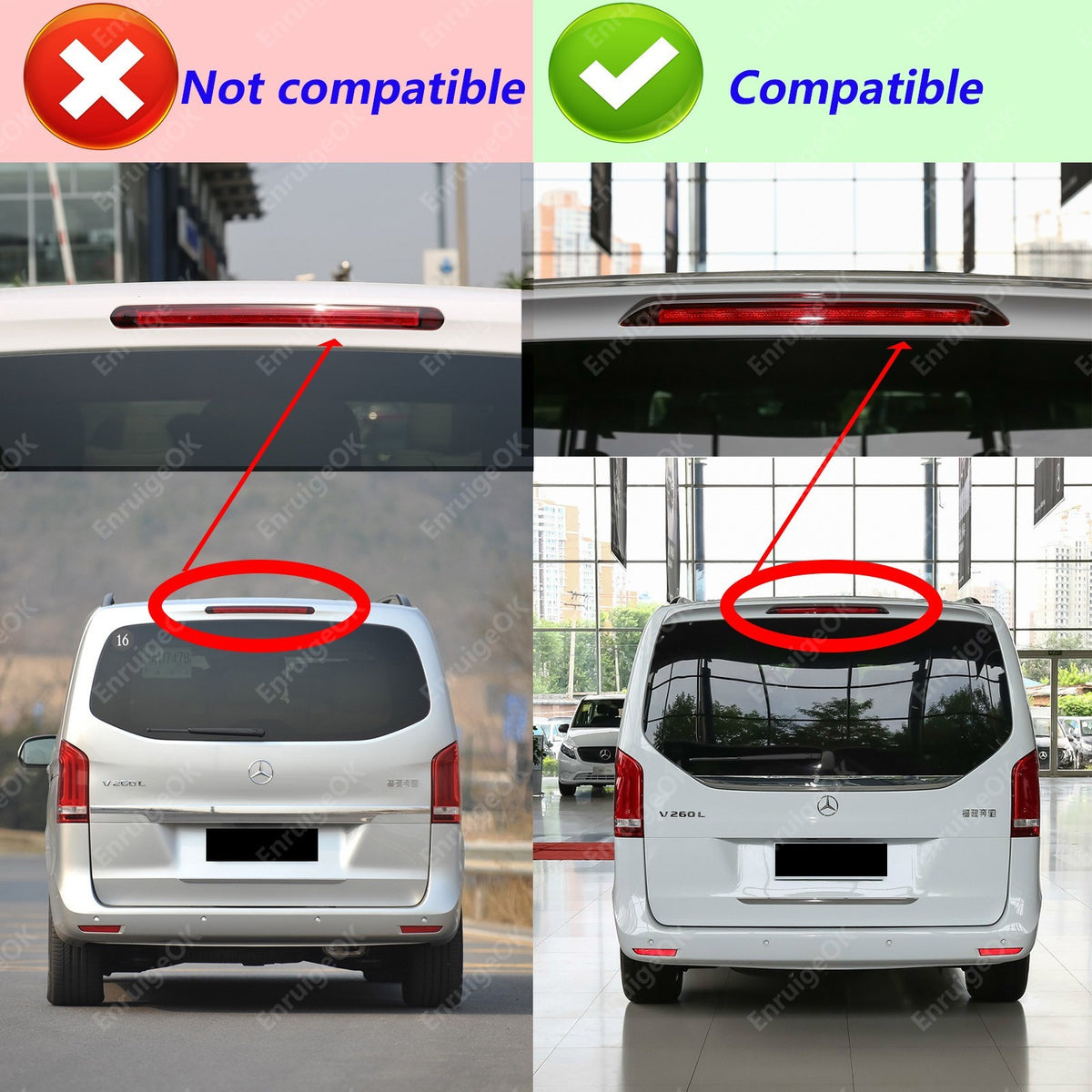

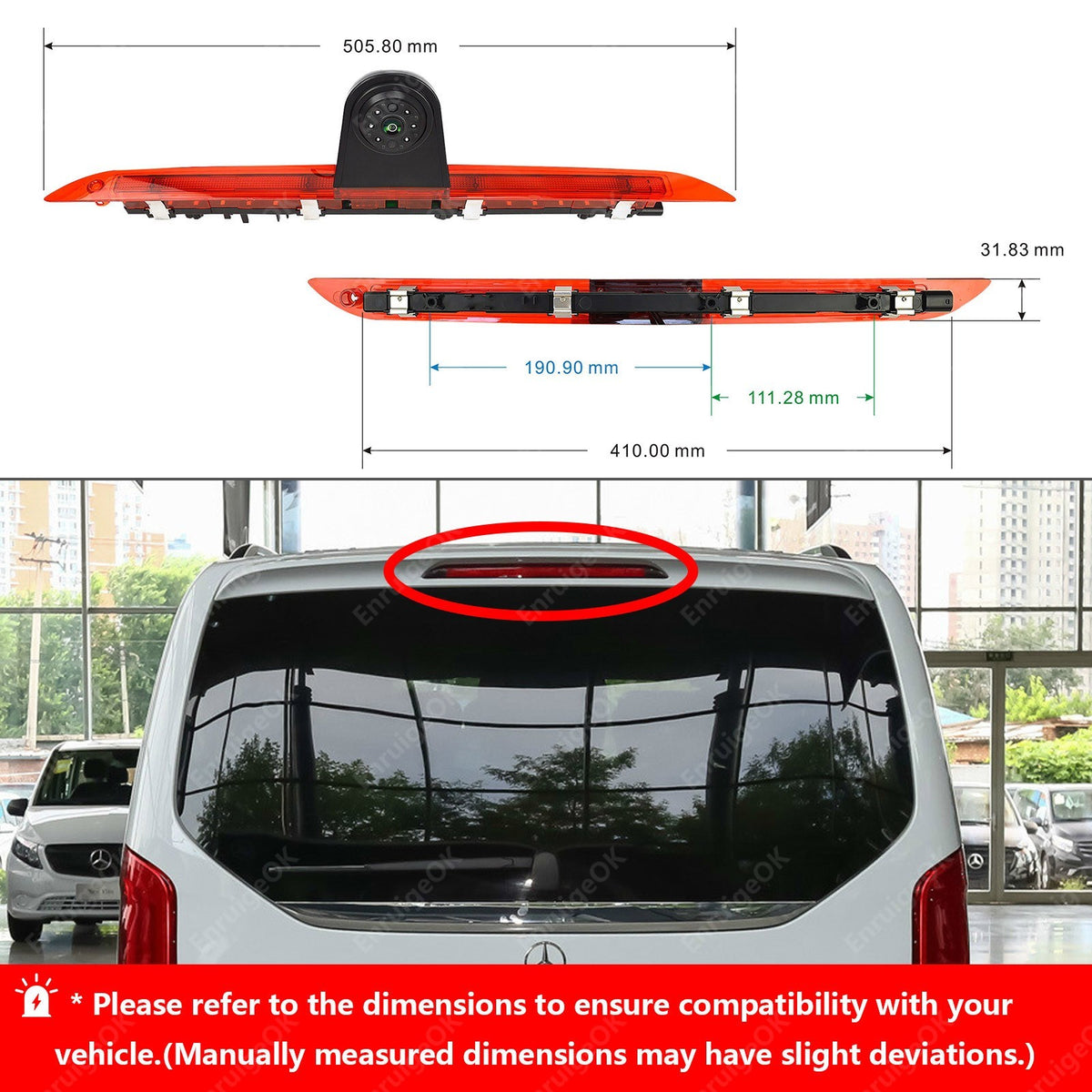

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

EnruigeOK Rear Brake Light Reversing Camera For Mercedes-Benz V-Class V260 / V260L Marco Polo Van

🚐Camera Compatibility:

✅Mercedes-Benz V-Class V260 / V260L (2019-2023)

✅Mercedes-Benz Marco Polo / Marco Polo Exclusive (2019-2023)

✅Mercedes-Benz AMG V-Class [V200 / V220 / V250 / V250d](2019-2023)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

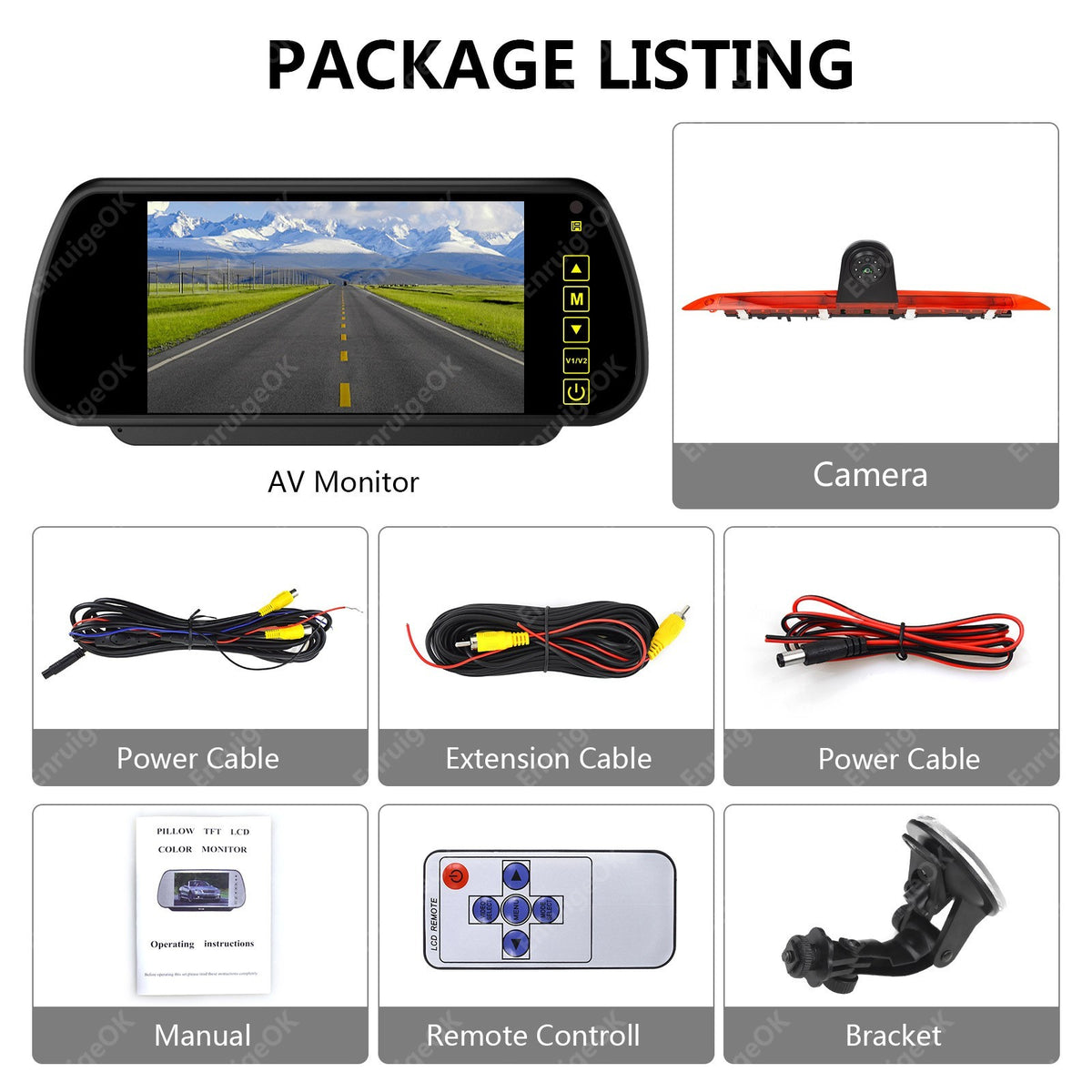

Package contents

1 X Brake light camera

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X 2.5m monitor power cable

1 X 10m/33ft. video extension cable

1 X 1m DC Power cable

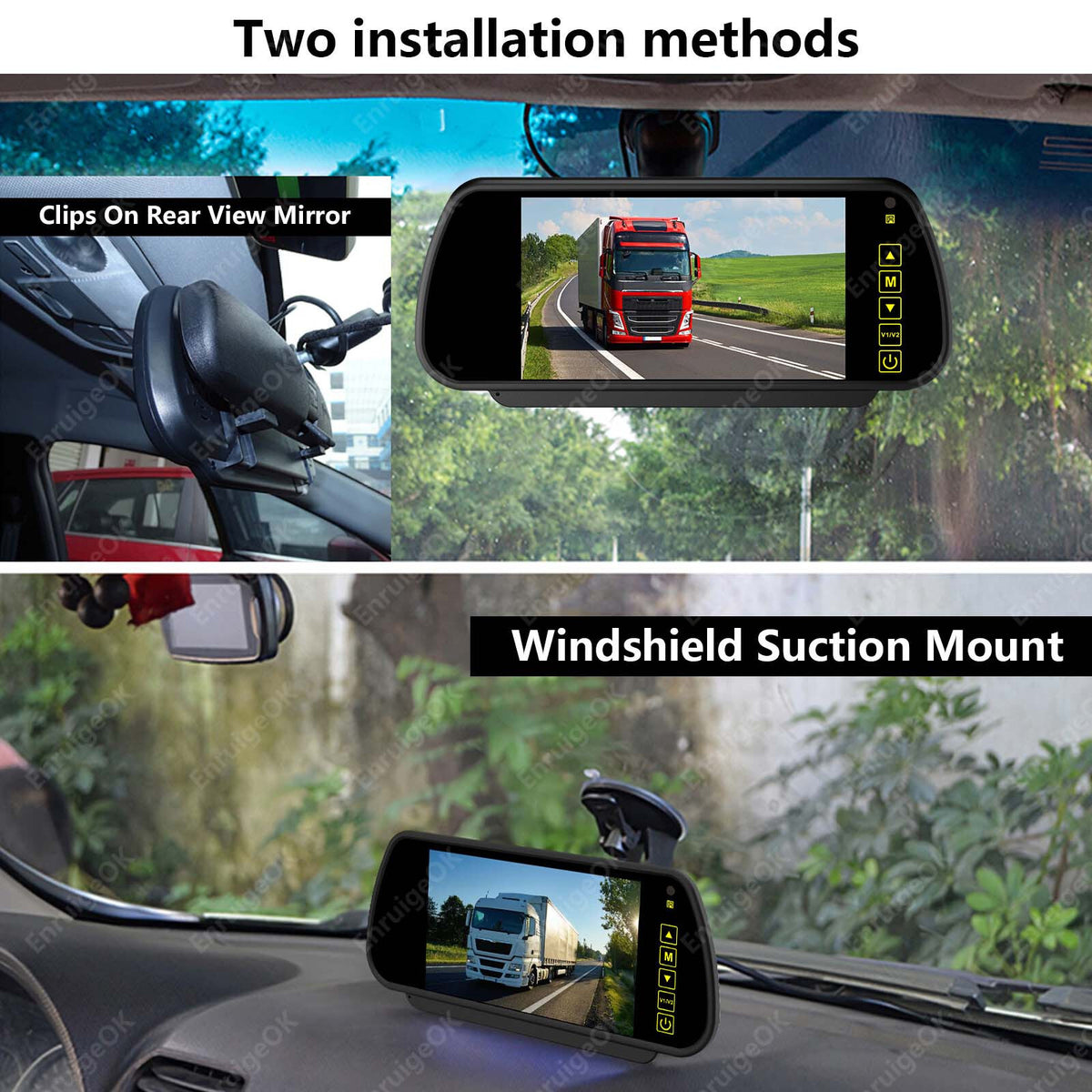

1 X Suction cup mount stand

1 X Manual

Description

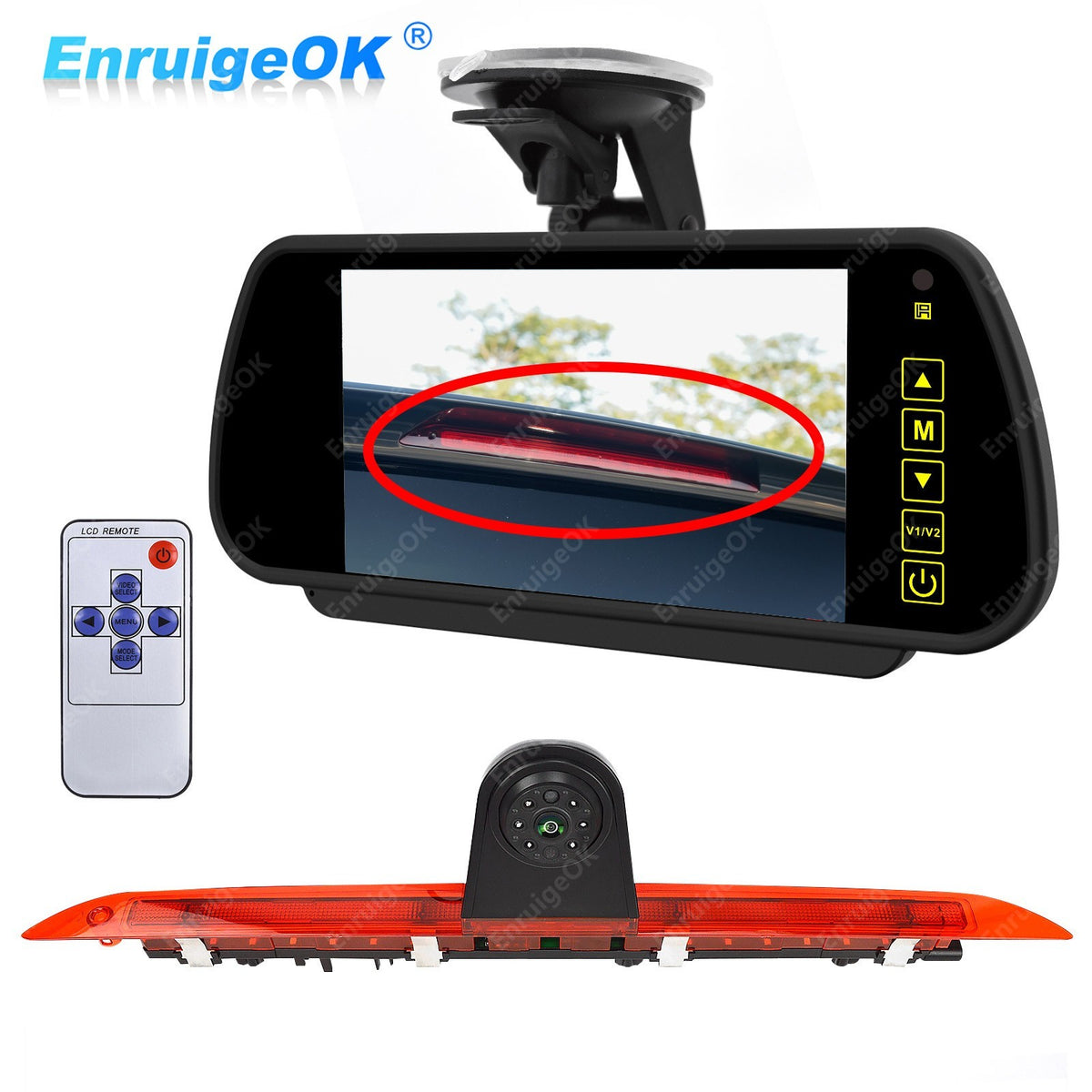

It includes a backup camera and 7" TFT-LCD monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

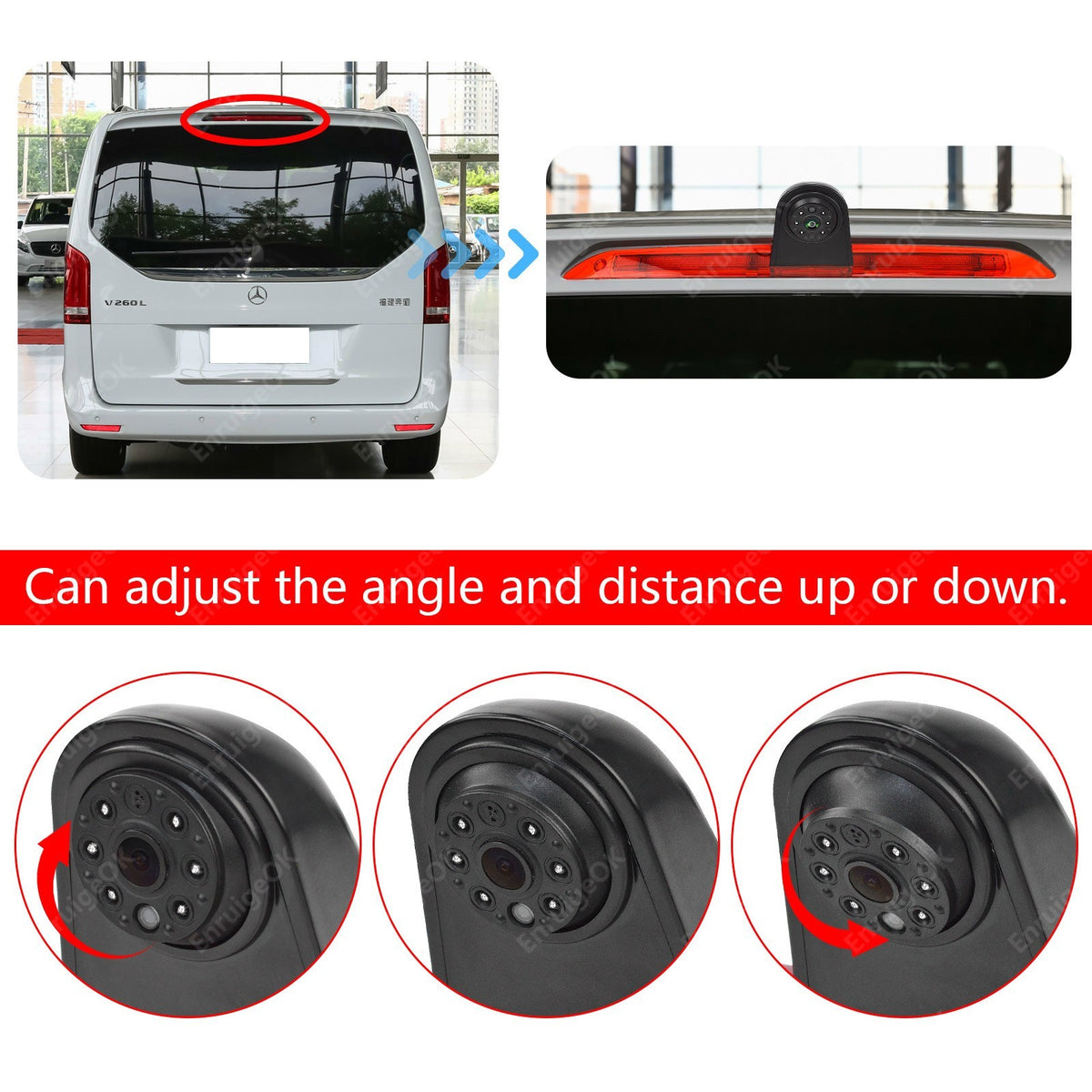

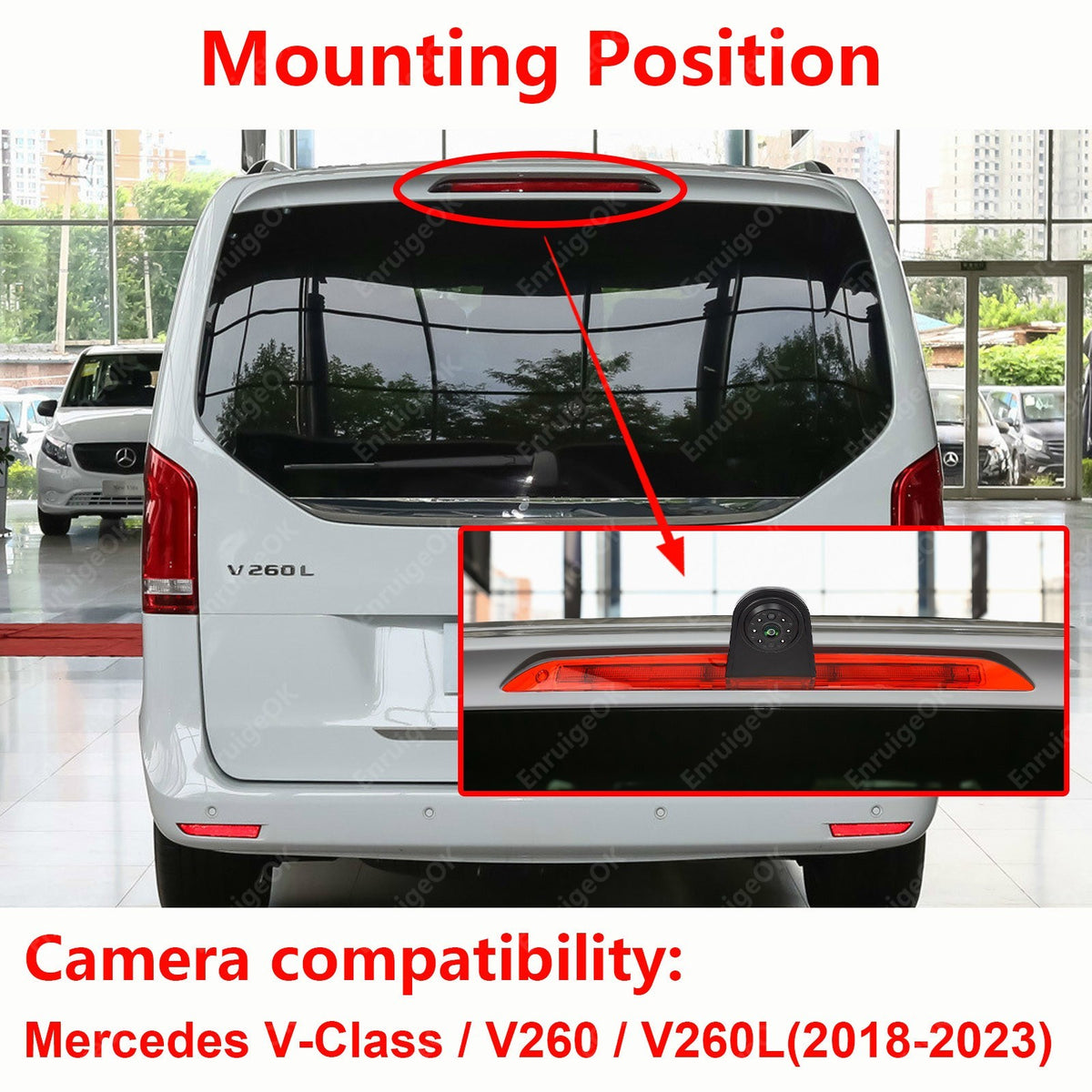

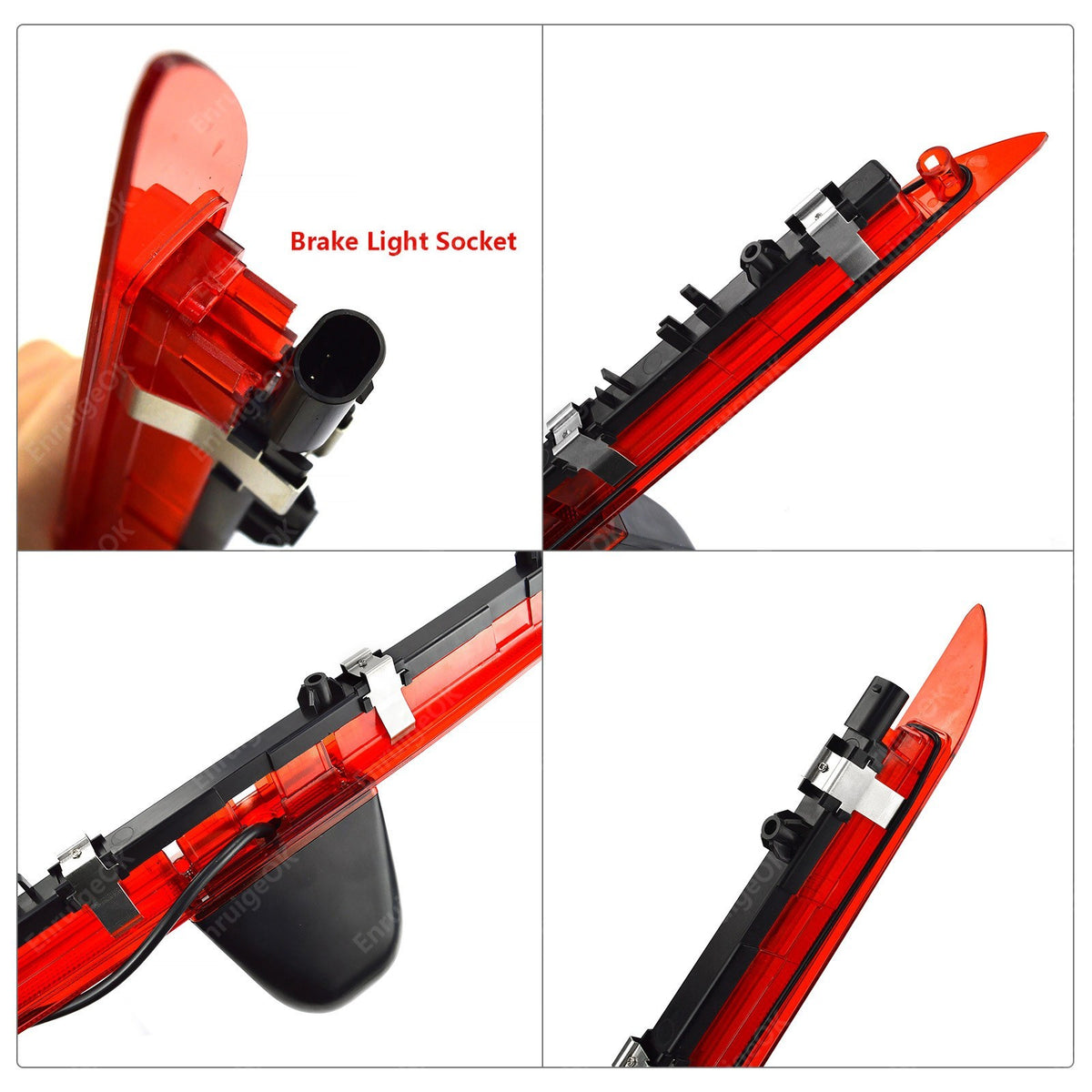

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

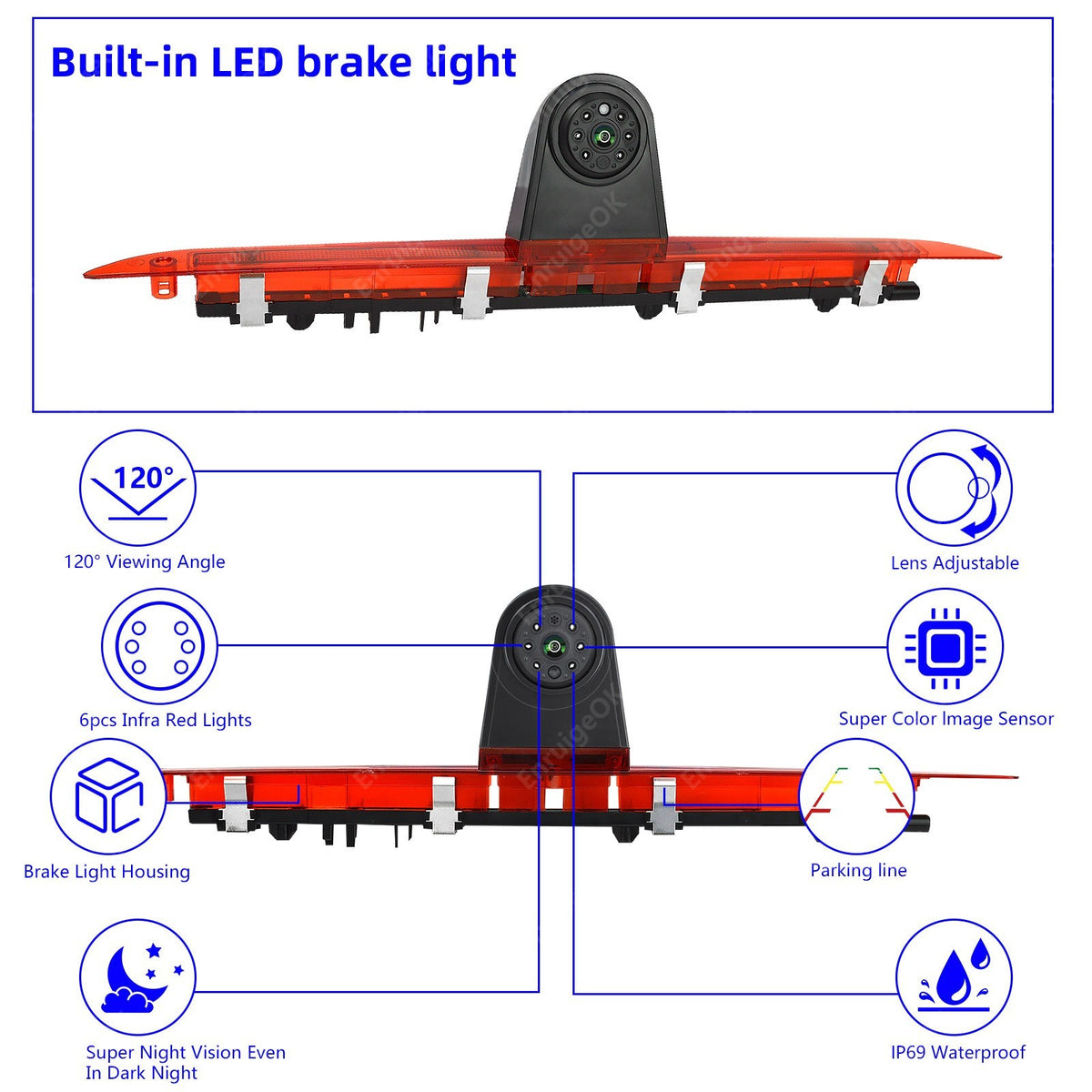

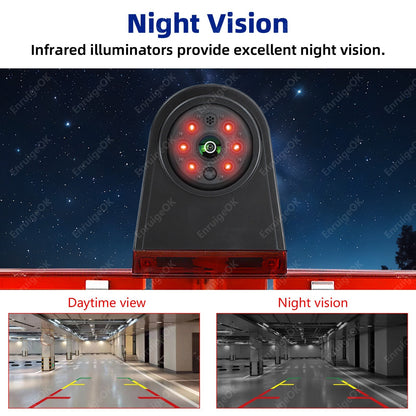

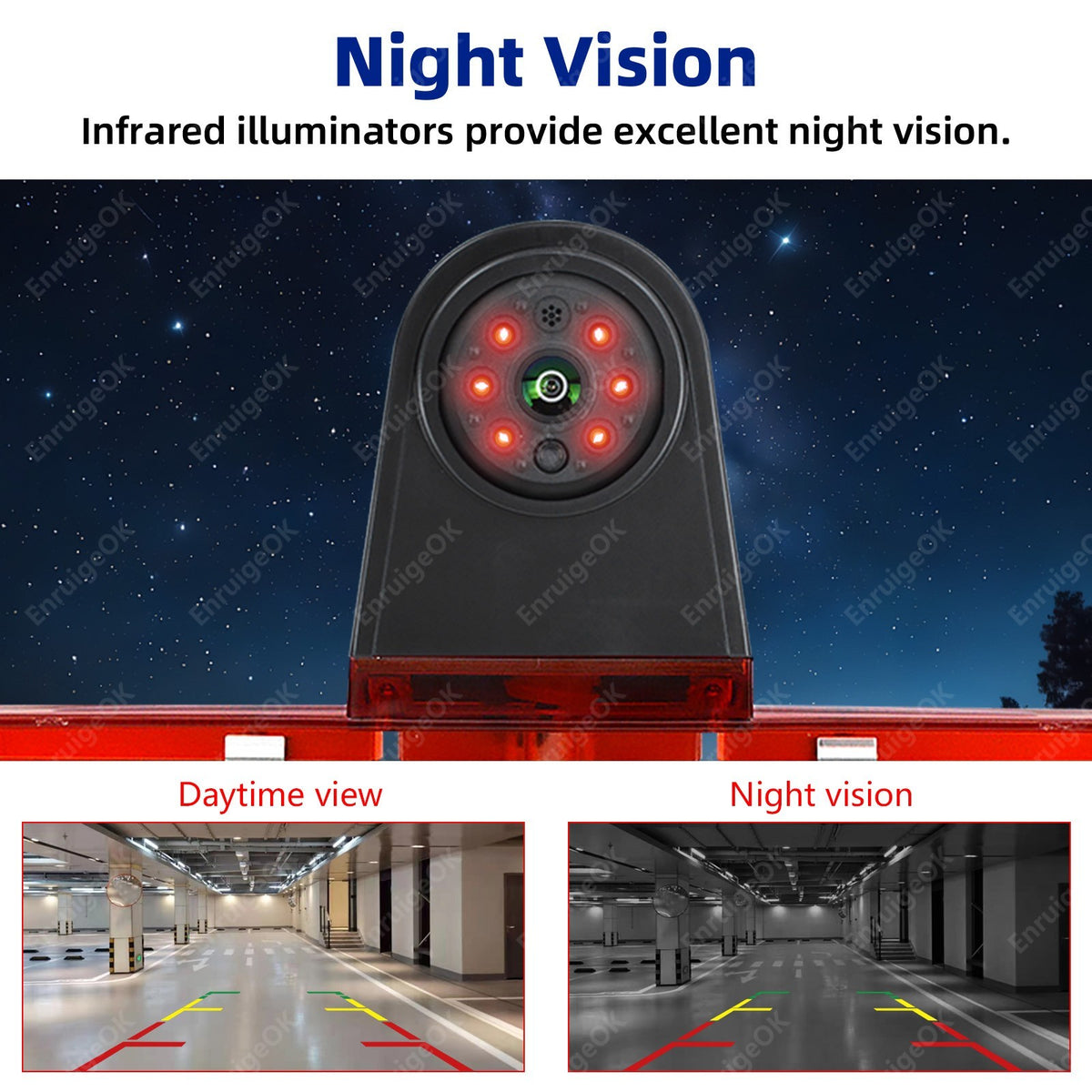

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging. Equipped with a built-in IR-CUT, the camera features 6 infrared lights around the lens to ensure excellent night vision.

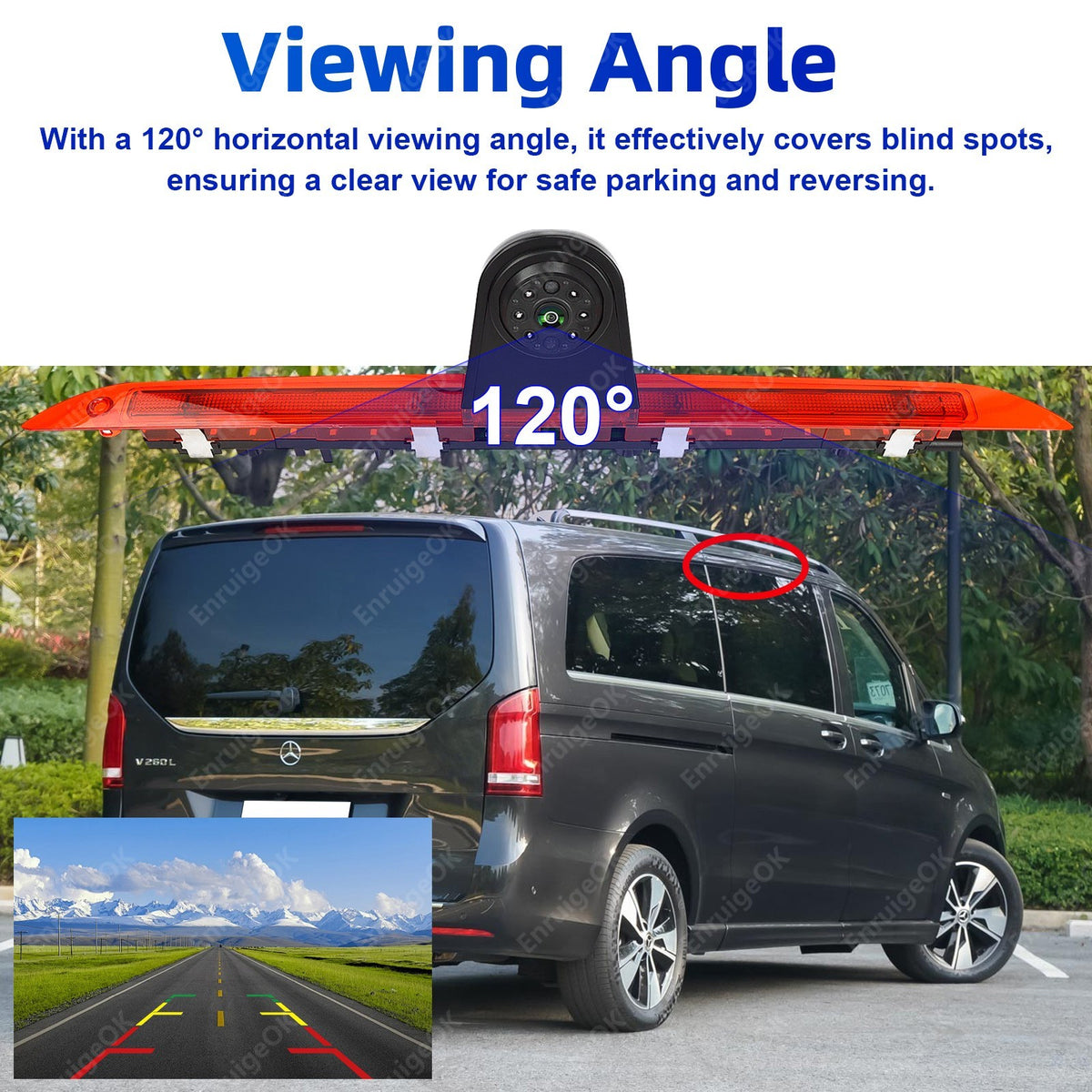

Horizontal Viewing Angle: With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: Colour CMOS

Effective pixel: 733(H)x493(V)

Resolution: CVBS 480TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP69

Horizontal angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 9-35V

Operating temperature: -20℃ to +70℃

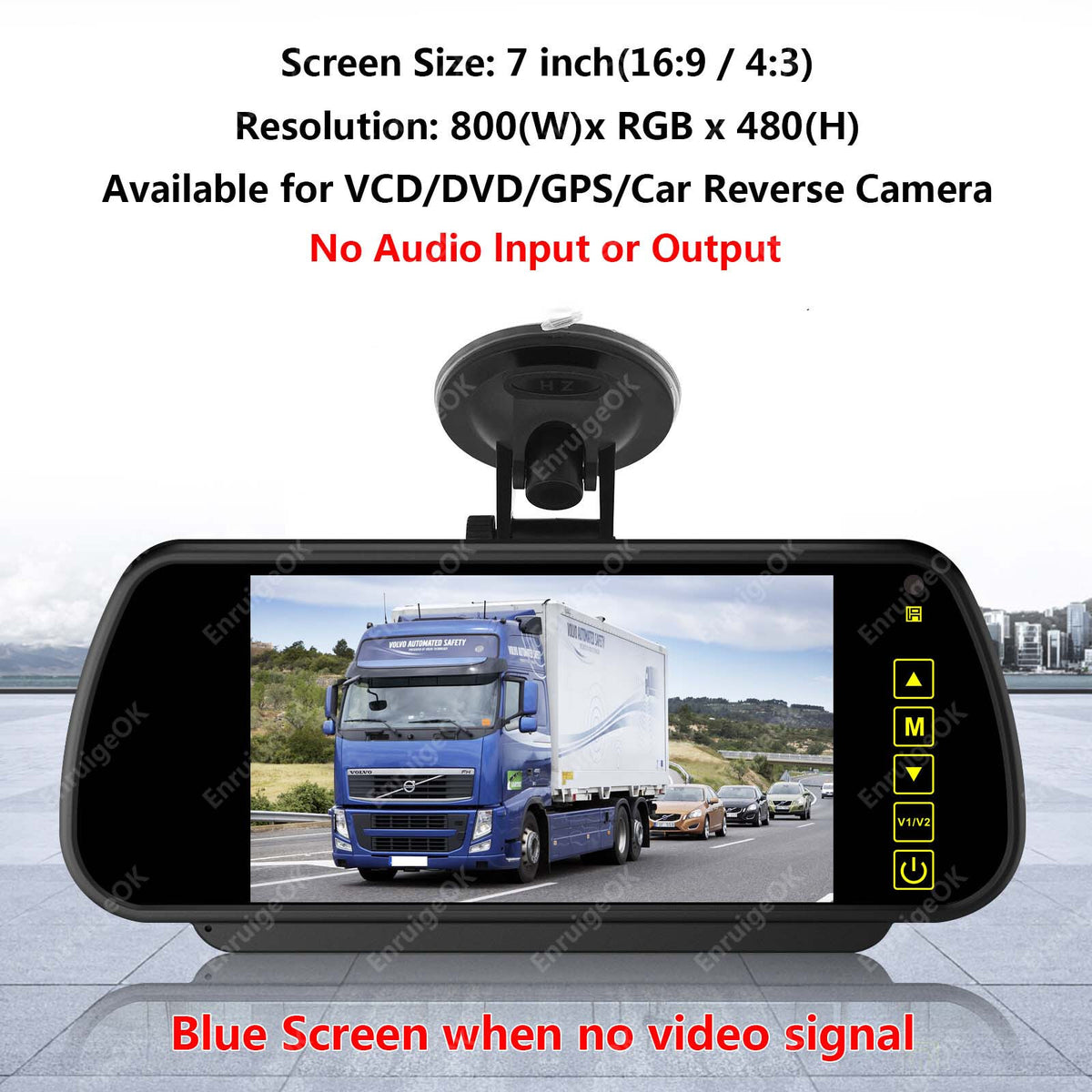

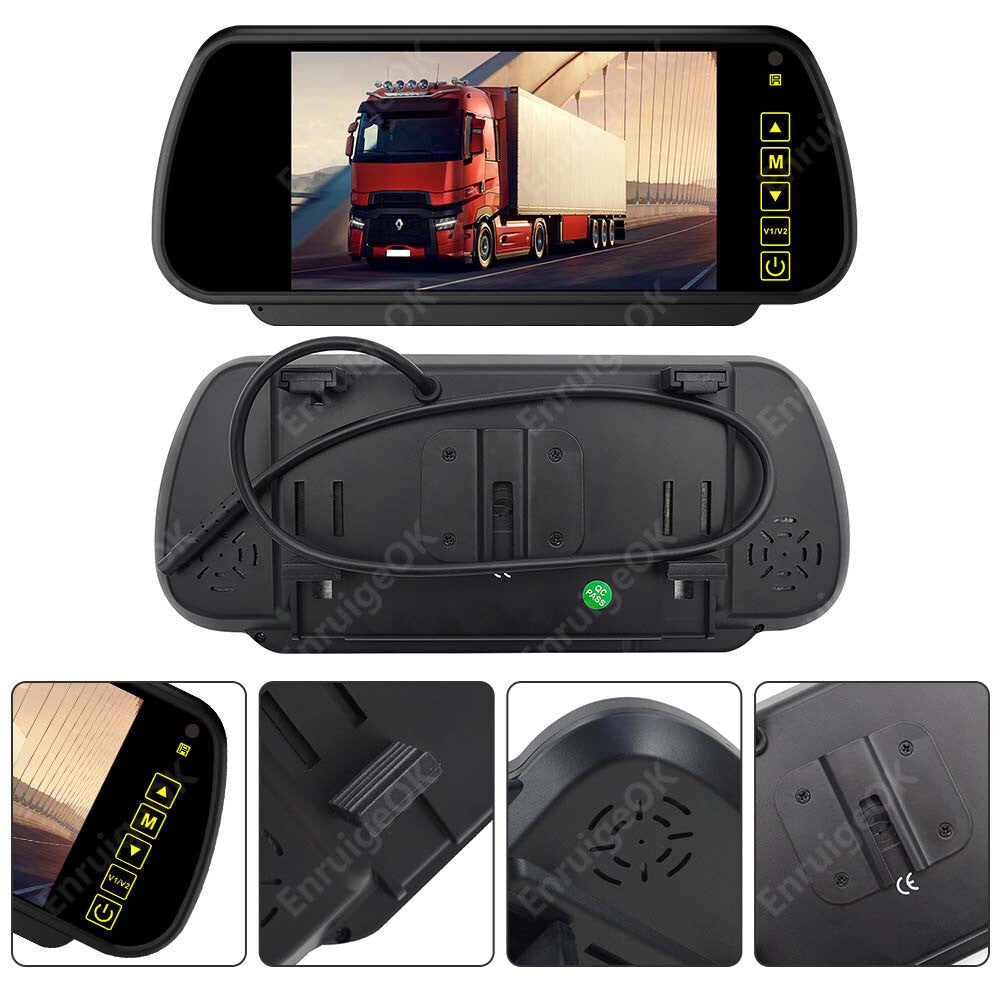

Monitor Specifications

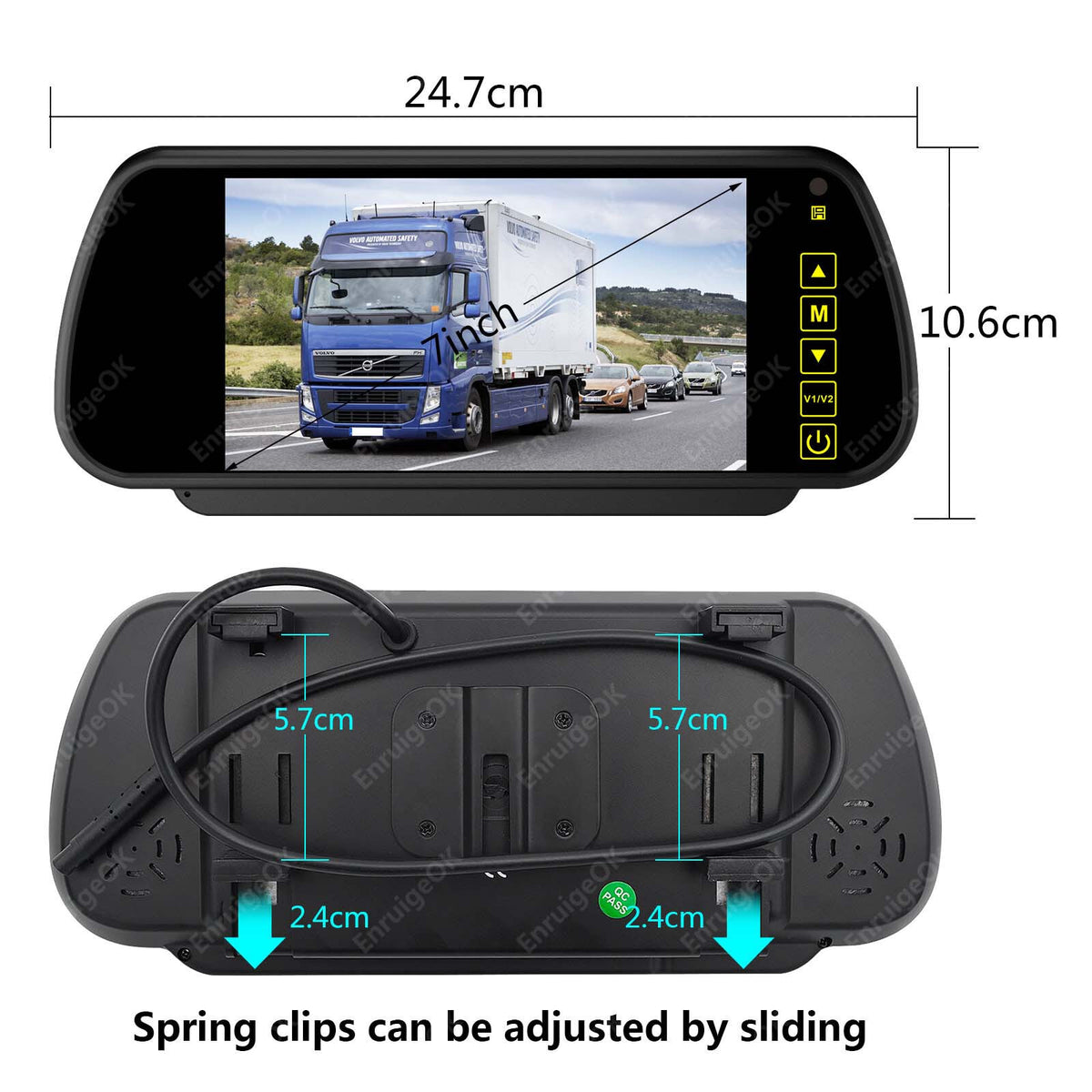

Screen: 7 inch

Resolution: 800x(RGB)x480

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

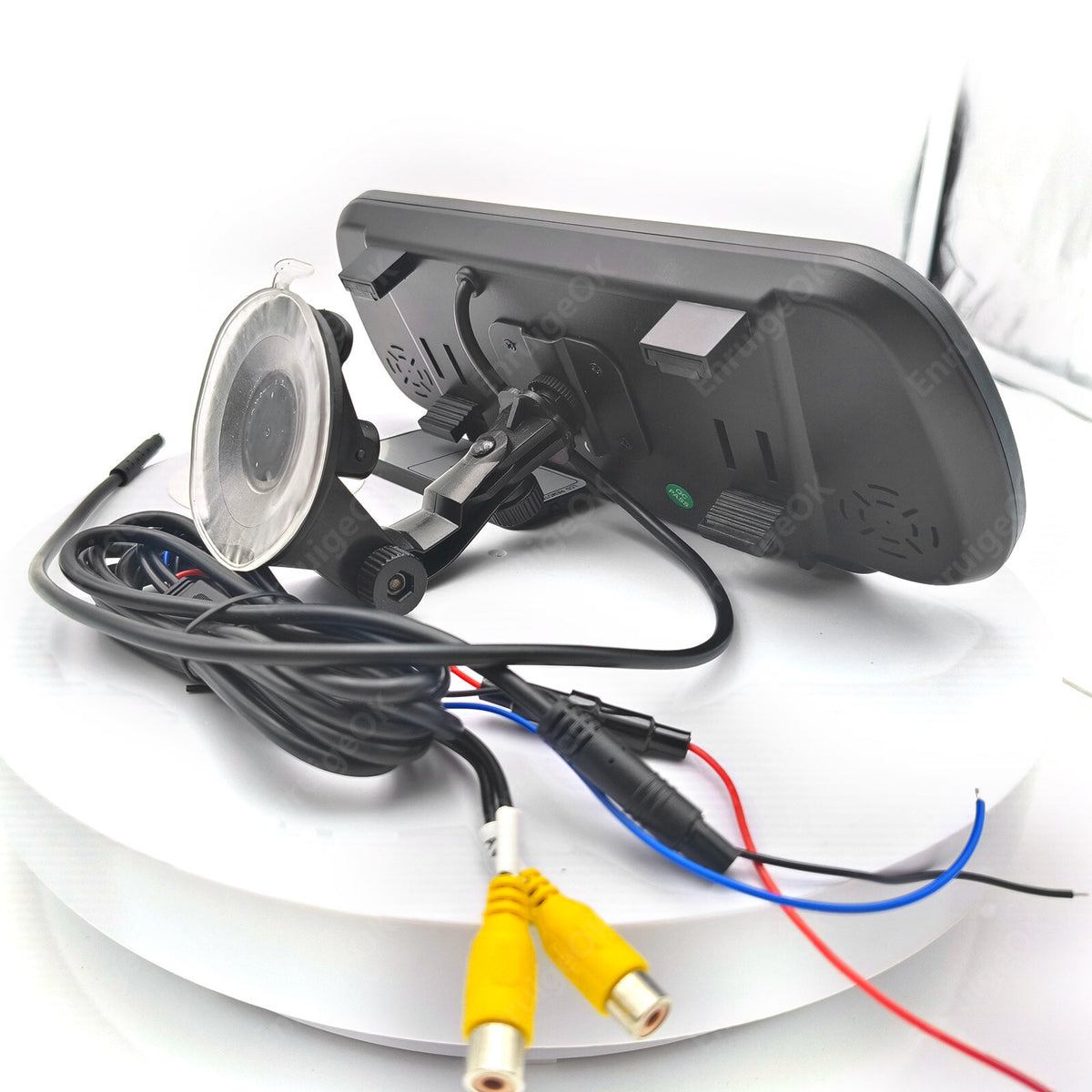

Video Input: Dual video inputs, AV1 and AV2(For reversing camera) video input, the monitor will automatically turn on and switch to the rear view camera (image) when the reversing gear is engaged.

Blue screen displayed when no signal is detected.

Parking Guidelines: Adjustable (ON/OFF via monitor settings).

Power Supply: DC 9V-35V

Power consumption: 6W

Rear watching: Image can be changed left and right

Operate mode: The touch key operation and remote control

Remote control: a CR2025 button battery (battery not included)

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
