Brake Light Reversing Camera for Maxus LDV Deliver 9 & 6.86" Dual Split Monitor

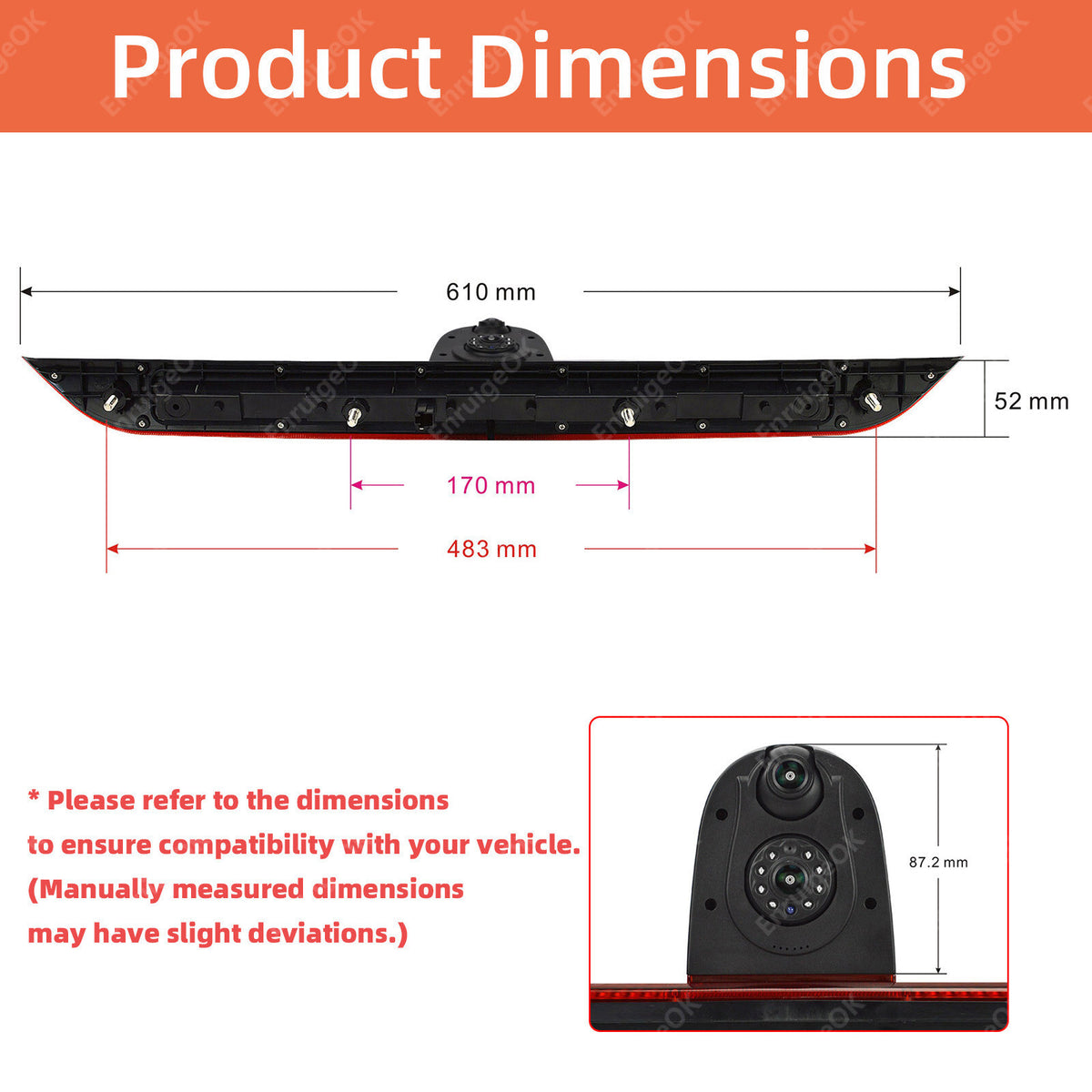

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

EnruigeOK 6.86" Dual Split Screen Mirror Monitor with Strong Windshield Suction Mount & Dual Lens Rear Brake Light Reversing Camera For For Maxus Deliver 9, e Deliver 9, and LDV Deliver 9 Van

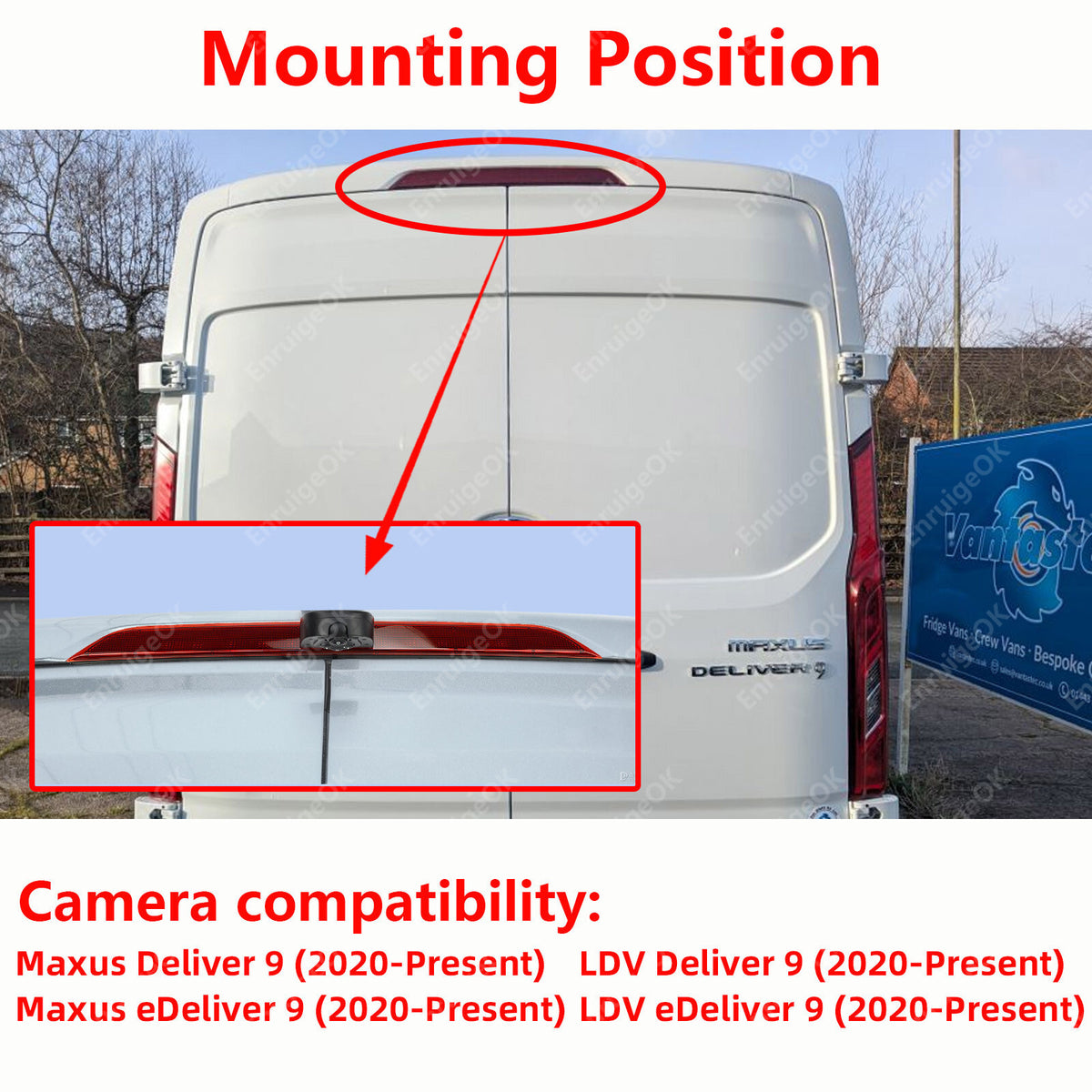

Camera Compatibility

Maxus Deliver 9 (2020-Present)

Maxus e Deliver 9 (2020-Present)

LDV Deliver 9 (2020-Present)

LDV e Deliver 9 (2020-Present)

Maxus V90 (2019-Present)

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

Monitor Bracket Note

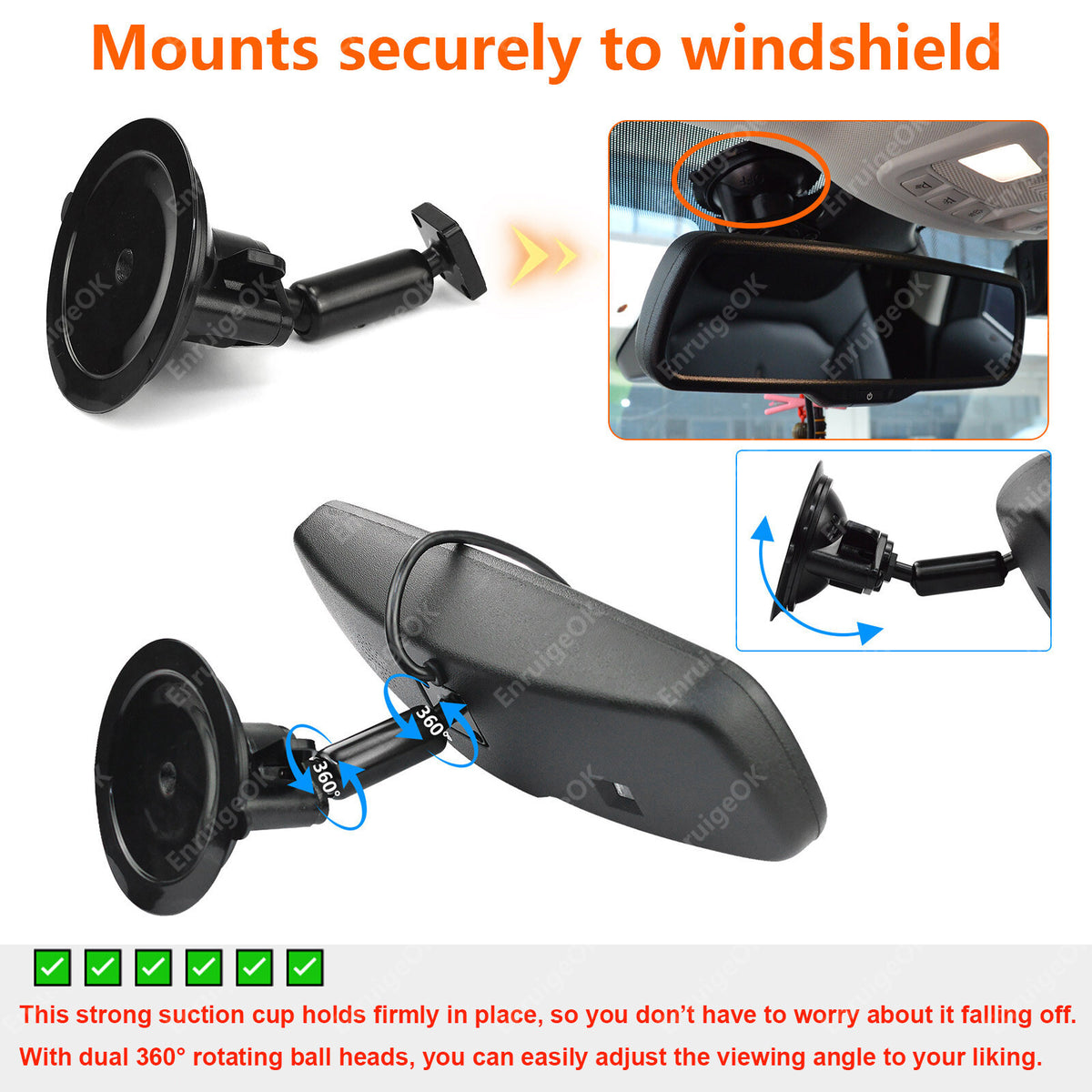

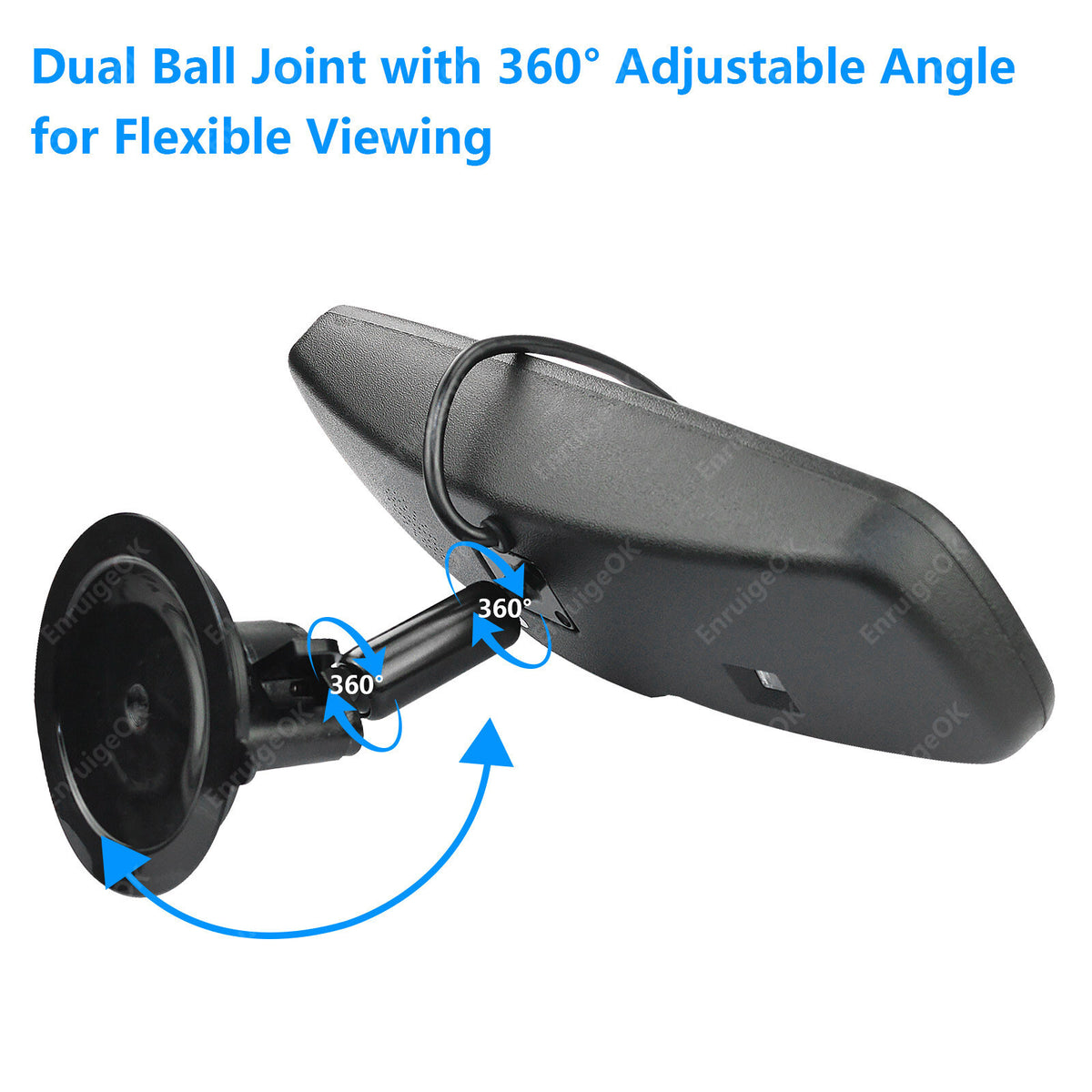

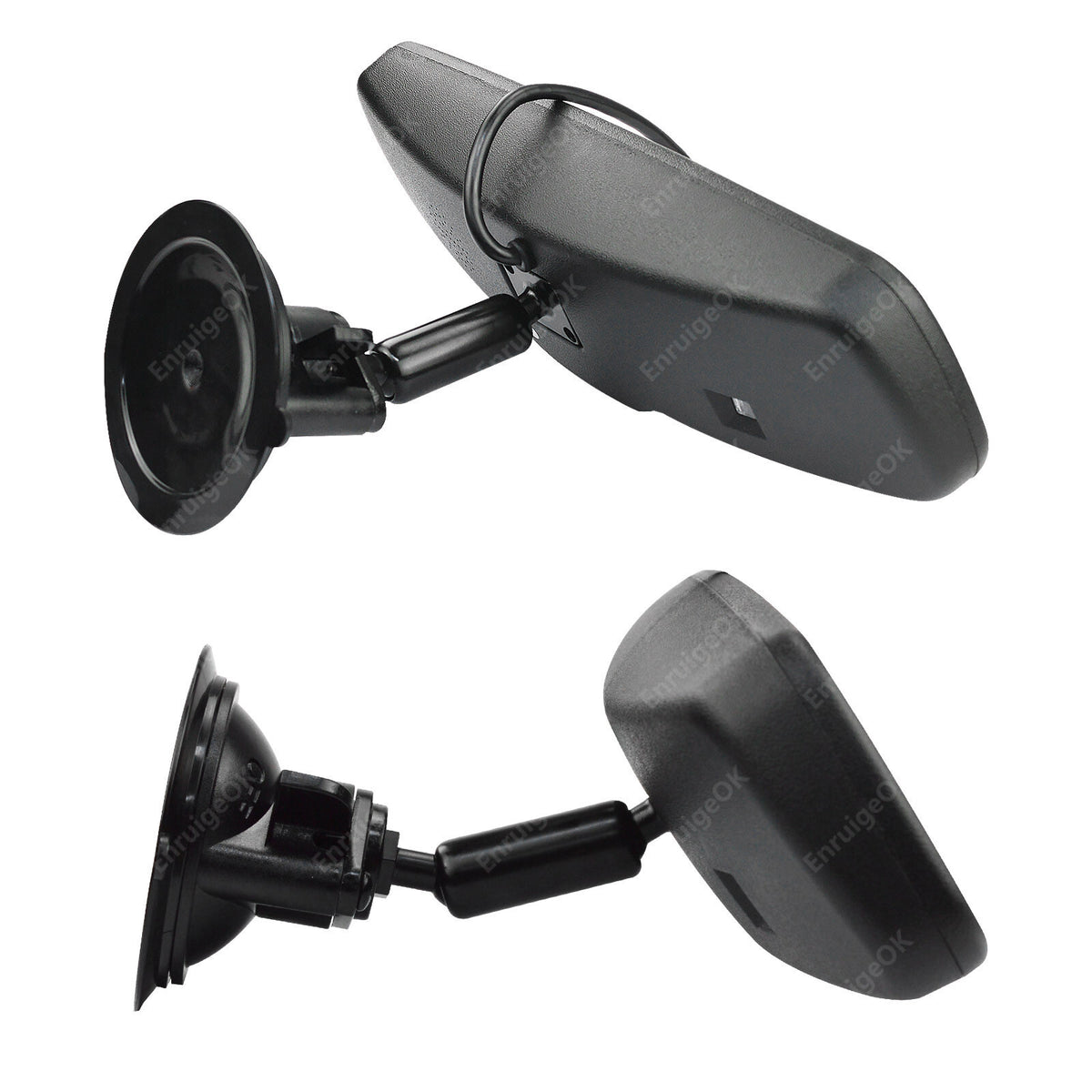

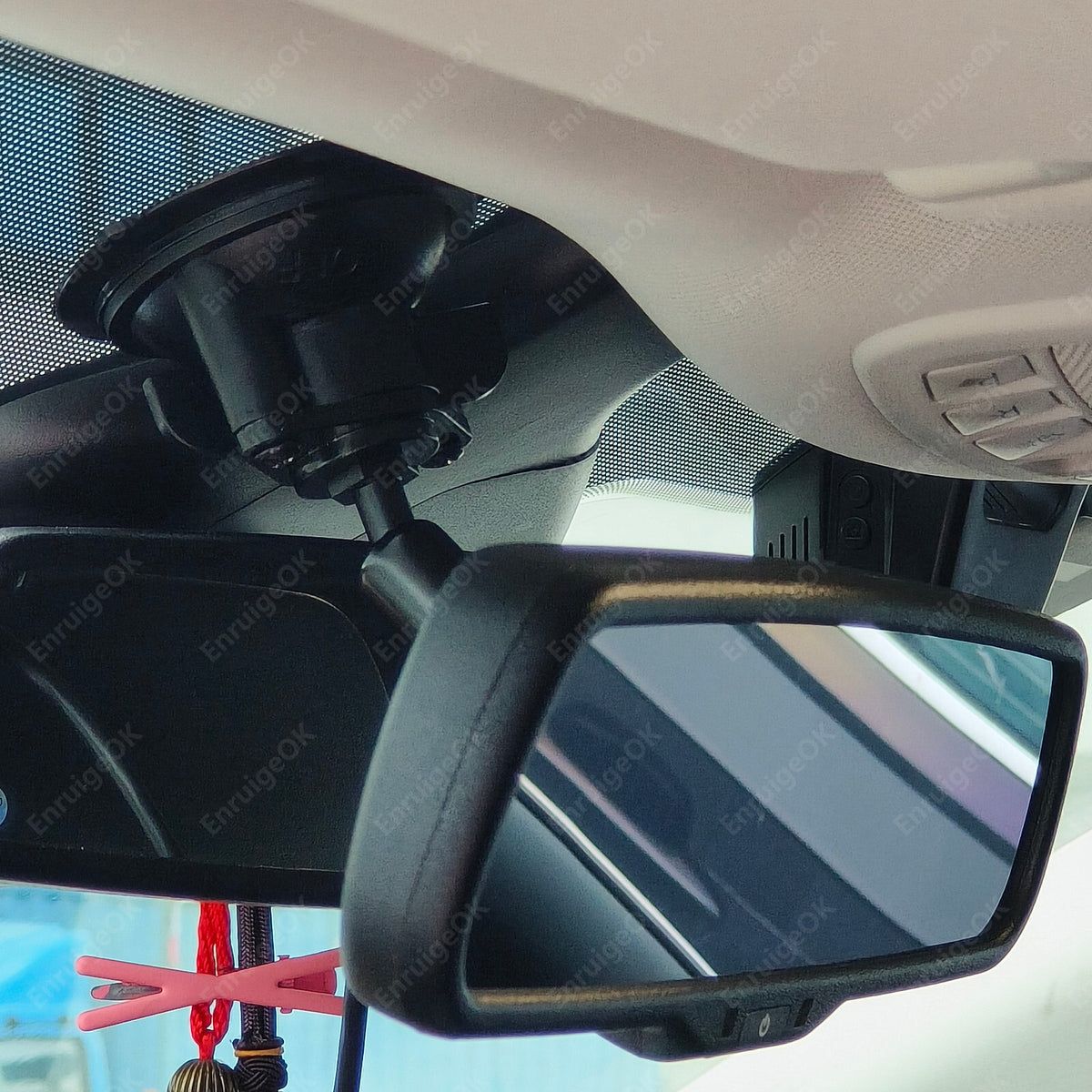

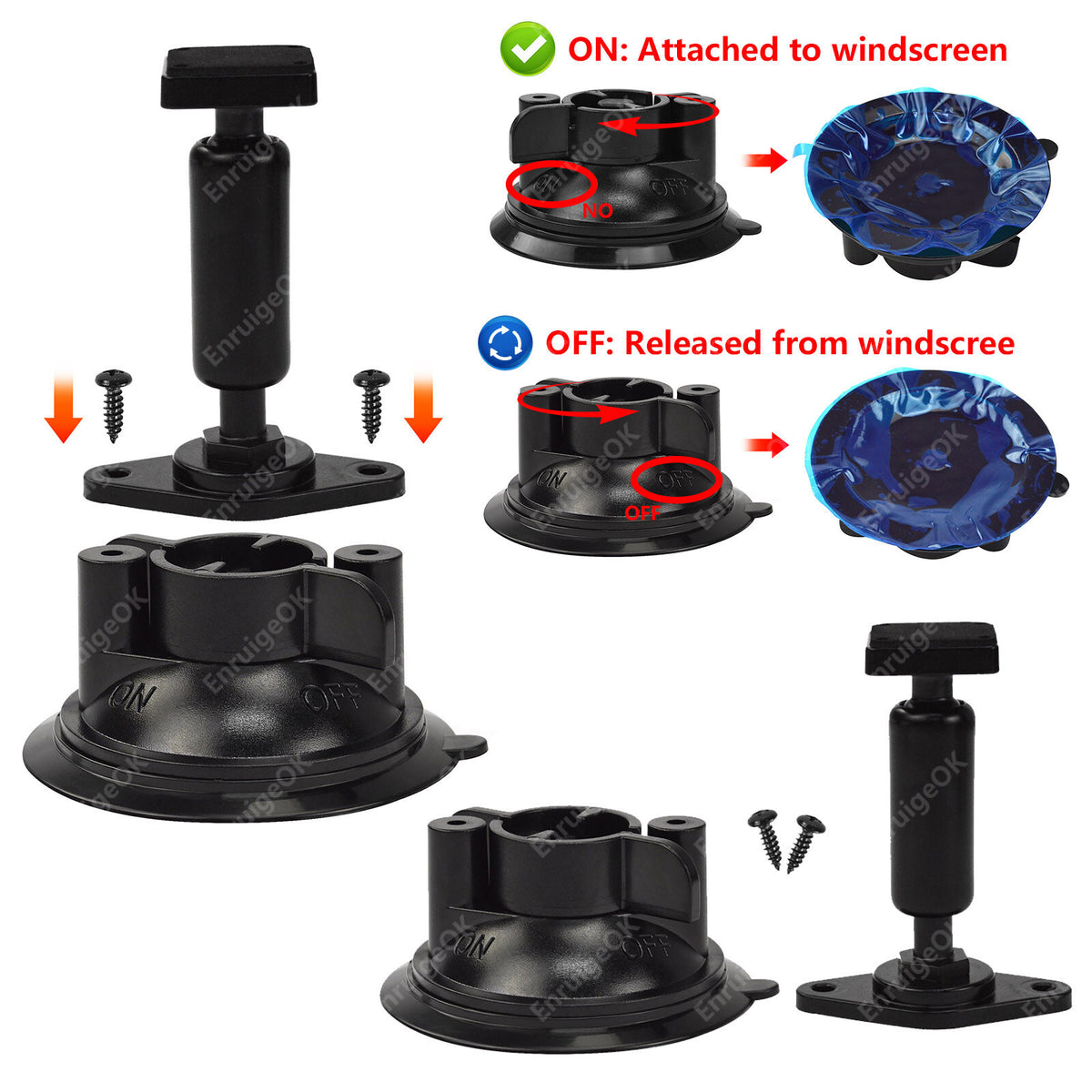

This set comes with a suction cup bracket. Strong suction cup design ensures firm attachment without slipping. Equipped with dual 360° rotating ball heads for flexible angle adjustment, allowing you to achieve the perfect viewing angle with ease.

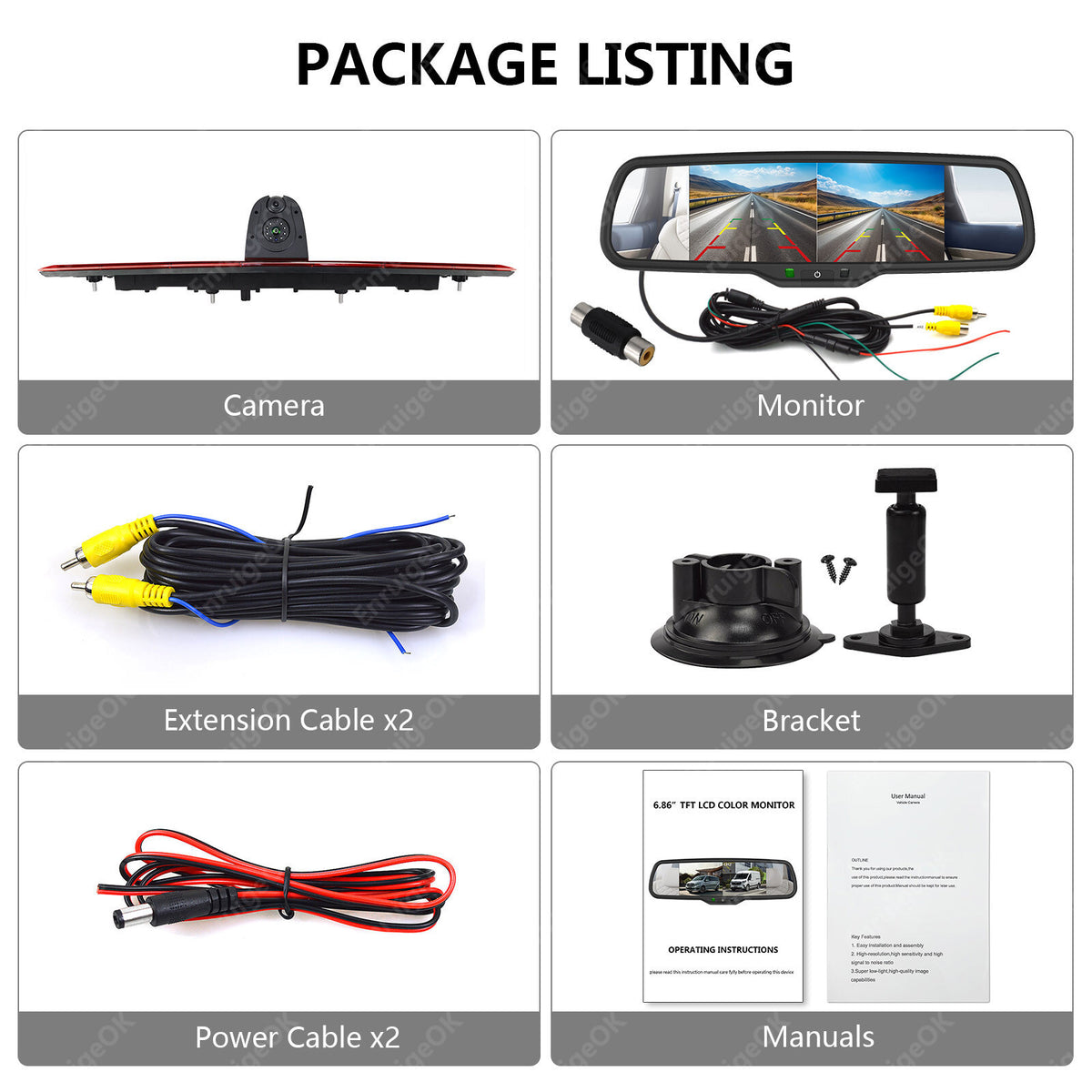

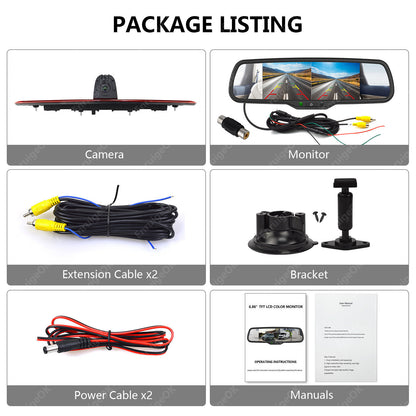

Package contents

1 X Brake light camera

1 X 6.86'' Mirror monitor

1 X 2.5m monitor power cable

2 X 10m/33ft. video extension cable

2 X 1m DC power cable

1 X Female to female adapter

1 X Suction cup bracket

1 X Manual

Description

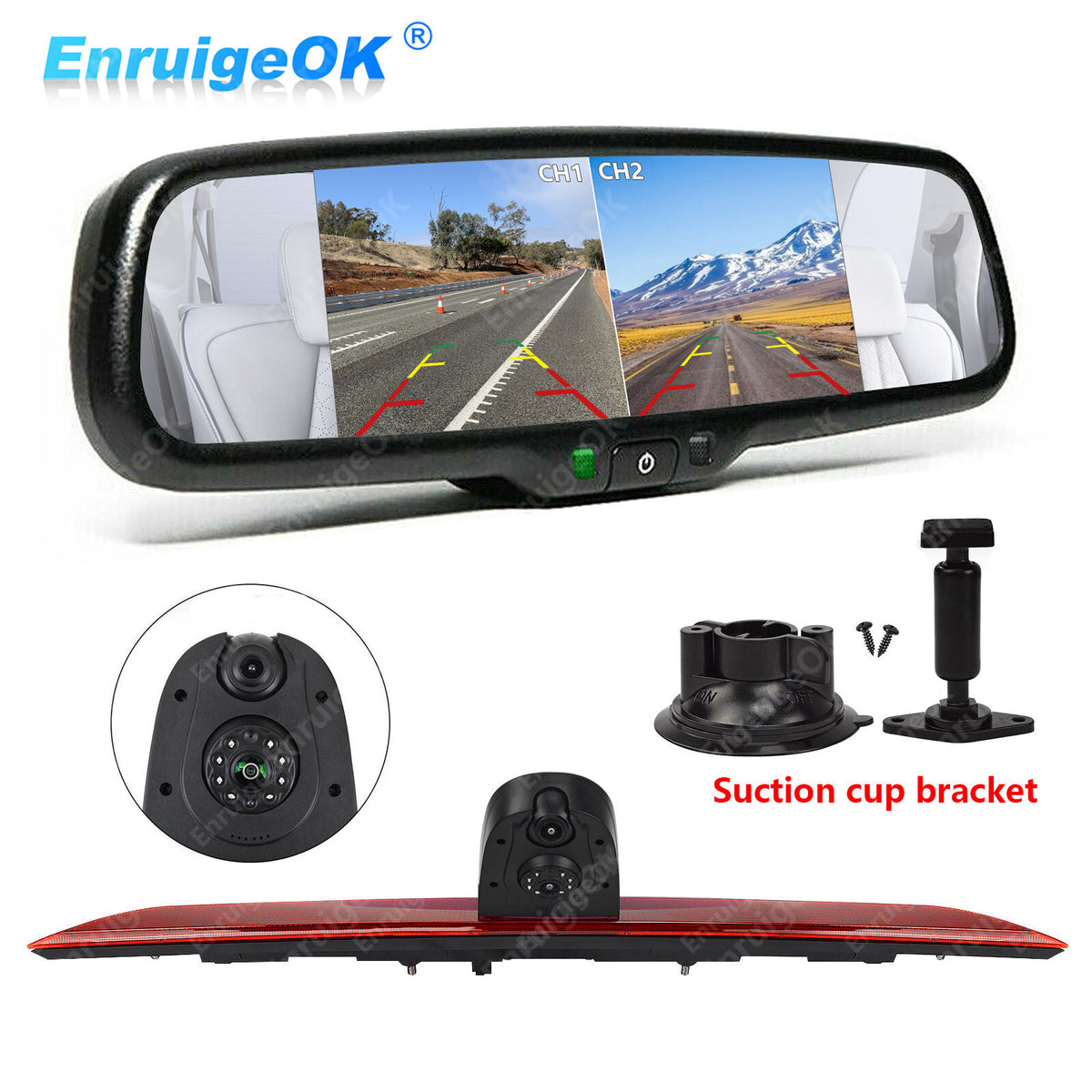

Complete Rearview System: Includes a 6.86-inch 2 split screen mirror monitor and dual-lens brake light camera for enhanced visibility and parking safety.

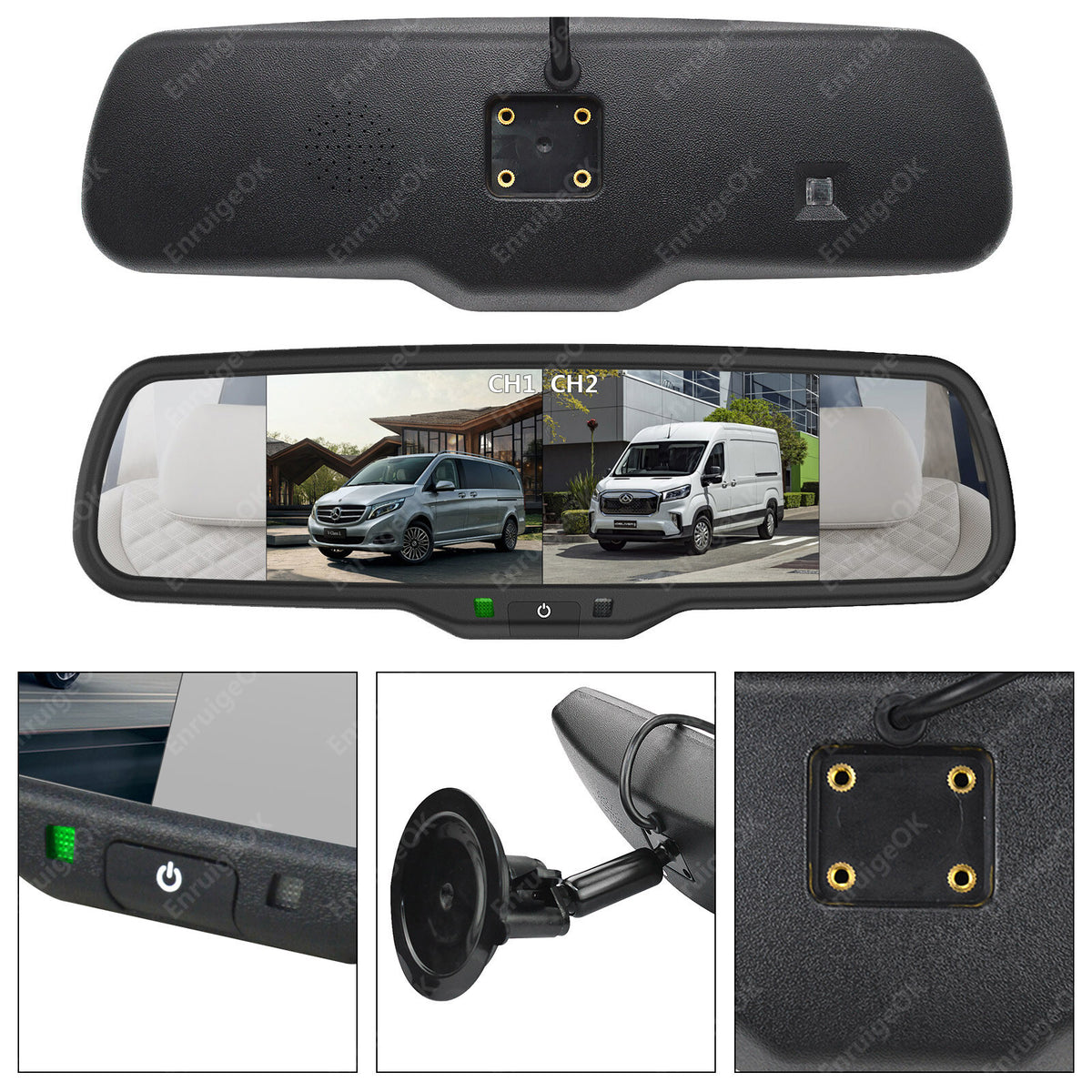

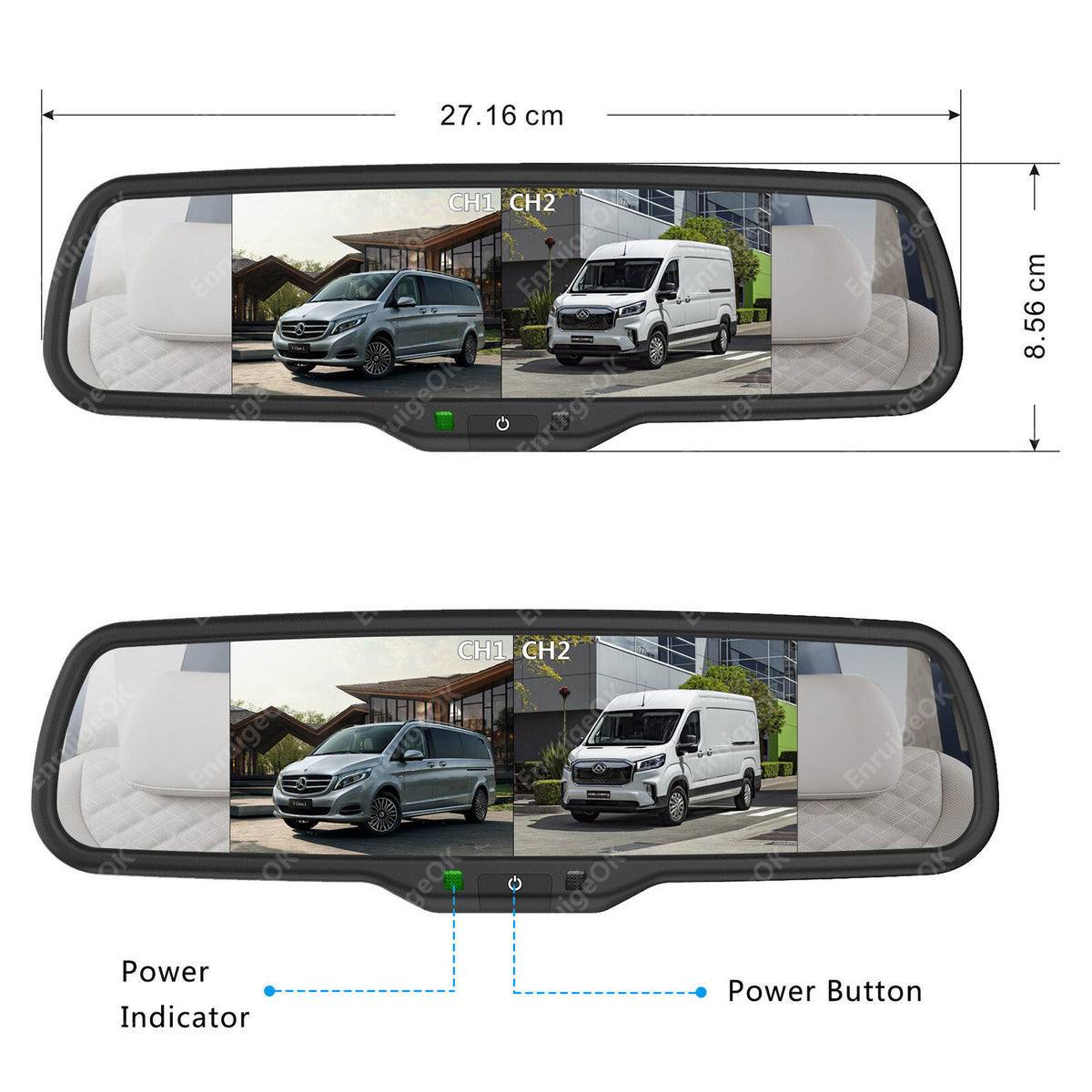

6.86" Dual-Screen Monitor: High-res (1280*480 IPS) display with dual inputs, 2 split screen, auto full-screen mode when reversing.

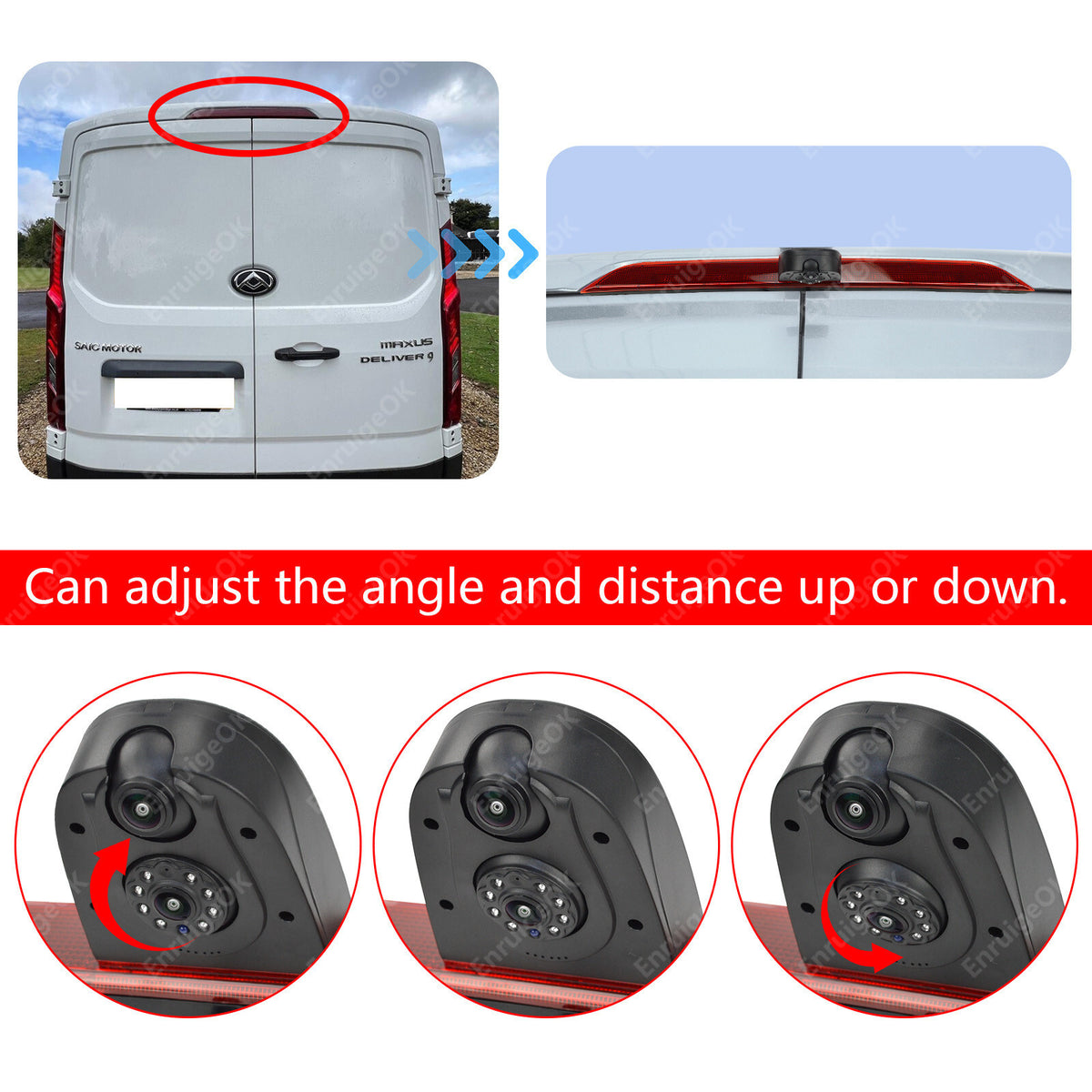

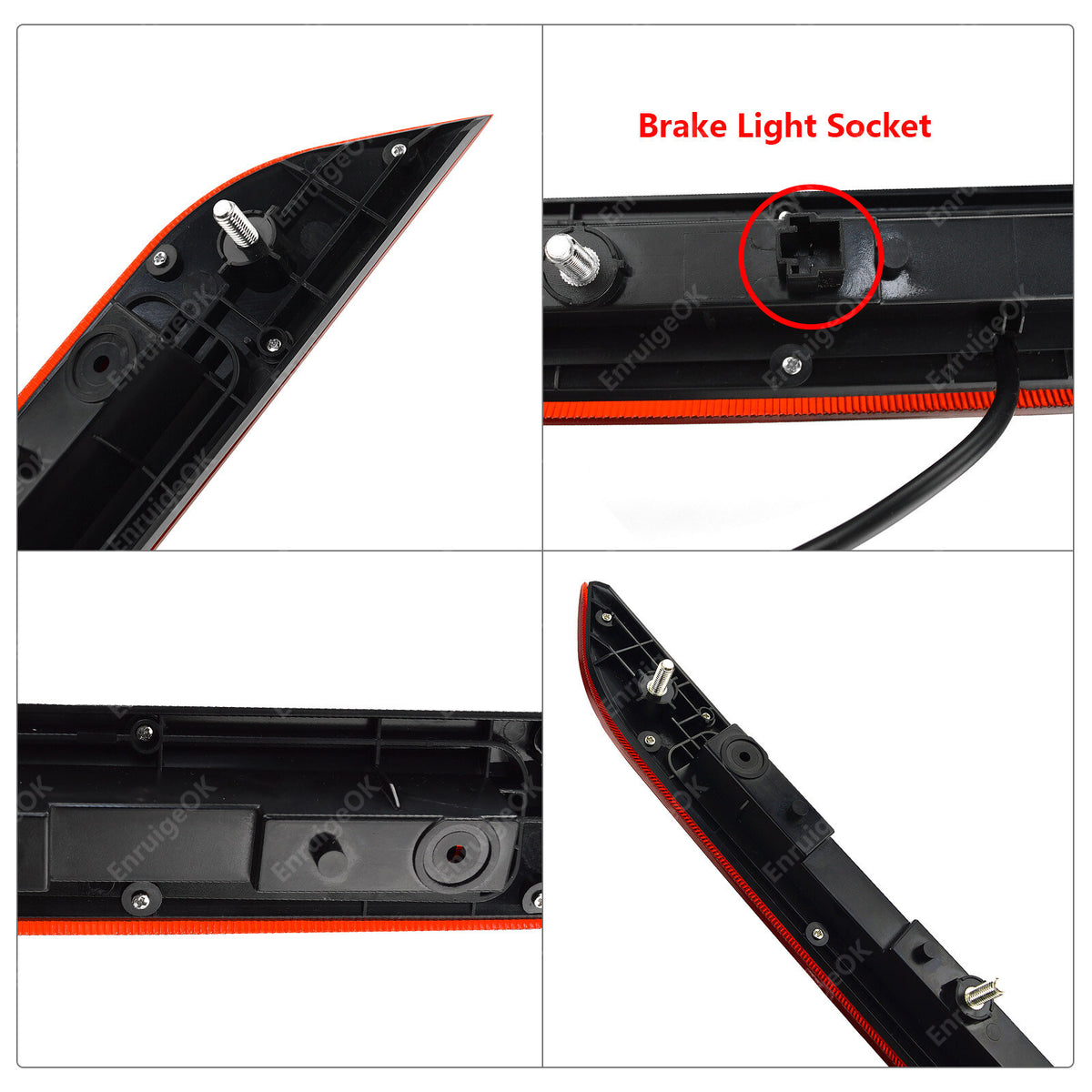

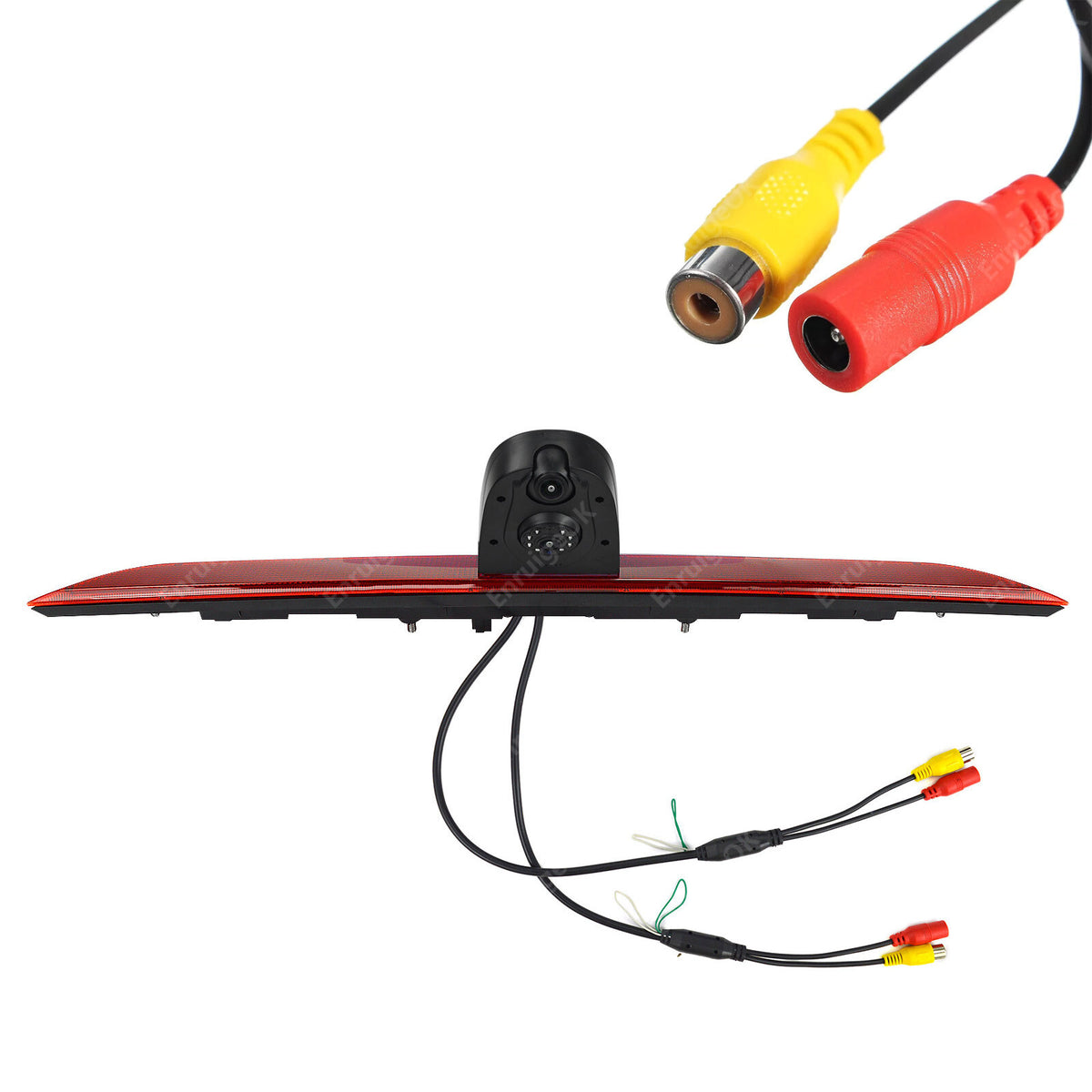

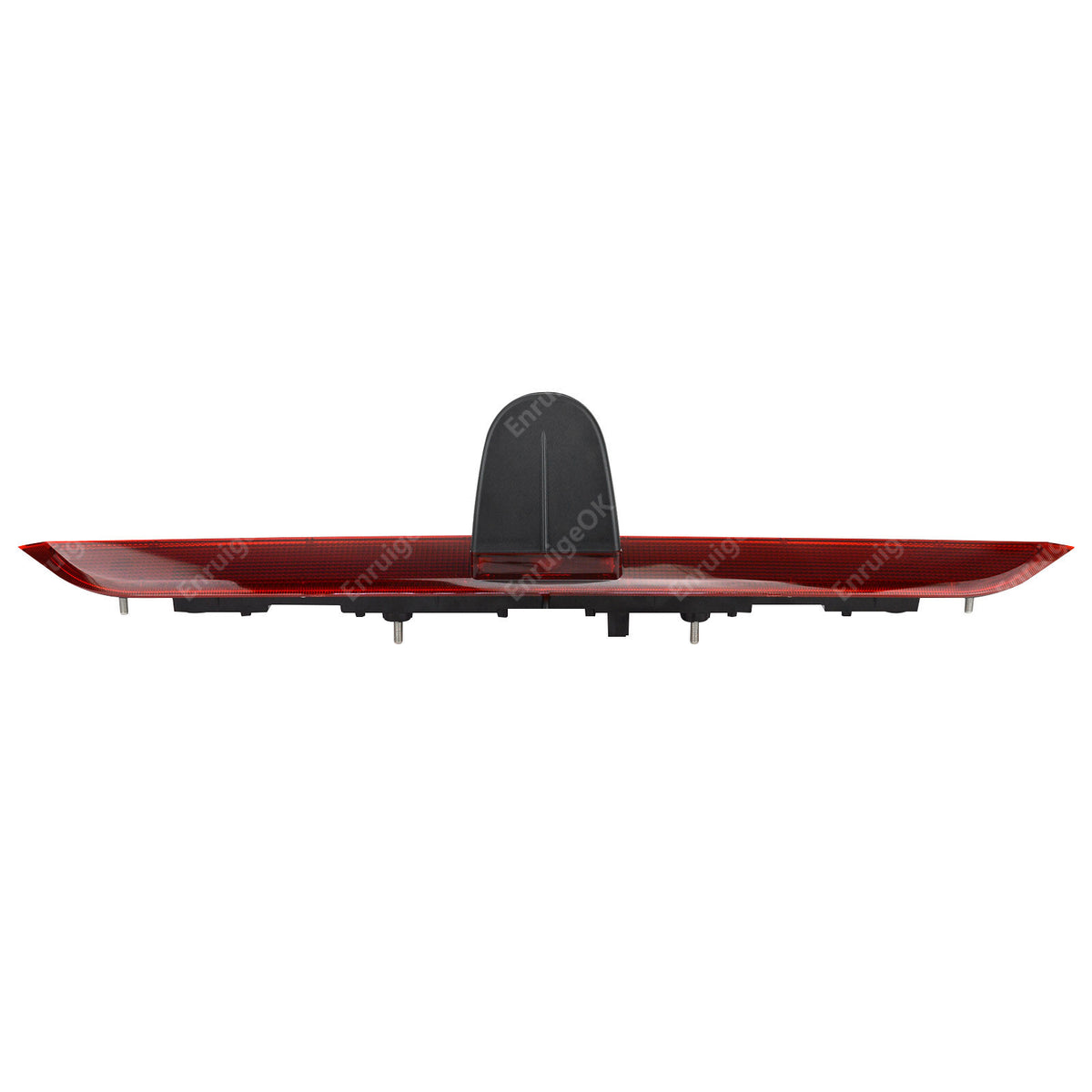

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

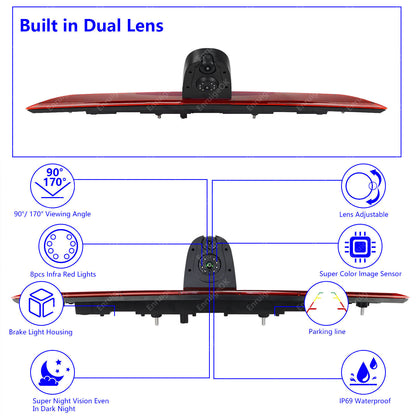

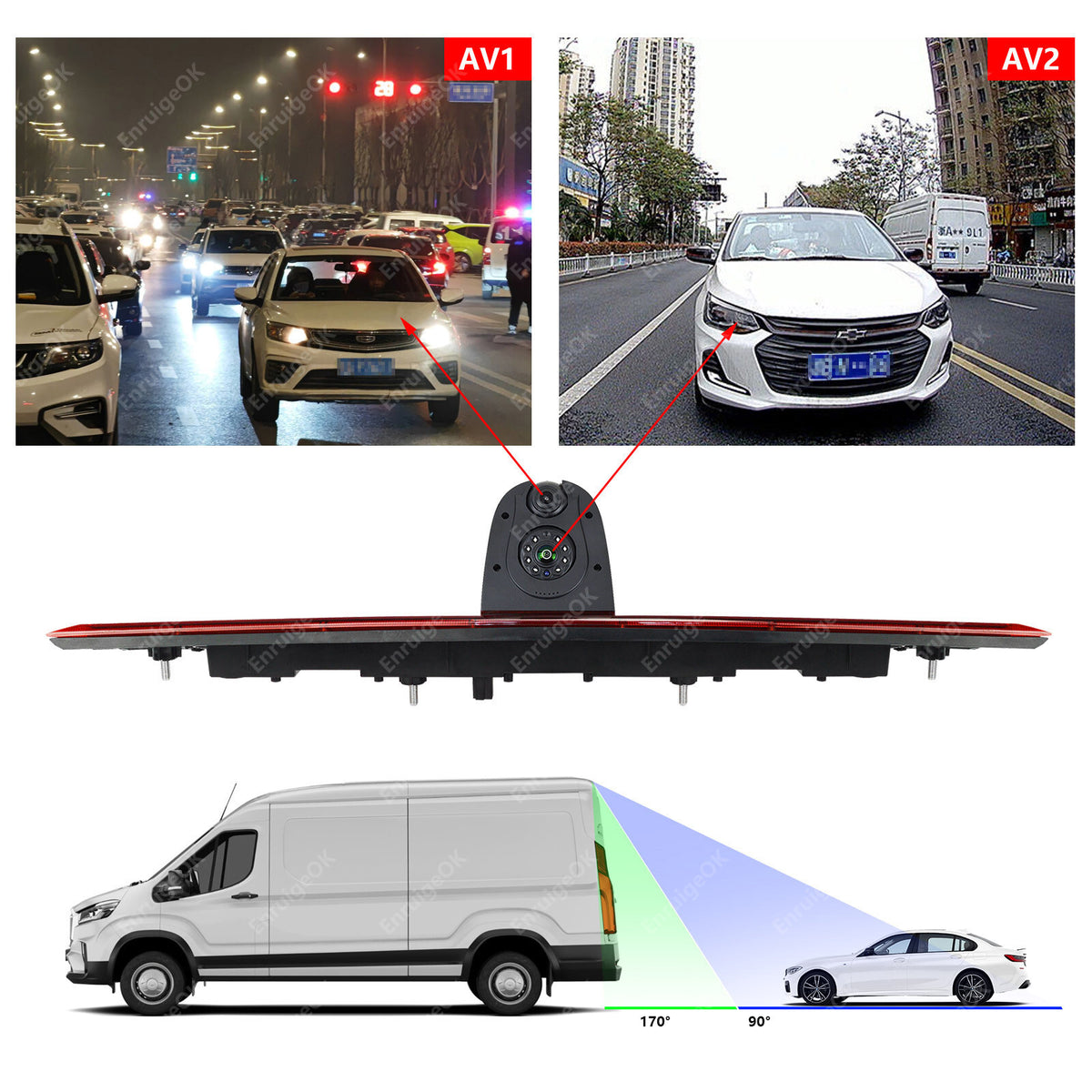

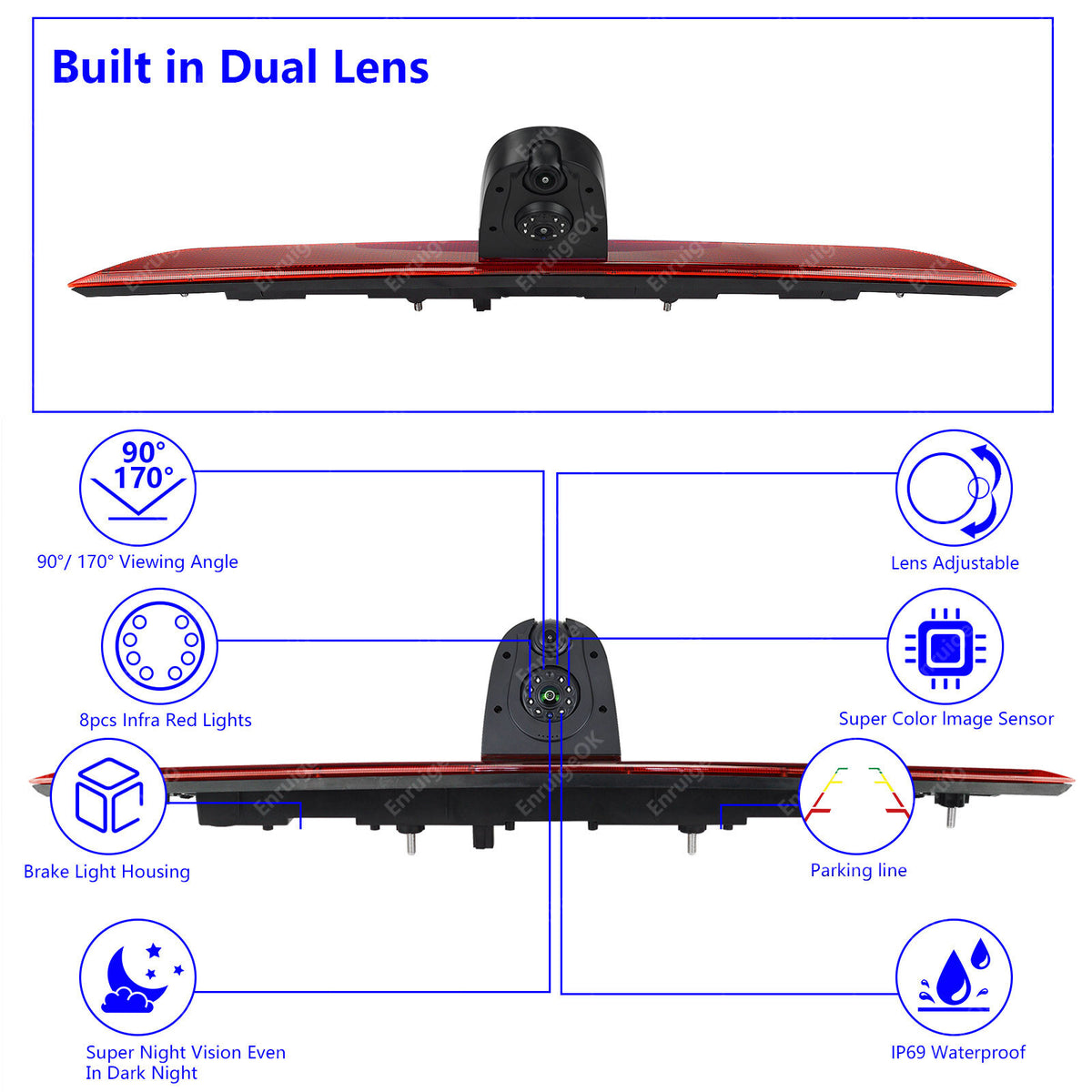

TWIN LENS !!! Dual lens reversing camera: One for mirror view while driving(AV1), one for reversing view while parking(AV2).

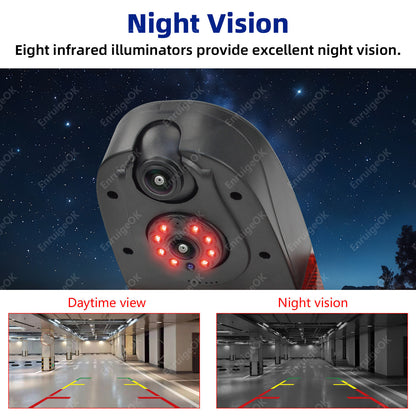

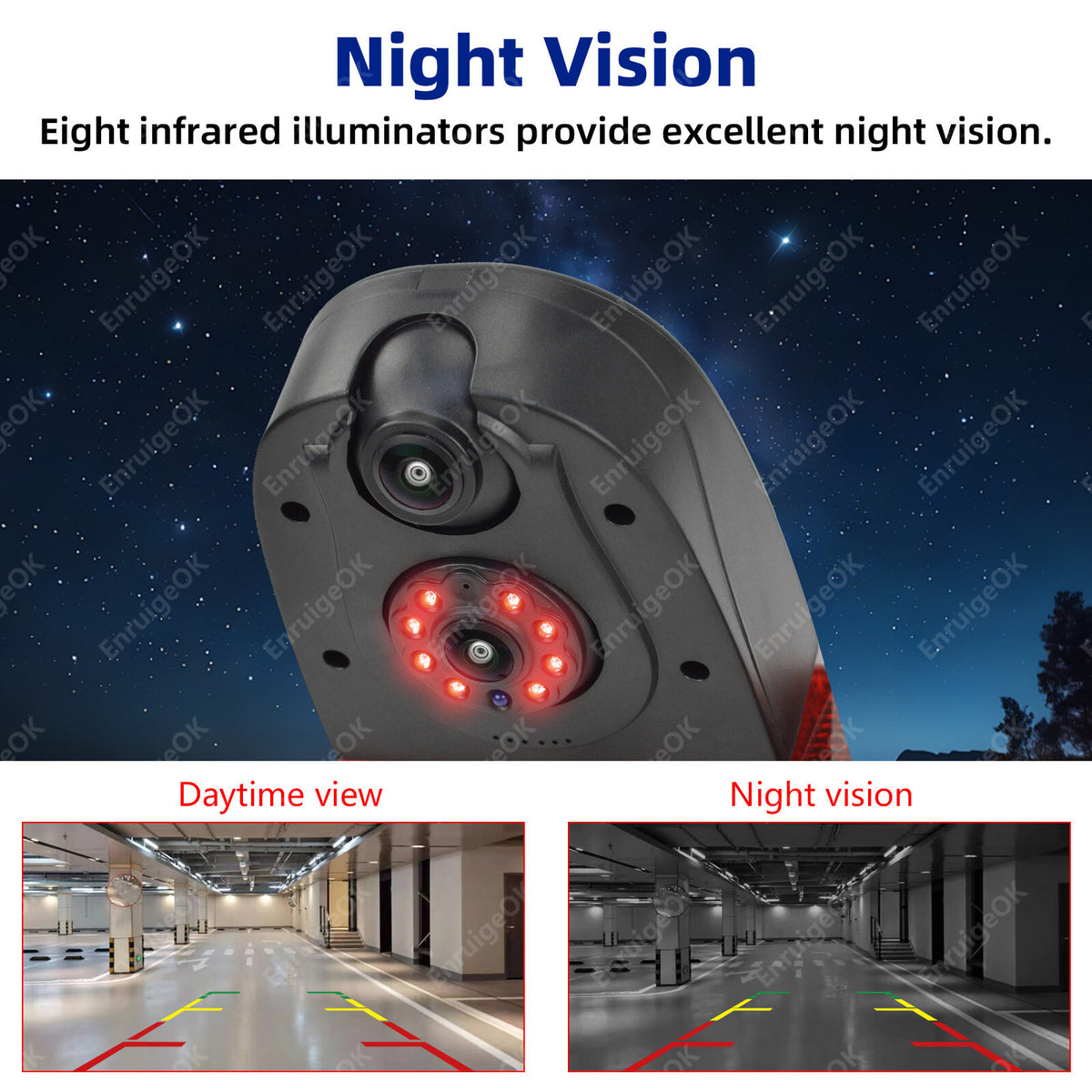

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 8 infrared lights around the lens to ensure excellent night vision.

Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

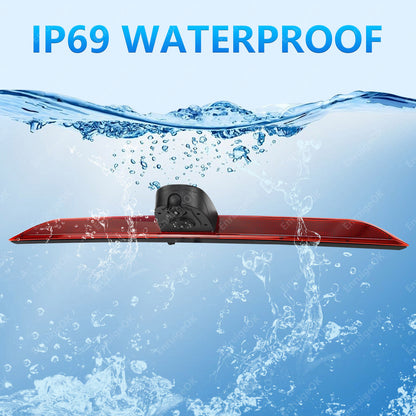

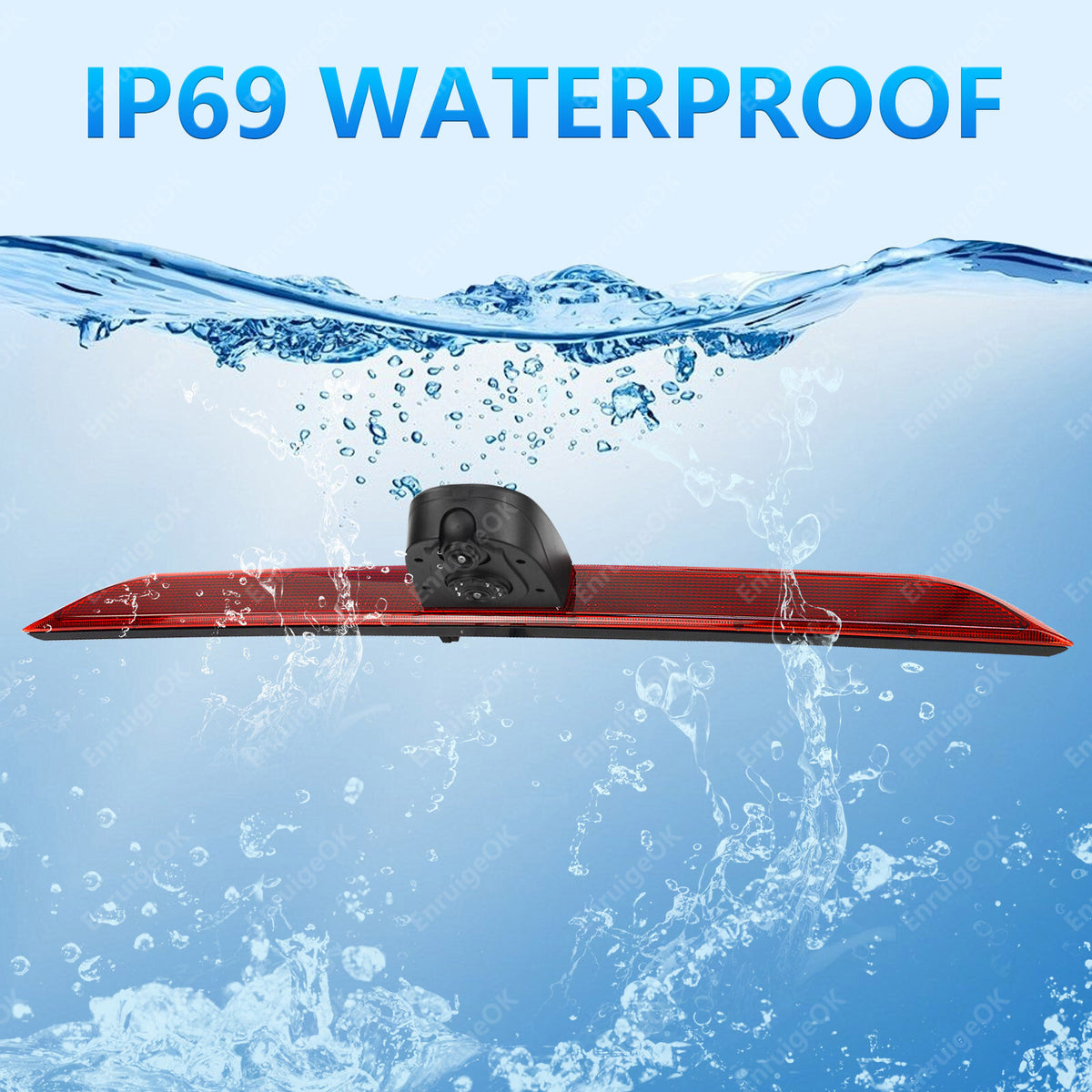

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: 1/3" CMOS

Lens: 2.8mm & 3.6mm

Effective pixel: 1920(H)x720(V)

Resolution: AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP69

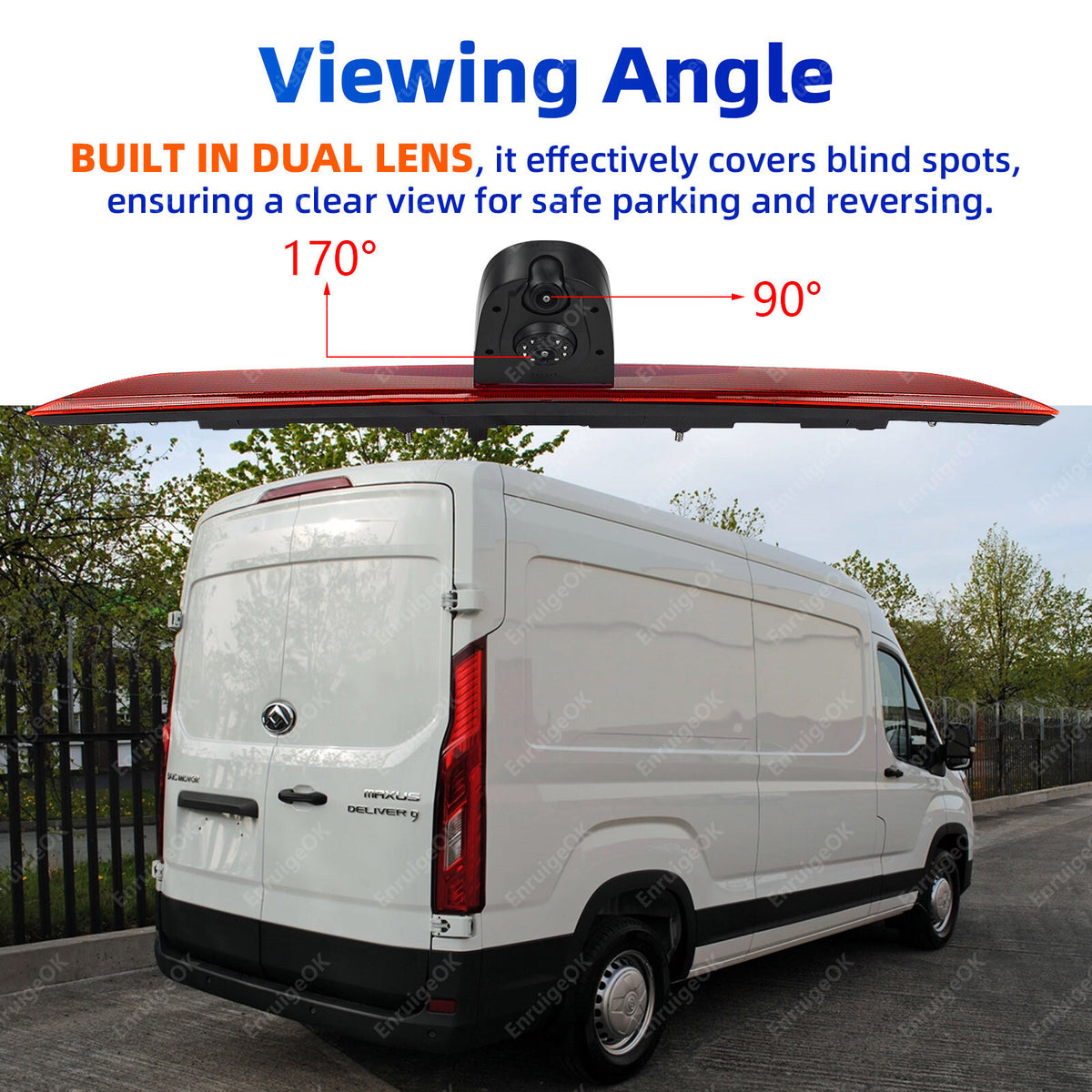

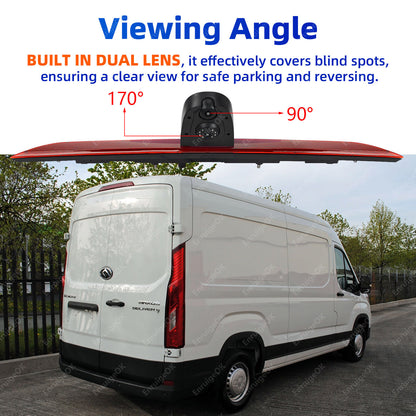

Viewing angle: 120°& 90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 12V

Operating temperature: -20℃ to +70℃

Monitor Specifications

Screen: 6.86 inch

Resolution: 1280x(RGB)x480 IPS

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

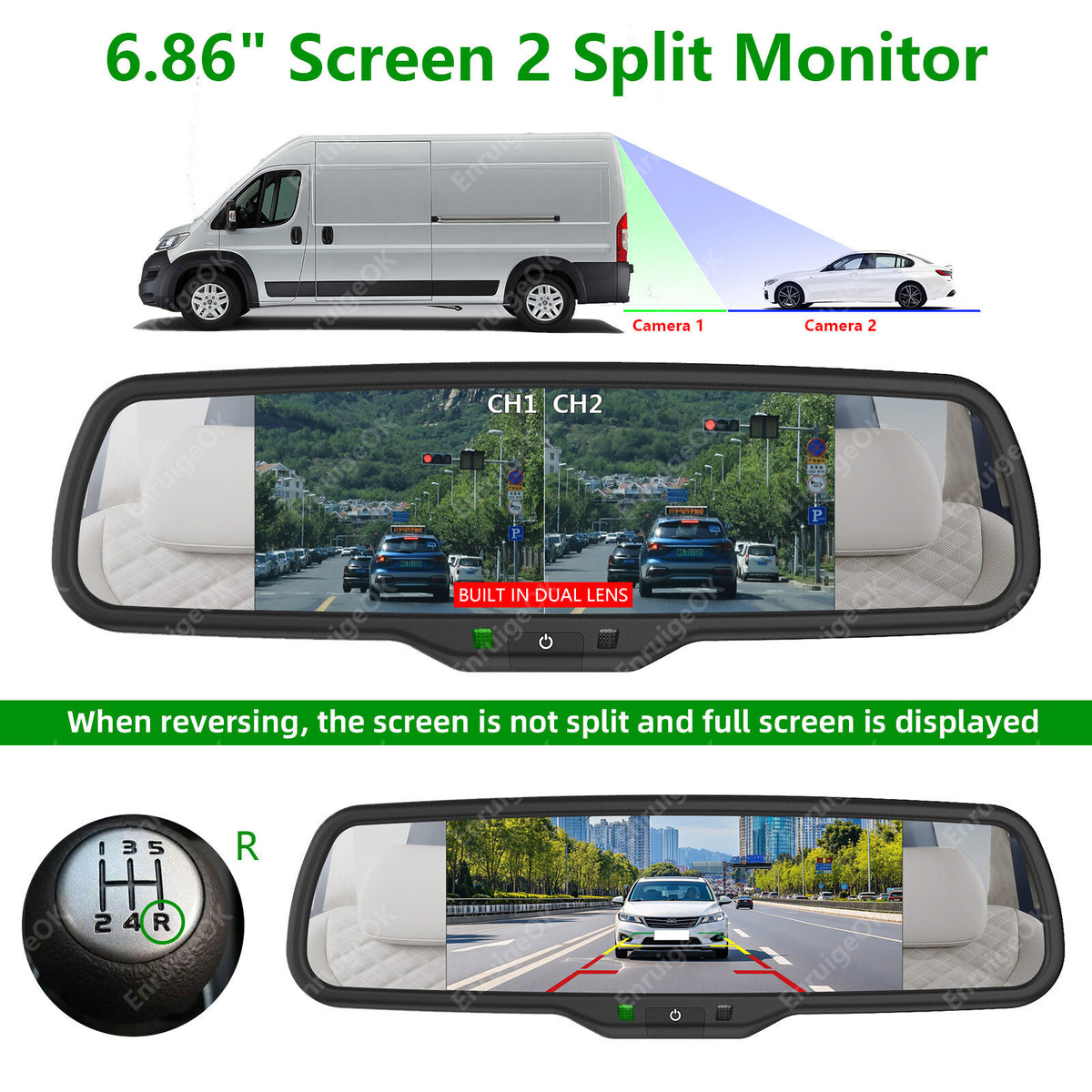

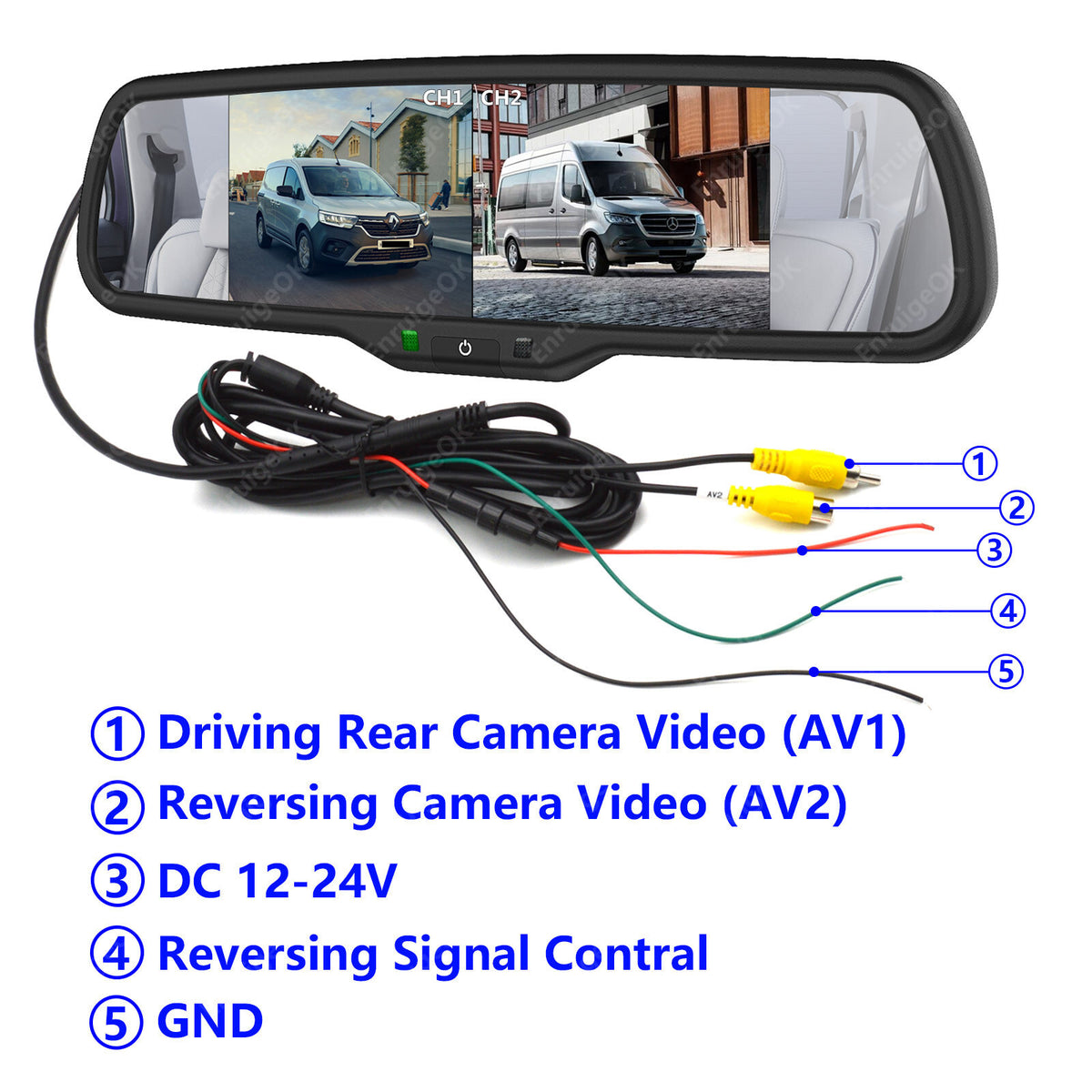

Video Input: Dual video input(AV1 for driving rear view, AV2 for reversing), support 2-Split Screen, automatic full-screen switch during reversing

Blue screen displayed when no signal is detected.

Power Supply: DC 12V-24V

Power consumption: 6W

Operation temperature: -20℃ ~ +60℃

Storage temperature: -20℃ ~ +60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
