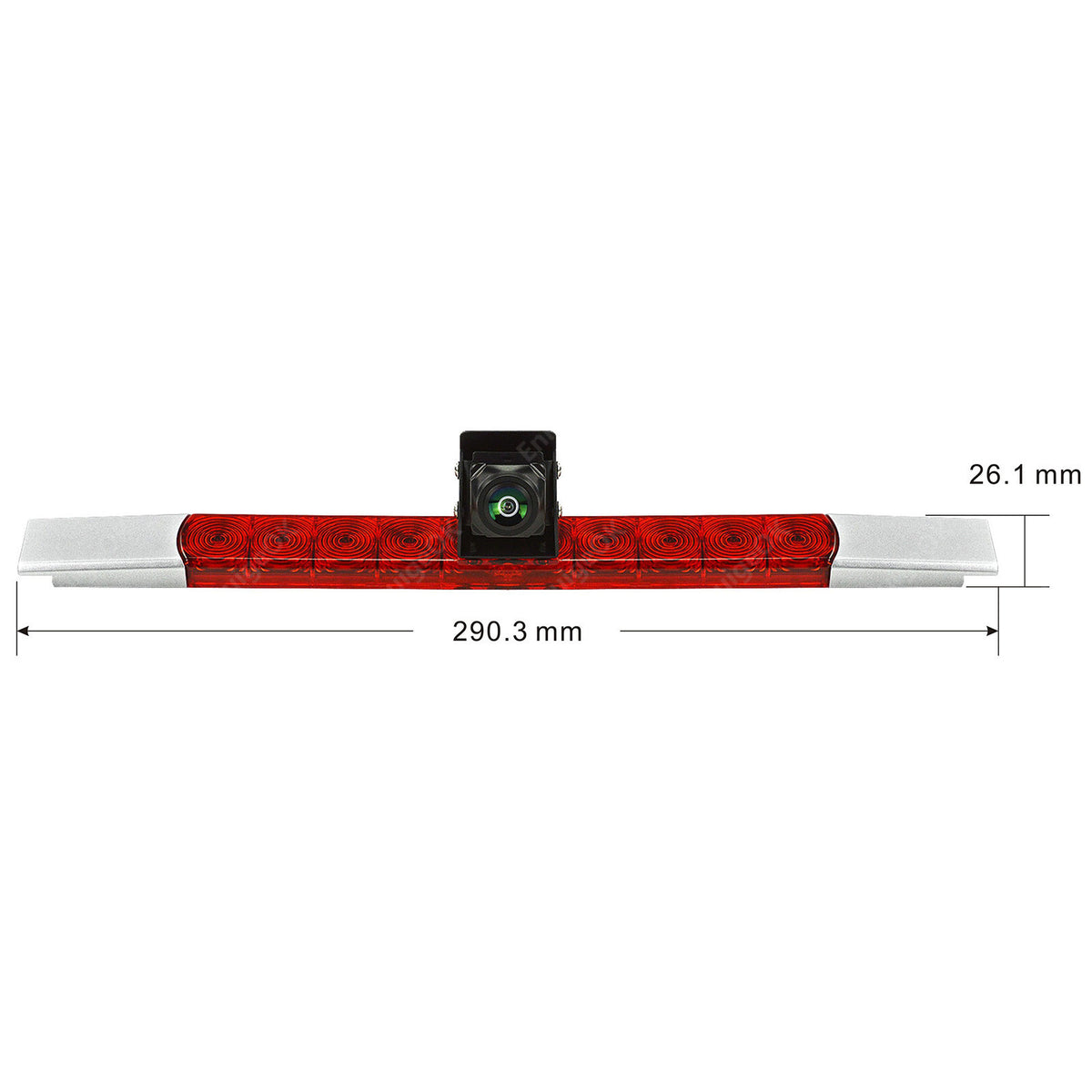

Brake Light Reverse Camera Universal Kit for Commercial Vans Surface Mount

Camera Compatibility

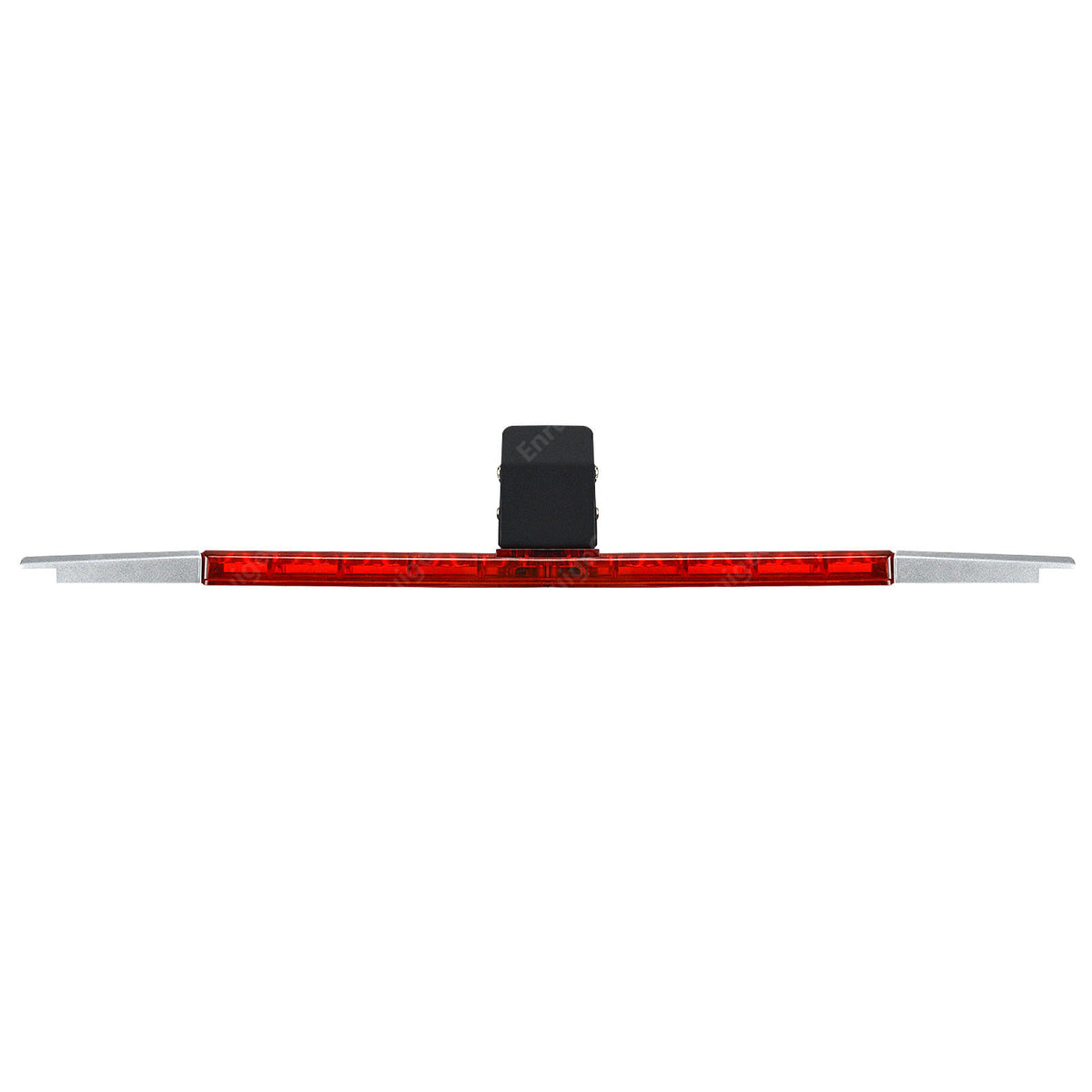

This Camera universal fit for all vehicles that have flat rear surfaces, such as cargo vans, motorhomes, and buses. Simple replacement with the factory-set LED auxiliary stop lamp Hella 2DA 343 106-201.

Description

It includes a backup camera & monitor. When you are backing up, the car monitor will display the rear camera images, helping you park safely.

The 5" Color IPS display Monitor features 2 video inputs and an 480*272 (RGB) resolution, making it compatible with the brake light rearview camera.

This reversing camera with 120-degree viewing angle shows rich details about the environment behind the car for you.

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

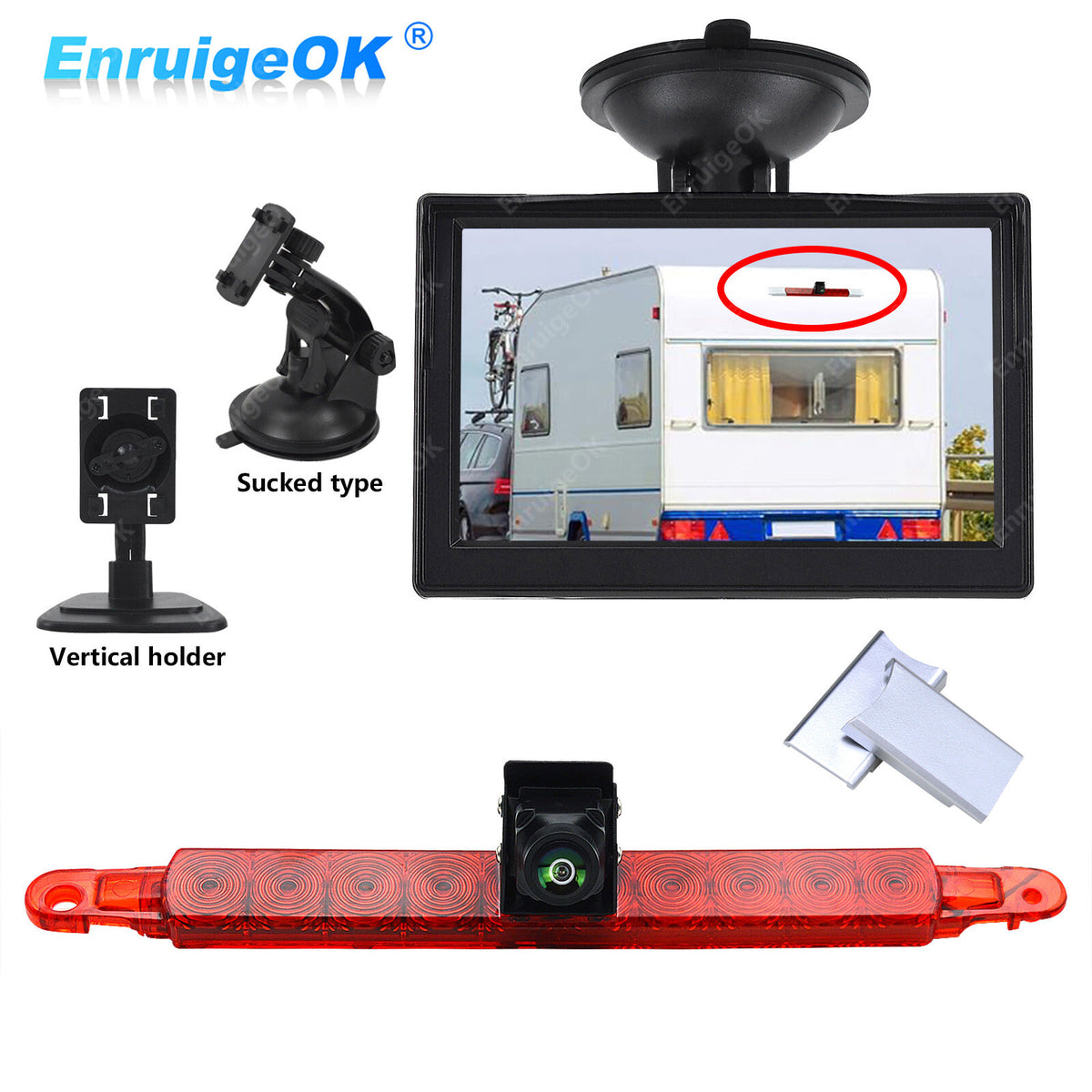

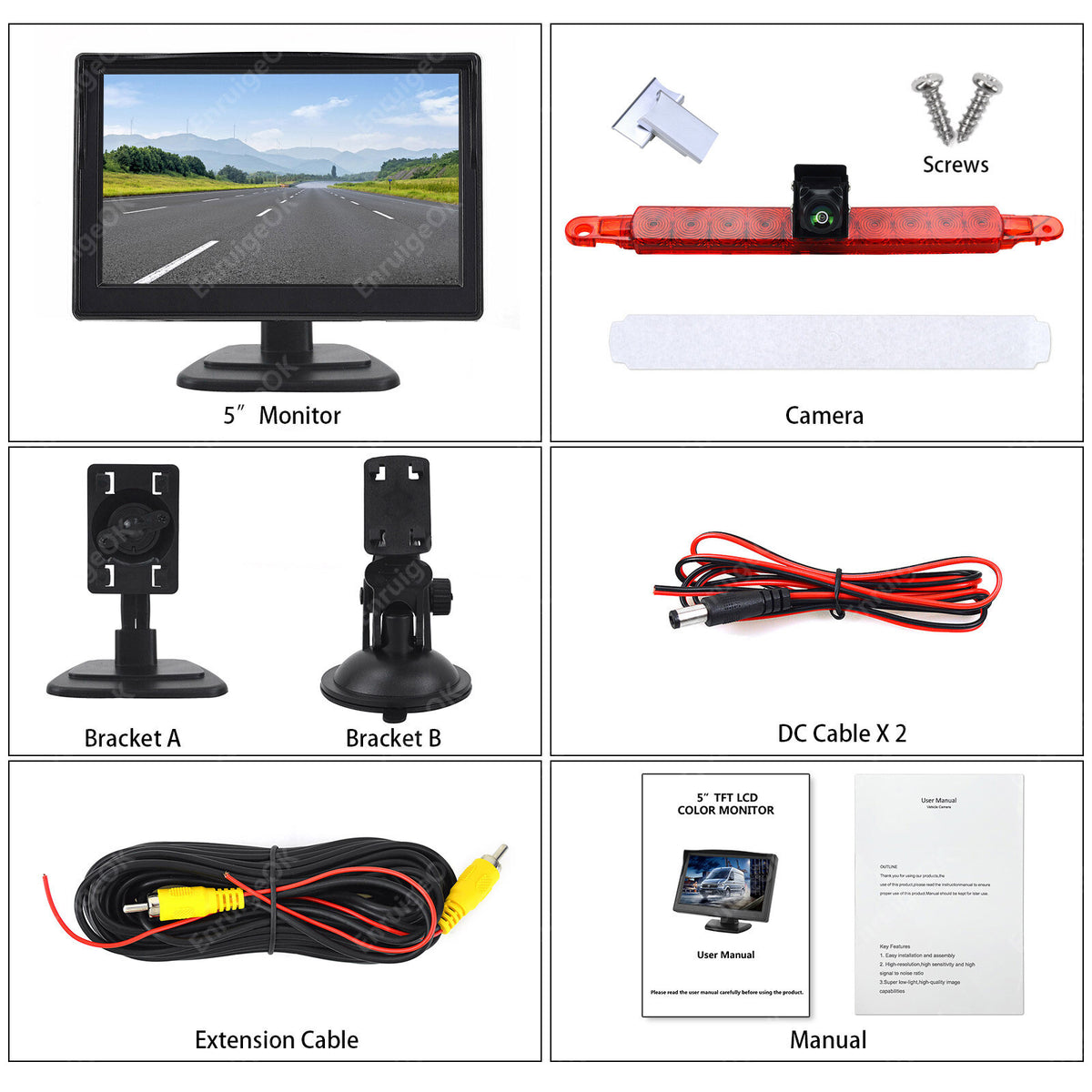

Package contents

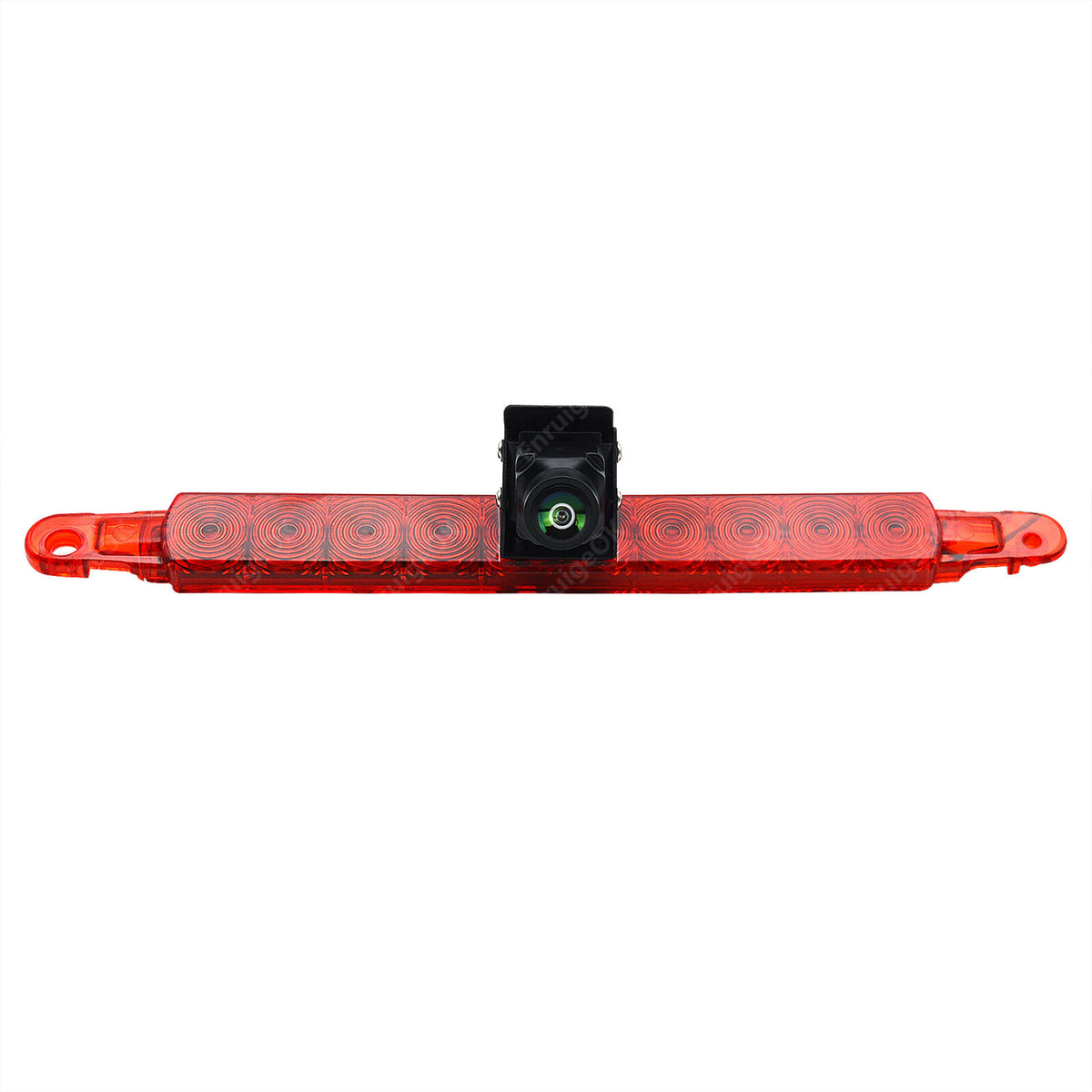

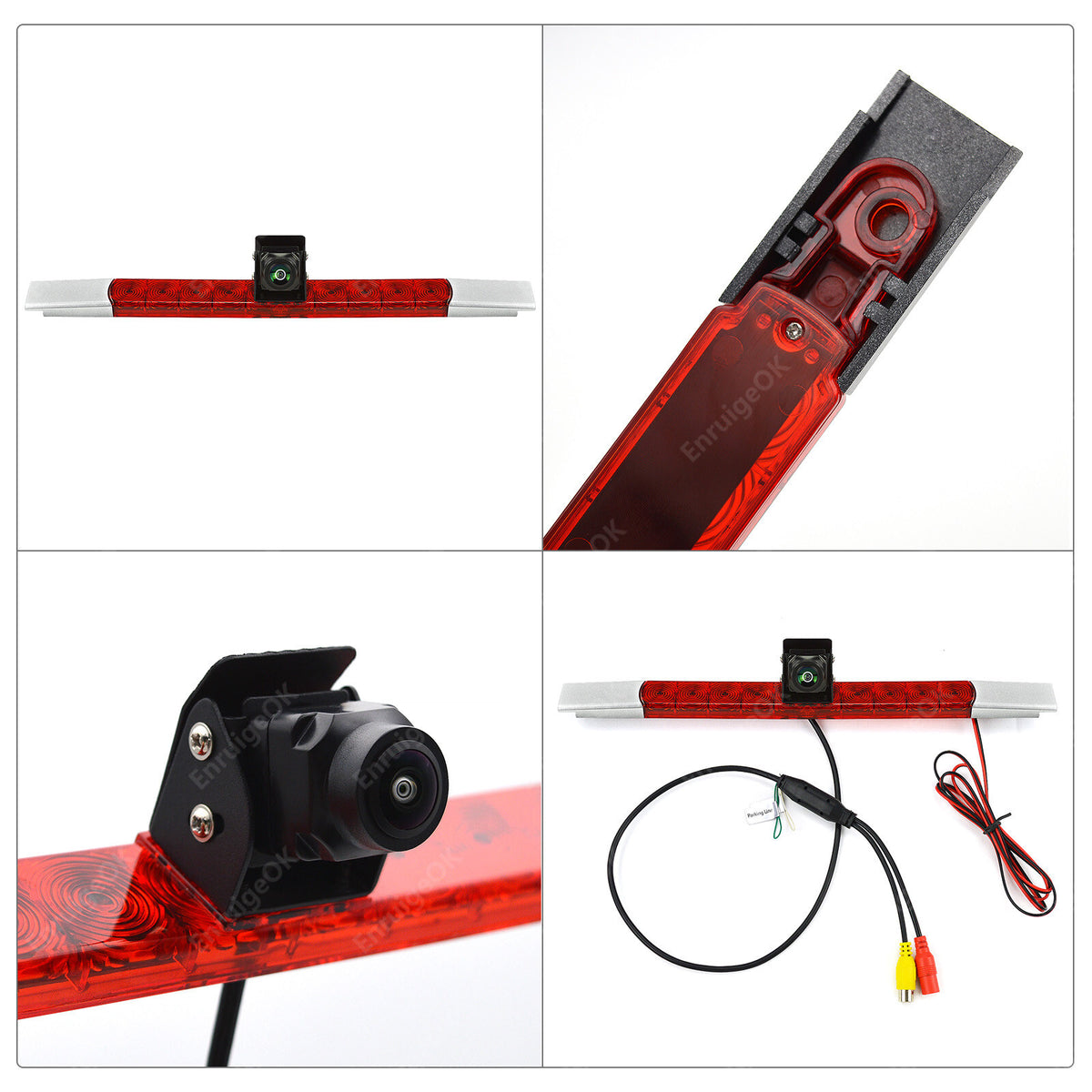

1 X Brake light camera

1 X 5'' IPS display monitor

1 X 10m/33ft. extension cable

2 X DC Power cables

1 X Dashboard mount stand

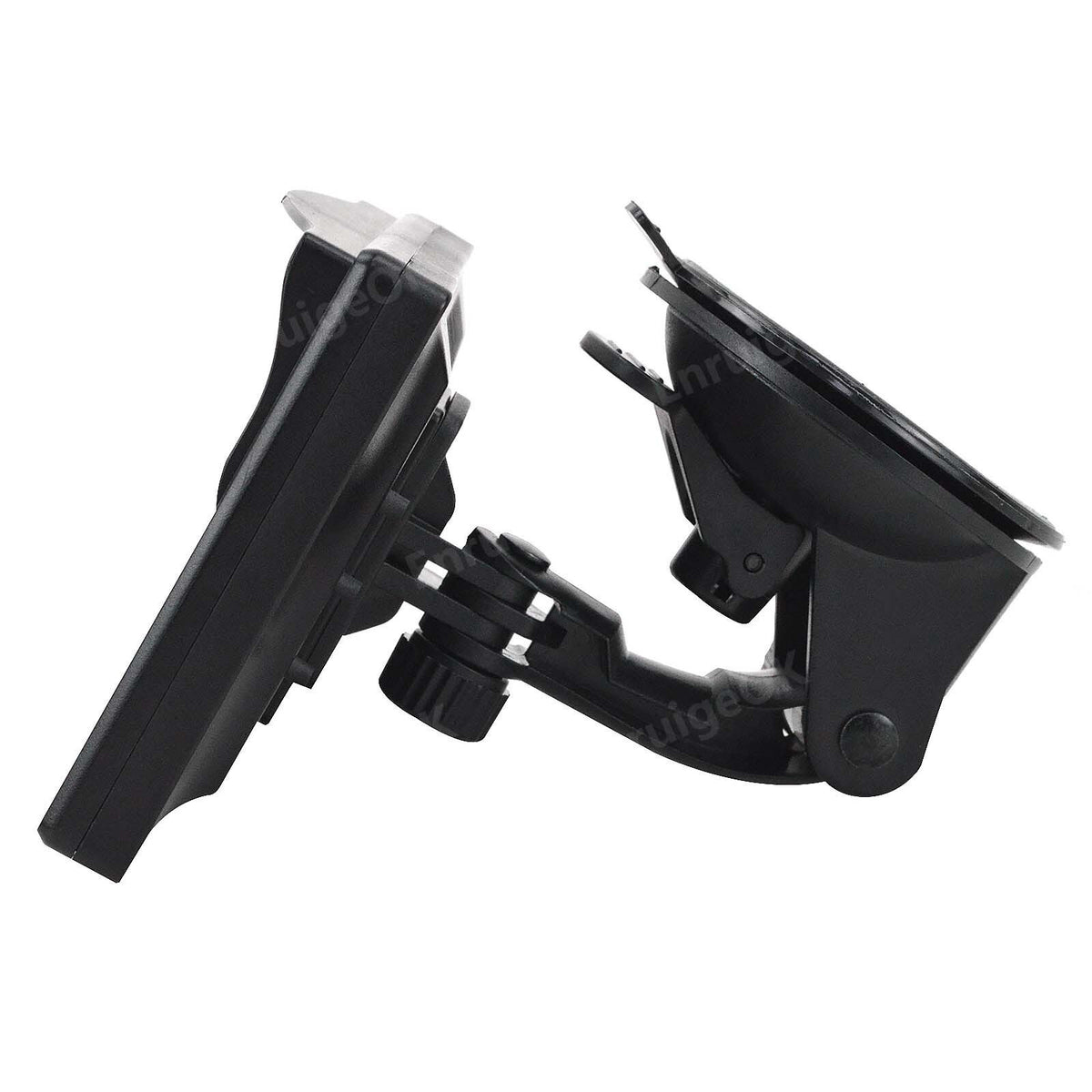

1 X Suction cup mount stand

1 X Manual

Camera Specifications

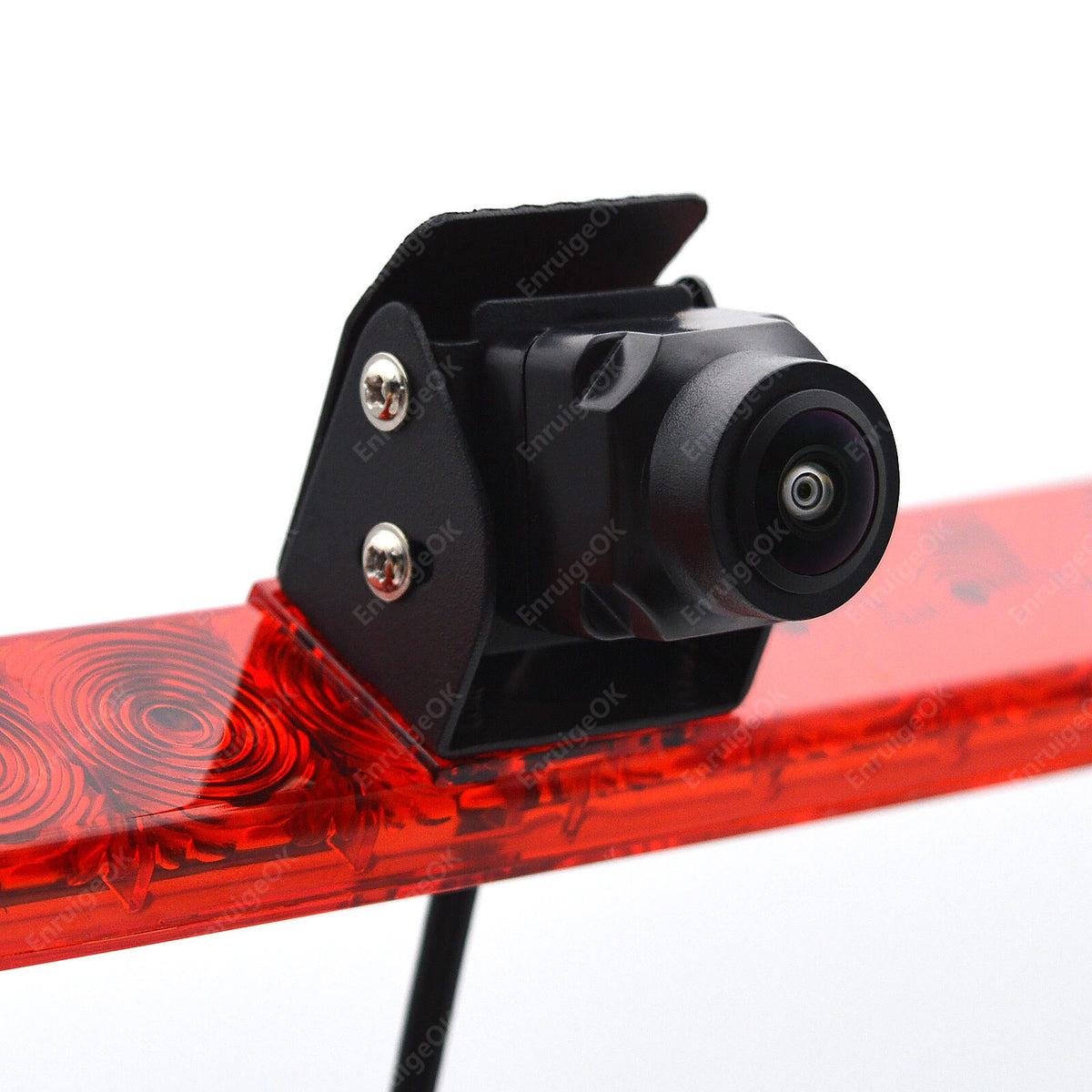

Image sensor: 1/3" CMOS

Lens: 2.8mm& 3.6mm

Effective pixel: 733(H)x493(V)

TV Line: 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1-0.5Lux/F=1.2(0 Lux with LED on)

Power: DC12V

Operating temperature: -20℃ to +70℃

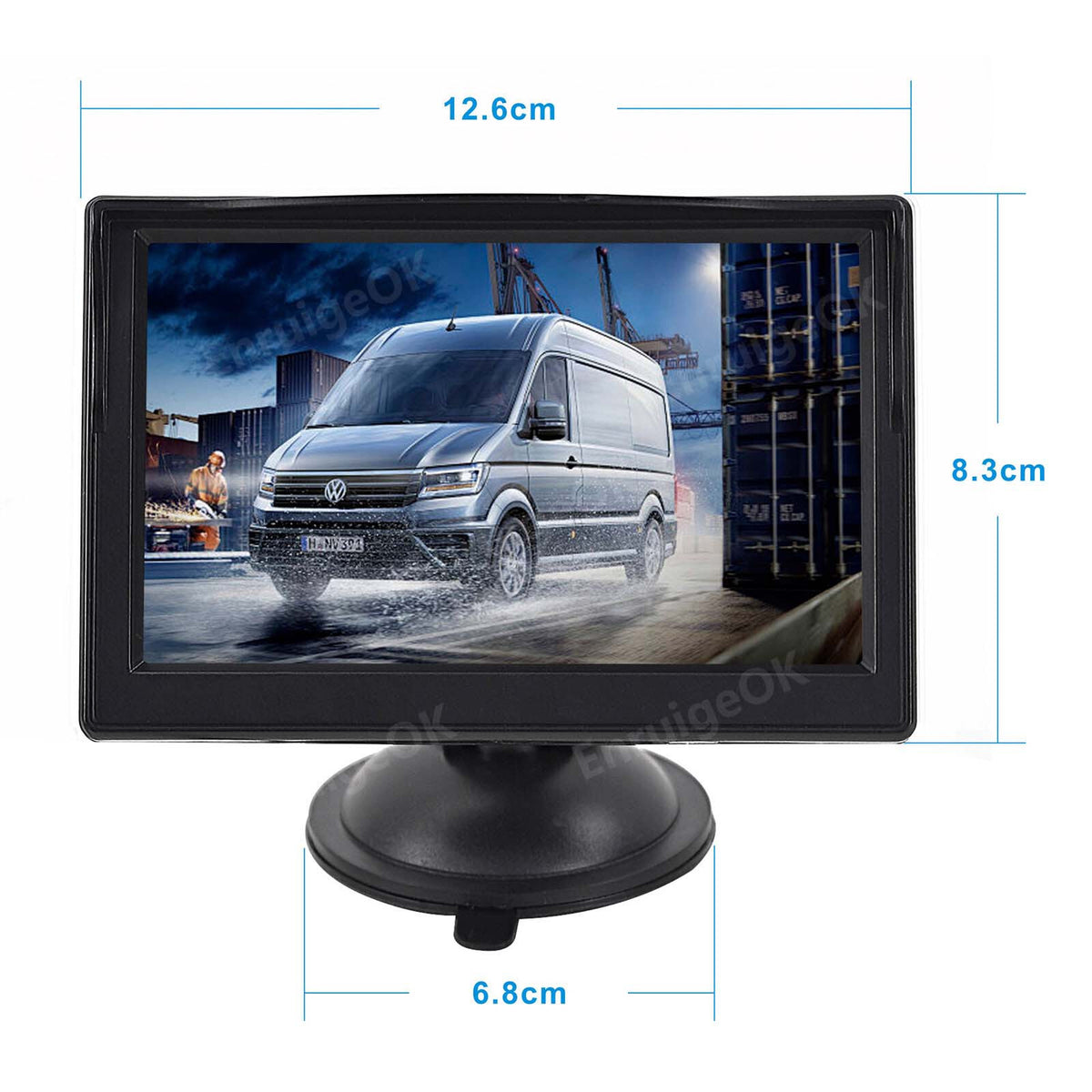

Monitor Specifications

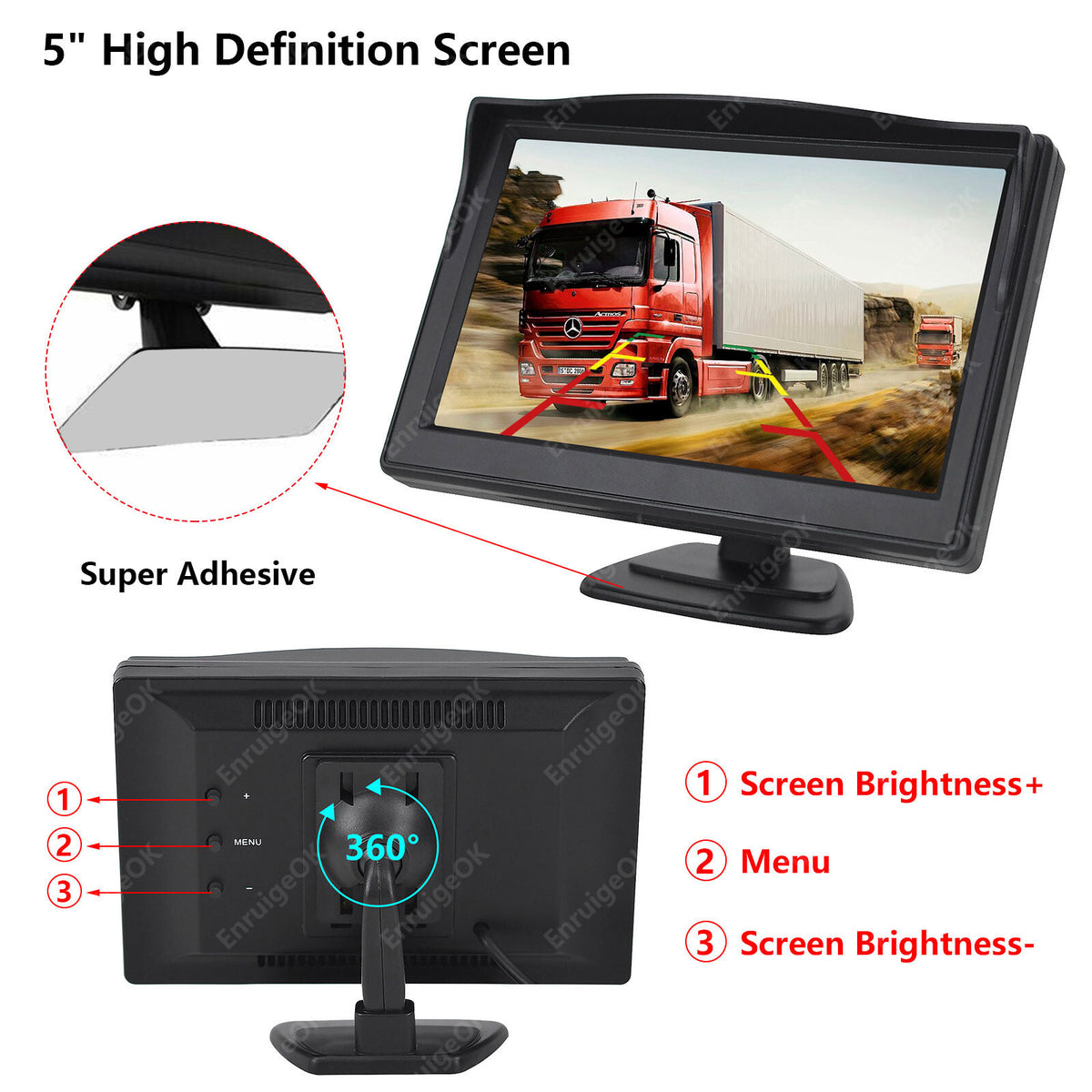

Screen size: 5 inch

Display format: 16: 9

Contrast: 300: 1

Brightness: 400 CD/㎡

Video: 2-channel video input; V1/V2 switching

Resolution: 480 (H) x 272 (V)

Power supply: DC 12V

Rear view in priority

Video system: NTSC / PAL auto switch

Current consumption: <4W

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃
