Brake Light Reverse Camera For Chevy Express GMC Savana Van 03-2016 05 07 15 16

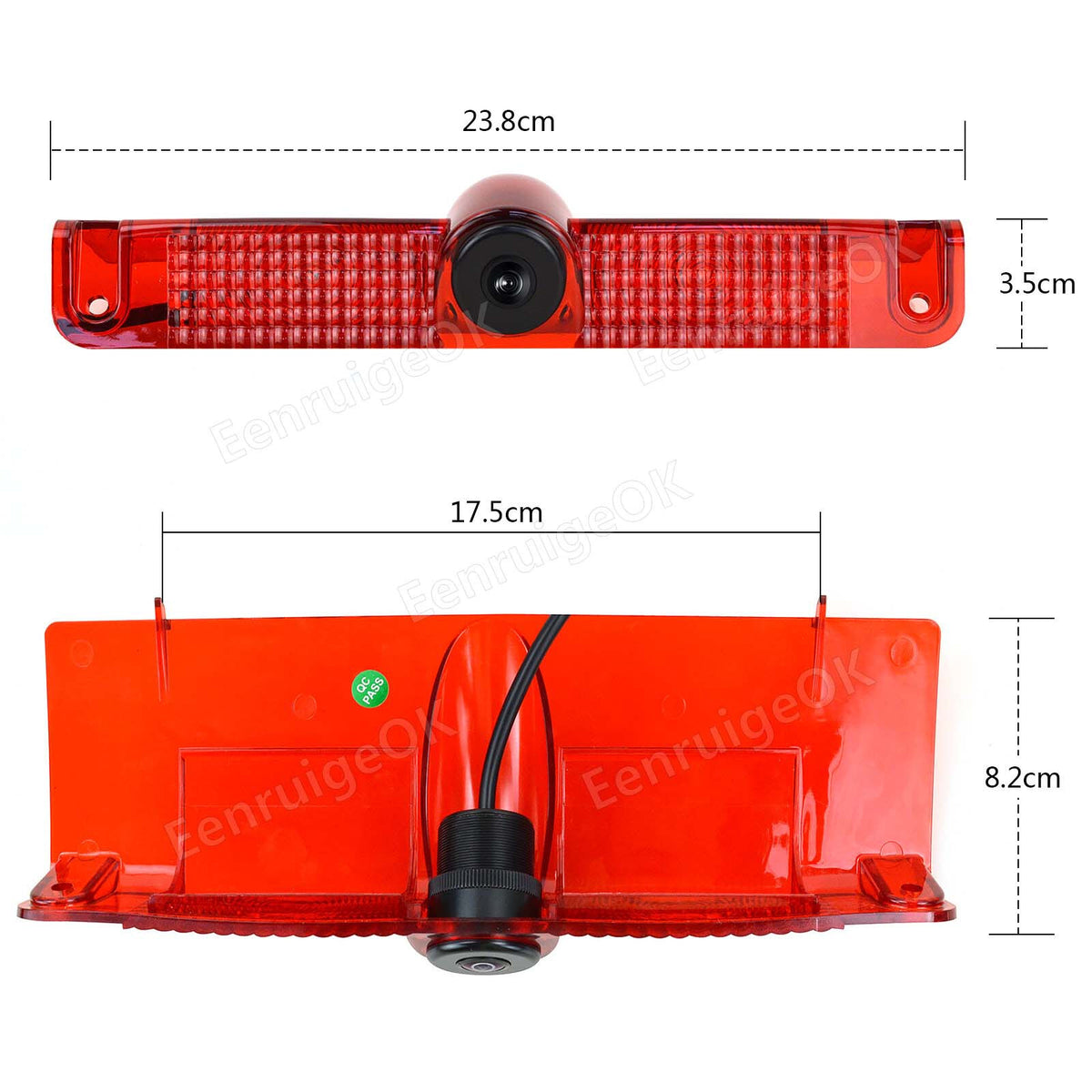

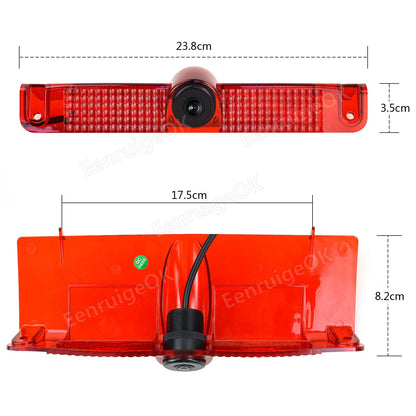

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

Camera Compatibility

✅2003-2014 Chevrolet Express 1500

✅2003-2019 Chevrolet Express 2500

✅2003-2019 Chevrolet Express 3500

✅2003-2014 GMC Savana 1500

✅2003-2019 GMC Savana 2500

✅2003-2019 GMC Savana 3500

Including Cargo, Passenger & Explorer Vans

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

Reminder Friendly

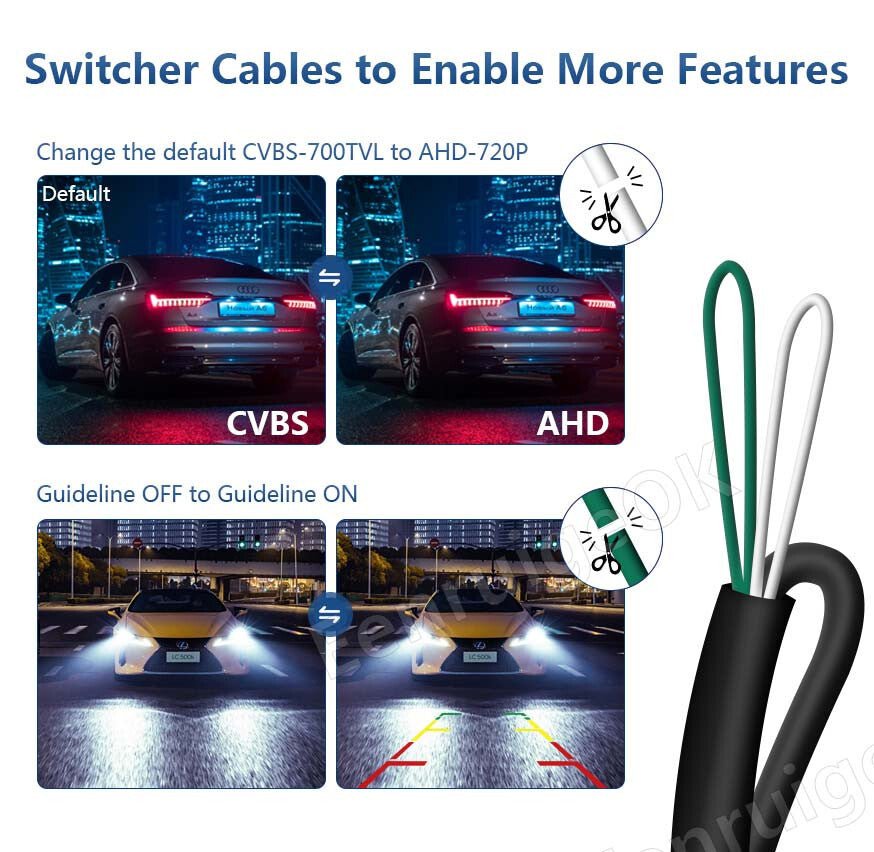

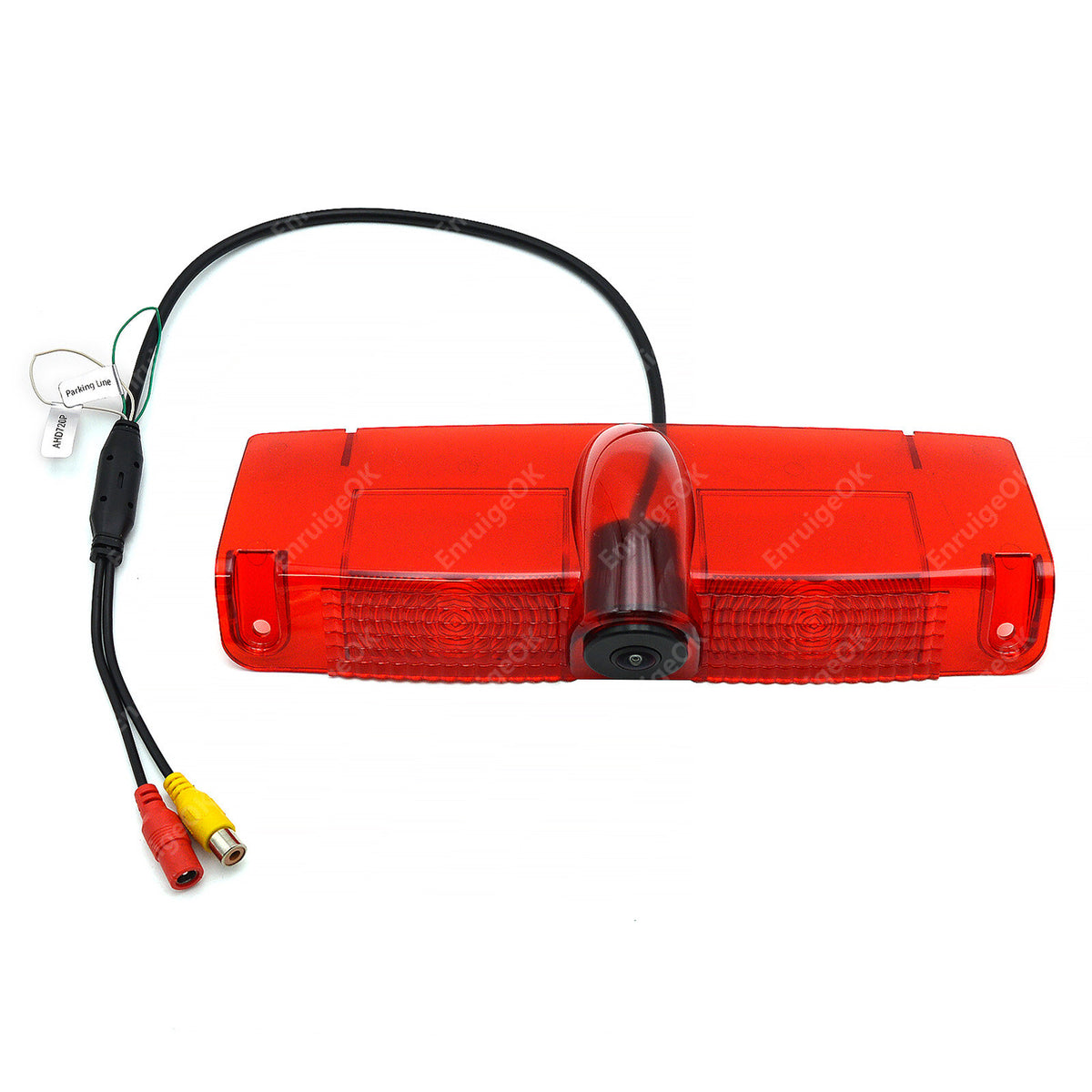

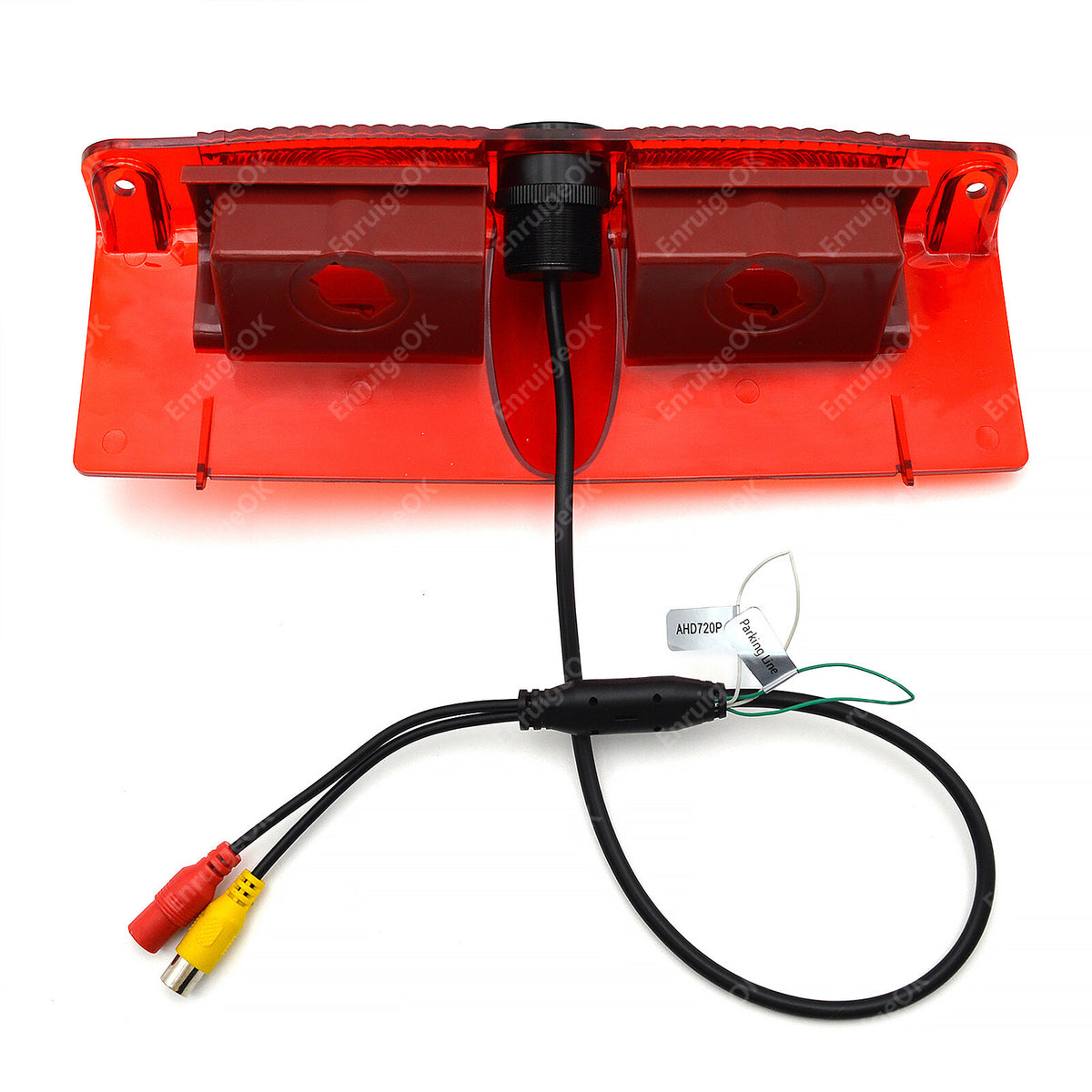

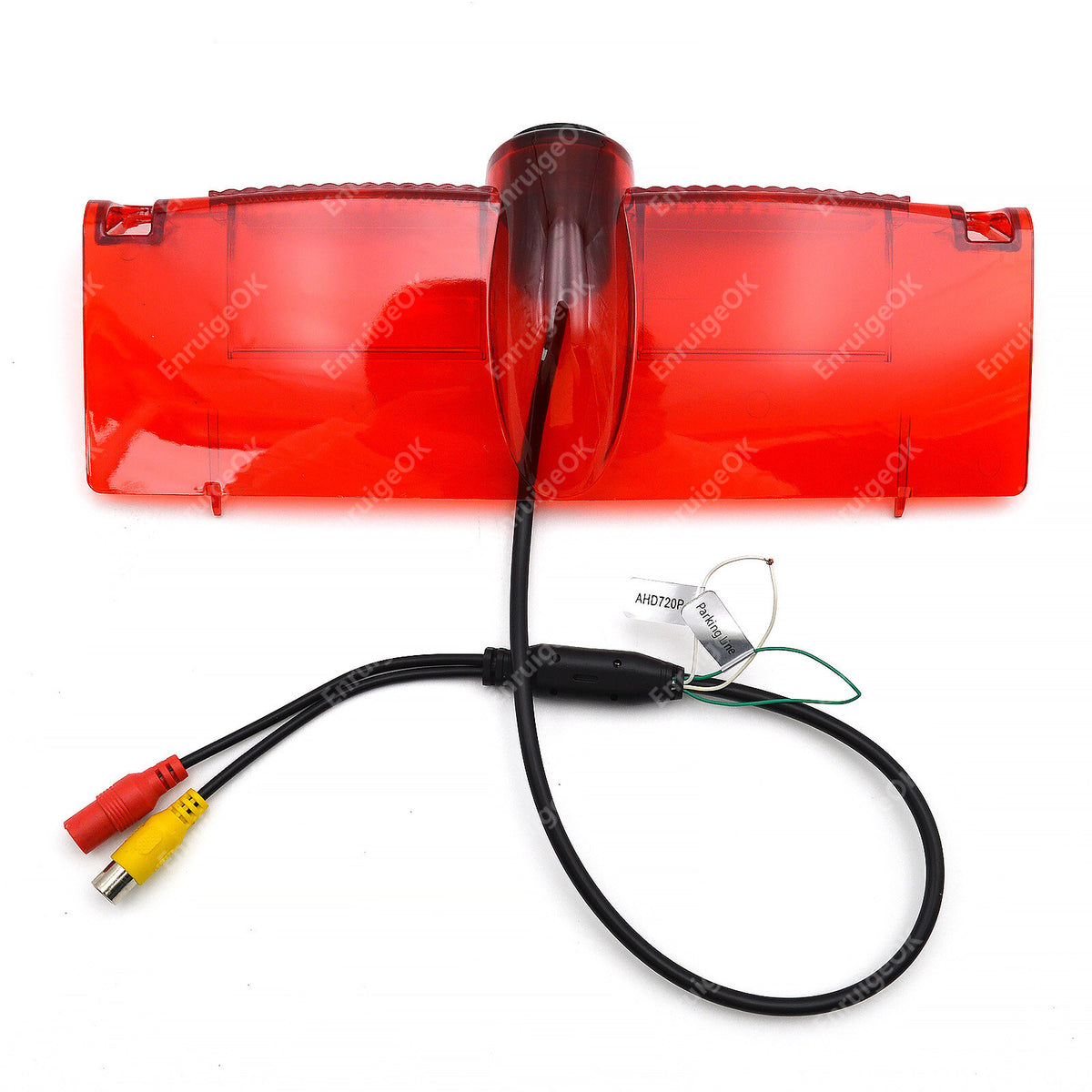

This camera defaults to a CVBS 700TVL signal and supports AHD 720P signal (by cutting the white wire).

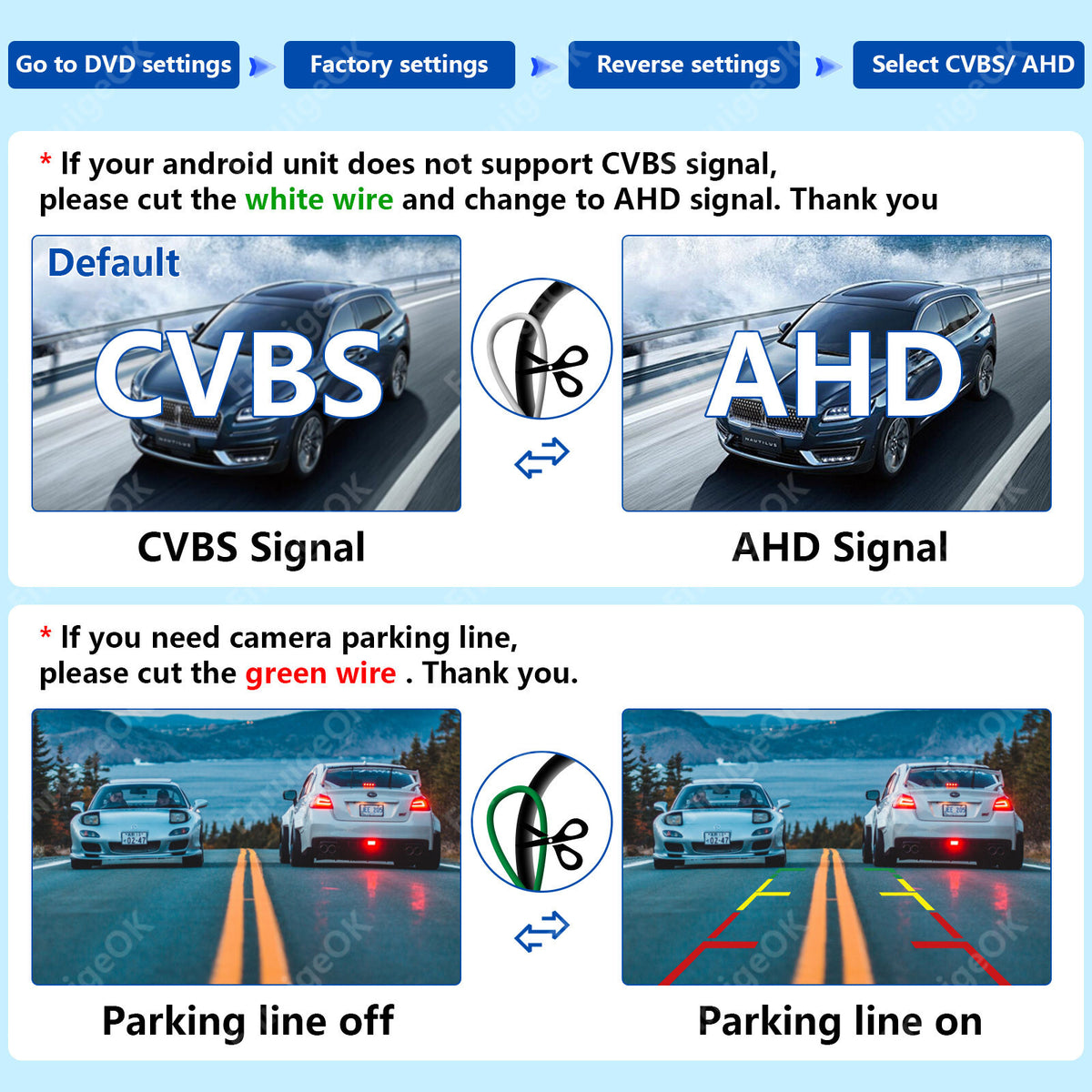

If your Android device or monitor supports AHD 720P, you can cut the white wire to switch to AHD 720P. If it does not support AHD 720P, please leave the white wire intact. Thank you!

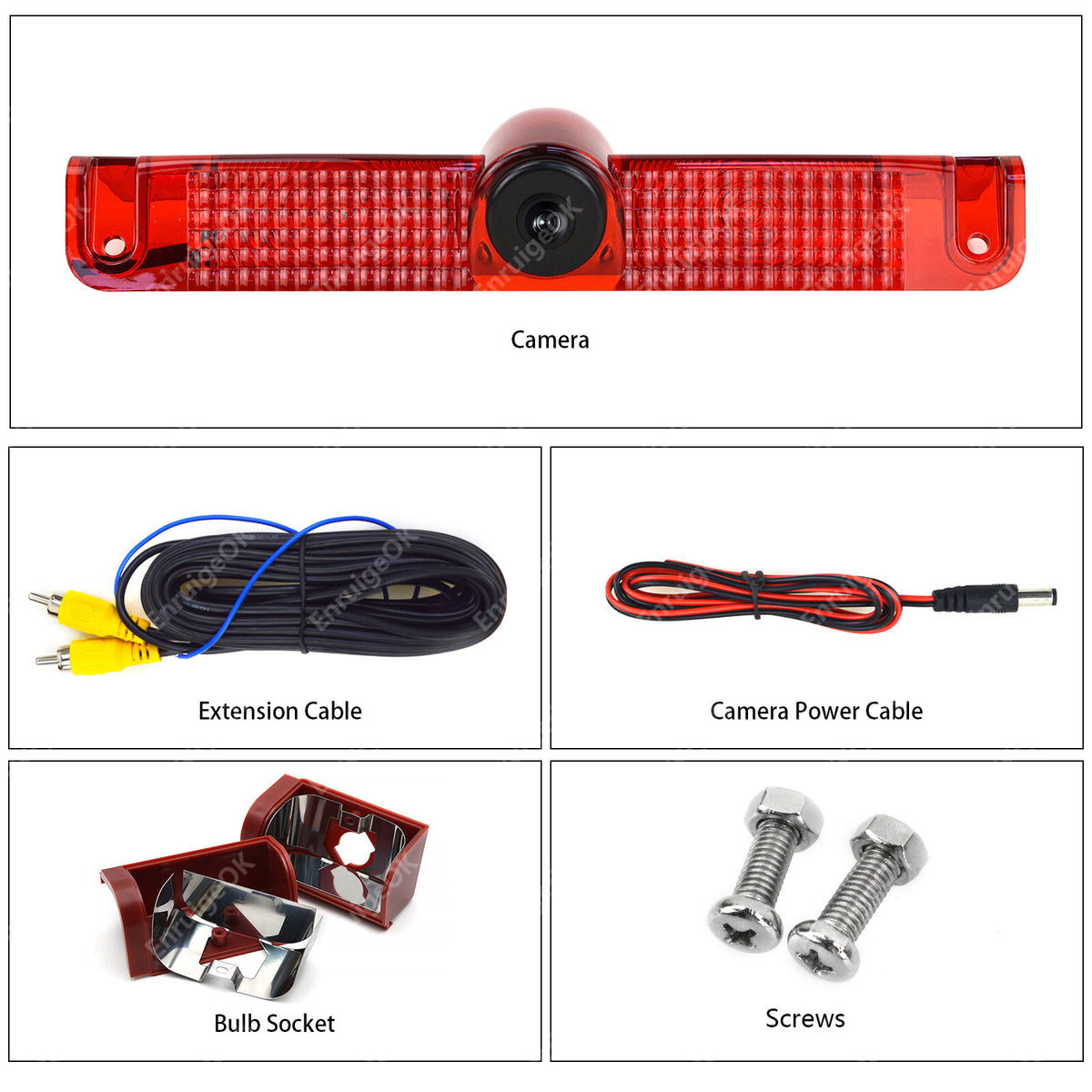

Package contents

1 X Brake light camera

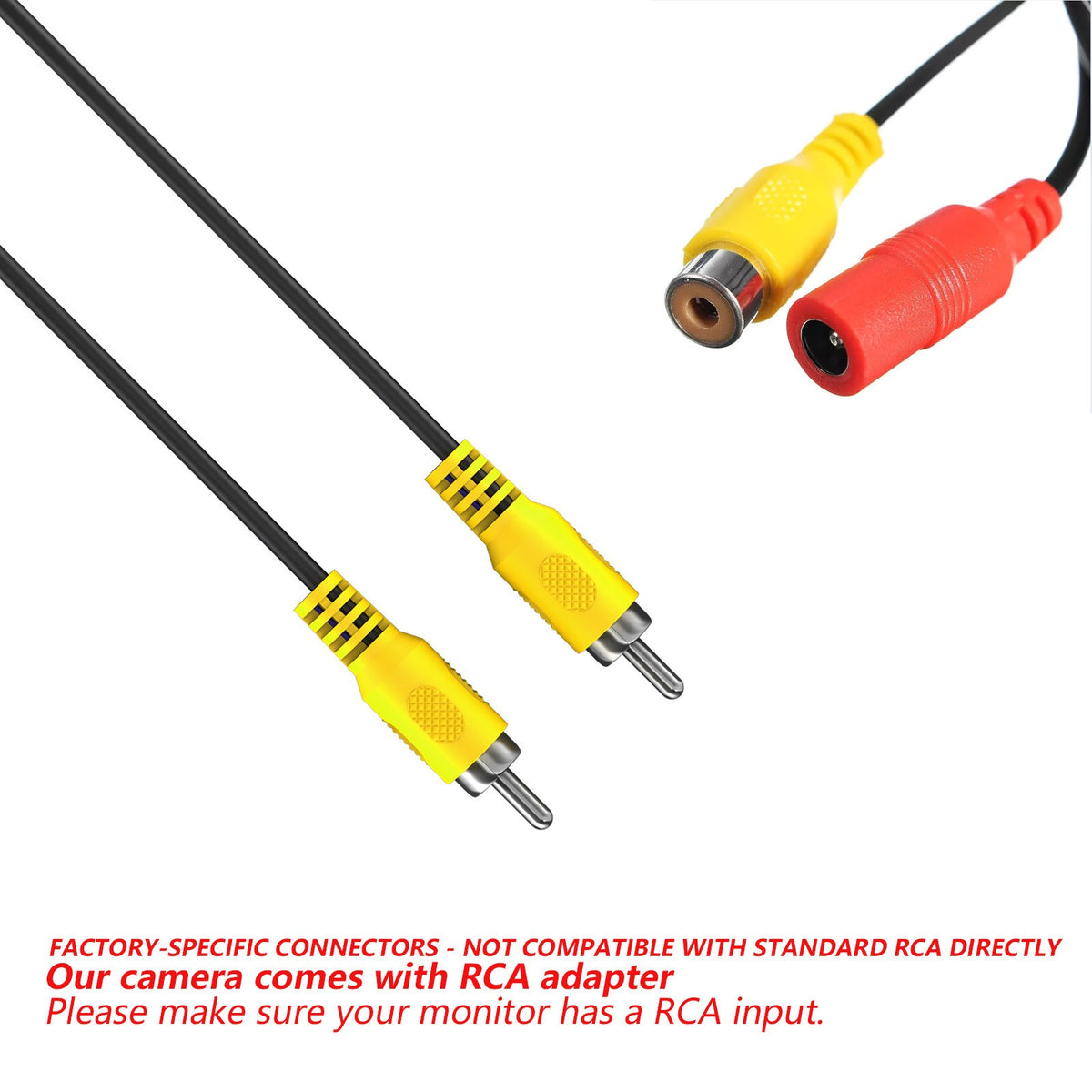

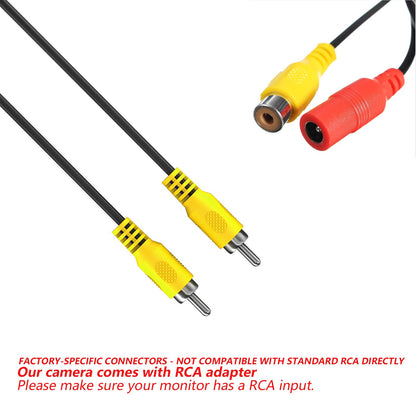

1 X 10m/33ft. video extension cable

1 X 1m DC power cable

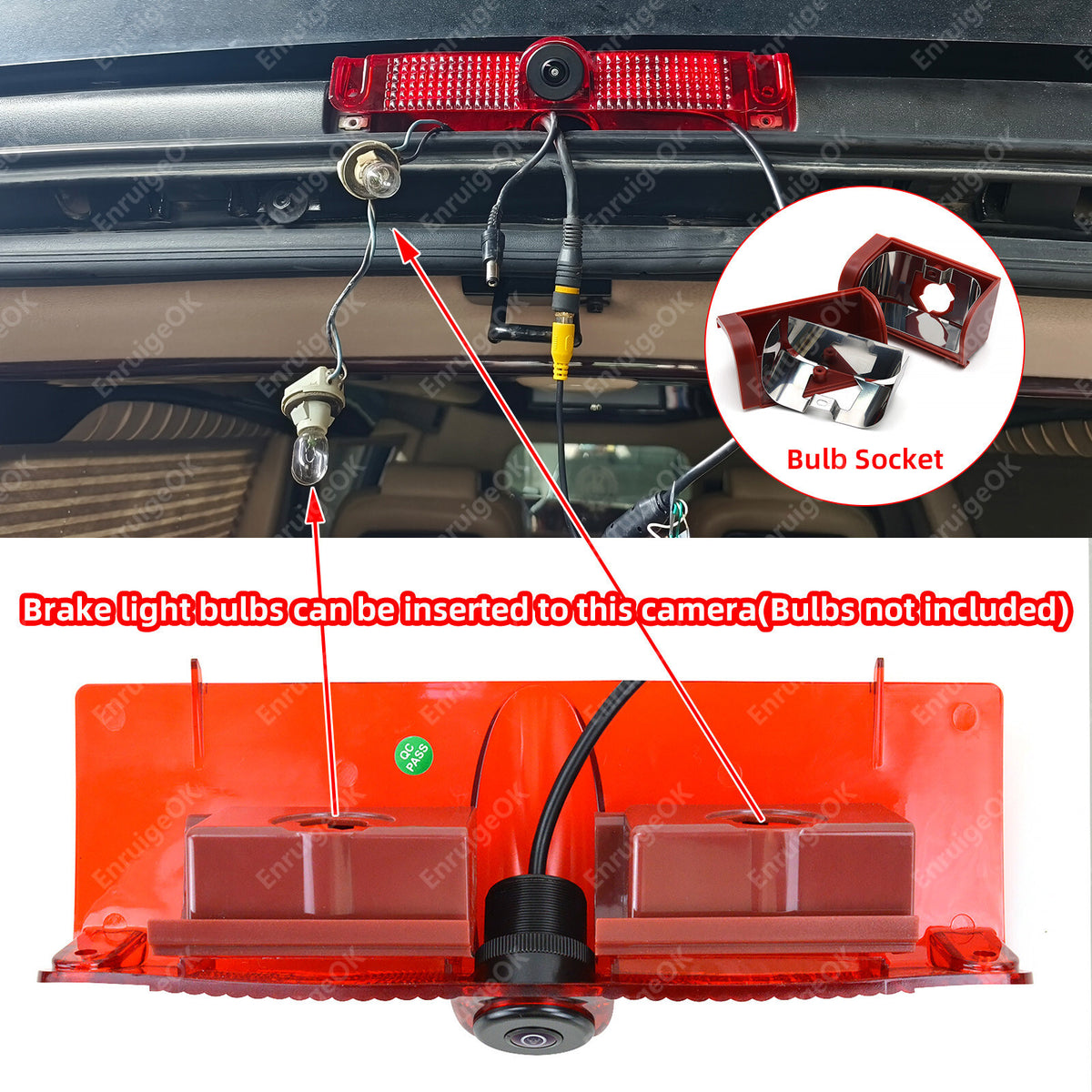

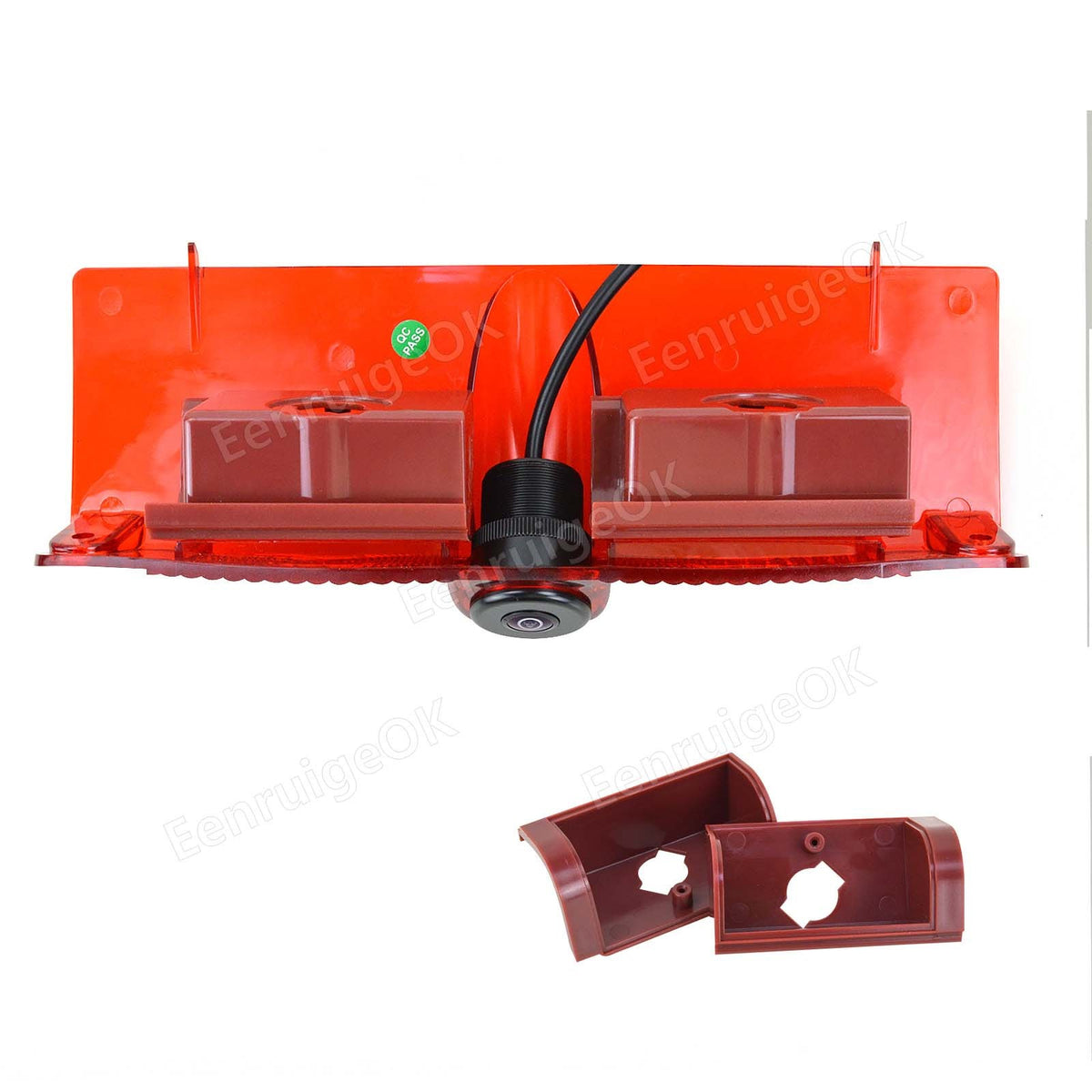

2 X Bulb Sockets

1 X Manual

Description

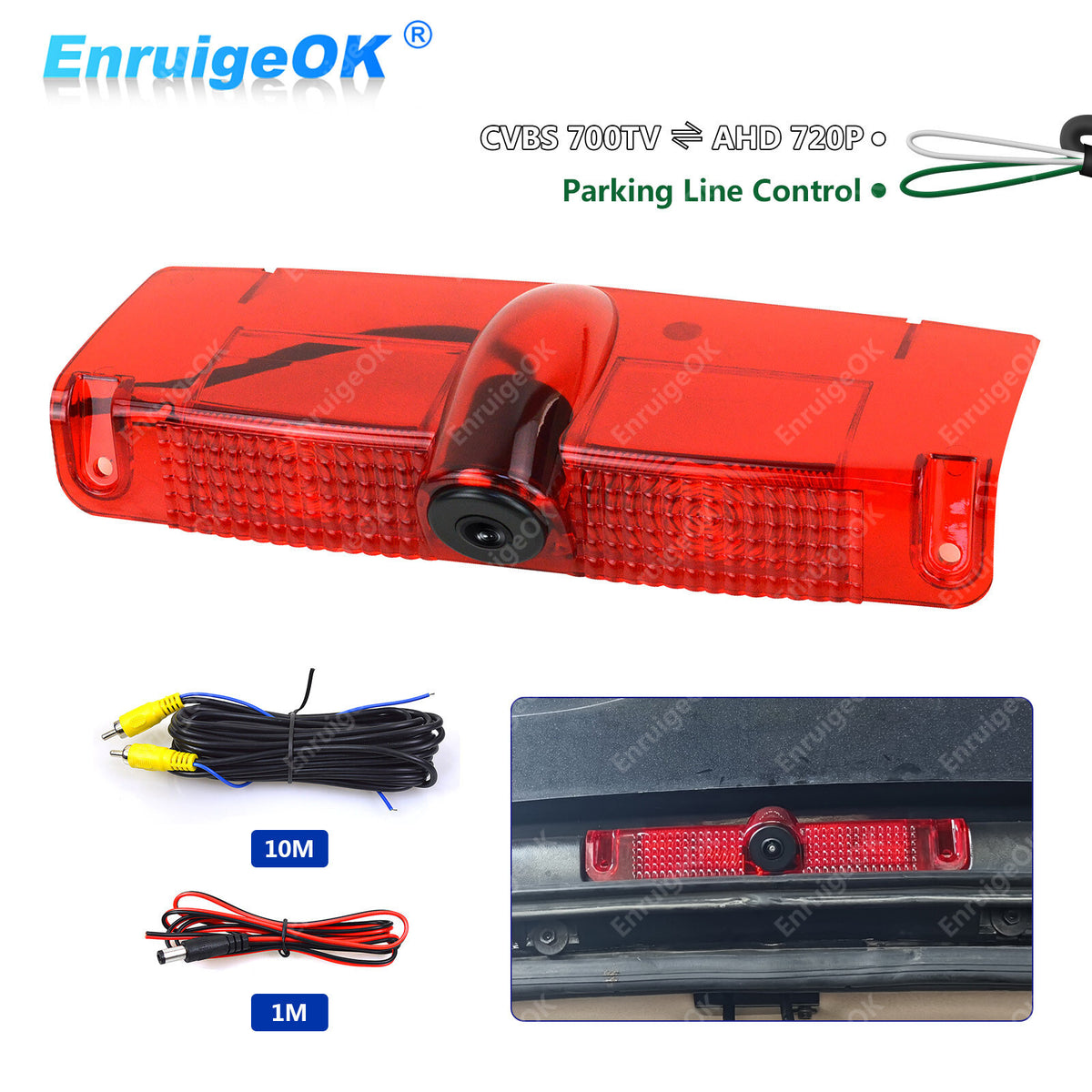

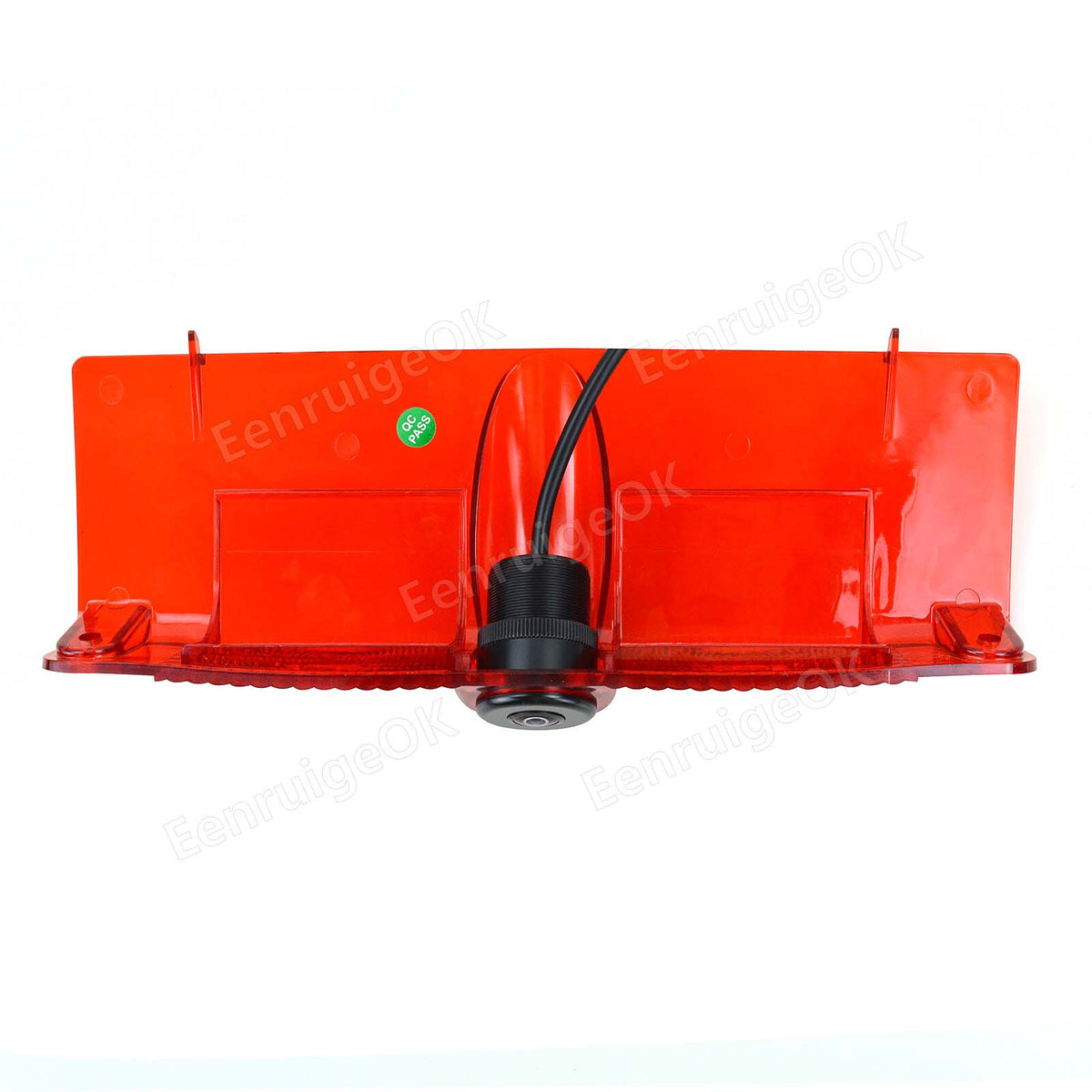

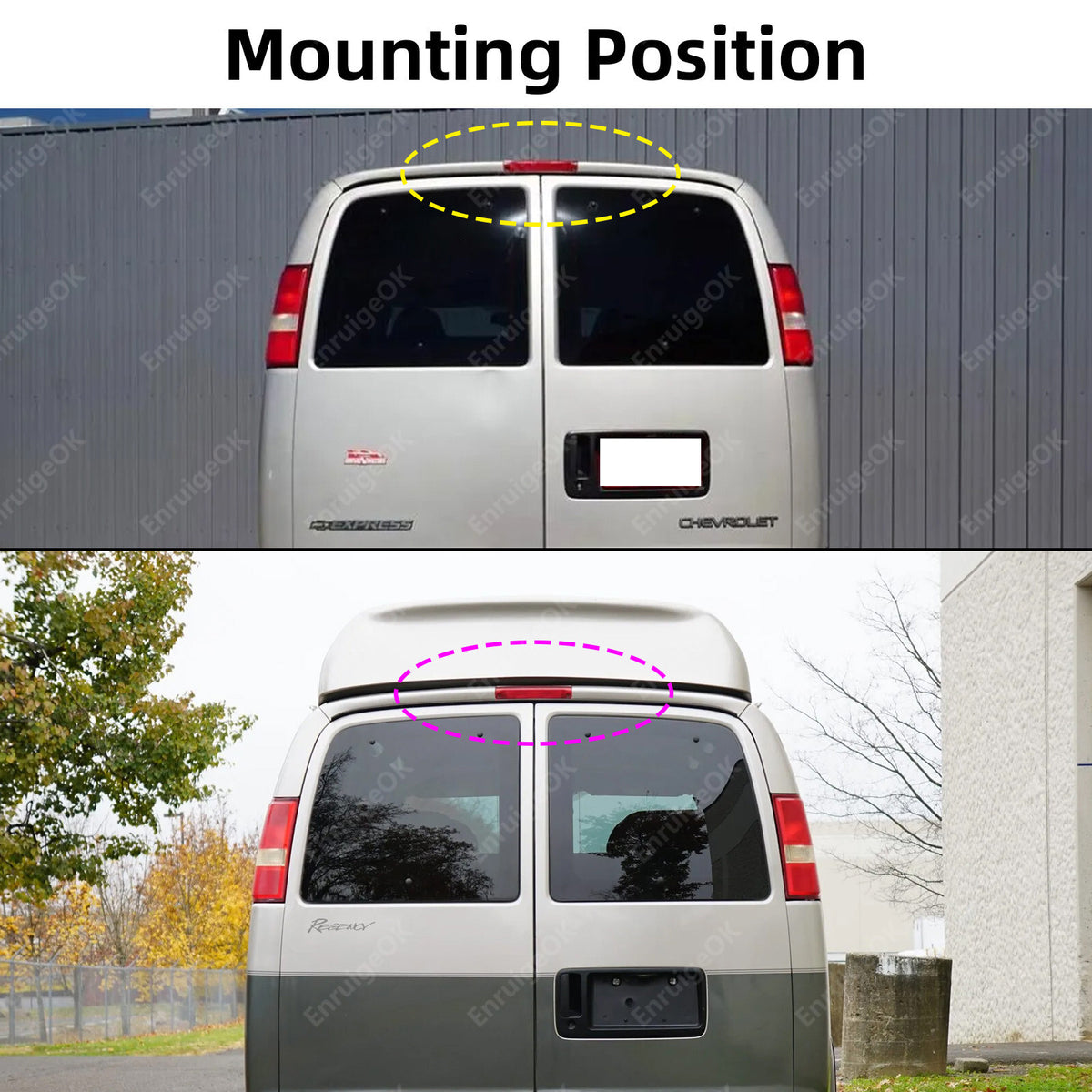

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

This brake light camera uses a 1/3" CMOS sensor with enhanced color imaging.

With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

100% Waterproof: Built with an IP68 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: 1/3" CMOS

Lens: 2.8mm

Effective pixel: 733(H)x493(V)

TV Line: 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1-0.5Lux/F=1.2

Power: DC12V

Operating temperature: -20℃ to +70℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
