Brake Light Rear View Backup Camera For Nissan NV 1500 2500 3500 & Split Monitor

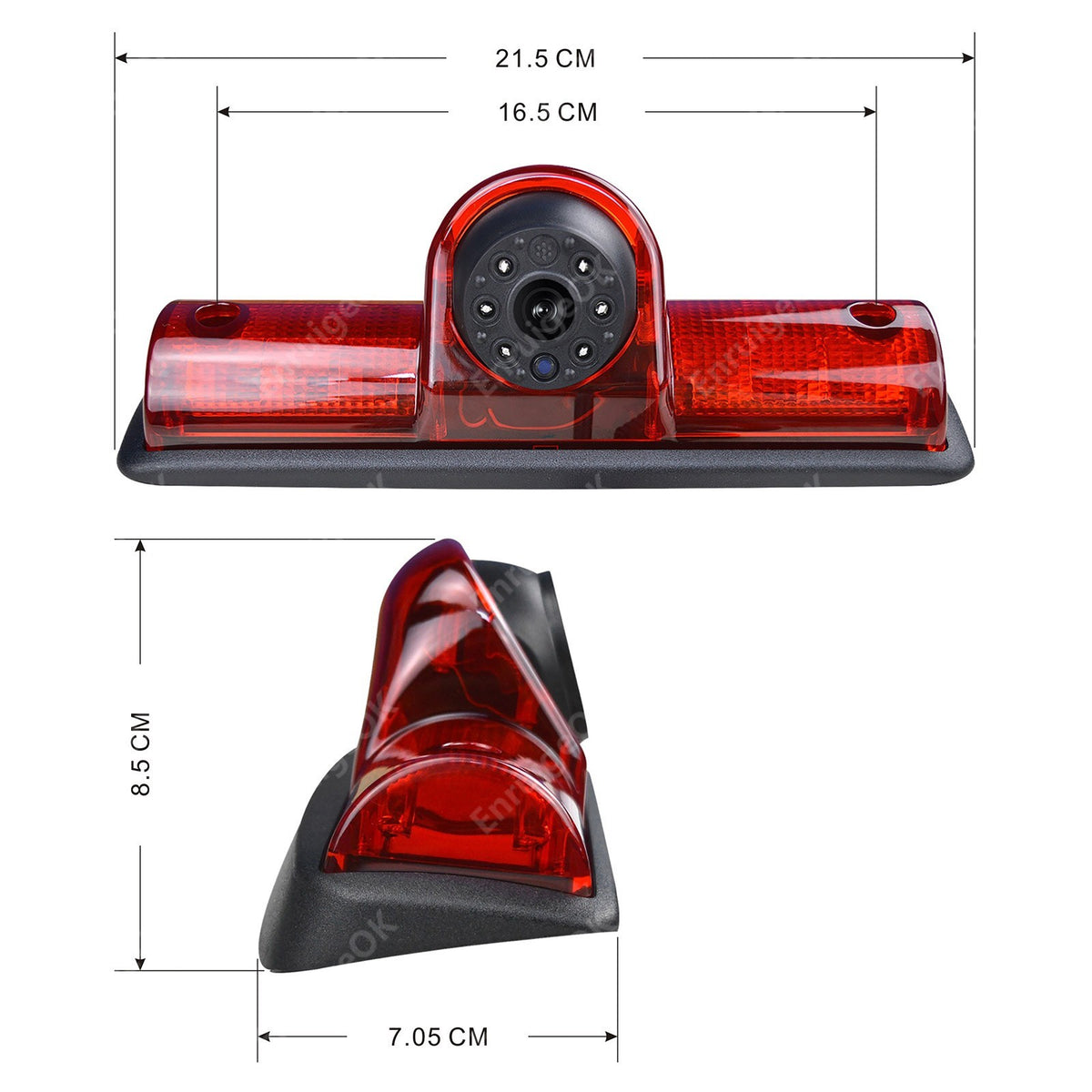

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

Camera Compatibility

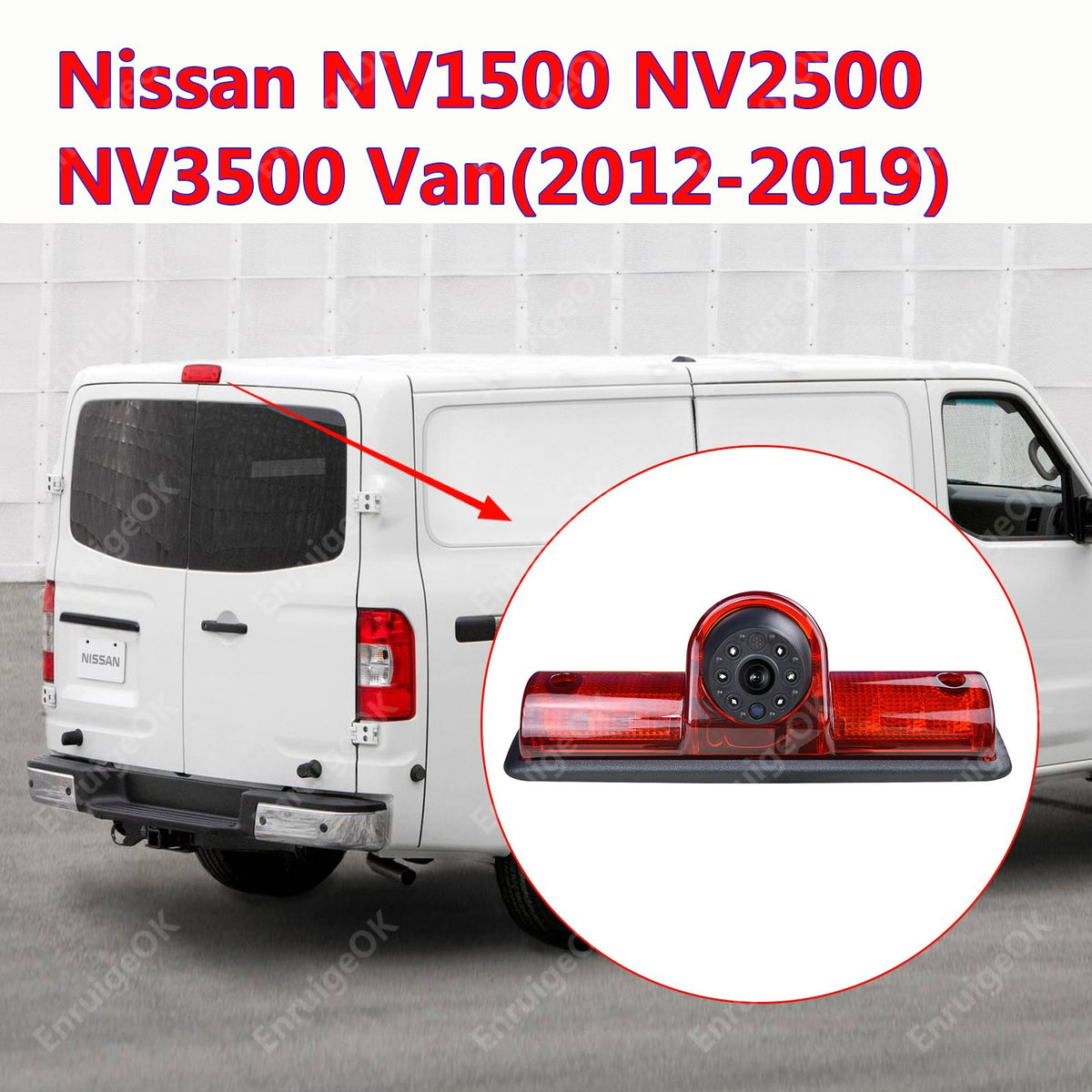

✅Nissan NV1500 2500 3500 Van (2012-2019)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

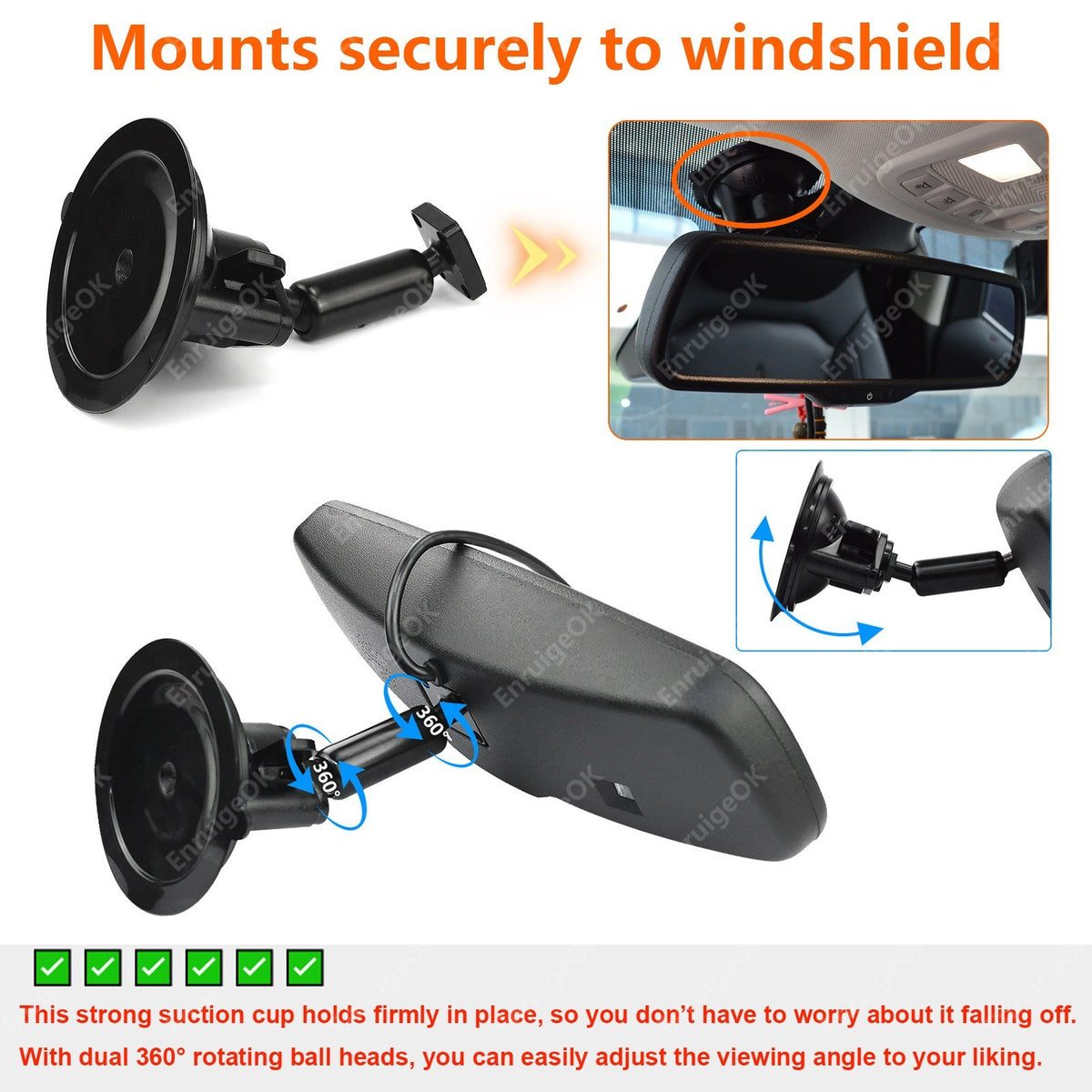

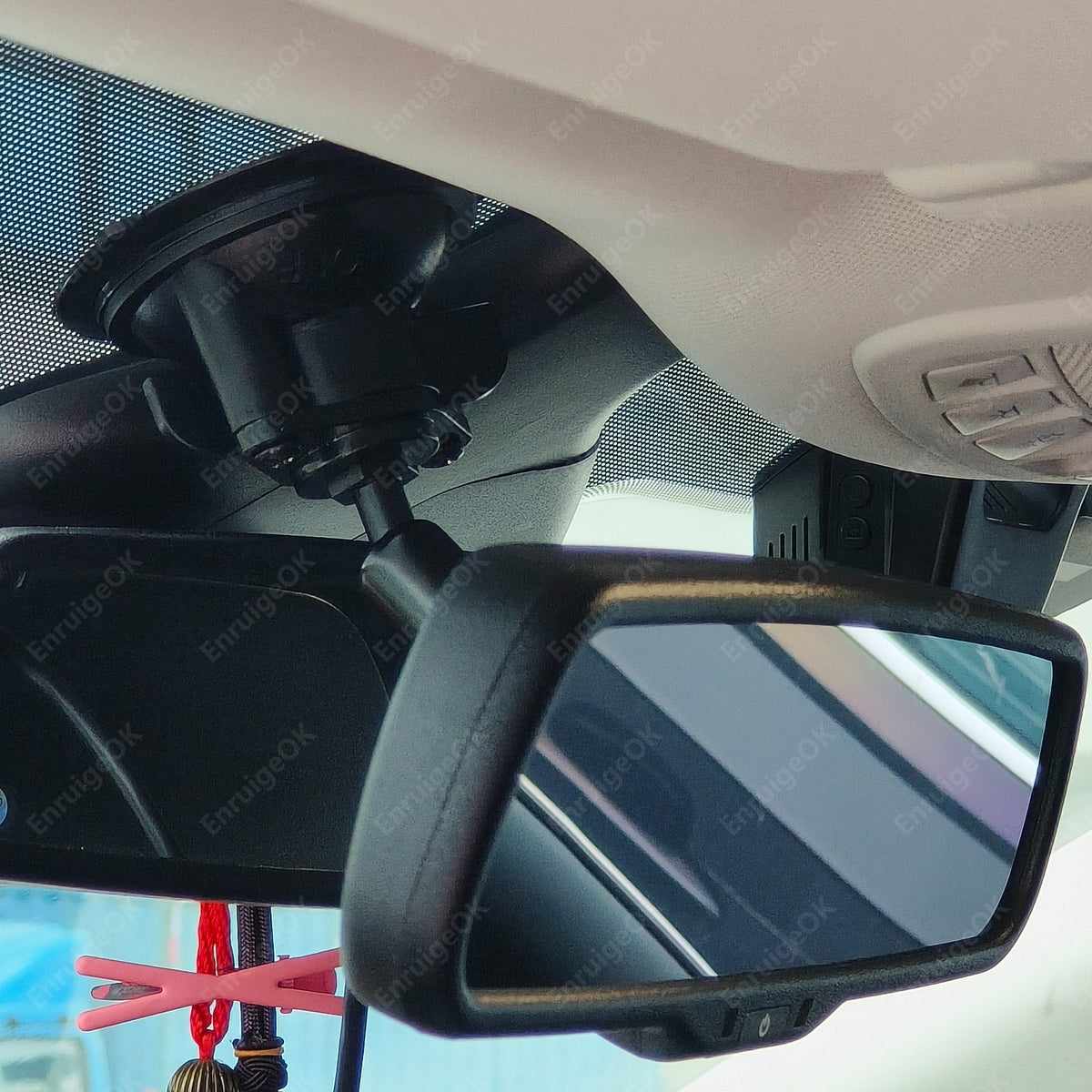

Monitor Bracket:

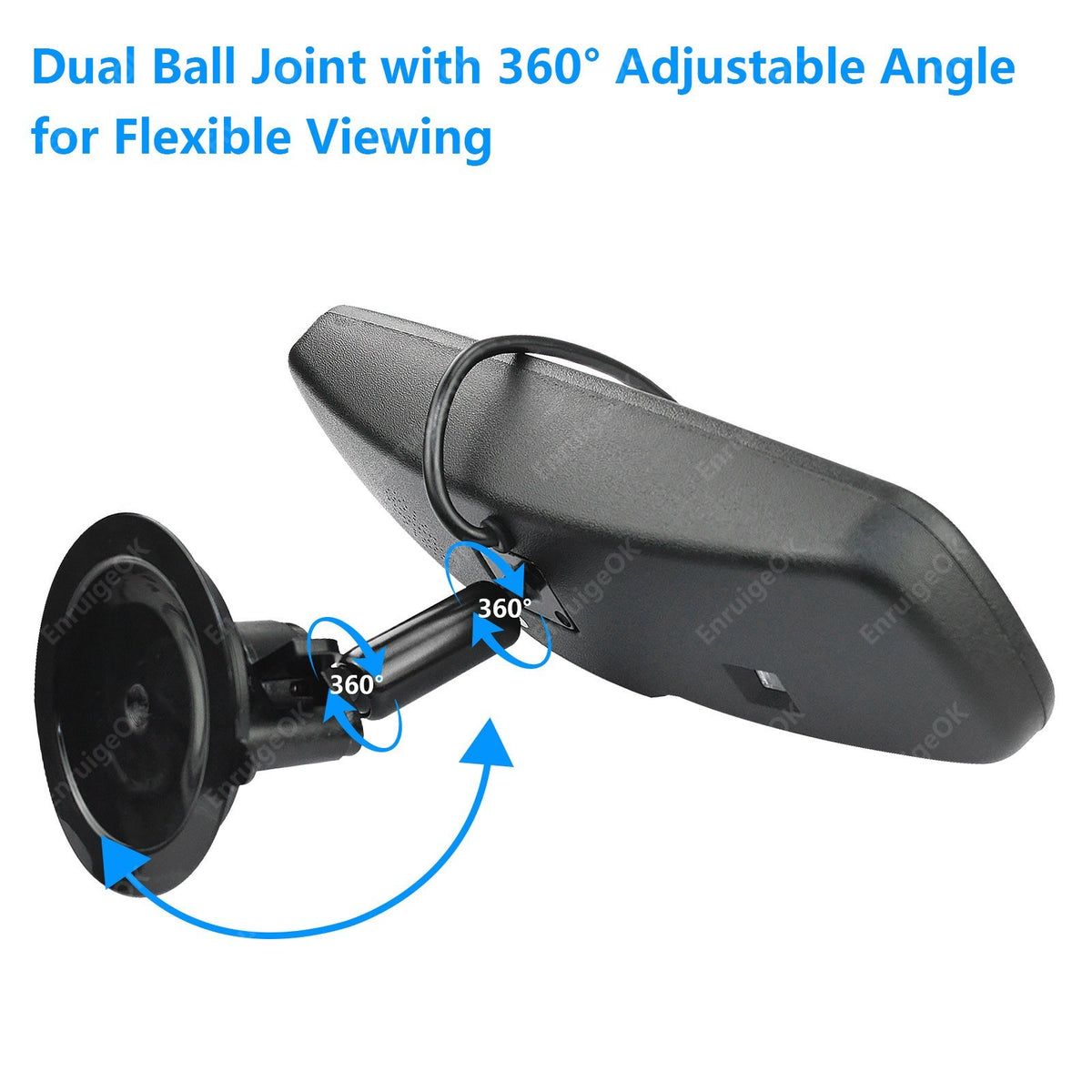

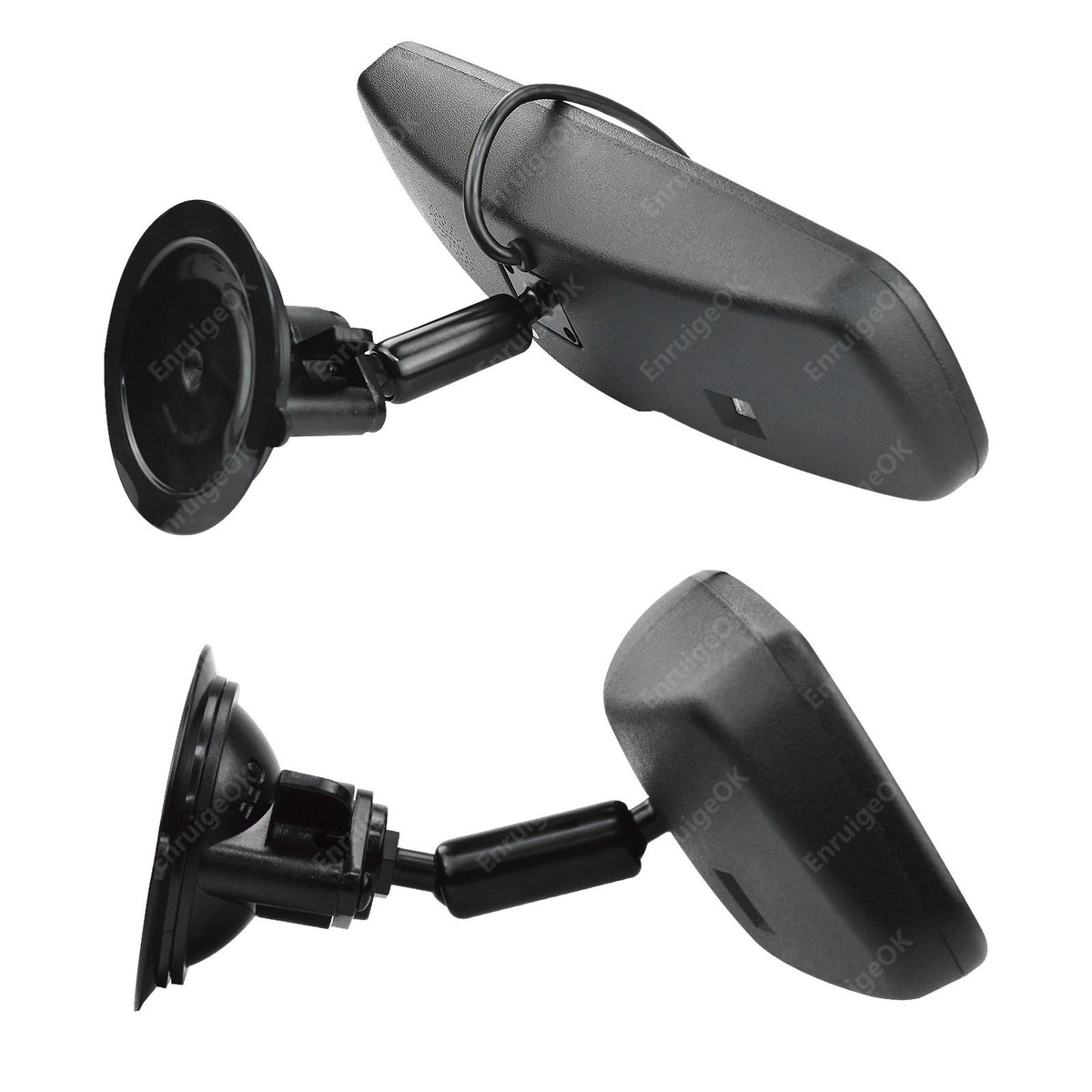

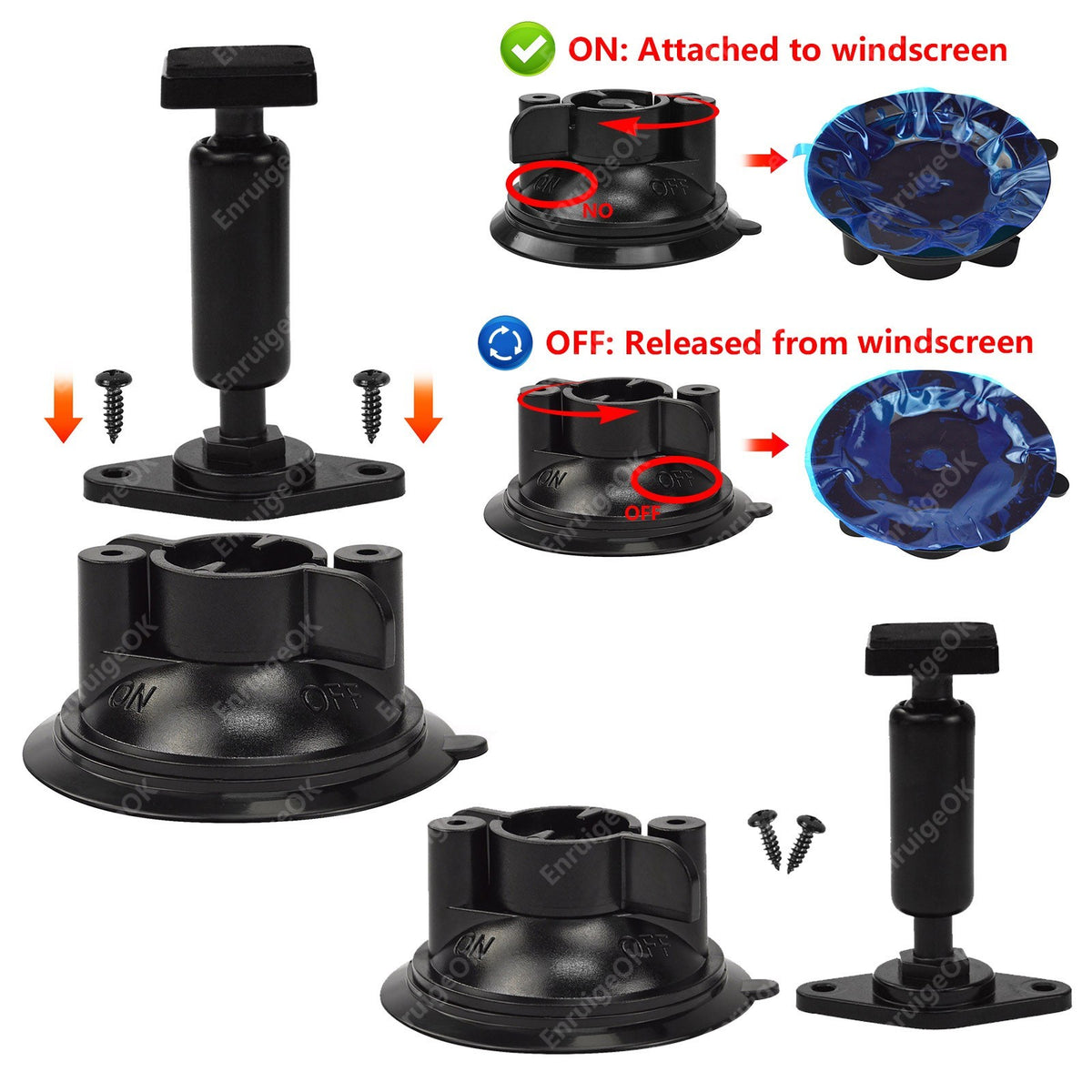

This set comes with a suction cup bracket. Strong suction cup design ensures firm attachment without slipping. Equipped with dual 360° rotating ball heads for flexible angle adjustment, allowing you to achieve the perfect viewing angle with ease.

Description

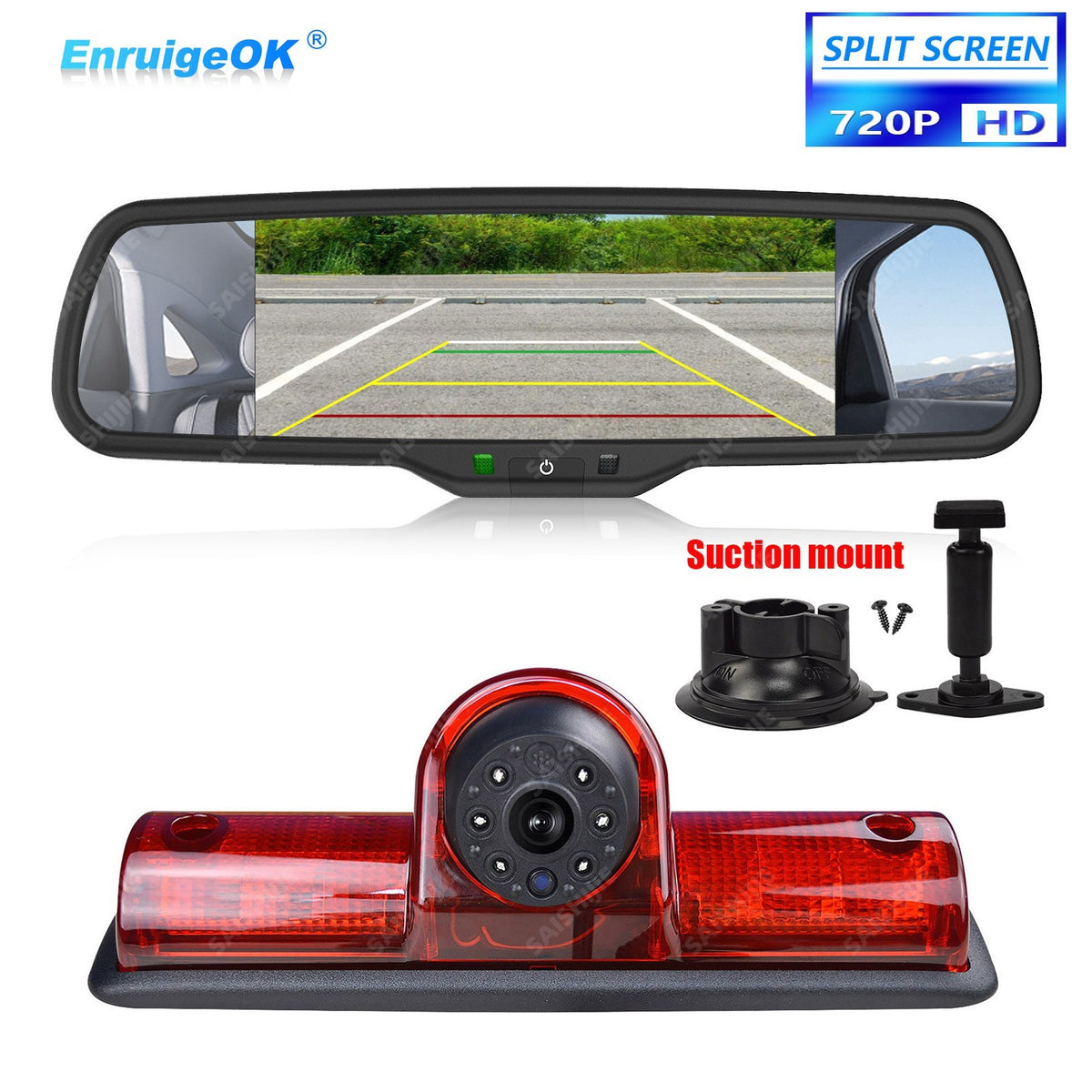

Complete Rearview System for Vans: Includes a 6.86-inch dual split-screen mirror monitor and a rear brake light camera, providing clear rear visibility and improved parking safety.

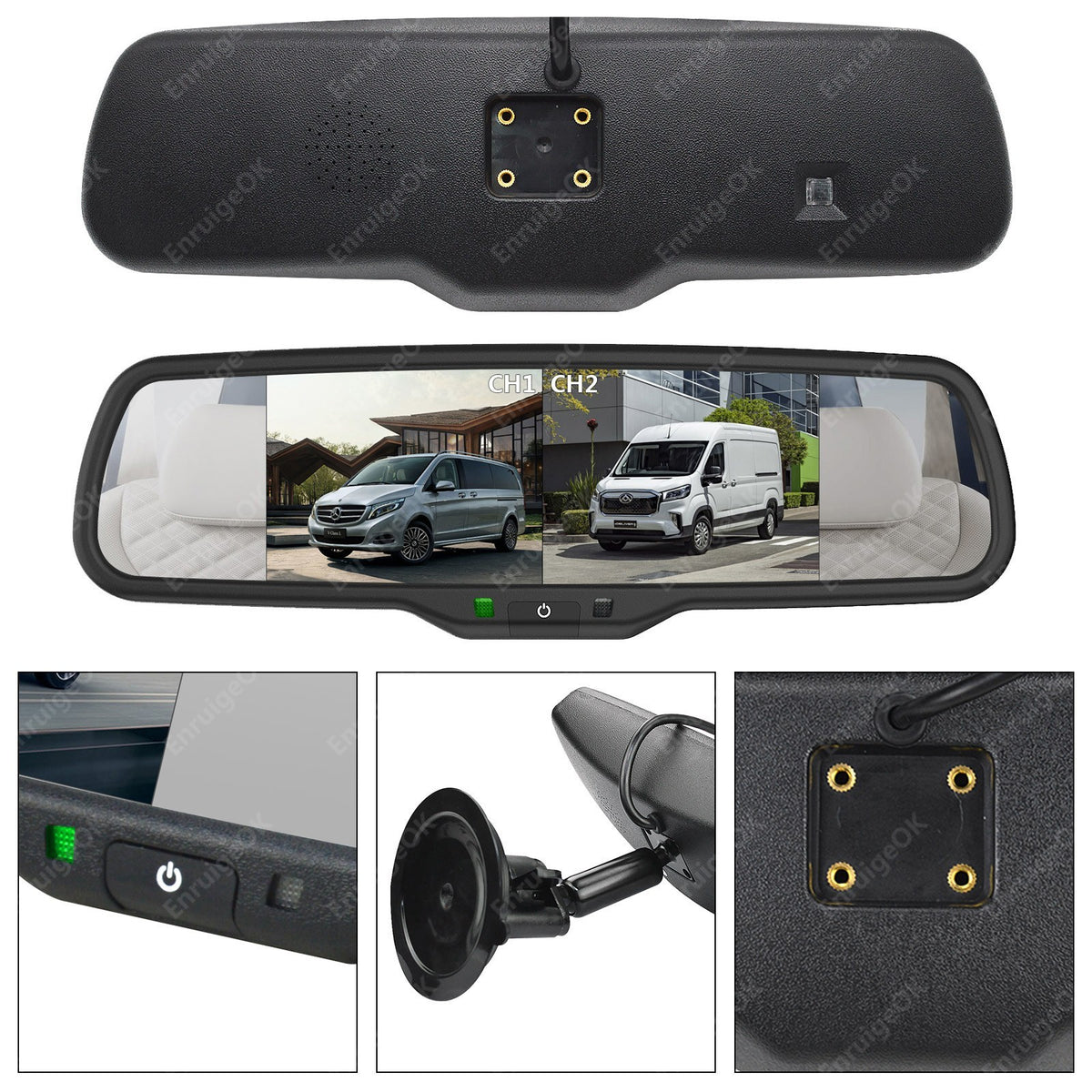

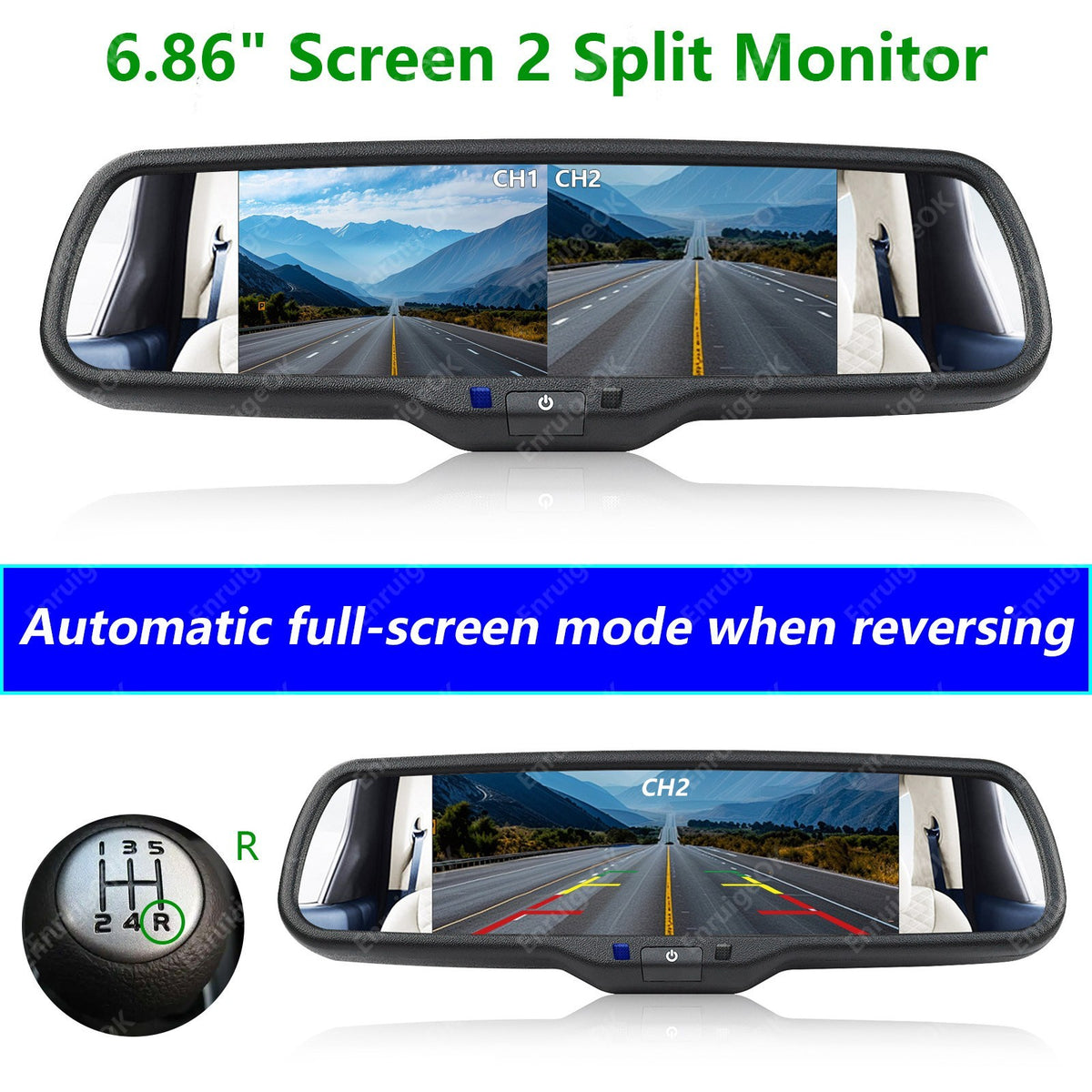

6.86" Dual-Screen Mirror Monitor: High-resolution 1280x480 IPS display with dual video inputs, split-screen functionality, and automatic full-screen mode when reversing.

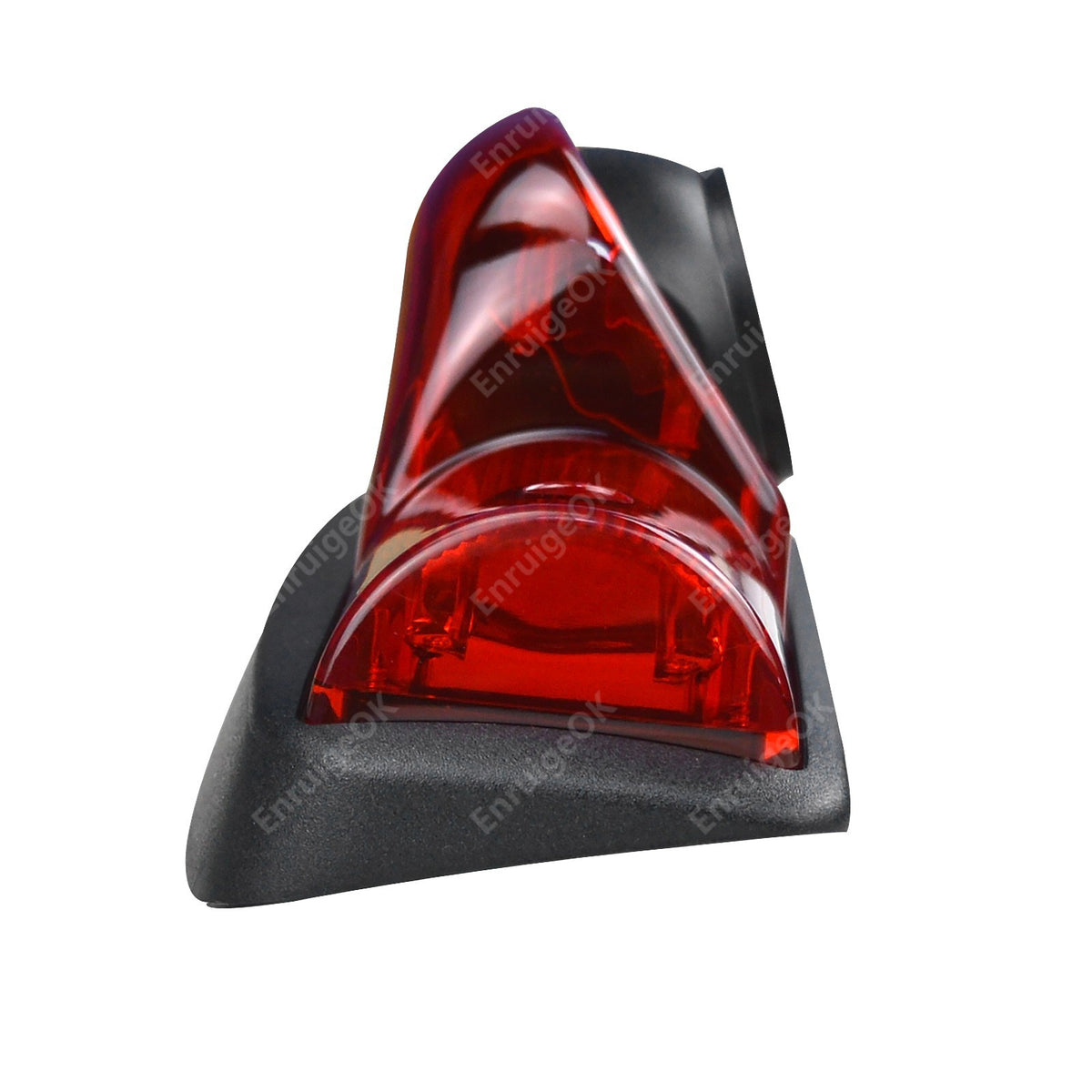

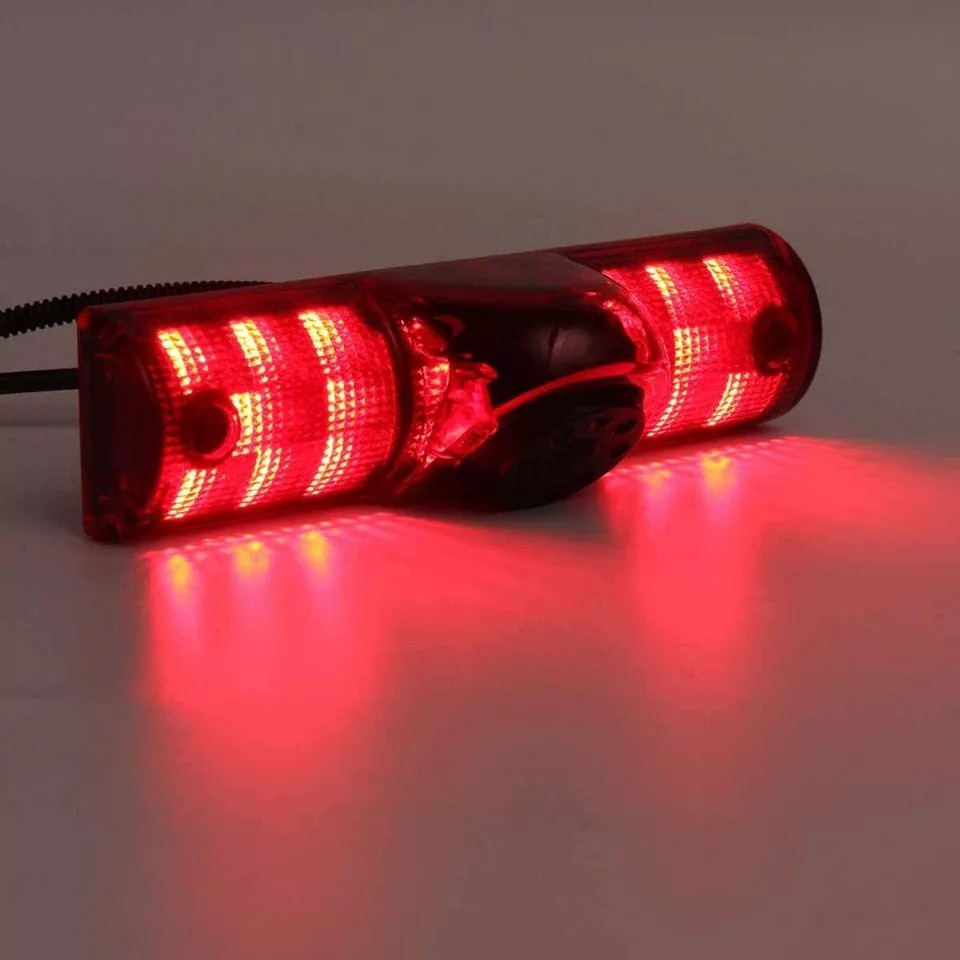

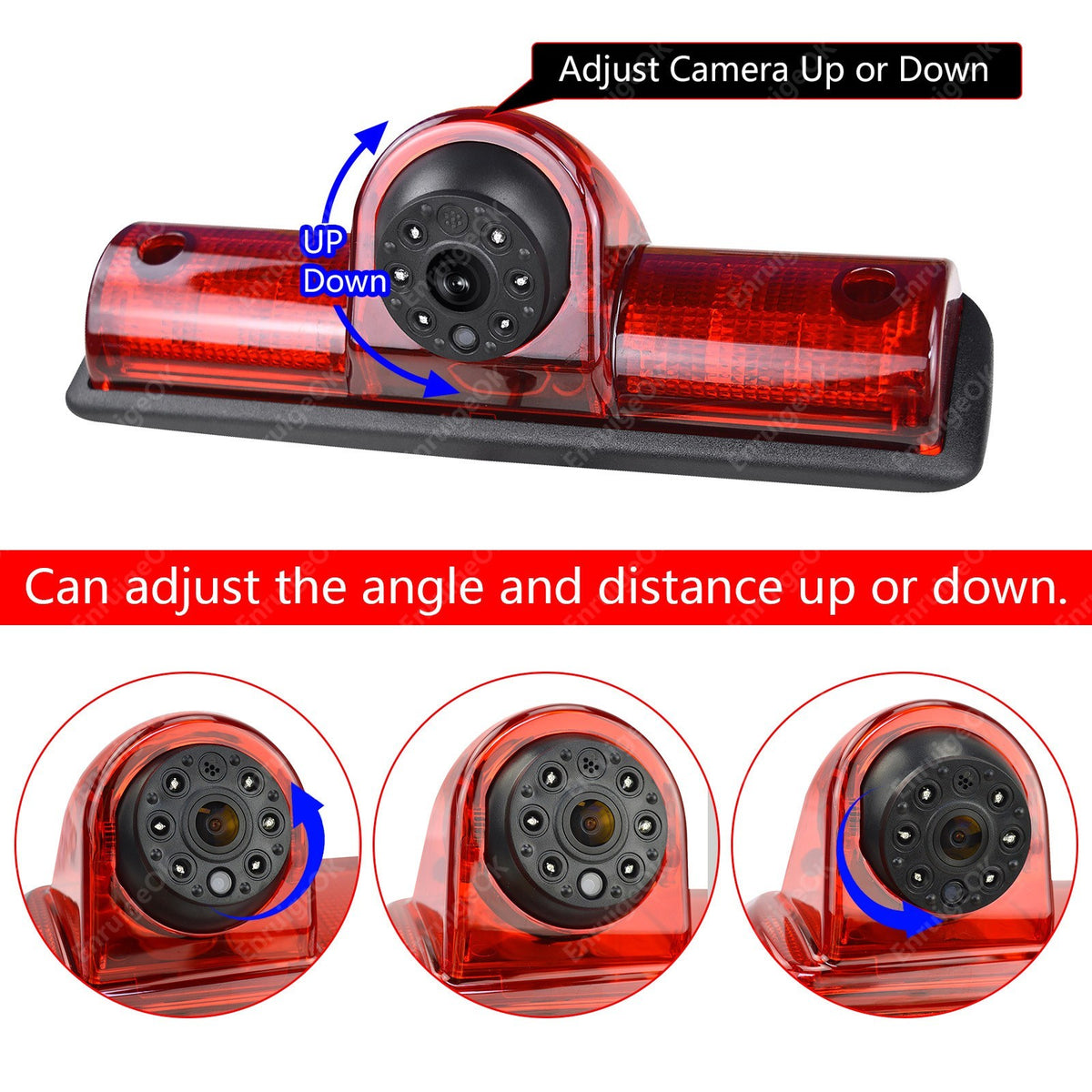

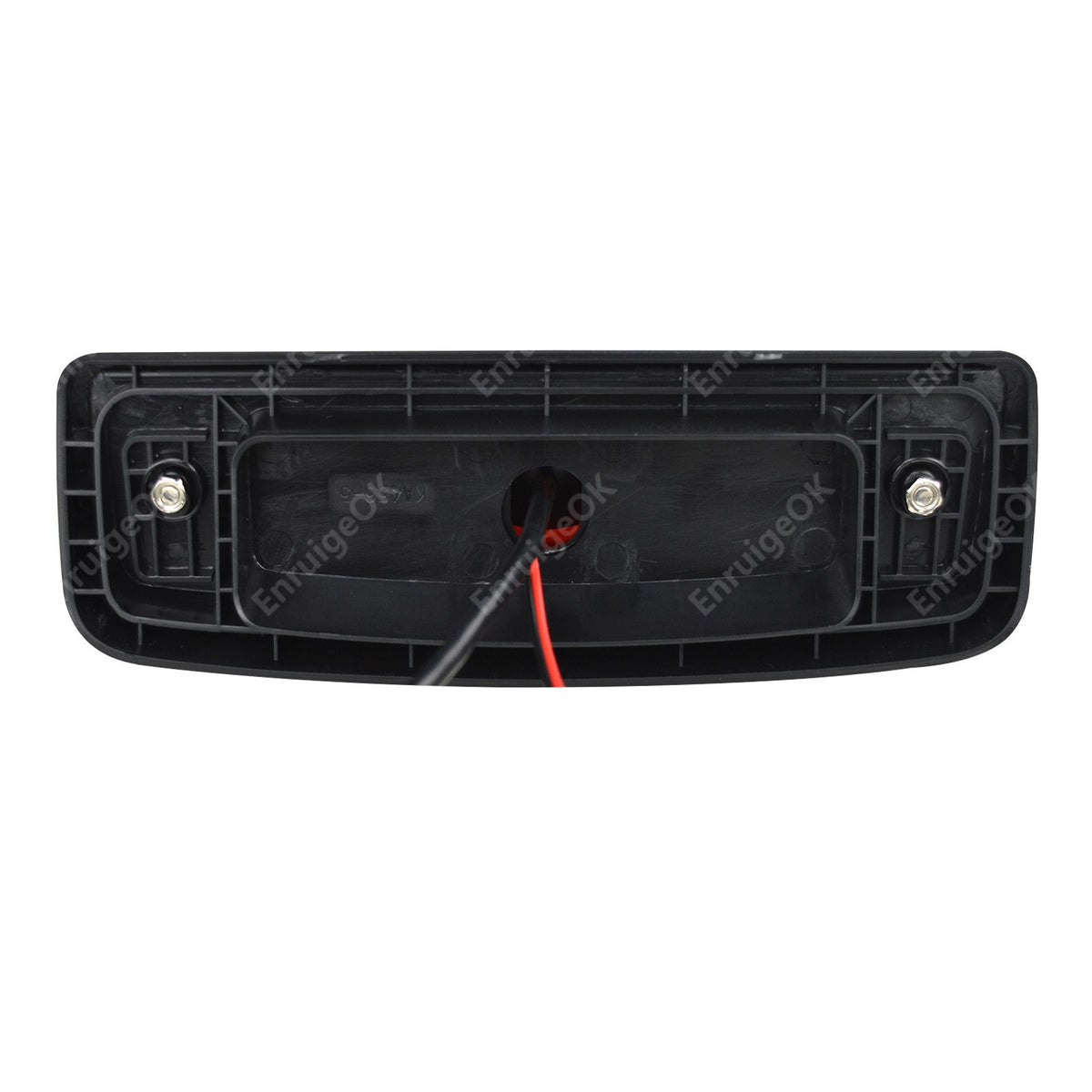

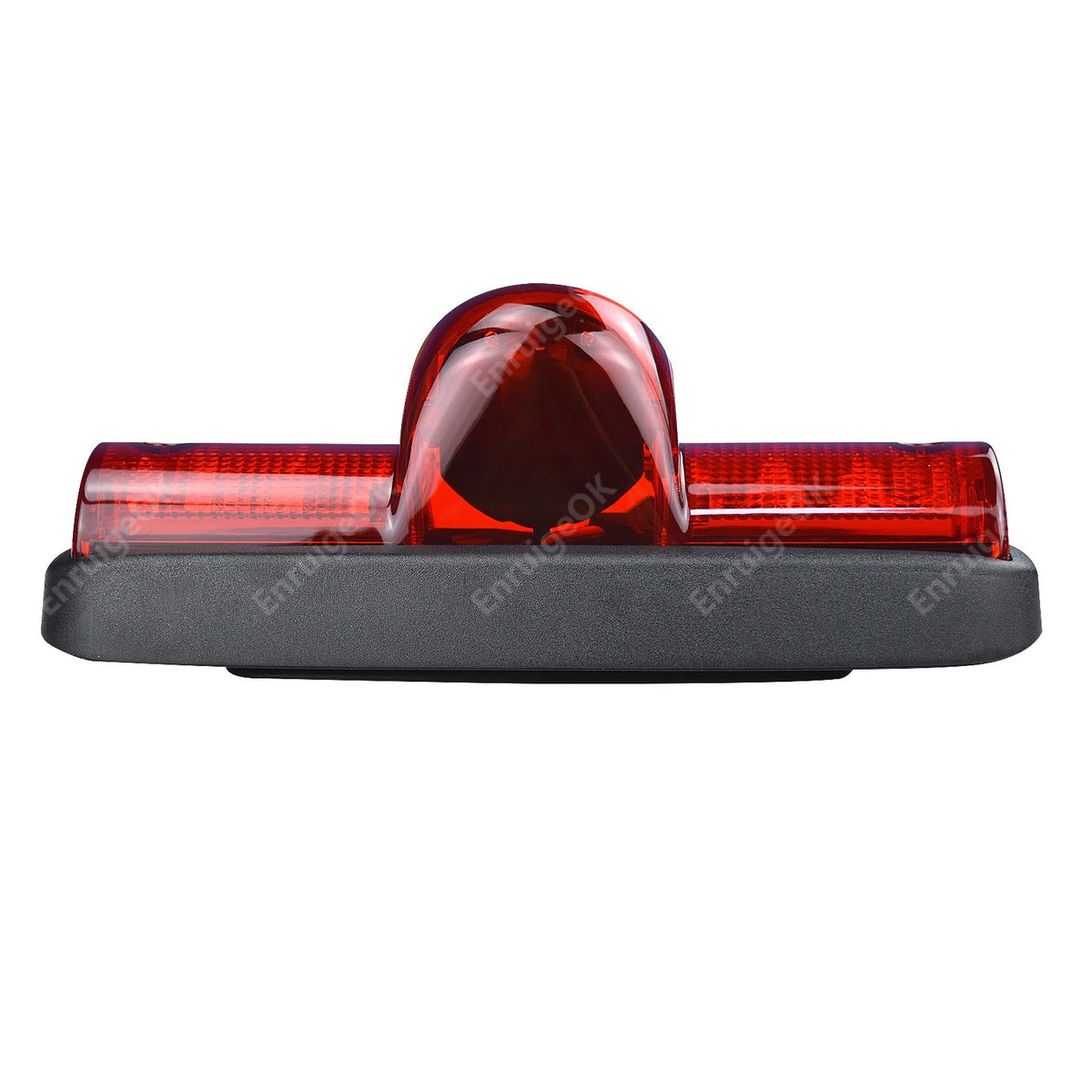

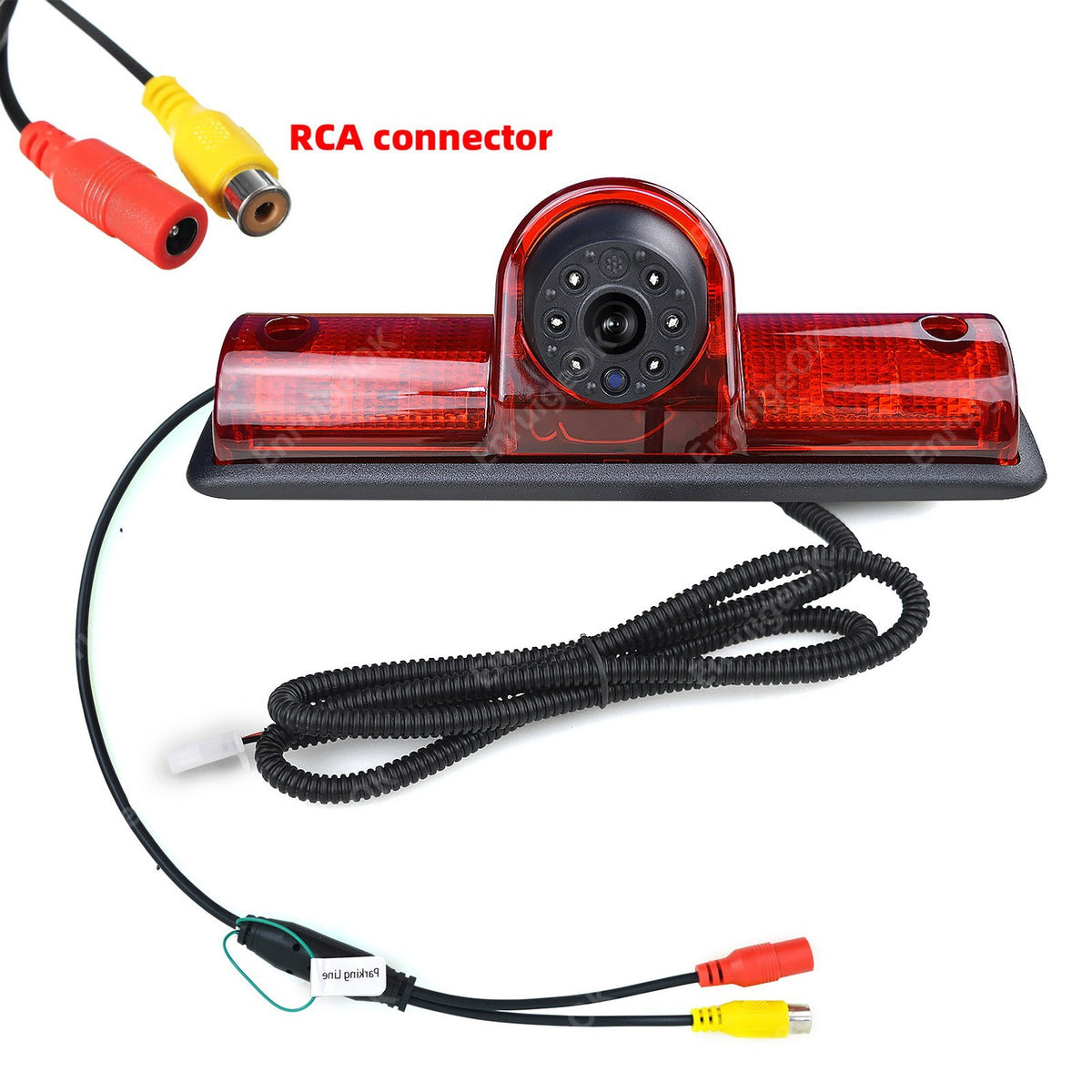

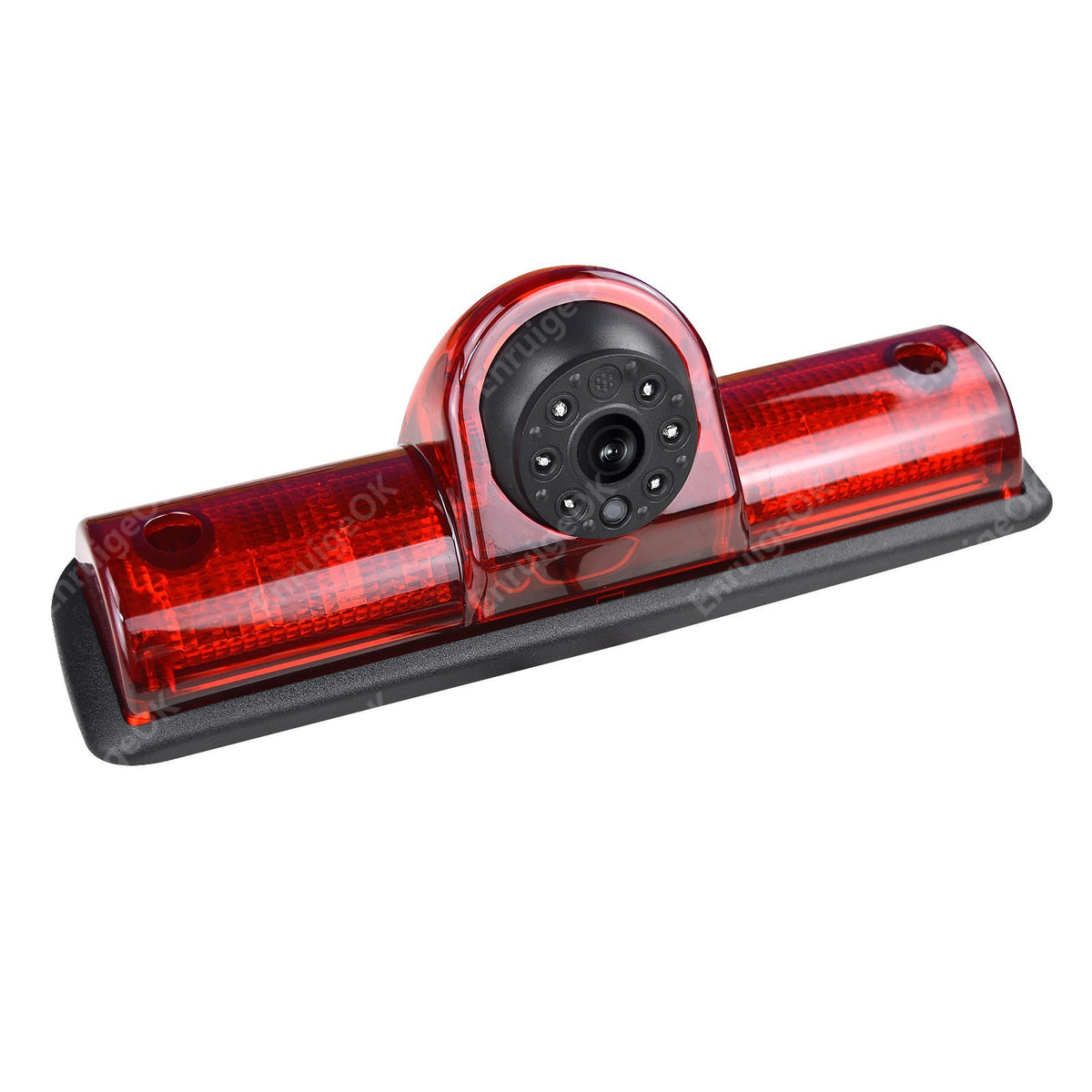

Rear Brake Light Camera: Replaces your van's existing brake light with a factory-style reversing camera. Features a wide-angle lens, making reversing safer and more convenient.

AV2 Reversing Input: Captures a rear view while reversing, displayed on AV2 input.

AV1 Driving Input: Can connect an spare rear-view camera to monitor traffic behind while driving.

Wide Voltage Range (DC 9V-35V): Ensuring reliable operation in various conditions.

IP69 Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: 1/3" CMOS

Effective pixels: 1920(H)x720(V)

Resolution: AHD 720P

Night vision distance: Approx. 35ft

Waterproof rating: IP69

Horizontal angle: 120°

Video system: PAL/NTSC

S/N Ratio: >48dB

Current consumption: <150mA

Minimum illumination: 0.1 Lux

Power: DC 9V-35V

Operating temperature: -20℃ to +70℃

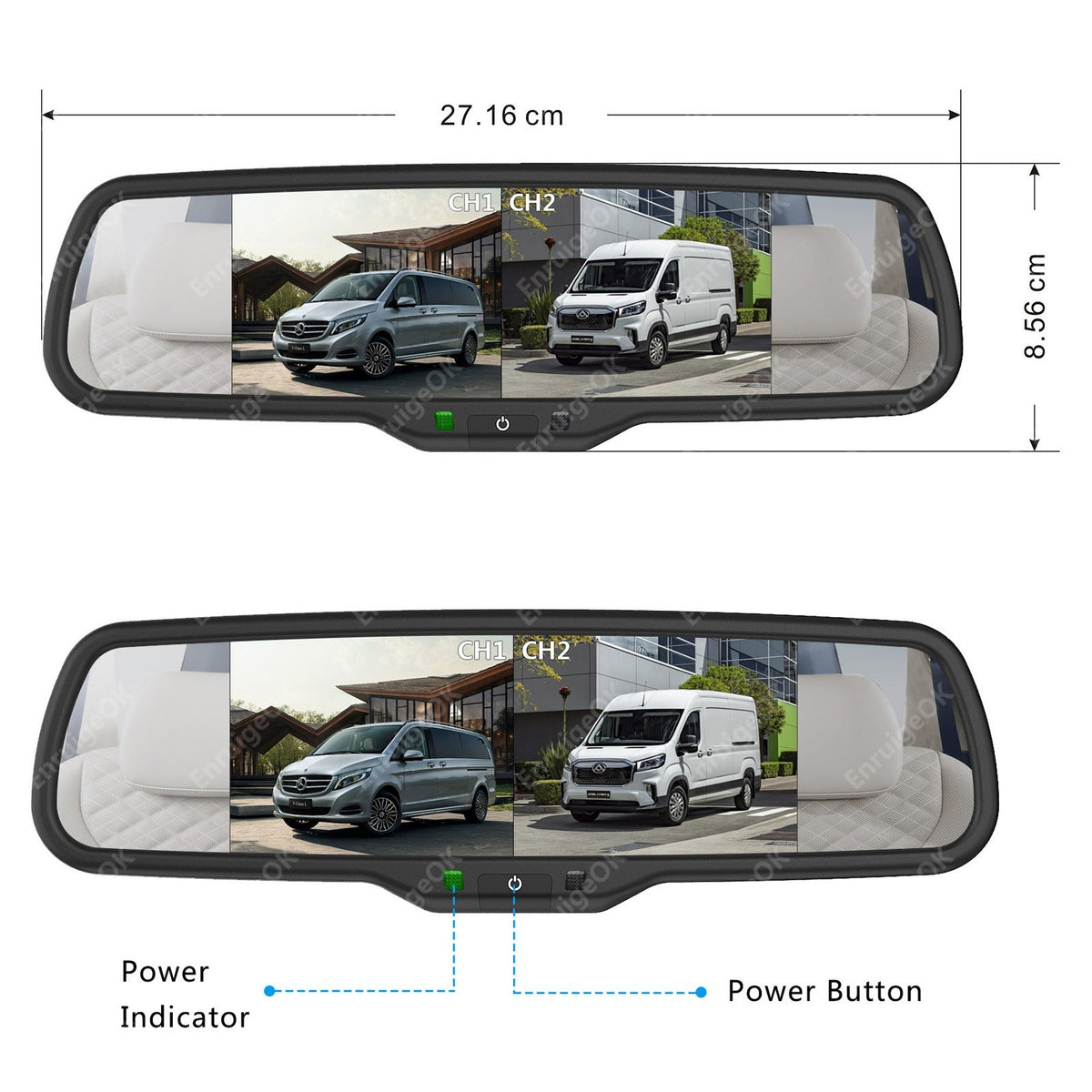

Monitor Specifications

Screen: 6.86 inch, support dual split screen

Resolution: 1280(RGB)x480 IPS

TV System: PAL/NTSC auto

Screen ratio: 16:9 / 4:3 adjustable

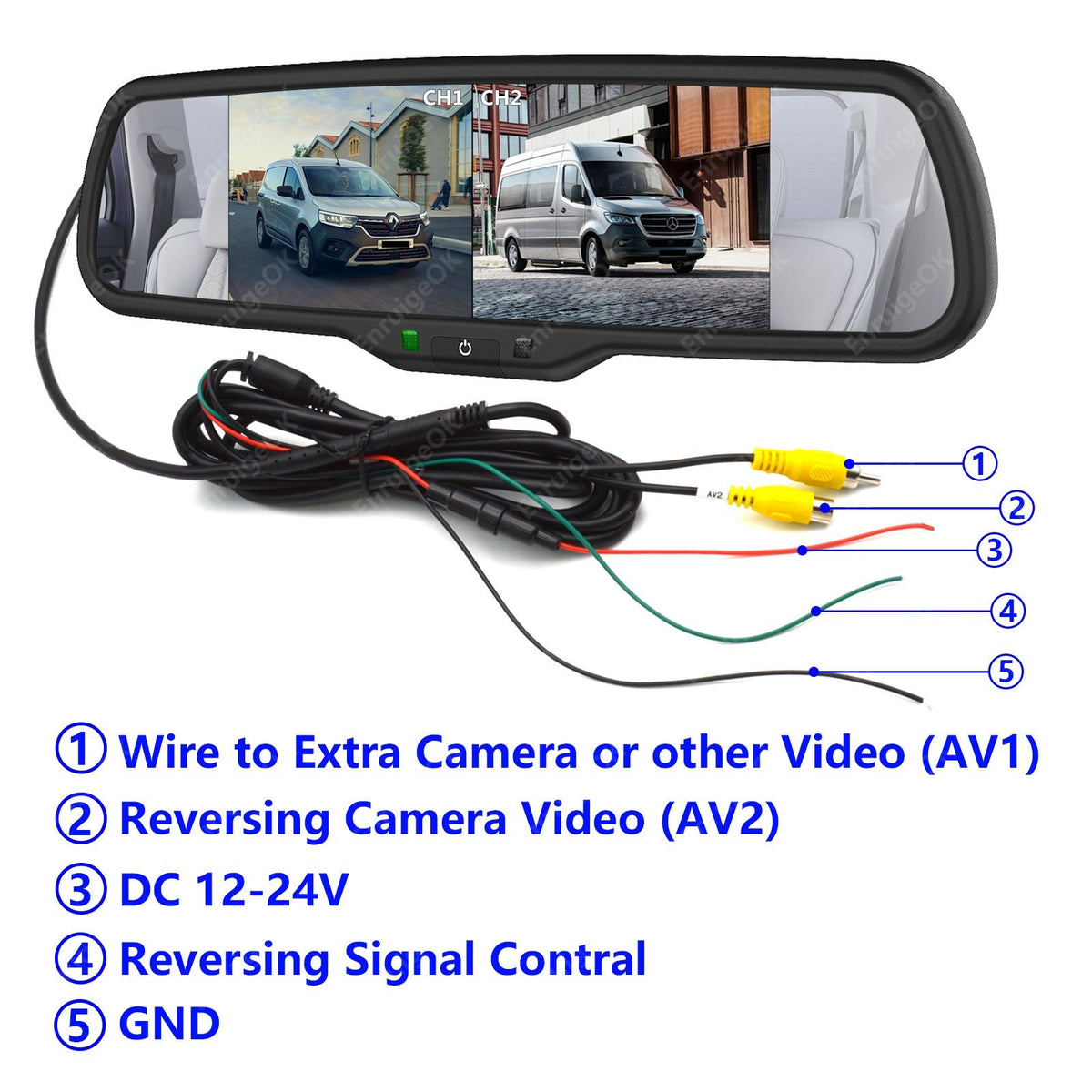

Video Input: Dual video input (AV1 for standard mirror view, AV2 for reversing), support 2-split screen, automatic full-screen switch during reversing

Blue screen displayed when no signal detected

Power Supply: DC 12V-24V

Operation temperature: -20℃ ~ +60℃

Storage temperature: -20℃ ~ +60℃

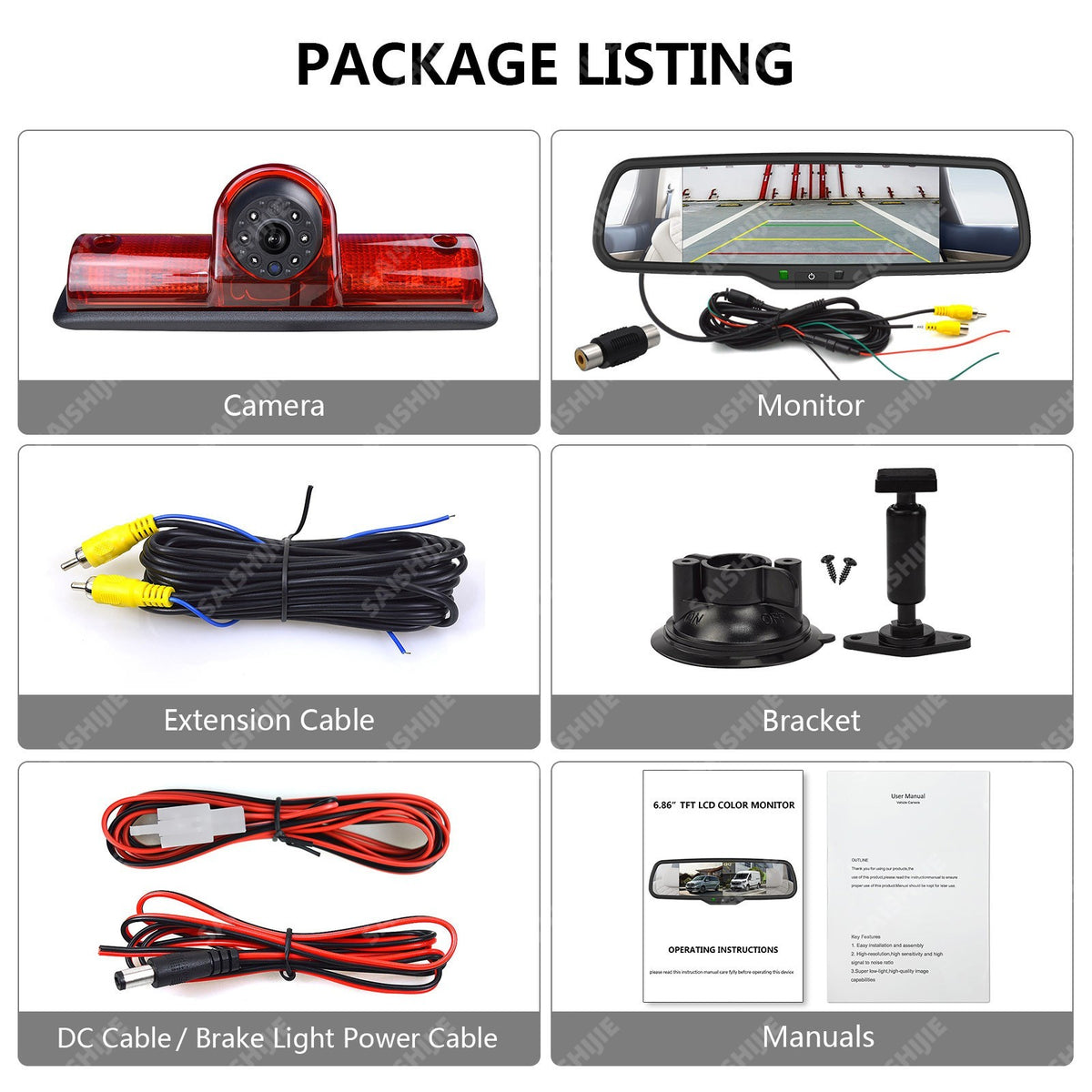

Package contents

1 X Brake light camera

1 X 6.86'' split mirror monitor

1 X 2.5m monitor power cable

1 X 10m/33ft. video extension cable

1 X 1m DC power cable

1 X Brake light camera power cable

1 X Female-to-female adapter

1 X Suction cup bracket

1 X Manual
