Brake Light Rear View Backup Camera for Ford Transit Connect &7'' Mirror Monitor

Note: Please check the camera size carefully before make the order.

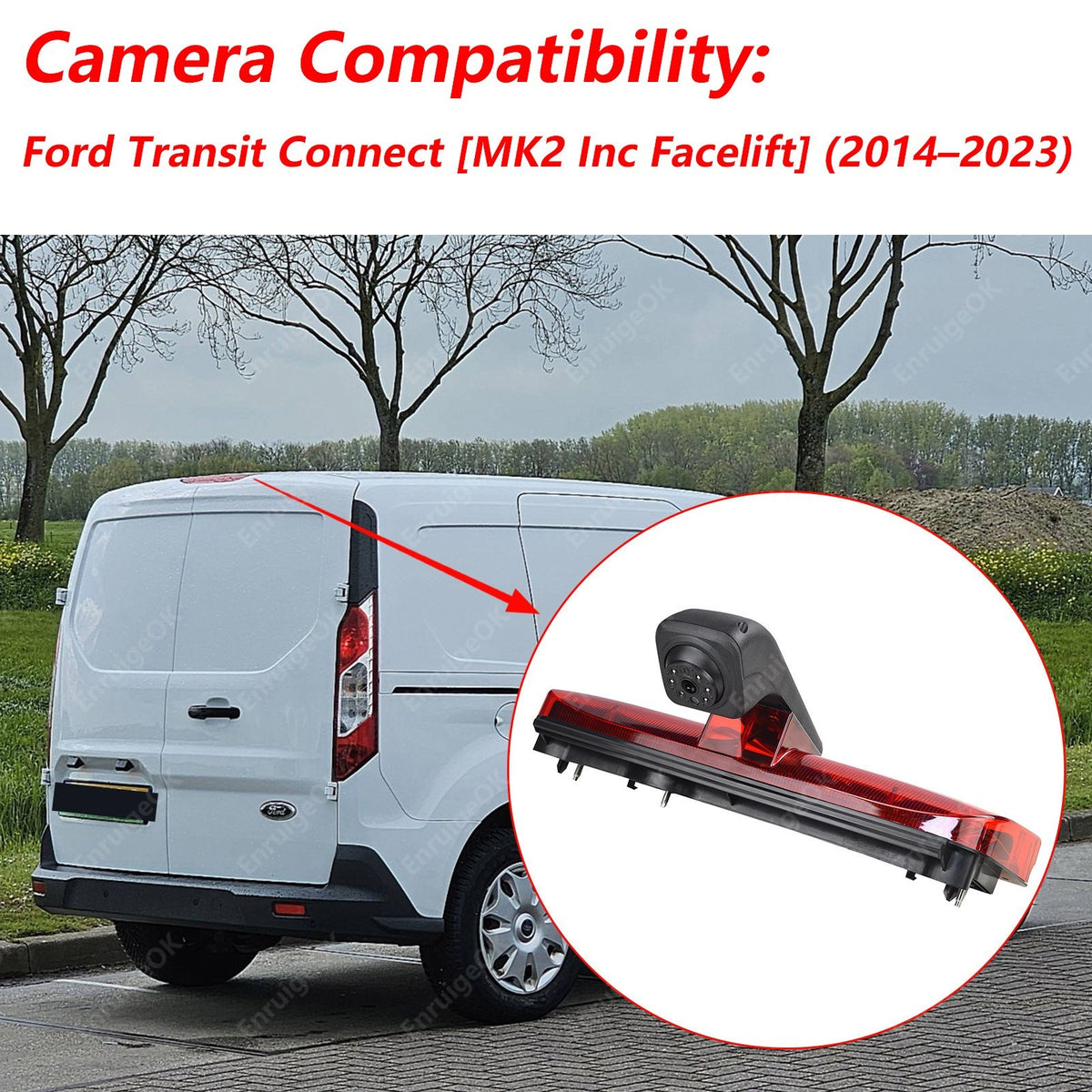

Camera Compatibility

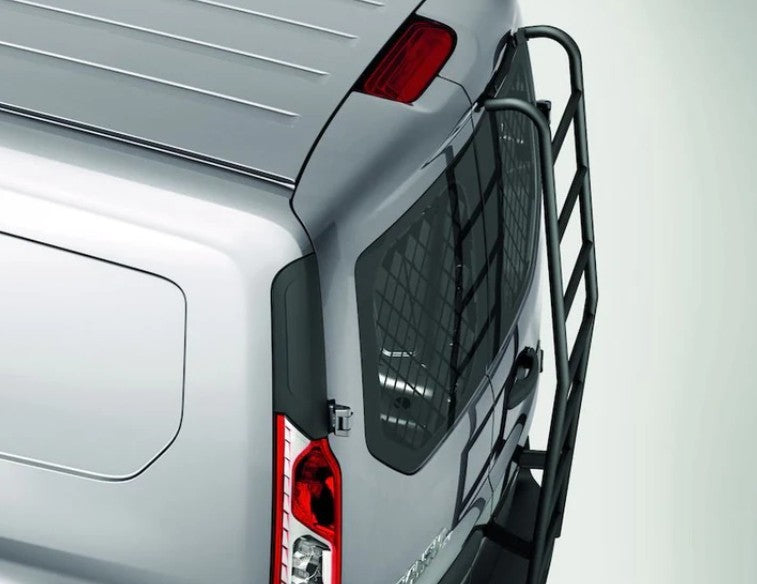

Designed for Ford Transit Connect [MK2 Inc Facelift] (2014–2023)

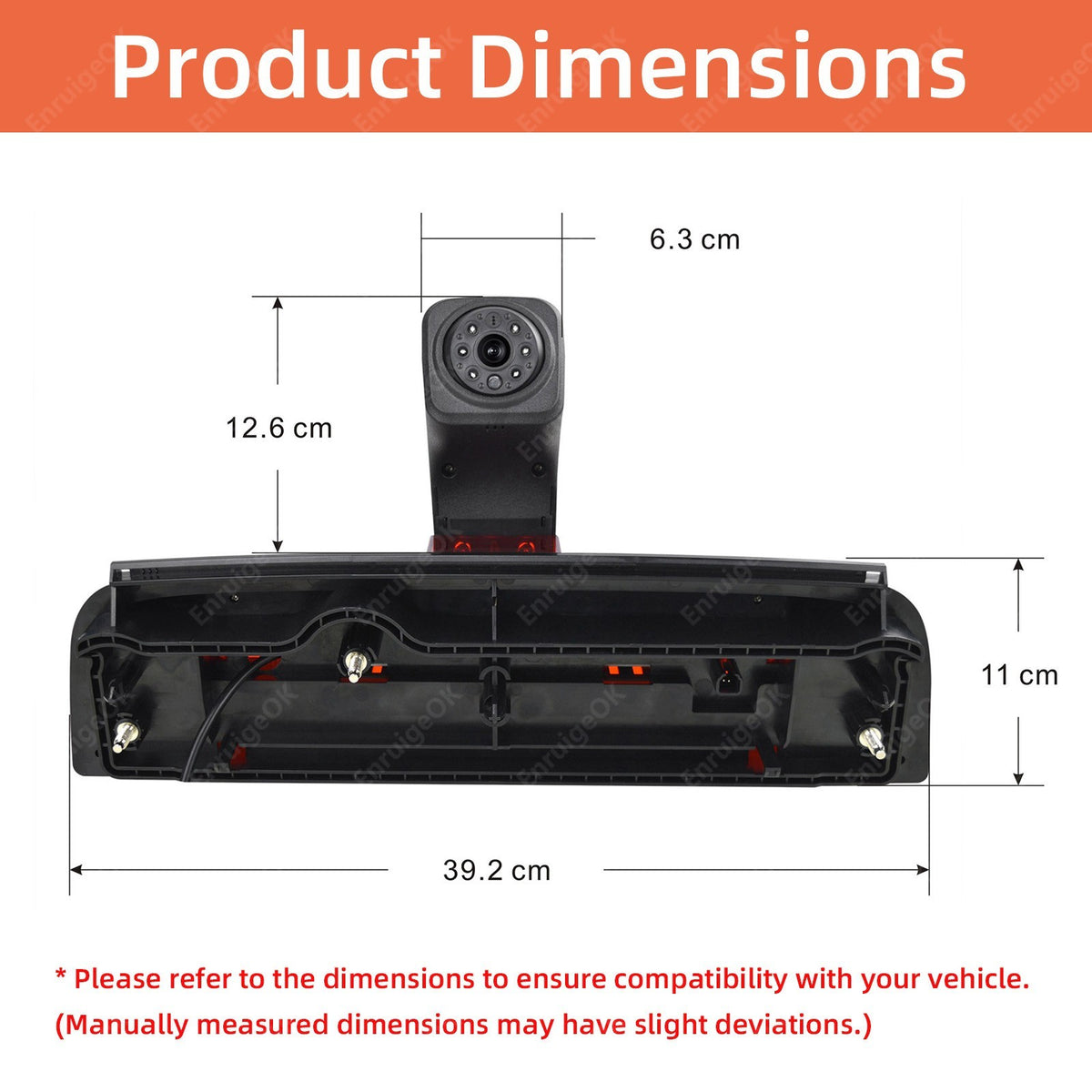

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

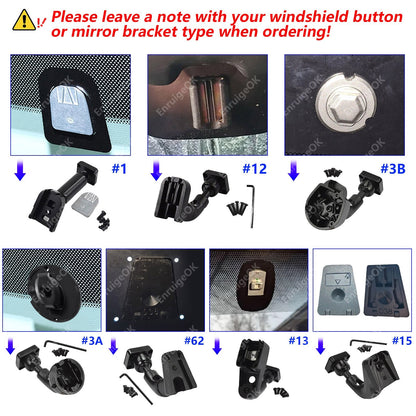

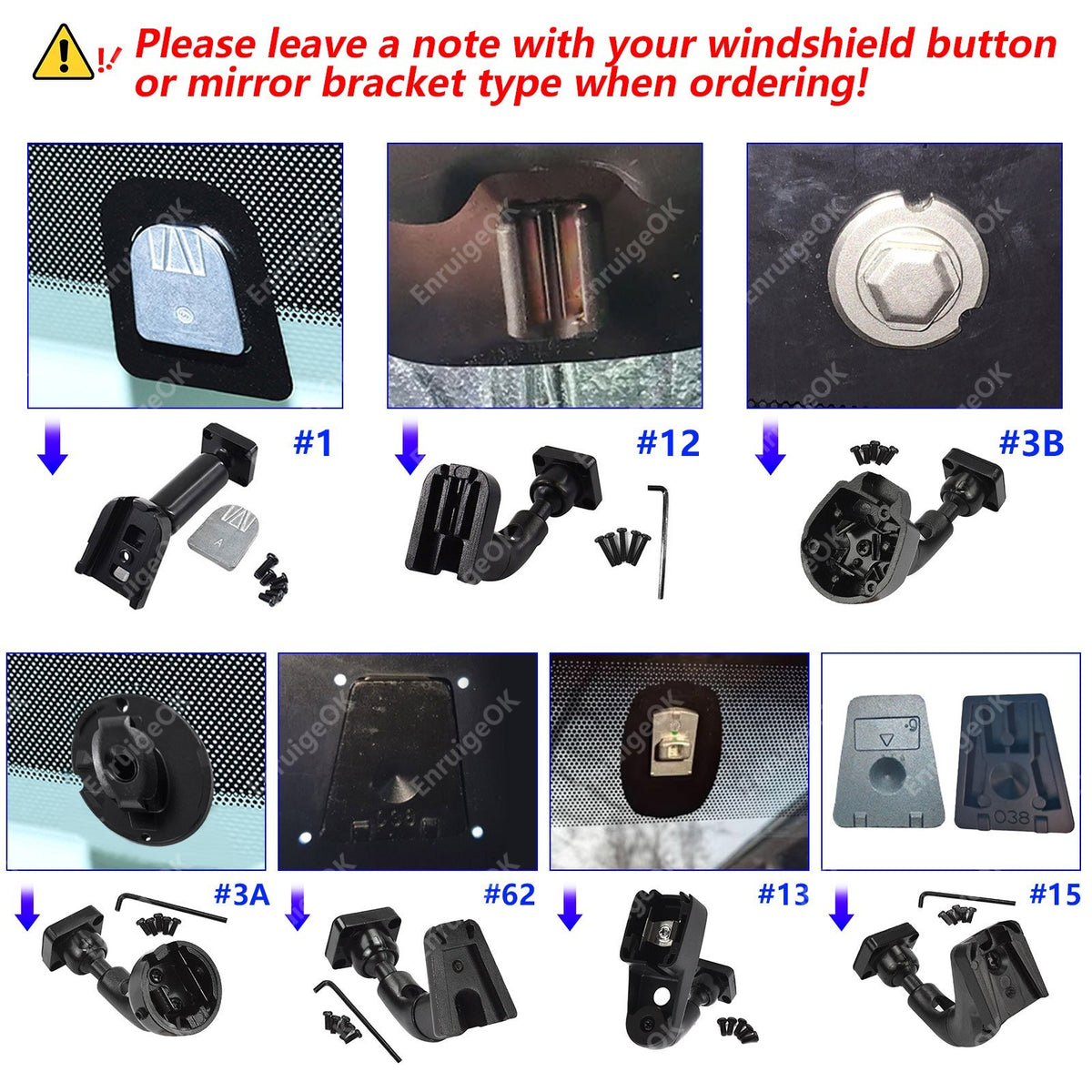

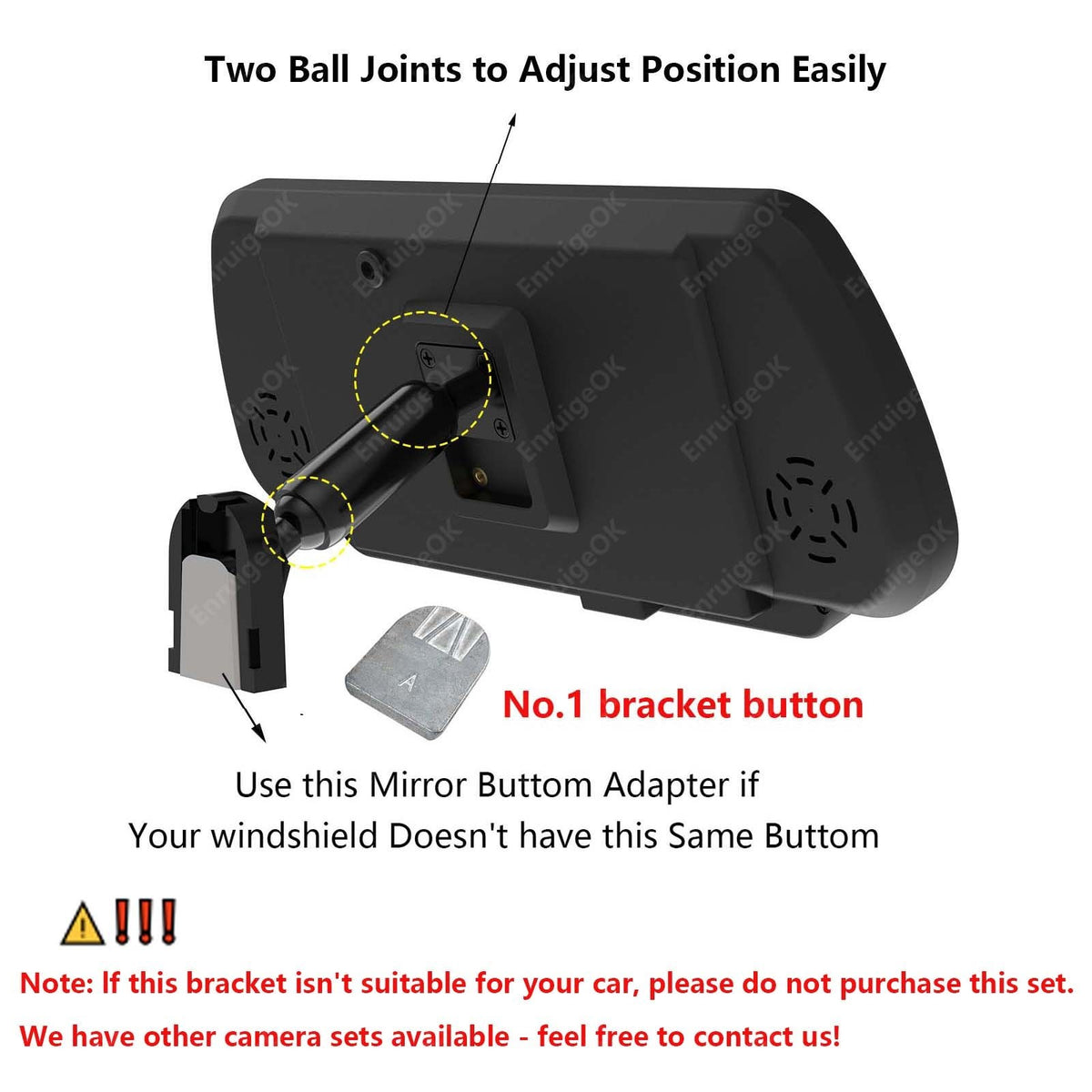

Monitor Bracket Note

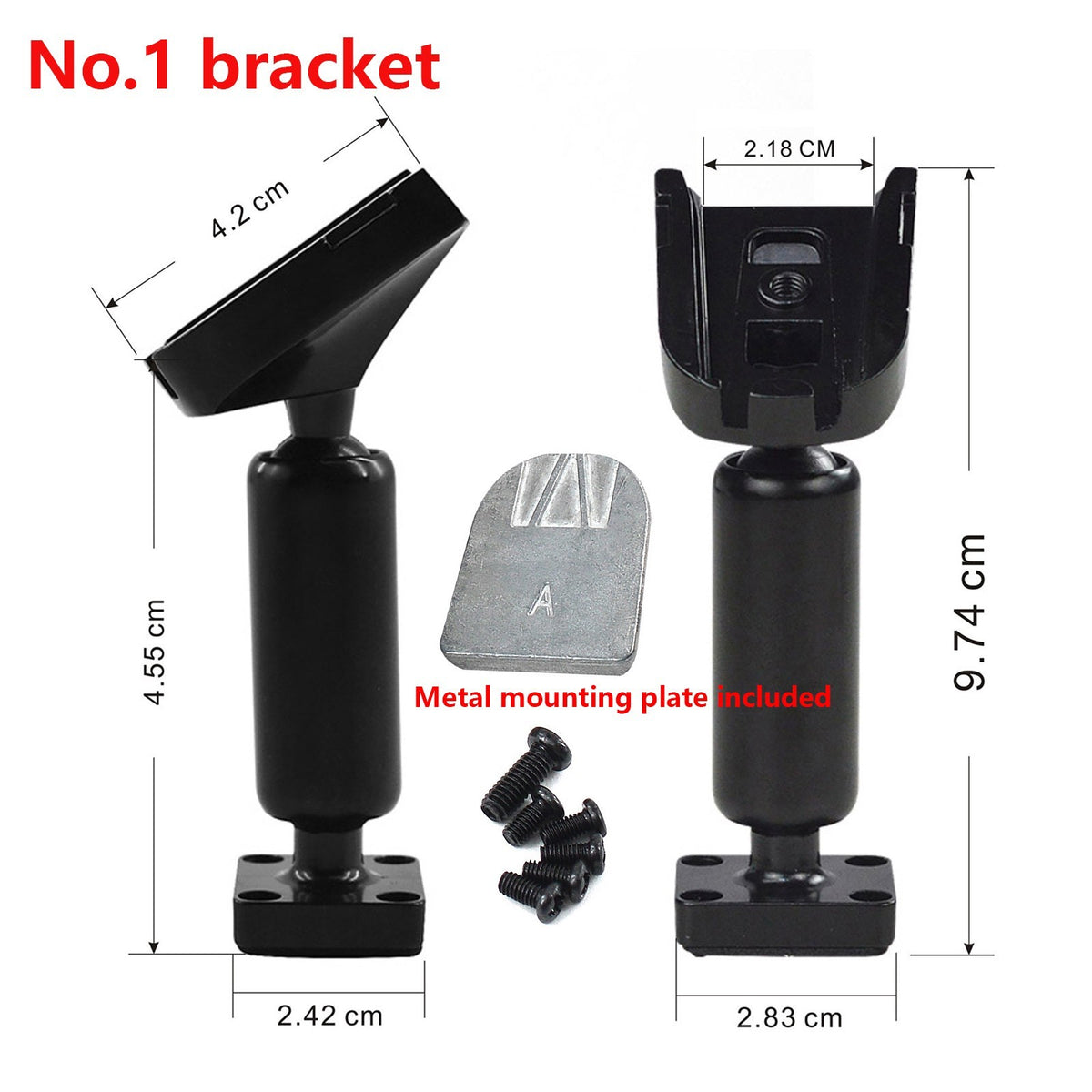

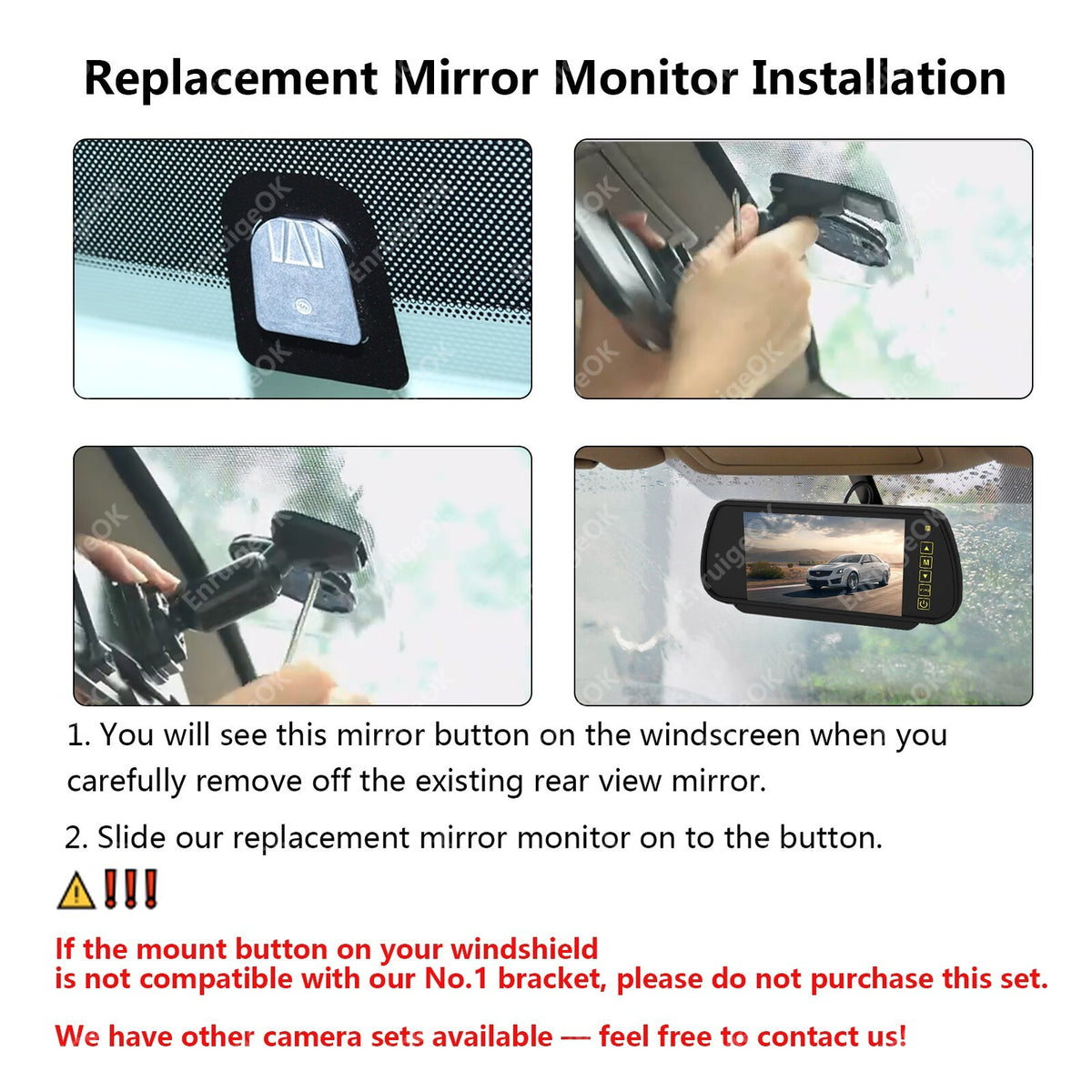

This set comes with a #1 bracket by default. If you are unsure about compatibility, please send us a clear photo of your windshield mounting button or original mirror bracket when placing your order. This will help ensure you receive the correct bracket for your vehicle.

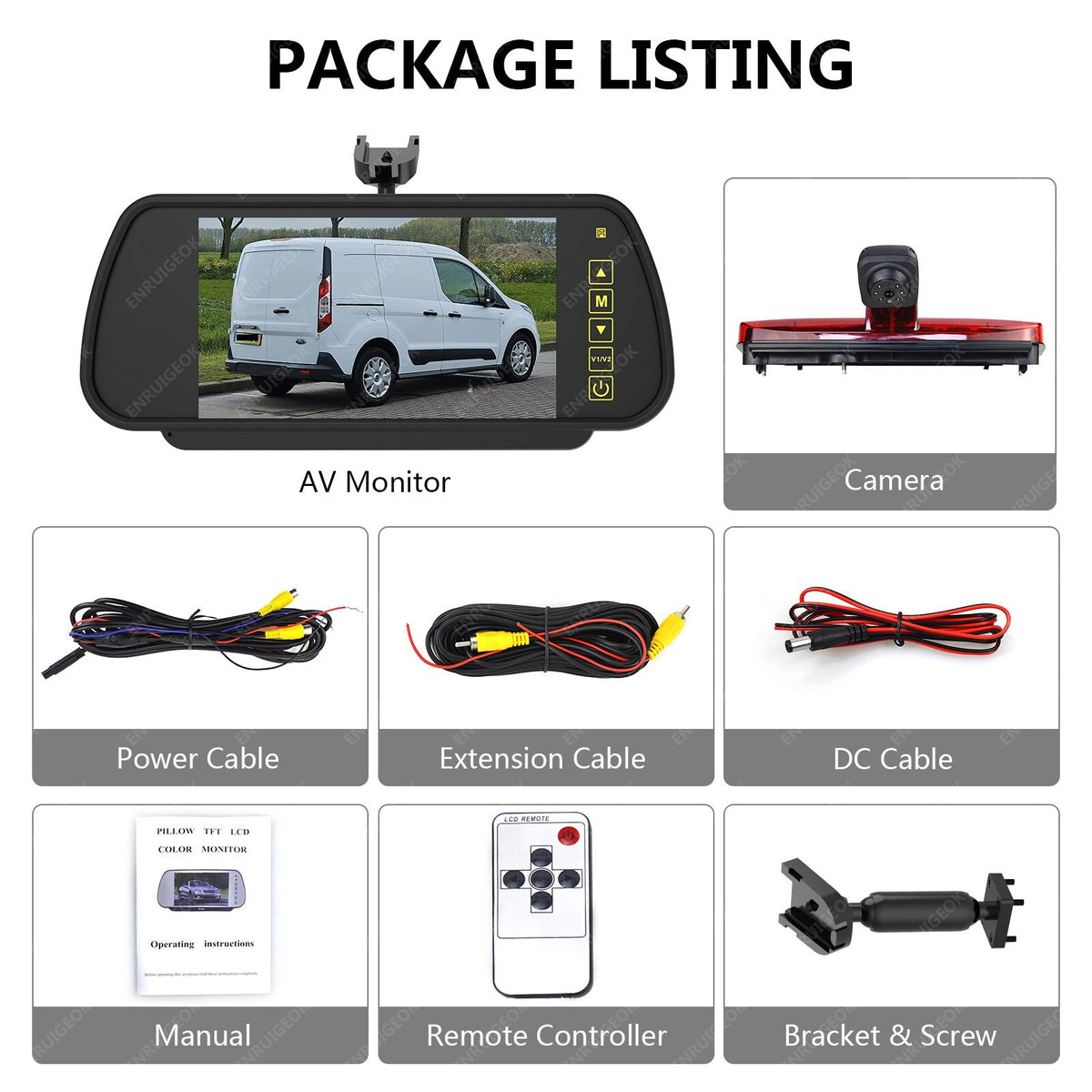

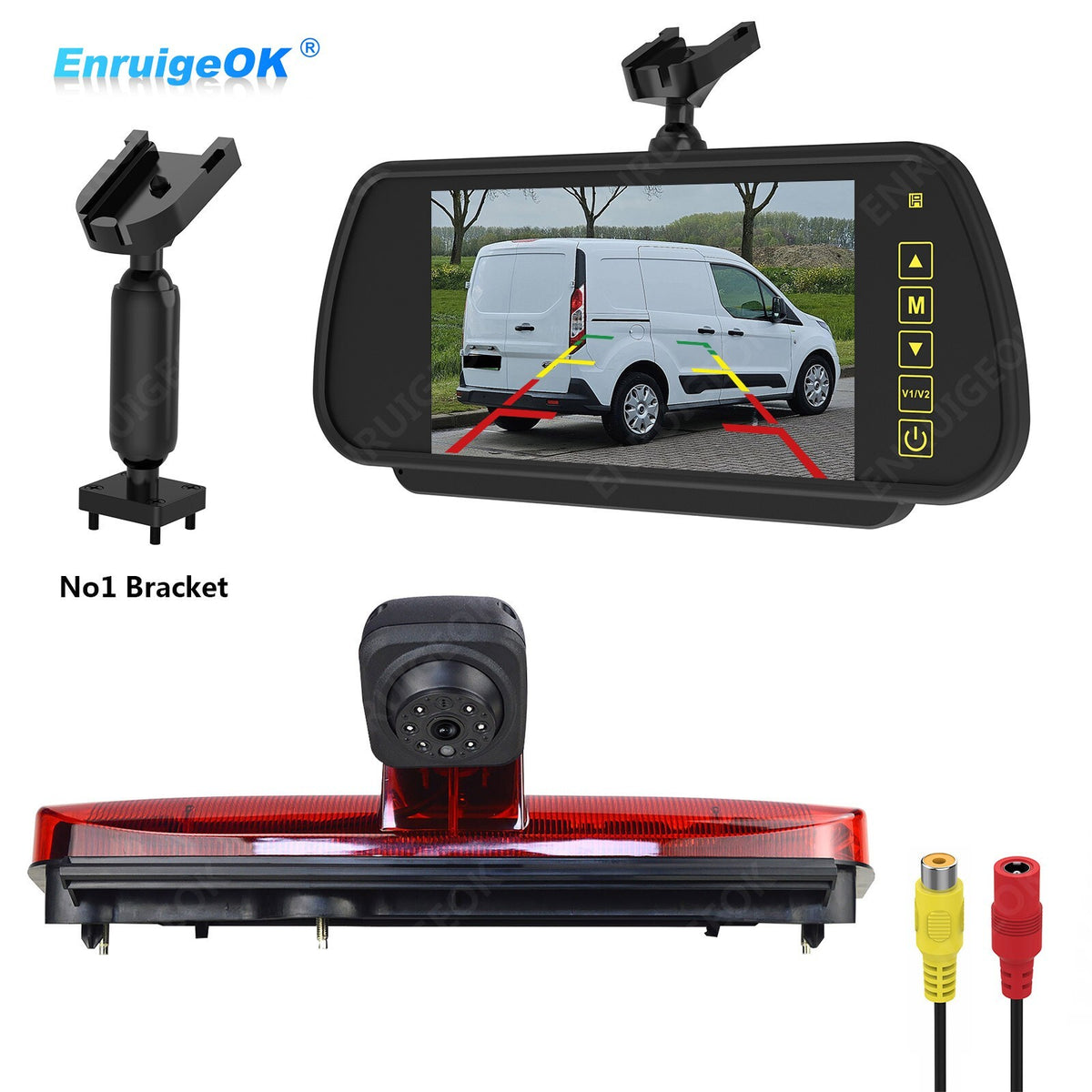

Package content

1 X Brake light camera

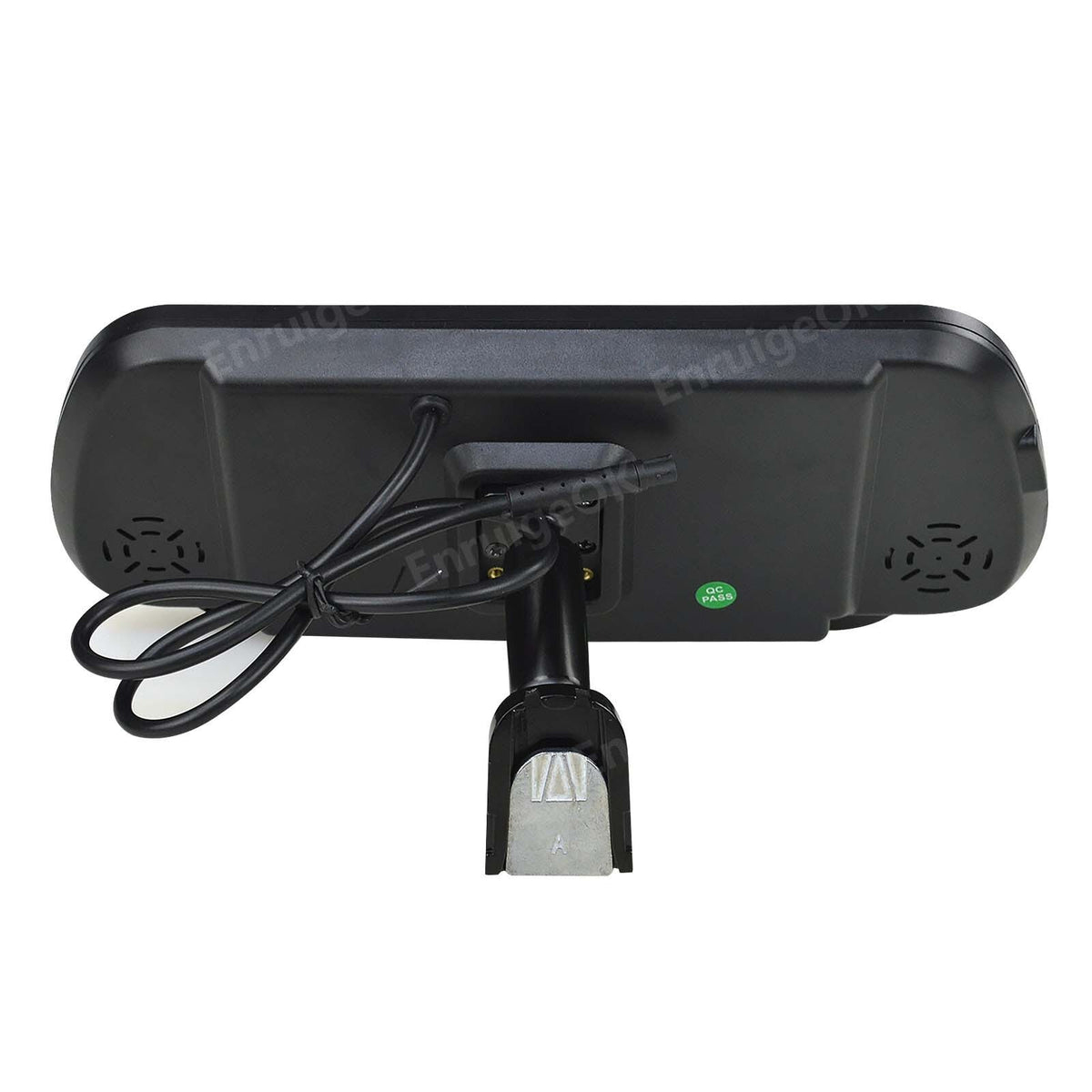

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X Monitor power cable

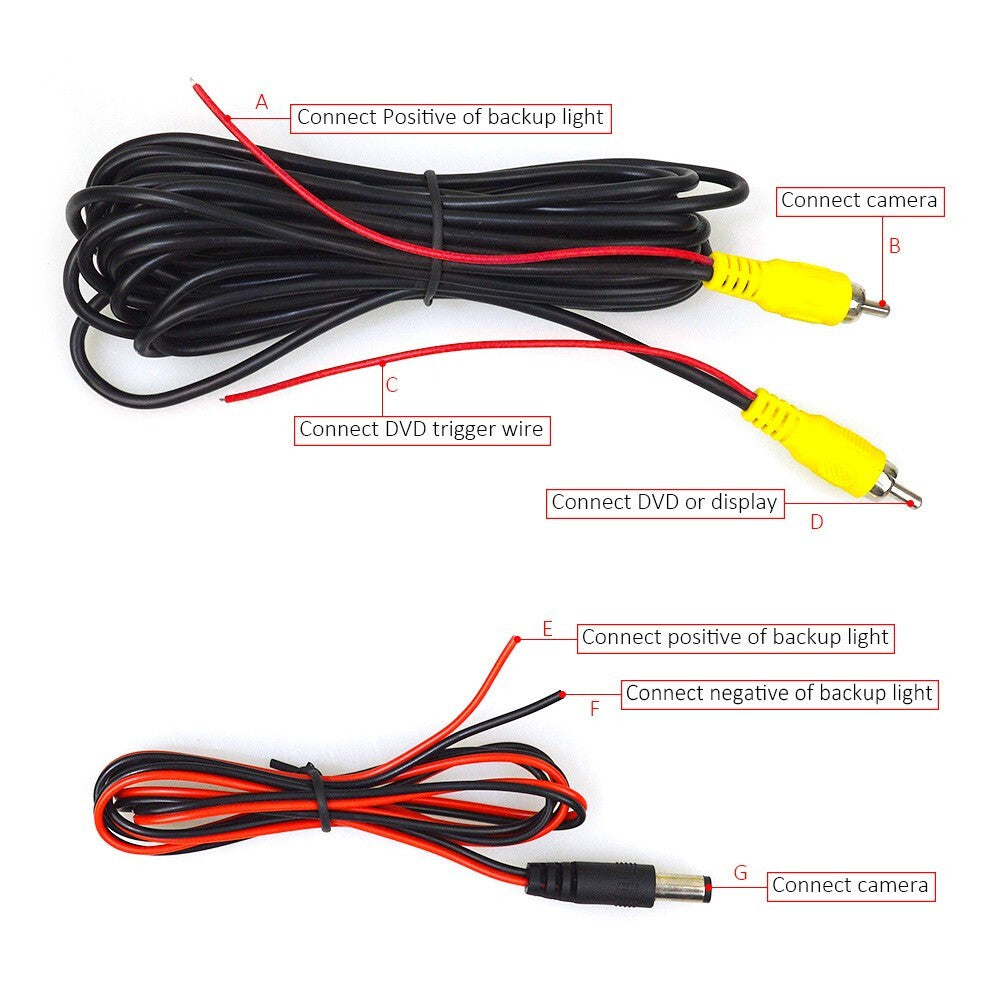

1 X 10m/33ft. extension cable

1 X 1.5m DC Power cable

1 X No1 Bracket(check your windshield button)

1 X Manual

Description

It includes a backup camera & monitor. When you are backing up, the car monitor will display the rear camera images, helping you park safely.

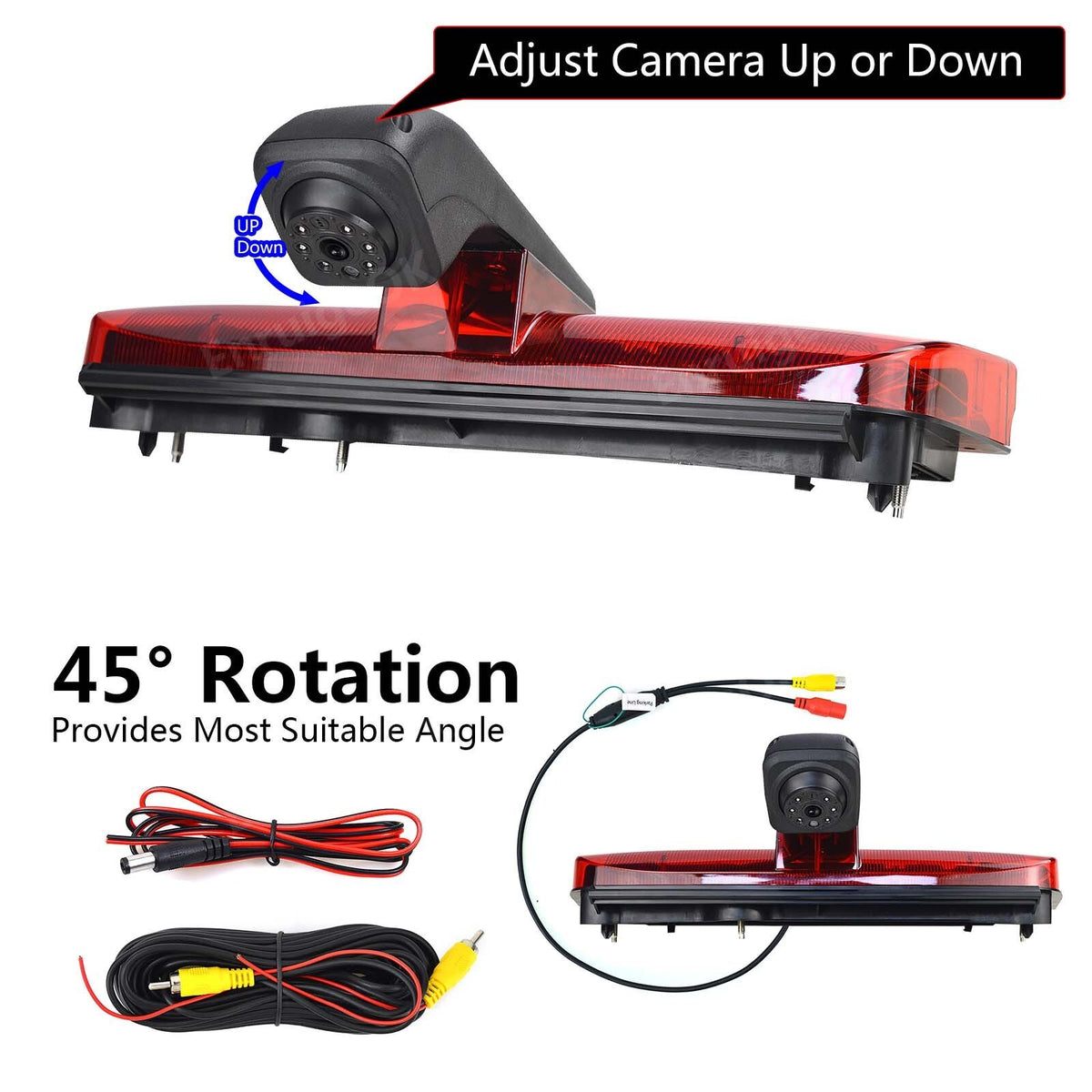

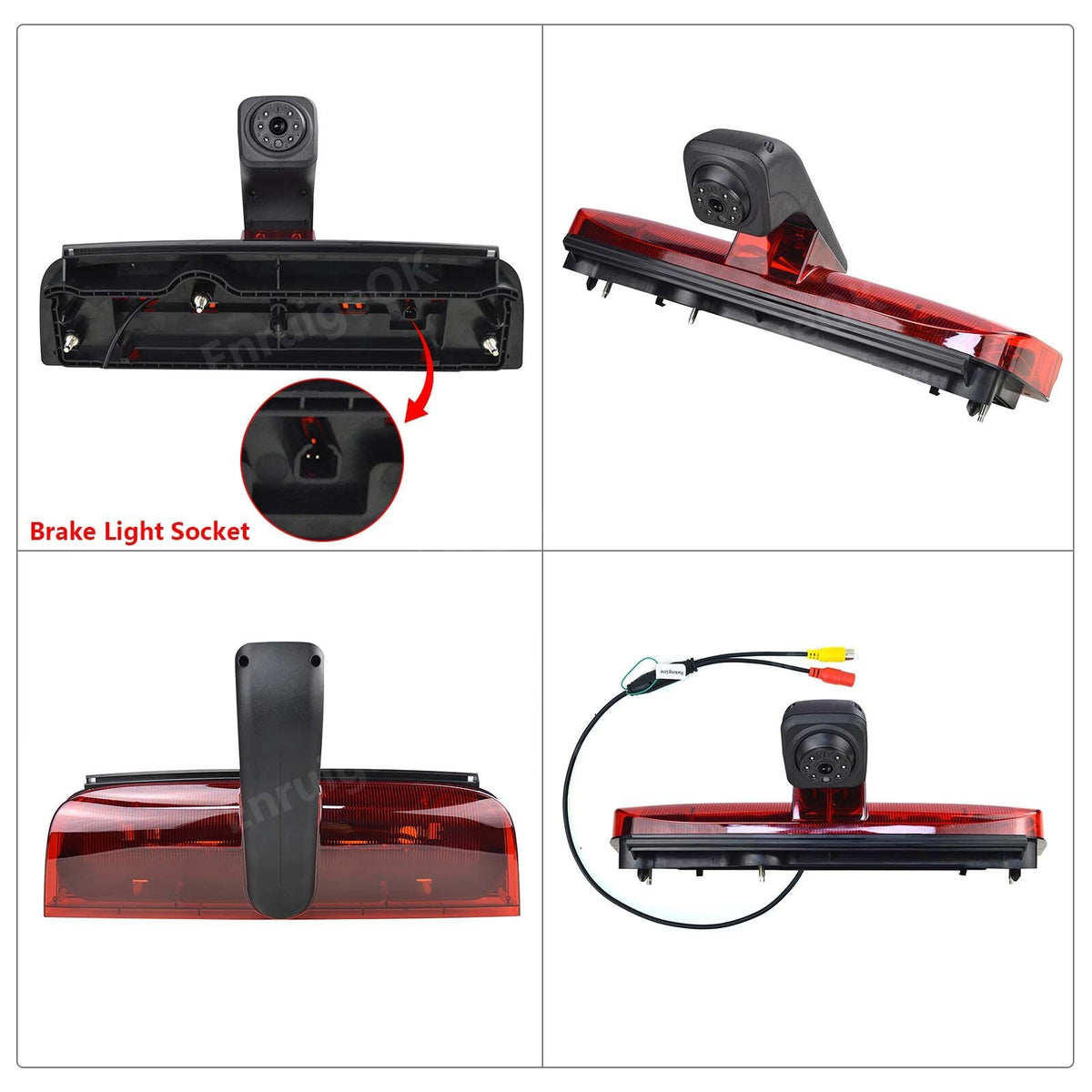

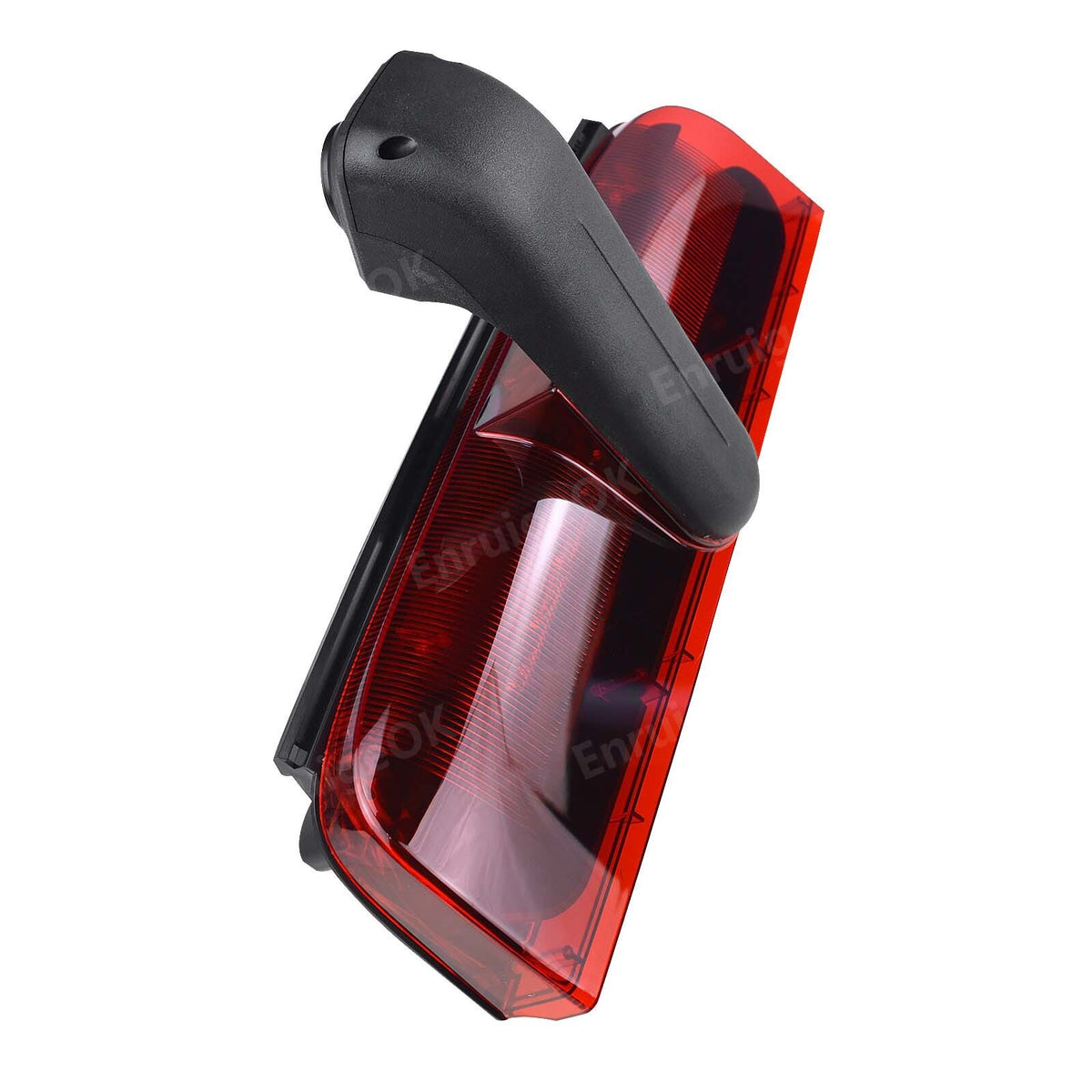

Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

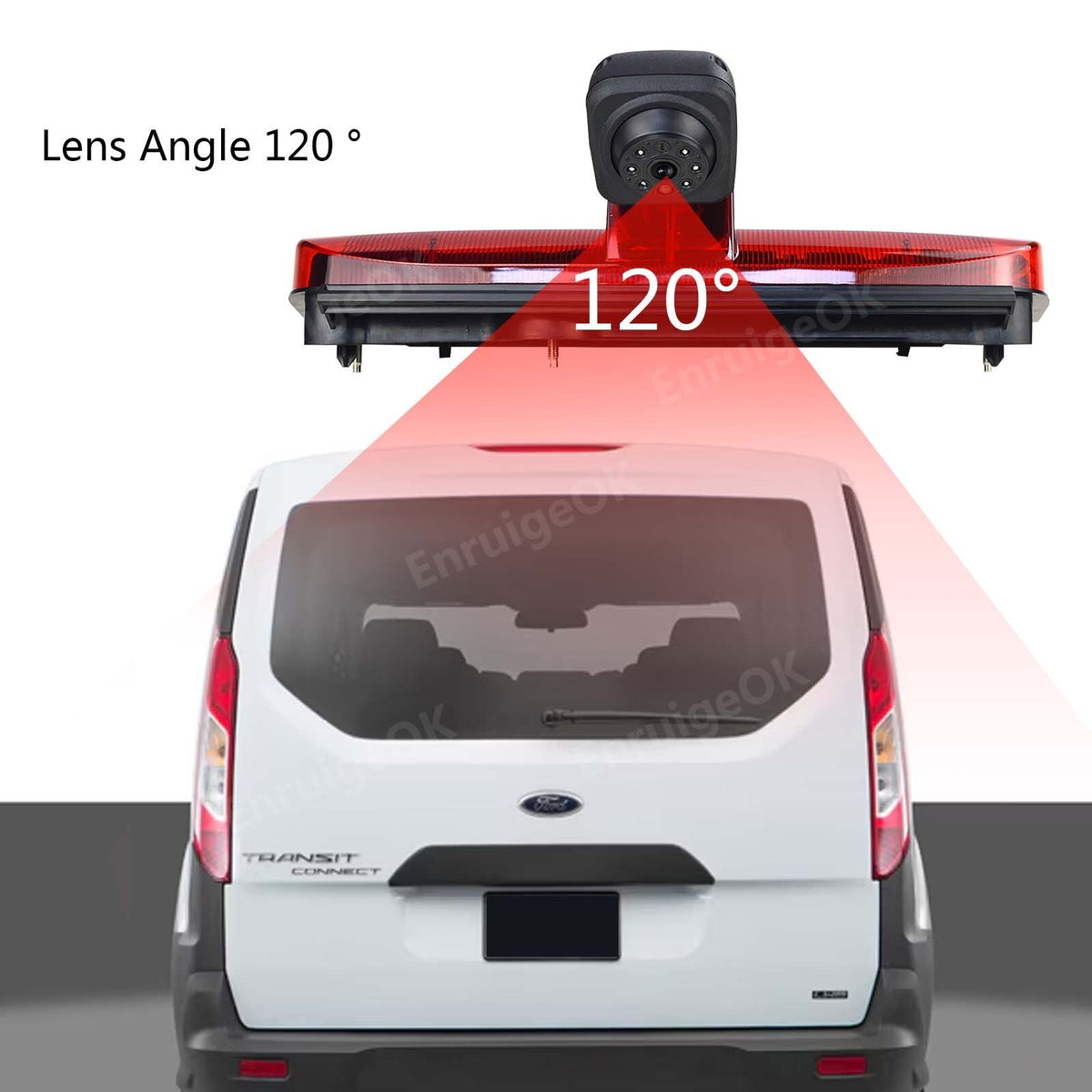

This reversing camera with 120-degree viewing angle shows rich details about the environment behind the car for you.

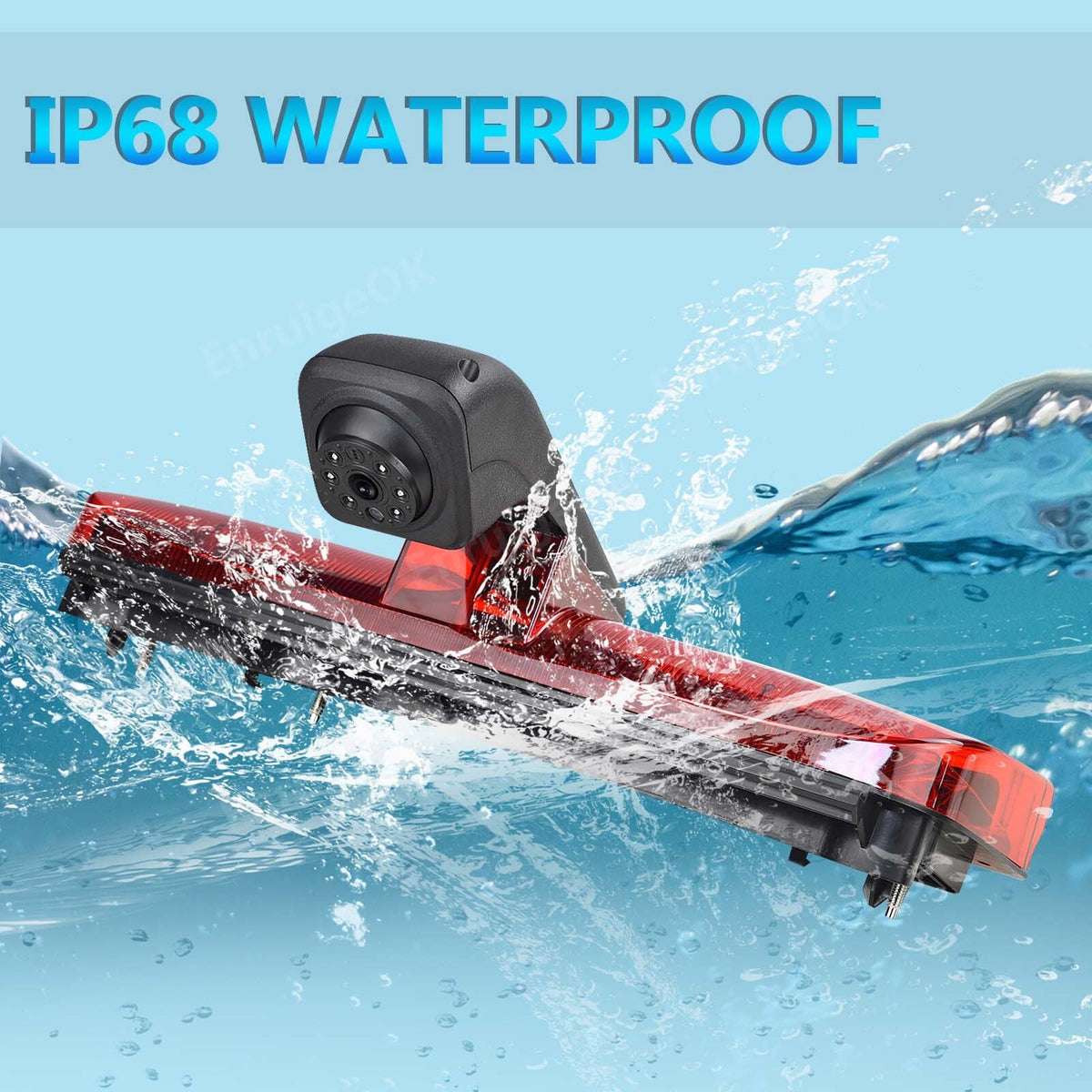

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

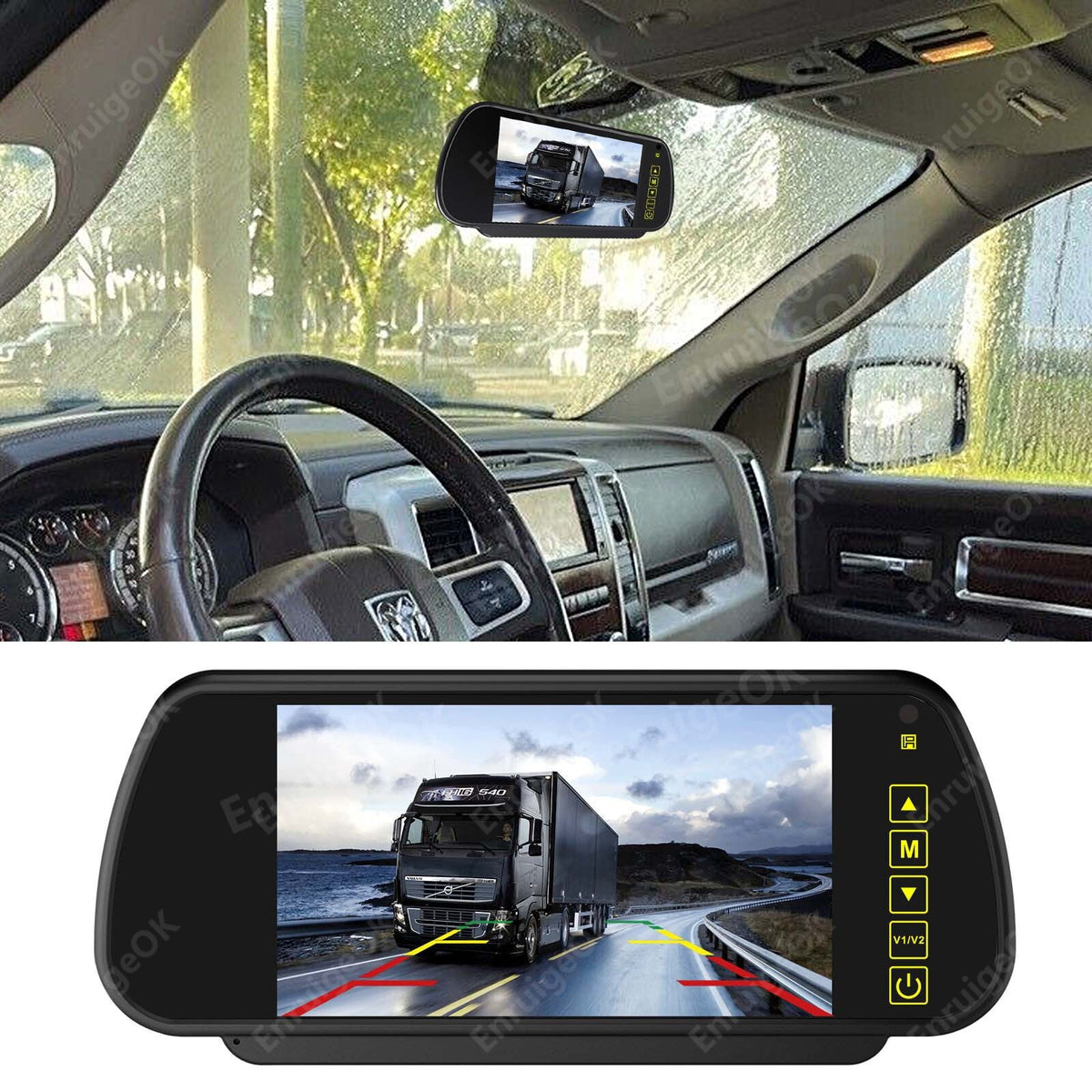

7" Color TFT-LCD Monitor with 2 video input, 800*480(RGB) resolution works perfectly with brake light rear view camera.

Camera Specifications

Image sensor: 1/4 "CMOS

TV system: PAL/NTSC option

Waterproof rating: IP68

Viewing angle: 120°

Effective pixel: 733(H)x493(V)

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

Resolution: 480TV Lines

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1-0.5Lux / F = 1.2

Power supply: DC12V

Power: 5W

Operating temperature: -20℃ to +70℃

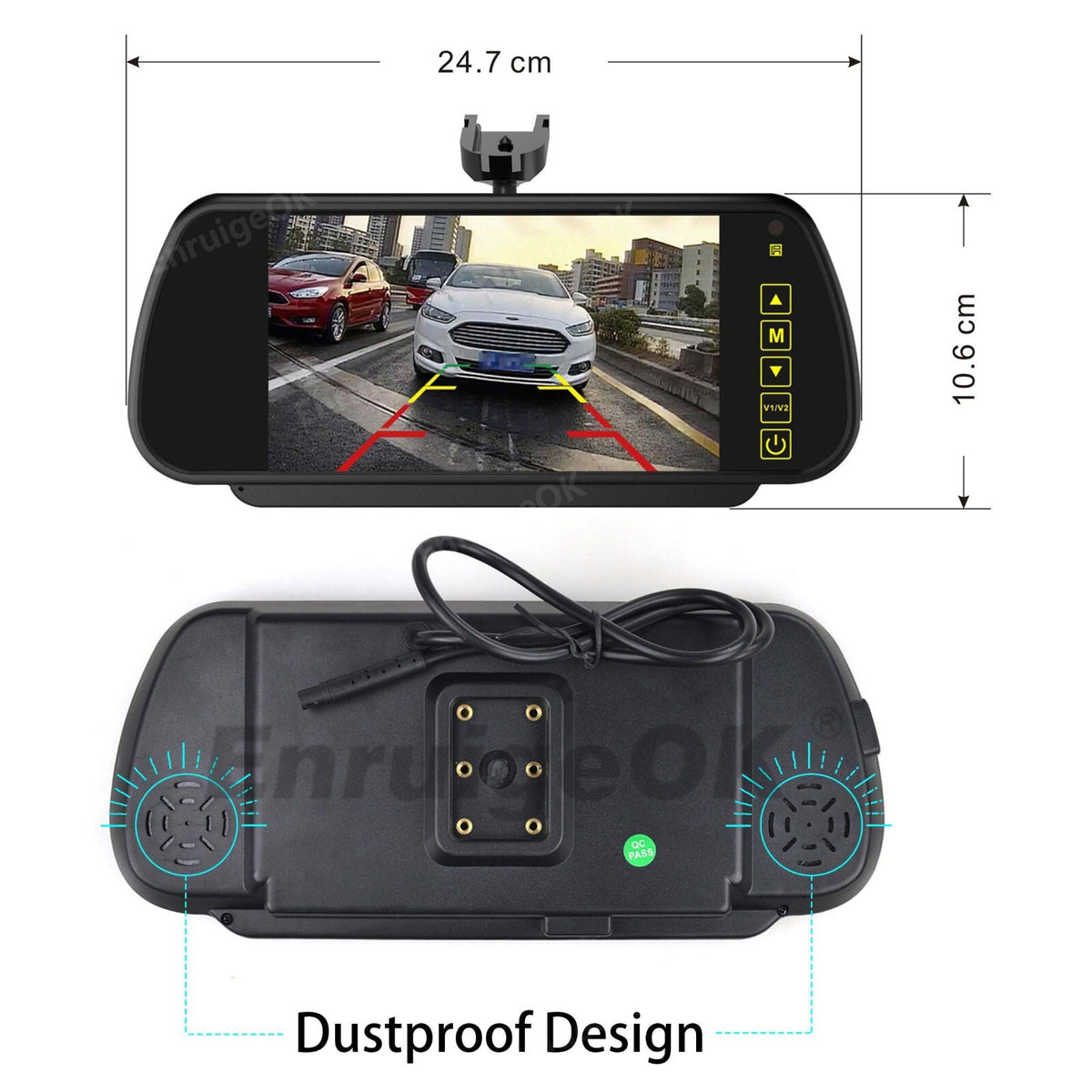

Monitor Specifications

Color: Black

Screen: 7 inch

Resolution: 800x(RGB)x480

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

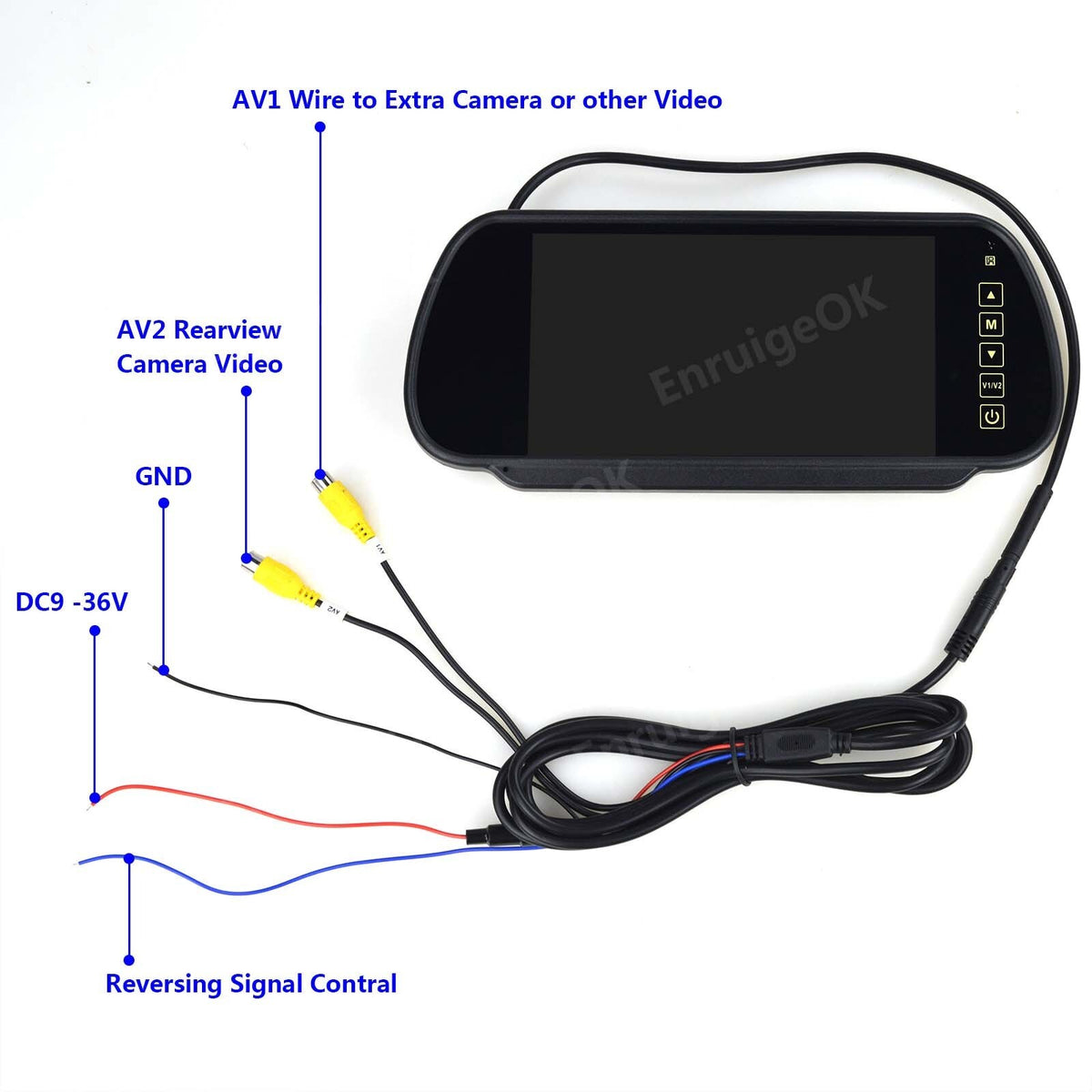

Video Input: Dual video inputs, AV1 and AV2(For reversing camera) video input, the monitor will automatically turn on and switch to the rear view camera (image) when the reversing gear is engaged.

Blue screen displayed when no signal is detected.

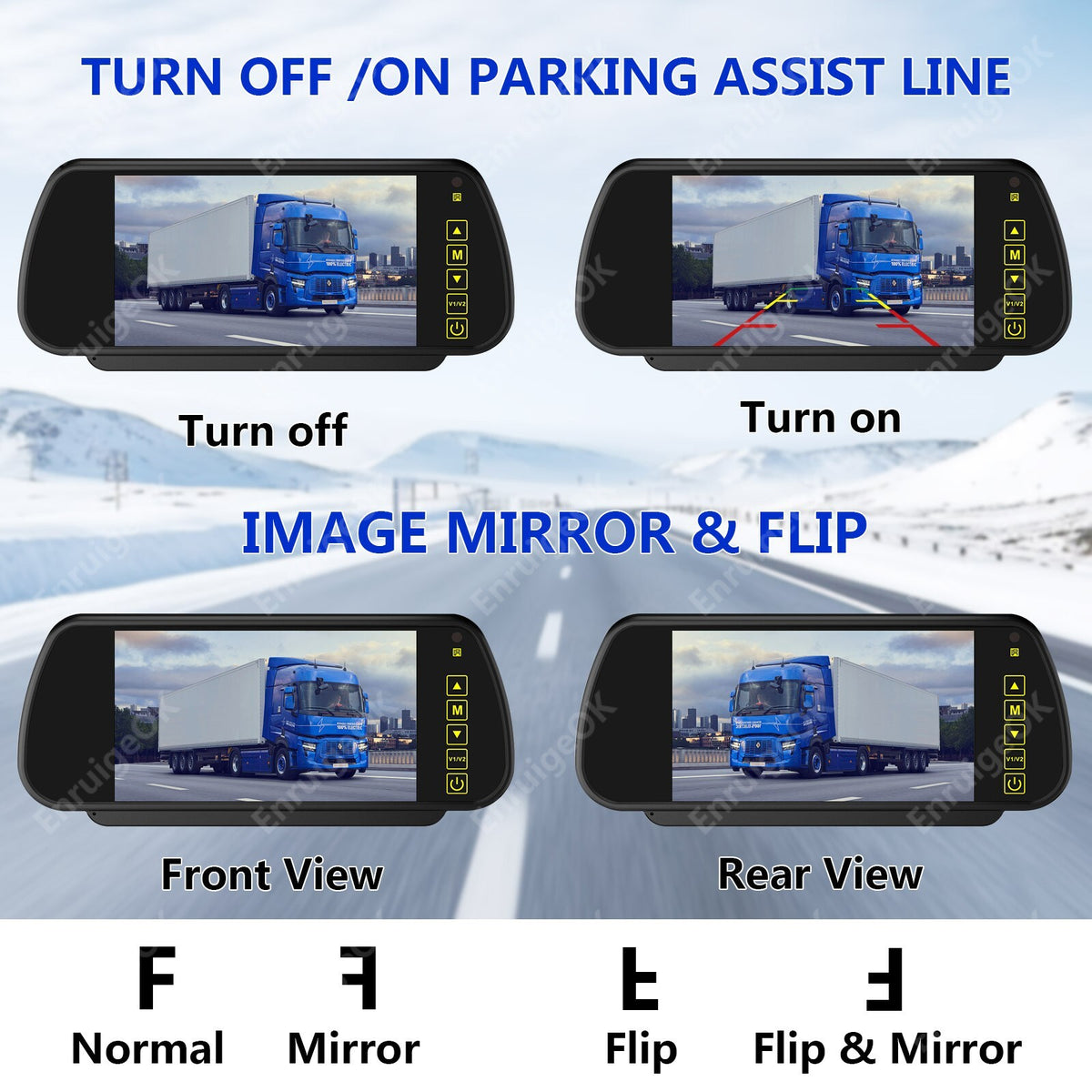

Parking Guidelines: Adjustable (ON/OFF via monitor settings).

Power Supply: DC 9V-35V

Power consumption: 6W

Rear watching: Image can be changed left and right

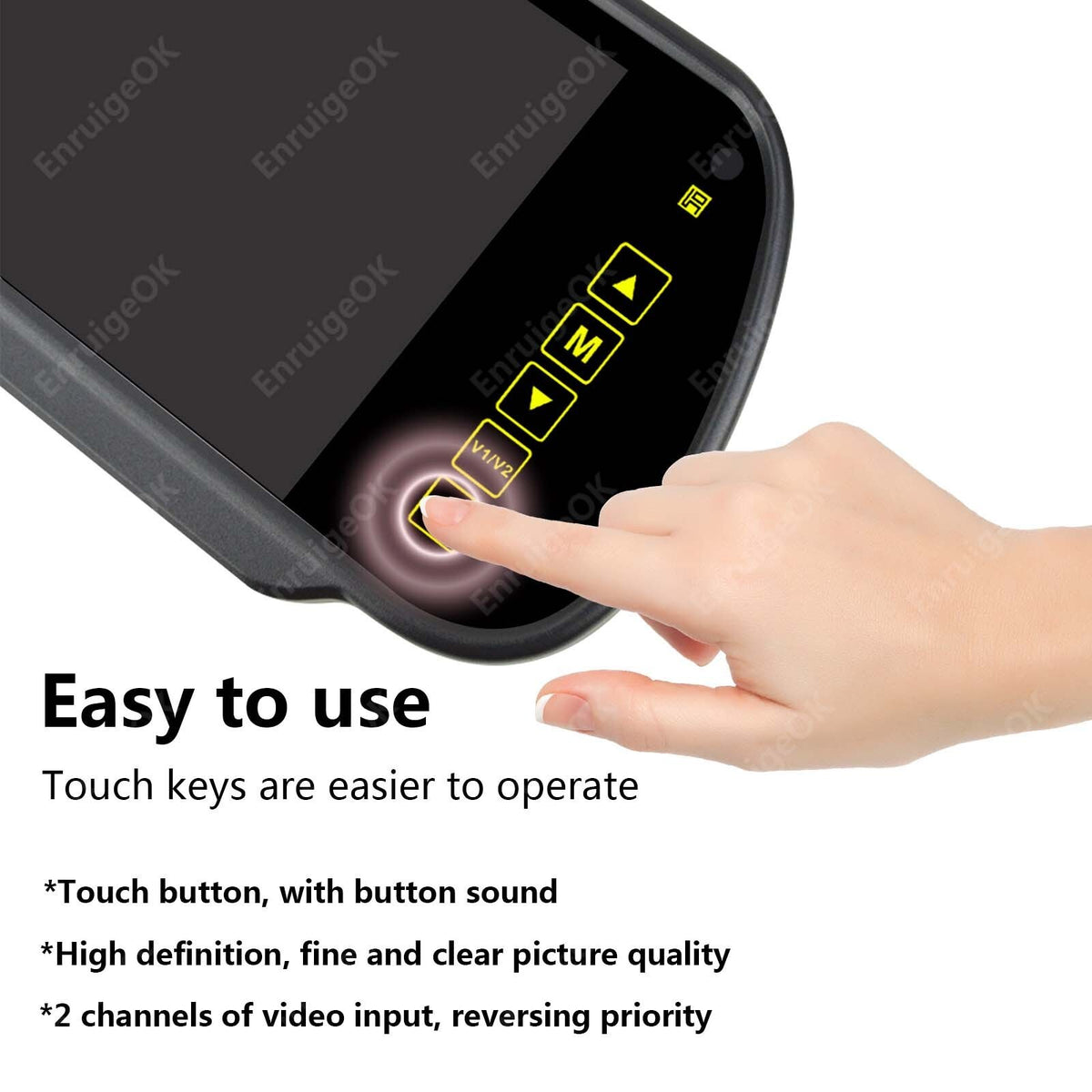

Operate mode: The touch key operation and remote control

Remote control: a CR2025 button battery (battery not included)

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
