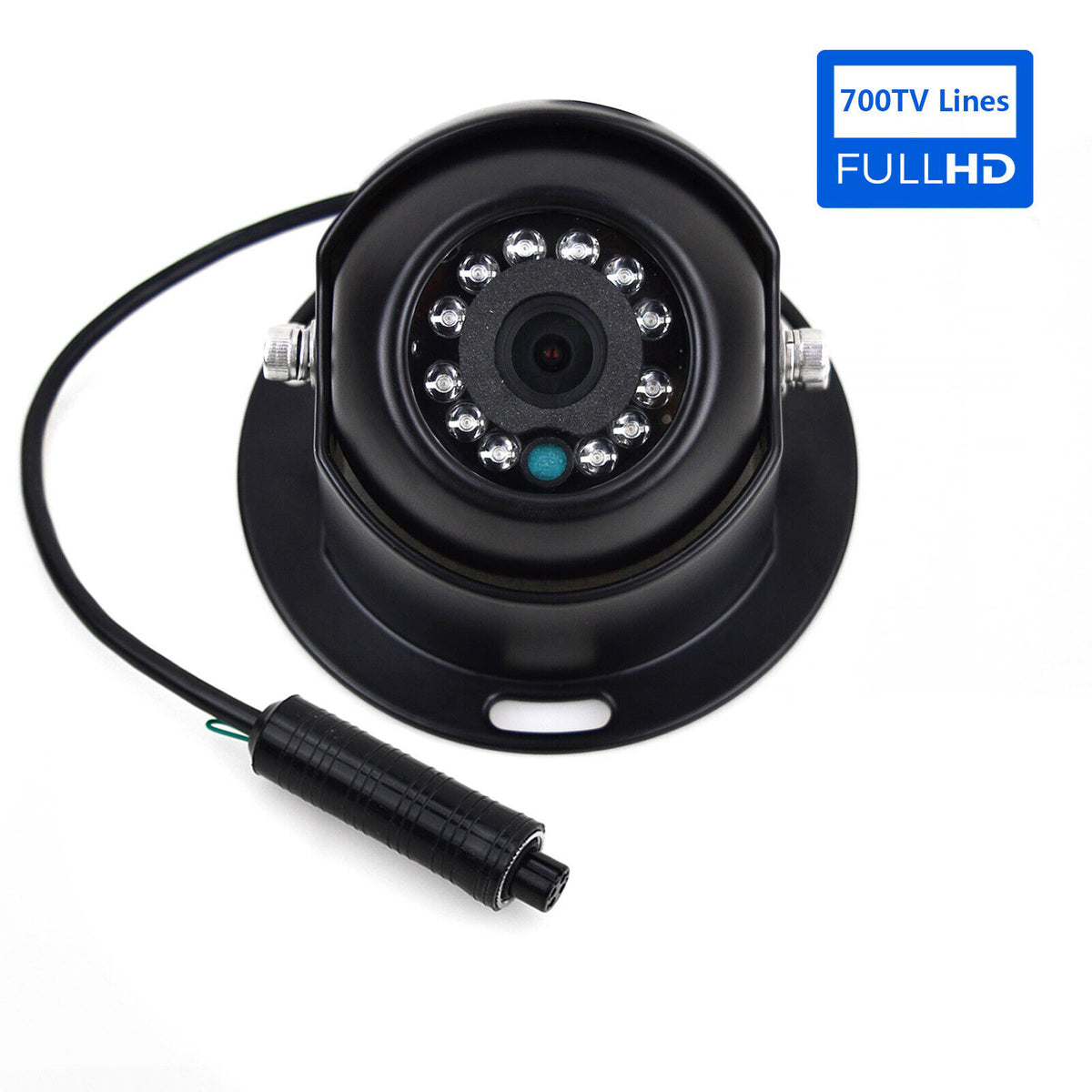

Black 4 PIN Dome CMOS 12 IR Reversing Rear View Camera Night Vision For Caravan
Black 4 PIN Dome CMOS 12 IR Reversing Rear View Camera Night Vision For Caravan
Regular price
$32.68 USD
Regular price
$32.68 USD
Sale price
$32.68 USD
Unit price
/
per
Couldn't load pickup availability
4Pin Aviation Plug Rear View In-car Dome Camera AHD 1080P/CVBS 480TV Lines Night Vision Waterproof for Bus RV Caravan
Features:
-Applicability: Suitable for all kinds of large vehicles such as trailer, bus, truck, camper and RV etc..
-High Quality Image: AHD vehicle dome camera will give you a perfectly clear, high definition image for perfect results.
-Completely Waterproof: Waterproof Nano Glue Sealing All electronic components are 100% immersed in nano waterproof glue With an IP68 rating and ready to brave the elements.
-Metal Housing: Made of metal case which is provides structural integrity, ensuring that the camera can perform well even under extreme conditions.
Specifications: |
|
AHD Camera: |
CVBS Camera: |
- Image sensor: 1/3 "CMOS |
- Image sensor: 1/3" CMOS |
- TV system: PAL/NTSC |
- TV system: PAL/NTSC |
- waterproof rating: IP68 |
- waterproof rating: IP68 |
- Viewing angle: 120 ° |
- Viewing angle: 120 ° |
- Effective pixel: 1920(H)x1080(V) |
- Effective pixel: 733(H)x493(V) |
- Horizontal sync frequency: 15.625KHZ |
- Horizontal sync frequency: 15.625KHZ |
- Scanning system: 2:1 interface |
- Scanning system: 2:1 interface |
- Sync system: Internal |
- Sync system: Internal |
- ACG: Auto |
- ACG: Auto |
- BLC: Auto |
- BLC: Auto |
- Resolution: 1080P |
- Resolution: 700 TV Lines |
- S/N Ratio: >52dB(AGC OFF) |
- S/N Ratio: >52dB(AGC OFF) |
- Current consumption: < 150mA |
- Current consumption: < 150mA |
- Minimum illumination: 0.1Lux |
- Minimum illumination: 0.1Lux |
- Power supply: DC12V |
- Power supply: DC12V |
- Power: 5W |
- Power: 5W |
- Operating temperature: -20℃ to +70℃ |
- Operating temperature: -20℃ to +70℃ |
Package Include:
1 x Heavy Duty Truck Rear View Camera
1 X Adapter Cable 4 Pin to AV Plug
1 X Screw
1 X Sticker
