AHD/CVBS Car Backup Camera Waterproof Plate Rear View Night Vision Reverse 1080P

About This Camera

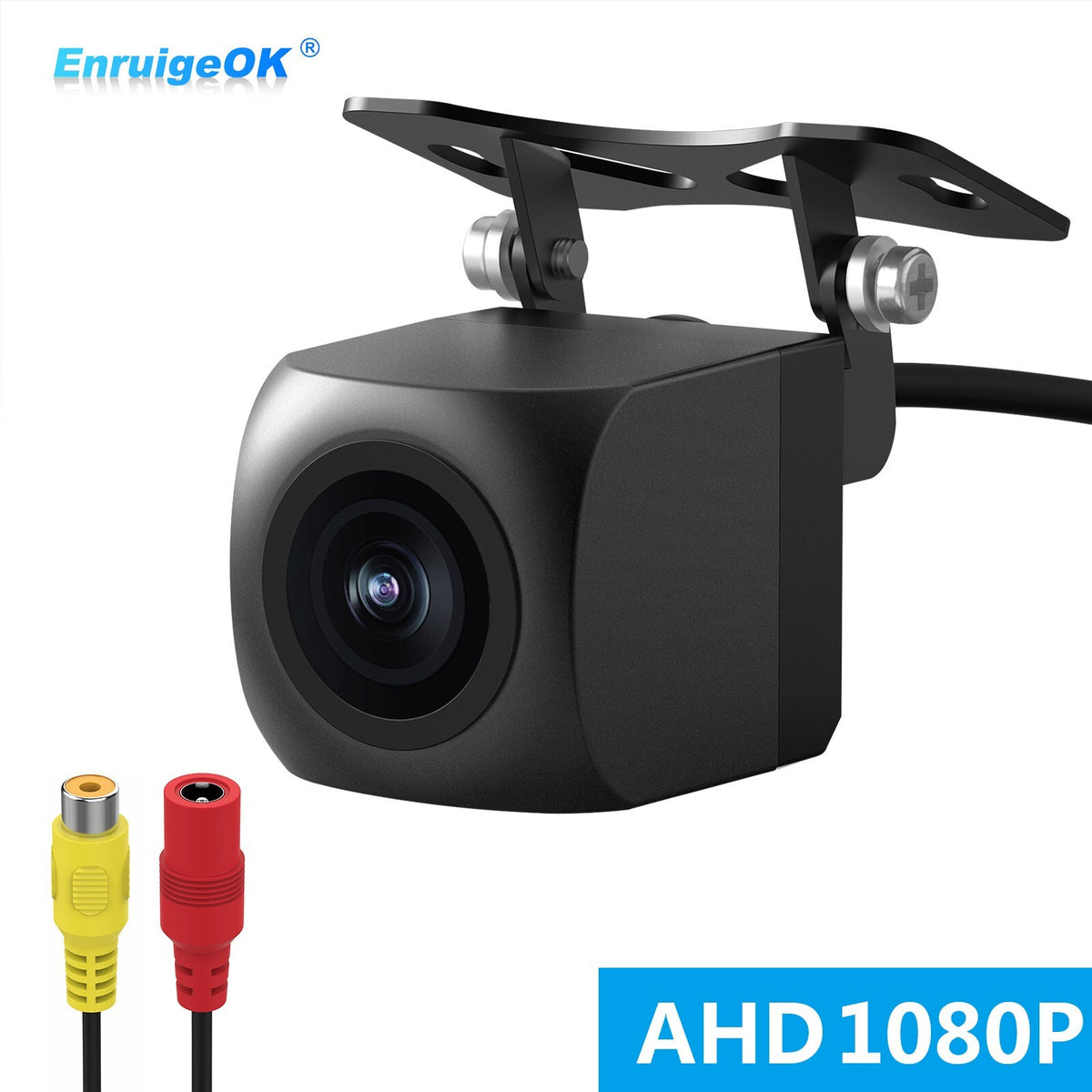

This universal bracket-mount backup camera supports both CVBS and AHD 1080P video signals and is designed for cars, SUVs, trucks and vans. It provides a wide rear view with a parking guideline and connects to compatible displays through a standard RCA input.

Signal Compatibility

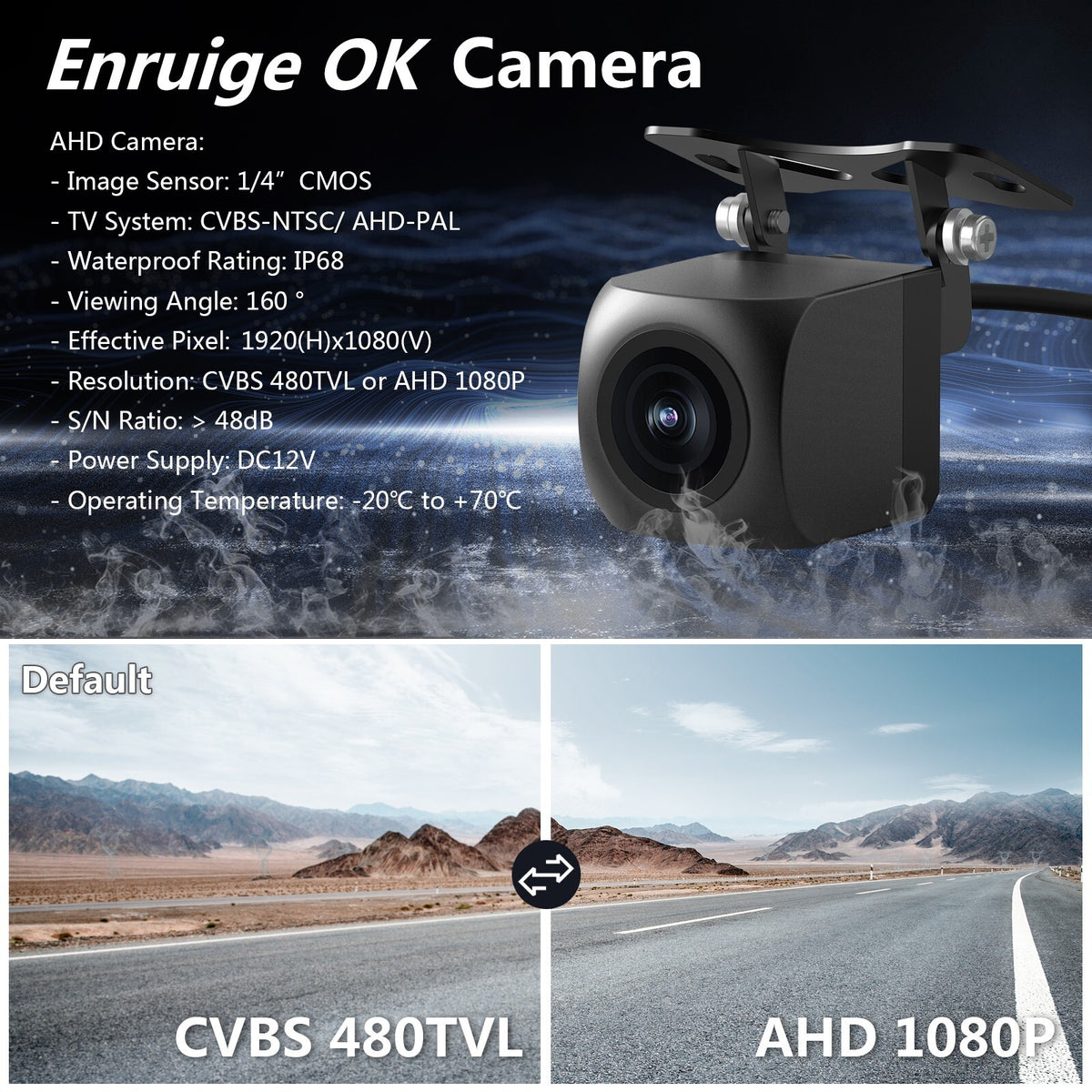

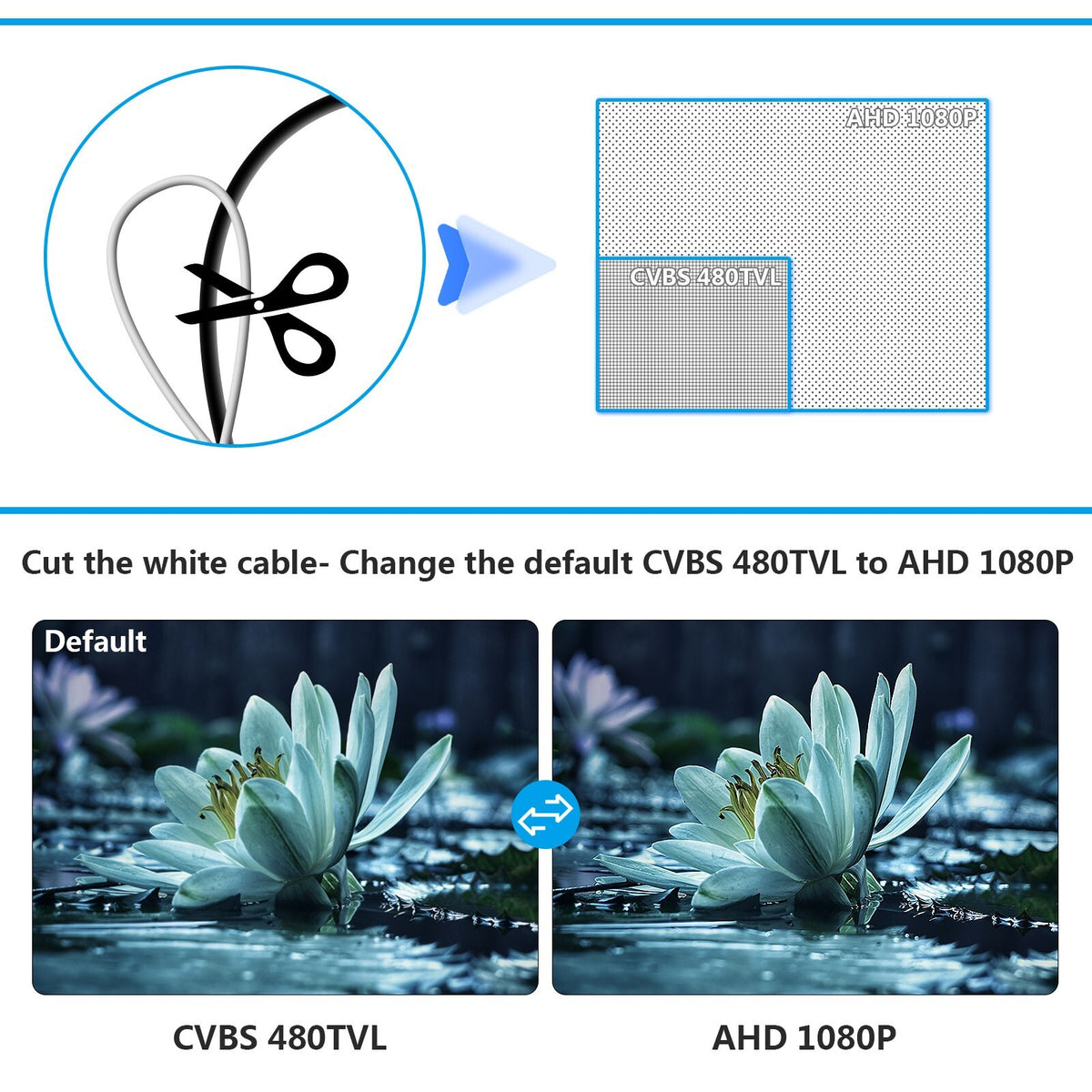

The camera supports CVBS 480TVL and AHD 1080P. The source listing specifies that the white switch wire changes the video signal. Confirm that your monitor or Android head unit supports the selected signal before switching.

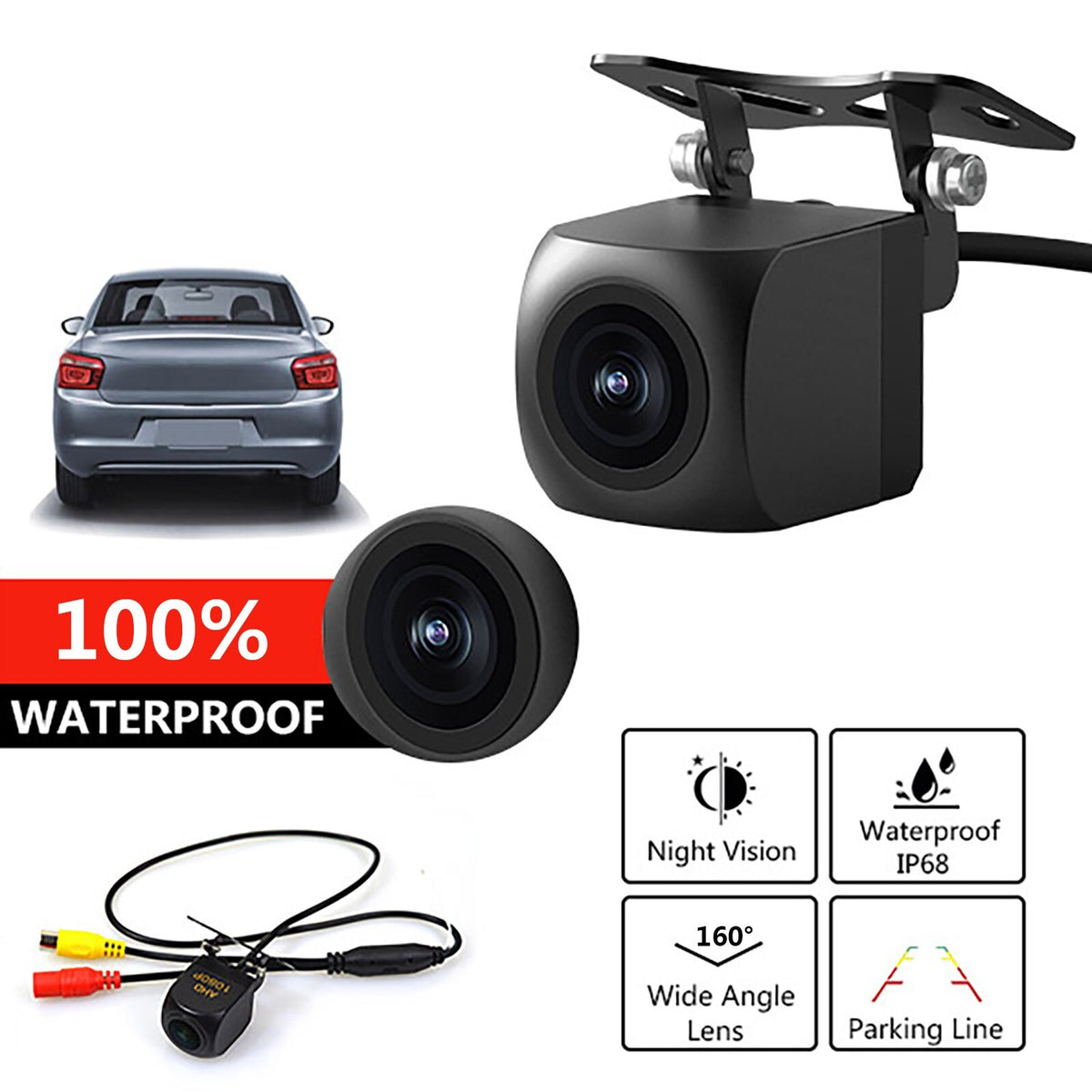

Key Features

• CVBS / AHD 1080P switchable signal
• 160° wide-angle rear view
• Parking guideline

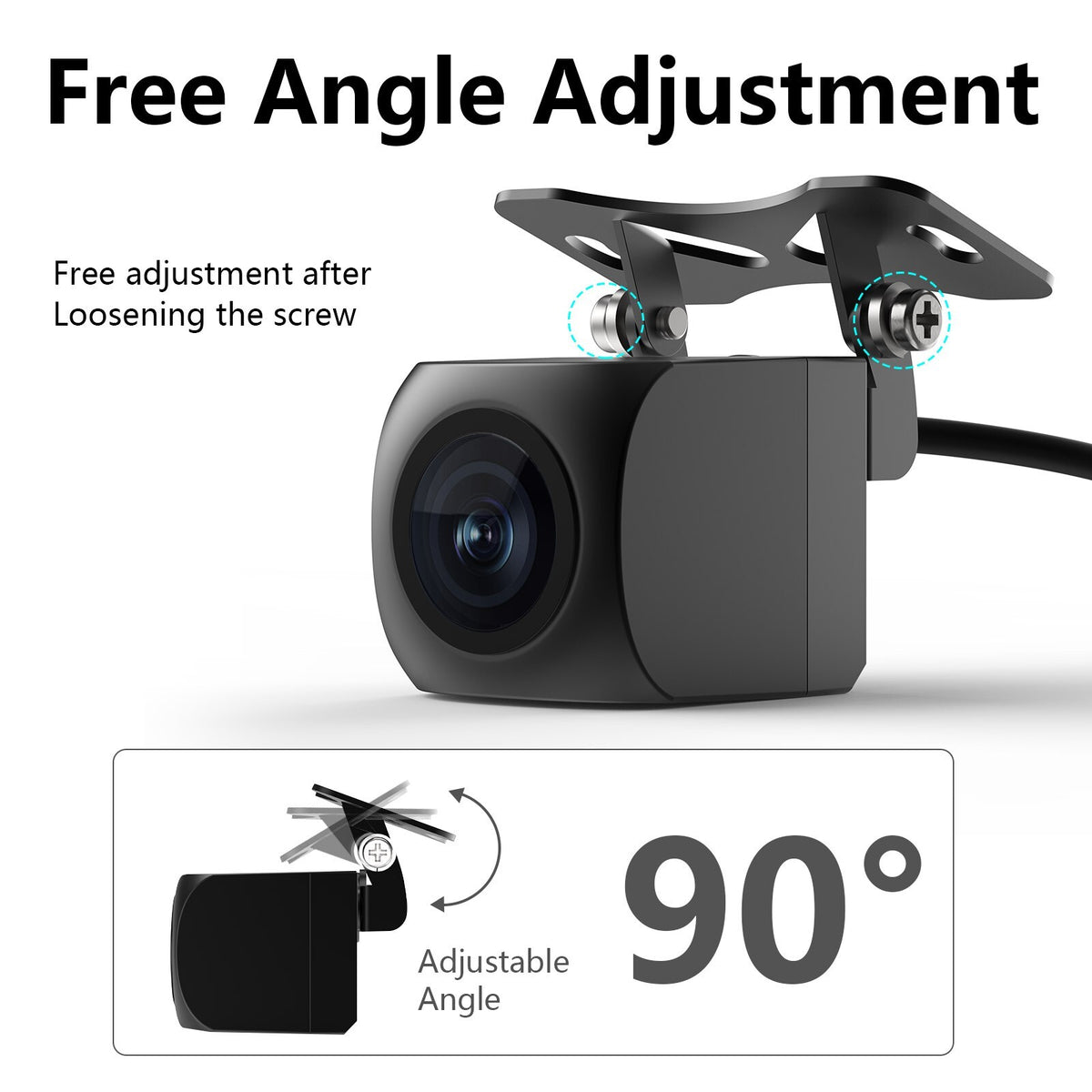

• Universal bracket-mount installation
• Standard RCA video output

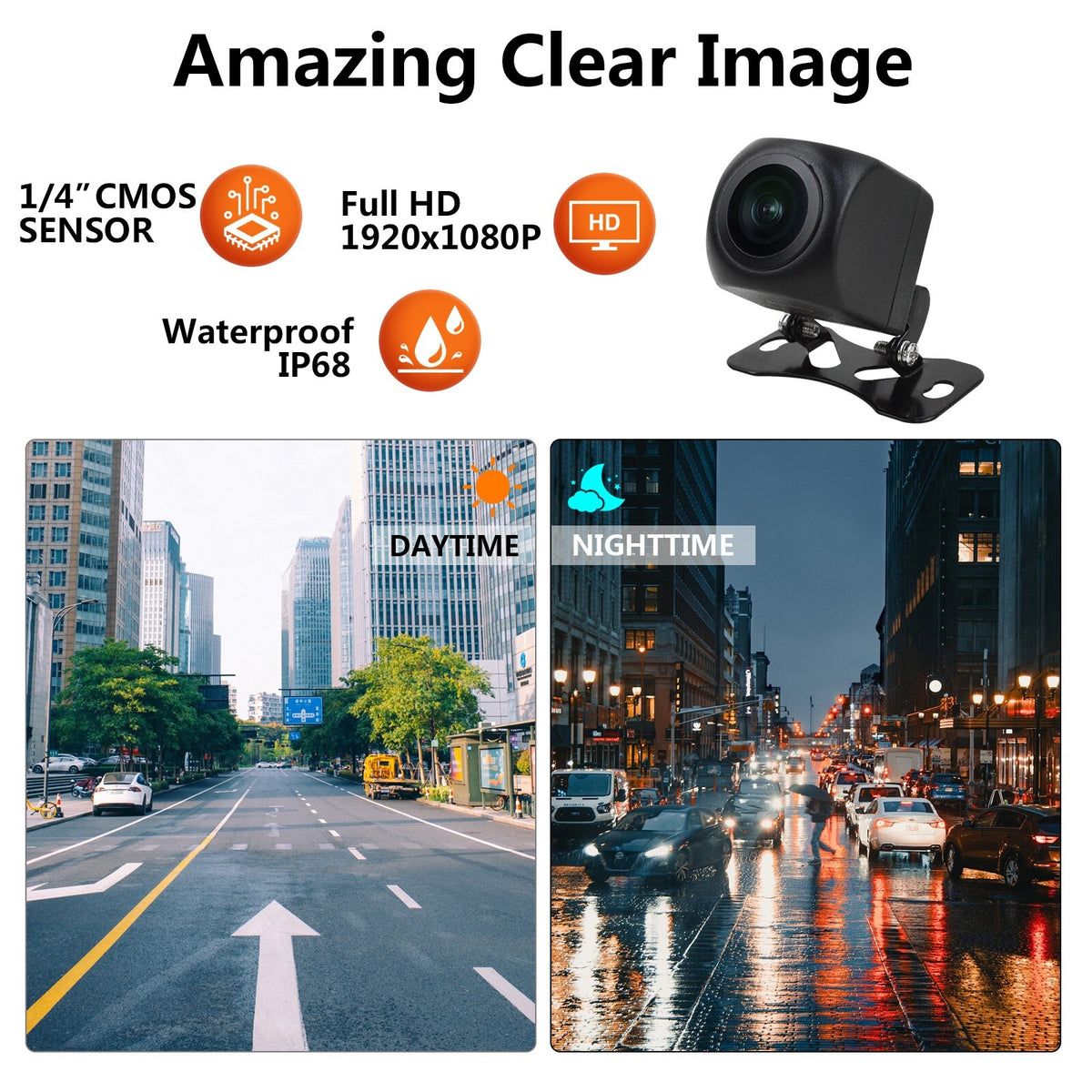

• Low-light performance for day and night use

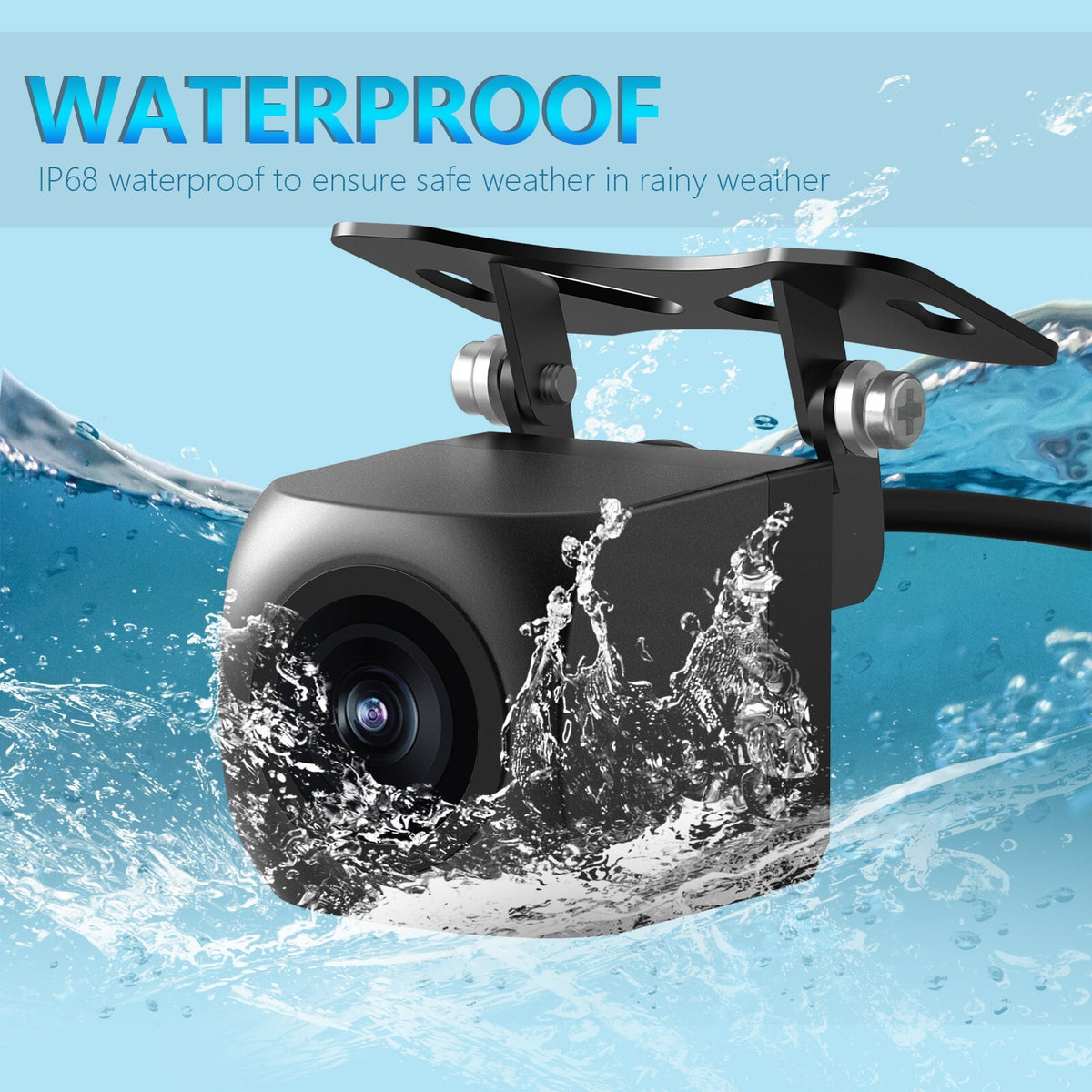

• IP68 waterproof, shockproof and shatter-resistant housing

Specifications

• Lens material: full glass
• Image sensor: 1/3" CMOS
• Video system: PAL / NTSC
• Effective pixels: CVBS 733(H) × 493(V); AHD 1920(H) × 1080(V)
• Resolution: AHD 1080P / CVBS 480TVL
• Video output: RCA, 1.0Vp-p, 75Ω
• Waterproof rating: IP68
• Signal-to-noise ratio: >48dB
• Minimum illumination: 1.0 Lux
• Power supply: DC 12V
• Power: 5W
• Current consumption: <150mA
• Operating temperature: -20°C to +70°C

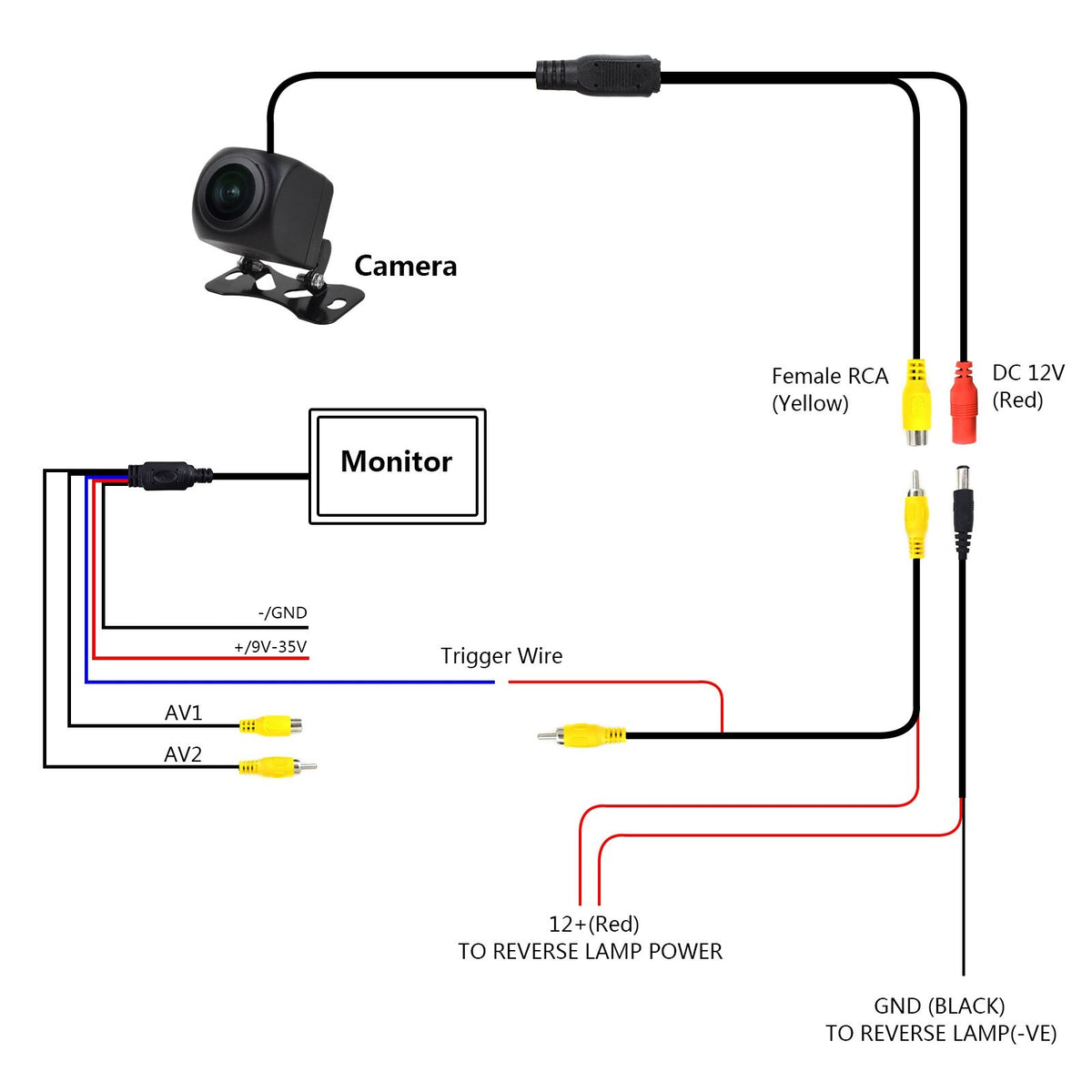

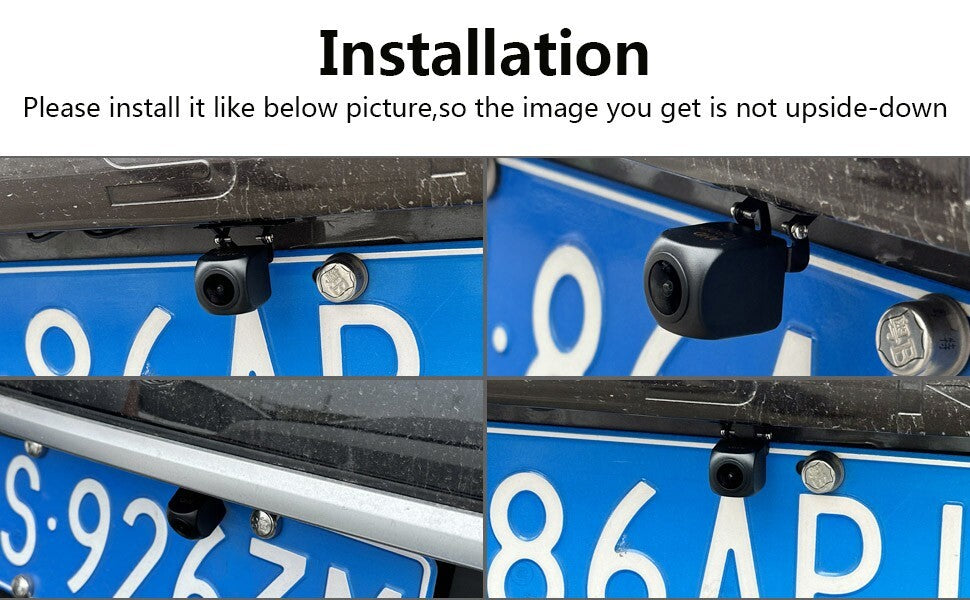

Installation

1. Choose a suitable mounting position, such as above the license plate or on the bumper.
2. Connect the red power wire to the vehicle DC 12V power system.
3. Connect the yellow RCA video output to the vehicle display.
4. Power on the system and confirm the camera image before completing installation.

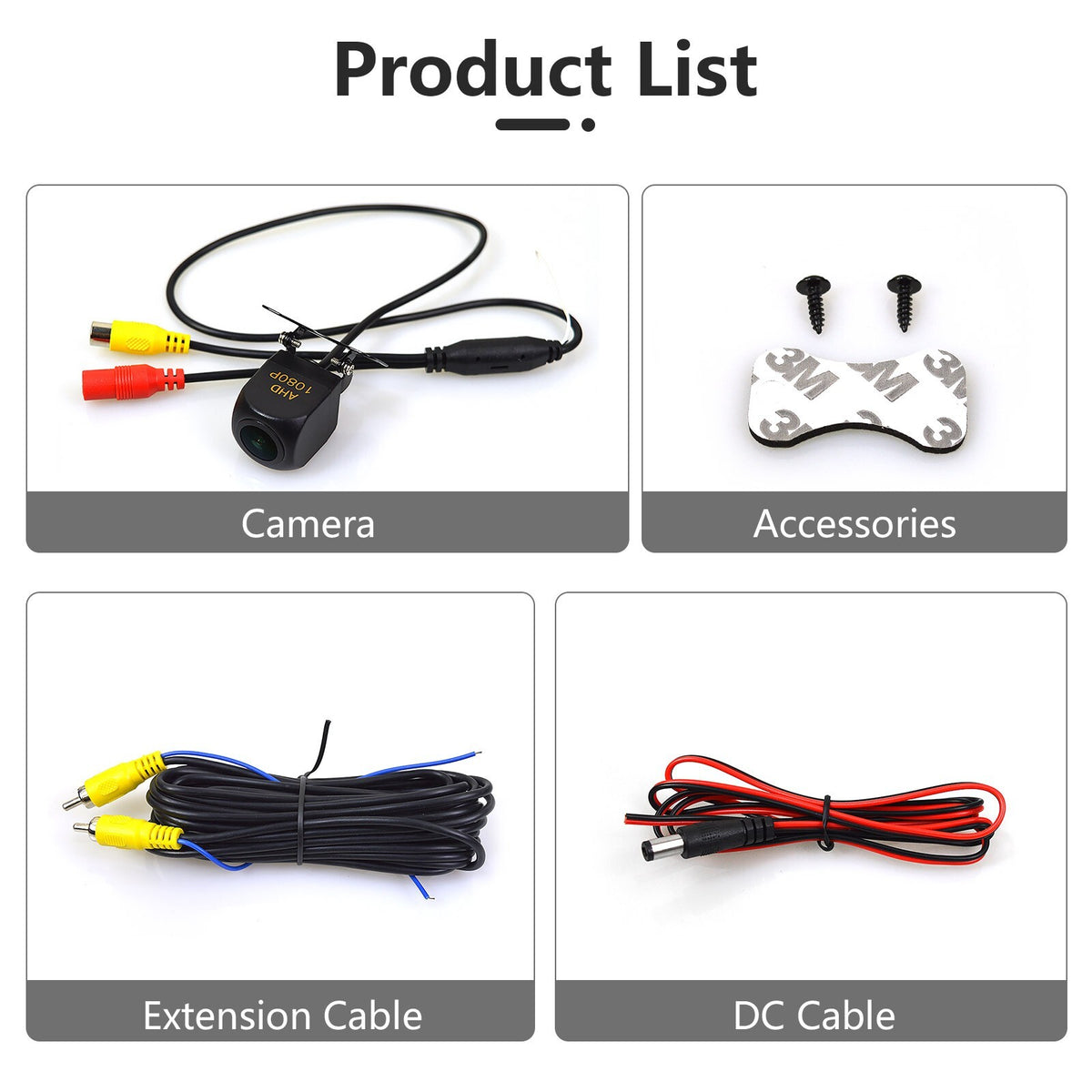

Package Includes

• 1 × Rear-view camera
• 1 × 6m RCA video cable
• 1 × 1.5m power cable
• 2 × Installation screws
• 1 × User manual
