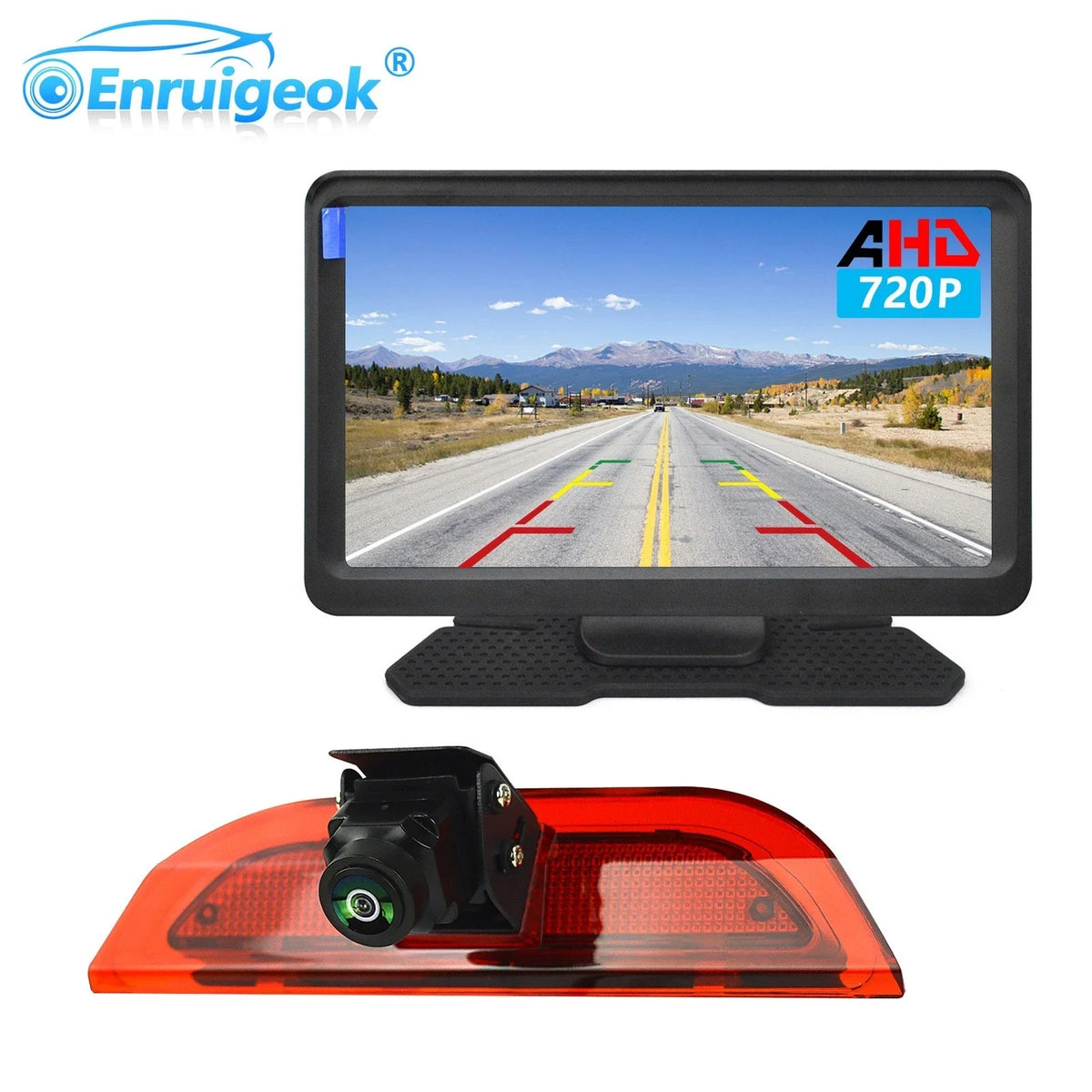

Ford Transit Connect & Courier AHD Camera Kit with 7" IPS Monitor

Ford Transit Connect & Courier AHD Camera Kit with 7" IPS Monitor.

Vehicle compatibility

• Ford Transit Connect (SK), May 2024–2025
• Ford Transit Courier (N3P), October 2023–2025
• Ford E-Transit Courier (N3P), March 2025–2025
• Ford Tourneo Courier and E-Tourneo Courier (N1P), 2023–2025

Check the original brake light housing dimensions and mounting position before ordering.

Features and specifications

• AHD 720P CMOS brake light camera; IP69 waterproof housing
• Night vision to approximately 10.5m; PAL/NTSC video
• DC 12V camera power; operating temperature −20°C to +70°C
• 7-inch IPS monitor with 1024 × 600 resolution
• AV1/AV2 inputs with automatic reversing priority
• Adjustable parking guidelines, image mirroring, brightness, contrast and saturation
• Normal, Day, Night and Vivid modes; reversing delay adjustable 0–15 seconds
• Monitor power: DC 12V

Package contents

• Brake light camera
• 7-inch monitor and monitor power cable
• Video extension cable
• 2 DC power cables
• Dashboard mount
• User manual

SKU: ERG-S140/AHD-1+ERG-7009AHD
