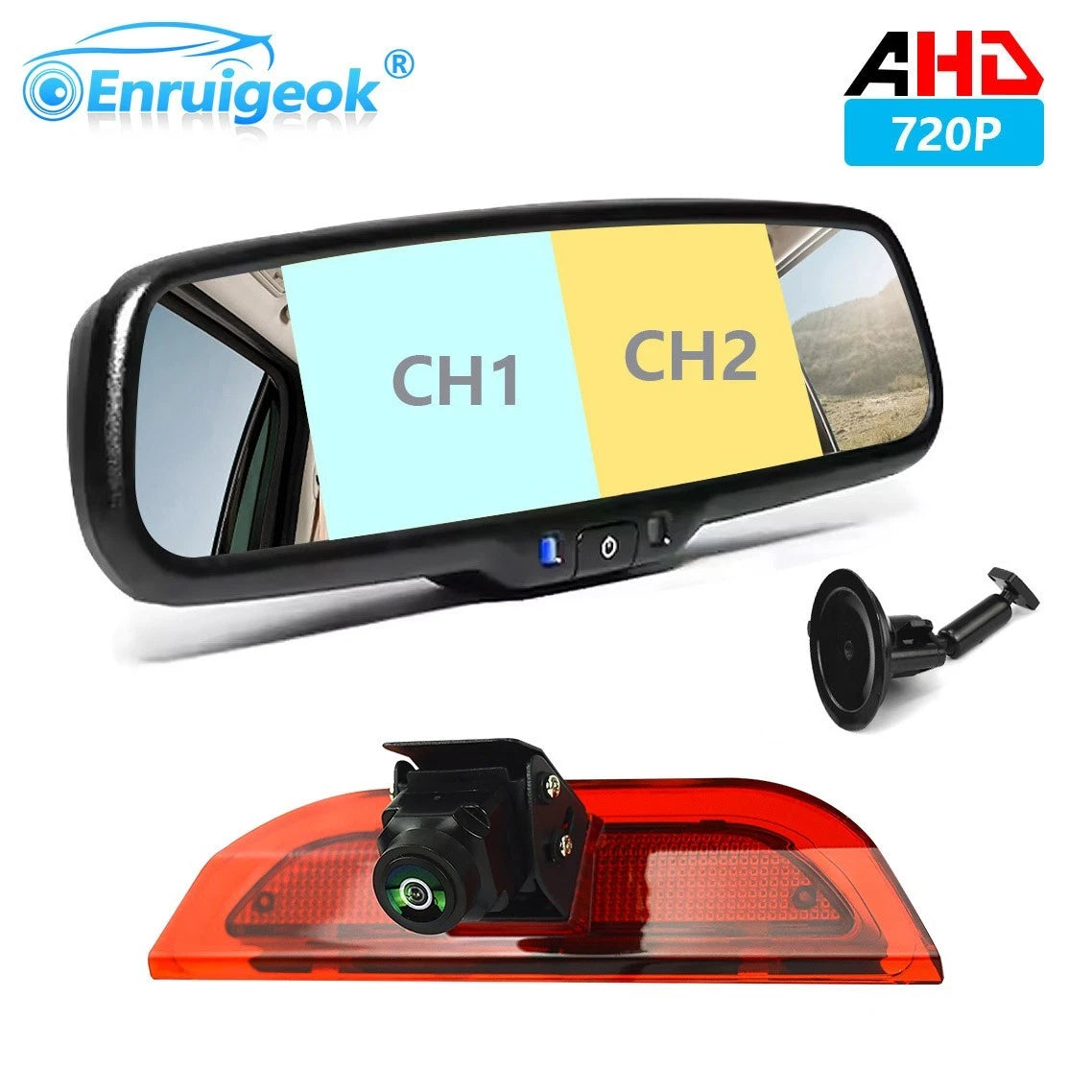

AHD Brake Light Camera + 6.86" IPS Monitor for Ford Transit & Tourneo Courier

AHD Brake Light Camera + 6.86" IPS Monitor for Ford Transit & Tourneo Courier.

Vehicle compatibility

• Ford Transit Courier (N3P), October 2023–2025
• Ford E-Transit Courier (N3P), March 2025–2025
• Ford Tourneo Courier (N1P), 2023–2025
• Ford E-Tourneo Courier (N1P), 2023–2025

Check the original brake light housing dimensions and mounting position before ordering.

Features and specifications

• AHD 720P brake light reversing camera; 1/3-inch CMOS sensor; 130° viewing angle
• Infrared night vision approximately 10.5m; IP69 camera housing
• PAL/NTSC; DC 12V camera; operating temperature −20°C to 70°C
• 6.86-inch IPS mirror monitor, 1280 × 480 resolution; 500 cd/m² brightness
• Monitor supports AHD 720P video signals only
• Two video inputs with split-screen support and automatic full-screen reversing display
• 16:9 / 4:3 aspect ratio; automatic PAL/NTSC; blue screen when no signal
• DC 12V monitor; operating temperature −20°C to 60°C

Package contents

• Brake light camera
• 6.86-inch mirror monitor
• Monitor power cable
• Video extension cable
• DC power cable
• Female-to-female adapter
• Suction cup bracket
• User manual

SKU: ERG-S140/AHD-1+ERG-6001AV
