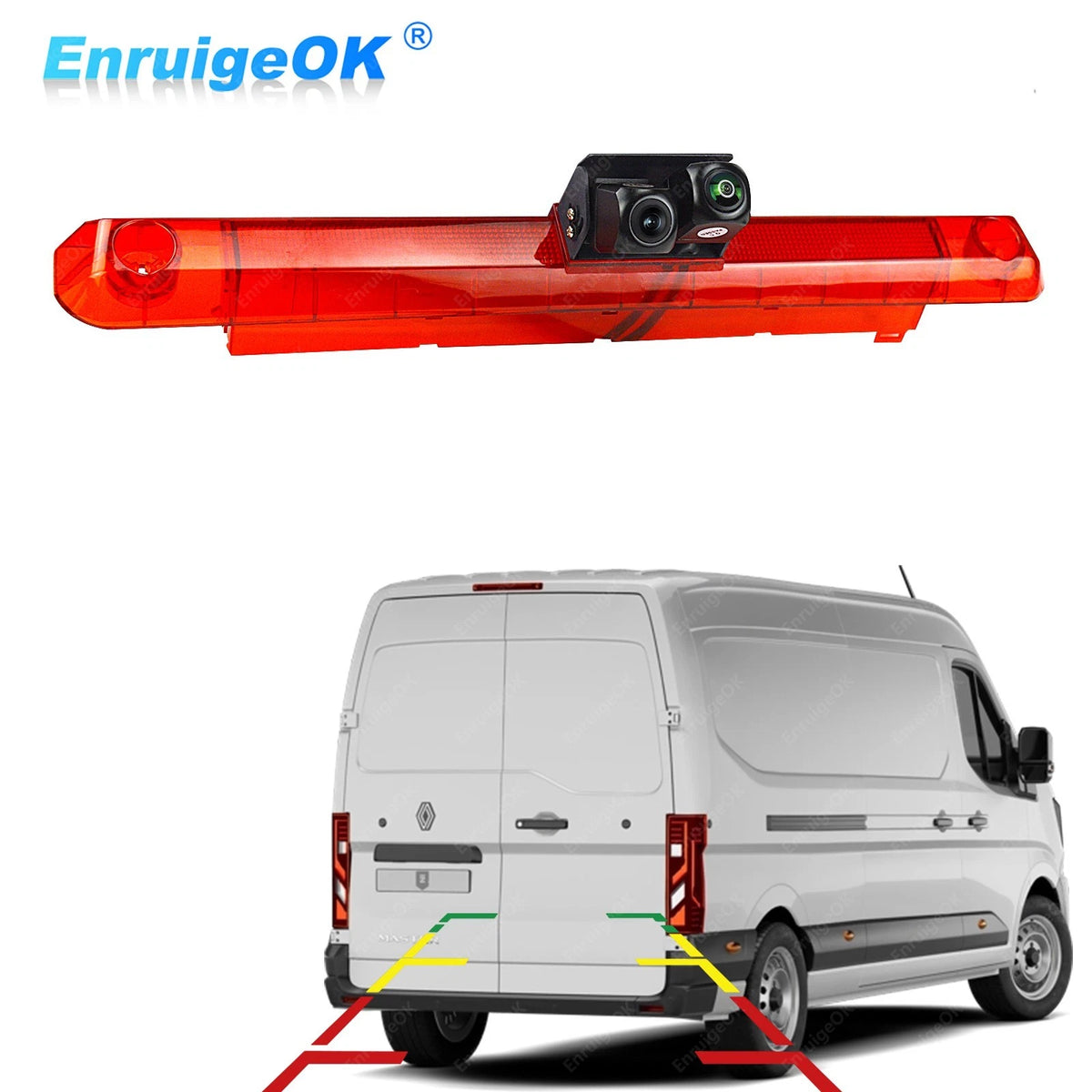

Dual Brake Light Camera for Master IV & Interstar – AHD/CVBS

Dual Brake Light Camera for Master IV & Interstar – AHD/CVBS.

Vehicle compatibility

• Renault Master (RDA), September 2024–2025
• Renault Master E-Tech (RDA), October 2024–2025
• Nissan Interstar (NDA/NDB/NDC), October 2024–2025
• Nissan Interstar-e (NDA/NDB/NDC), November 2024–2025

Check the original brake light housing dimensions and mounting position before ordering.

Features and specifications

• Dual lenses for rearward driving view and reversing; 90° / 140° viewing angles
• Supplied in CVBS 700TVL mode; supports AHD 720P with a compatible monitor
• AHD switching requires cutting the white wire as specified by the manufacturer; leave it intact for CVBS-only monitors
• CMOS sensor; CVBS 733 × 493 / AHD 1280 × 720 effective pixels
• Infrared night vision approximately 35ft; IP69 camera housing
• PAL/NTSC; DC 12V; operating temperature −20°C to 70°C
• Camera only; monitor not included

Package contents

• Dual brake light camera
• 2 × 10m RCA video extension cables
• 2 × 1m DC power cables
• User manual

SKU: ERG-S141/AHD-1
