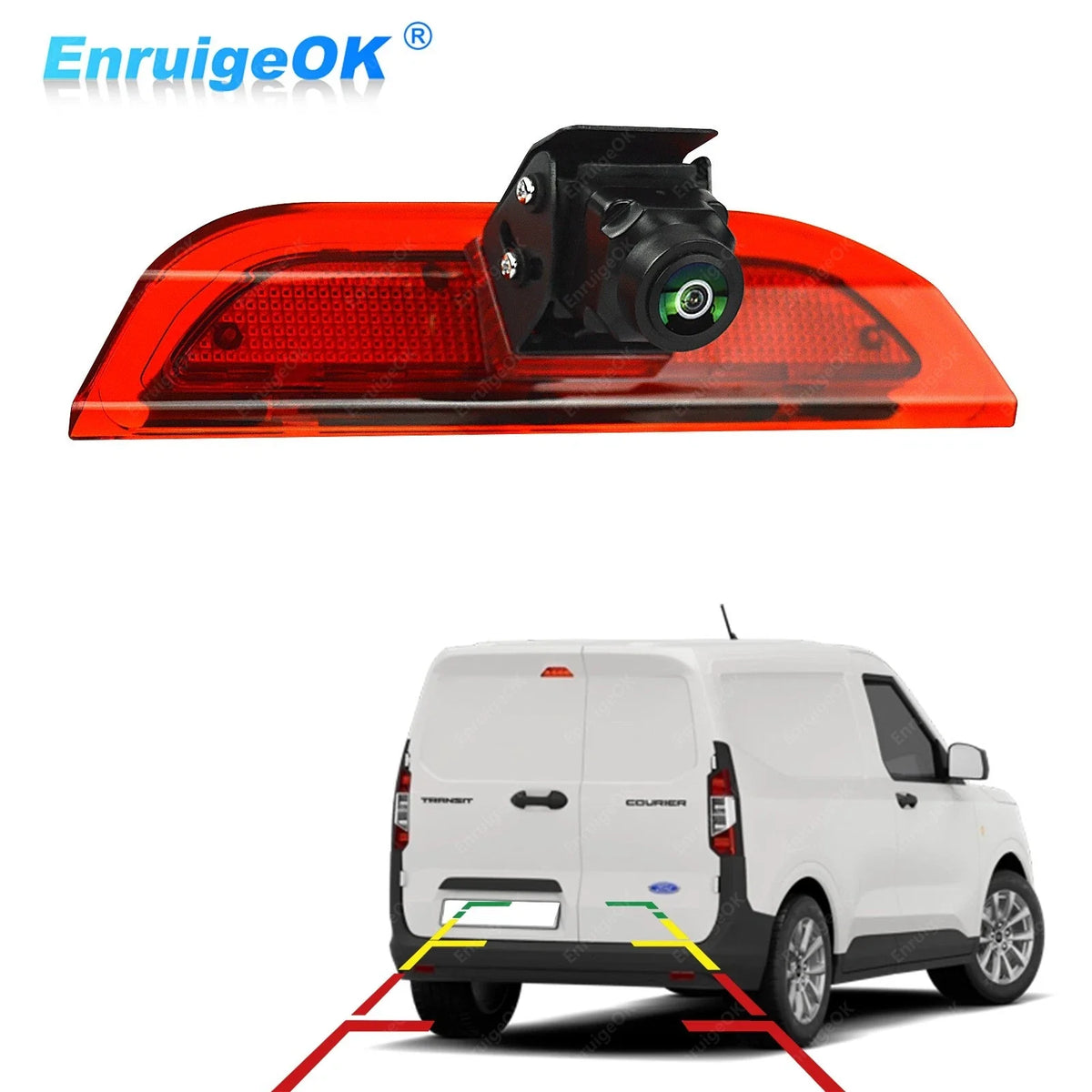

Brake Light Reversing Camera for Ford Transit & Tourneo Courier – AHD/CVBS

Vehicle-specific brake light reversing camera with switchable CVBS 700TVL and AHD 720P video output. Supplied in CVBS mode; match the selected format to your RCA-input head unit or monitor before installation. Monitor not included.

Vehicle fitment

• Ford Transit Courier (N3P), October 2023–2025
• Ford E-Transit Courier (N3P), March 2025–2025
• Ford Tourneo Courier (N1P), 2023–2025
• Ford E-Tourneo Courier (N1P), 2023–2025

The source listing also names Ford Transit Connect, but its detailed fitment list does not confirm the exact version. Verify the brake light housing dimensions and connector before ordering for a Transit Connect.

Camera features

• CMOS sensor; AHD 1280 × 720 / CVBS 733 × 493 effective pixels
• 130° viewing angle; night vision up to approximately 35 ft
• IP69 waterproof rating; PAL/NTSC video
• DC 12V power specification; current consumption below 150mA
• Operating temperature: −20°C to +70°C

Package contents

• 1 brake light reversing camera
• 1 × 10m RCA extension cable
• 1 × 1m DC power cable
• User manual

SKU: ERG-S140/AHD-1
