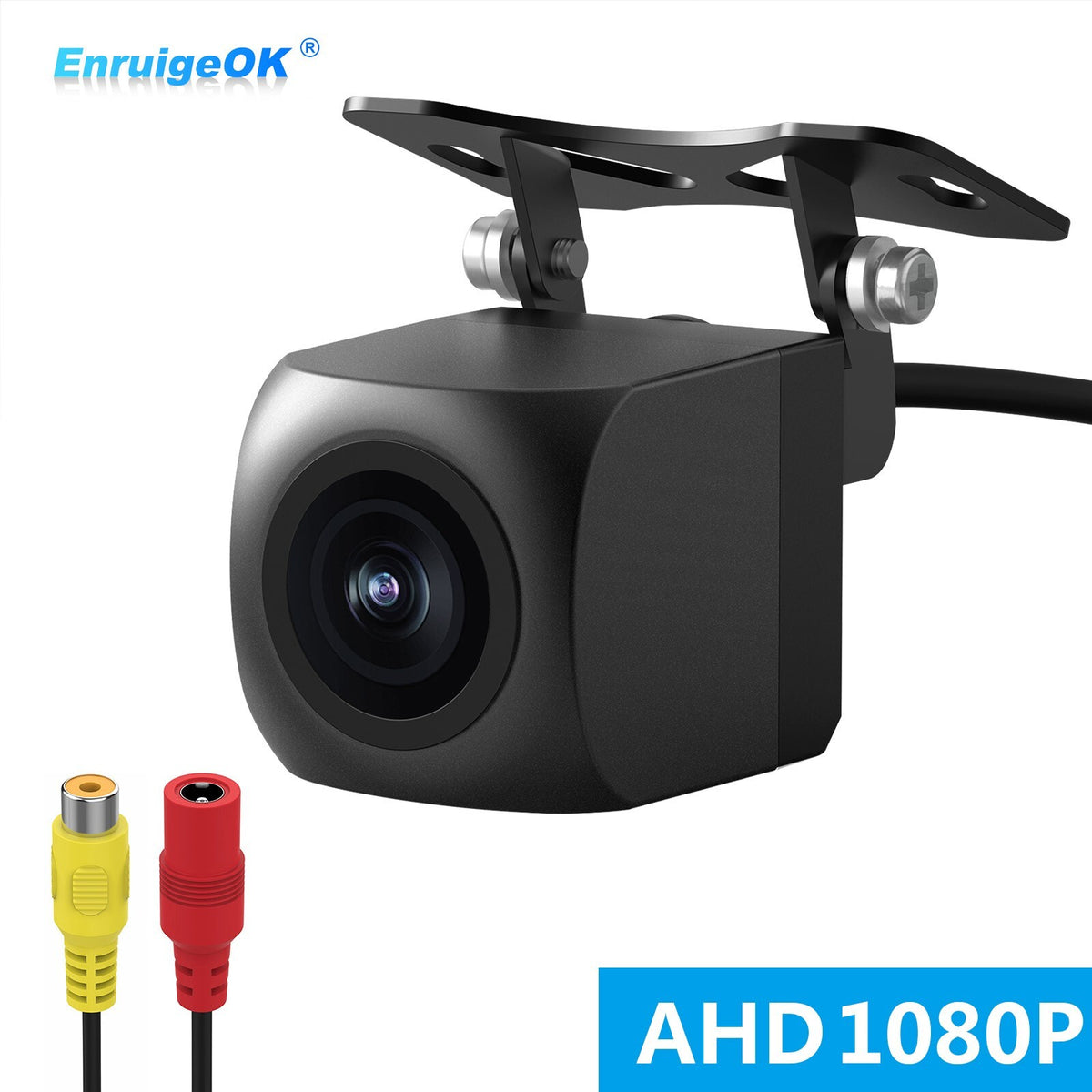

AHD 1080P Car Backup Camera Reversing Waterproof Rear View Night Vision Lens

Reminder friendly

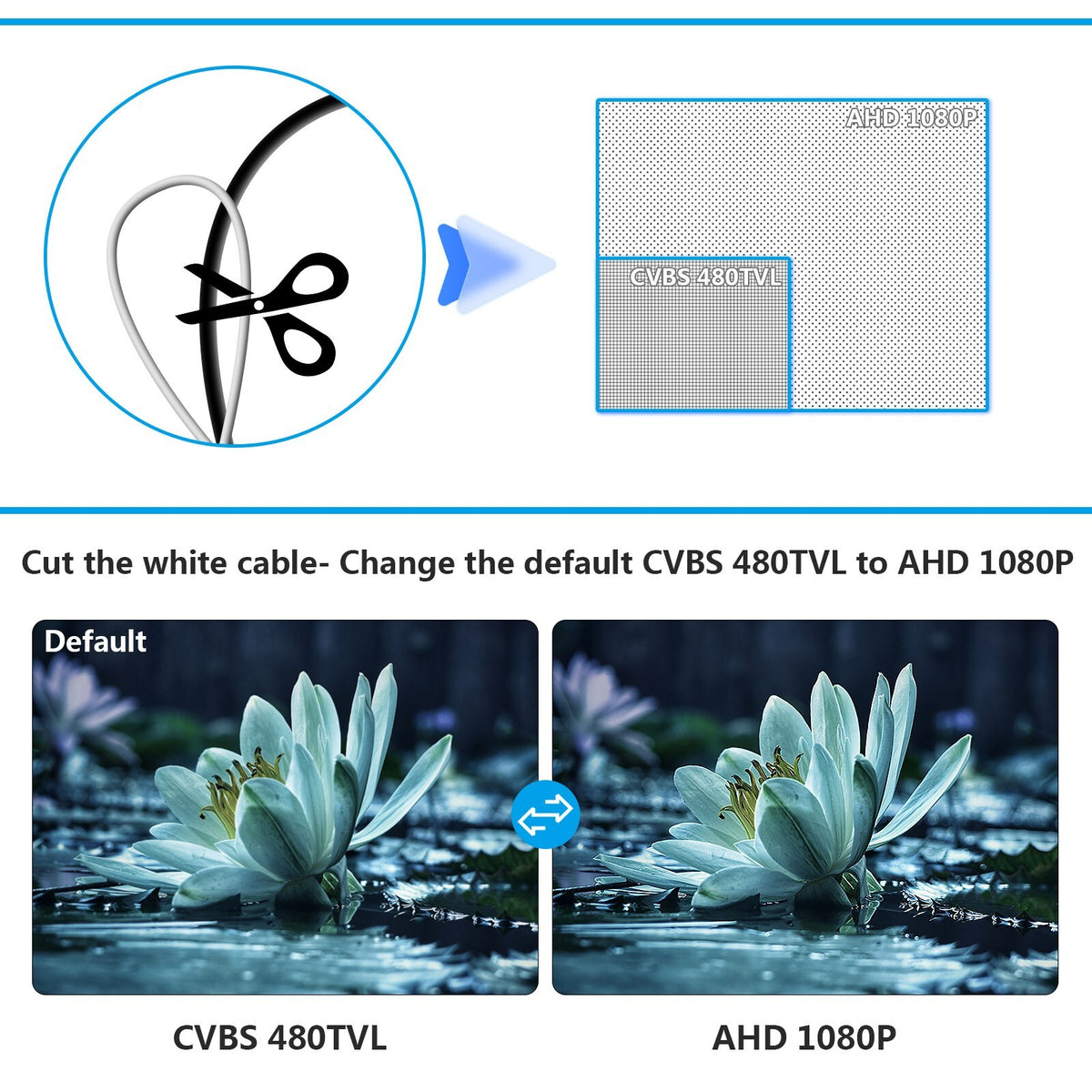

This camera supports CVBS 480TVL and AHD 720P swithchable(By cutting white swith cable).  If your android unit does not support CVBS signal, please cut the white wire and change to AHD signal. Thank you

Features:

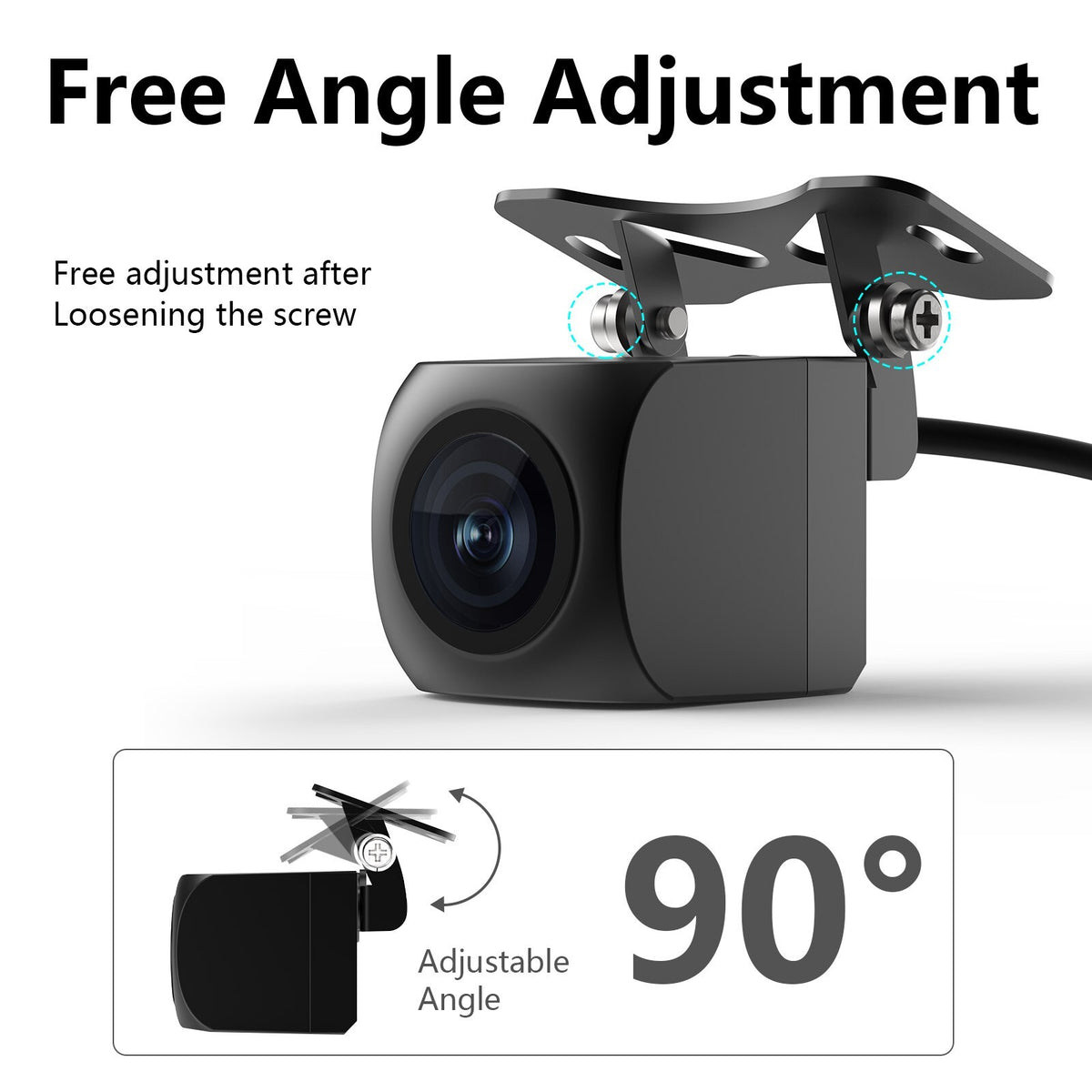

Bracket Mounting, universal for most of vehicles like Car, SUV, Truck or Van.

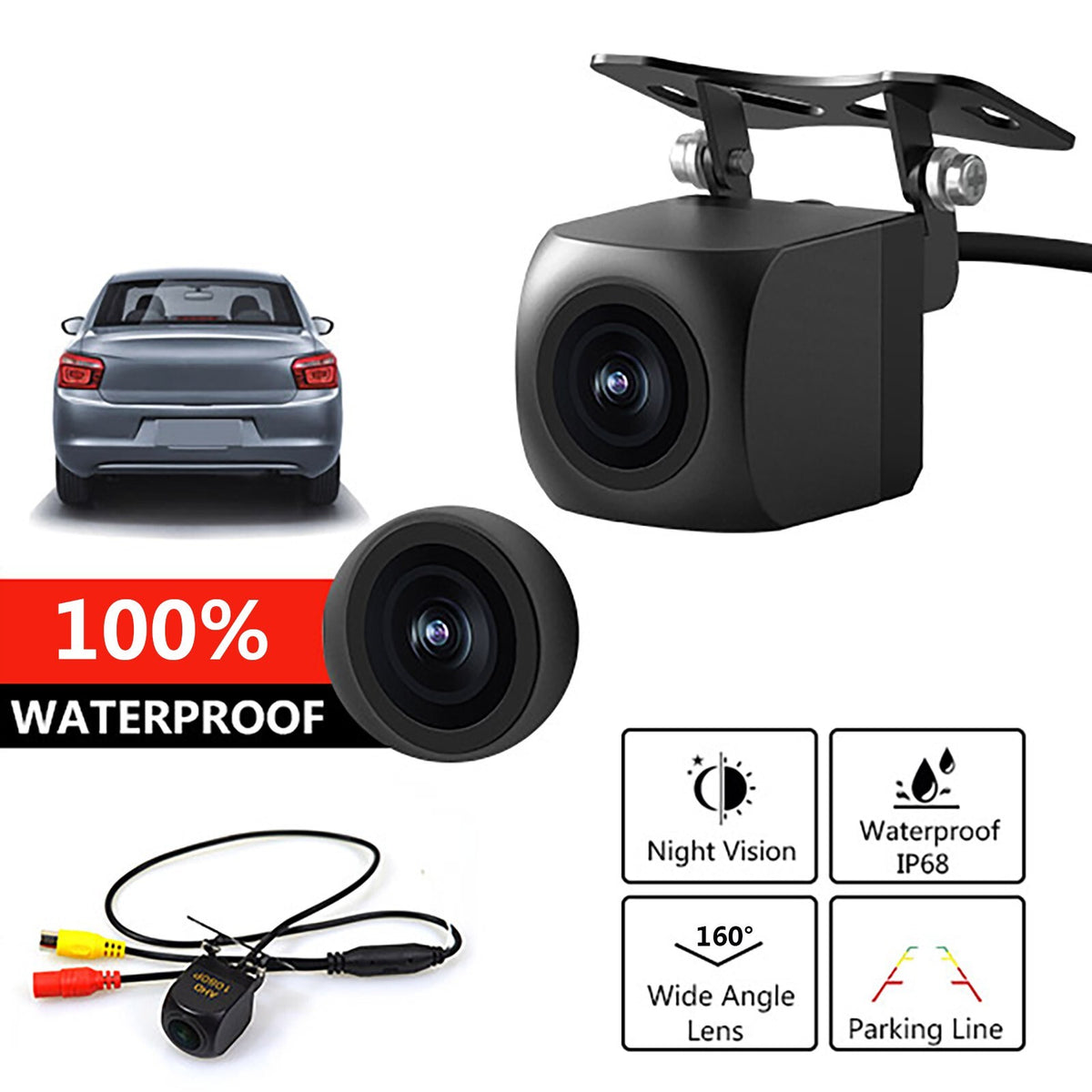

Rear backup camera through the 160° wide-angle camera device with parking line, the obstacle behind the car is clearly visible.

Can be connected with your existing OEM or aftermarket LCD/TFT displays that use a standard RCA input connection.

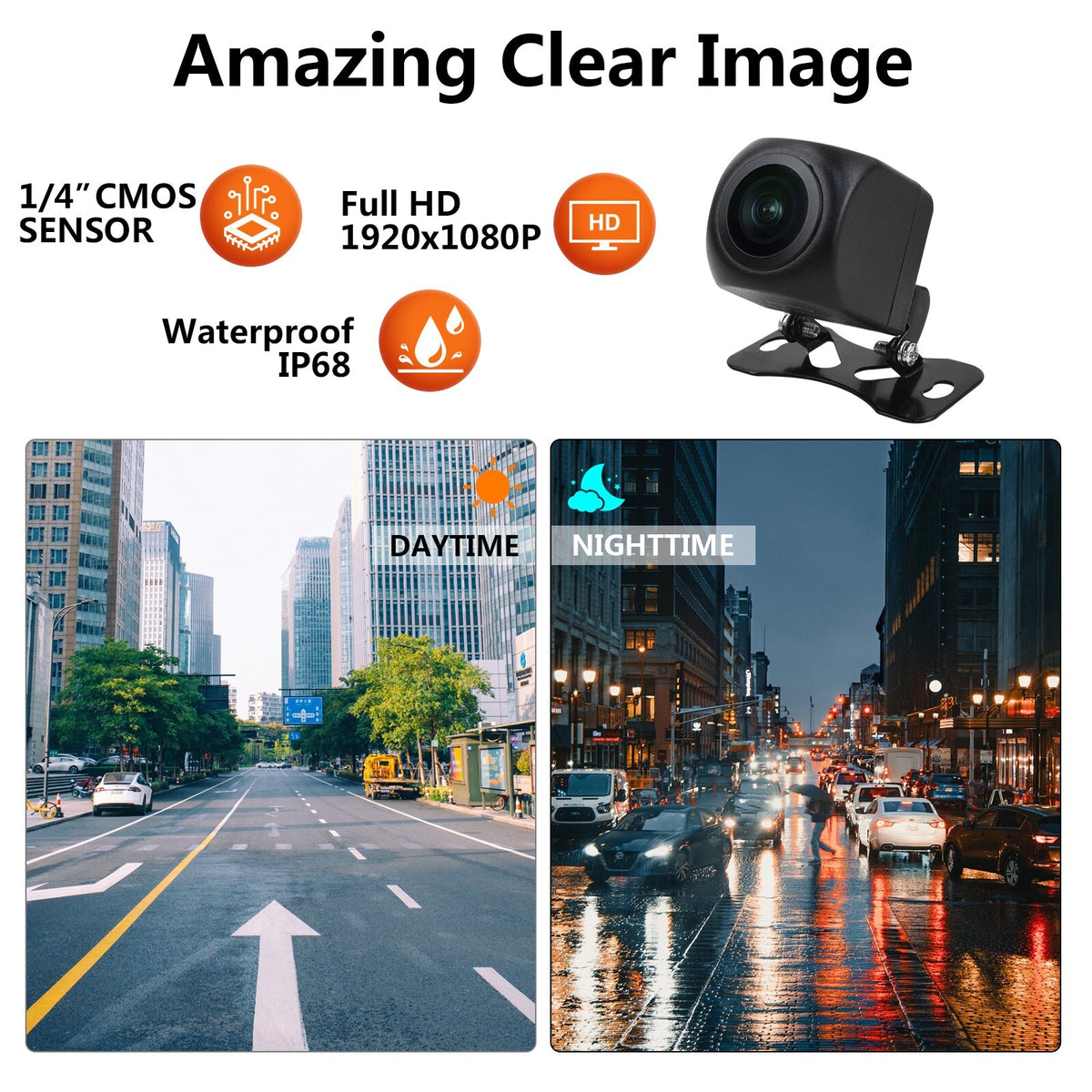

Ultra low light performance, high image quality for day and night.

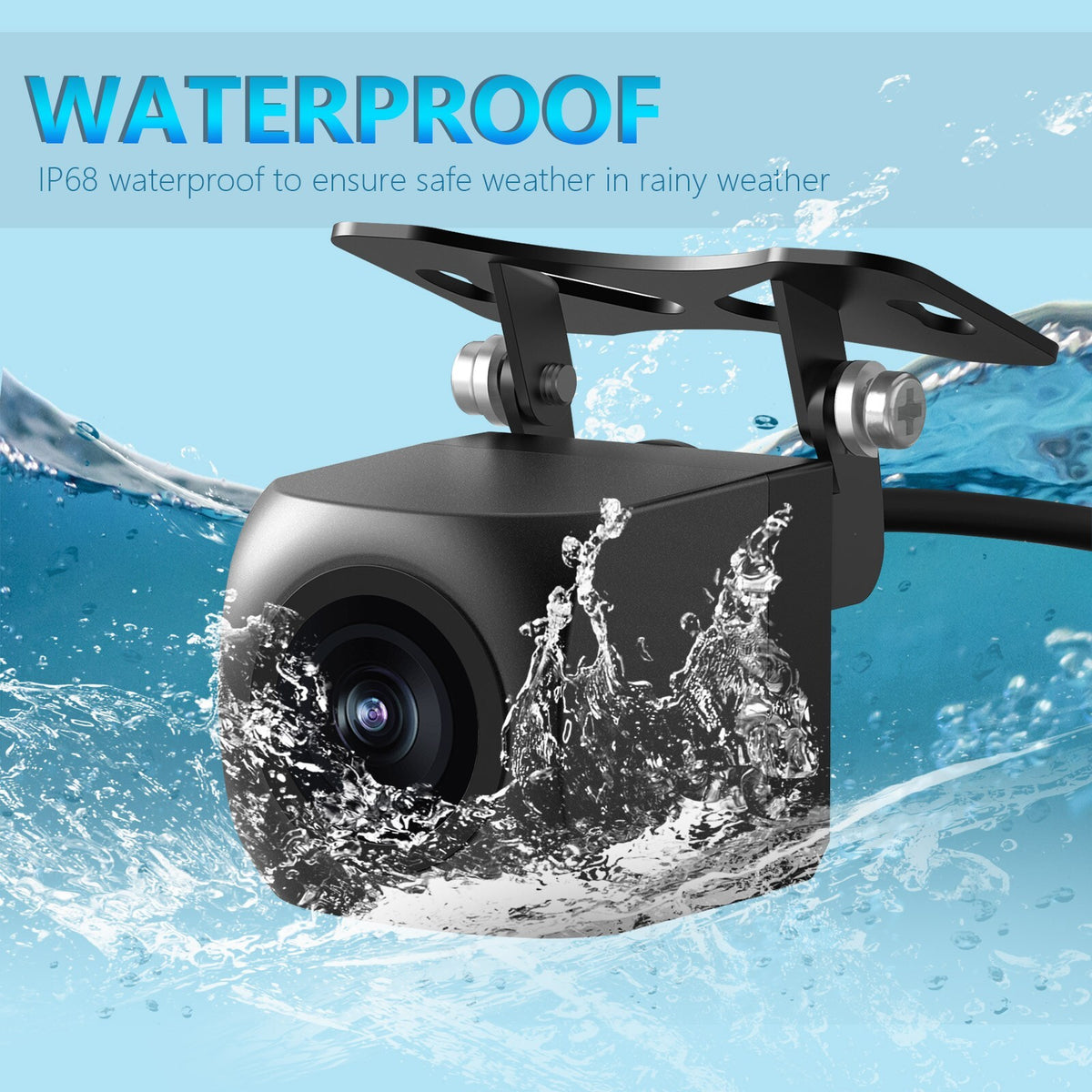

Waterproof, Shockproof, Shatterproof.

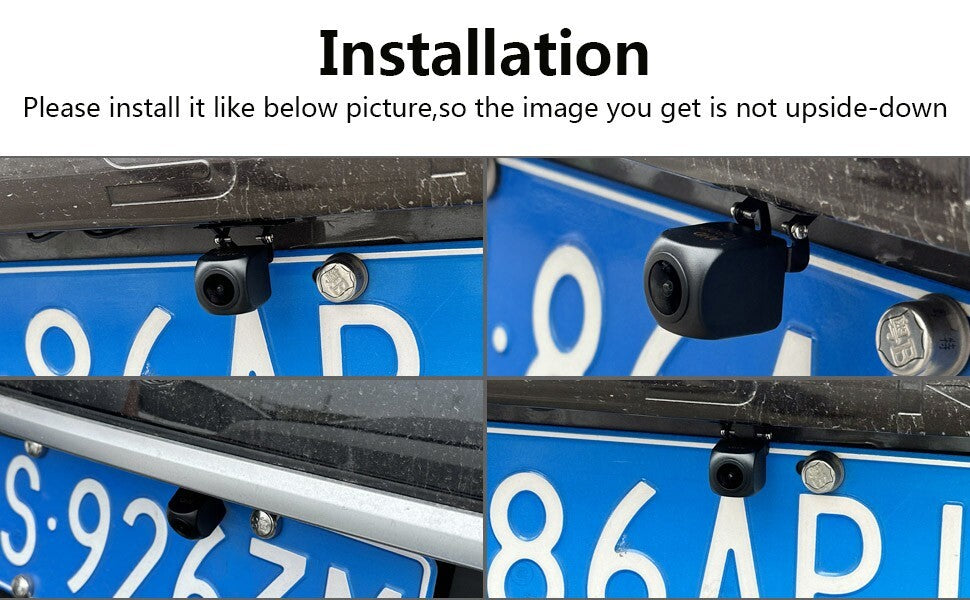

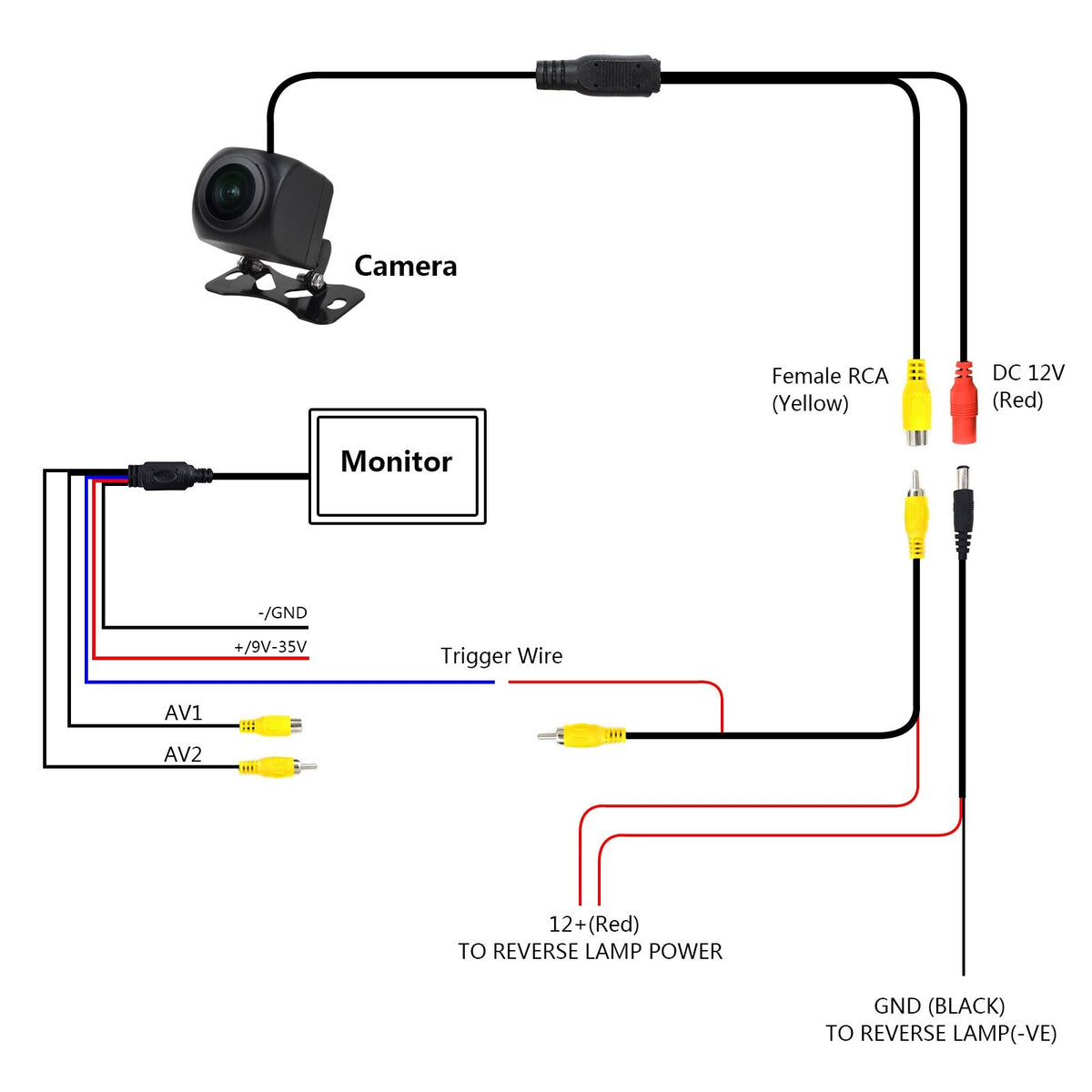

Installation:

1. Choose a suitable position on your car(above license plate/bumper etc) to install the camera.

2. Connect the power cord (red) to vehicle DC12V power system.

3. Connect the video output(yellow) of the camera to the display/monitor of the vehicle.

4. Turn on the power to test the camera image, make sure it is showing right.

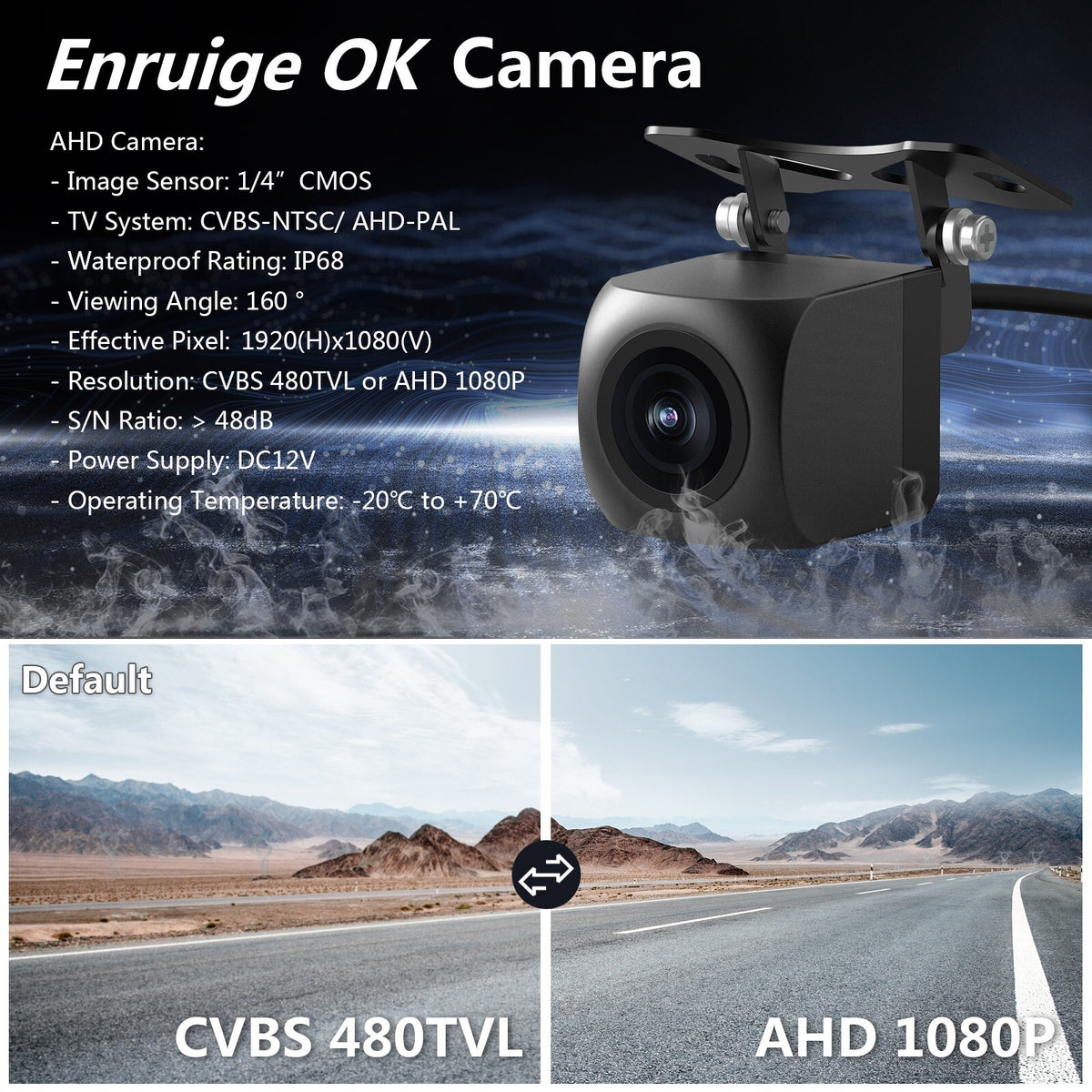

Specifications

Material: ABS

Lens Material: Glass

Image sensor: 1/3 "CMOS

TV system: PAL/NTSC

Waterproof rating: IP68

Effective pixel: CVBS: 733(H)x493(V) / AHD: 1920(H)x1080(V)

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

Video output: RCA interface, 1.0Vp-p, 75Ohm

Resolution: AHD1080P

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 1.0Lux = 1.2 lumens

Power supply: DC12V

Power: 5W

Operating temperature: -20℃ to +70℃

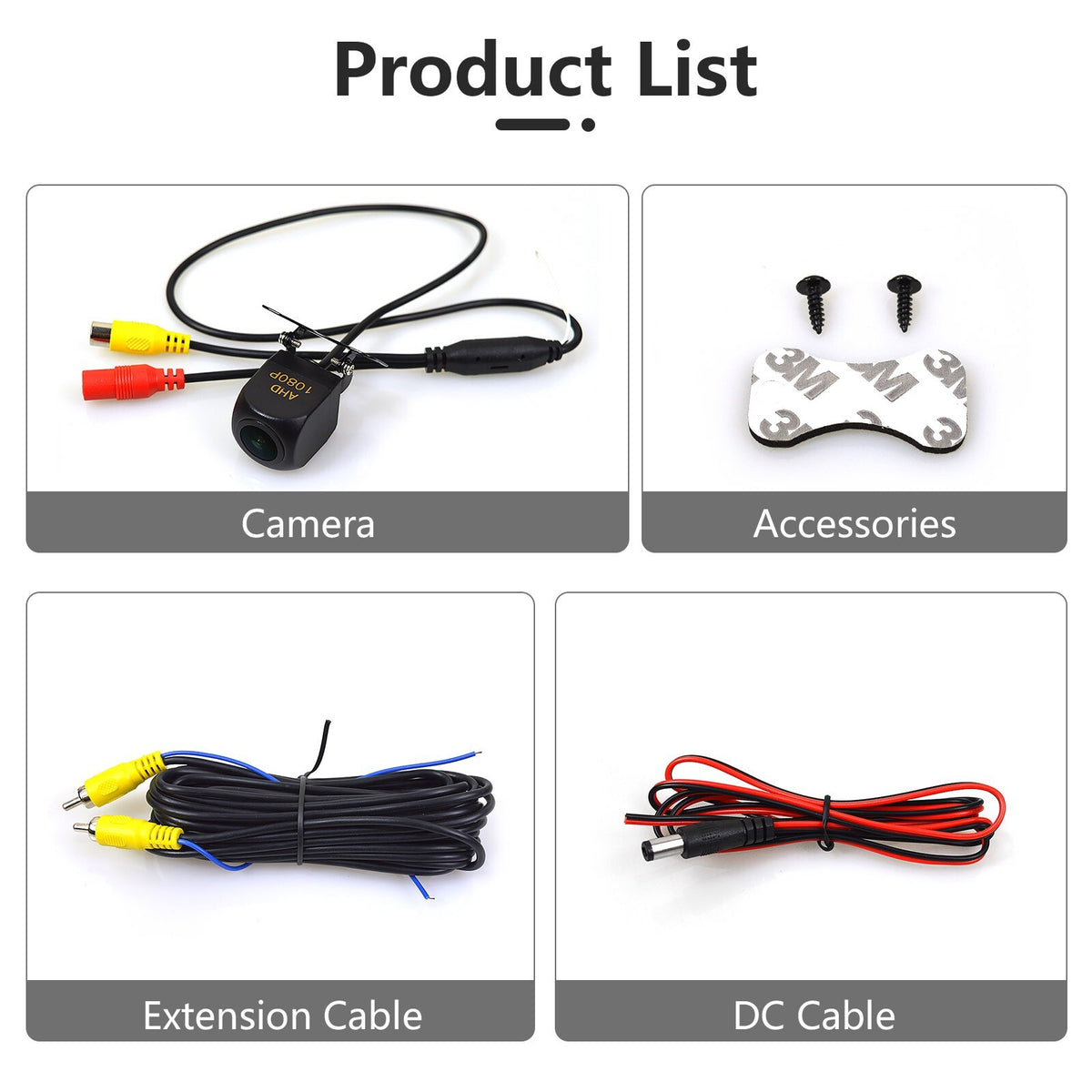

Package content

1 x Car Rear View Camera

1 x 6M RCA video cable

1 x 1.5M power supply cable

1 x Universal bracket

1 x user manual

2 x install screw
