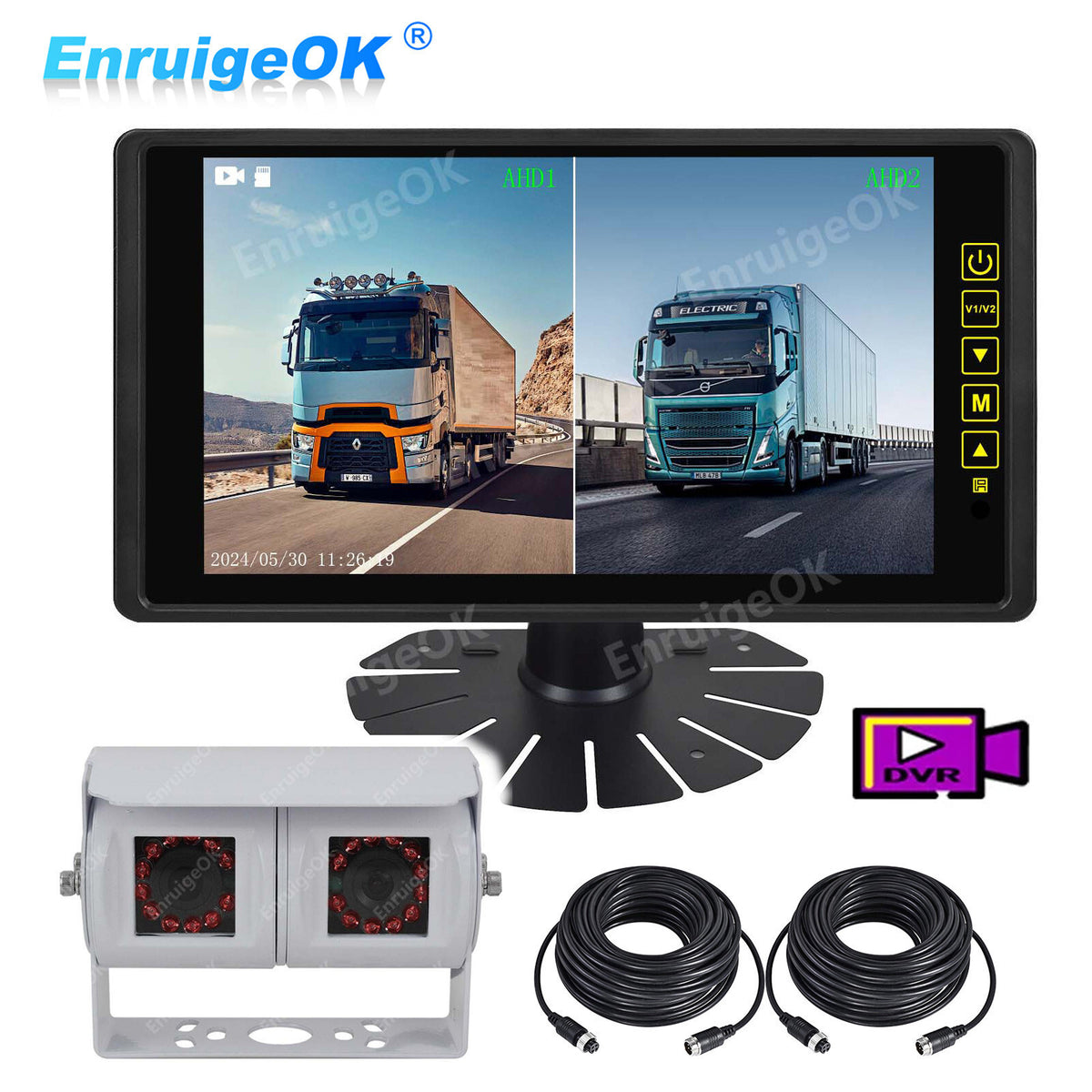

9" Split Screen DVR Monitor & AHD Dual Commercial Rear View Reversing Camera Kit

Descriptions:

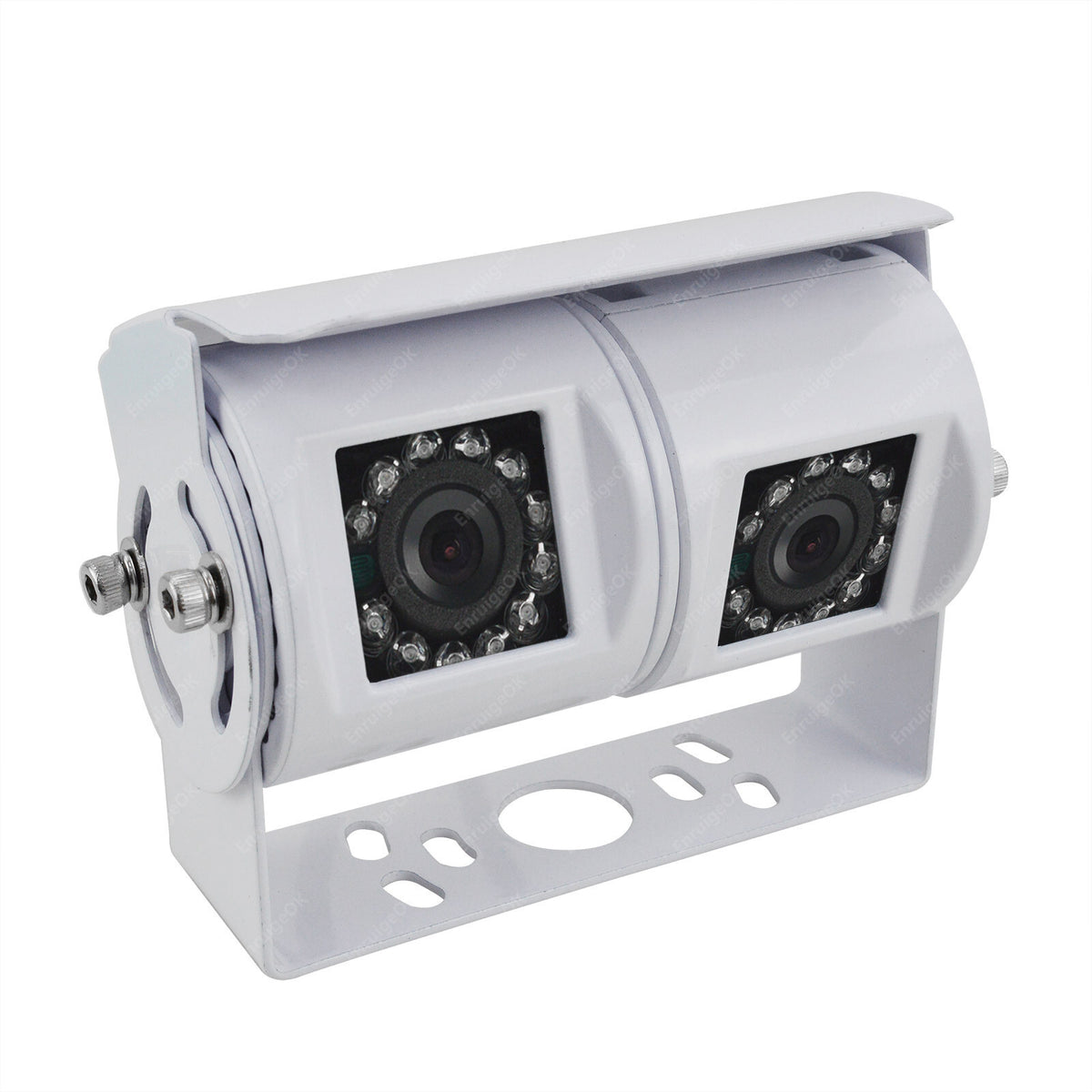

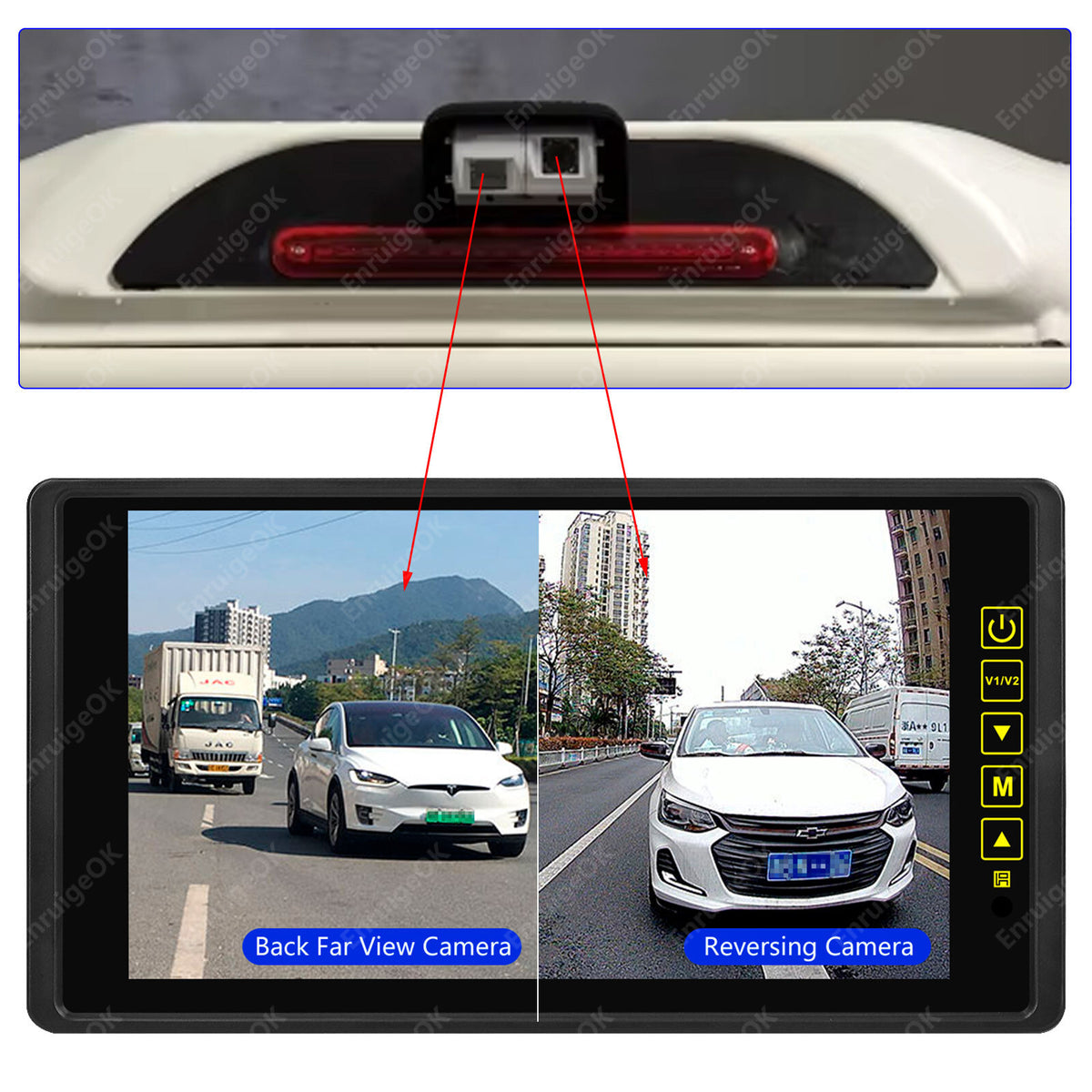

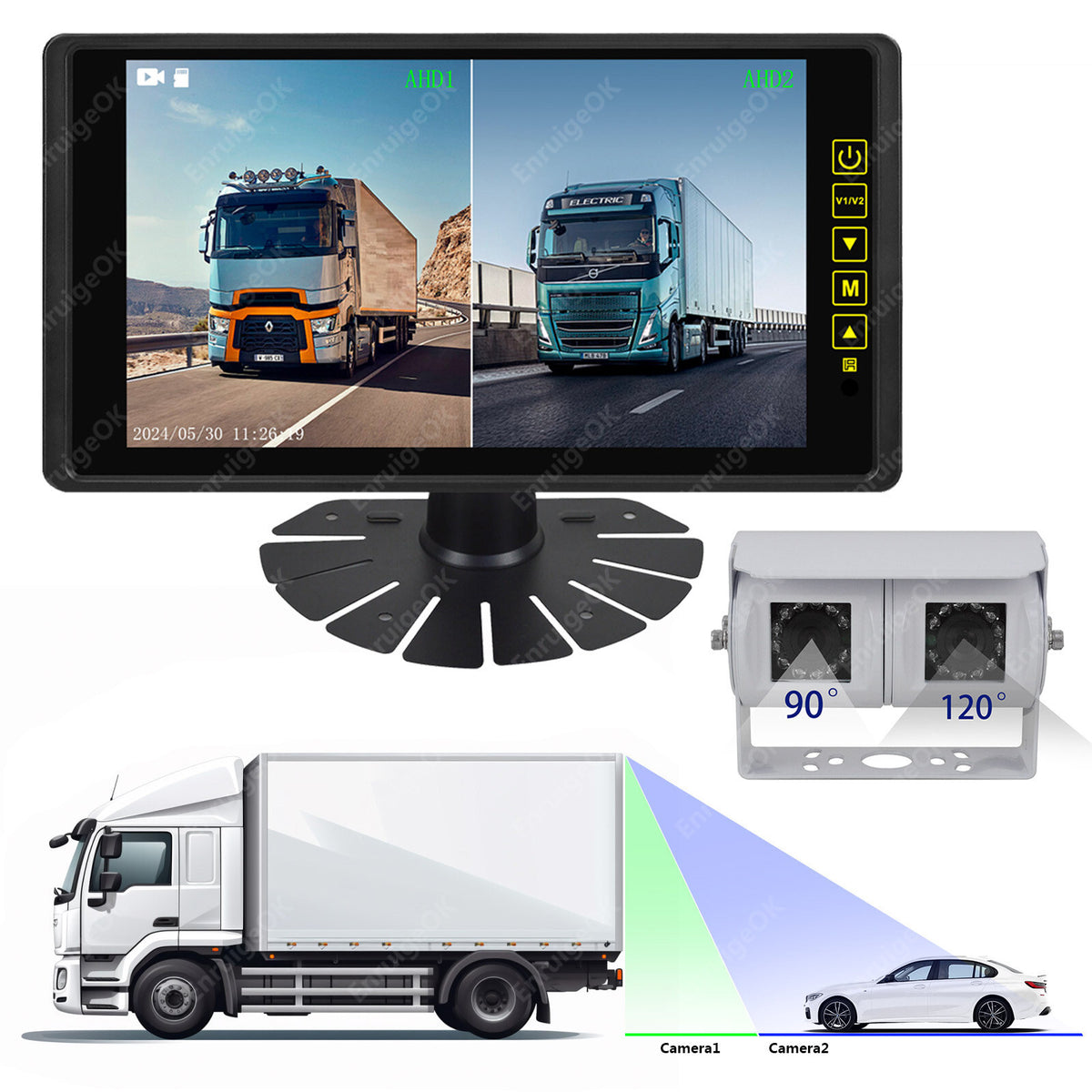

Dual-Lens Rear View Camera: Offers two views—one for traffic, one for trailer alignment—for complete rear visibility.

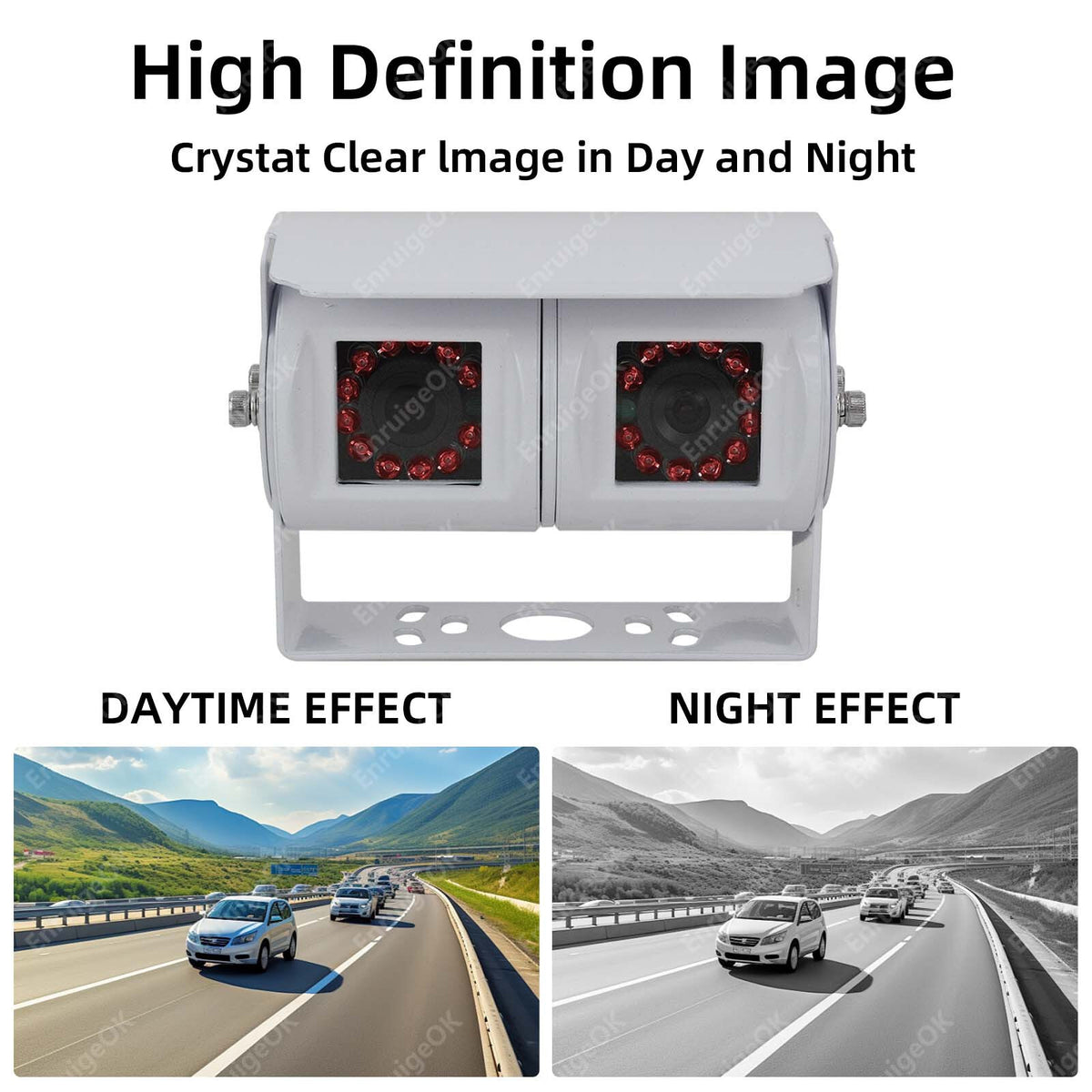

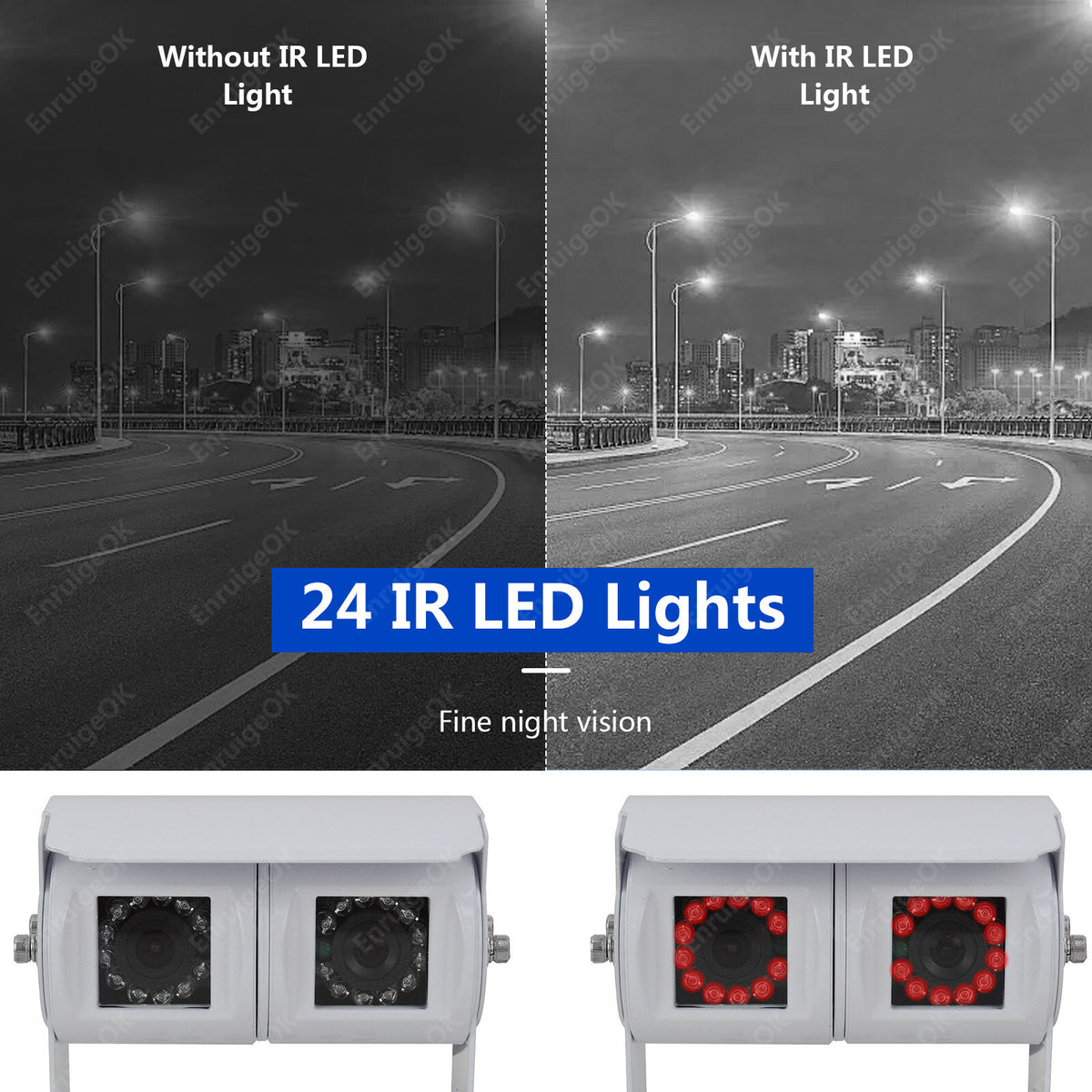

Enhanced Night Vision: 24 IR LEDs (12 per lens) provide clear images even in low light.

120° Wide Angle: Reduces blind spots to help prevent accidents and injuries.

Wide Voltage Range: This backup camera supports a wide voltage range from 9V to 35V, ensuring stable performance across the vehicle.

Rugged Waterproof Design: IP68-rated for all-weather durability, ideal for continuous outdoor use.

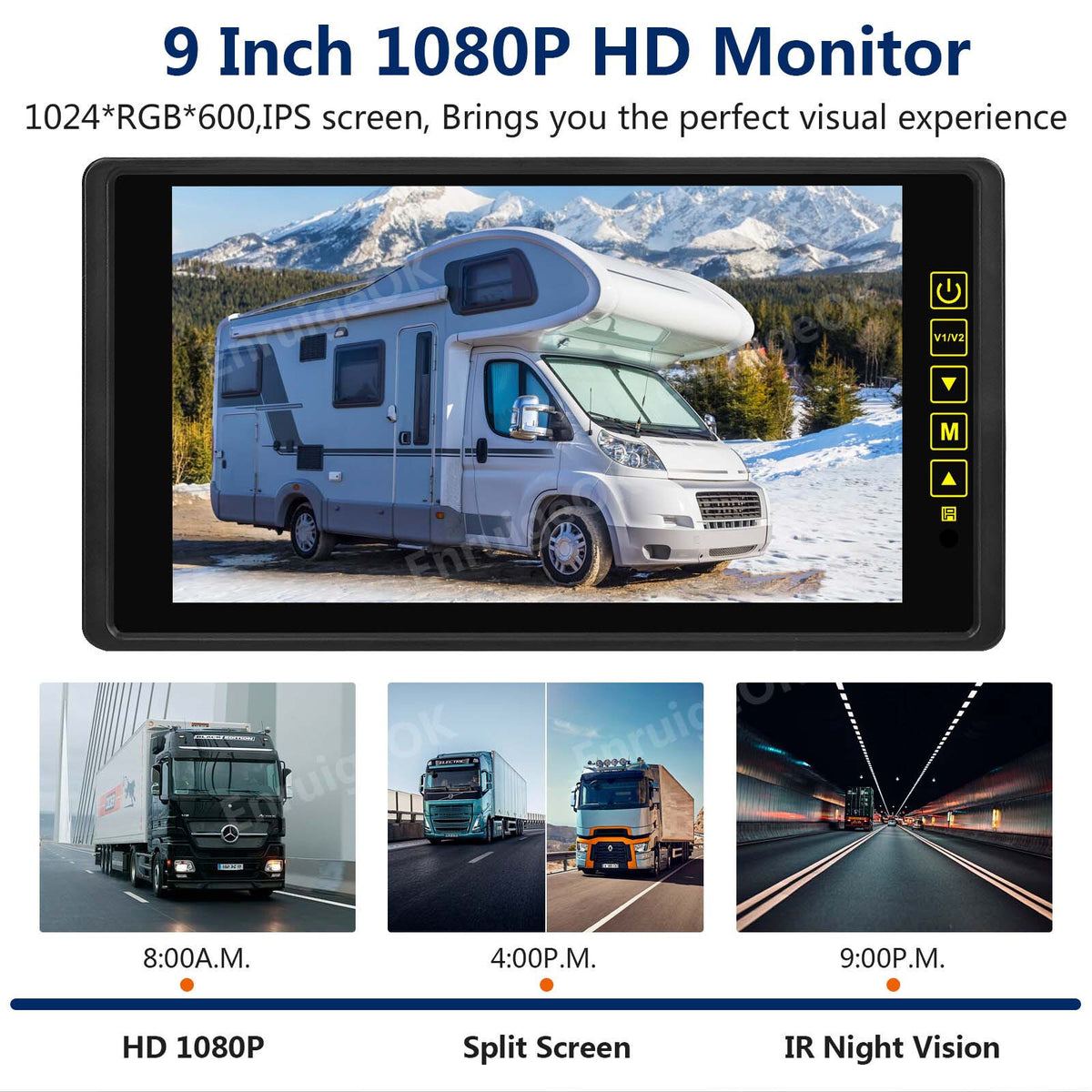

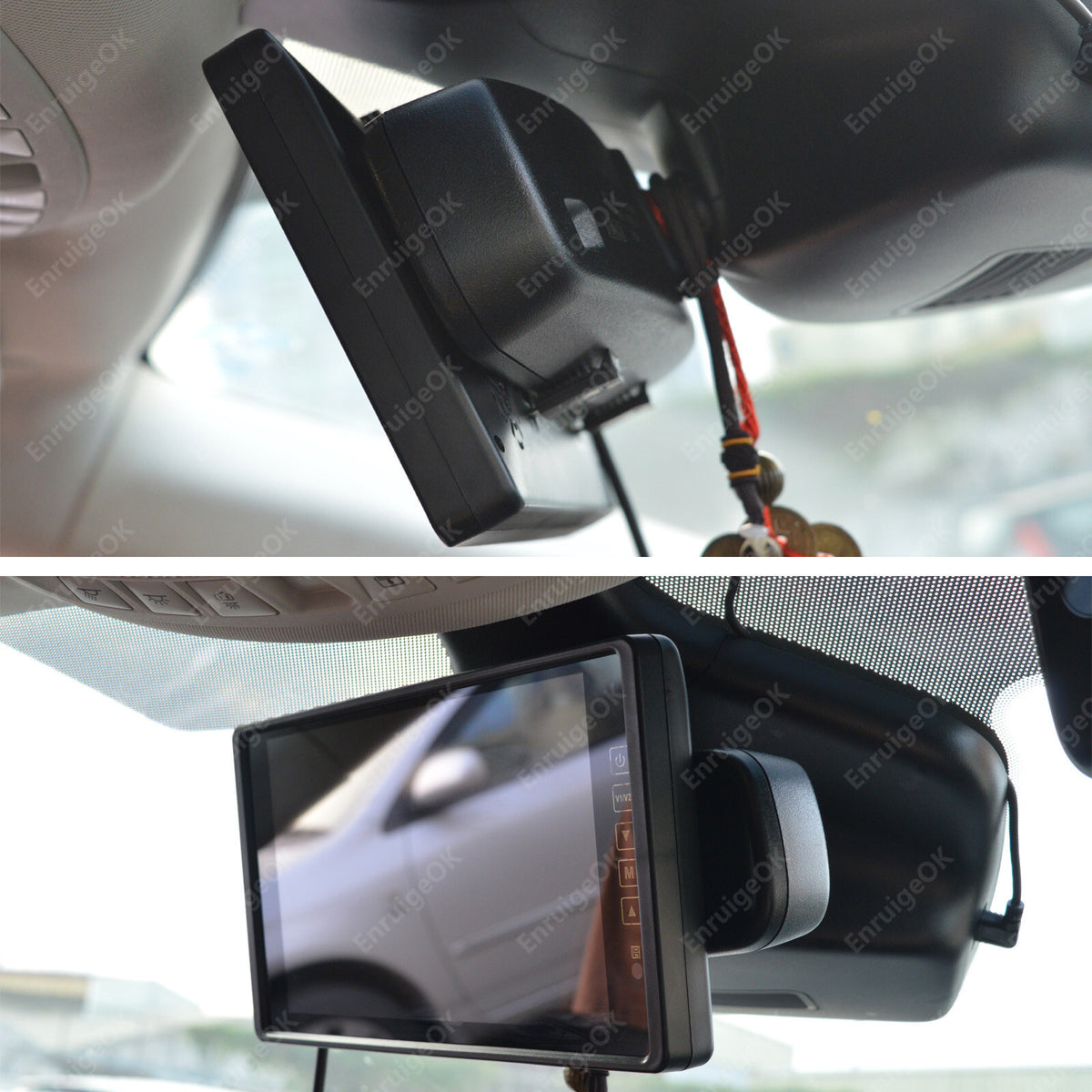

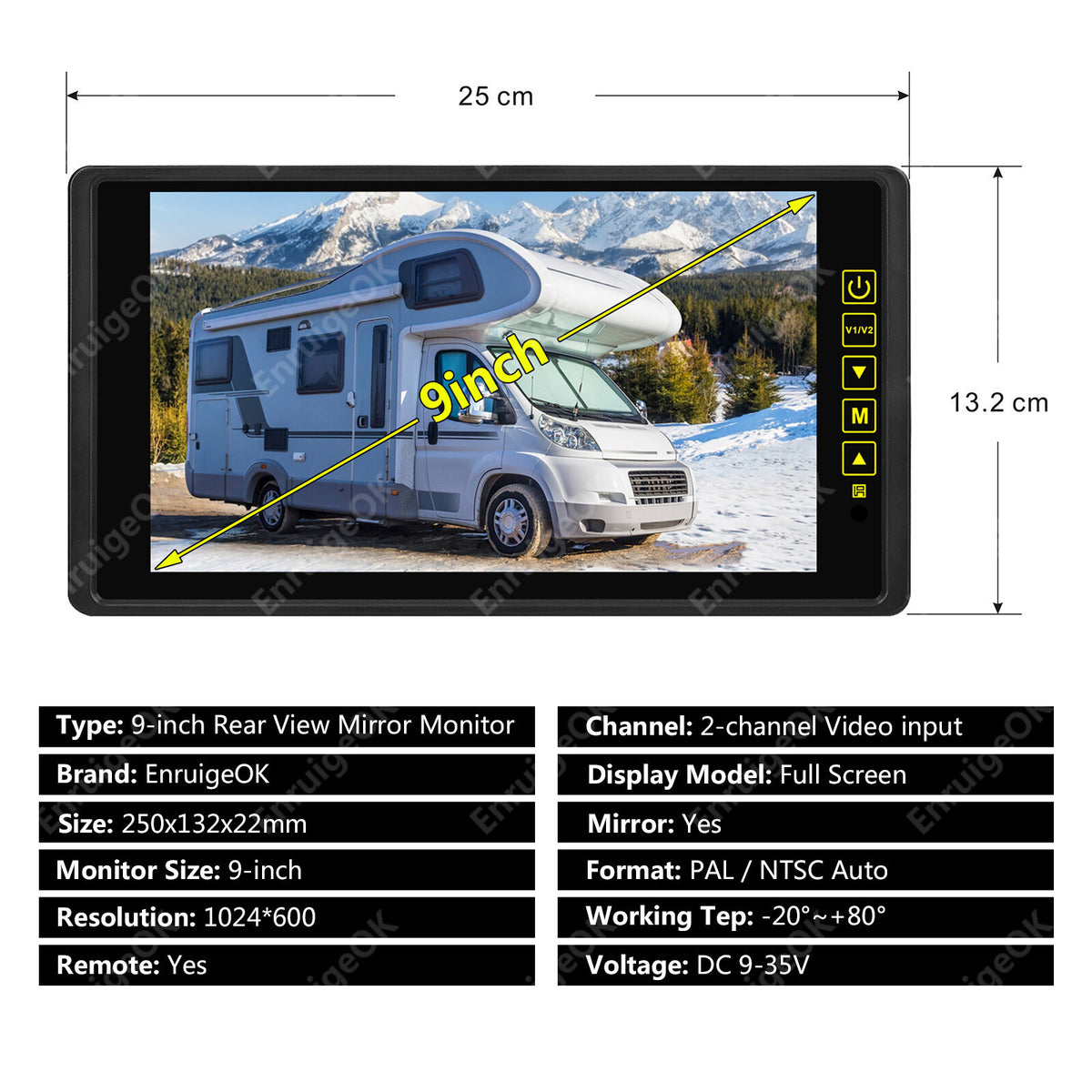

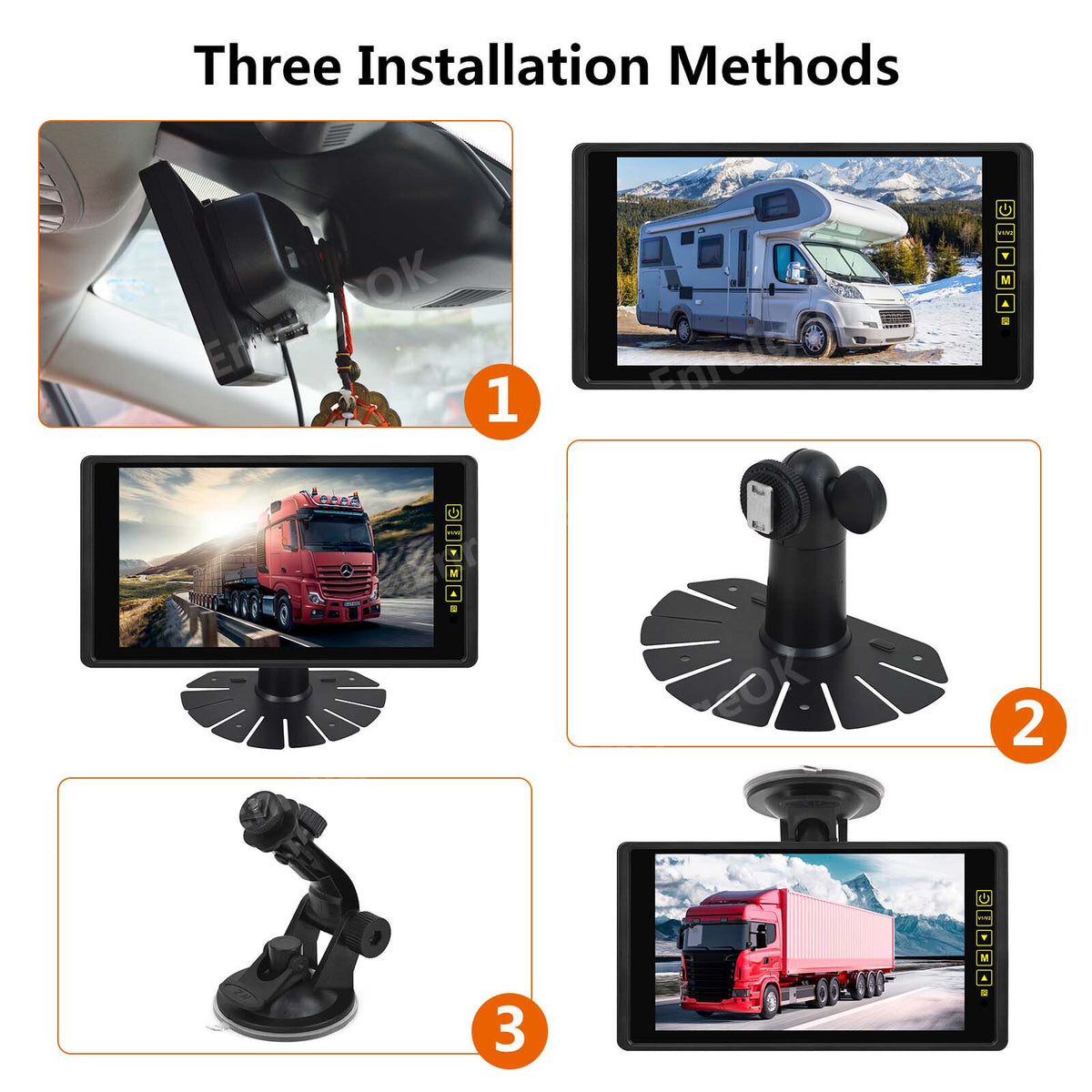

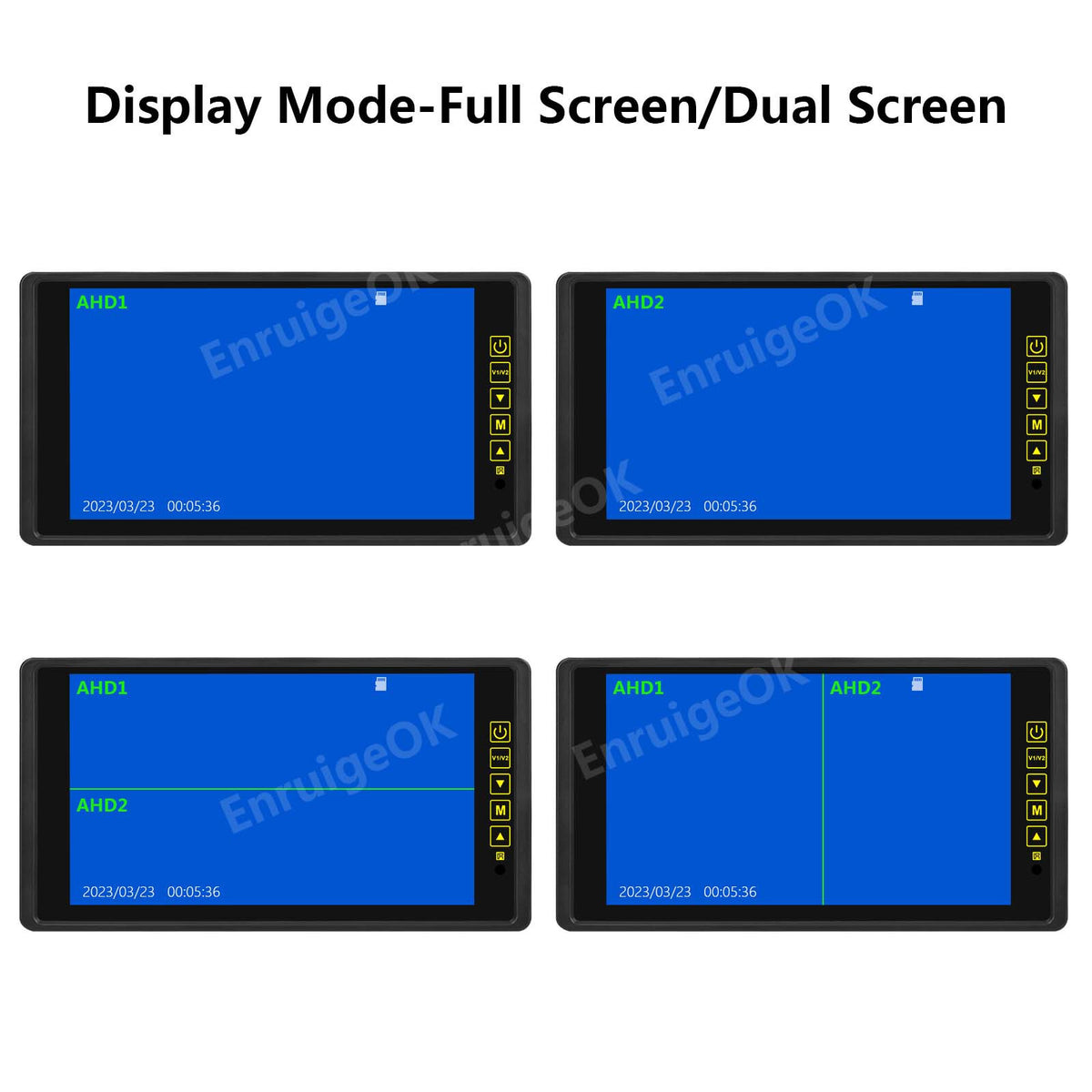

9" High Definition Digital Color LCD Monitor with a 1024 x 600 resolution and IPS screen. Features built-in split screen, allowing for simultaneous display of two camera views. Offers three installation options: snap-on installation (clips onto rearview mirror), desktop mounting, and windscreen suction cup mounting.

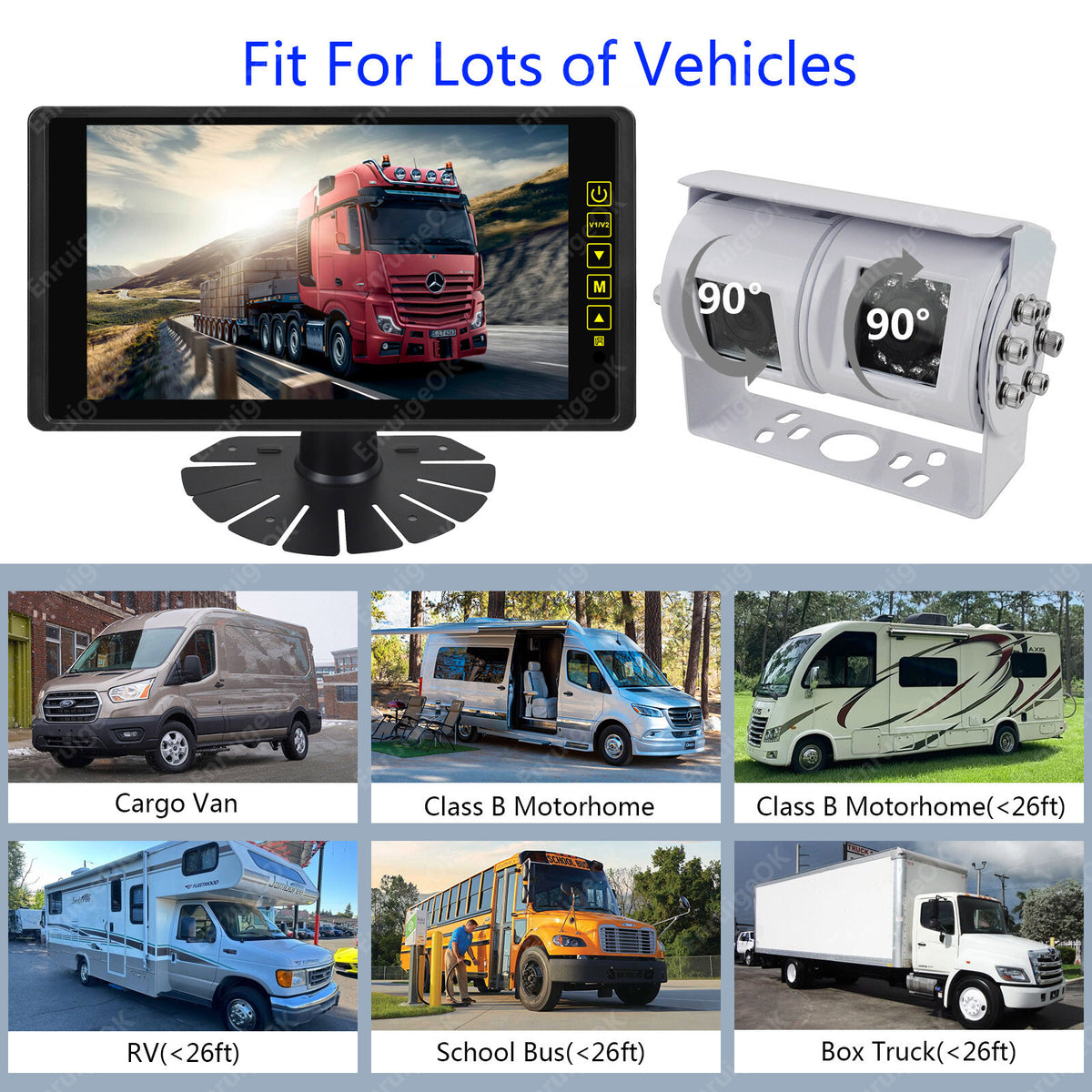

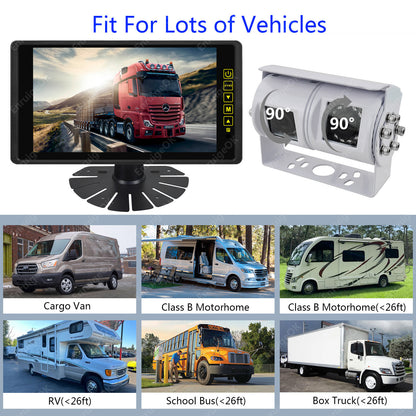

Improved Safety: Provides a clear rear view, perfect for maneuvering larger vehicles like buses, caravans, and trailers.

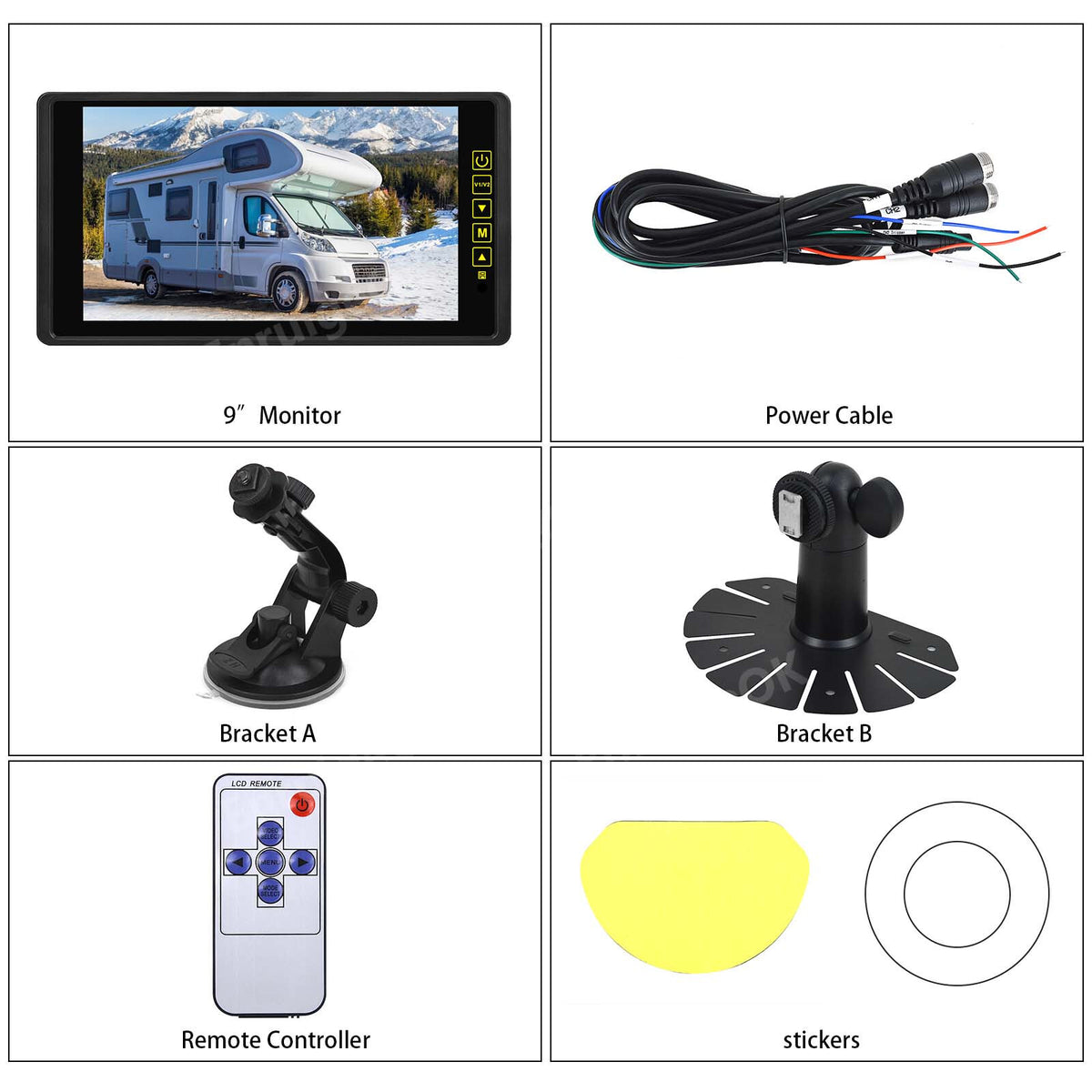

Package contents

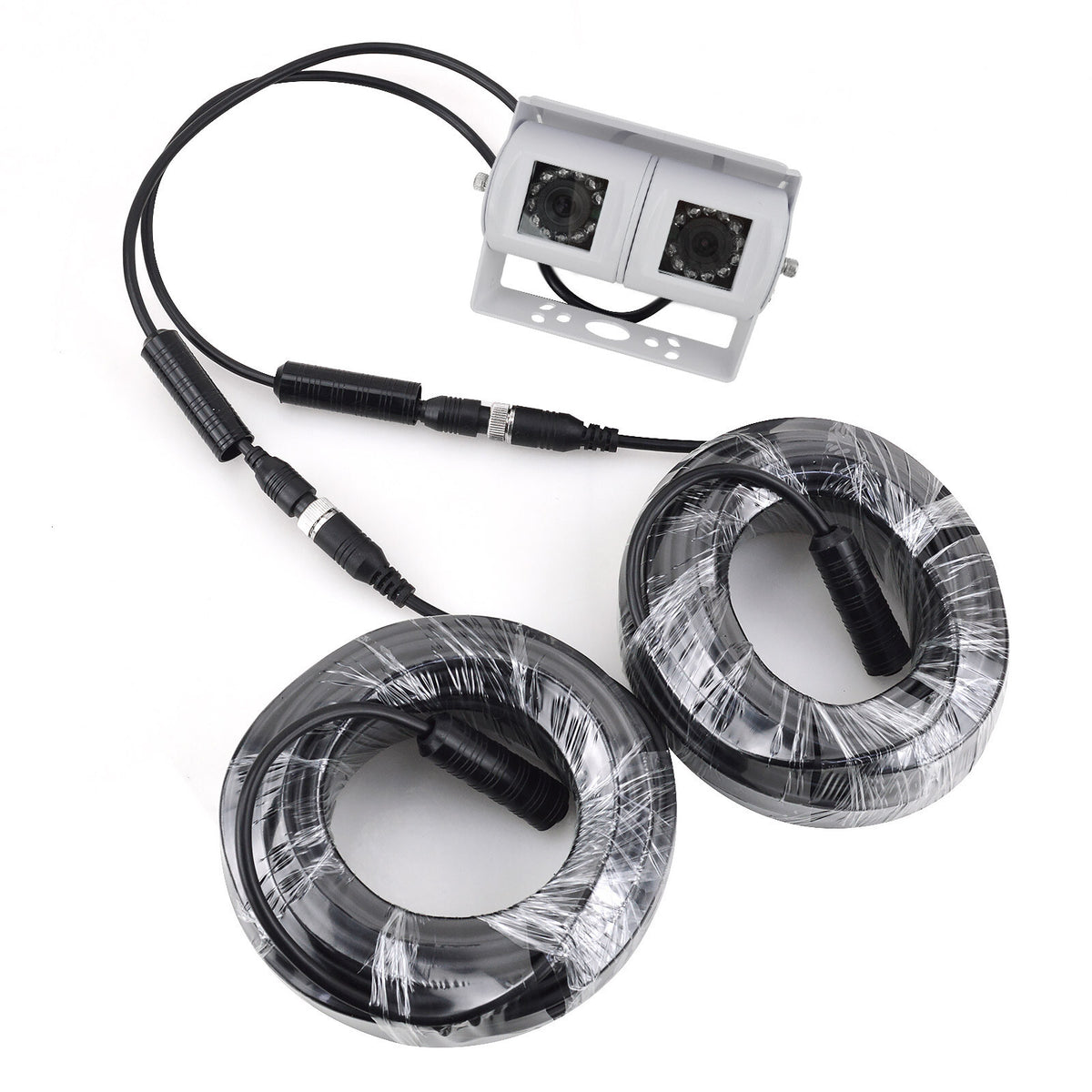

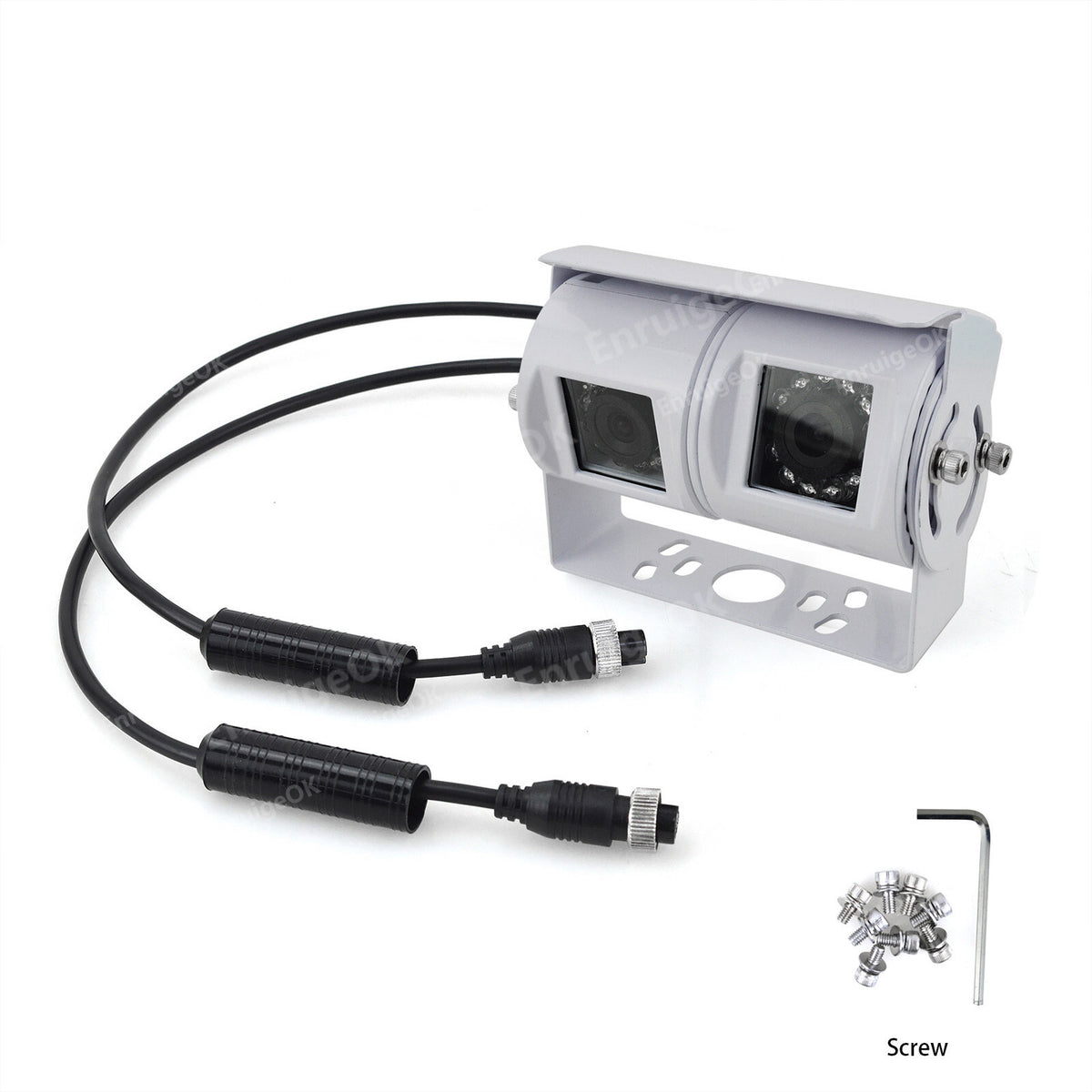

1 X Dual joint head reversing Camera

1 X 9'' TFT-LCD mirror monitor

1 X Remote controller(battery not included)

1 X Monitor power cable

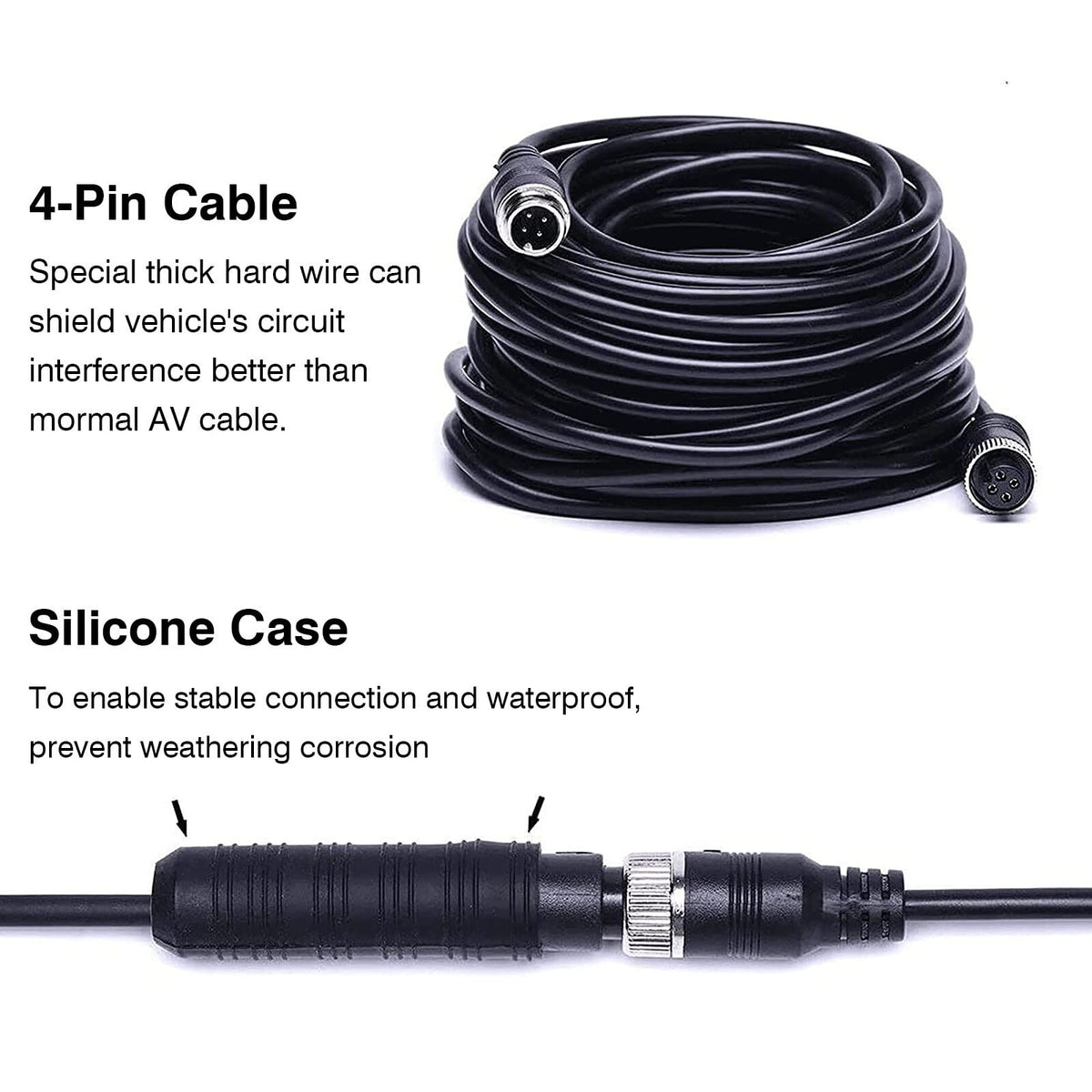

2 X 10m/33ft. video extension cable

1 x Suction Cup bracket

1 x Desktop bracket

1 X Manual

1 X Screw kit

Camera Specifications

Image sensor: 1/3" CMOS

Lens: 2.8mm&3.6mm

Effective pixel: 1920(H)x1080(V)

Resolution: AHD 1080P

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°& 90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 12V

Operating temperature: -20℃ to +70℃

Minitor Specifications:

Aspect Ratio: 16: 9/4: 3

Resolution: 1024*RGB.*600

System PAL/NTSC Auto switching

Contrast: 500: 1

Brightness: 500cd/m2

Video input: 2CH AHD signal Video Input, supports 2-split image

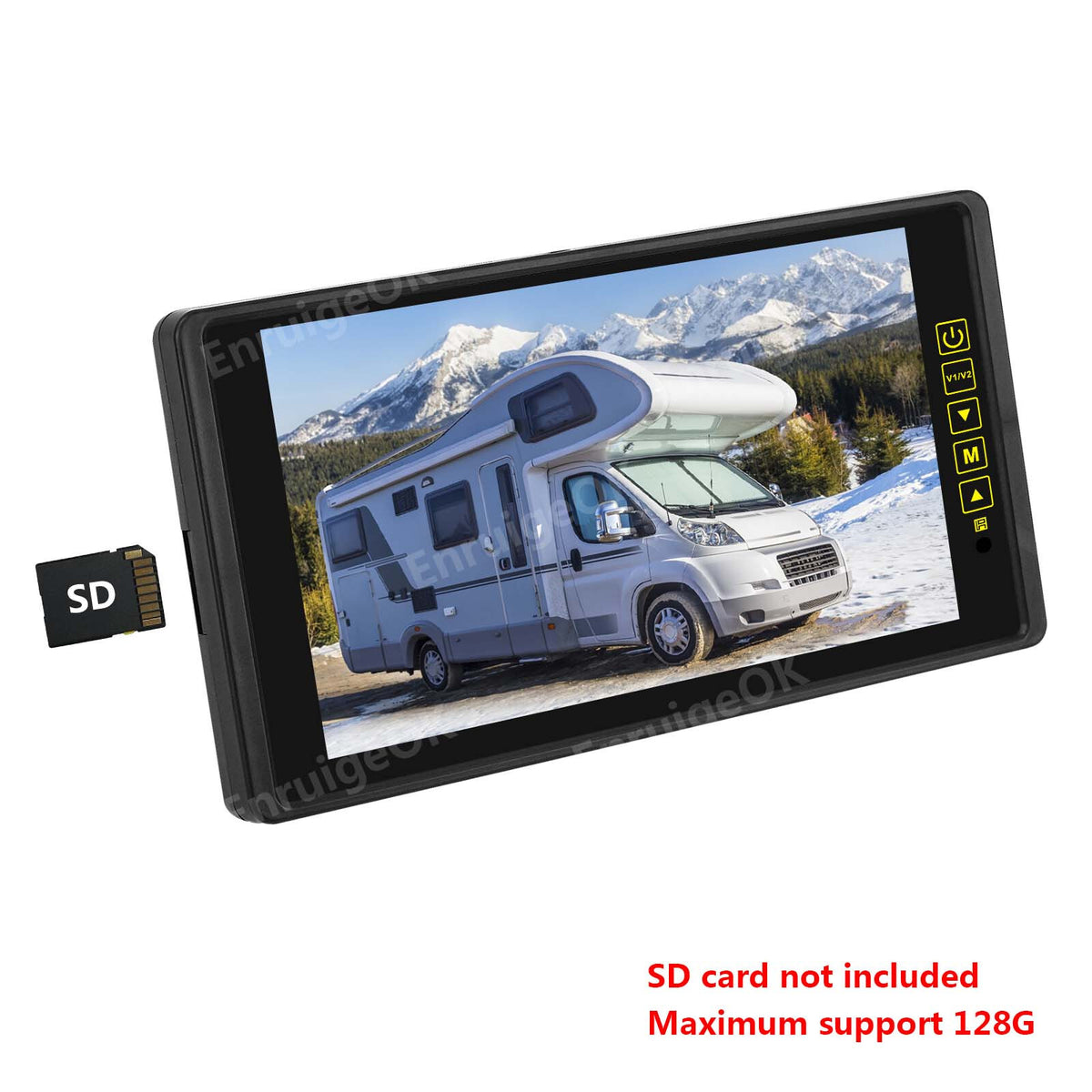

Storage: SD card, maximum 128G(SD card not included)

Working Temperature: -20℃- +60℃

Working Humidity: 85%RH

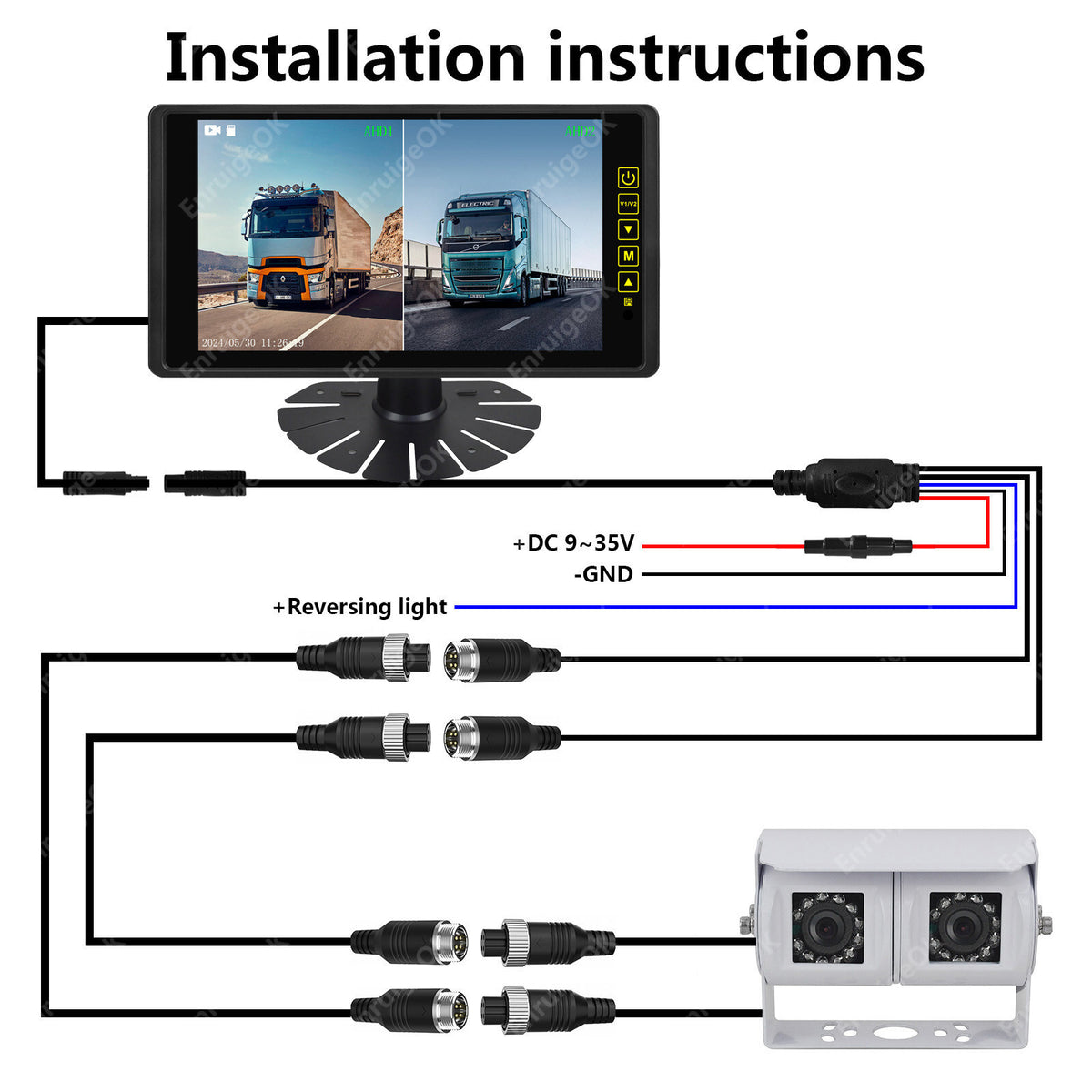

Power Supply: DC 9V-35V

Power Consumption: <9W

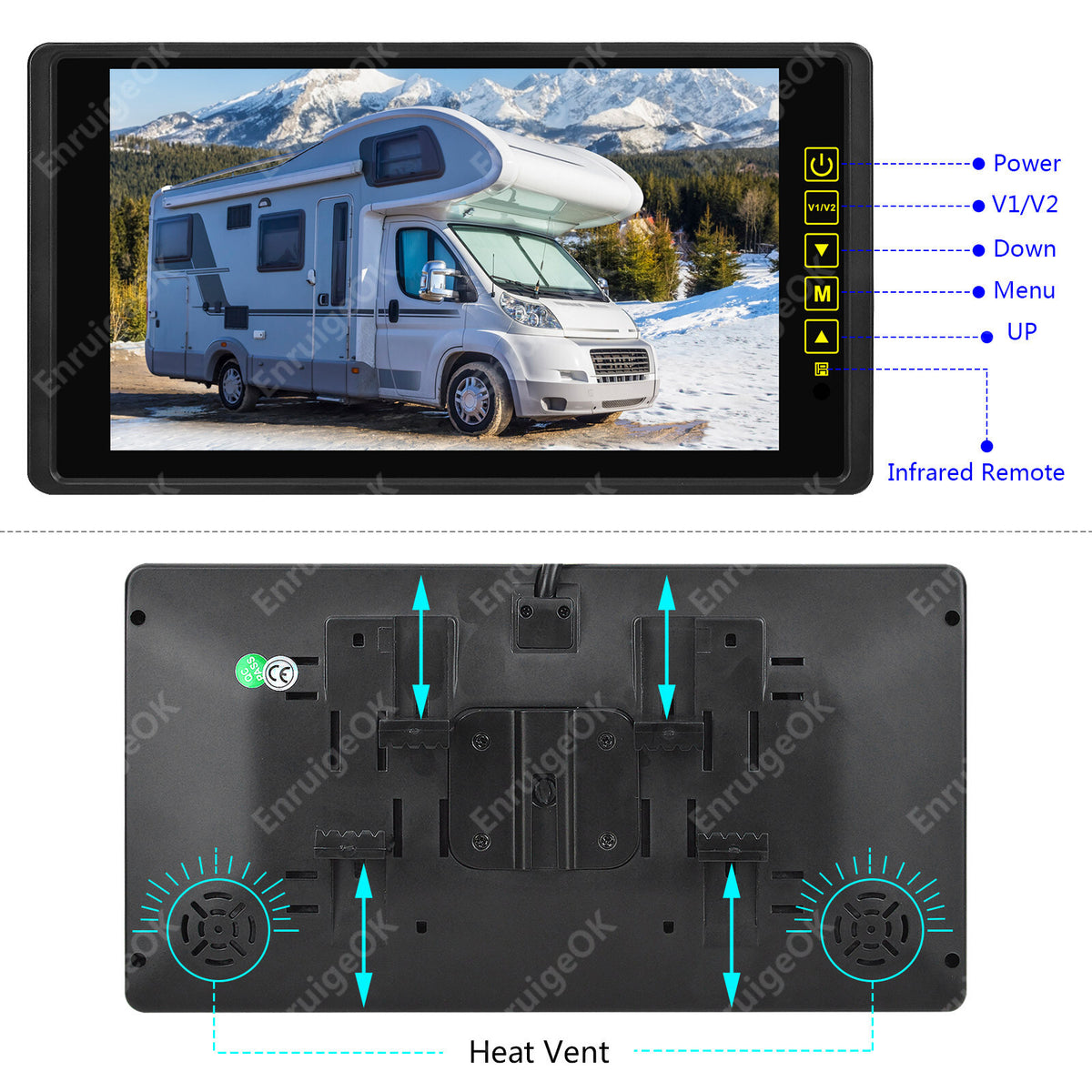

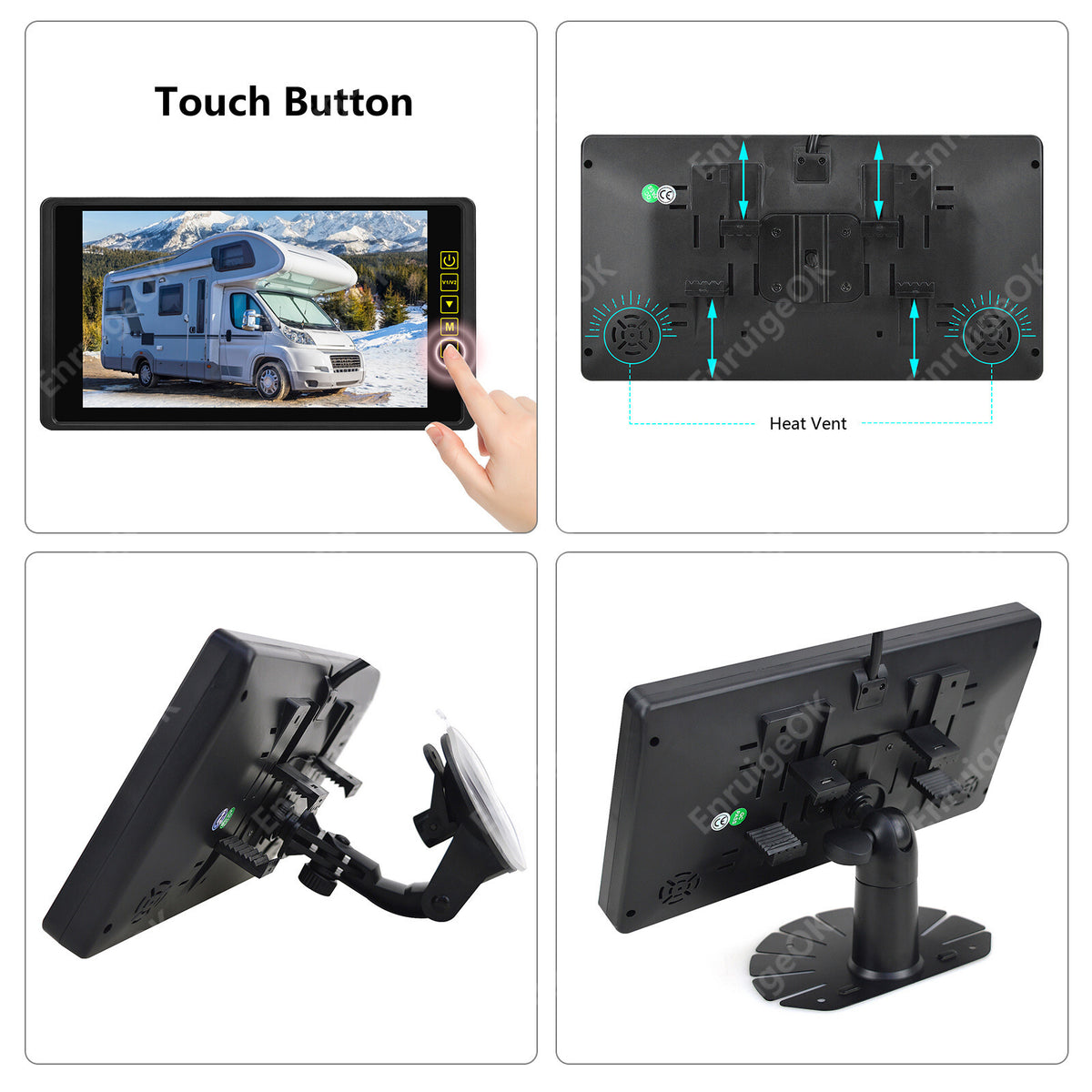

Operation mode: Touch key button operation and remote control

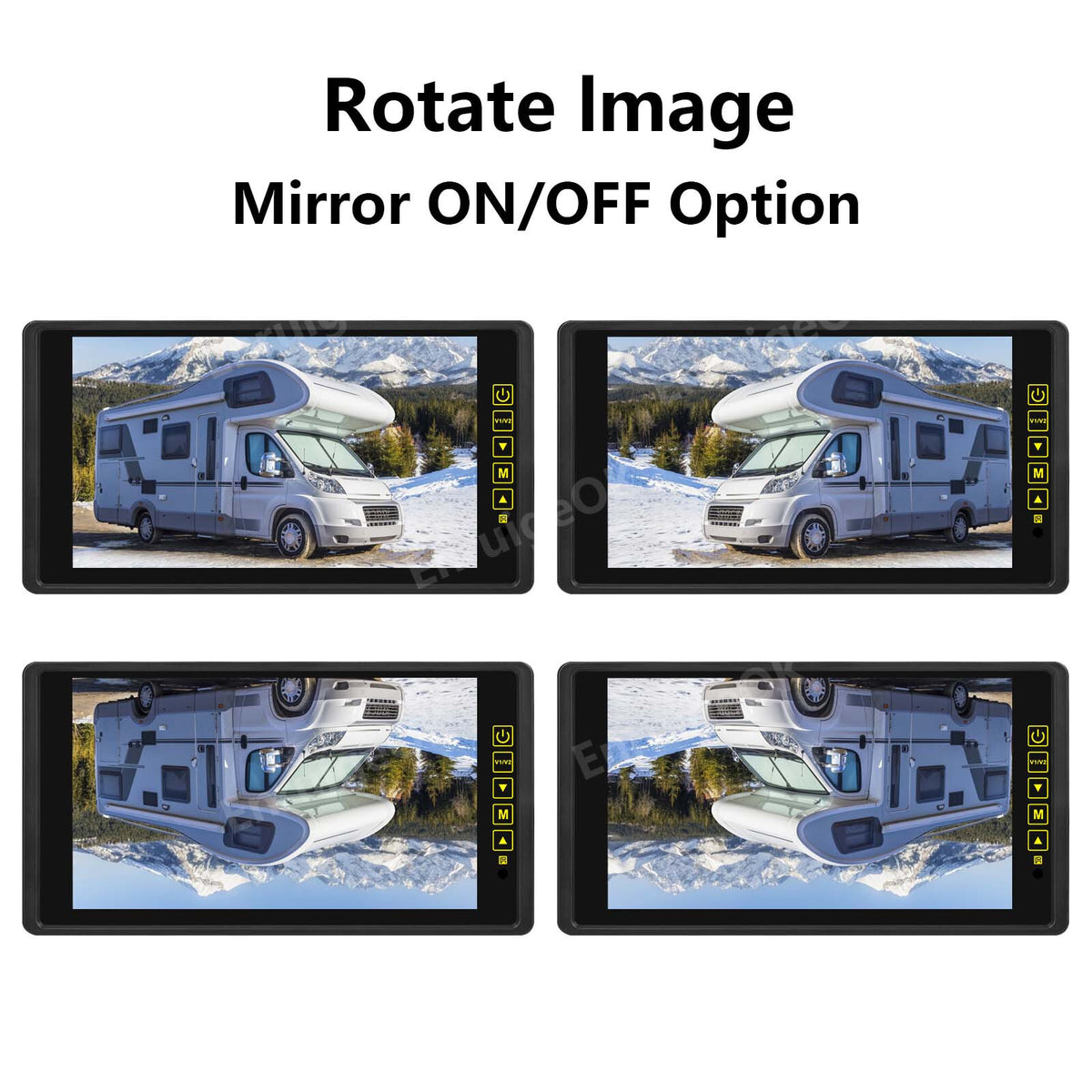

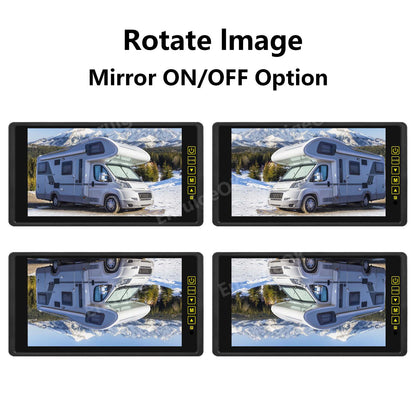

Image Display: Multiple image display switchable

Language: English/Simplified Chinese/Traditional Chinese/French/Russian/Germany
