7" Monitor &Universal Brake Light Rear View Backup Camera for Cargo Van RV Bus

For use with(for reference):

Universal for RV Cargo Van Bus

Description

It includes a backup camera & monitor. When you are backing up, the car monitor will display the rear camera images, helping you park safely.

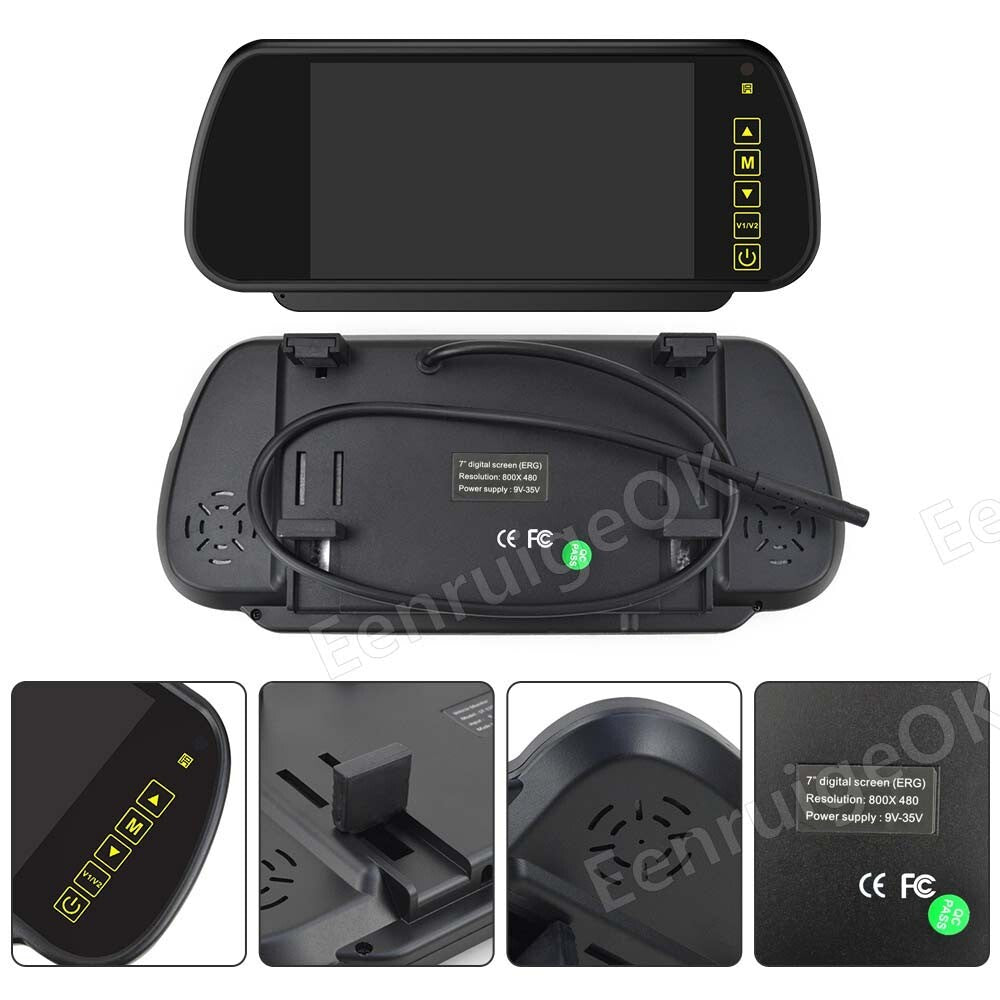

7" Color TFT-LCD Monitor with 2 video input, 800*480(RGB) resolution works perfectly with brake light rear view camera.

This reversing camera with 120-degree viewing angle shows rich details about the environment behind the car for you.

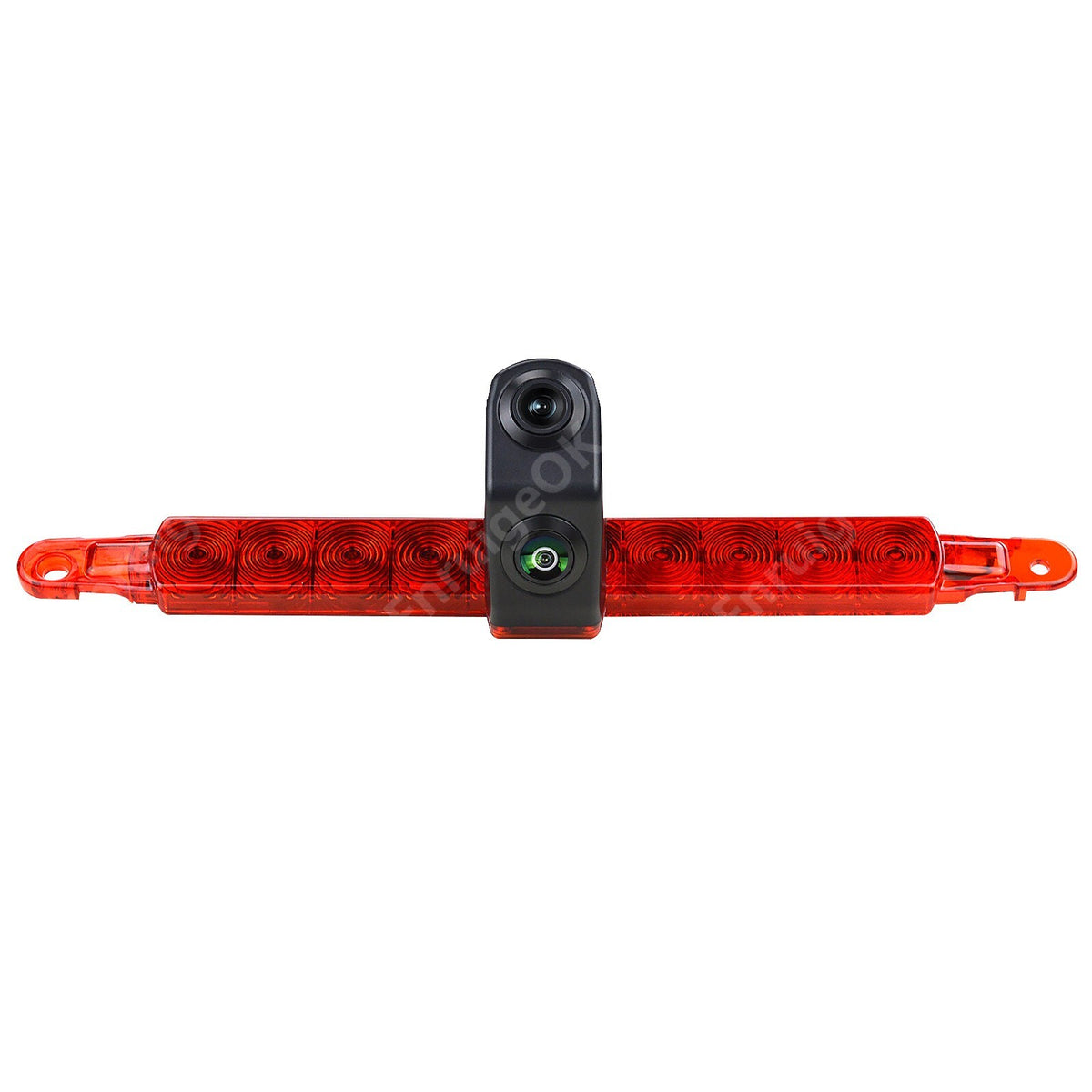

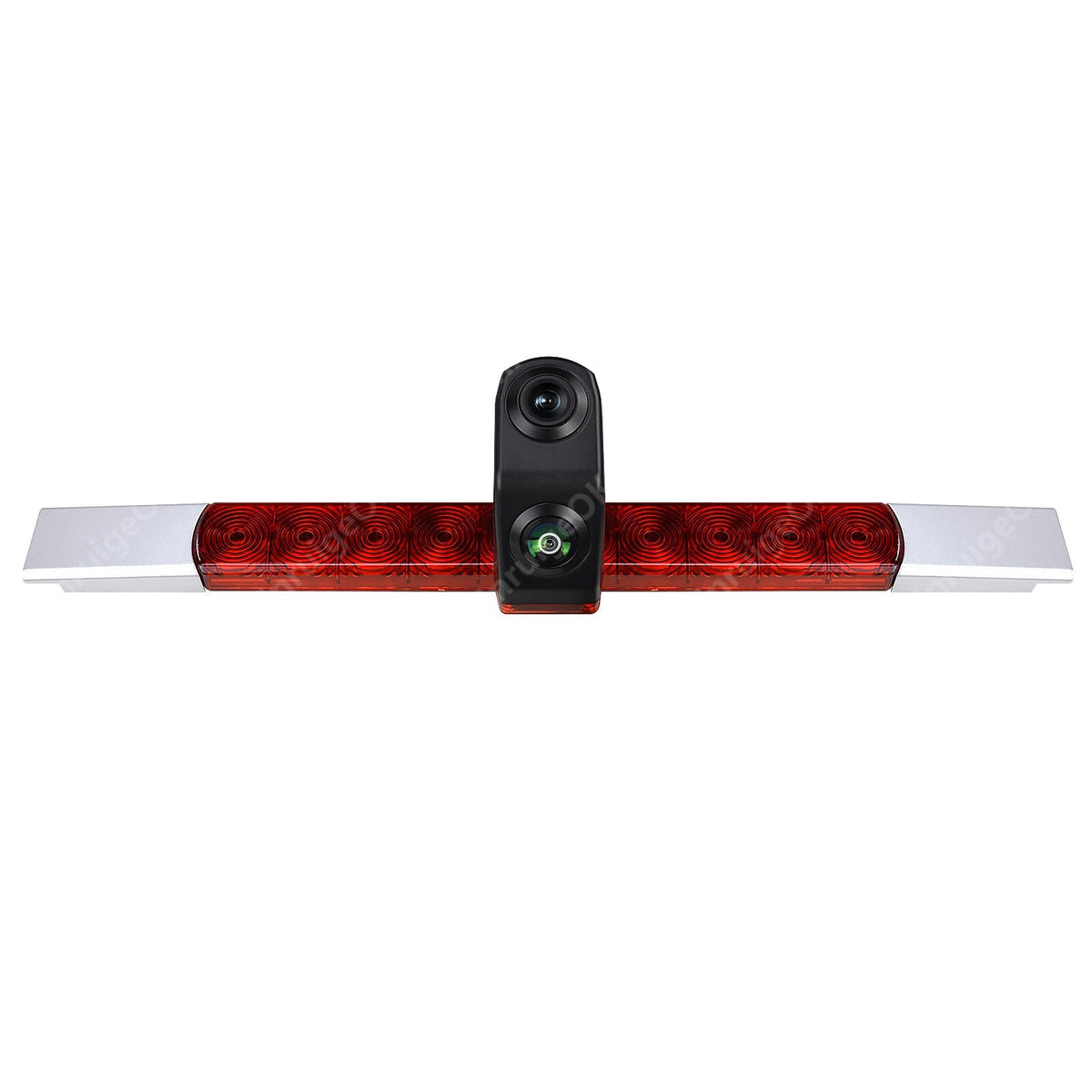

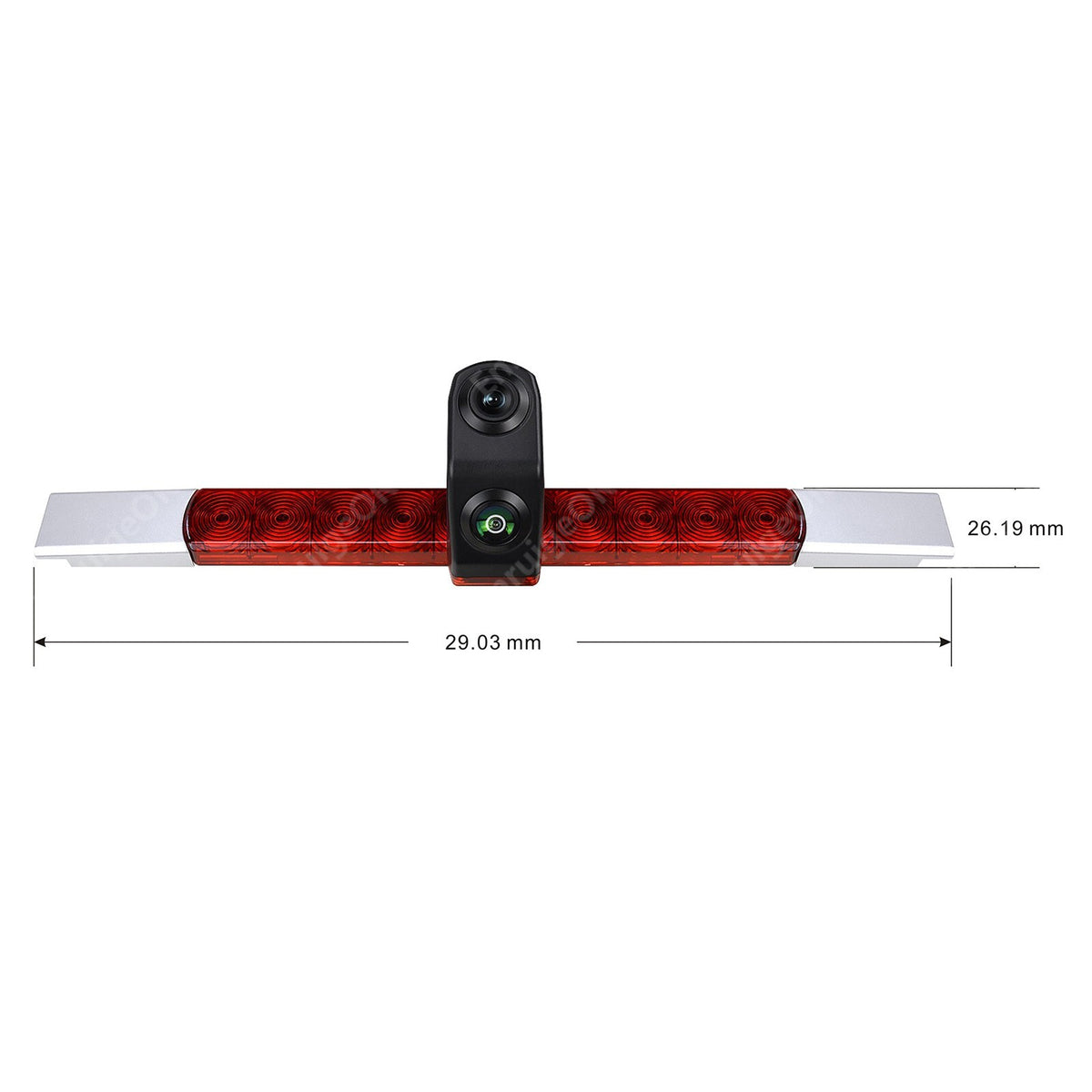

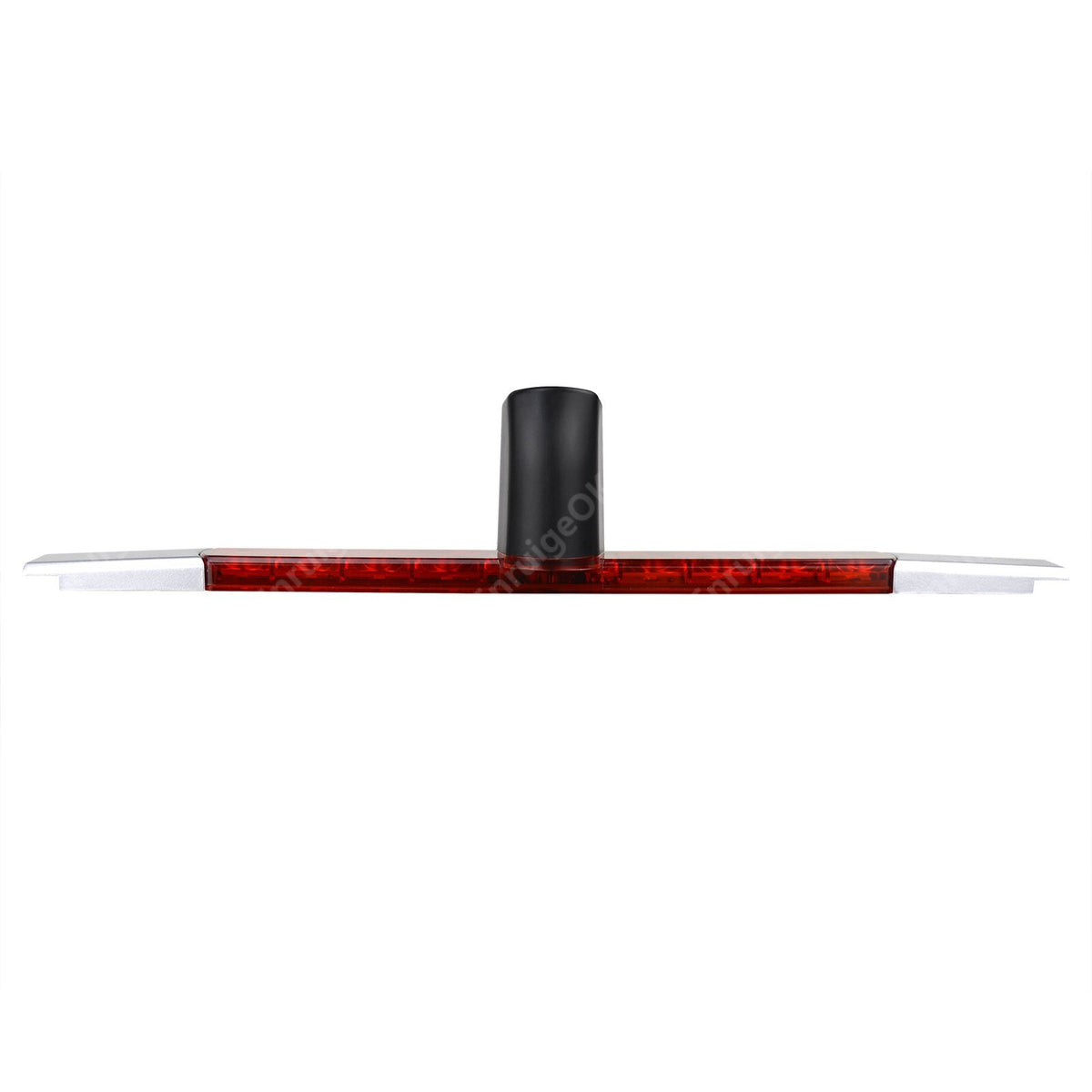

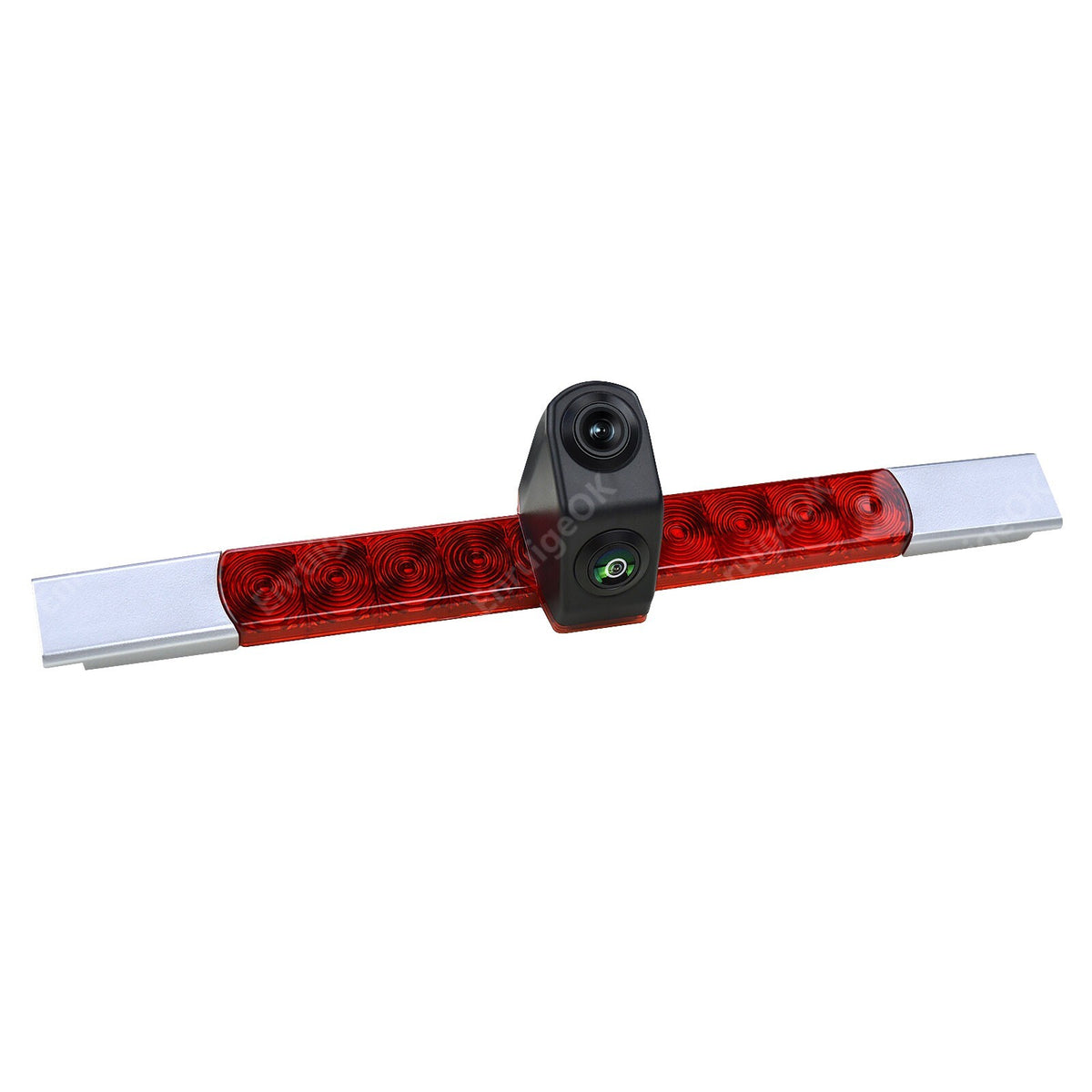

Simple replacement with the factory-set LED auxiliary stop lamp Hella 2DA 343 106-201.

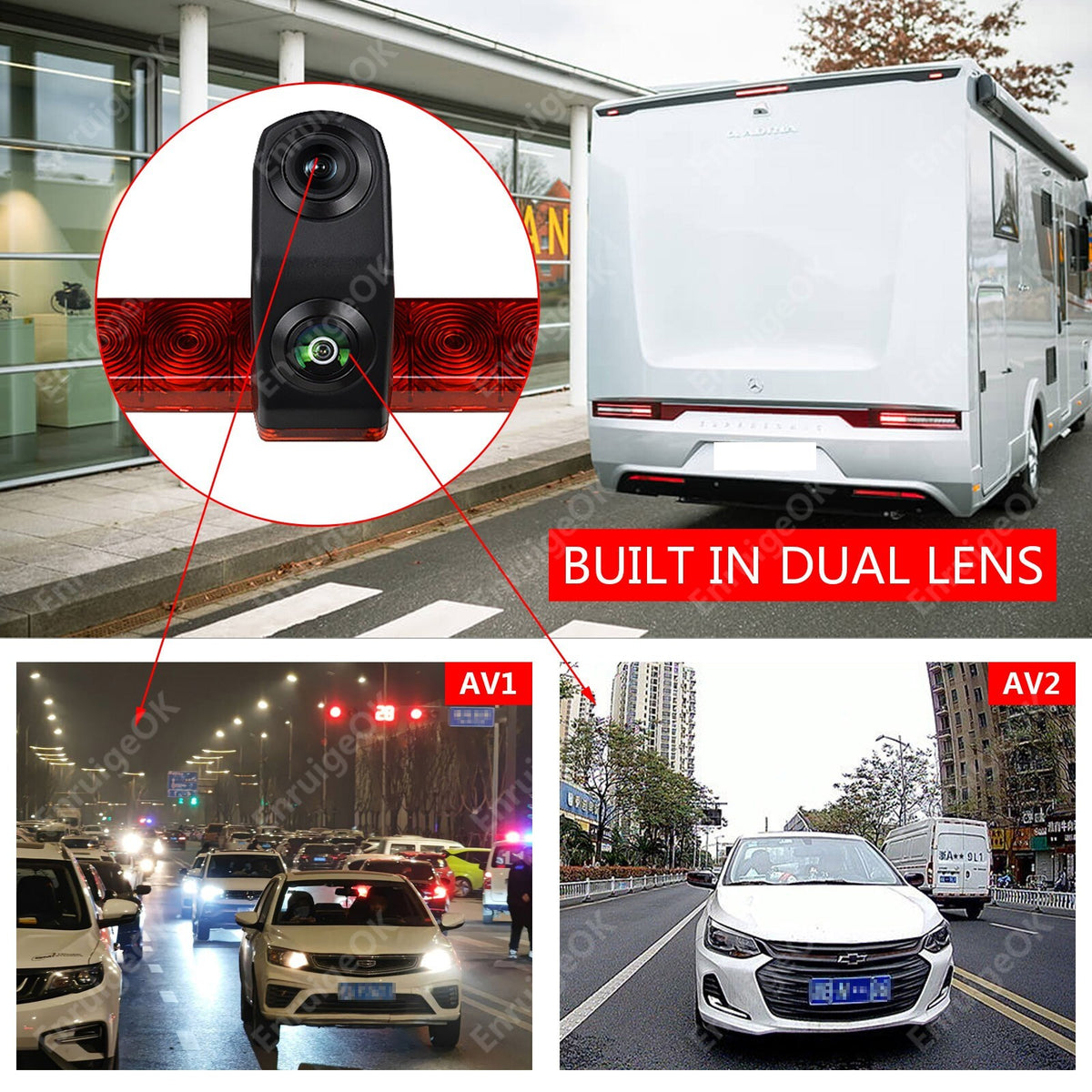

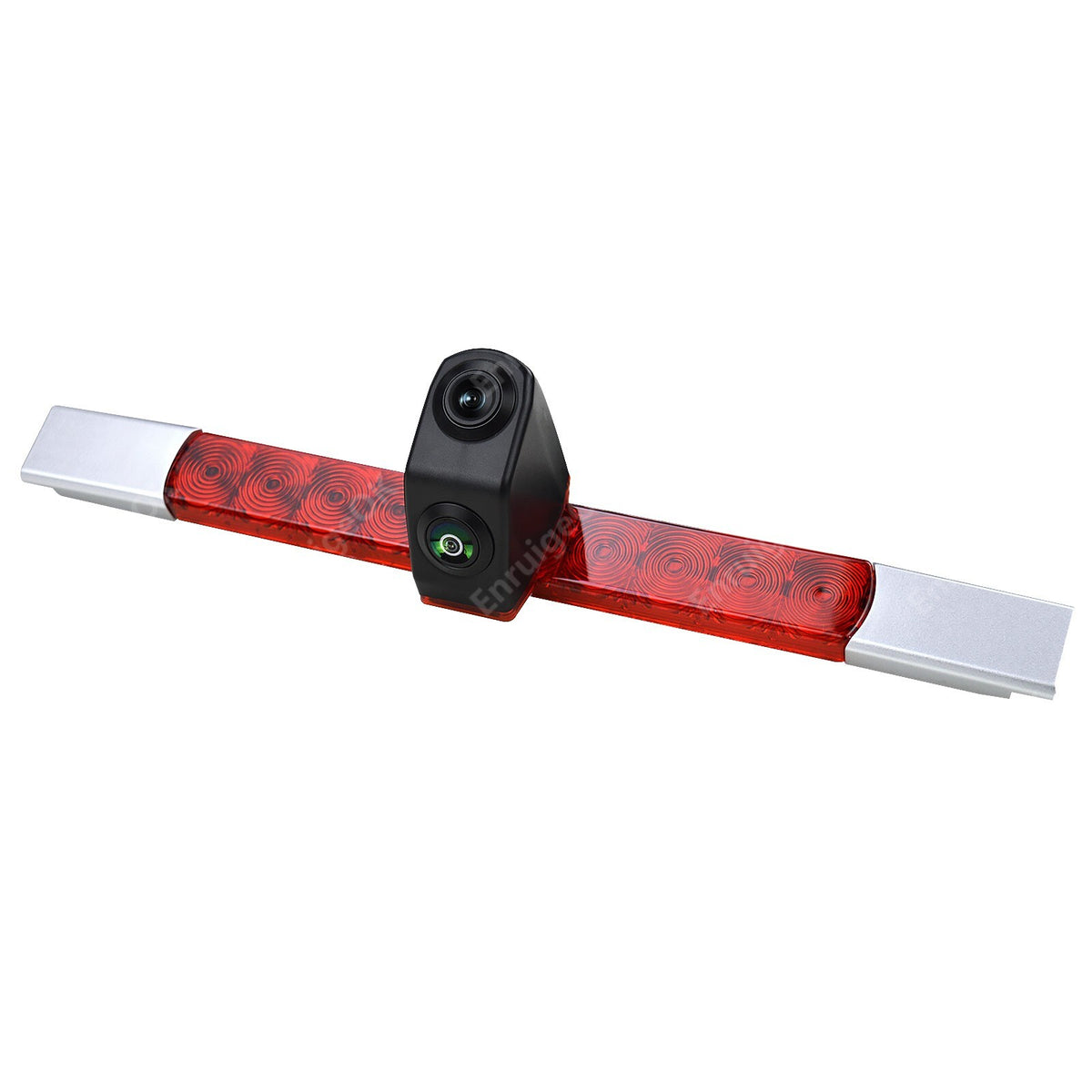

Dual lens backup camera. Its unique design allows to have one mounting with 2 cameras with different viewpoints. One reversing camera to view traffic, another to see the trailer hitch and rear bumper.

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

Camera Specifications

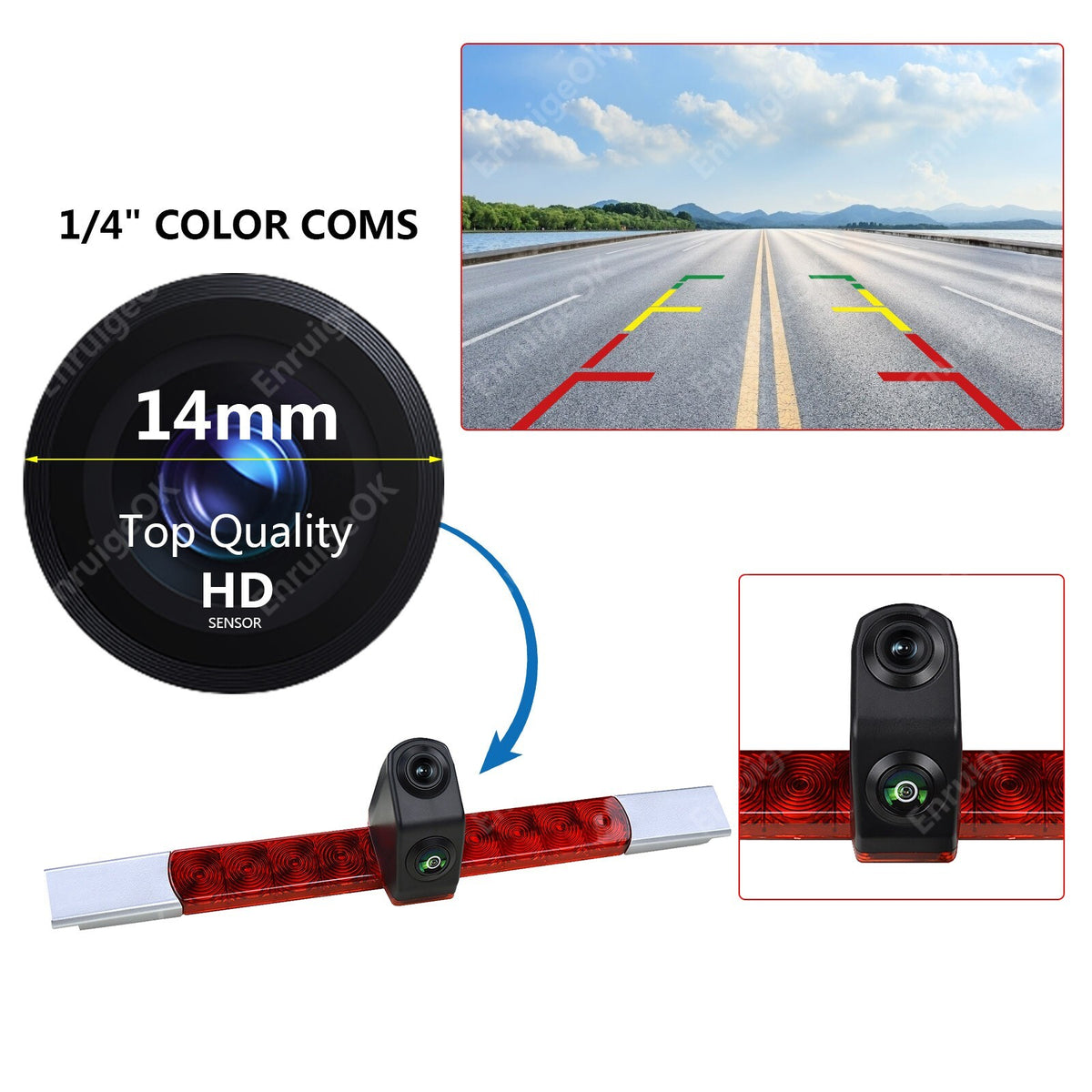

Image sensor: 1/4 "CMOS

TV system: PAL/NTSC option

Waterproof rating: IP68

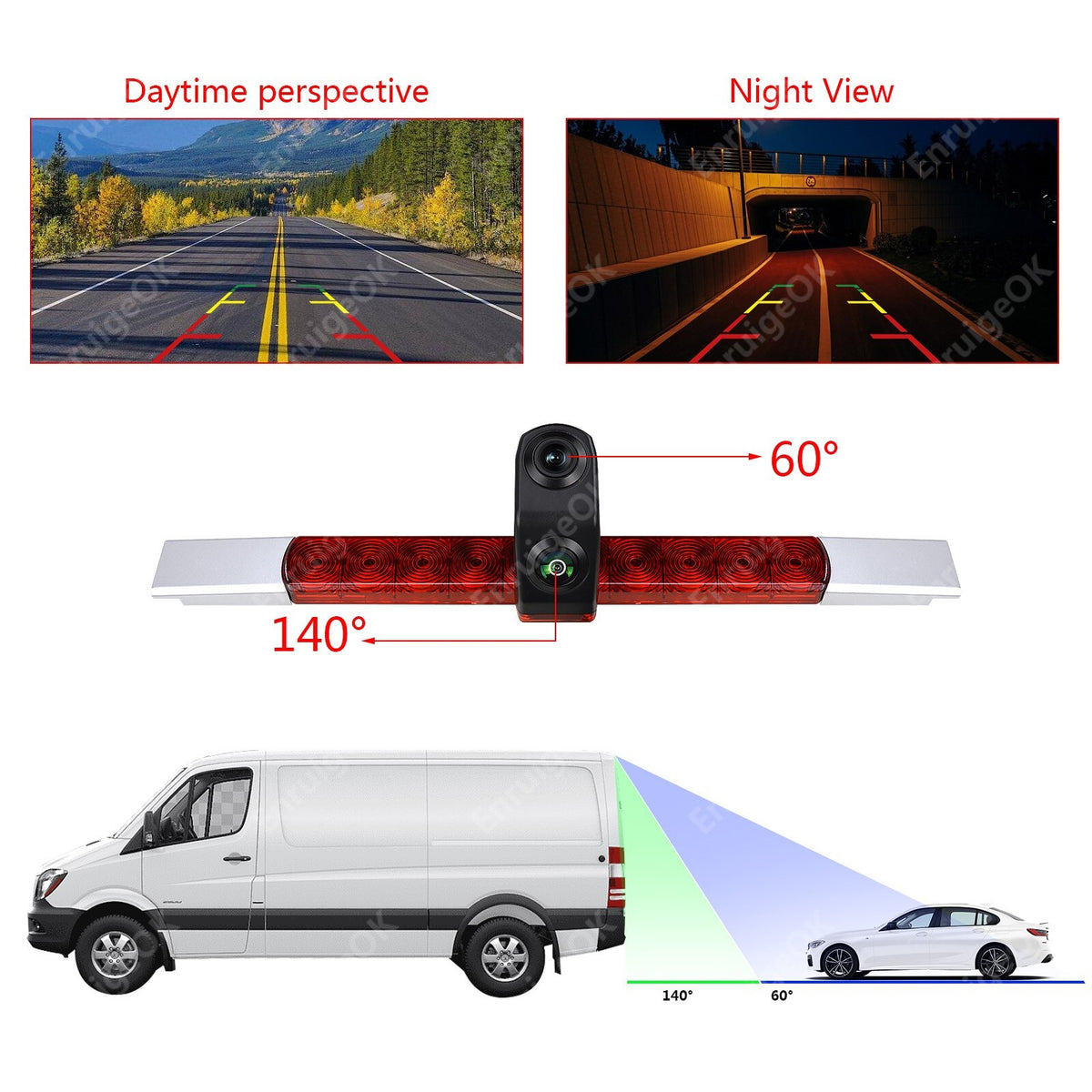

Viewing angle: 140°&60°

Effective pixel: 733(H)x493(V)

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

Resolution: 700TV Lines

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1-0.5Lux/F=1.2(0 Lux with LED on)

Power supply: DC12V

Operating temperature: -20℃ to +70℃

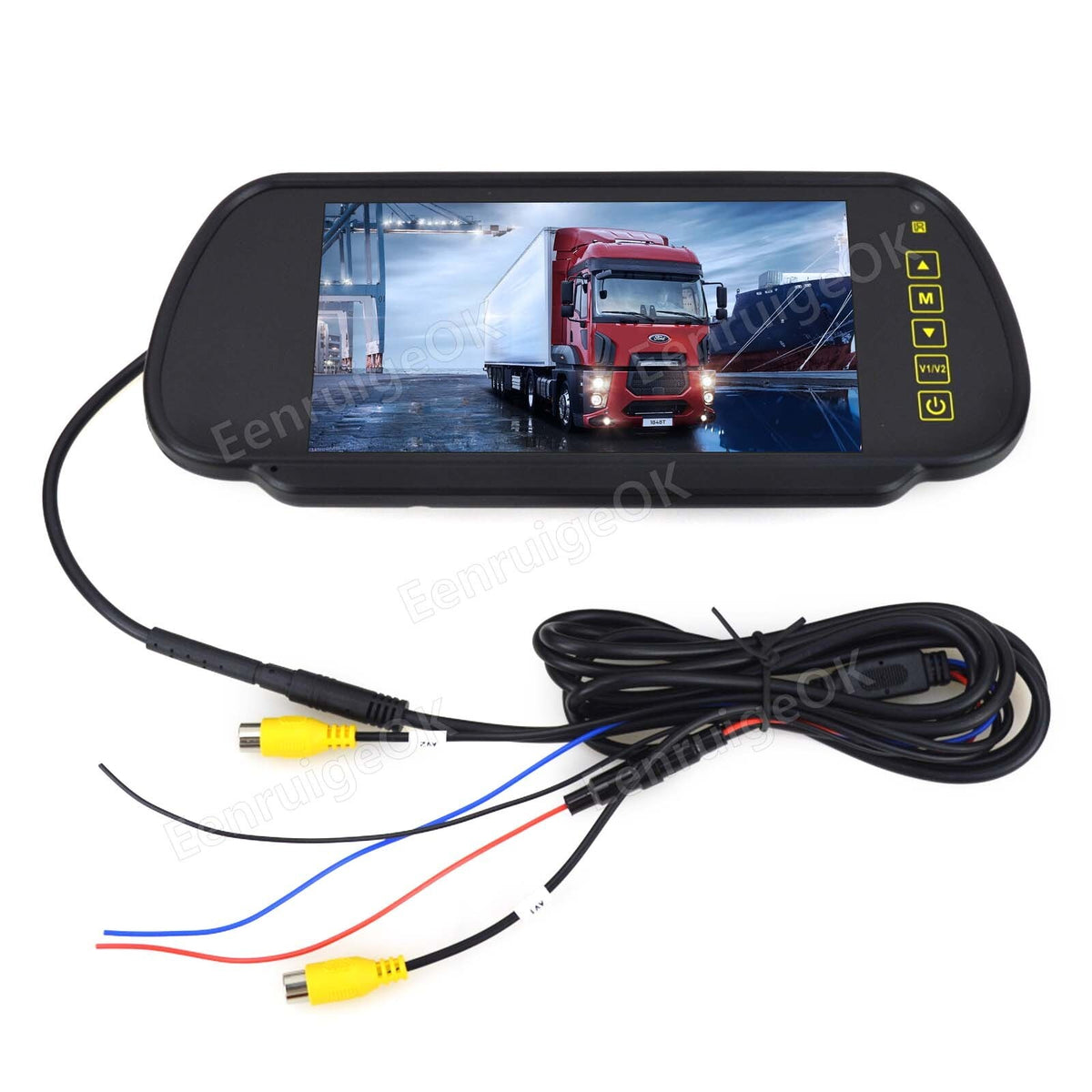

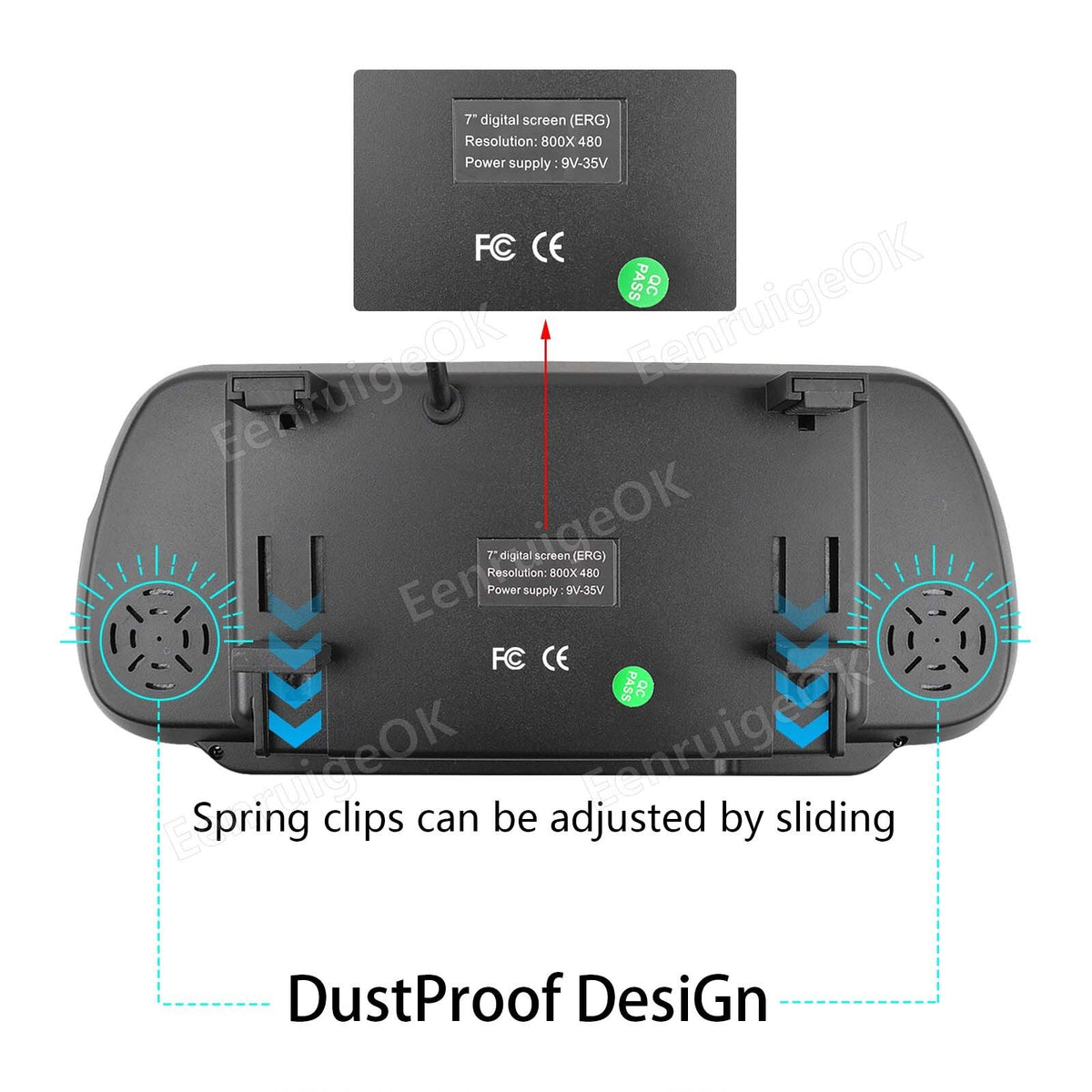

Monitor Specifications

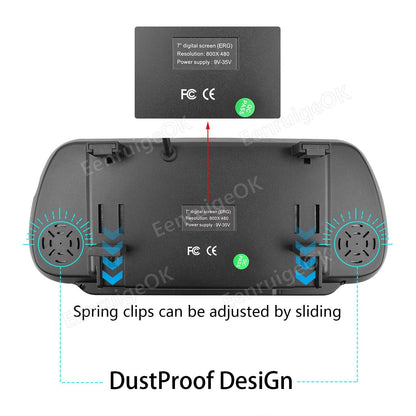

Material: ABS+glass

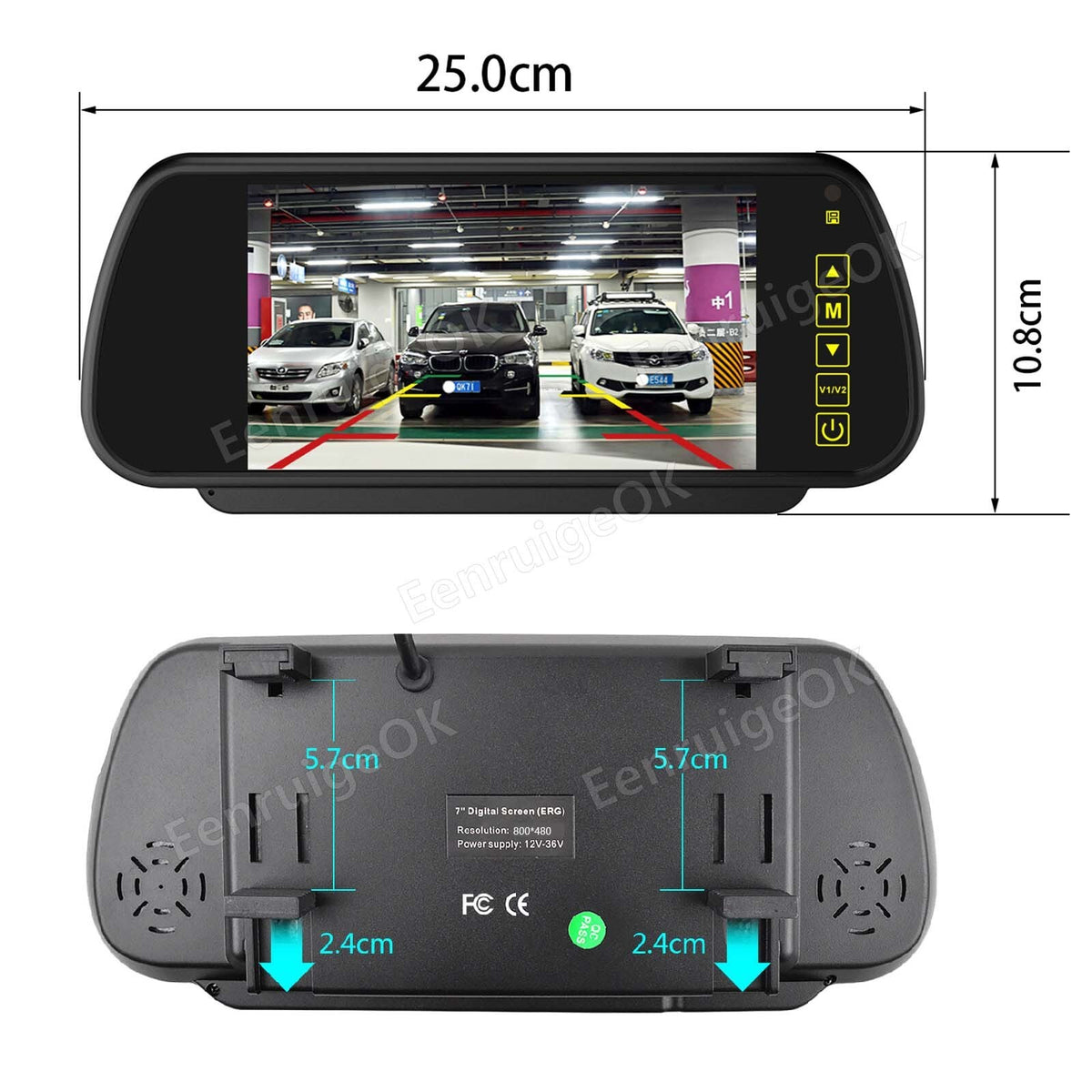

Screen: 7 inch

Resolution: 800*480(RGB)

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

Video Input: 2AV video input

Control mode: Touch button

Power Supply: DC 9V/35V

Power consumption: 6W

Rear watching: Image can be changed left and right

Operate mode: The key operation and remote control

Dual video inputs: One For DVD/VCD/GPS/TV, the other for the rearview camera and parking sensor, automatically switch when reversing

Applicable models: Universal- Fits in any car

Remote control: a CR2025 button battery (not included)

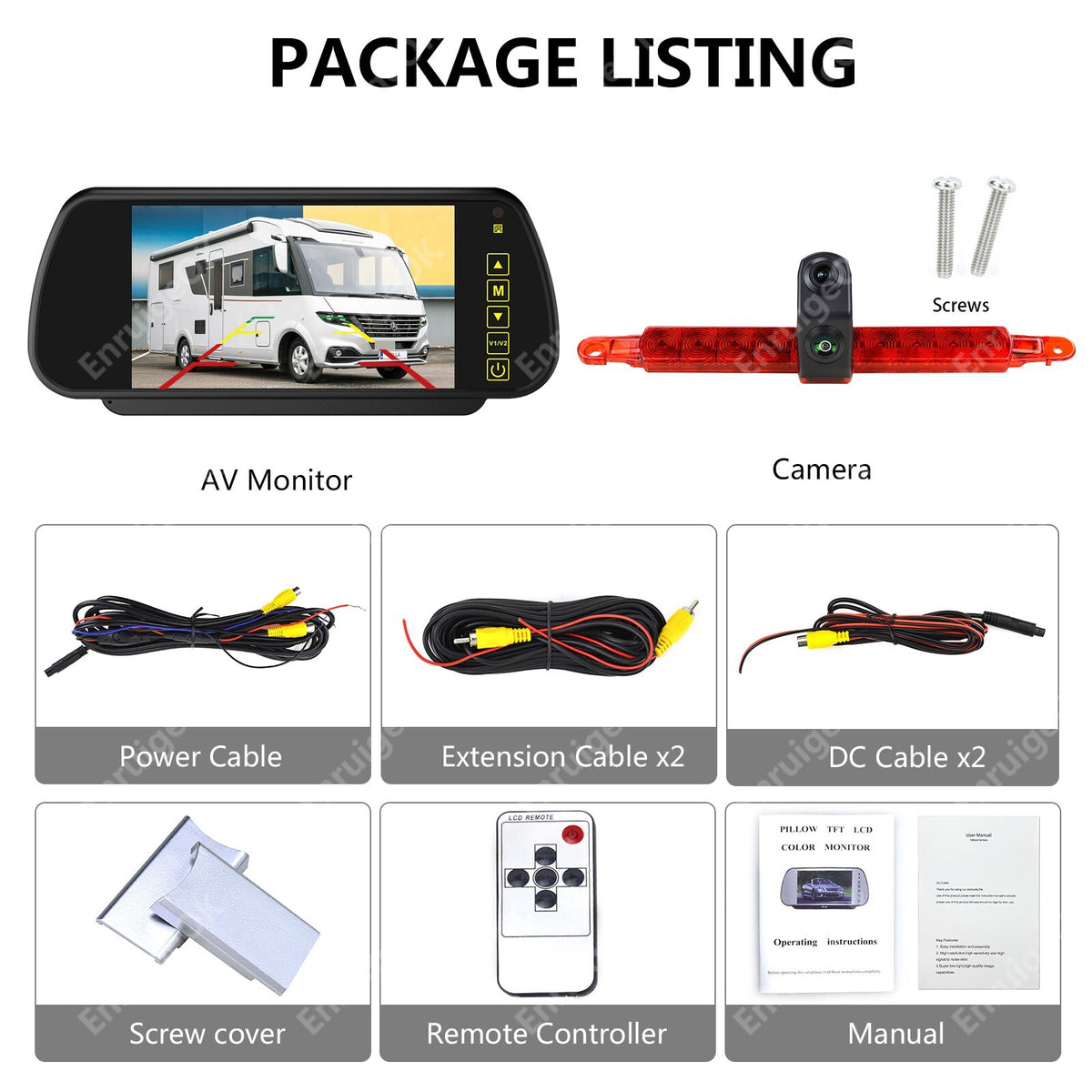

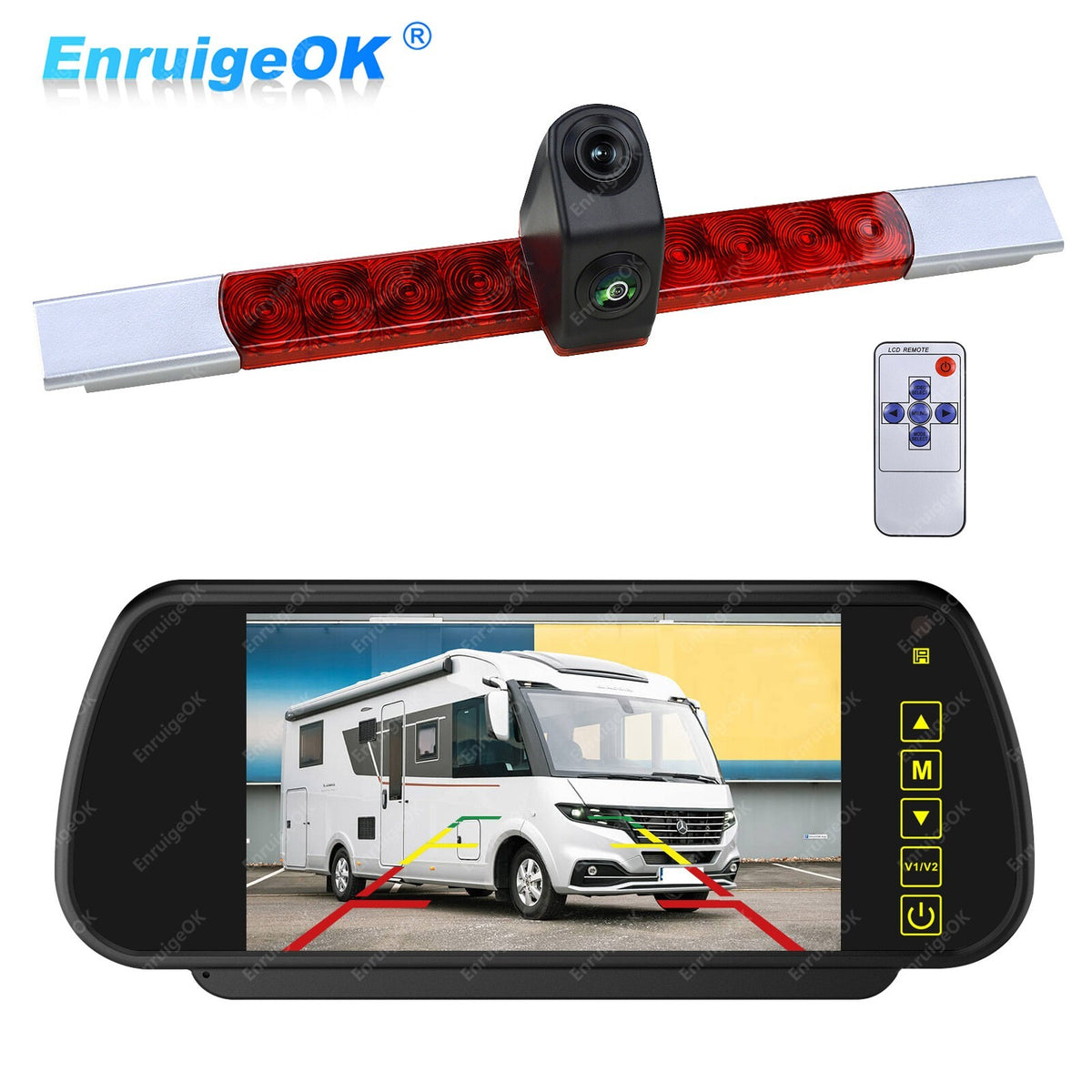

Package contents

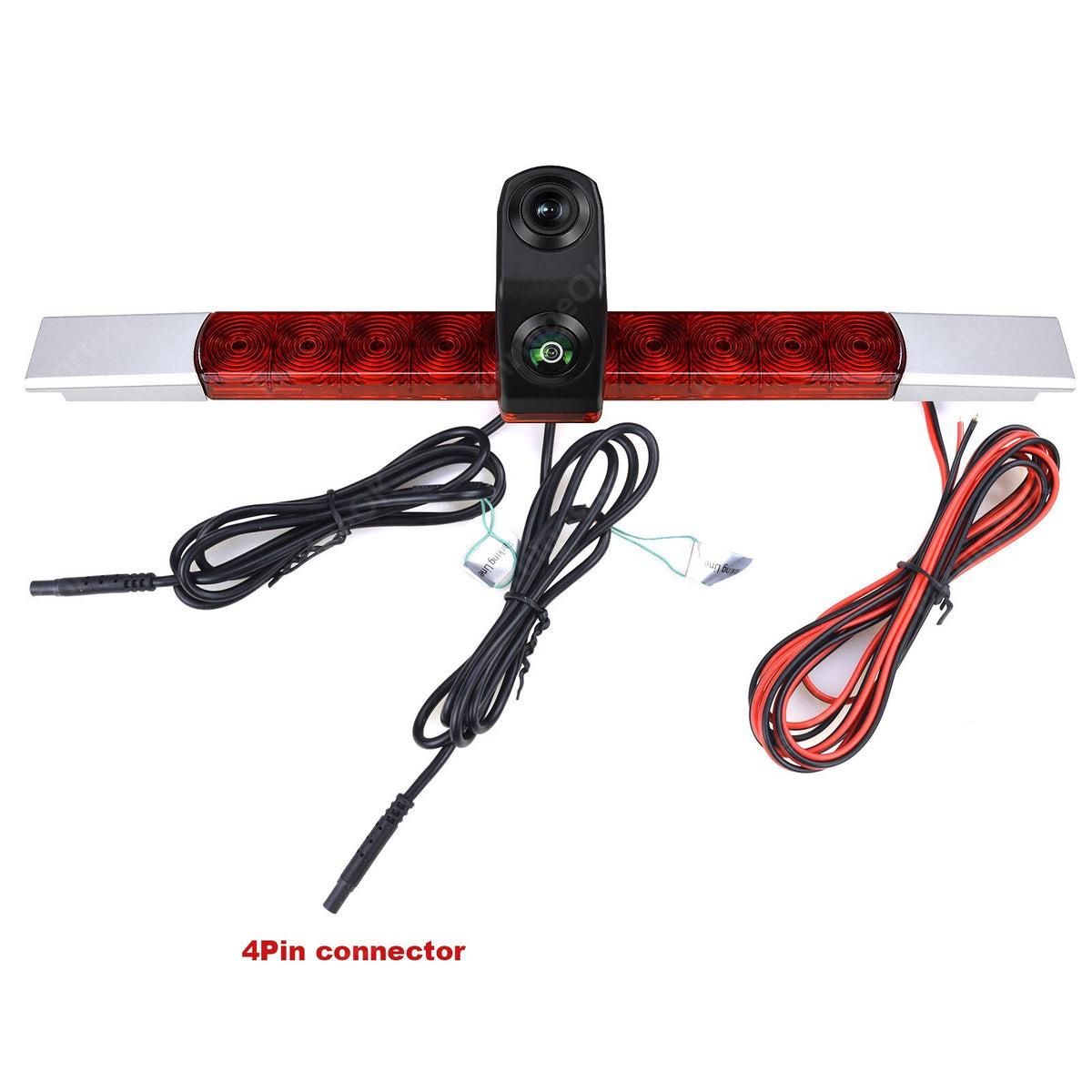

1 X Brake light camera

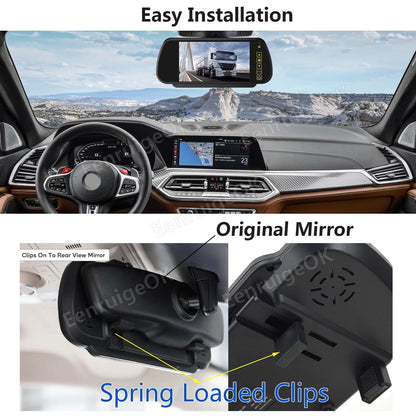

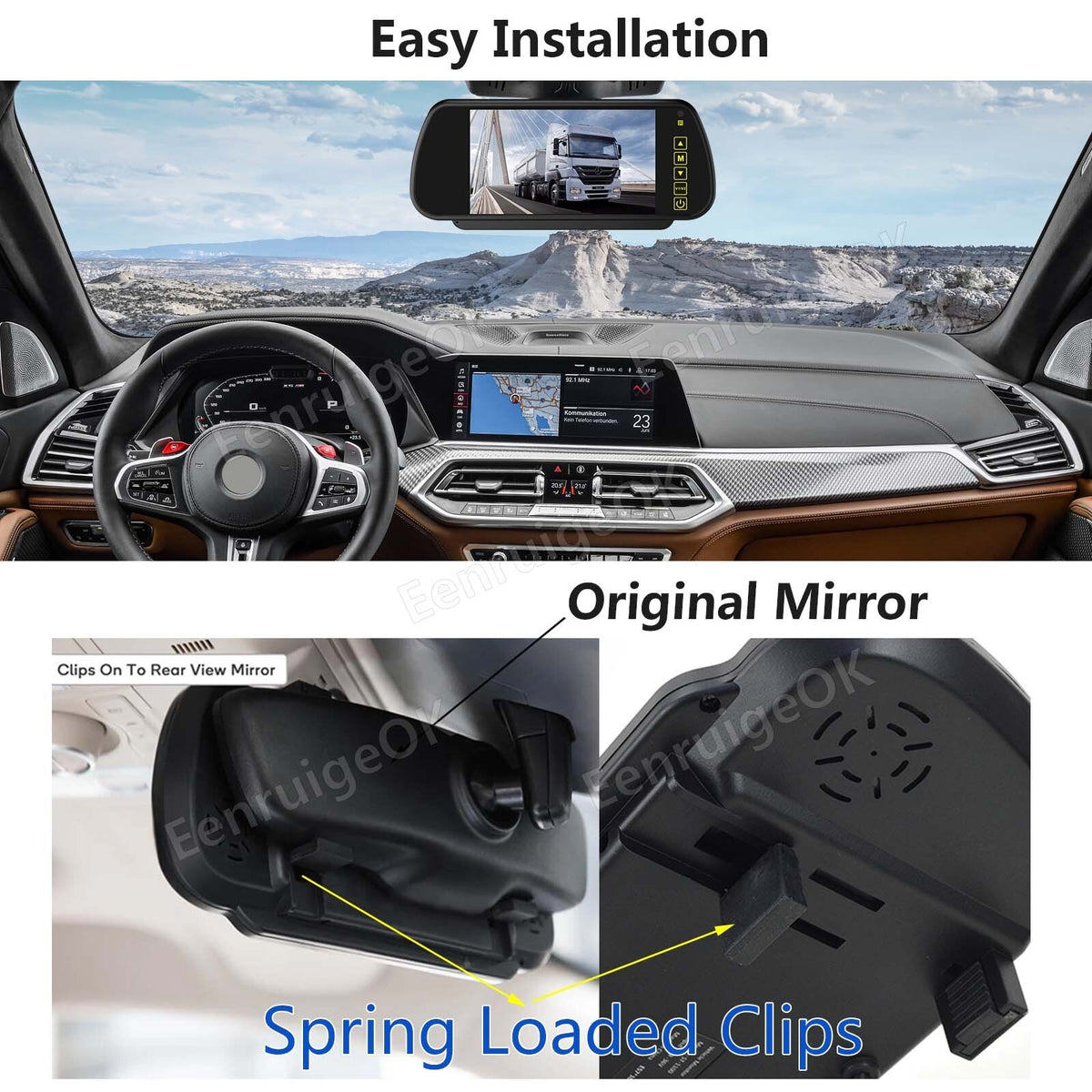

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X Monitor power cable

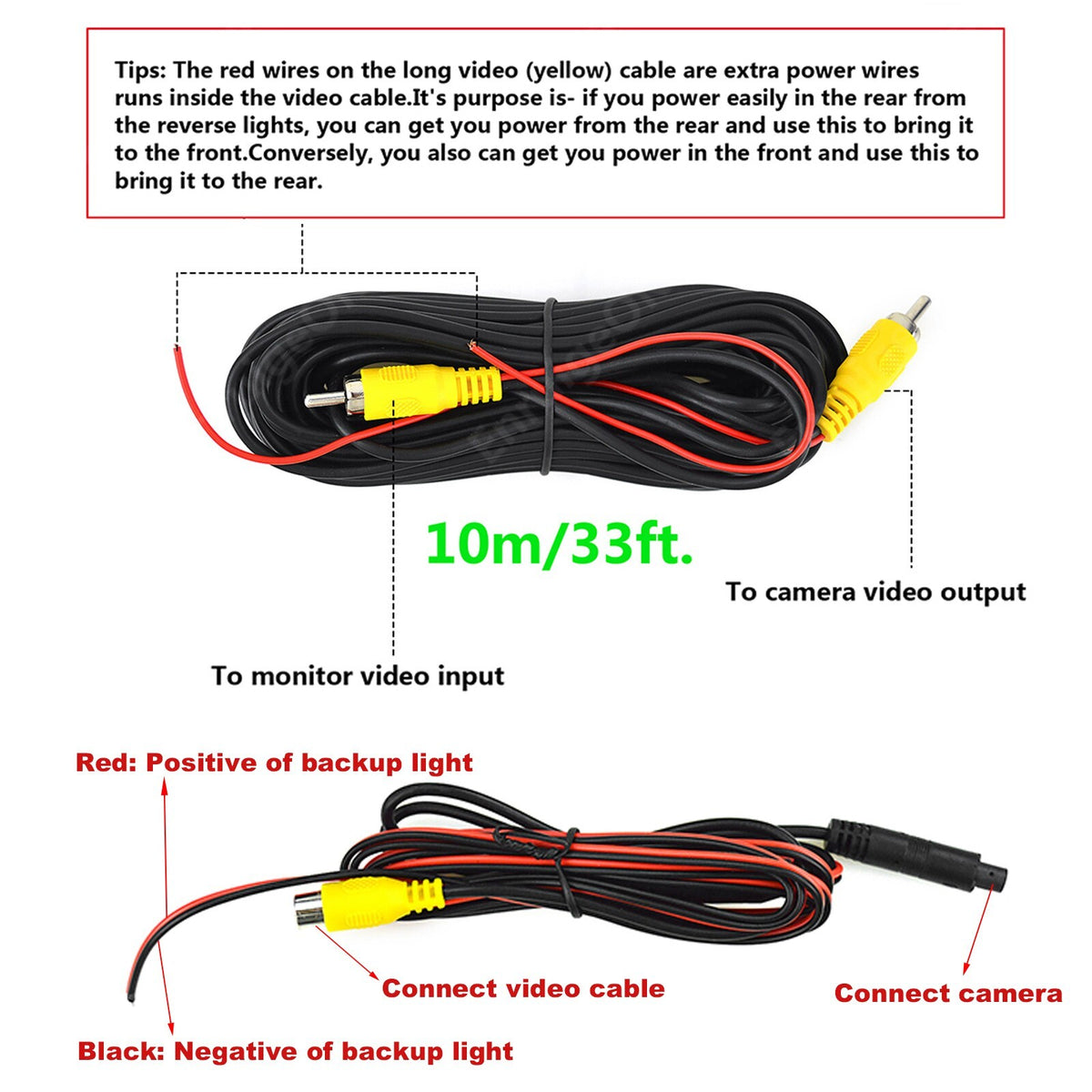

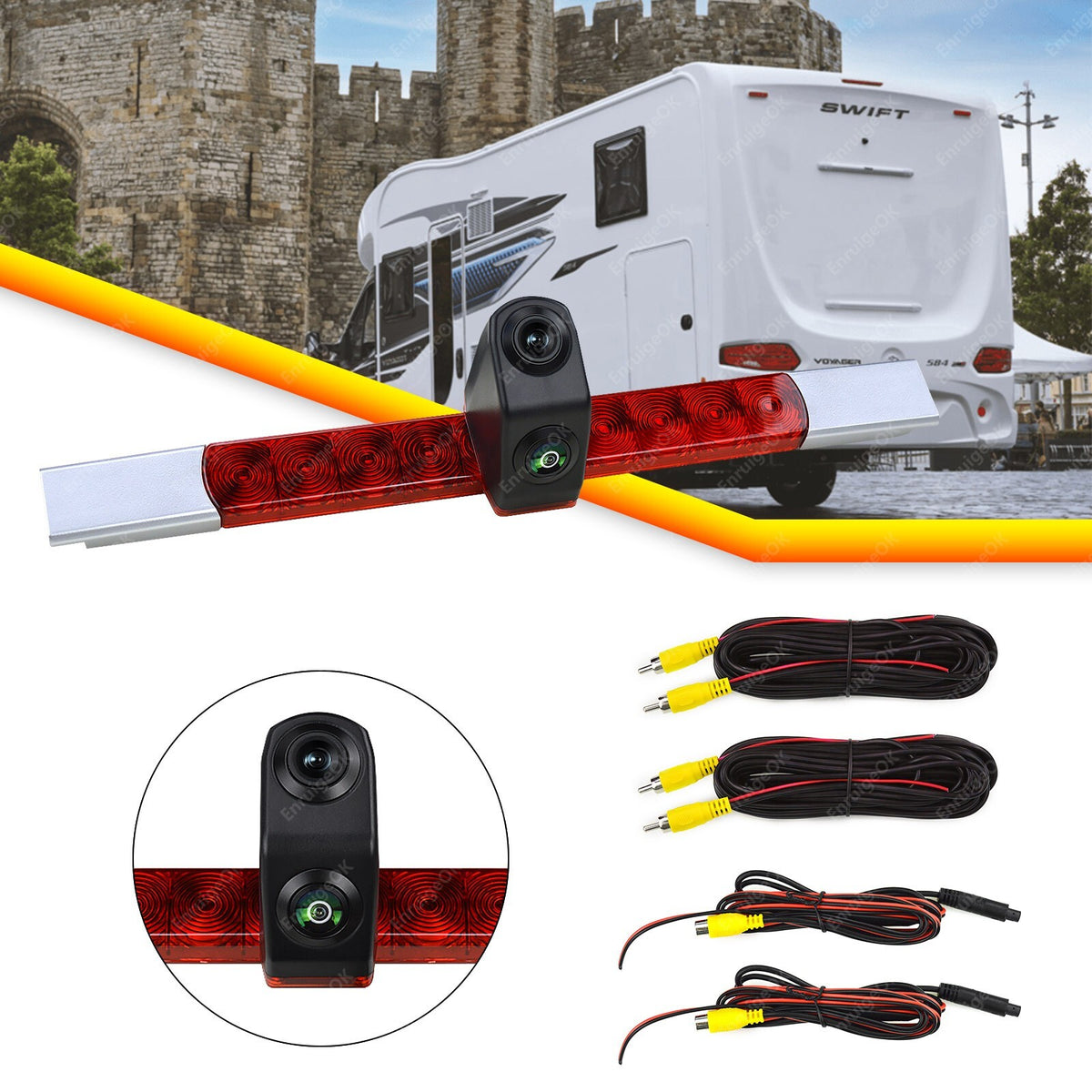

2 X 10m/33ft. extension cable

2 X 1.5m DC Power cable

1 X Manual

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
