7" Monitor Reversing Backup HD Camera Parking Rear View System For RV Truck Bus

EnruigeOK store Upgrade Dual Reverse Camera Monitor Kit, 7-inch LCD 800*(RGB)*480, IP68 Waterproof Rearview Reversing Rear View Camera Reversing Monitor for Truck/Semi-Trailer/Box Truck/RV

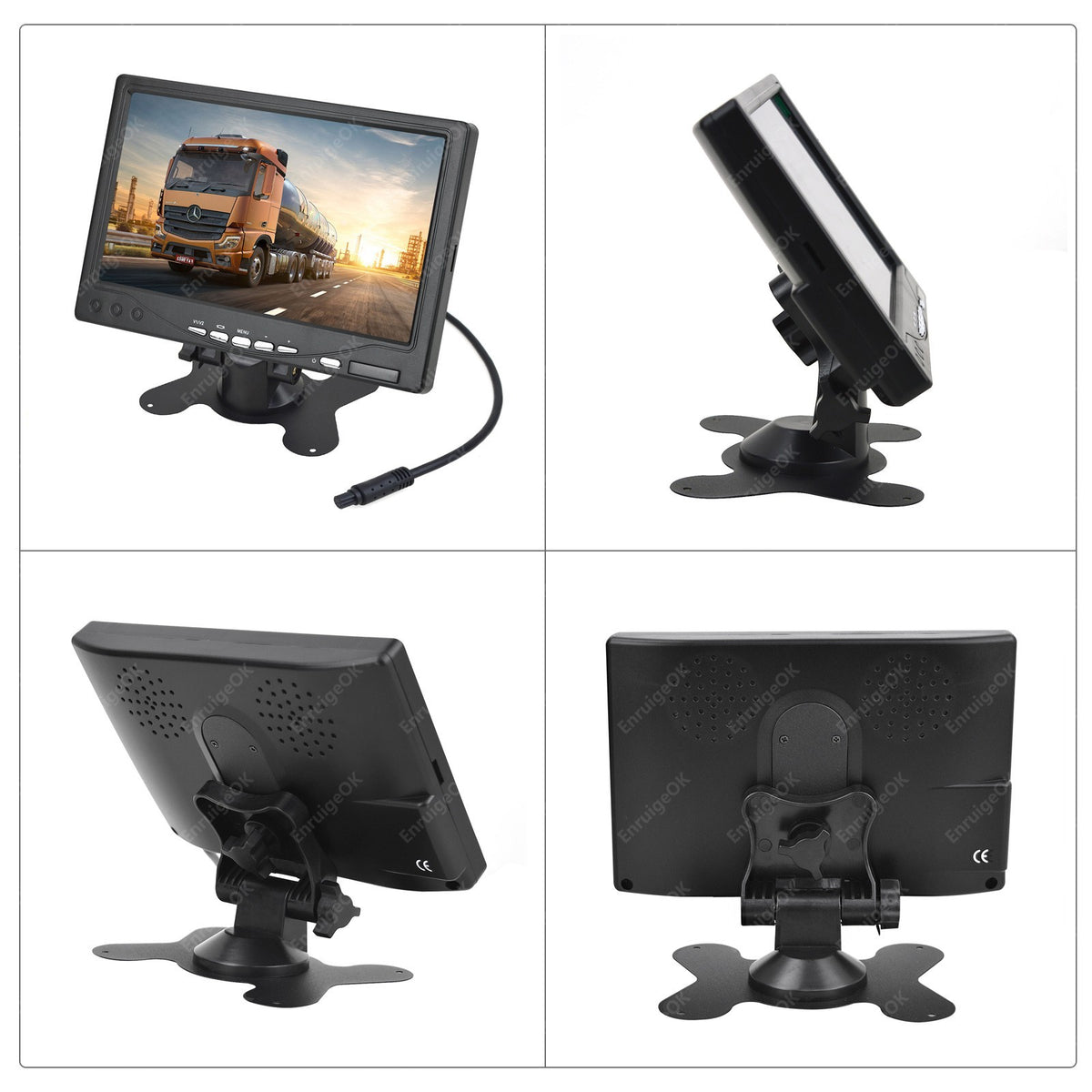

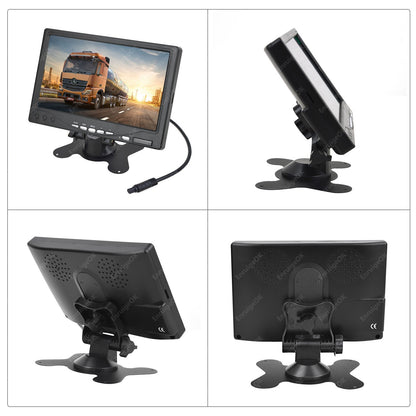

7-Inch Backup Monitor – High-quality TFT LCD widescreen with sharp resolution and vivid colours. Supports PAL/NTSC auto switch and dual video inputs. Easily switch between V1/V2 via panel button or remote control. Includes remote control(battery not included) and mounting stand.

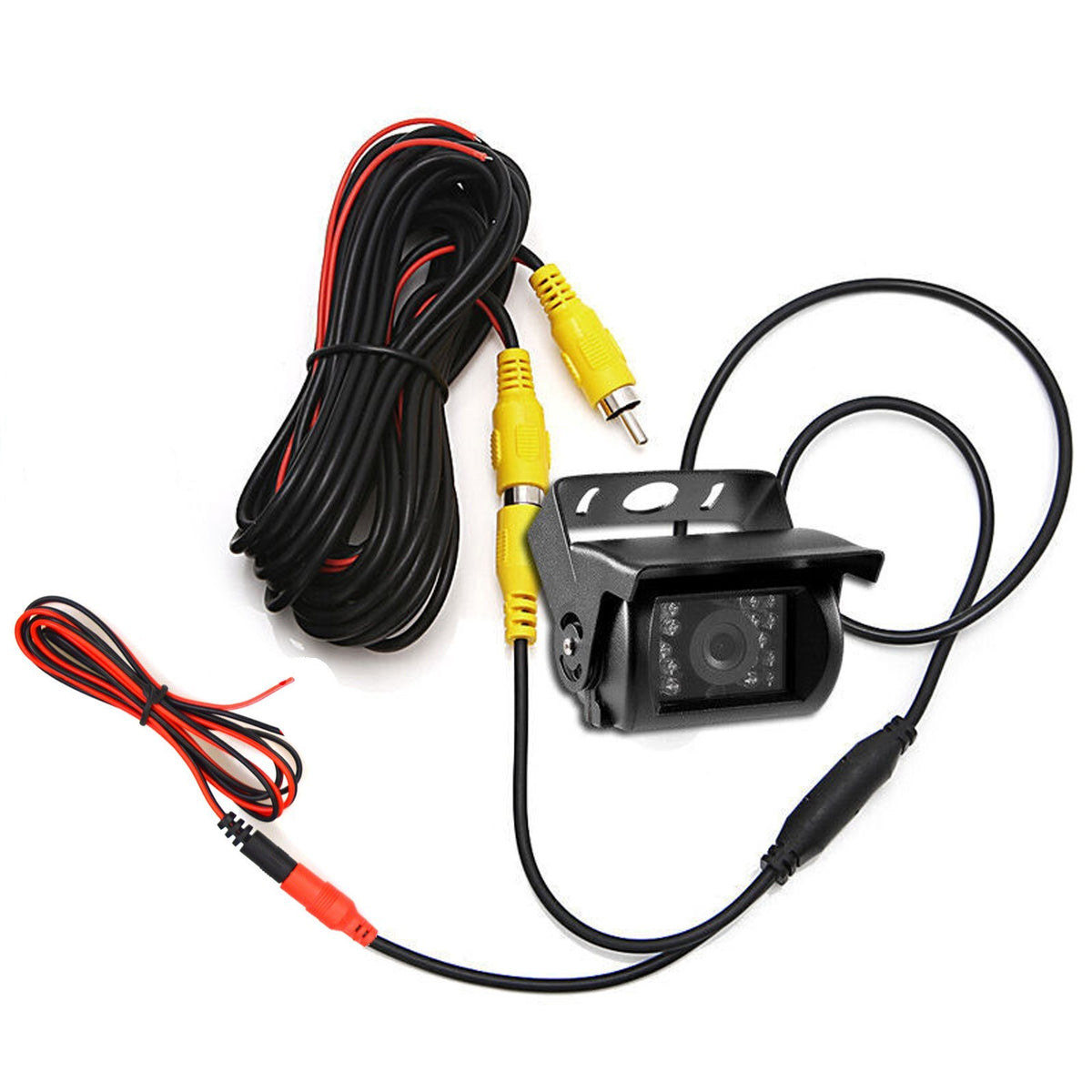

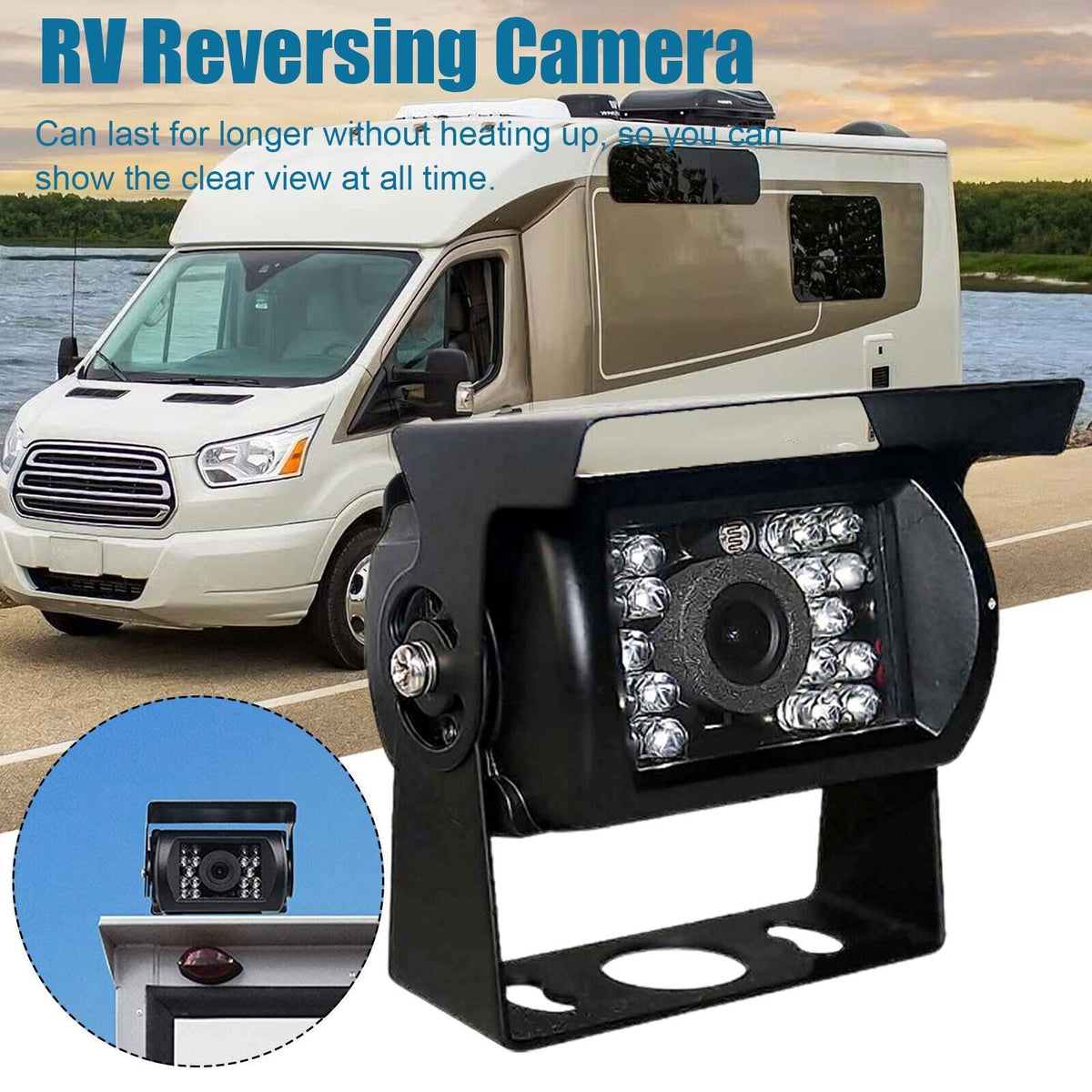

Dual Rear View Cameras – Two IP68 waterproof reversing cameras with flexible installation options. Equipped with 18 IR LEDs for night vision up to 30ft. Switch views via monitor button or remote control.

Wide Voltage Compatibility (DC 9V–36V) – Built with a wide voltage input design for stable and safe performance, perfectly suited for large vehicles such as RVs, trucks, trailers, buses, motorhomes, caravans and campers.

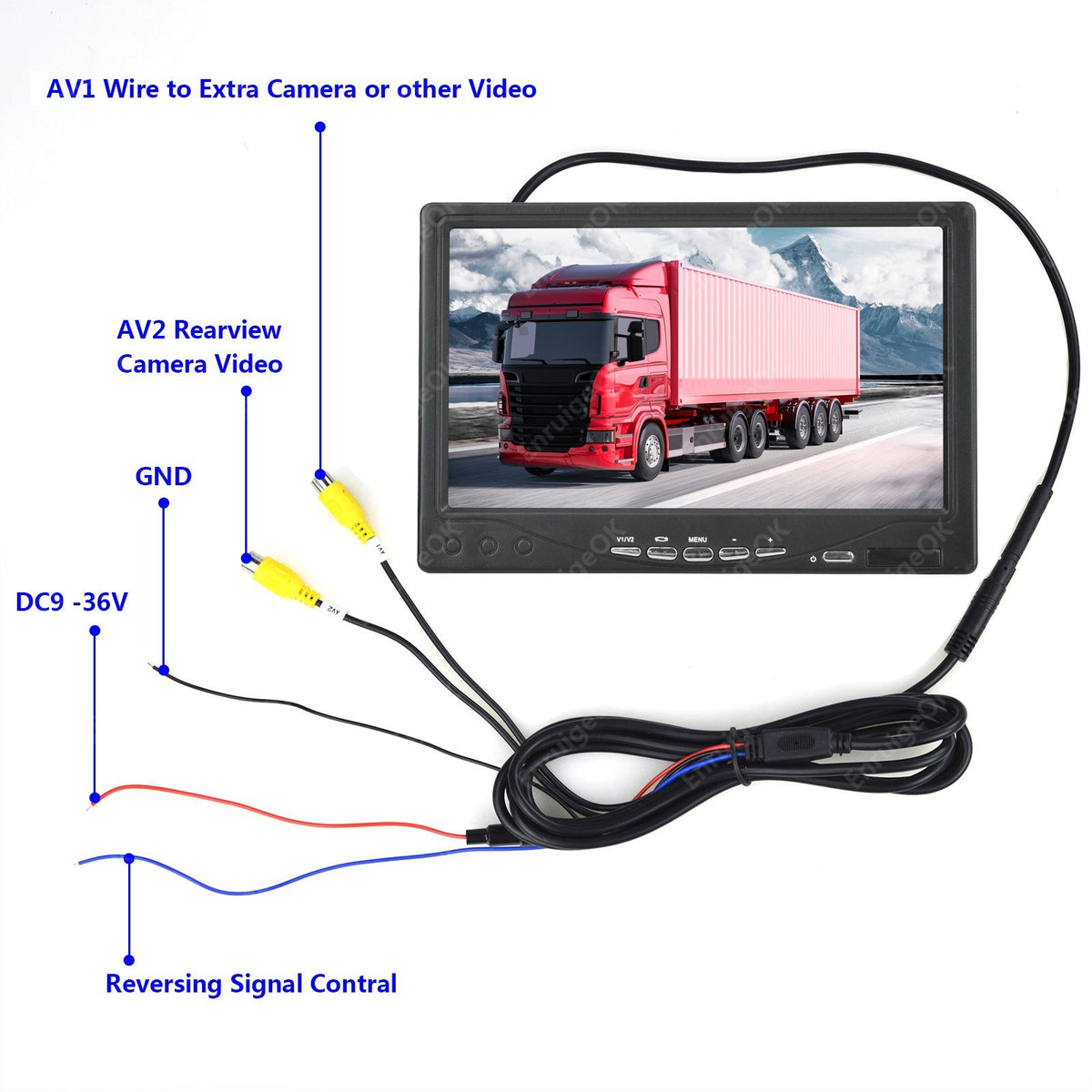

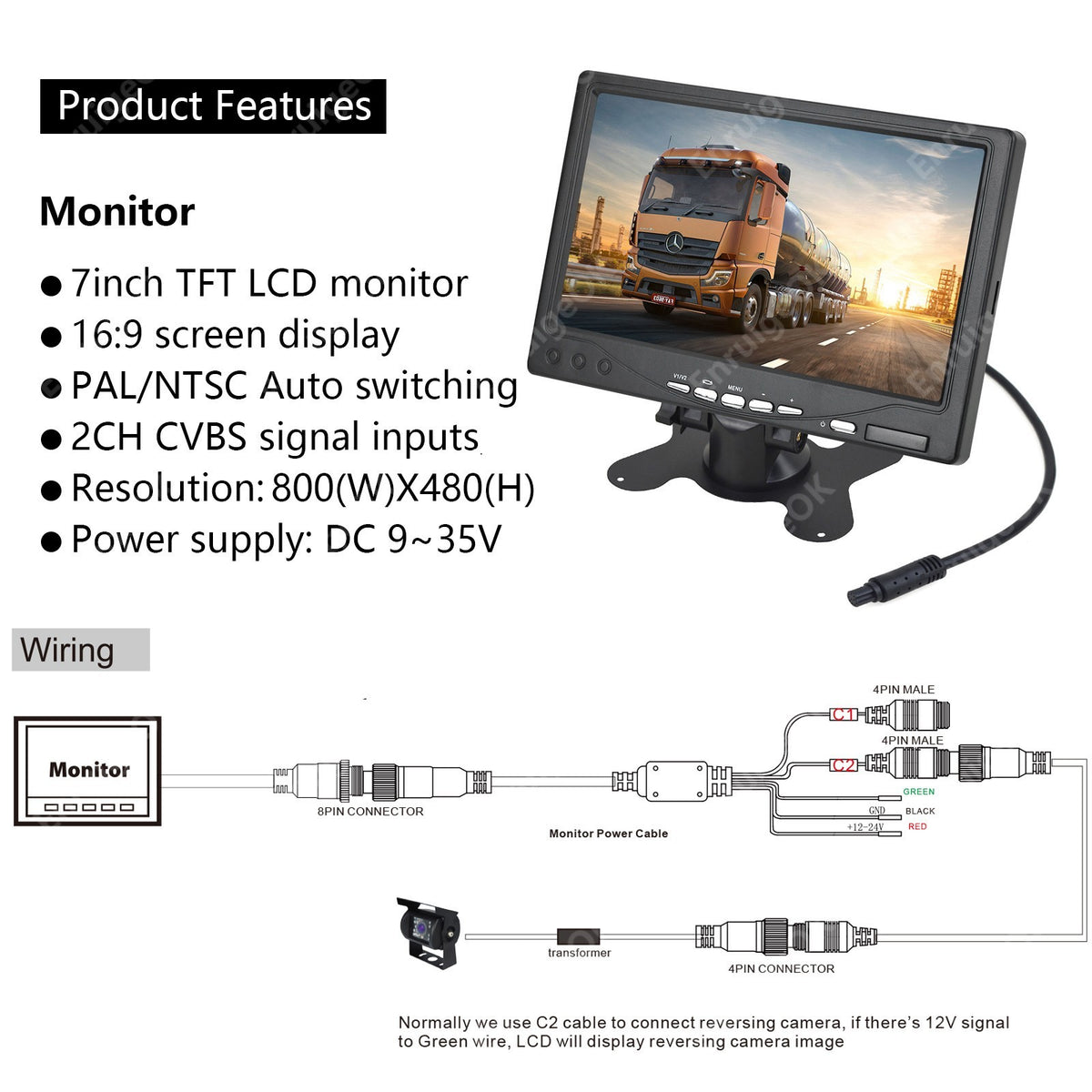

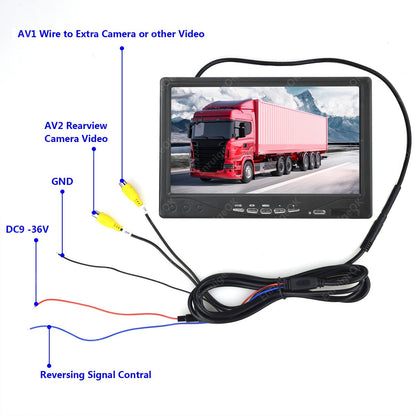

Smart Reverse Trigger – Monitor power cable has three wires:

Blue: Reverse trigger (connect to reverse light +).

When connected, V2 camera auto-displays in reverse gear, and manual switching is only possible via remote control.

If left unconnected, you can freely switch between V1/V2 on the monitor.

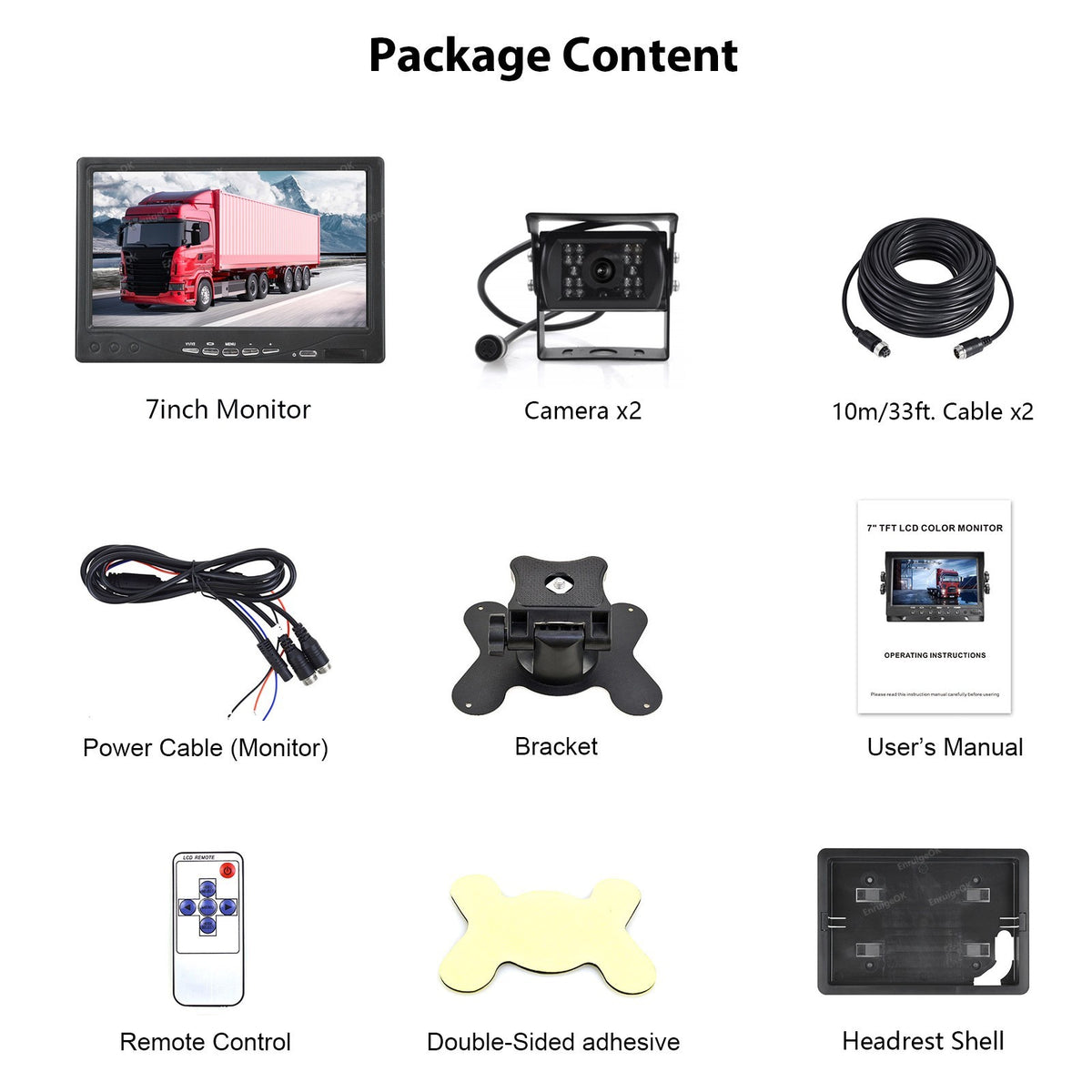

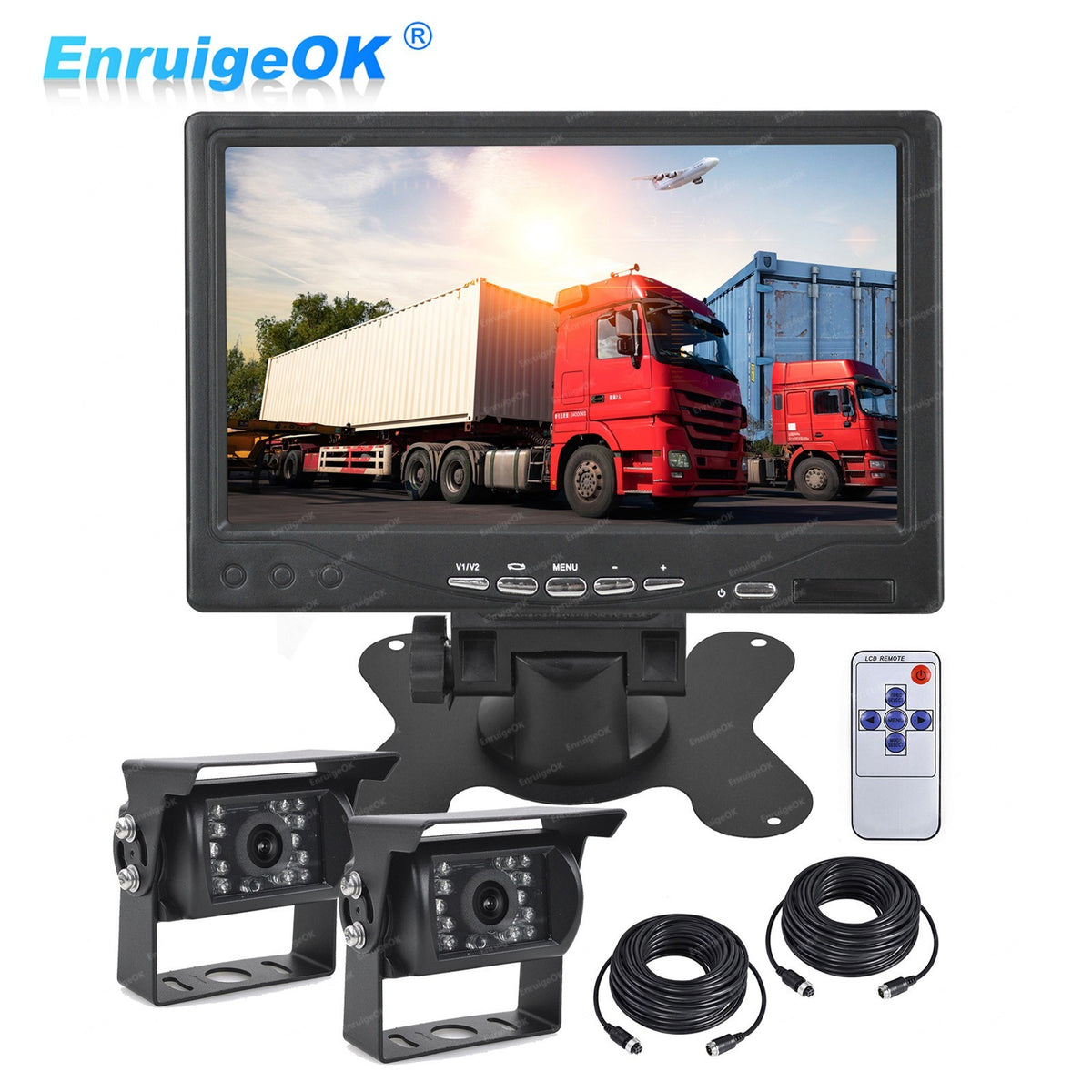

Package contents

2 X Reverse Camera

1 X 7'' TFT-LCD monitor

1 X Remote controller(battery not included)

1 X 2.5m monitor power cable

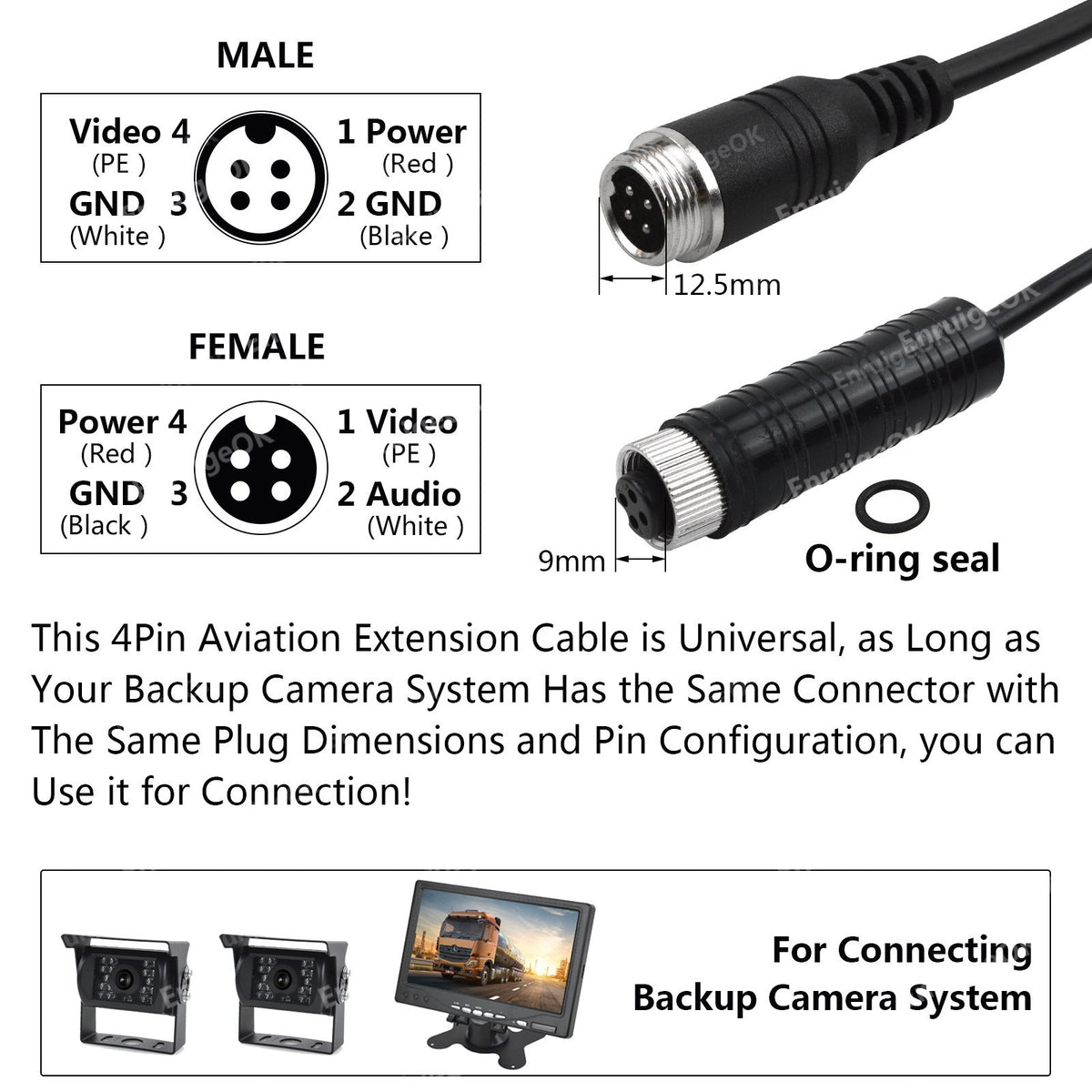

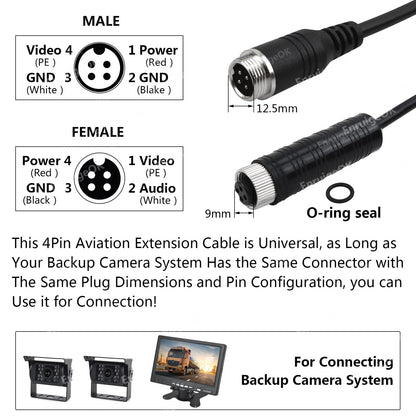

2 X 10m/33ft. video extension cable

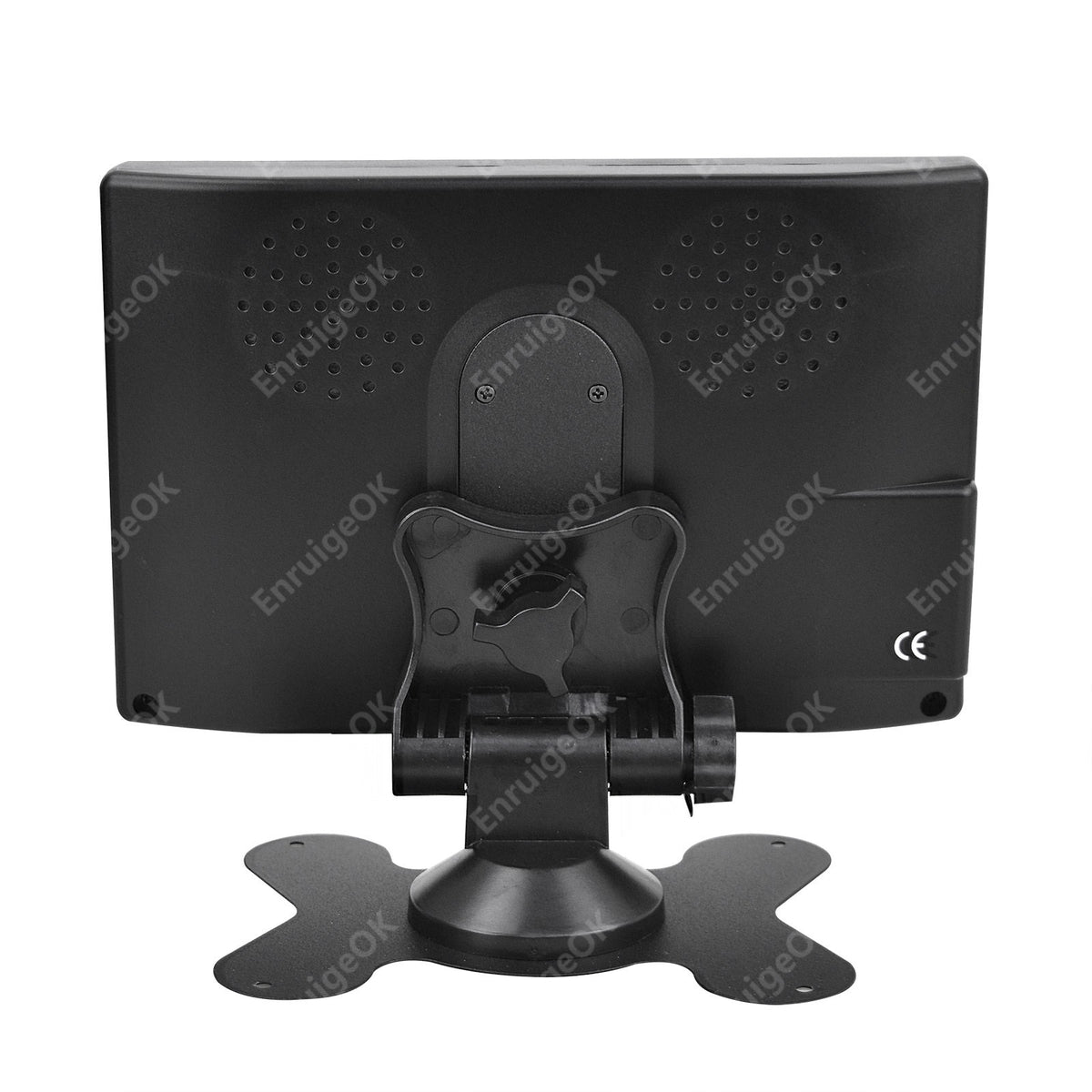

1 X Dashboard mount stand

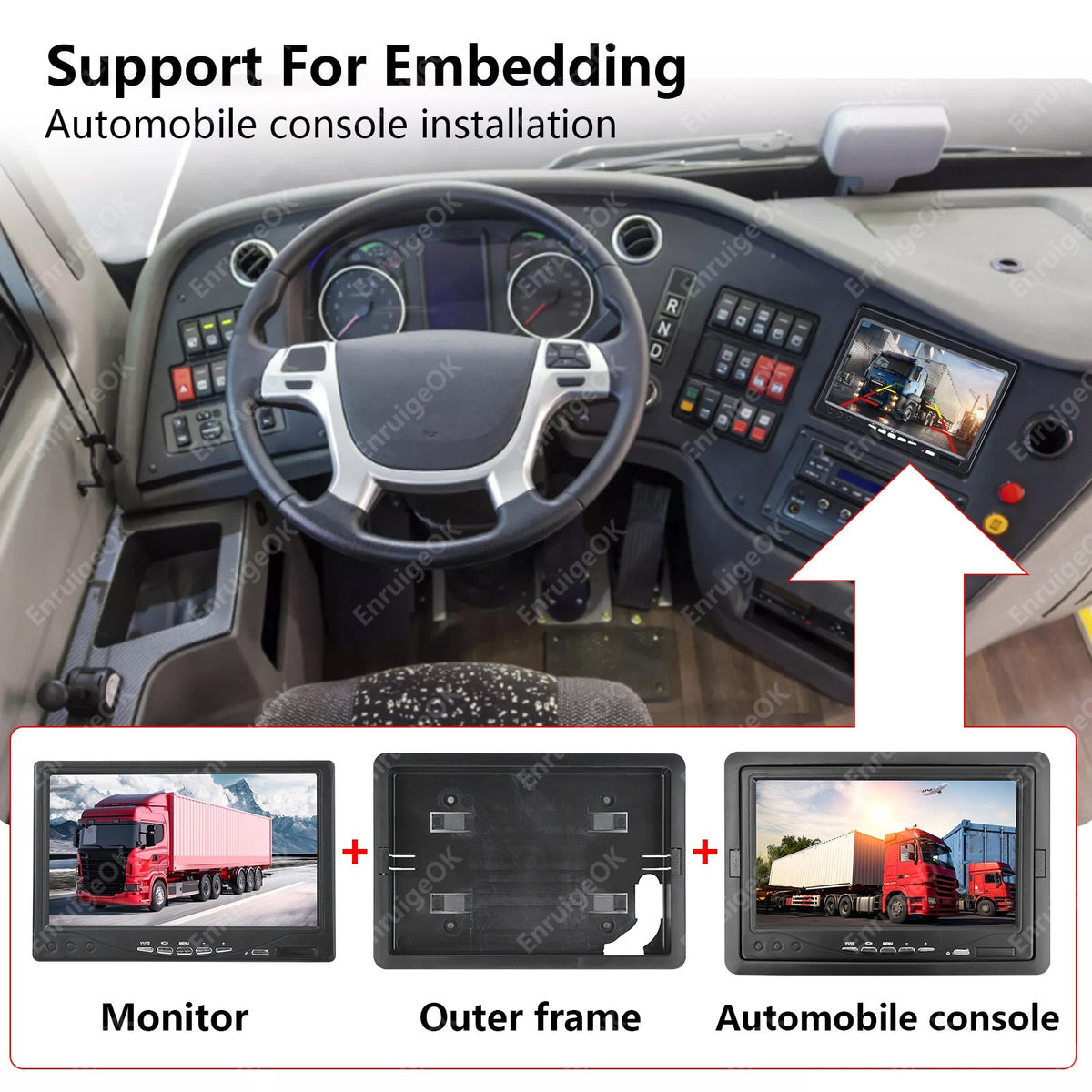

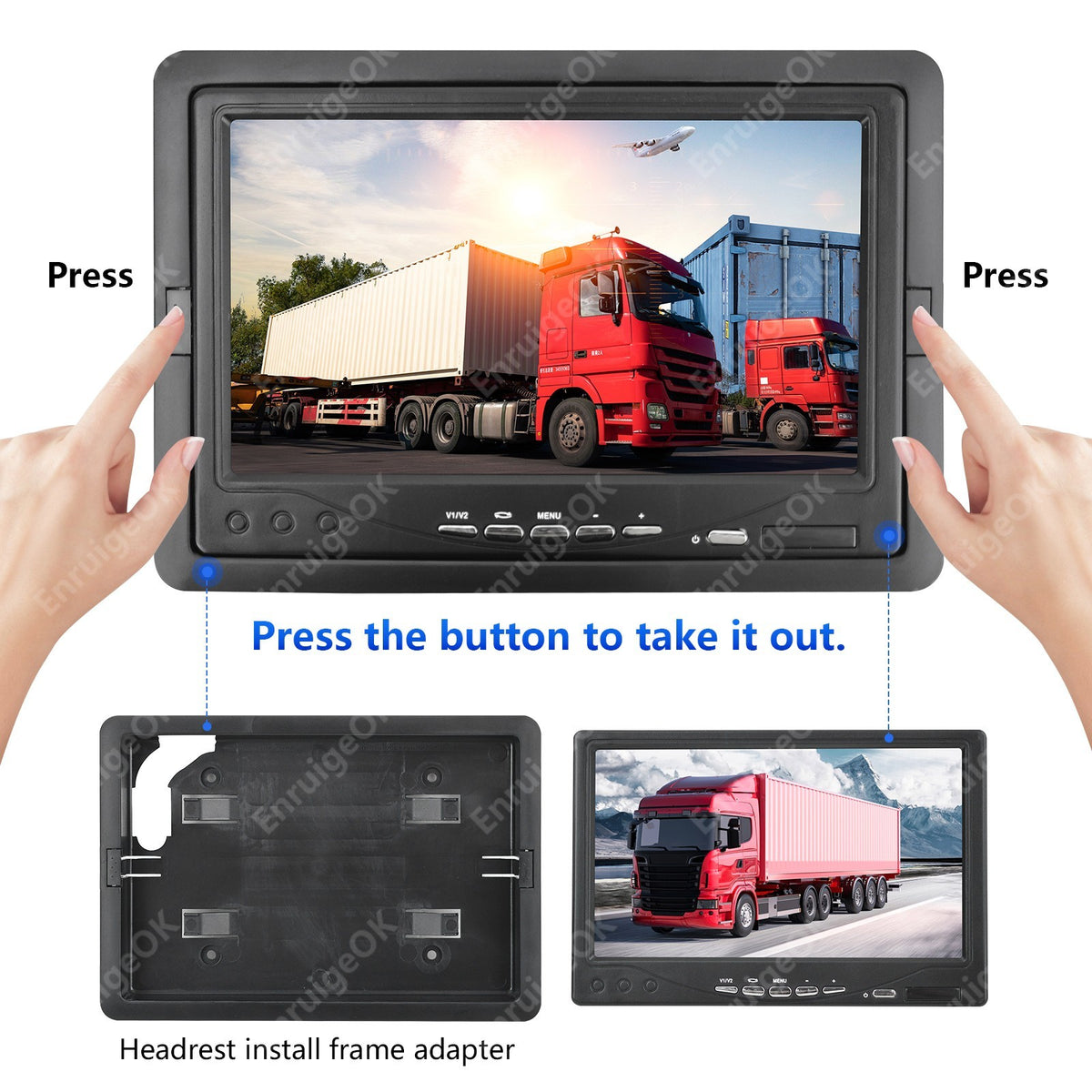

1 X Outer Frame

1 X Manual

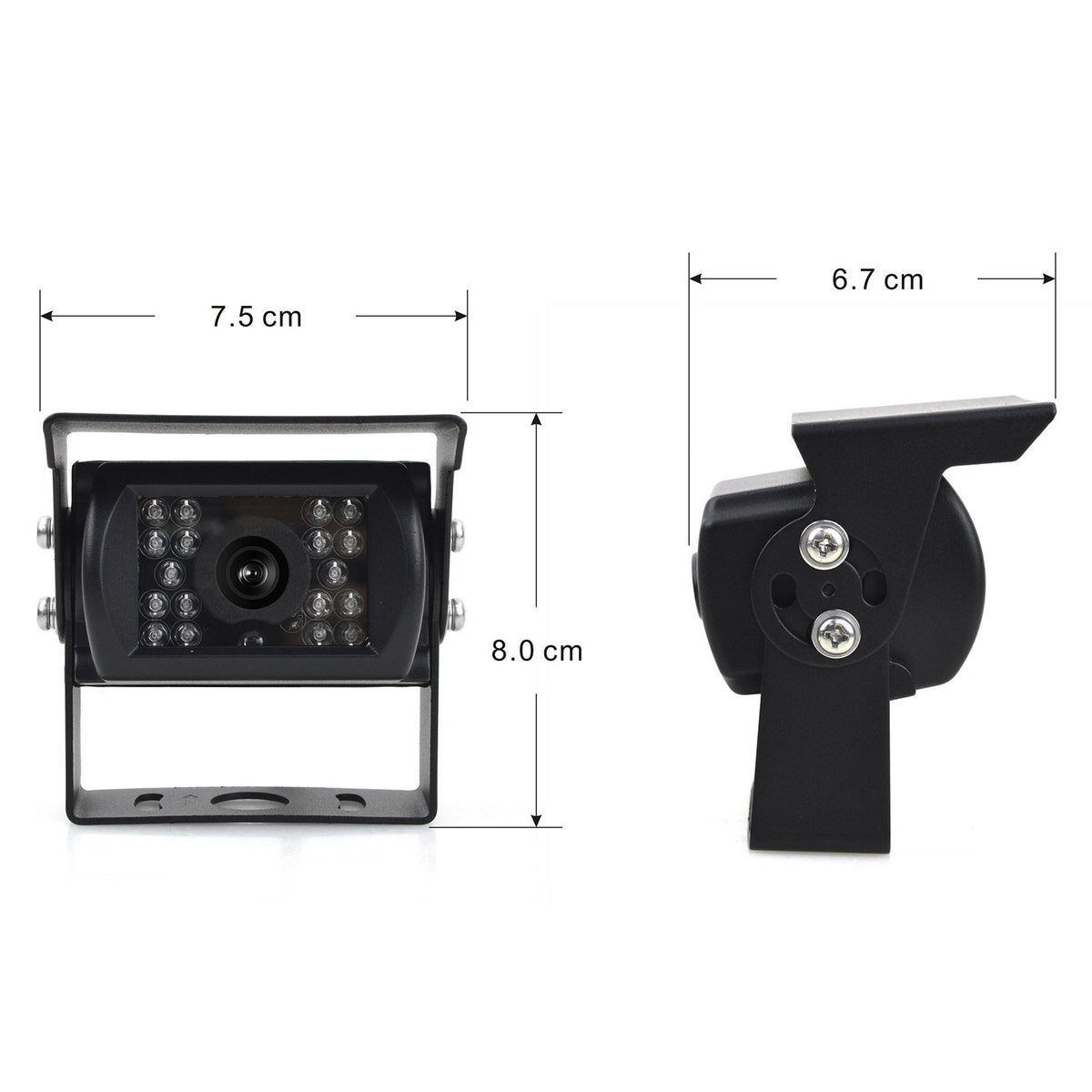

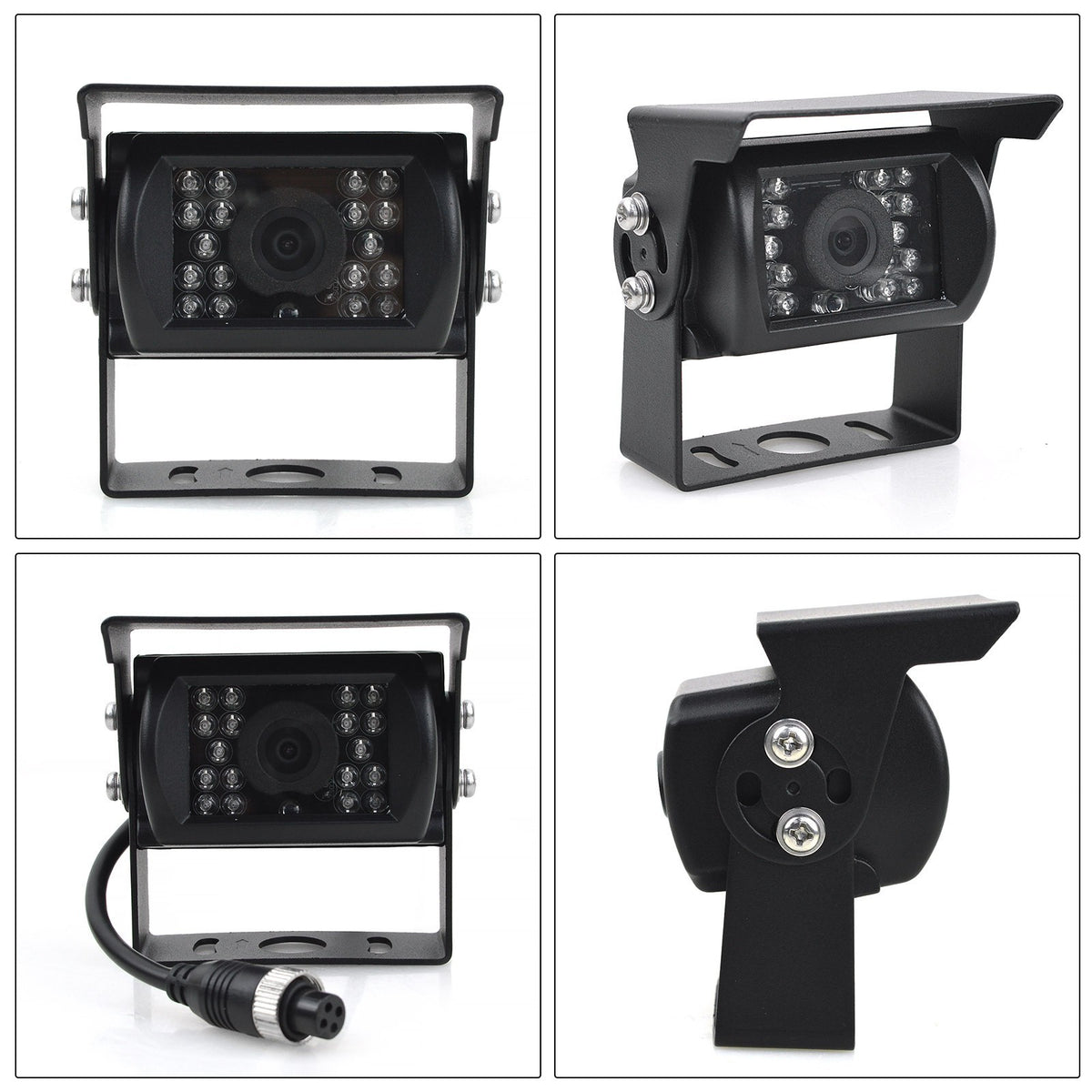

Camera Specifications

Image sensor: CMOS sensor

Effective pixel: 733(H)x493(V)

TV Line: 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 9-35V

Operating temperature: -20℃ to +70℃

Monitor Specifications

Screen: 7 inch

Resolution: 800x(RGB)x480

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

Video Input: Dual video inputs, AV1 and AV2(For reversing camera) video input, the monitor will automatically turn on and switch to the reversing camera (image) when the reversing gear is engaged.

Blue screen displayed when no signal is detected.

Power Supply: DC 9V-35V

Rear watching: Image can be changed left and right

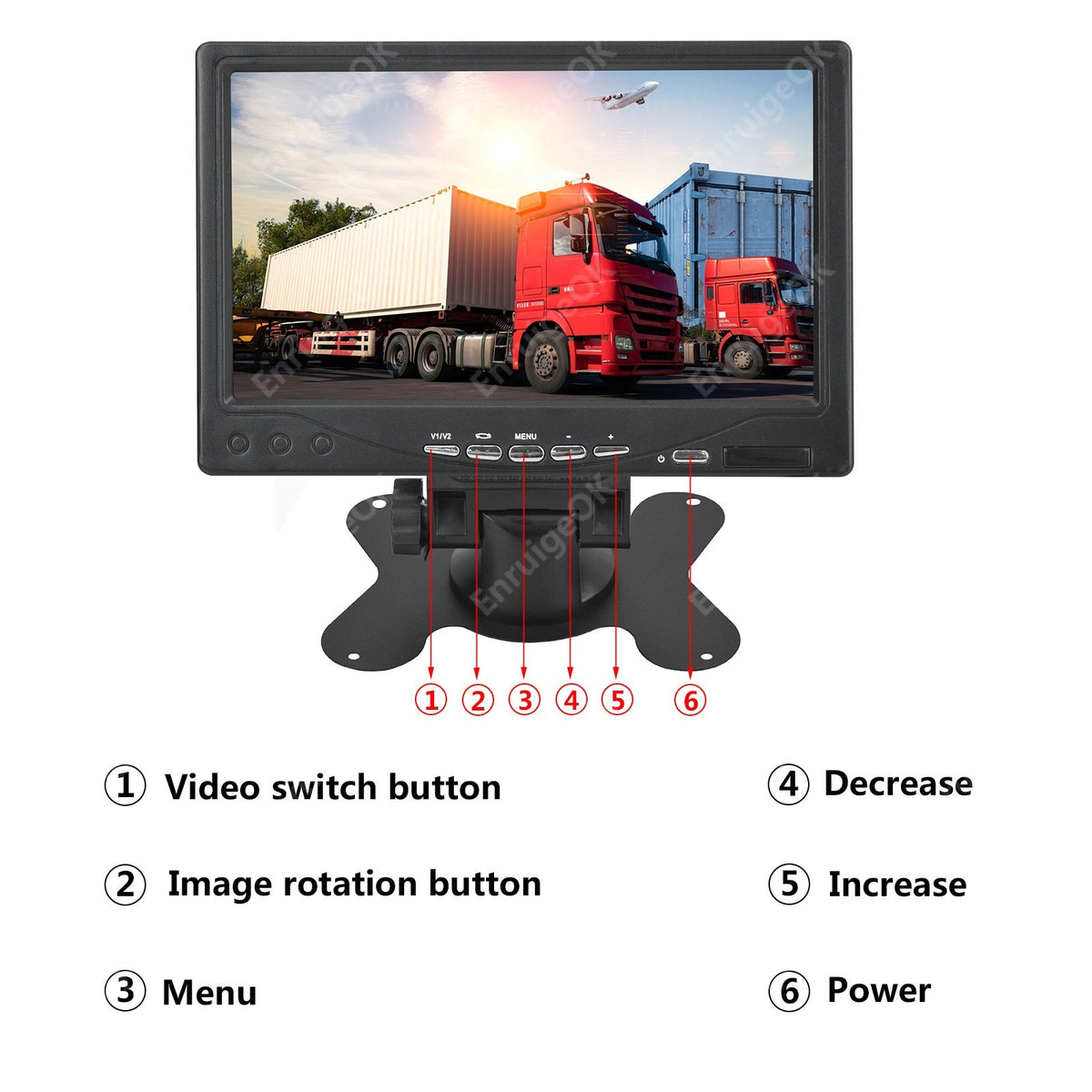

Operate mode: The touch key operation and remote control

Remote control: a CR2025 button battery (battery not included)

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
