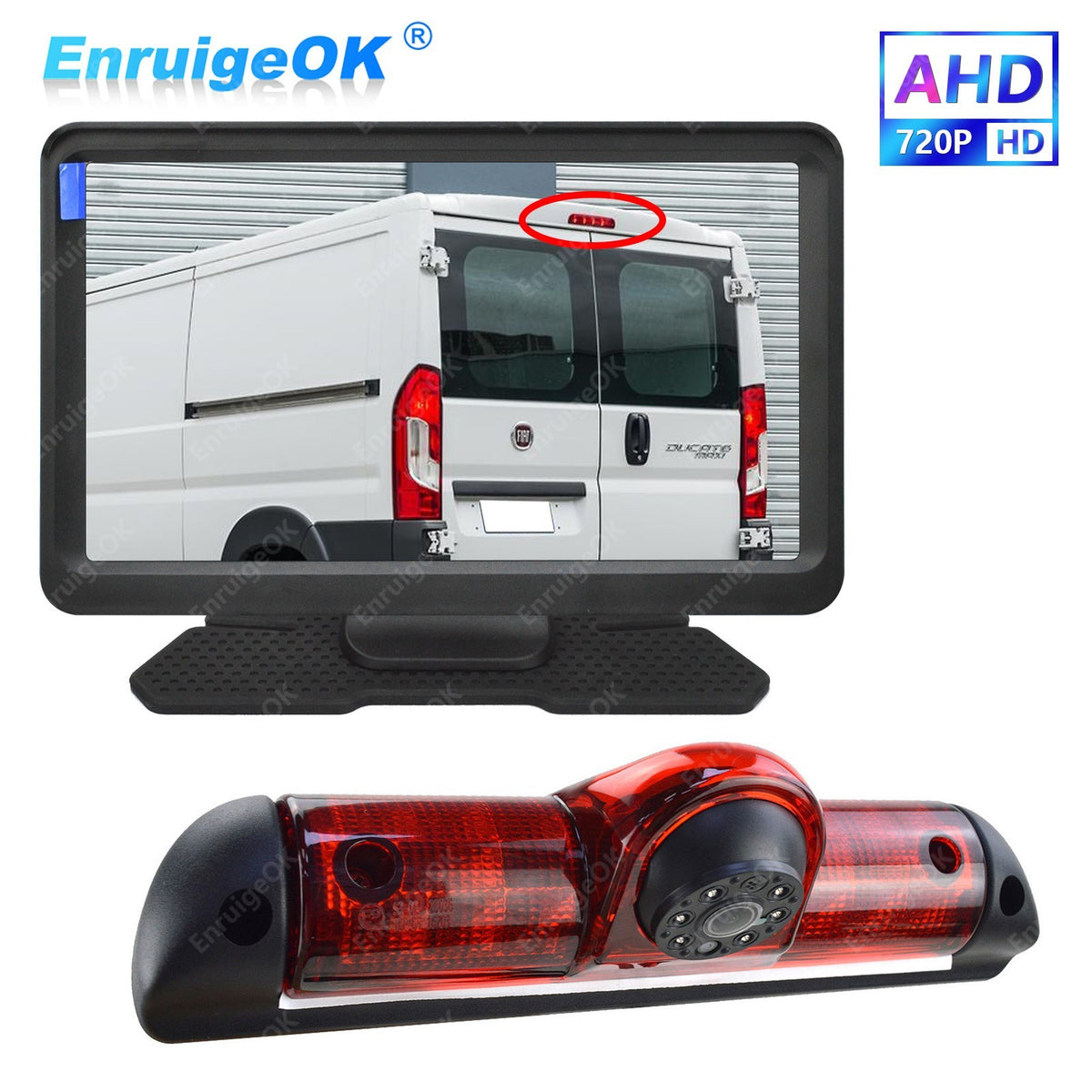

7" Monitor & Rear Brake Light Reversing Camera Kit For Fiat Ducato Citroen Relay

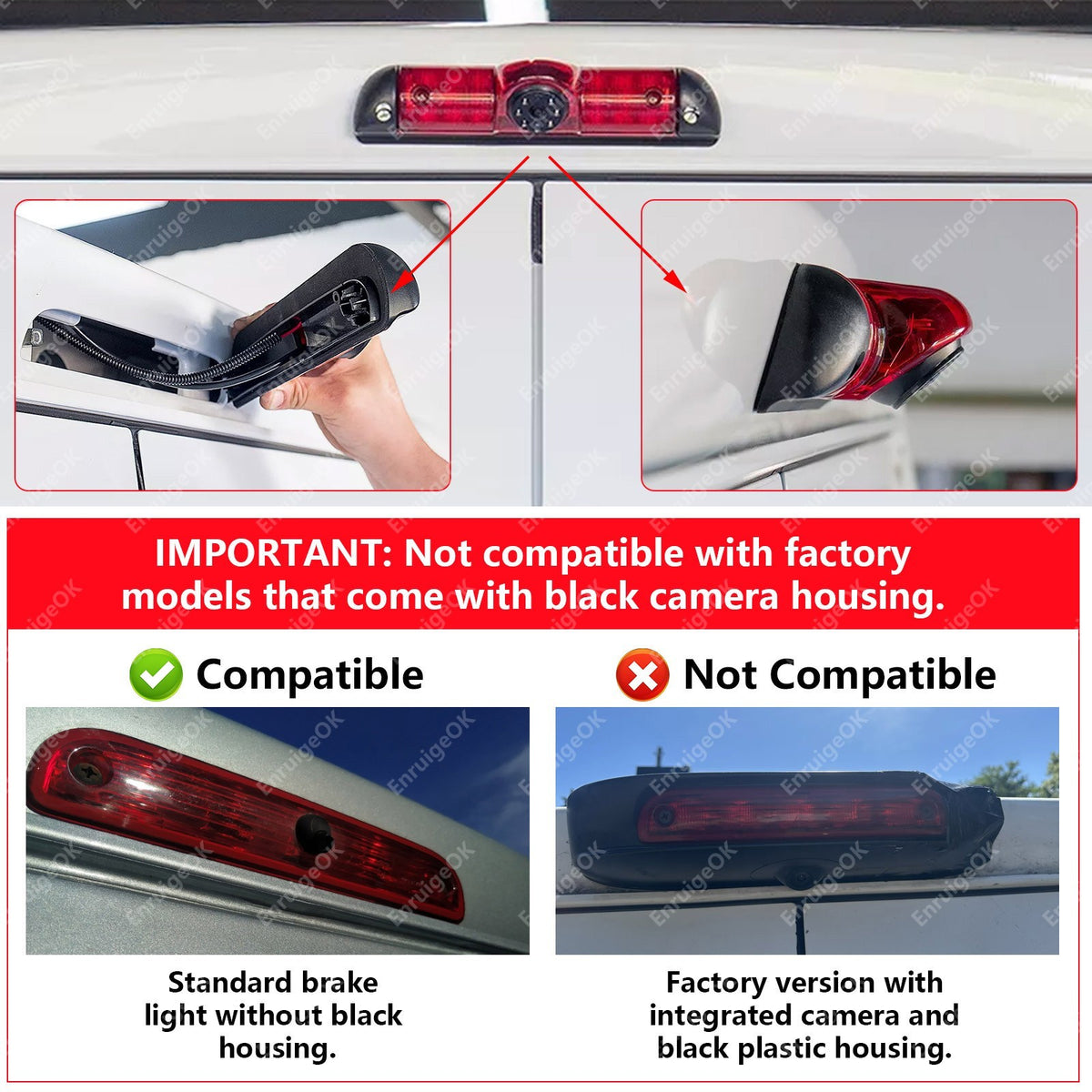

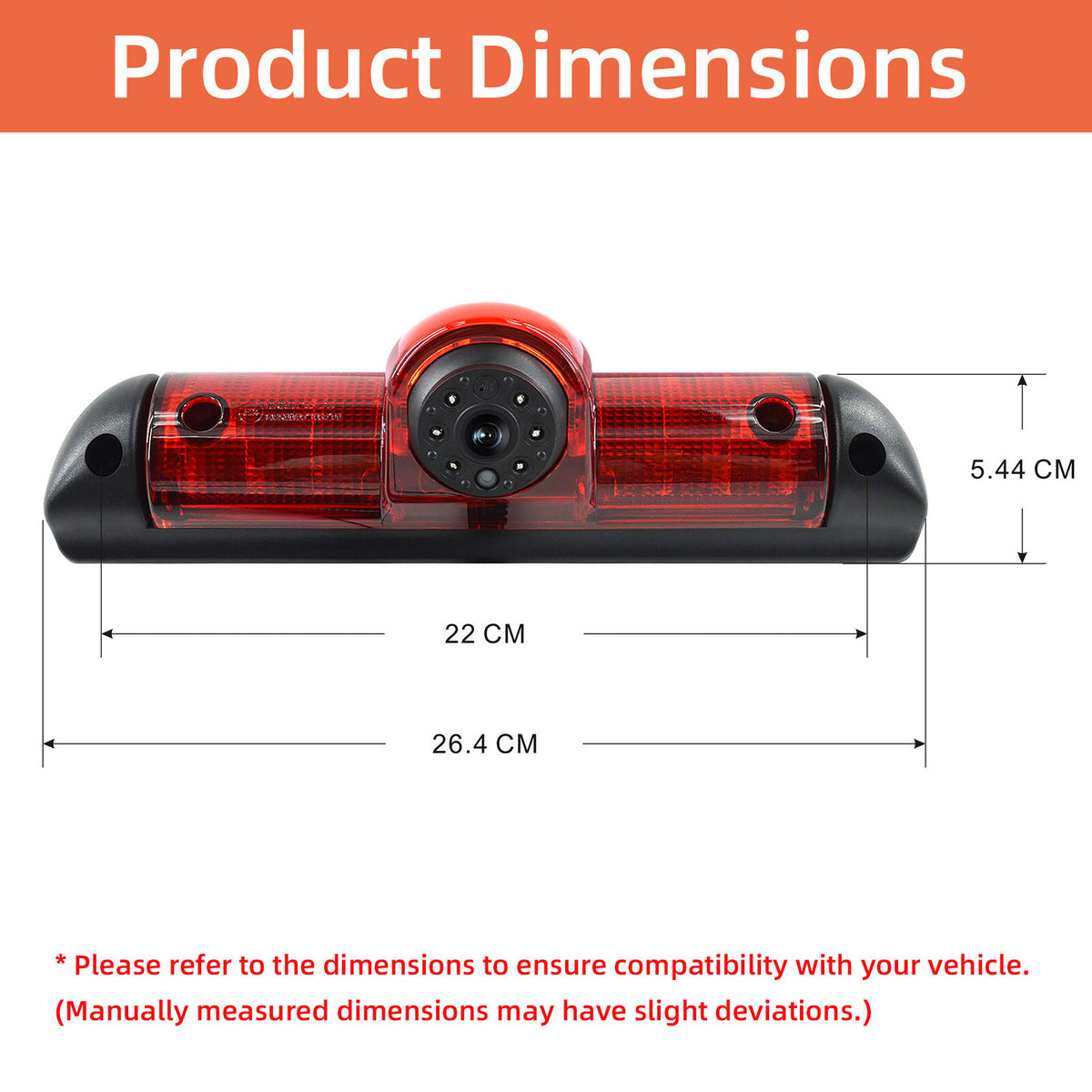

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

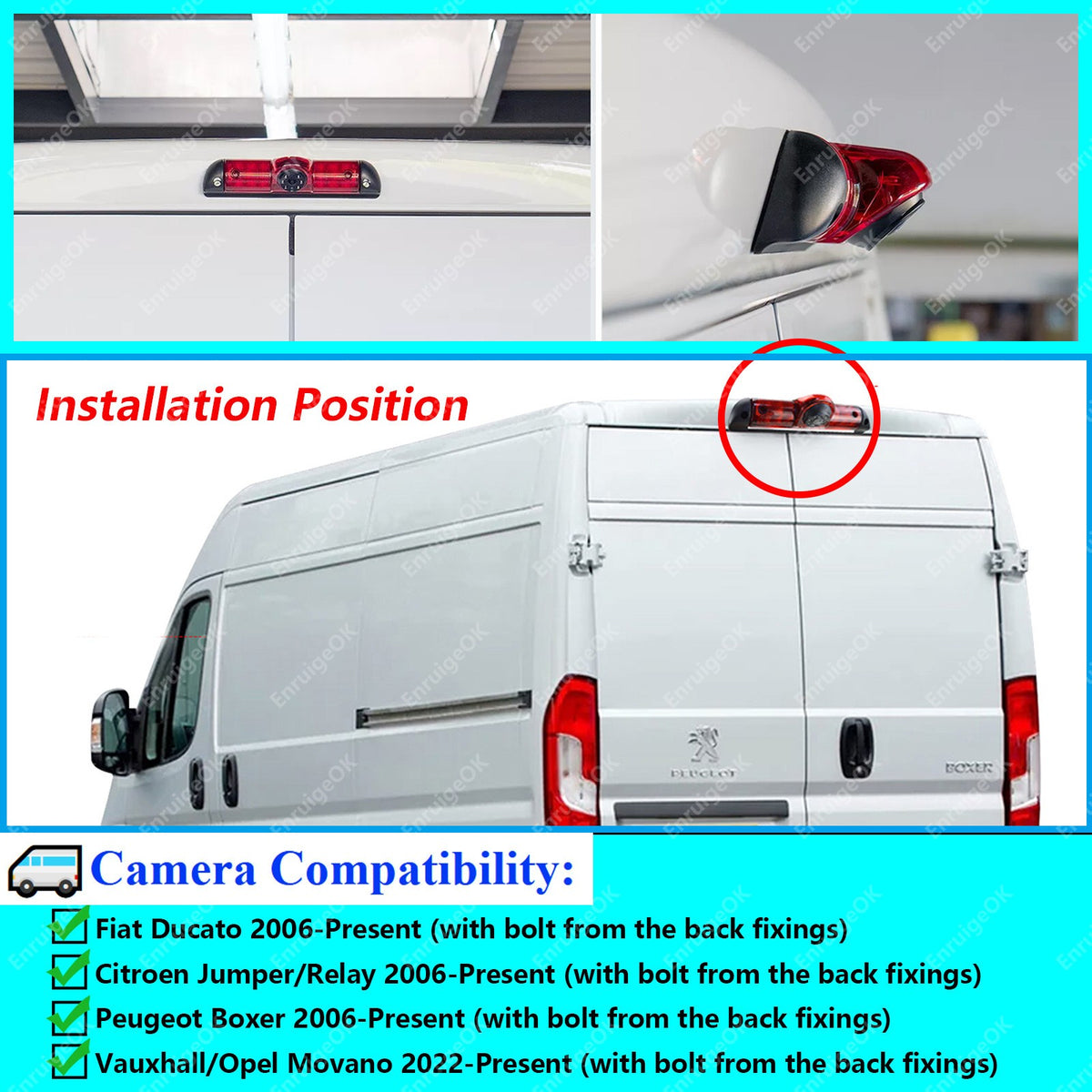

🚐Camera Compatibility:

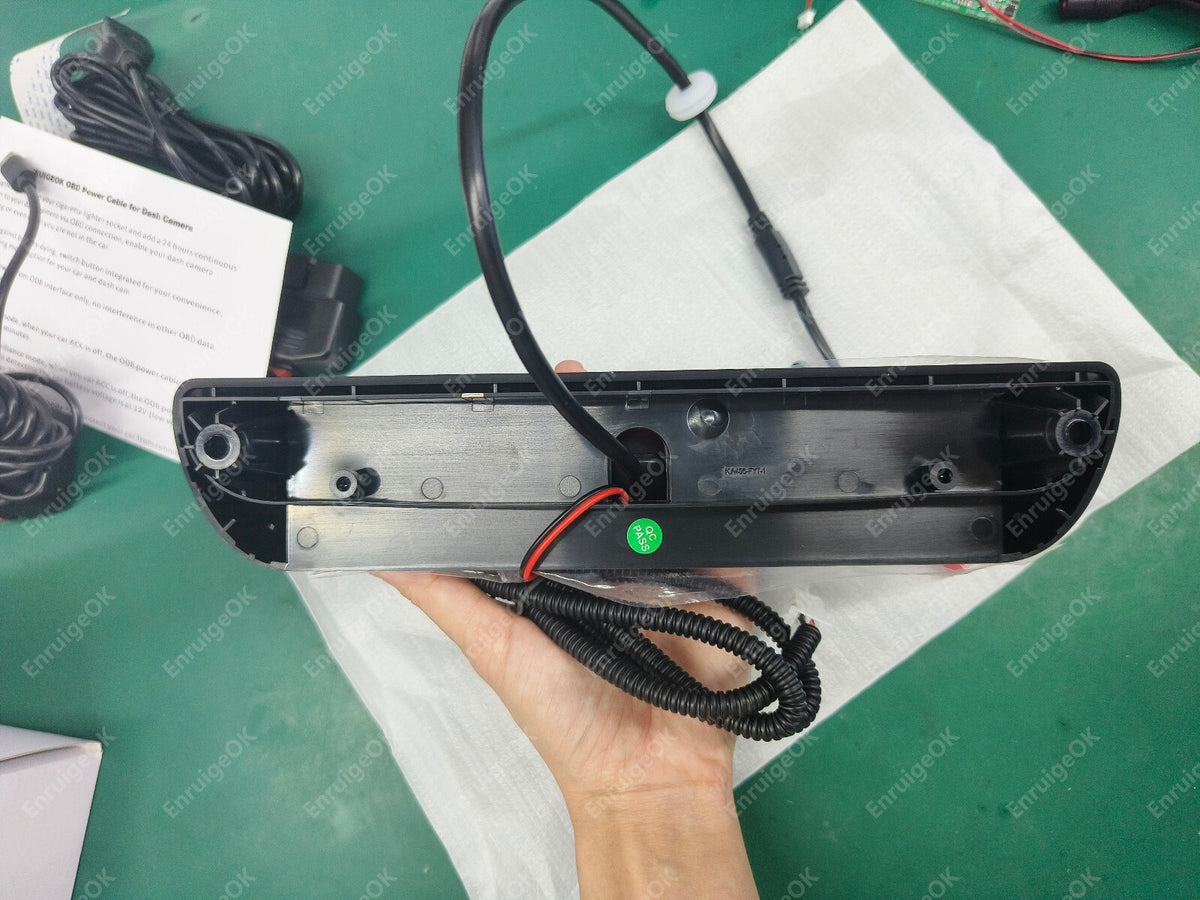

✅Fiat Ducato 2006-Present (with bolt from the back fixings)

✅Citroen Jumper/Relay 2006-Present (with bolt from the back fixings)

✅Peugeot Boxer 2006-Present (with bolt from the back fixings)

✅Vauxhall/Opel Movano 2022-Present (with bolt from the back fixings)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

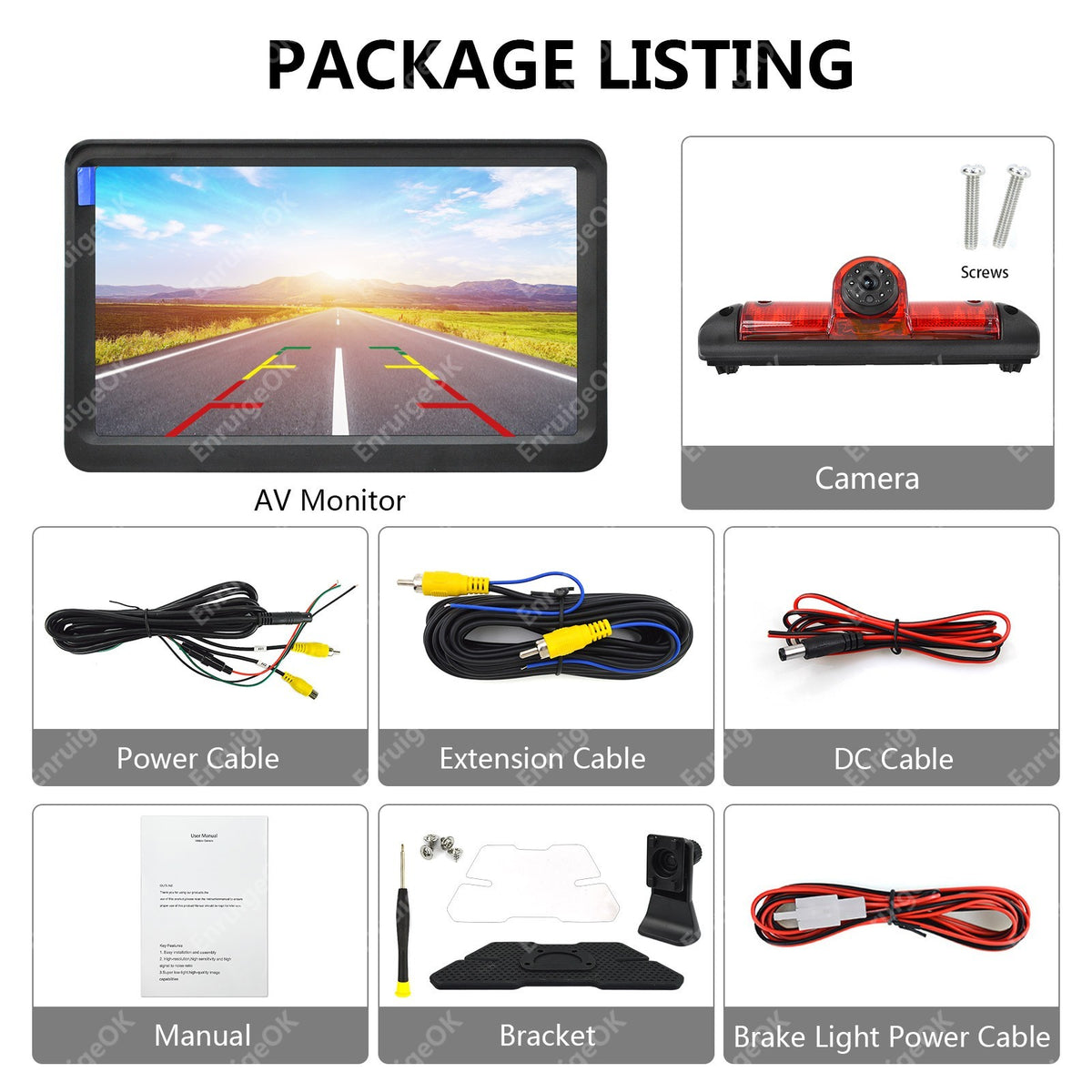

📦Package contents:

1 X Brake light reversing camera

1 X 7'' monitor

1 X 2.5m monitor power cable

1 X 10m/33ft. video extension cable

1 X 1m DC Power cable

1 x Brake light power cable

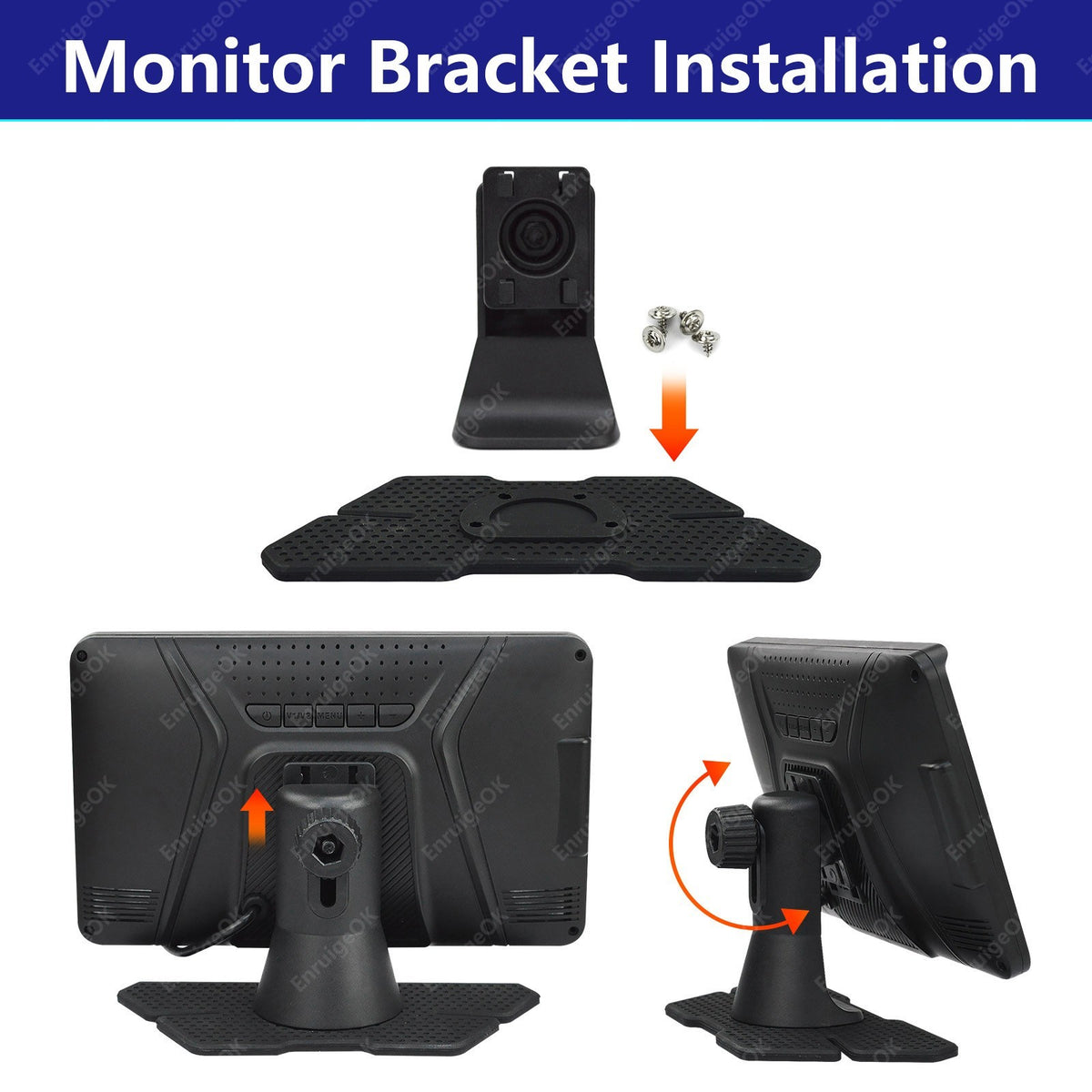

1 X Bracket

1 x Camera Waterproof Seal Pad

1 X Manual

Description

It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

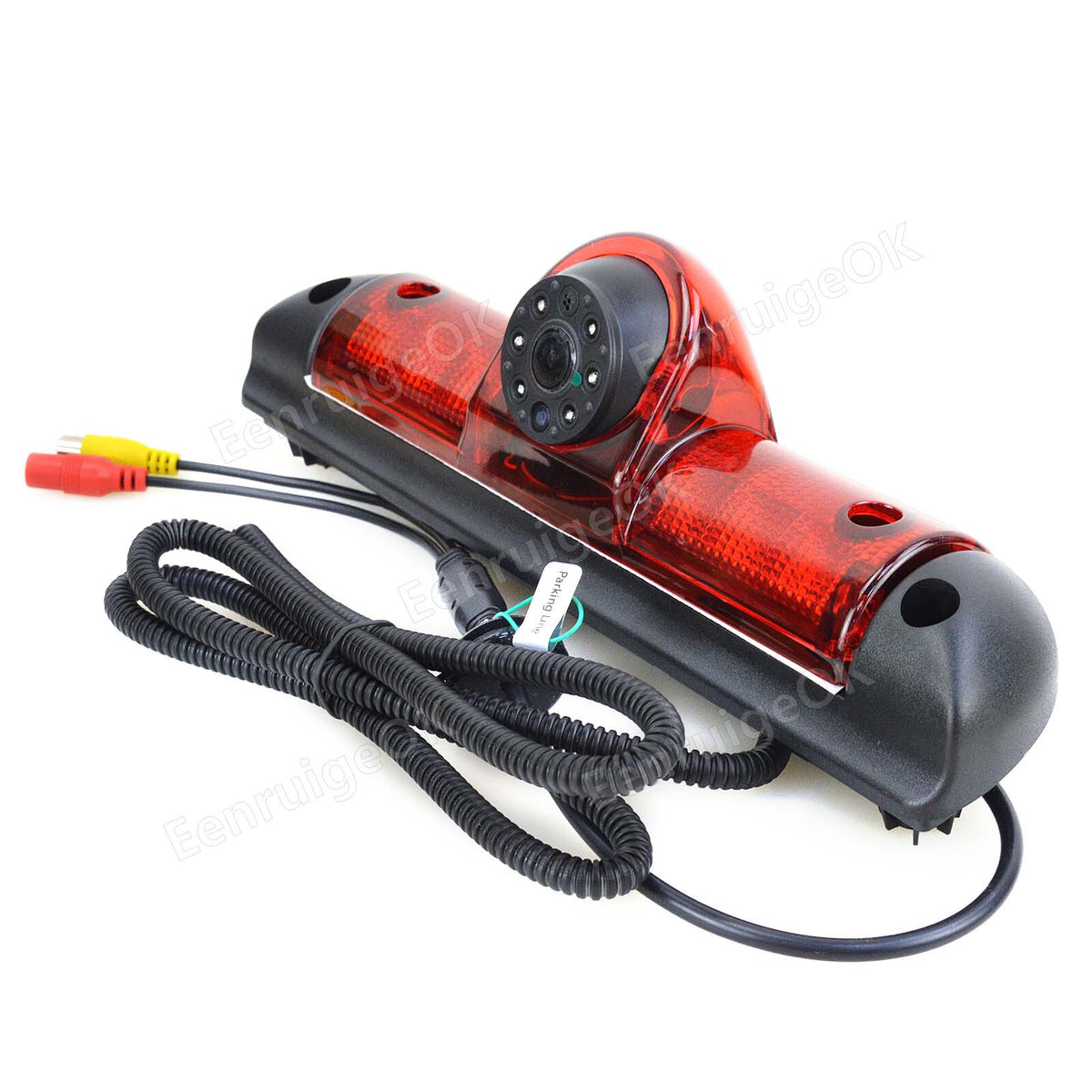

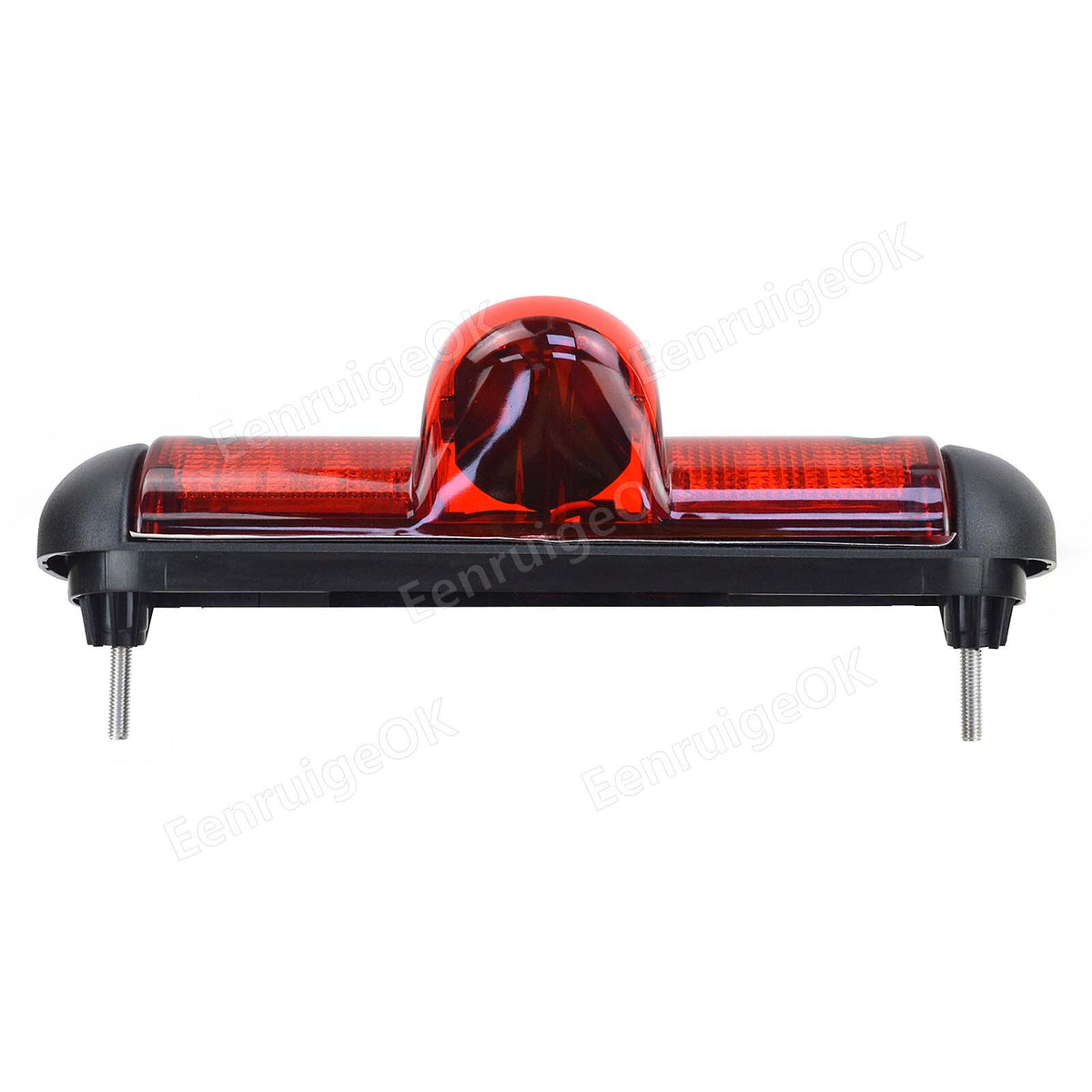

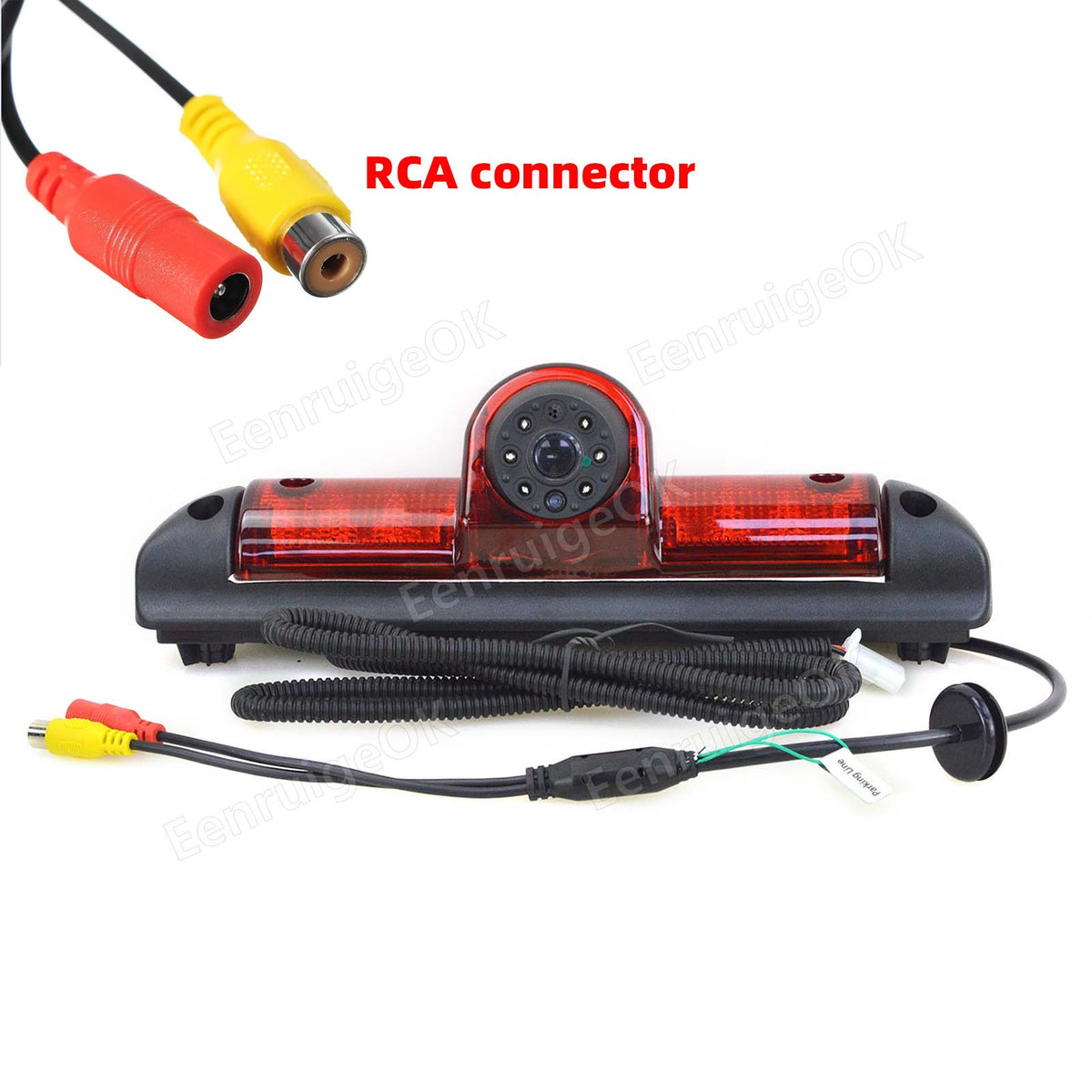

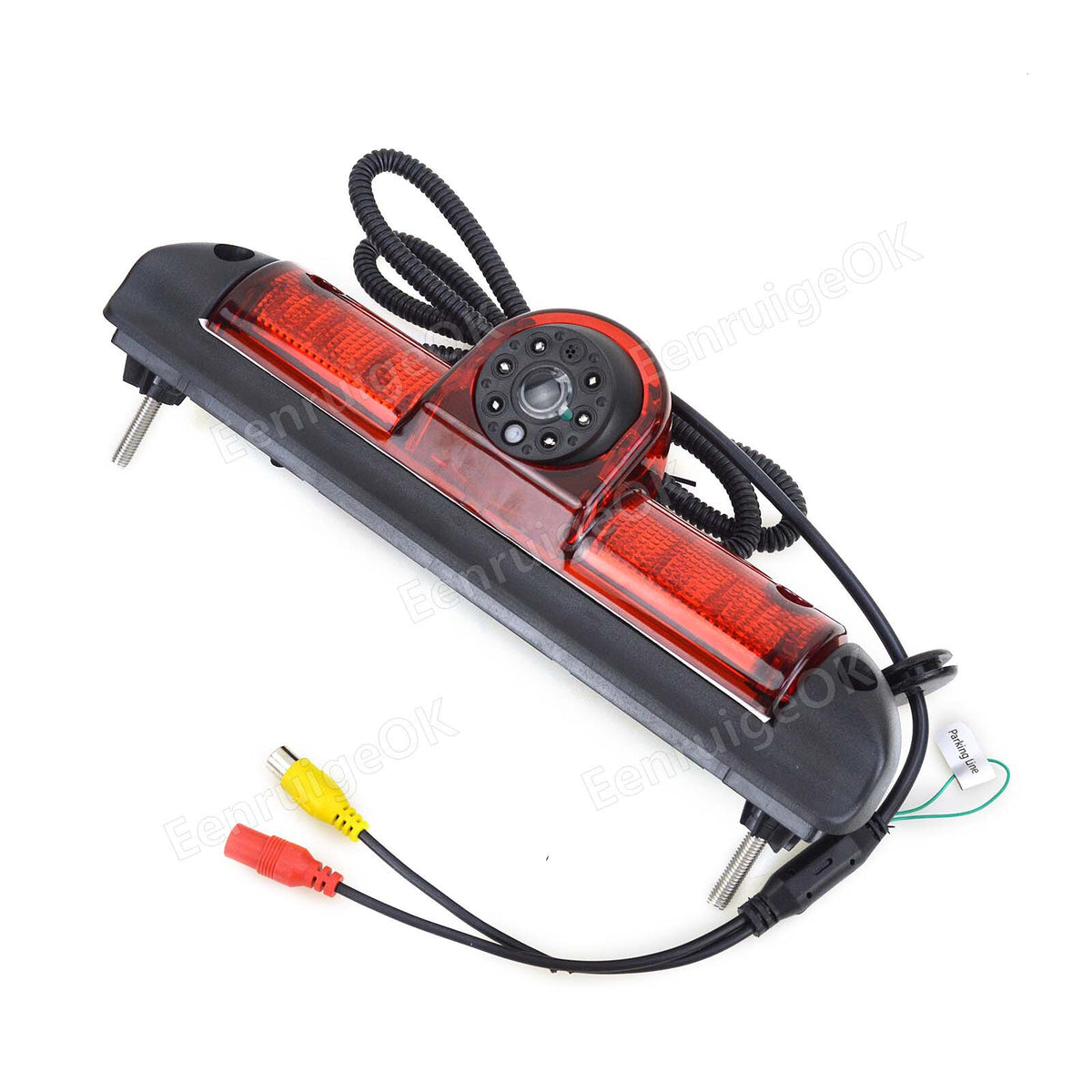

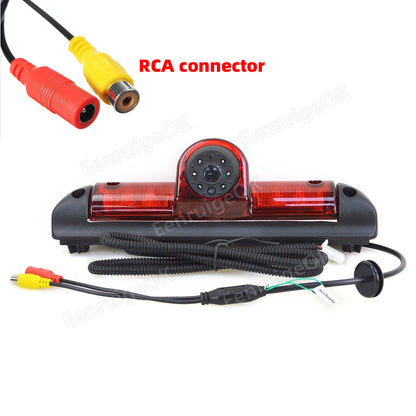

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

This brake light camera delivers sharp AHD 720P resolution with a high-quality HD CMOS sensor, enhanced color imaging, and excellent night vision thanks to 6 built-in infrared LEDs and an IR-CUT filter.

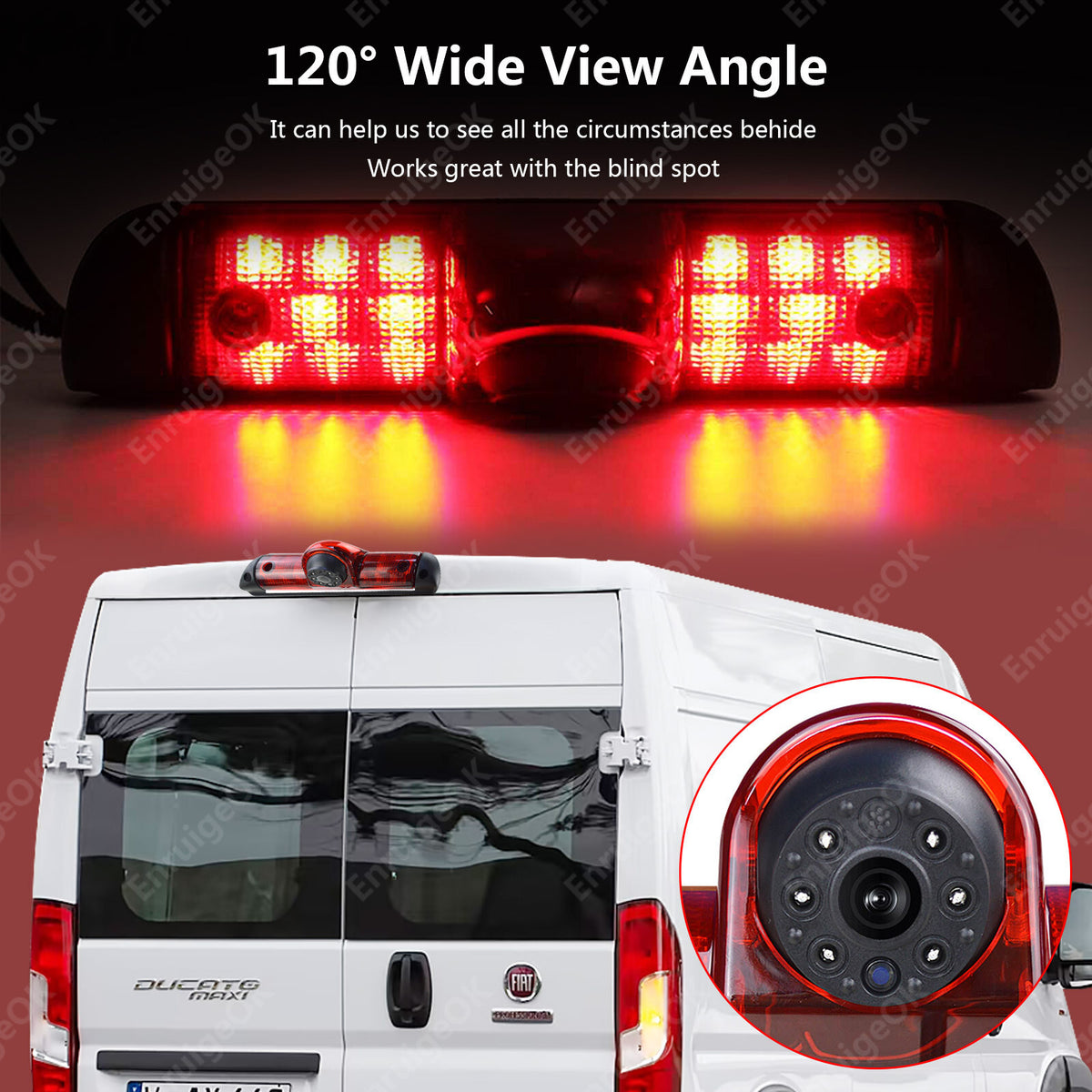

With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

100% Waterproof: Built with an IP69 rating, this camera is fully waterproof.

The 7" Color TFT-LCD Monitor features 2 video inputs and an 1024*600 (RGB) resolution, making it compatible with the brake light rearview camera.

Camera Specifications

Image sensor: CMOS sensor

Lens: 2.8mm

Effective pixel: 1920(H)x720(V)

Resolution: AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP69

Horizontal angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 12V

Operating temperature: -20℃ to +70℃

Monitor Specifications

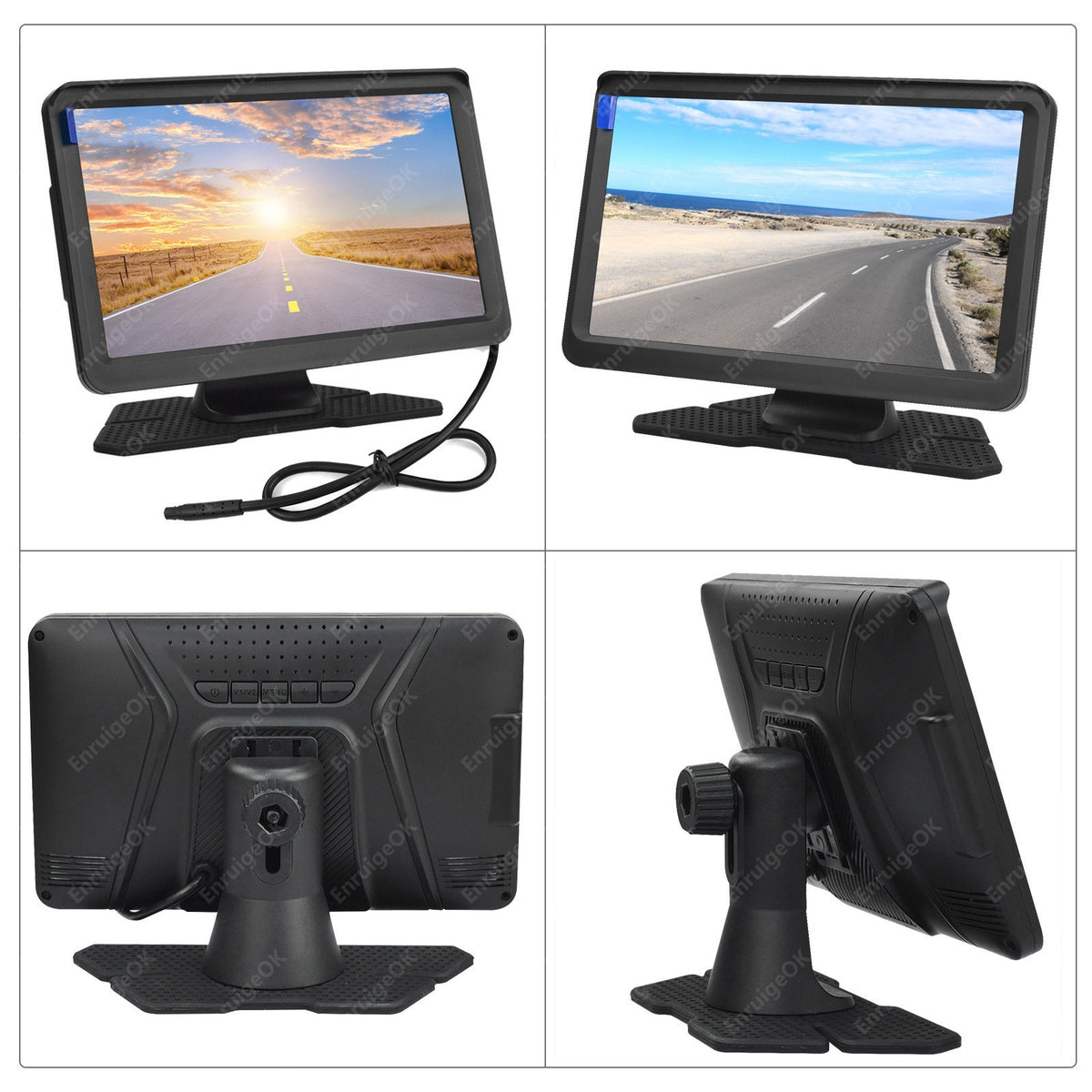

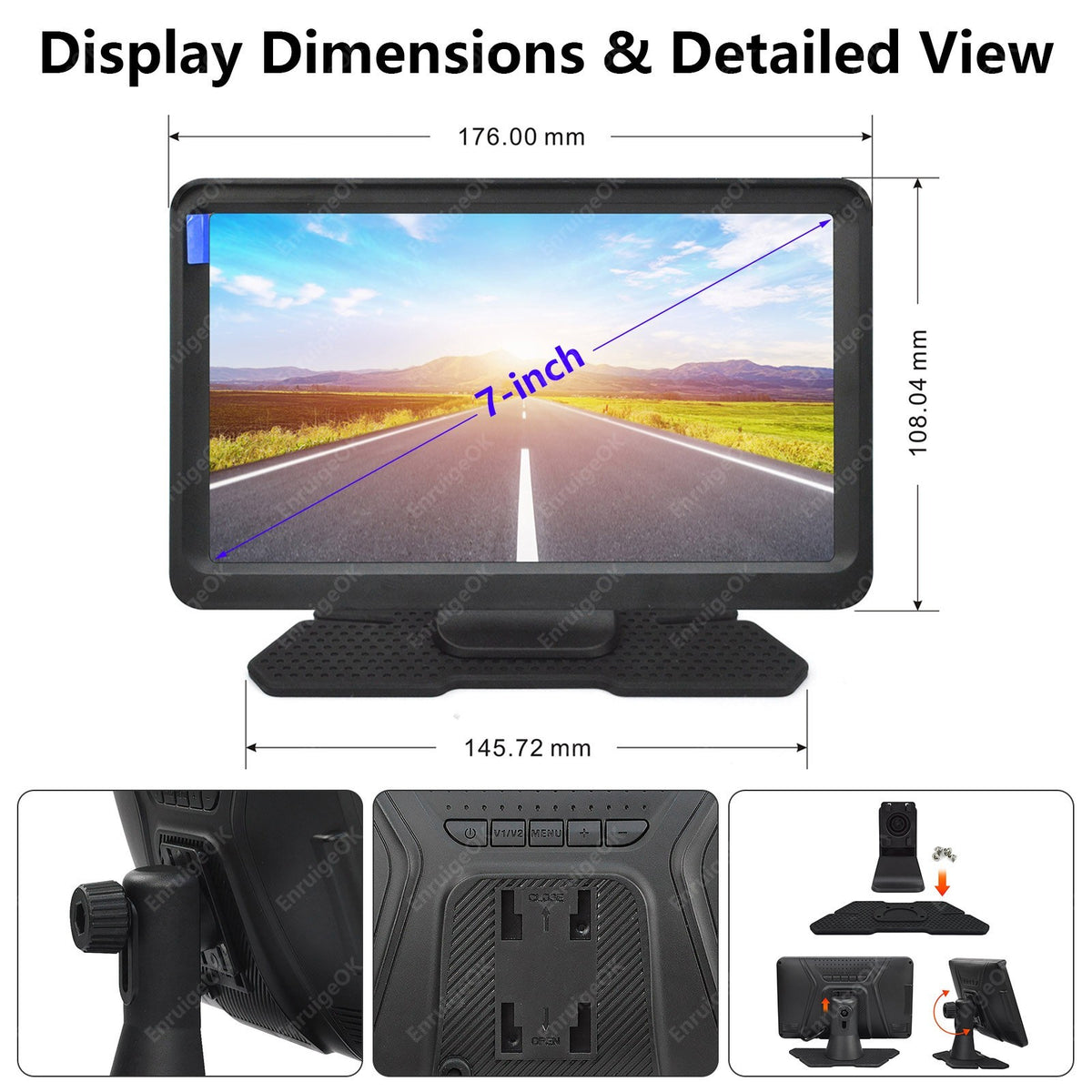

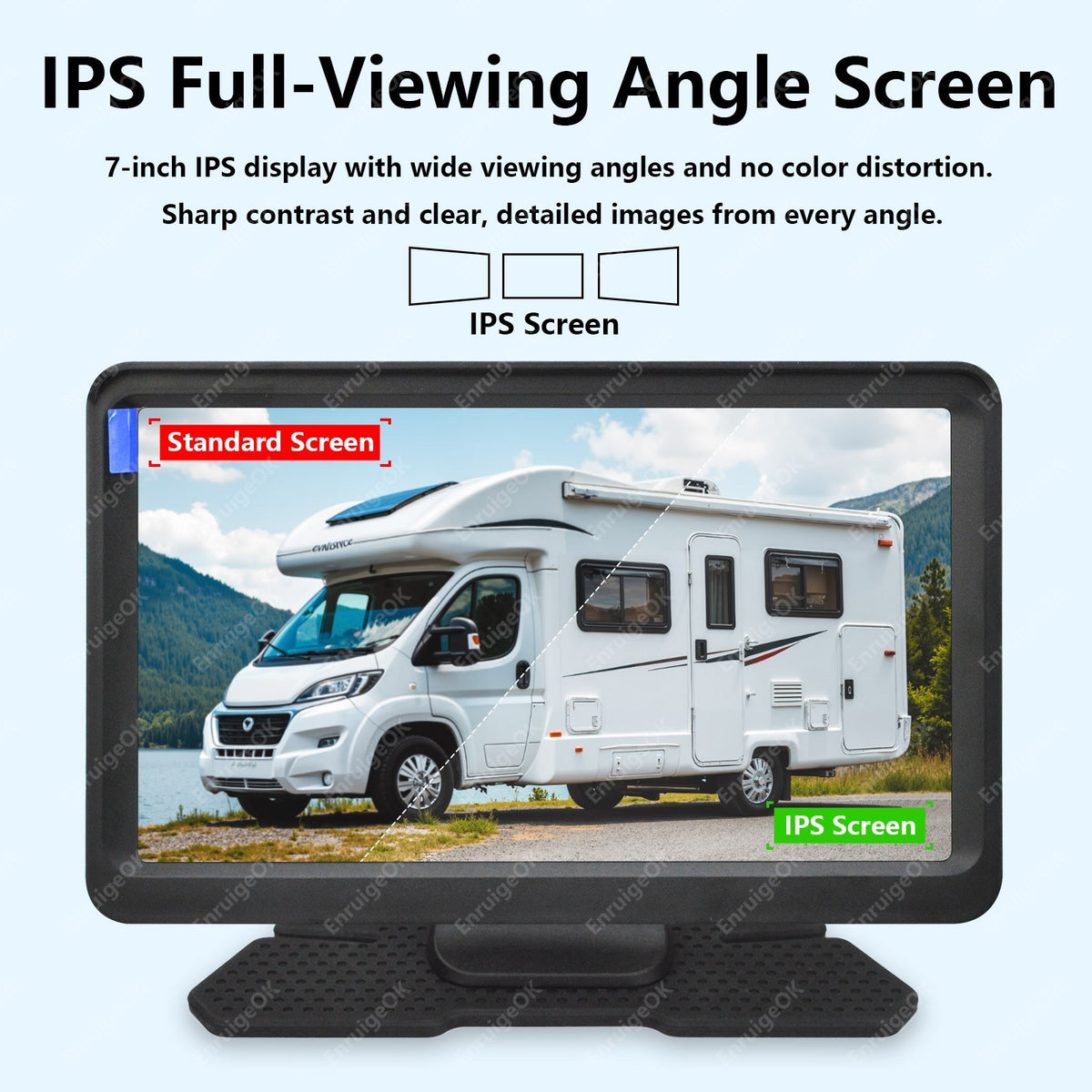

Display: 7-inch IPS display screen, 1024(RGB)x600 resolution

Aspect Ratio: 16:9 / 4:3 adjustable

TV System: PAL / NTSC auto-switching

Video Input: Dual video inputs (AV1/AV2). AV2 auto-activates when reversing gear is engaged.

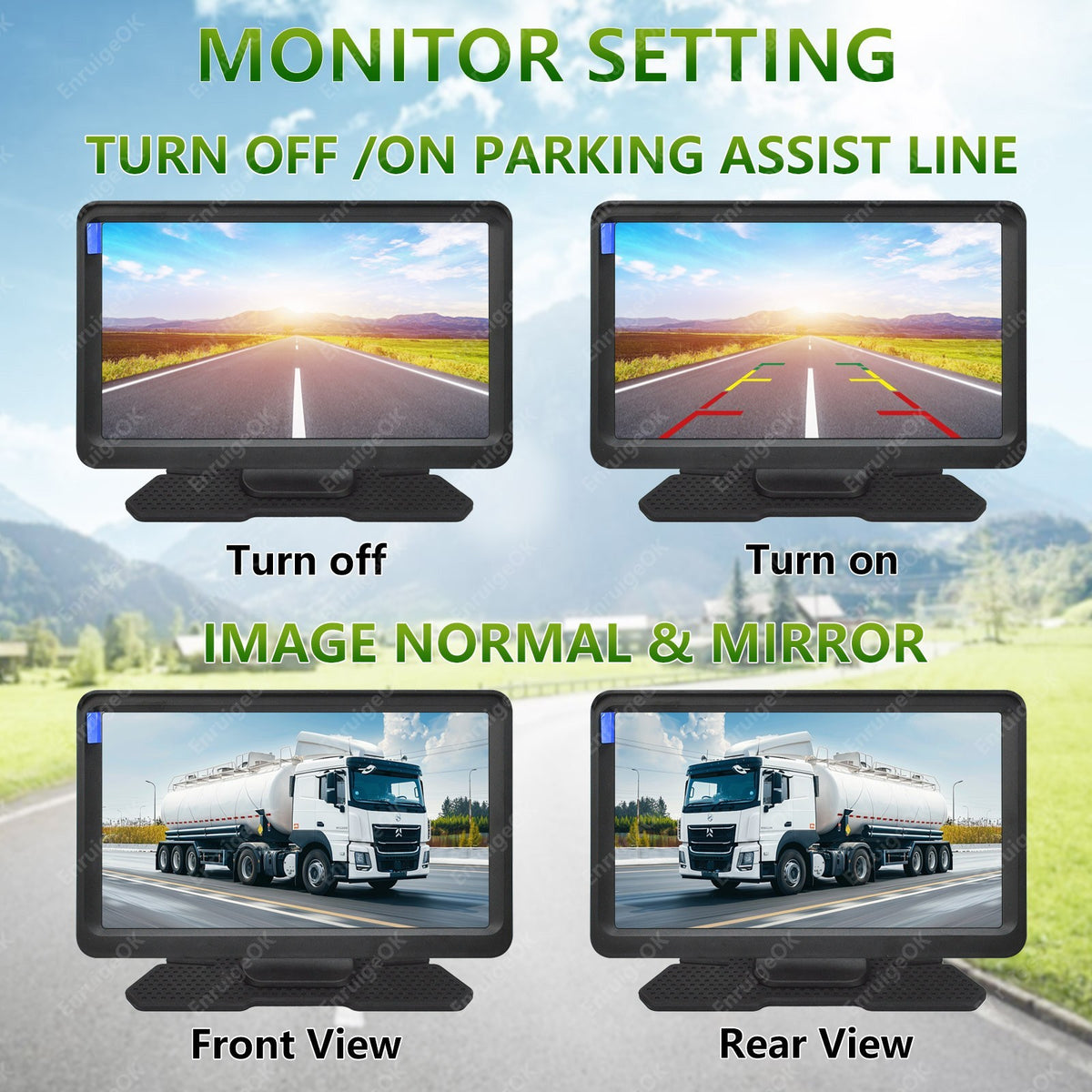

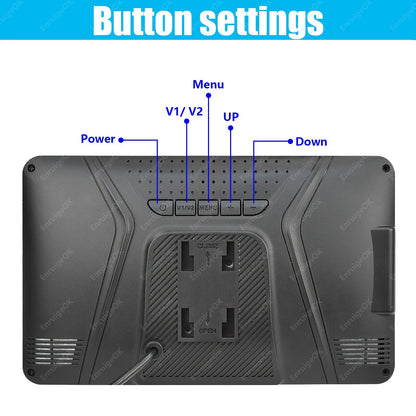

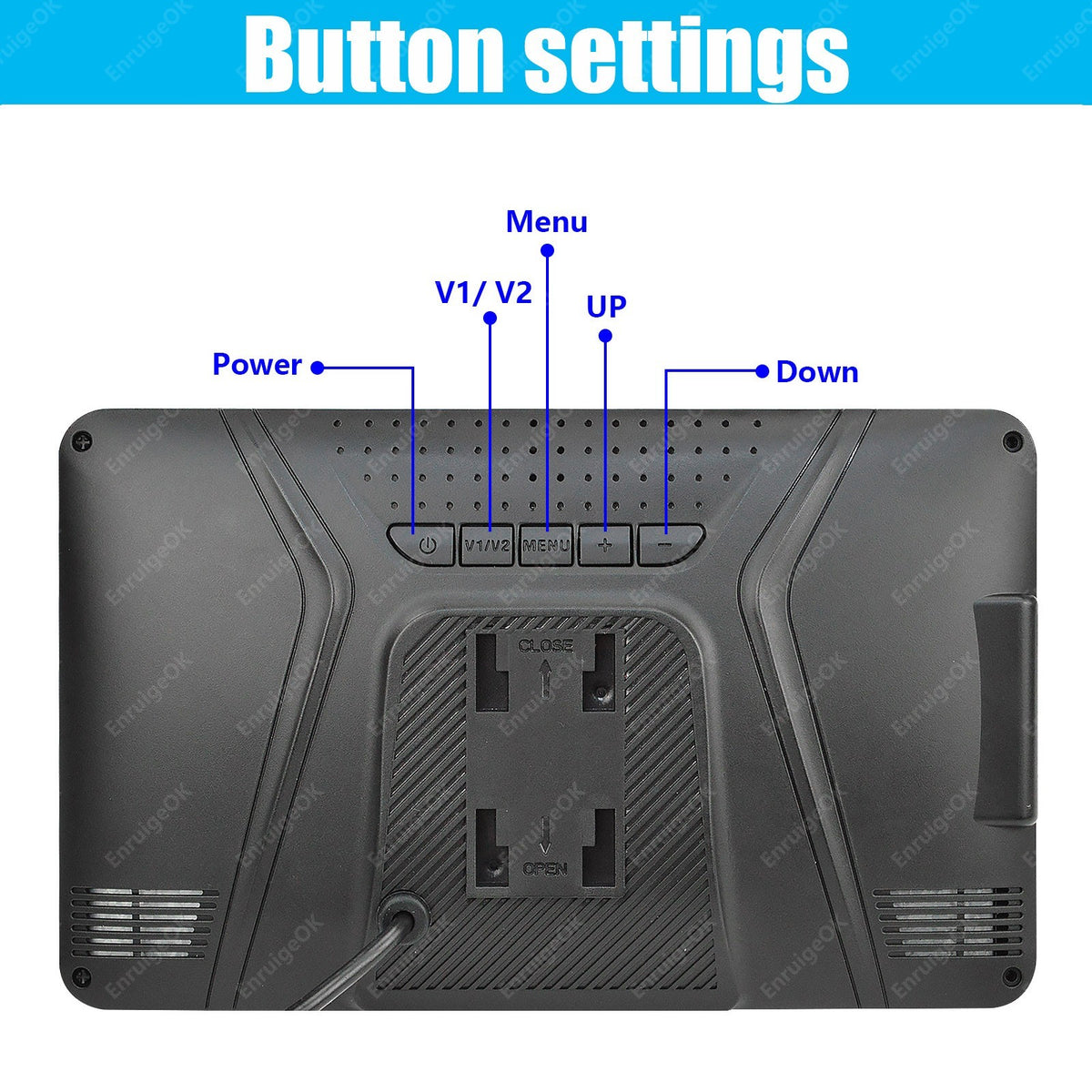

Image Modes: Normal / Day / Night / Vivid, switchable via +/- buttons

Mirror Function: Mirror/Original image selectable (ON/OFF)

Parking Guidelines: Ruler lines adjustable (ON/OFF) via menu

Reverse Delay: Adjustable delay after reversing (0–15 seconds)

Menu Settings: Brightness, Contrast, Saturation

Rear View Adjustments: Left/right image flip available

No Signal: Blue screen when no video input is detected

Power Supply: DC 9V–35V

Power Consumption: 6W

OSD Language Options: English, Simplified Chinese, Traditional Chinese, Japanese, French, German, Korean, Russian
