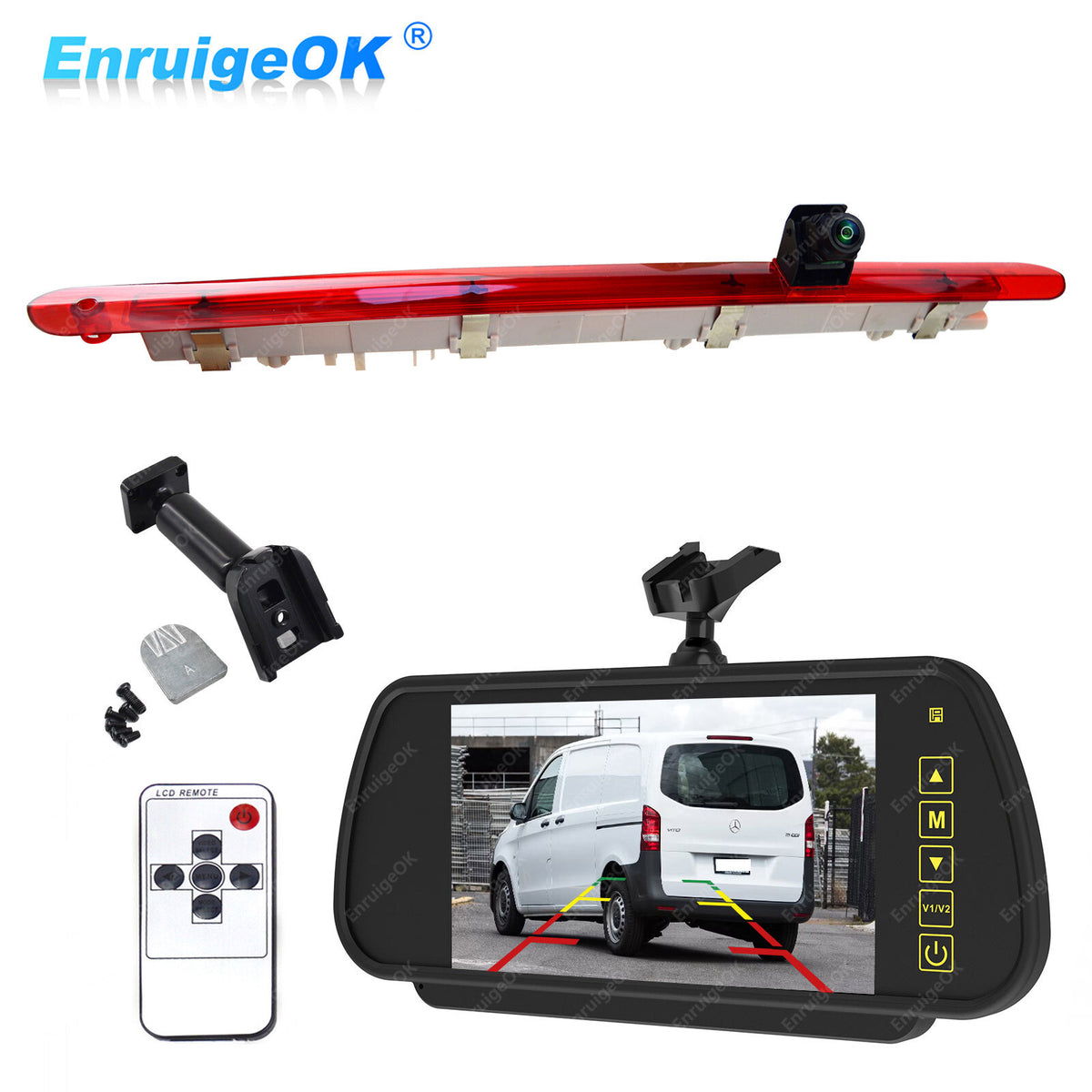

7" Monitor Rear Brake Light Reversing Camera for Mercedes Vito W447 Tailgate

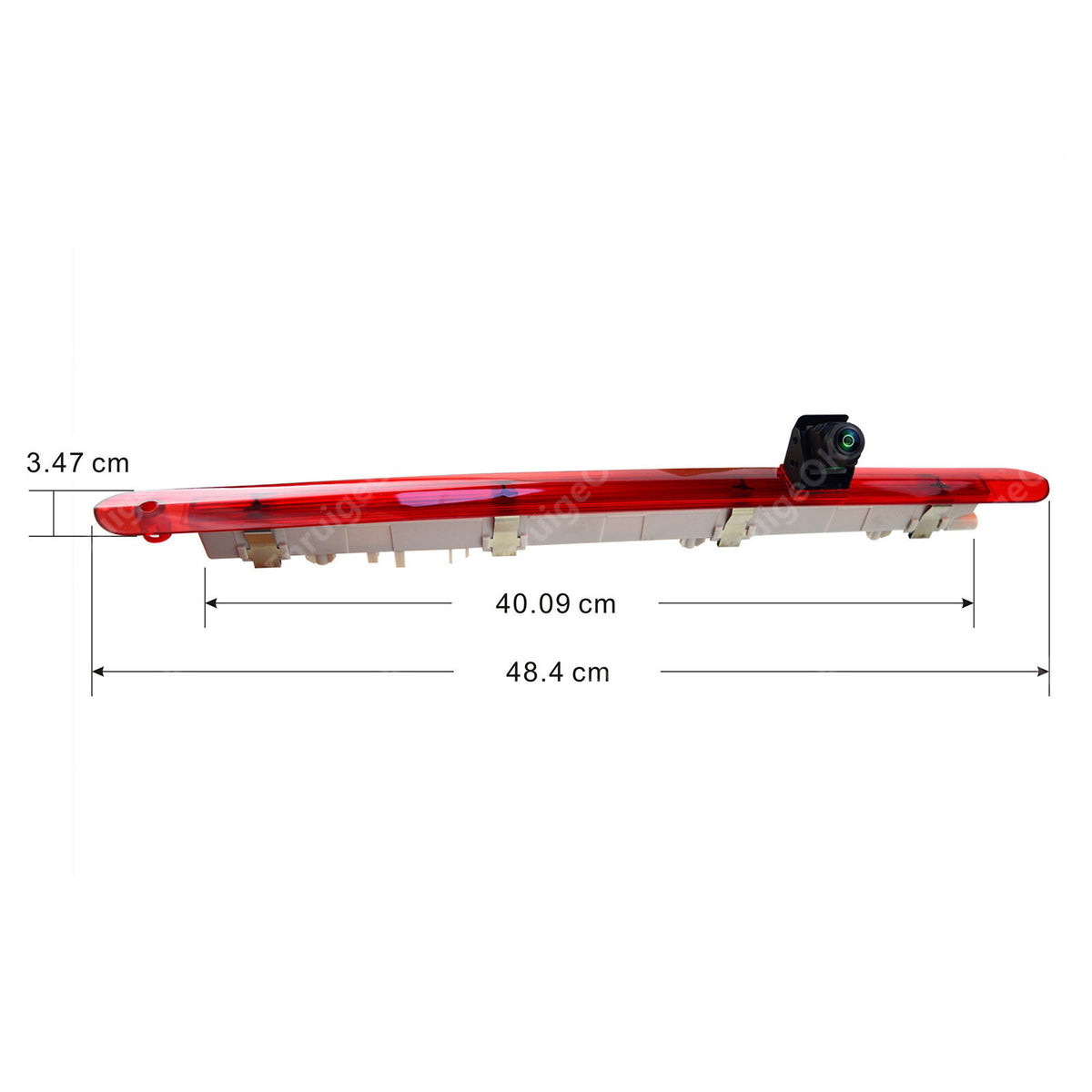

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

Camera Compatibility

✅Mercedes-Benz Vito [W447] (2014-Onwards) *TAILGATE LIFT ONLY*

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

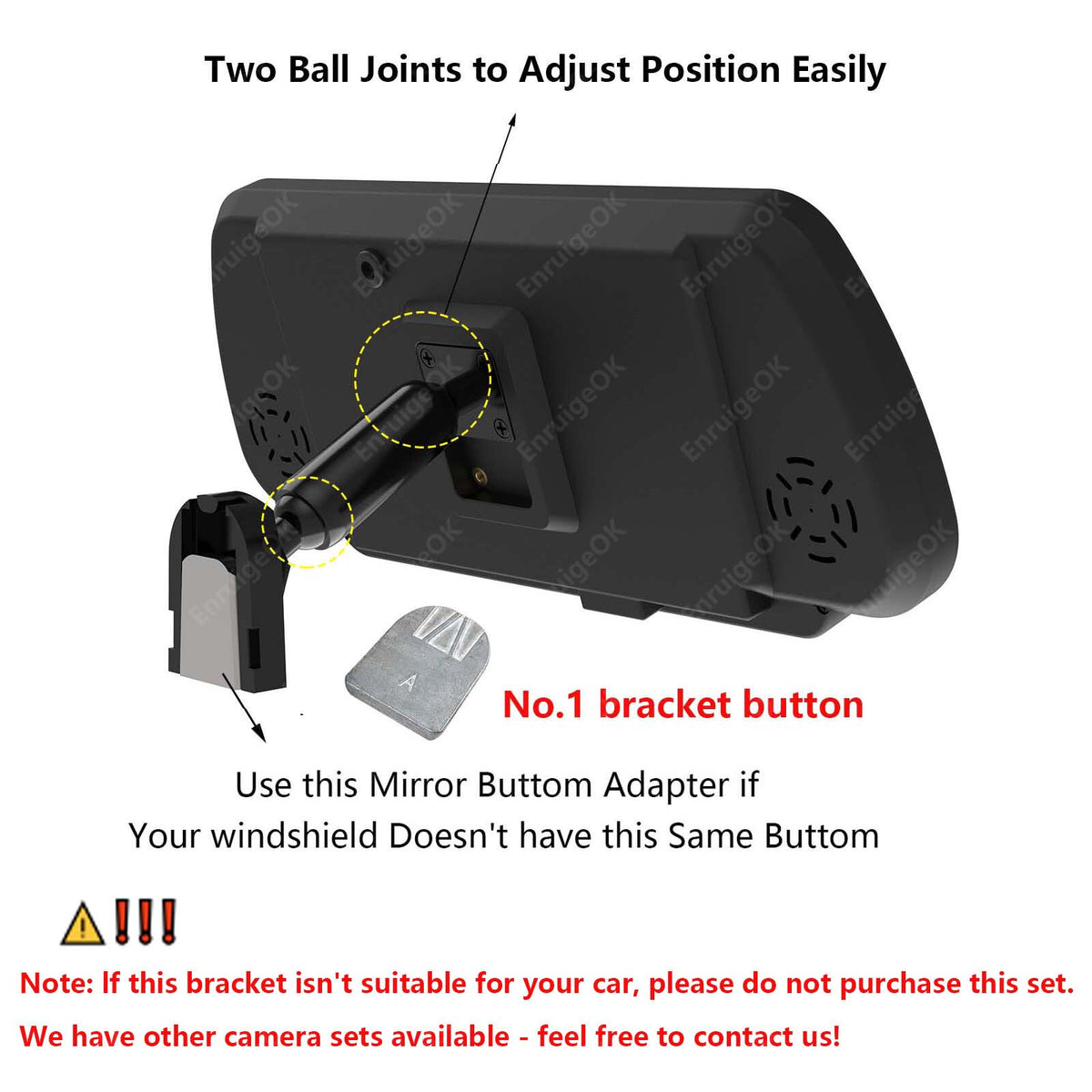

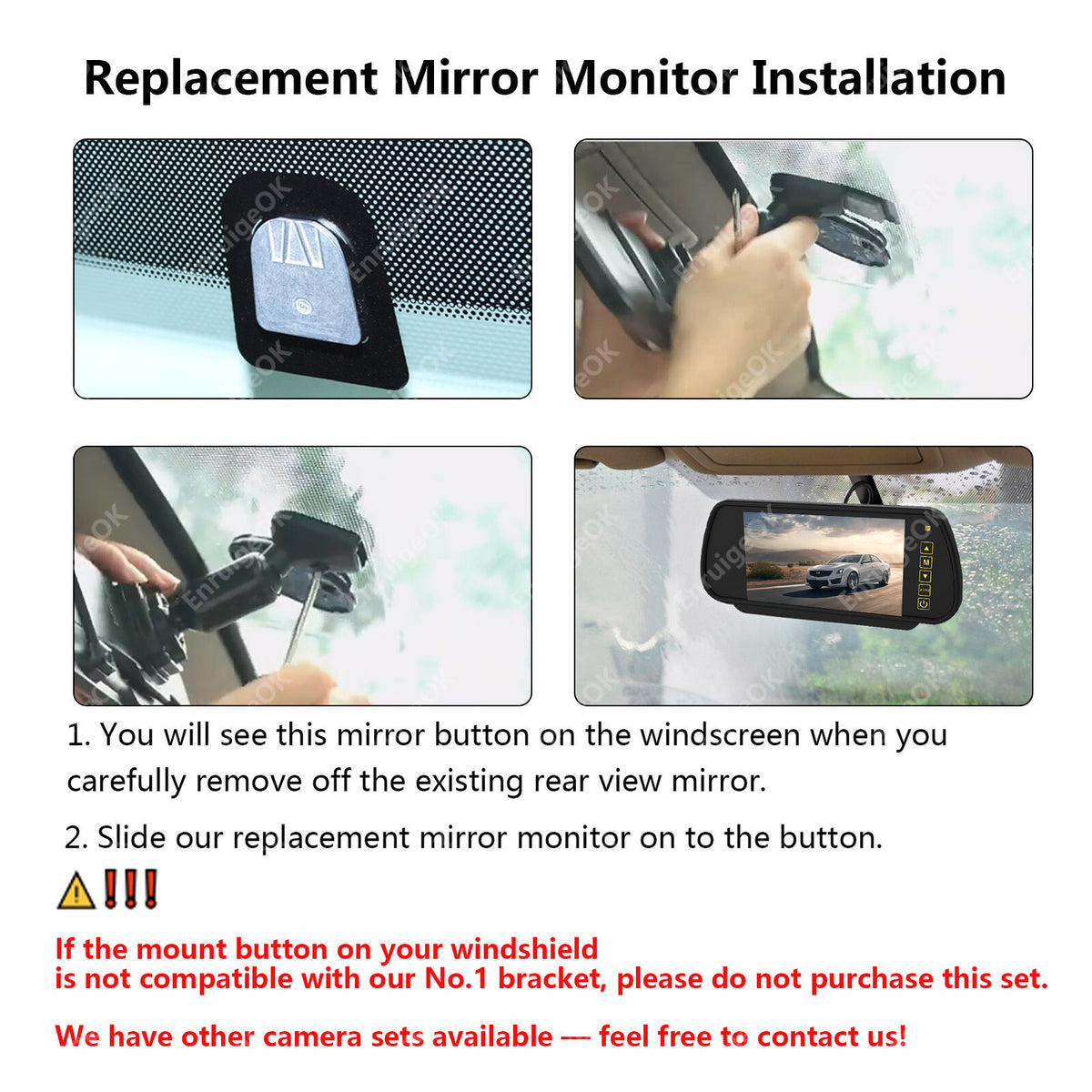

Monitor Bracket Note

This set comes with a #1 bracket by default. Please confirm compatibility by sending us a photo of your windshield button or mirror bracket if unsure.

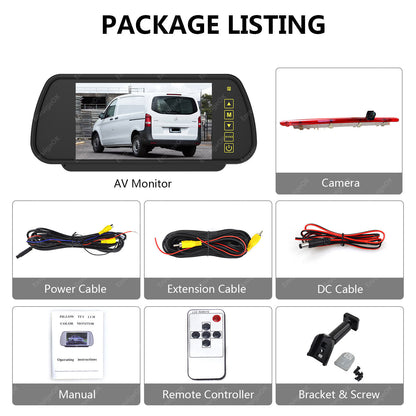

Package contents

1 X Brake light camera

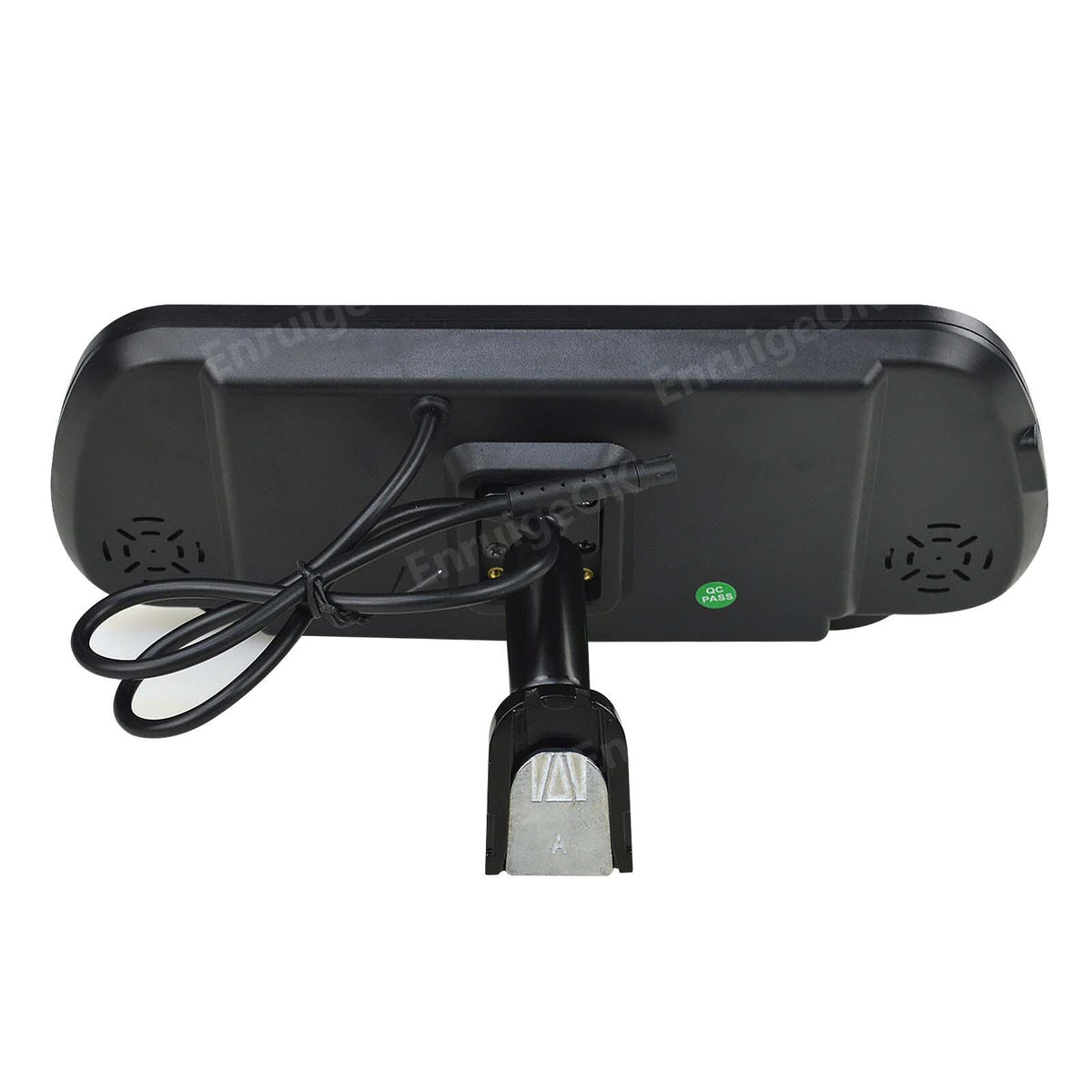

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X 2.5m monitor power cable

1 X 10m/33ft. video extension cable

1 X 1m DC power cable

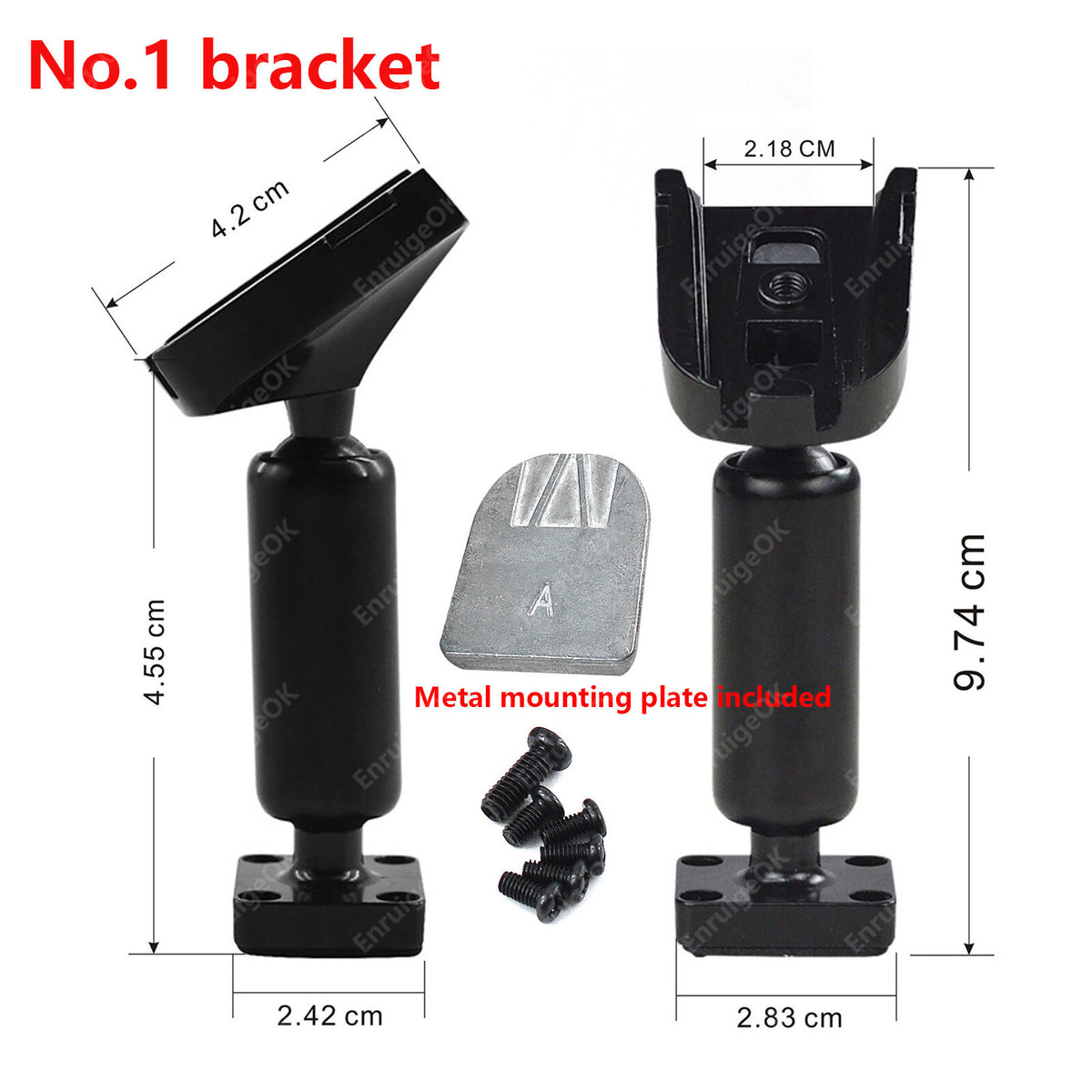

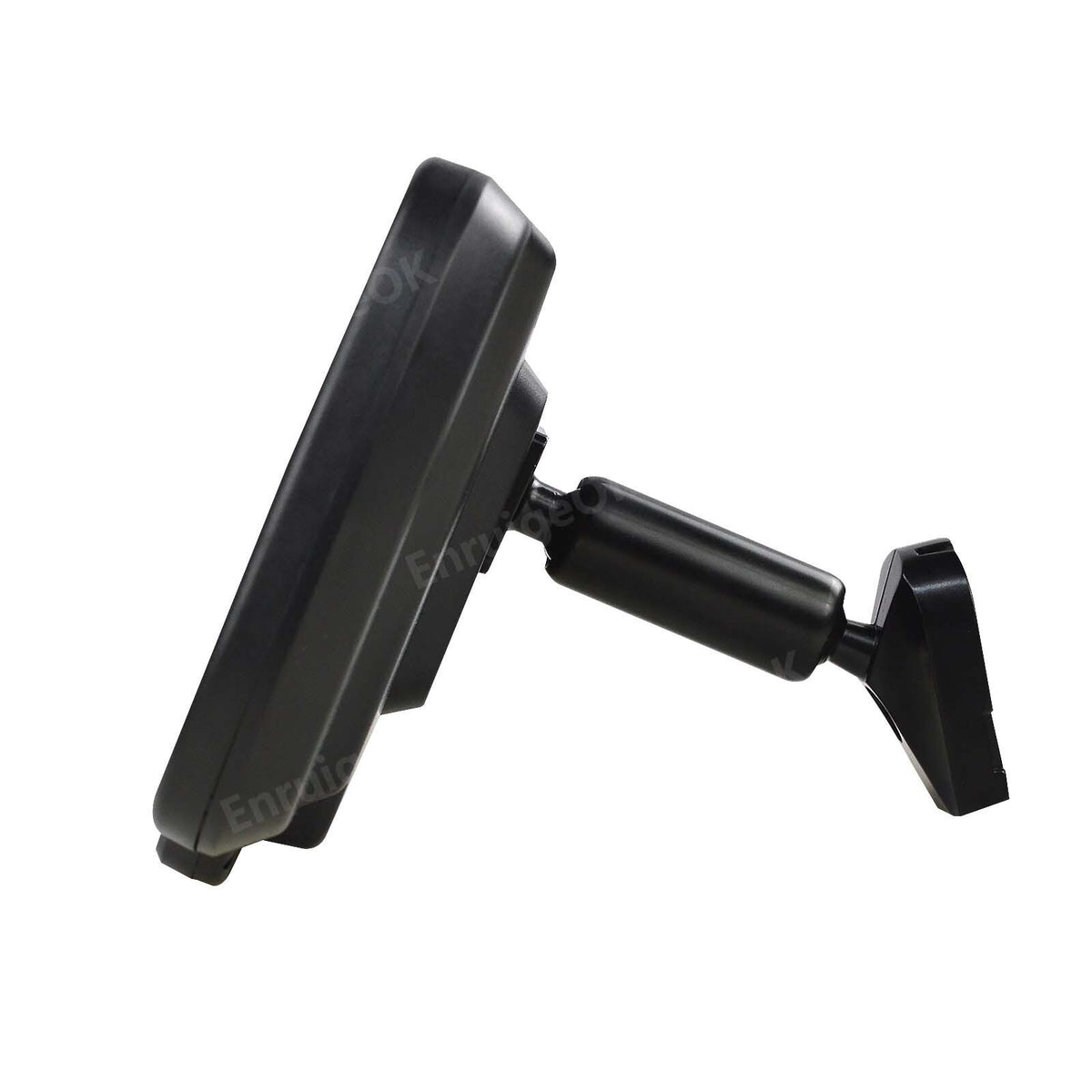

1 X #1 Bracket(check your windshield button)

1 X Manual

Description

It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

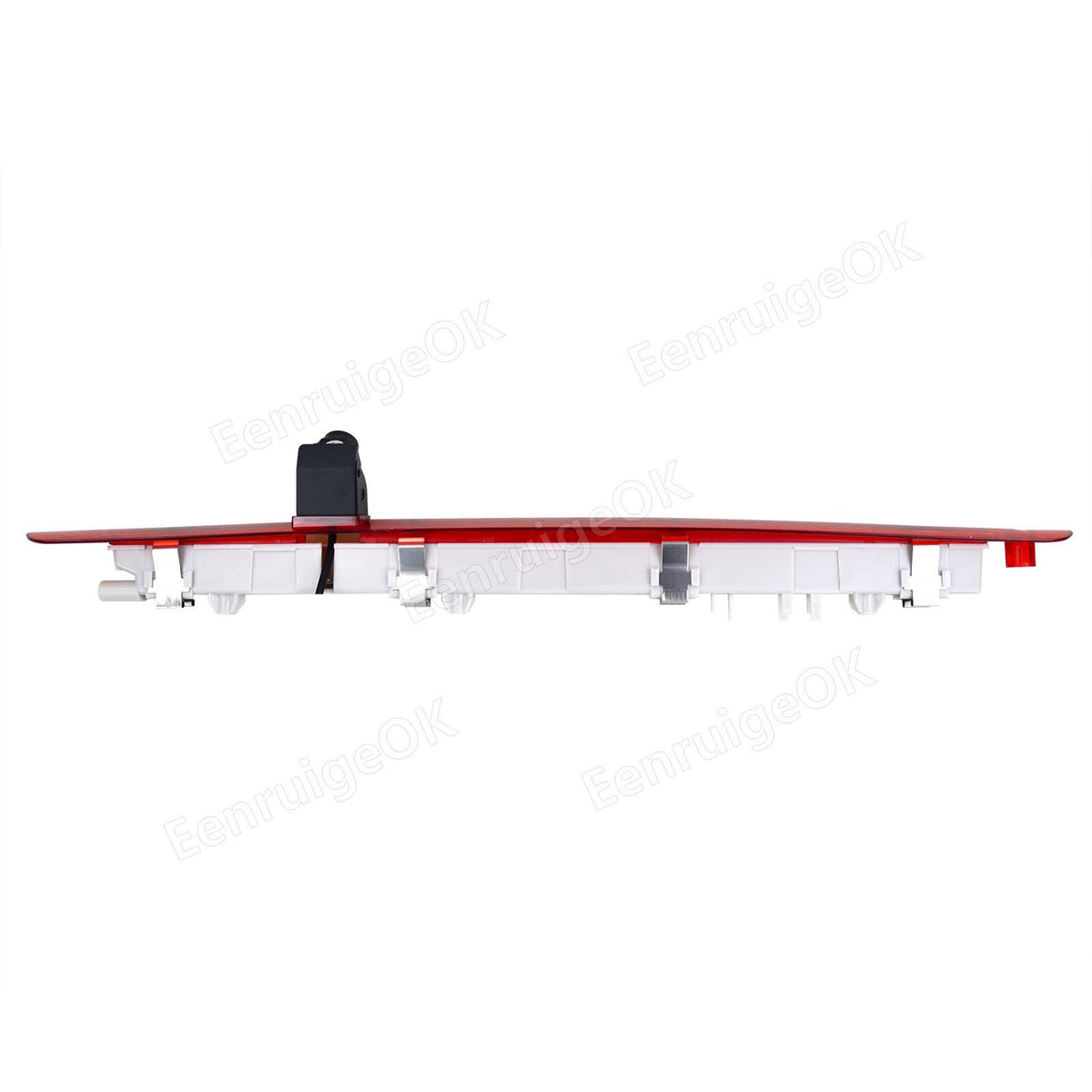

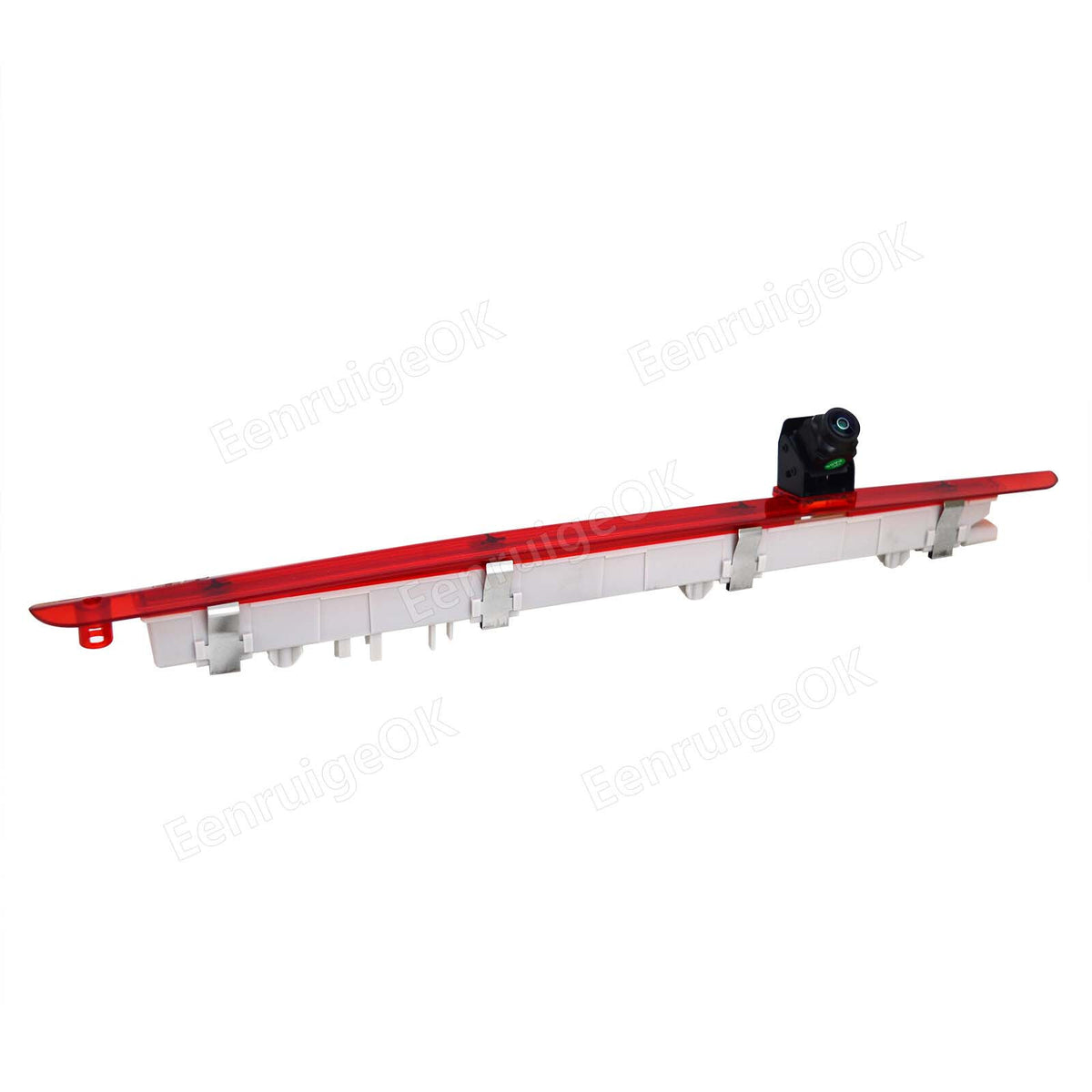

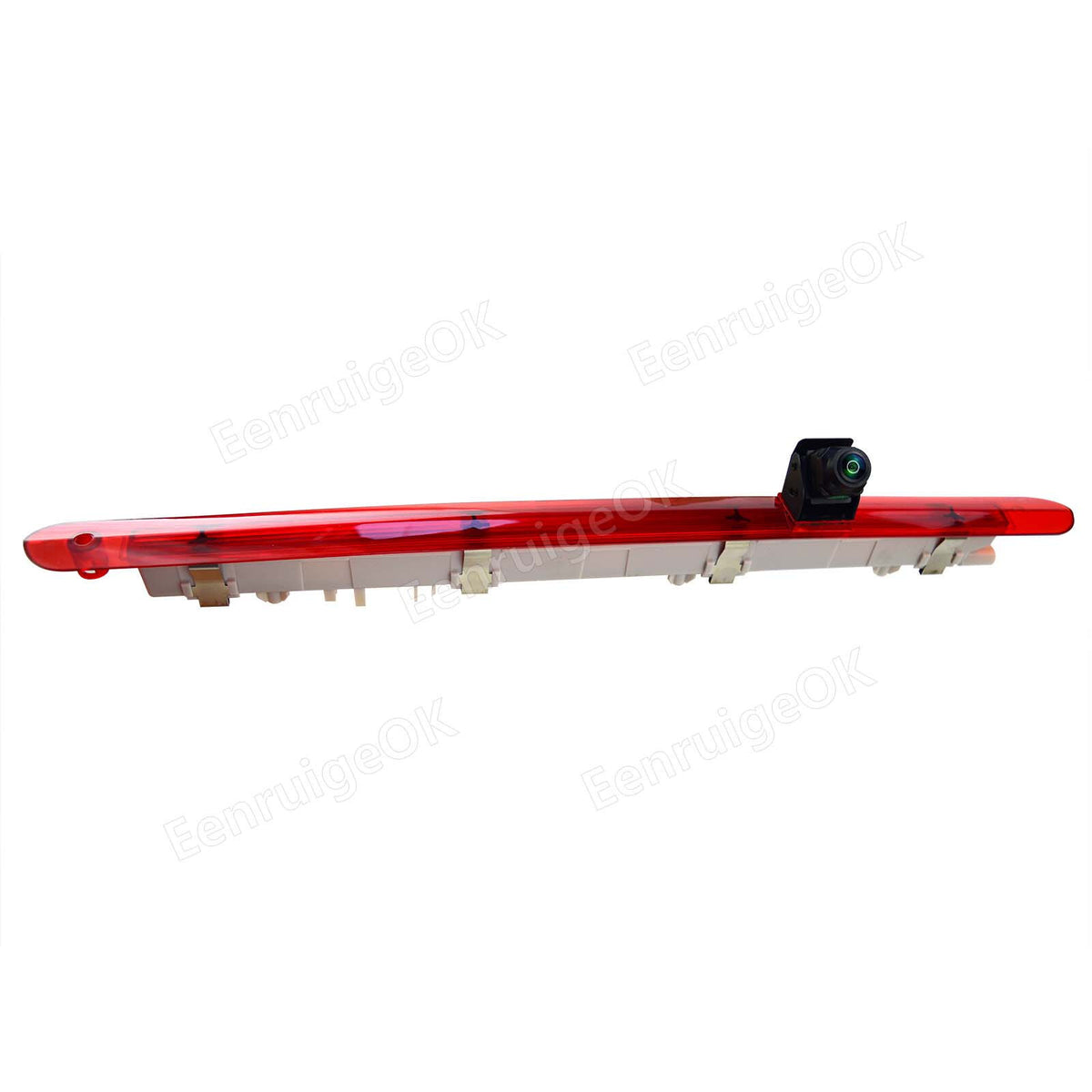

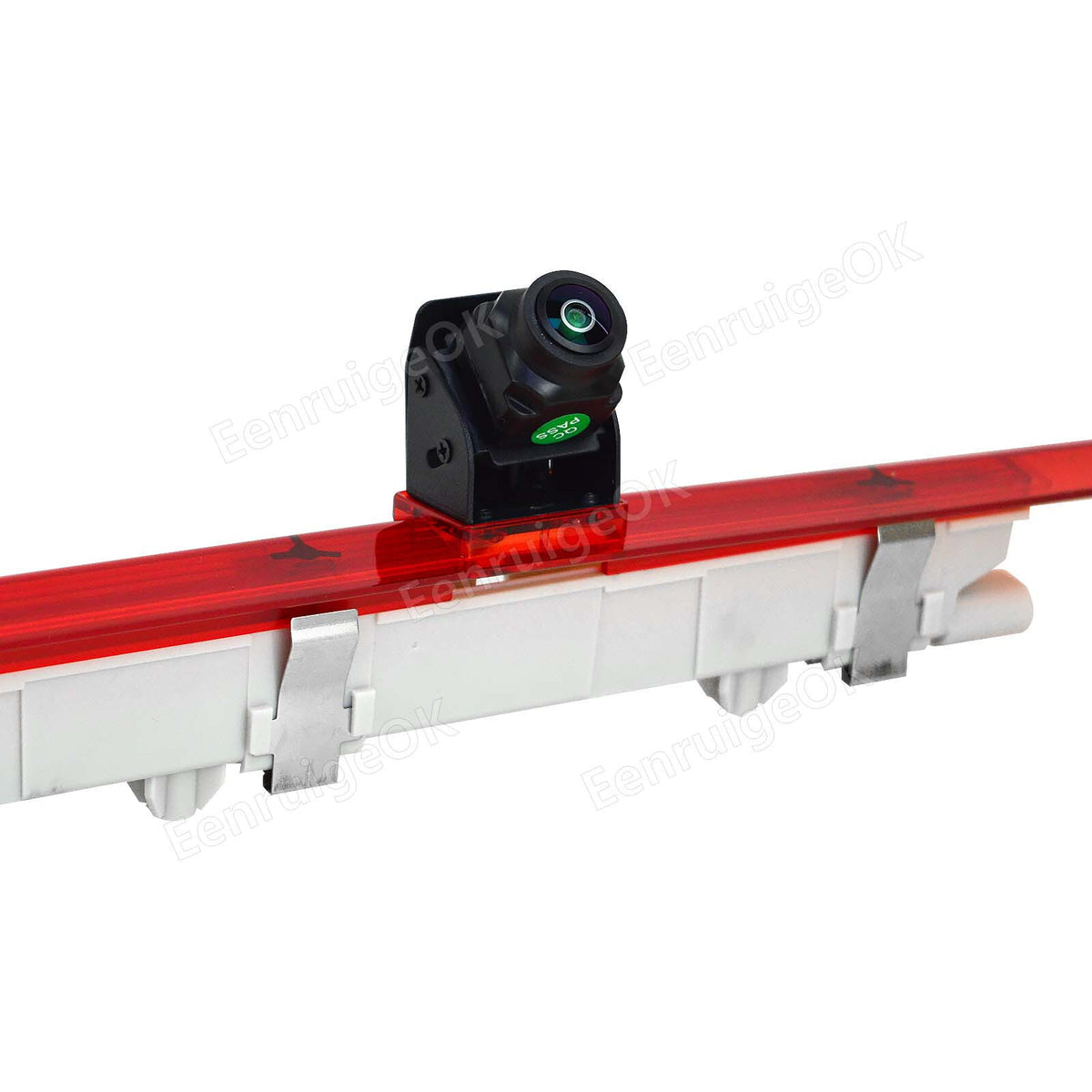

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

This brake light camera uses a 1/3" CMOS sensor with enhanced color imaging.

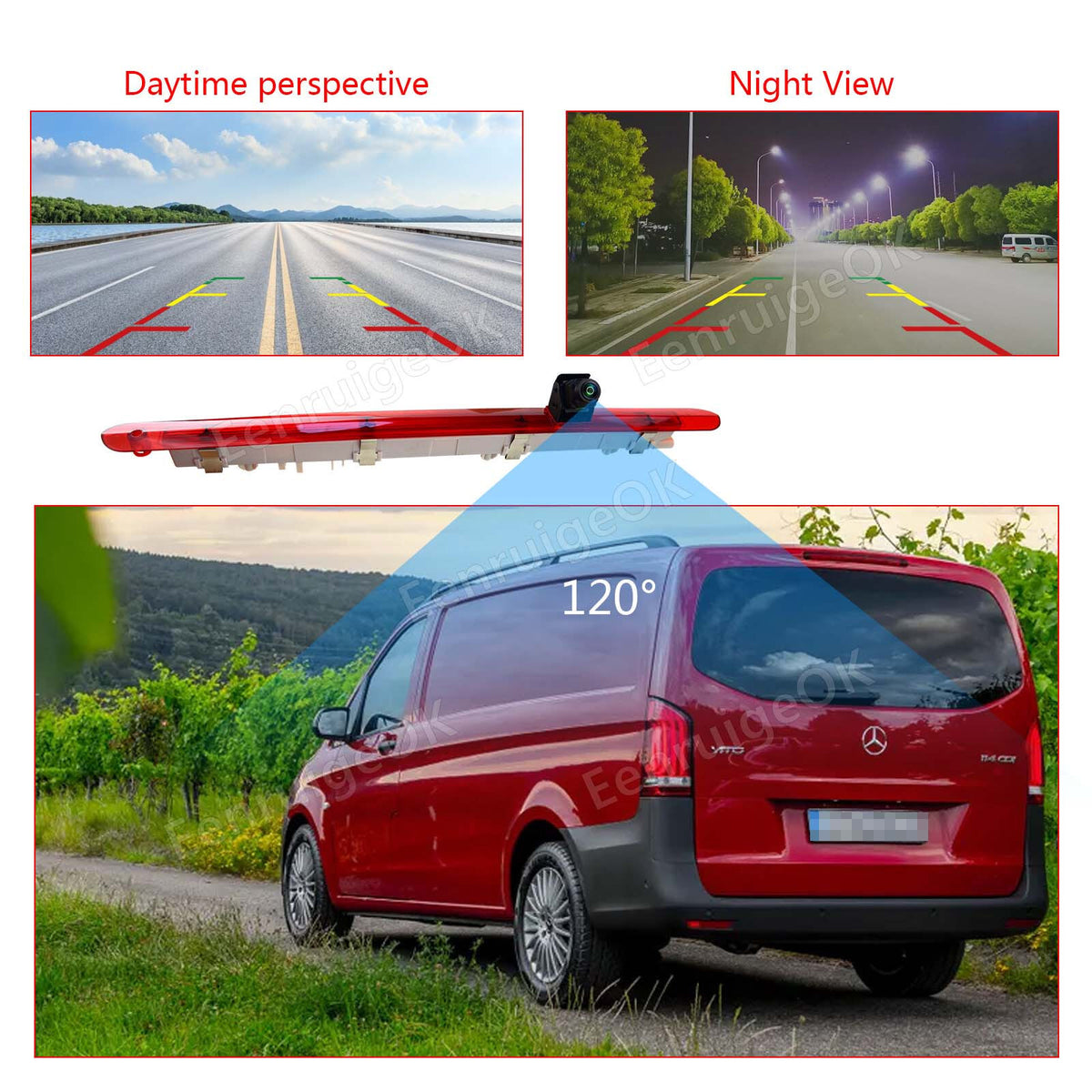

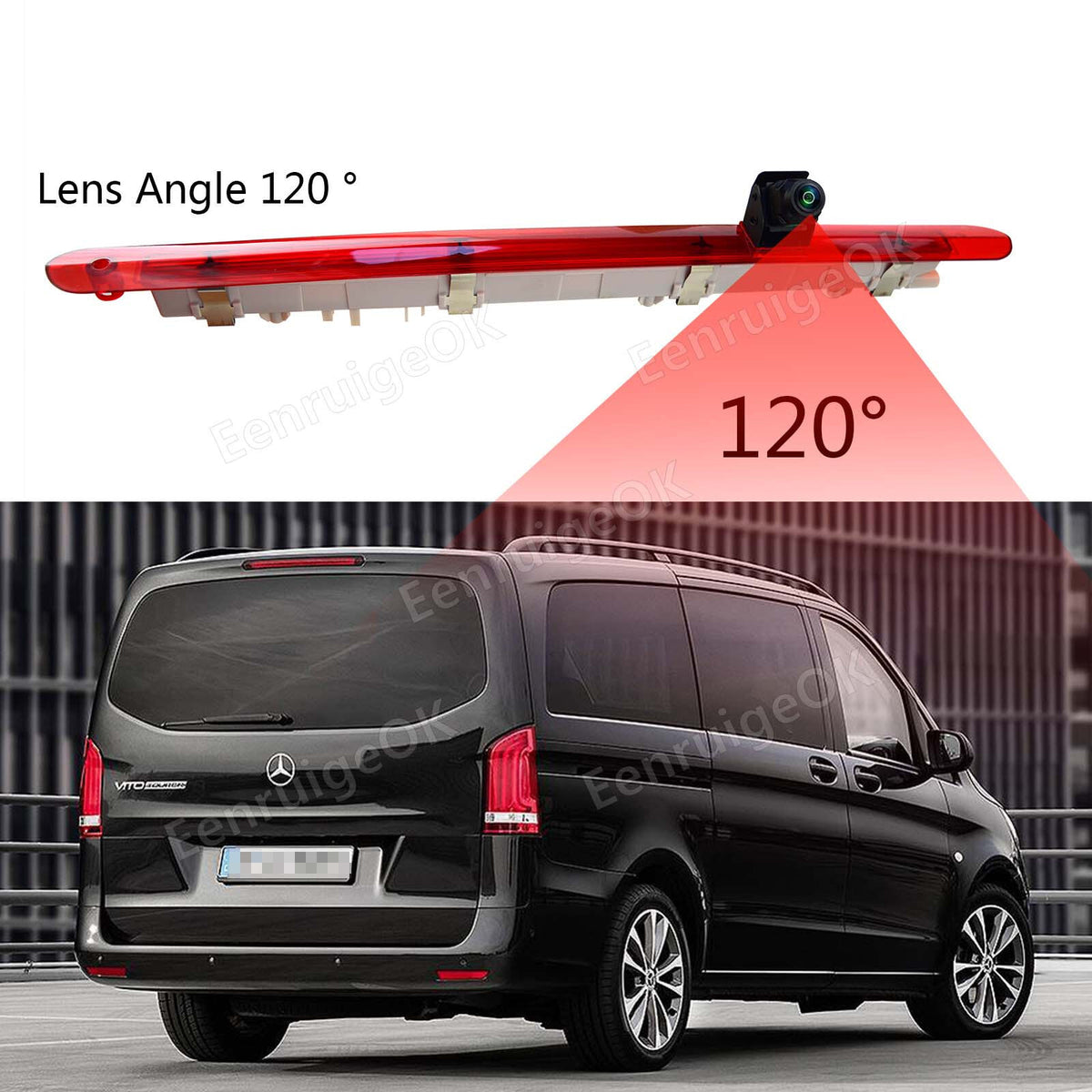

With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

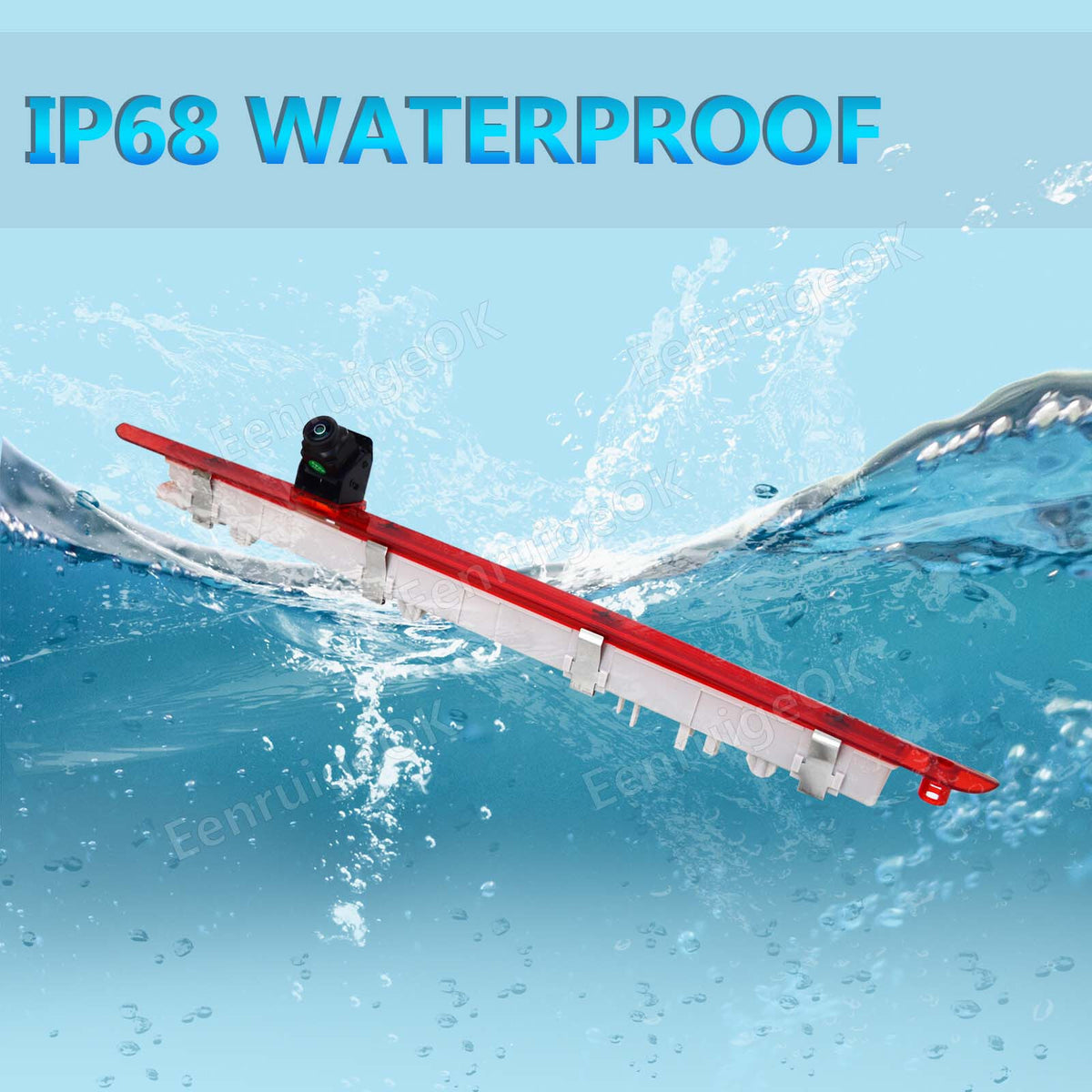

100% Waterproof: Built with an IP68 rating, this camera is fully waterproof.

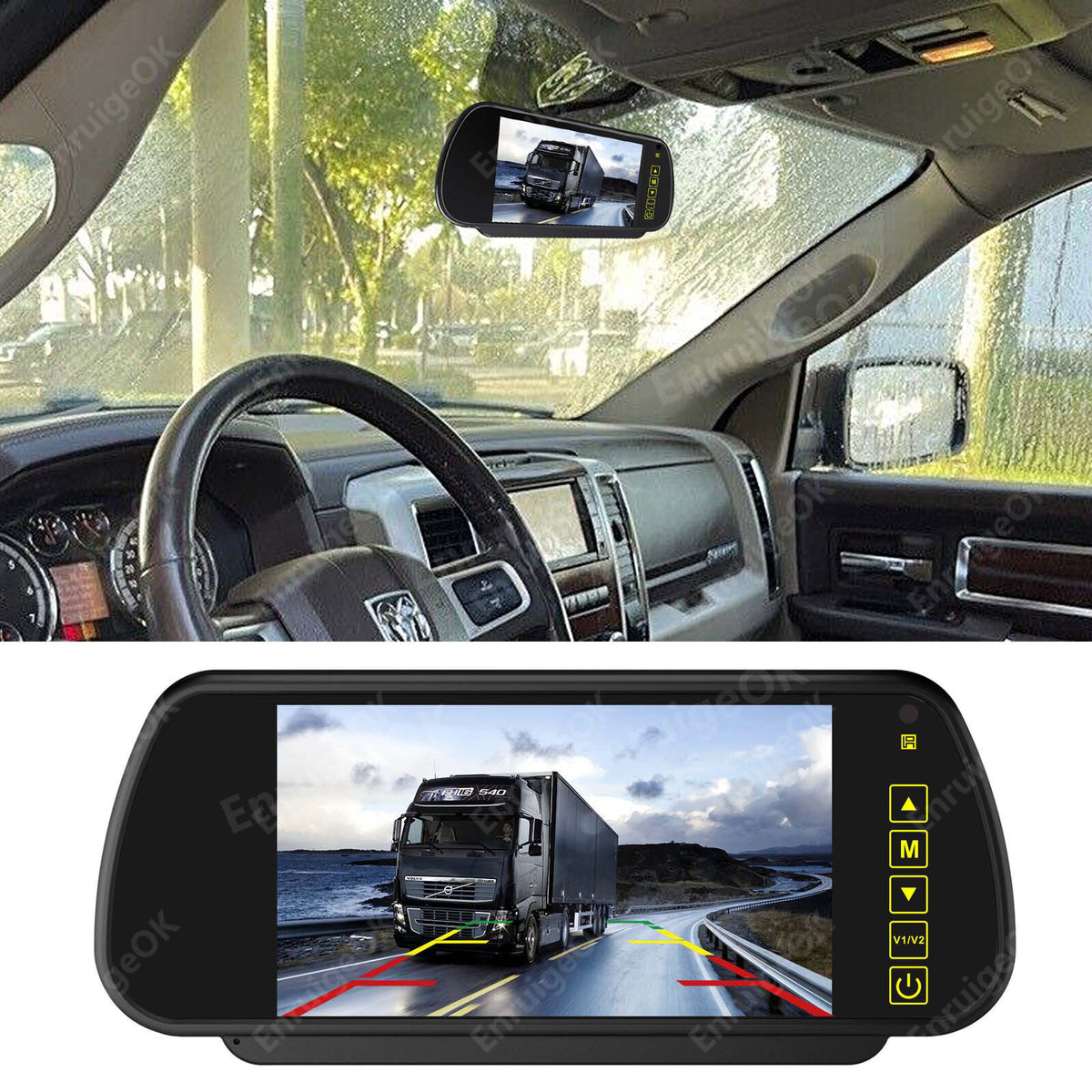

The 7" Color TFT-LCD Monitor features 2 video inputs and an 800*480 (RGB) resolution, making it compatible with the brake light rearview camera.

Camera Specifications

Image sensor: 1/3" CMOS

Lens: 2.8mm

Effective pixel: 960(H)x480(V)

TV Line: 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1-0.5Lux/F=1.2(0 Lux with LED on)

Power: DC12V

Operating temperature: -20℃ to +70℃

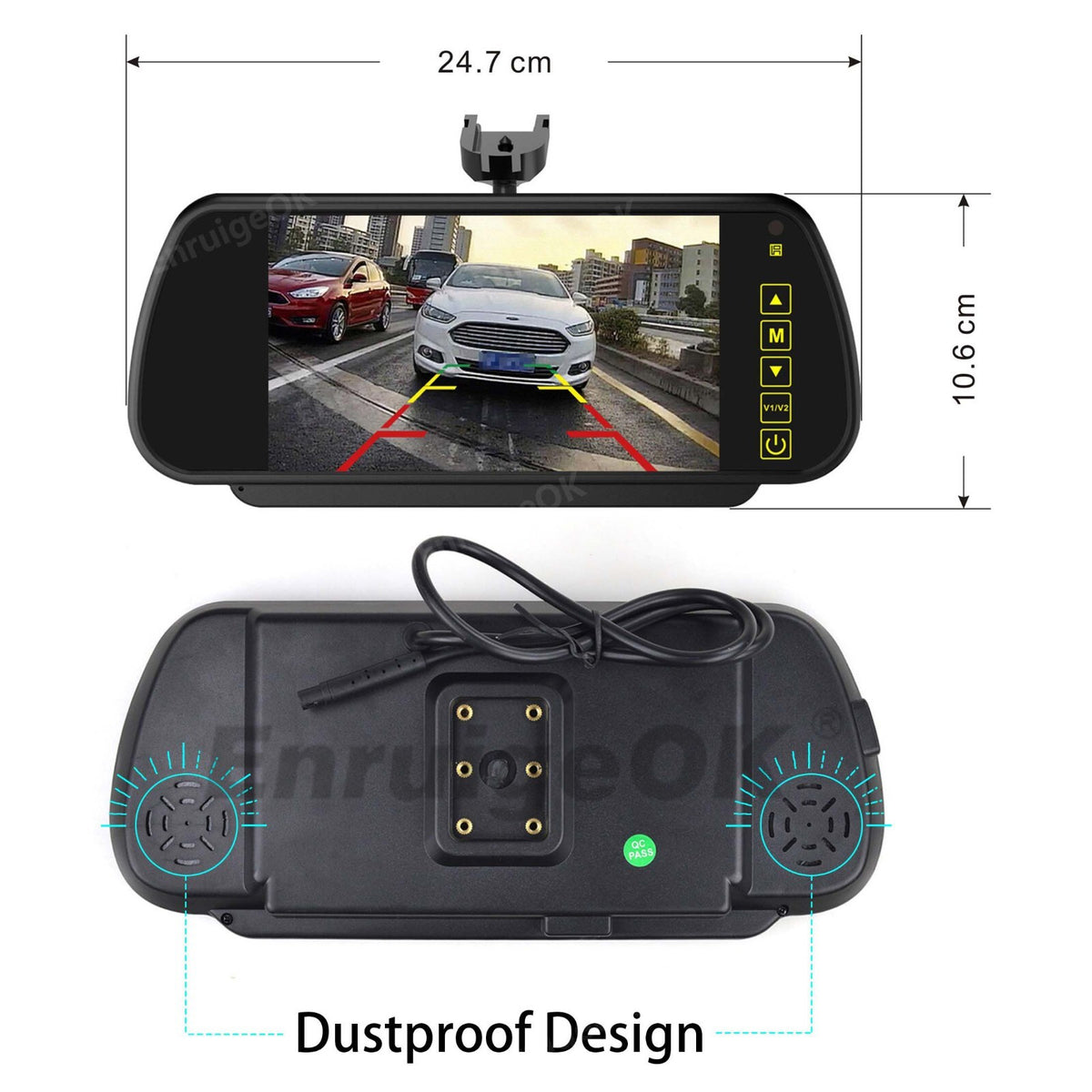

Monitor Specifications

Screen: 7 inch

Resolution: 800x(RGB)x480

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

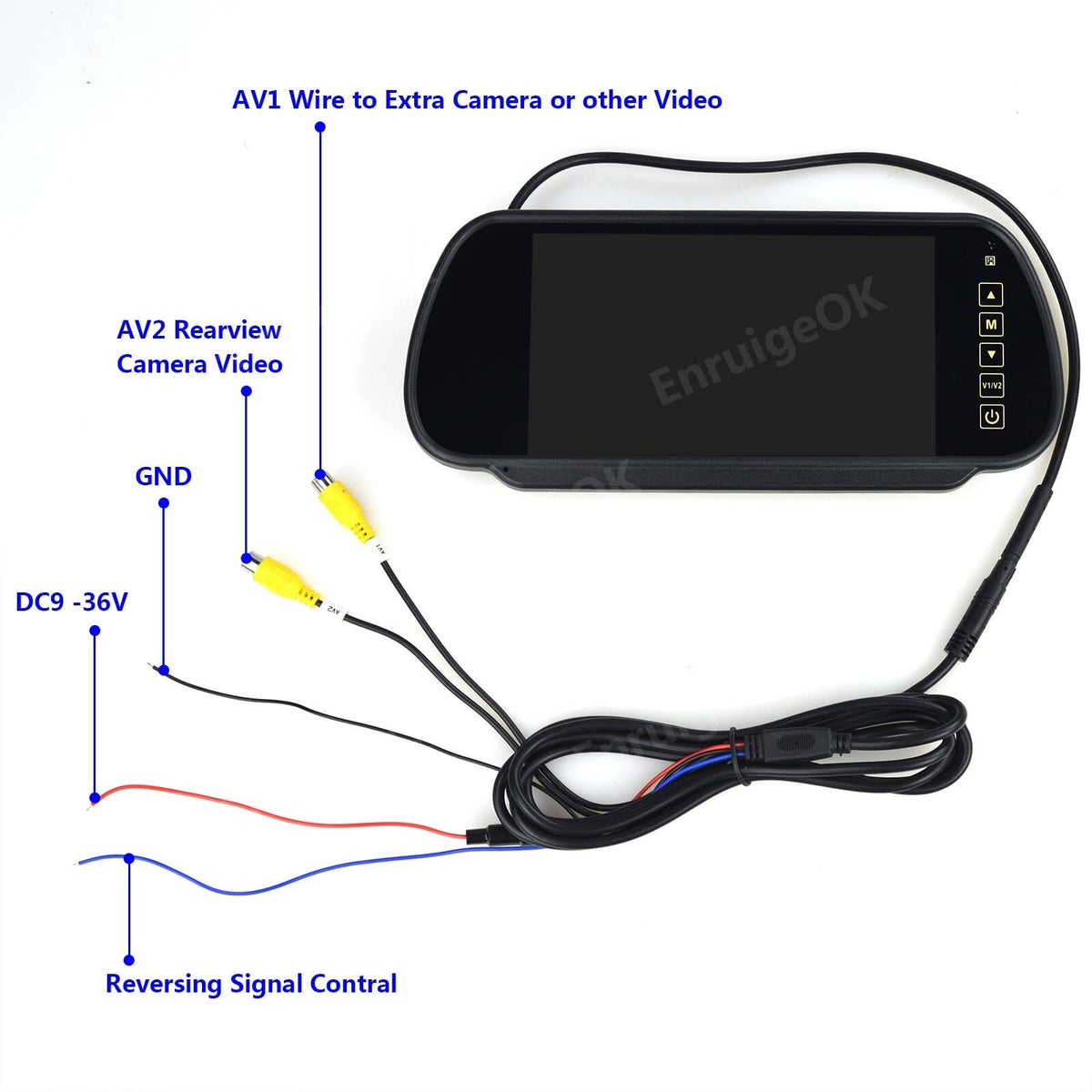

Video Input: Dual video inputs, AV1 and AV2(For reversing camera) video input, the monitor will automatically turn on and switch to the rear view camera (image) when the reversing gear is engaged.

Blue screen displayed when no signal is detected.

Parking Guidelines: Adjustable (ON/OFF via monitor settings).

Power Supply: DC 9V-35V

Power consumption: 6W

Rear watching: Image can be changed left and right

Operate mode: The touch key operation and remote control

Remote control: a CR2025 button battery (battery not included)

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
