7" Monitor & Dual Rear View Reversing Camera for Motorhome RV Truck Bus Caravan

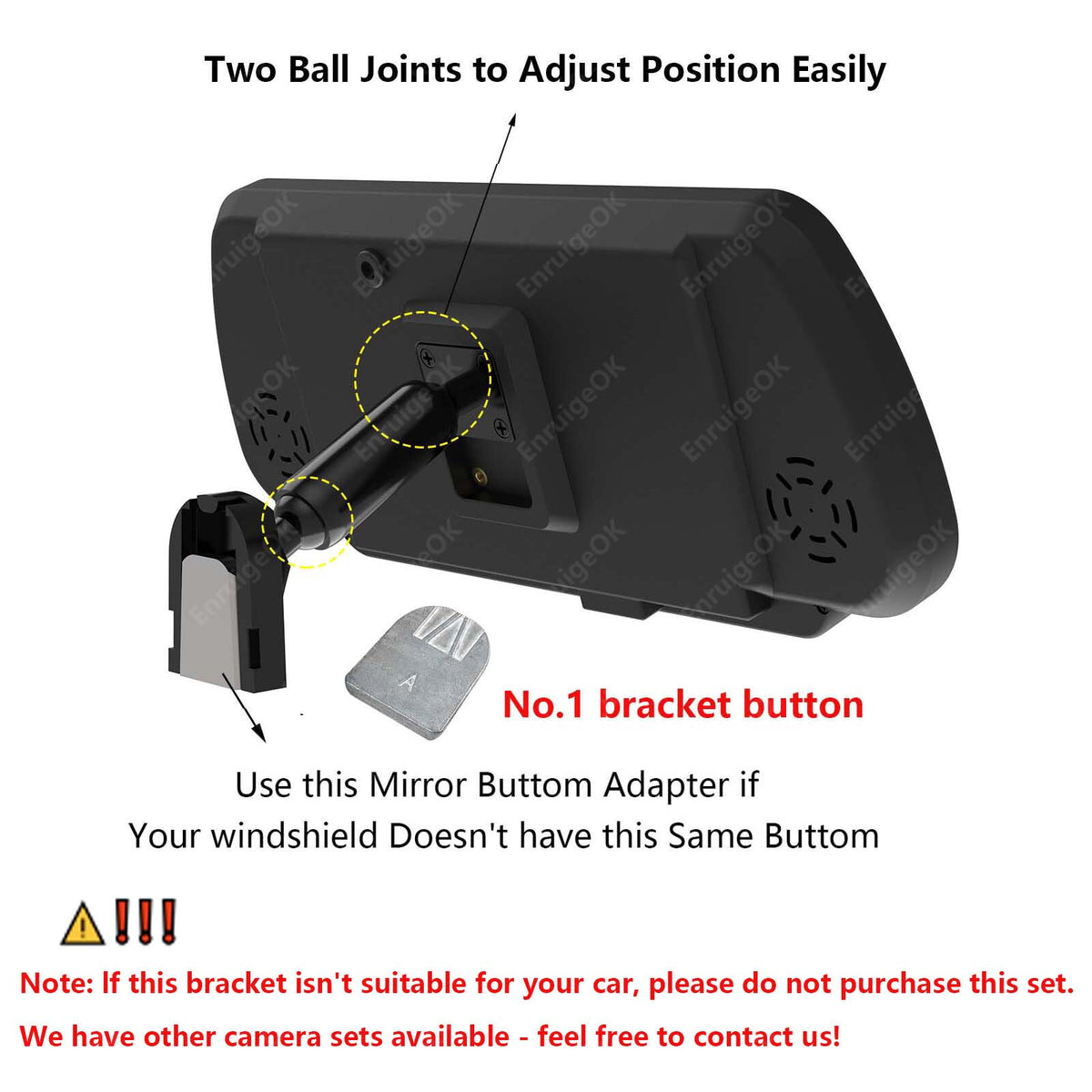

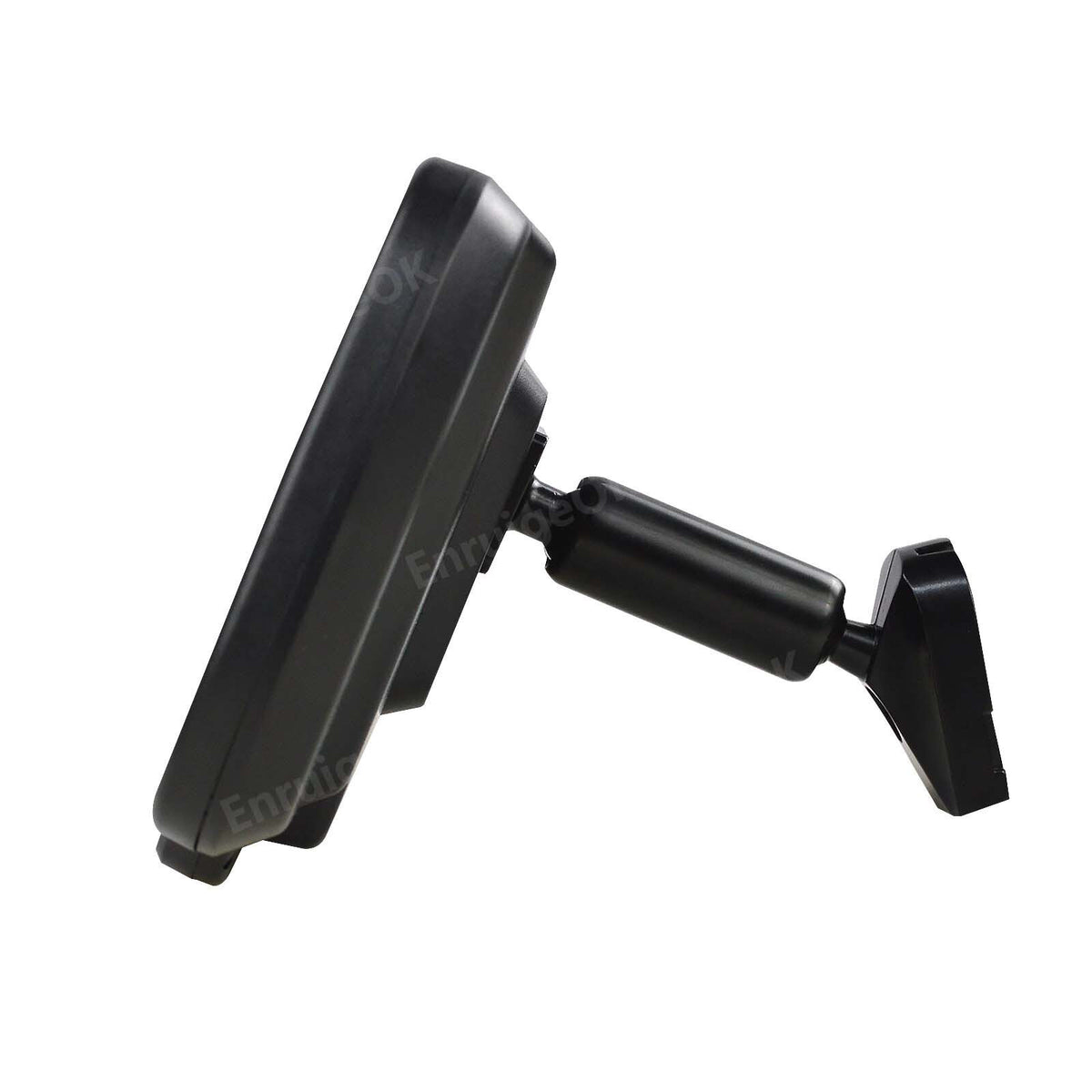

Monitor Bracket Note

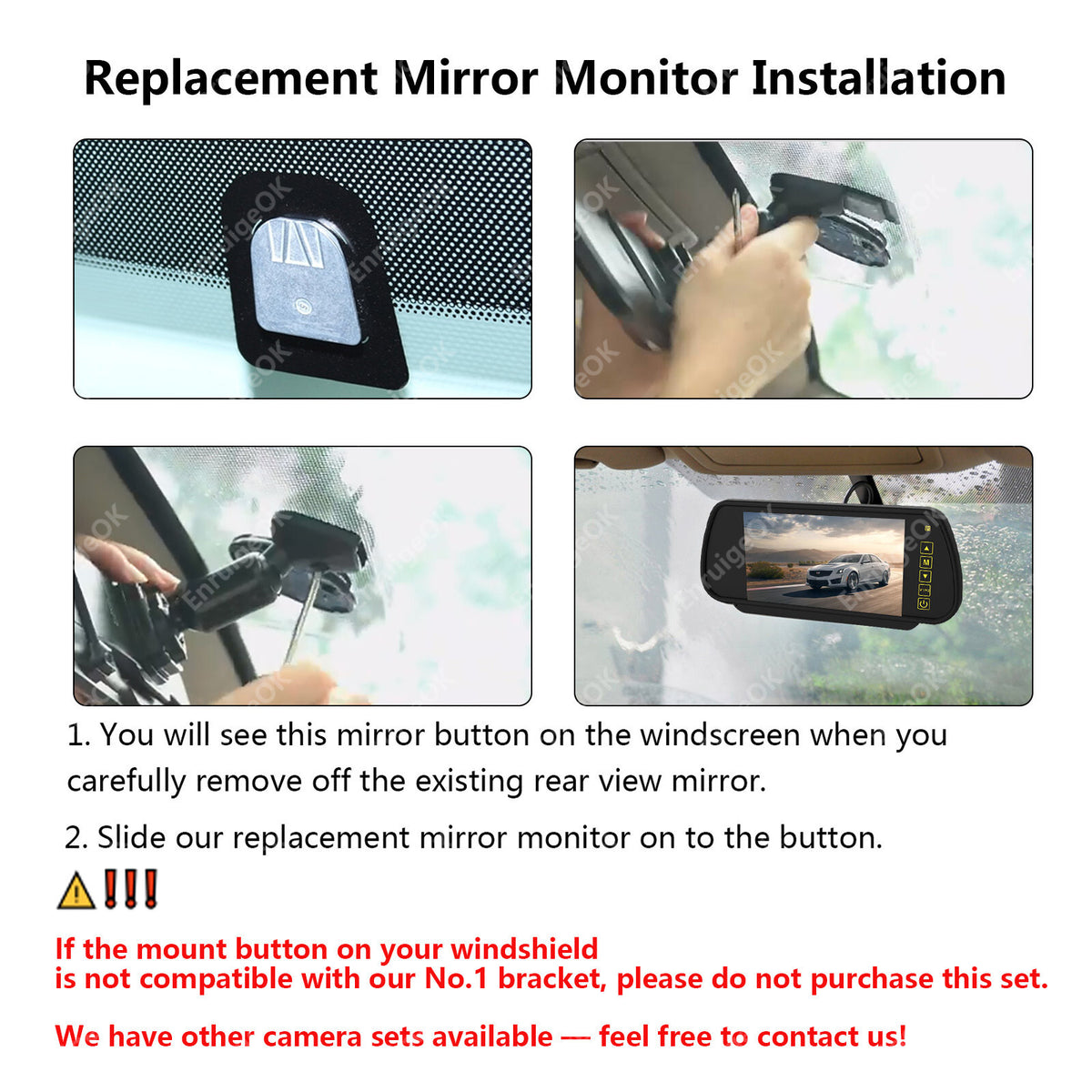

This set comes with a #1 bracket by default. Please confirm compatibility by sending us a photo of your windshield button or mirror bracket if unsure.

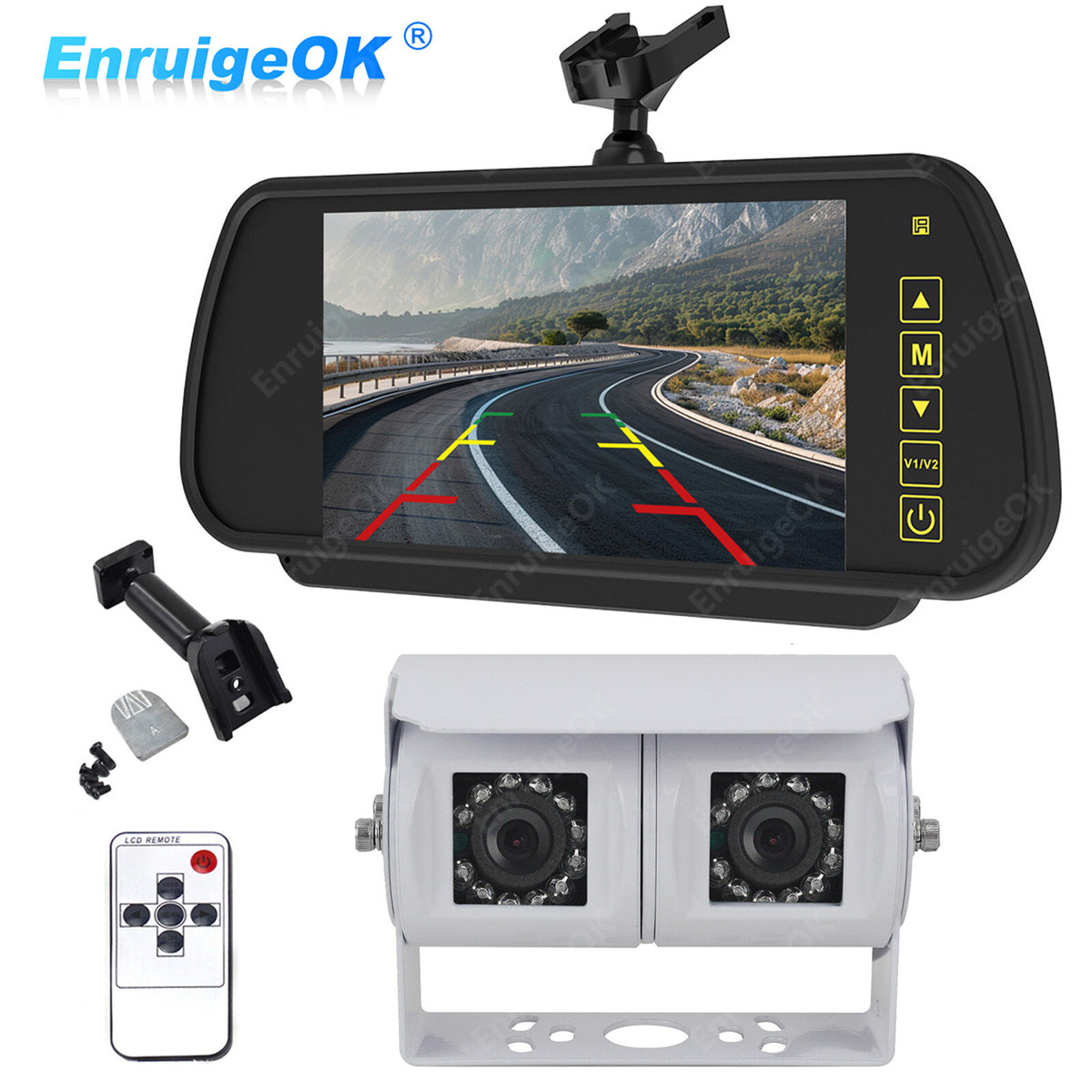

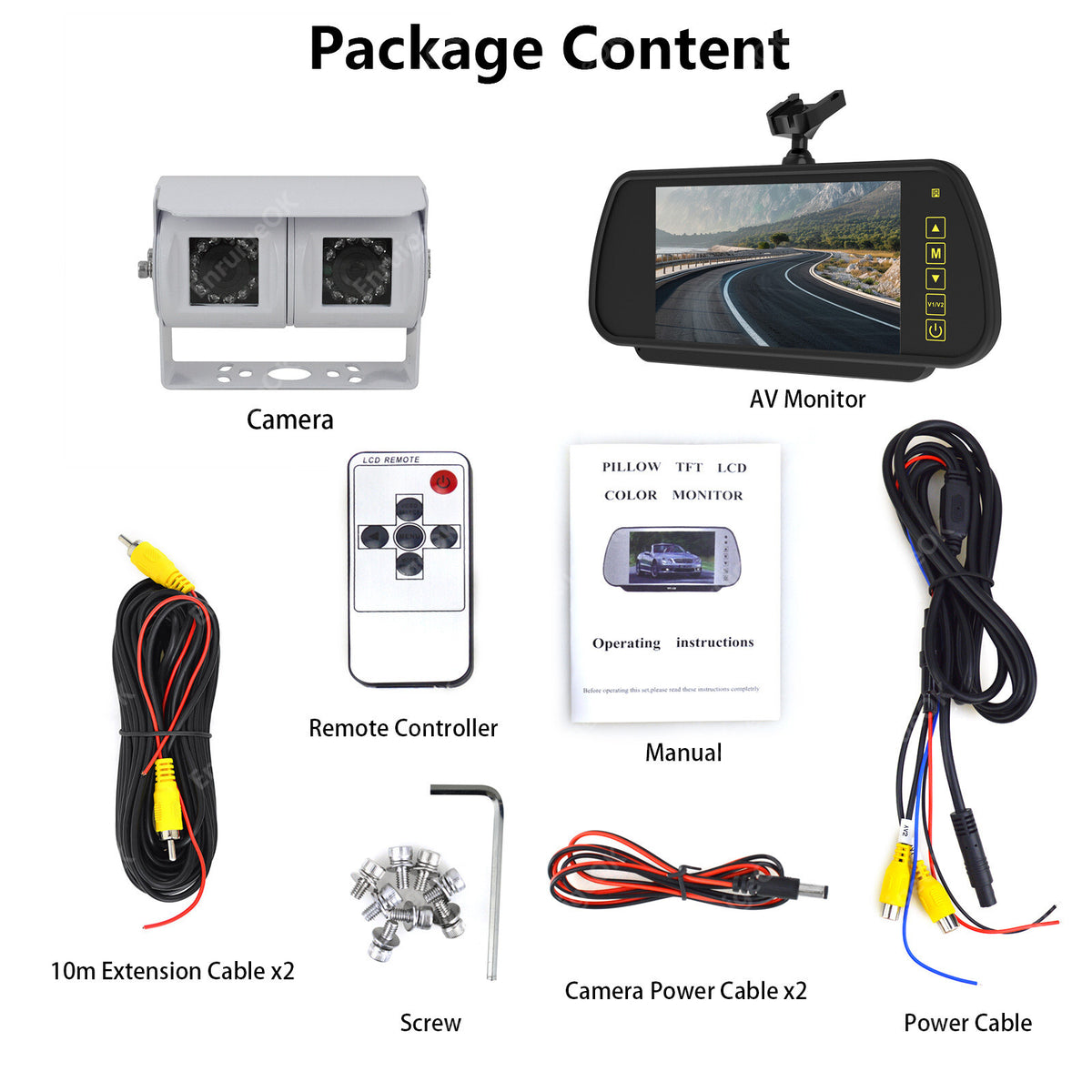

Package contents

1 X Camera

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X 2.5m monitor power cable

2 X 10m/33ft. video extension cable

2 X 1m DC power cable

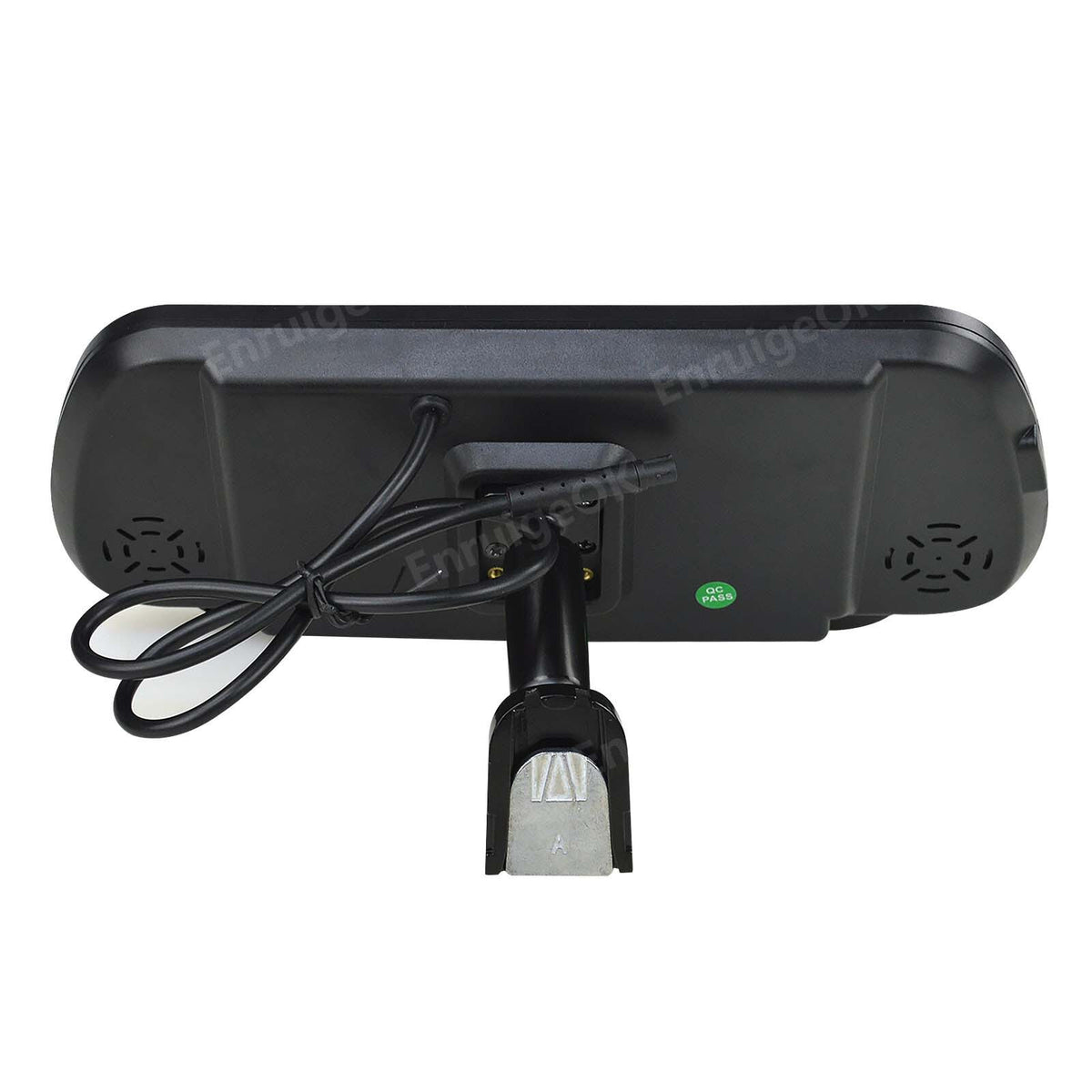

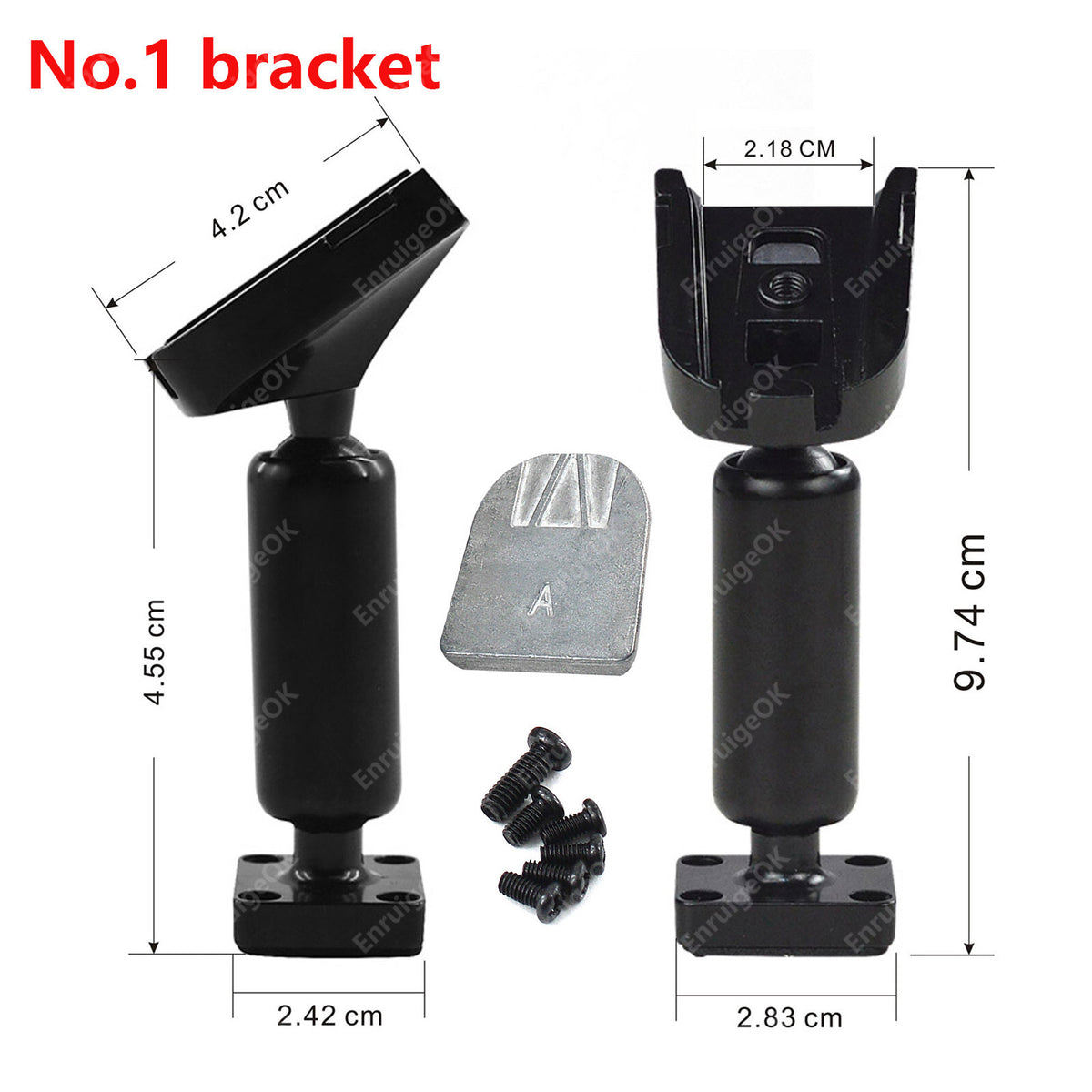

1 X #1 bracket(check your windshield button)

1 X Manual

1 X Screw kit

Descriptions:

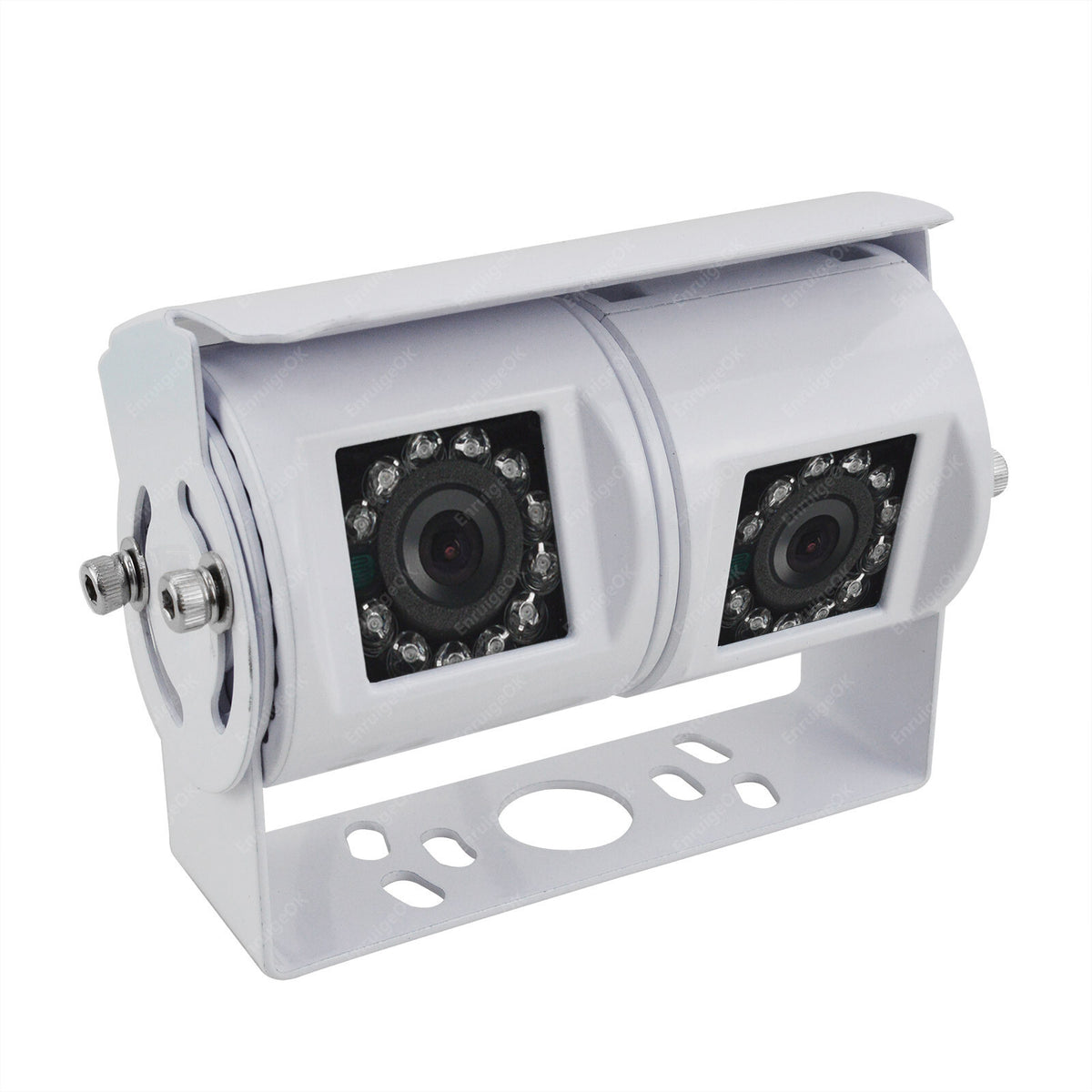

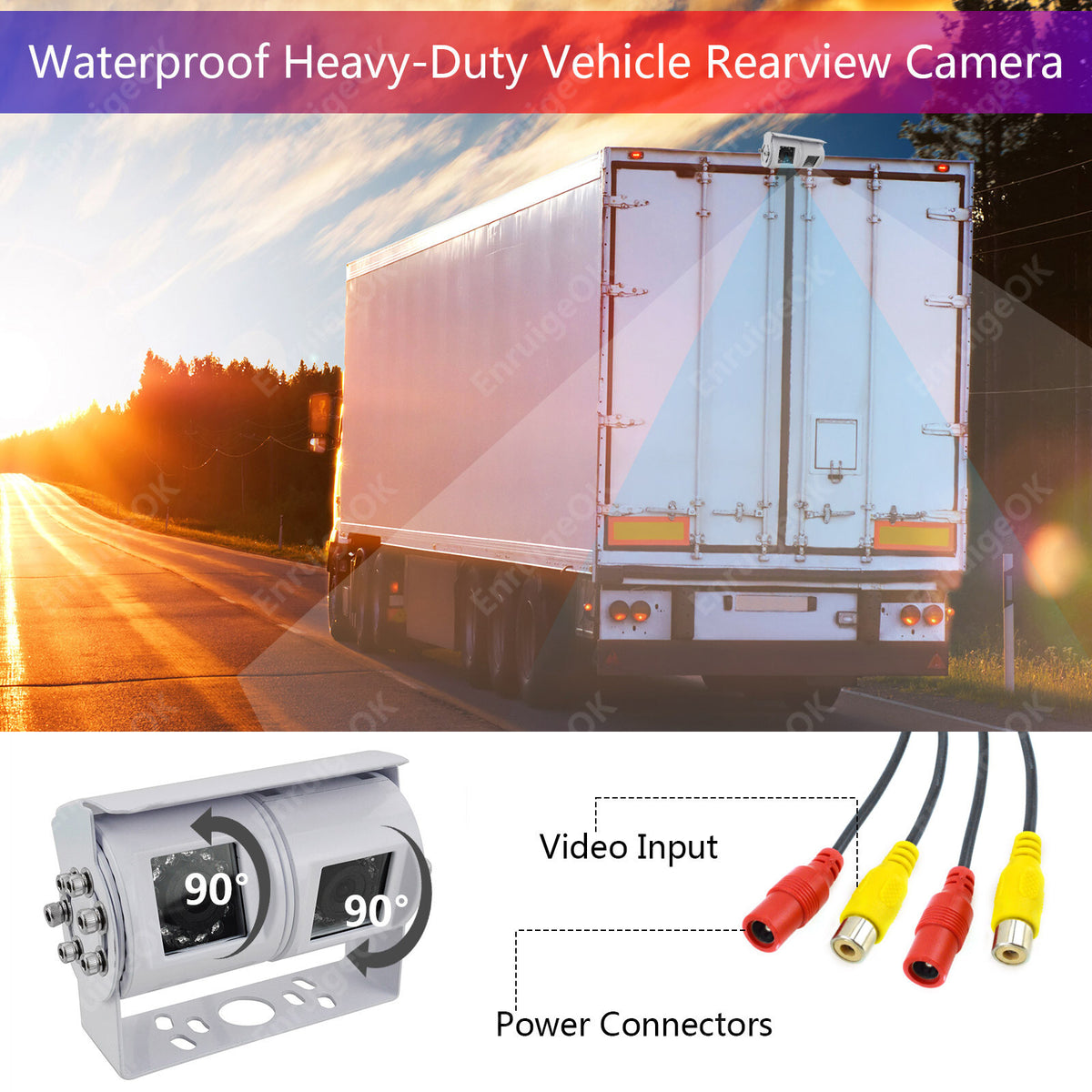

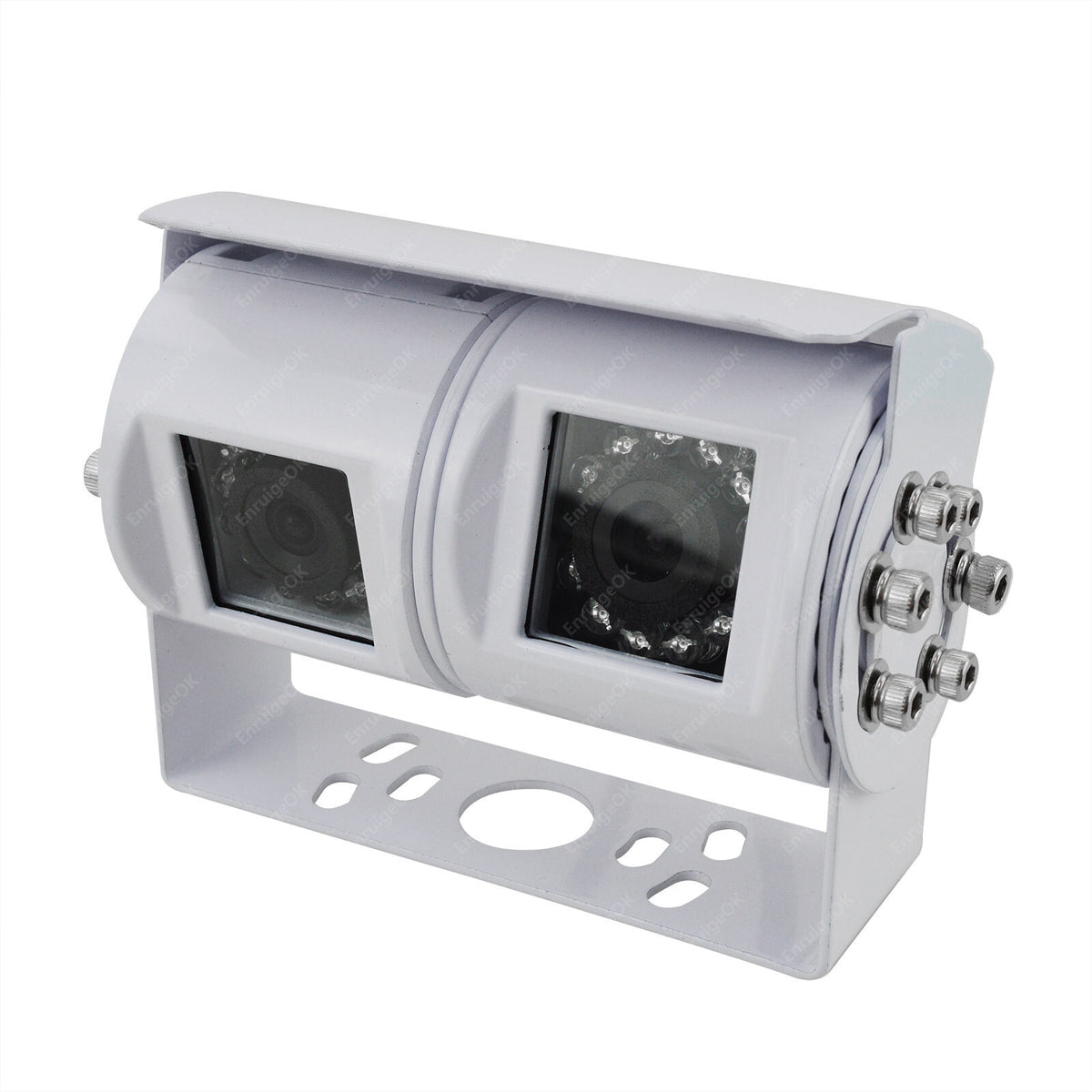

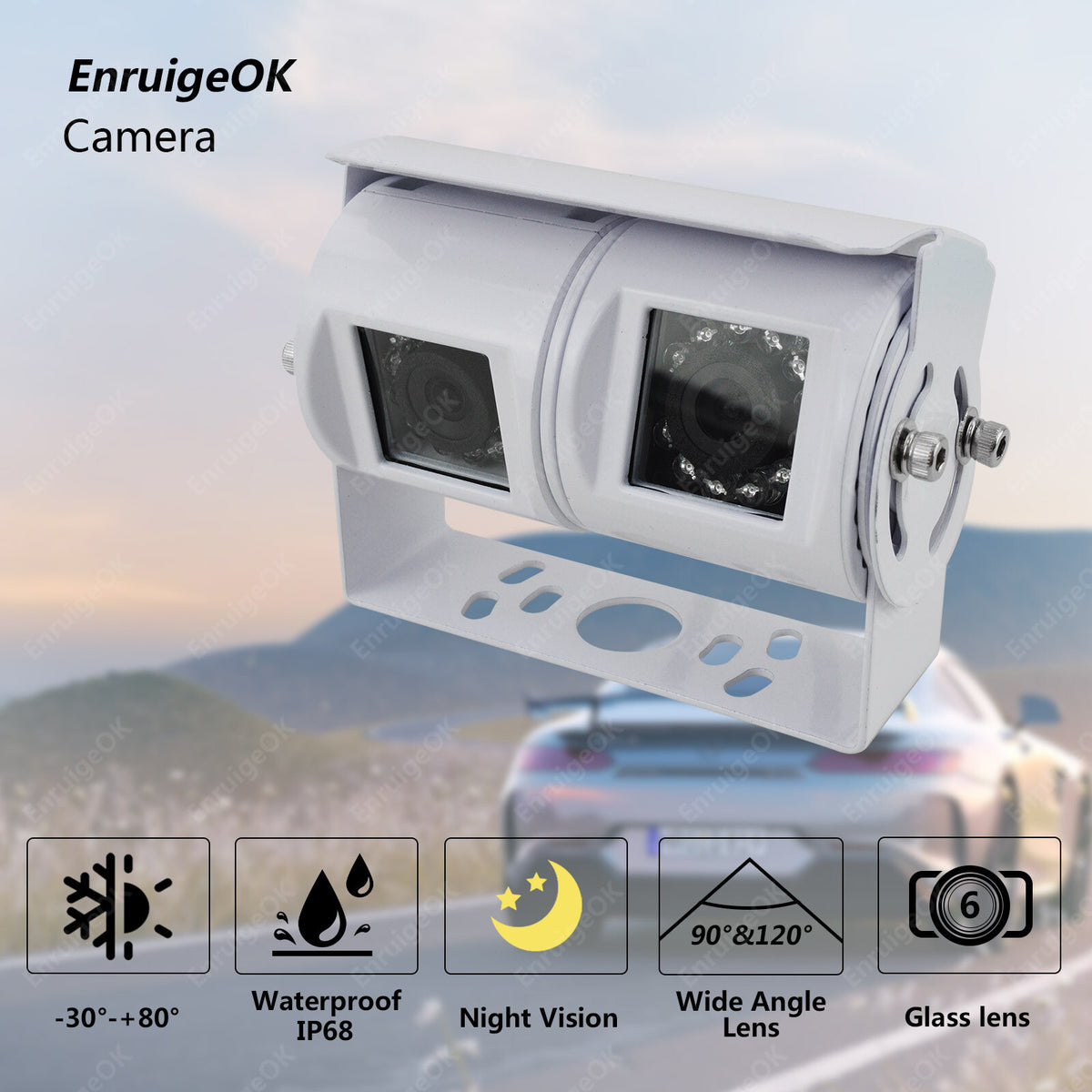

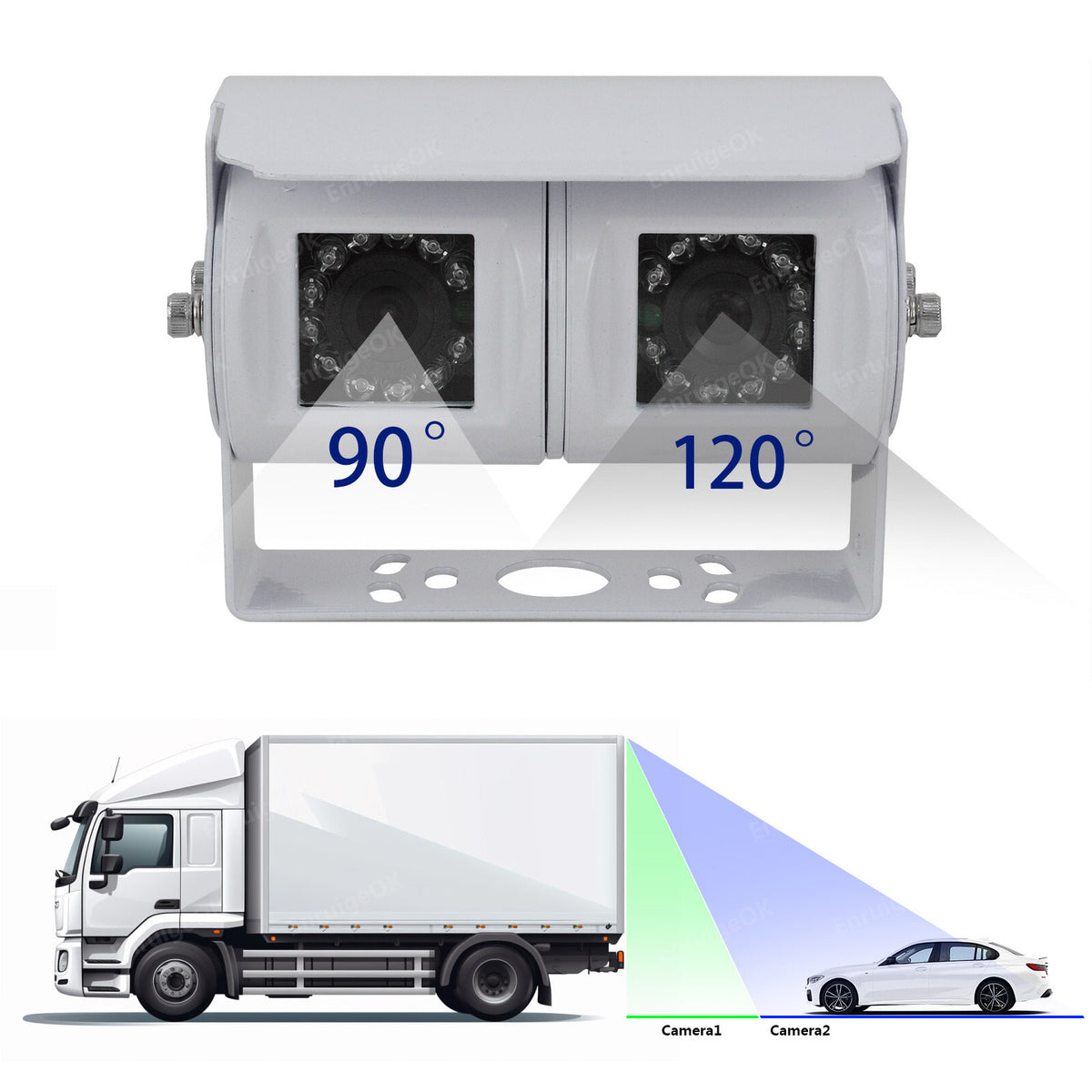

Dual-Lens Rear Camera: Offers two views—one for traffic, one for trailer alignment—for complete rear visibility.

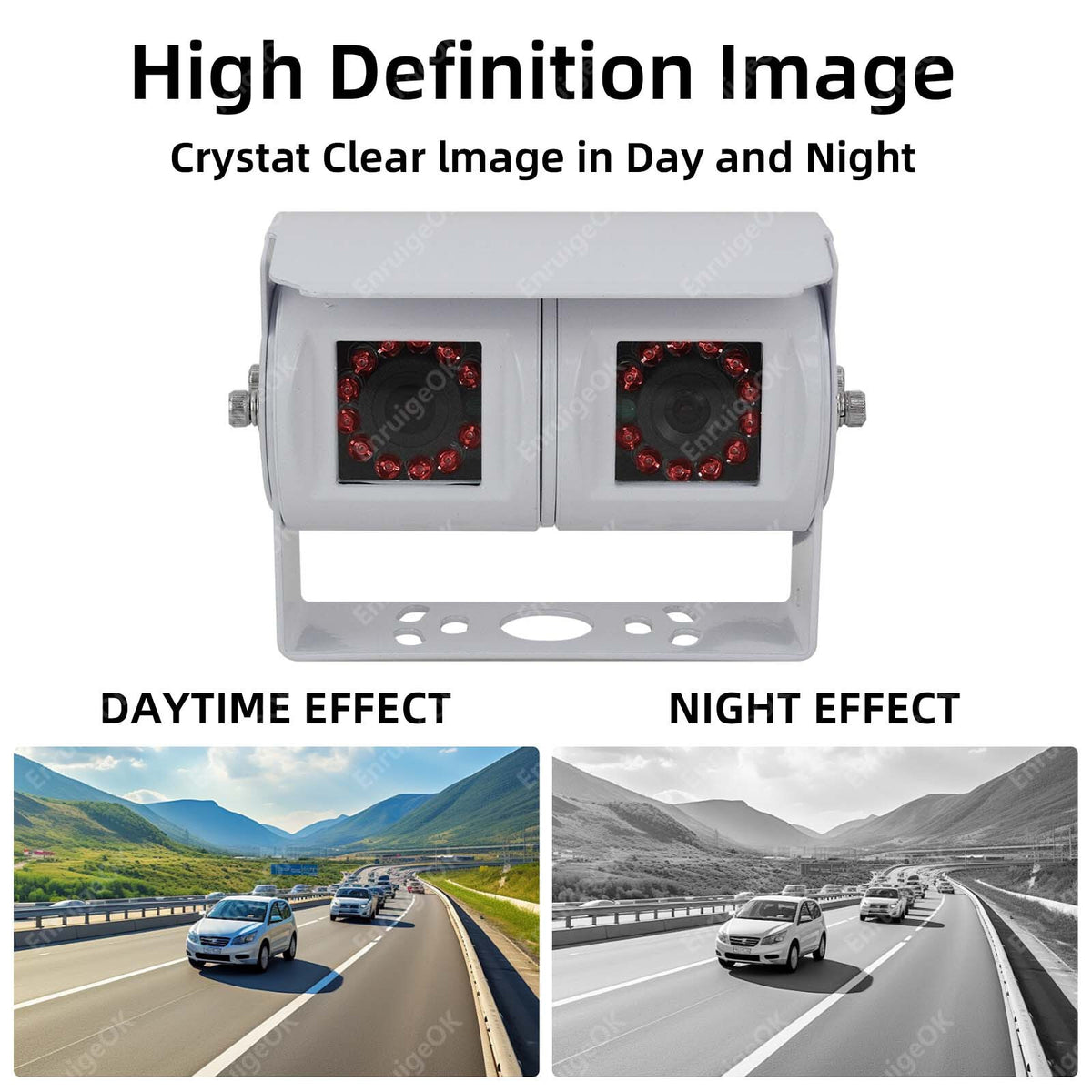

Enhanced Night Vision: 24 IR LEDs (12 per lens) provide clear images even in low light.

High-Quality CMOS Sensor: 1/3" sensor delivers sharp color images day and night.

120° Wide Angle: Reduces blind spots to help prevent accidents and injuries.

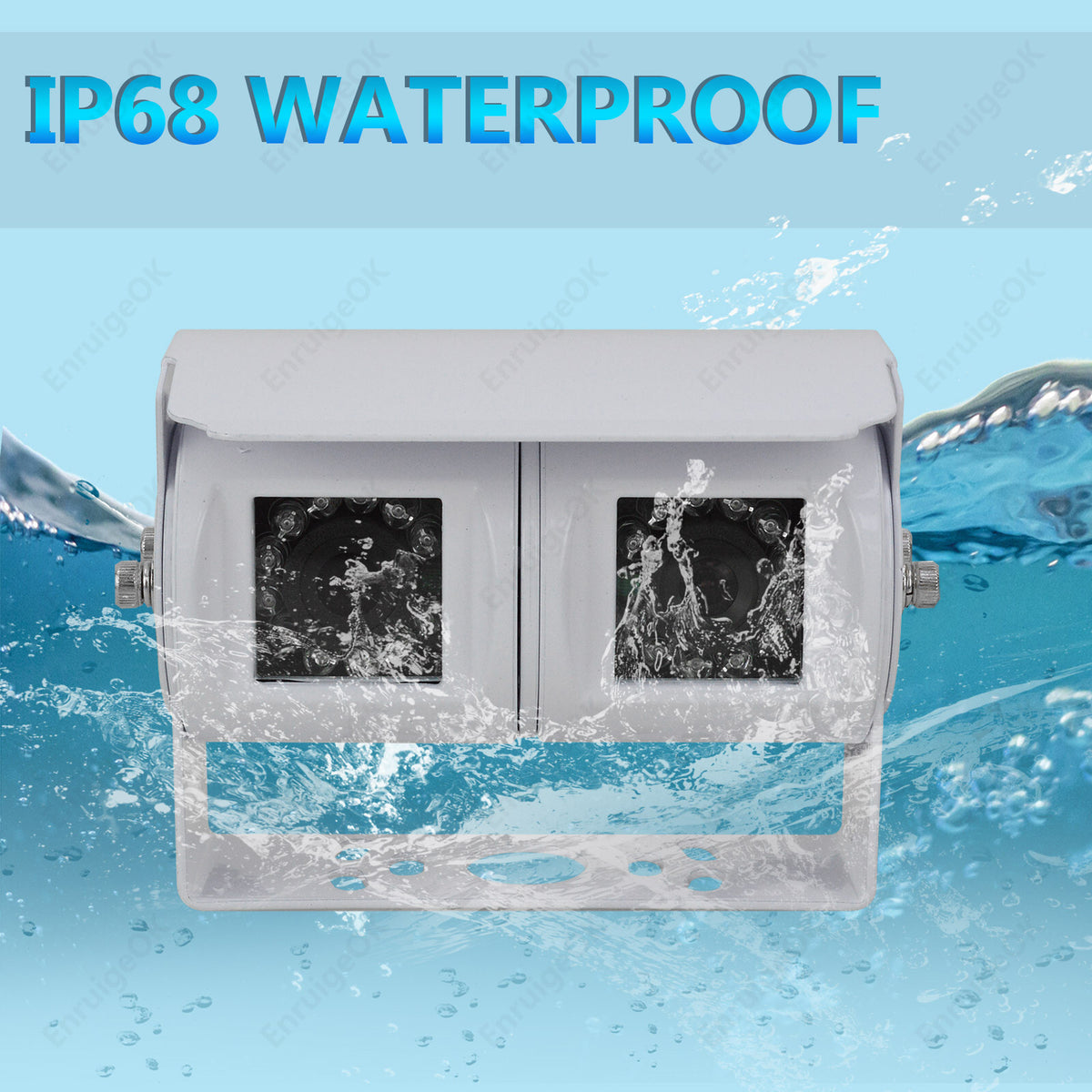

Rugged Waterproof Design: IP68-rated for all-weather durability, ideal for continuous outdoor use.

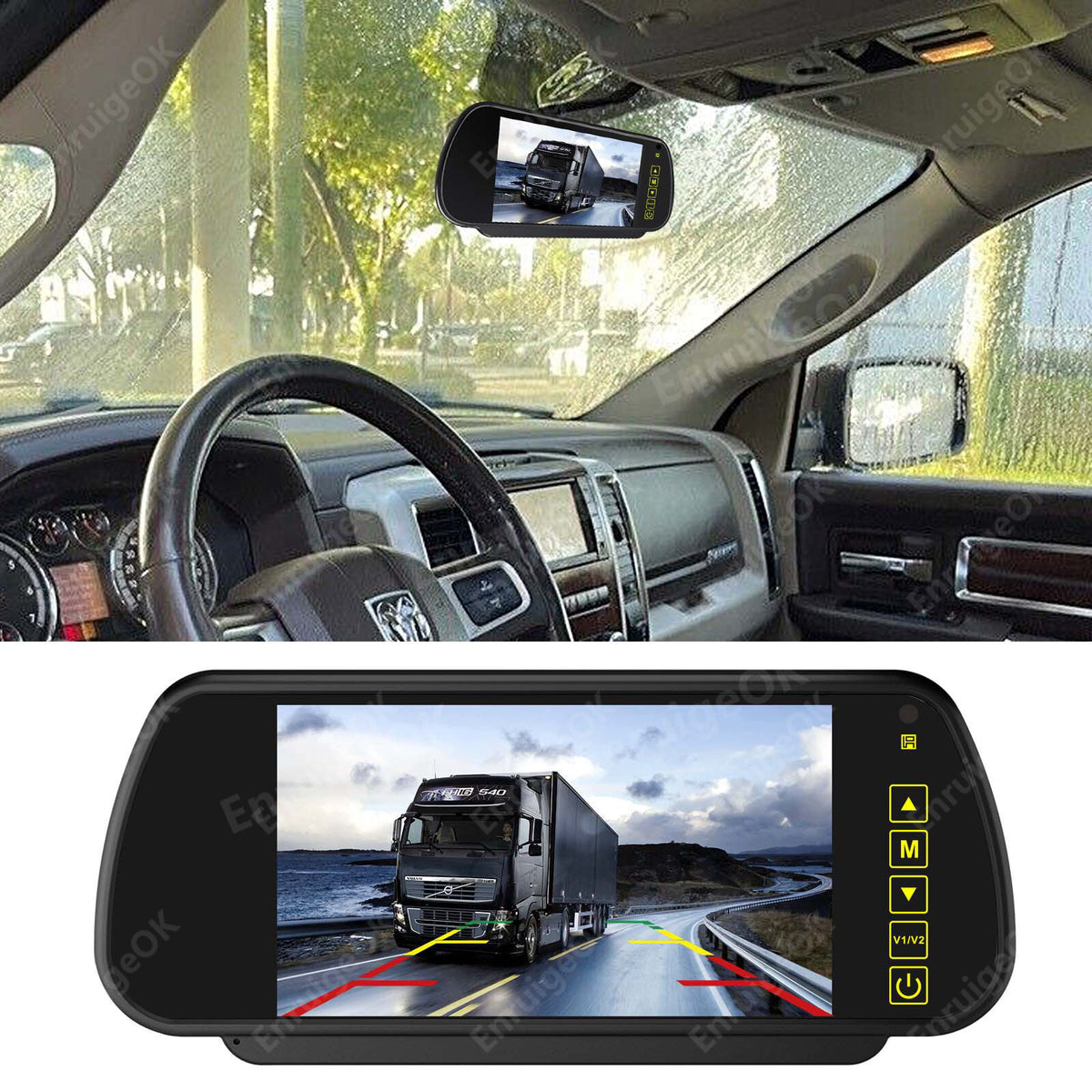

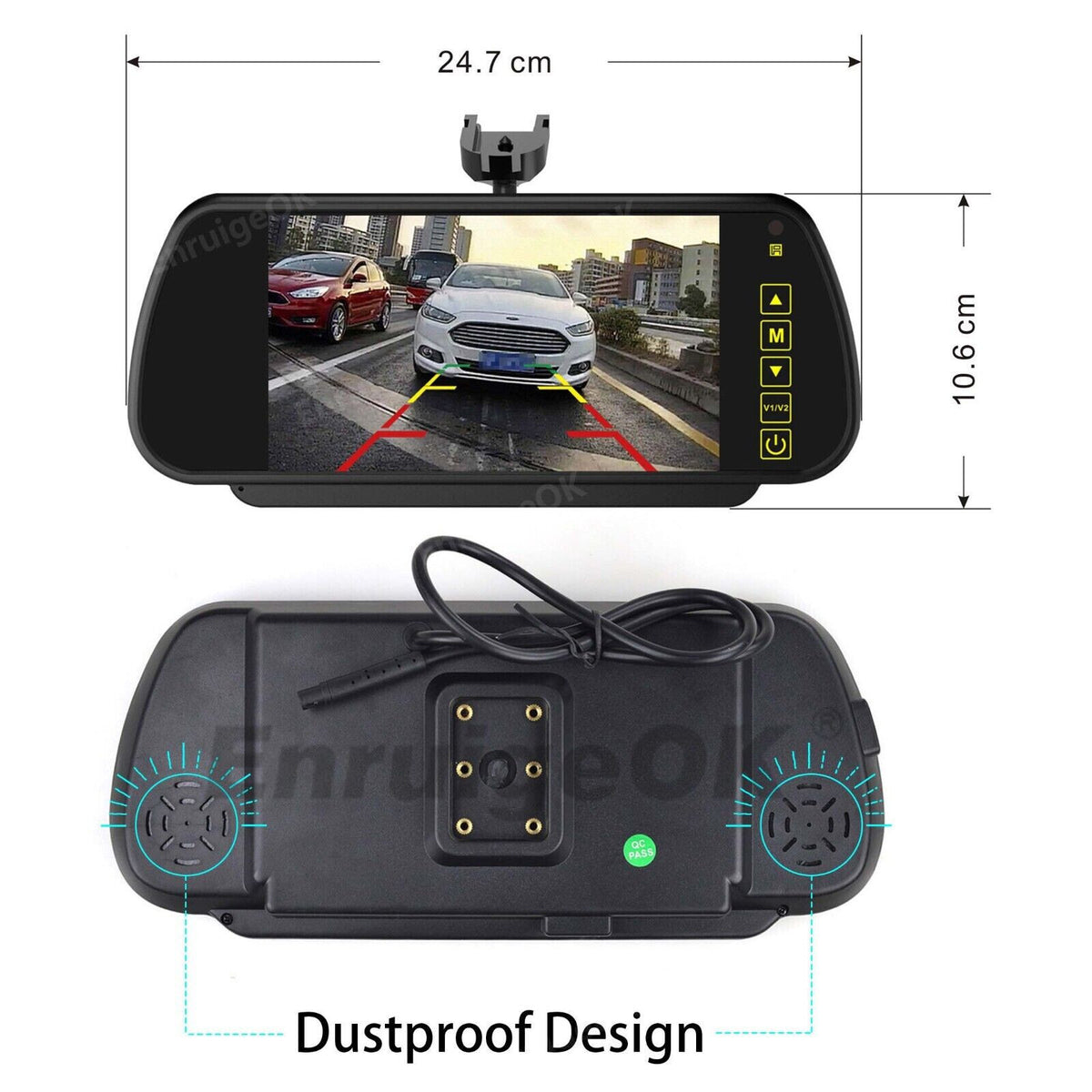

7" Color Monitor with AV Switching: Features dual video inputs (AV switching) and an 800*480 resolution, allowing easy switching between two camera views.

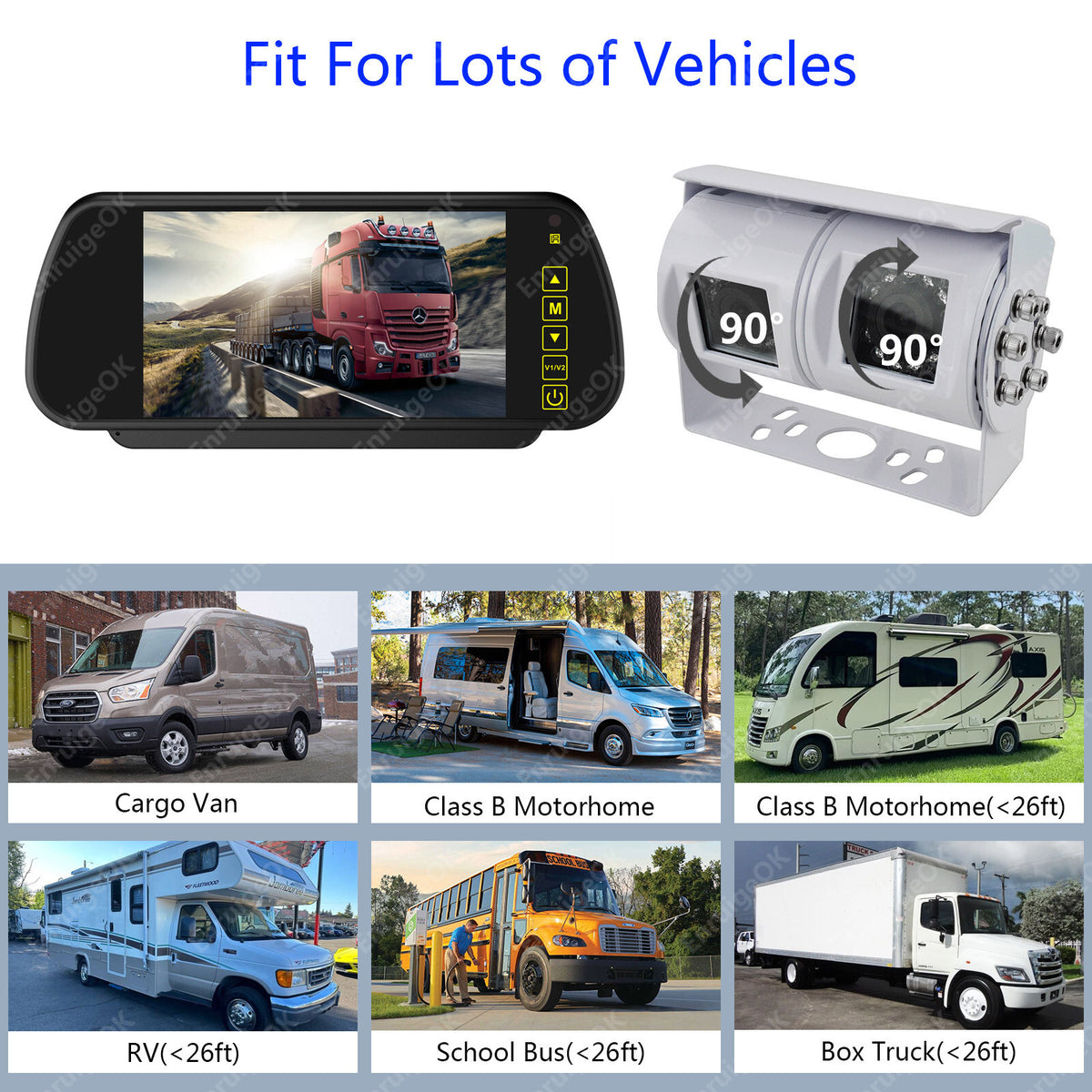

Improved Safety: Provides a clear rear view, perfect for maneuvering larger vehicles like buses, caravans, and trailers.

Camera Specifications

Image sensor: 1/3" CMOS

Lens: 2.8mm&3.6mm

Effective pixel: 733(H)x493(V)

TV Line: 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°& 90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC12V

Operating temperature: -20℃ to +70℃

Monitor Specifications

Material: ABS+glass

Screen: 7 inch

Resolution: 800x(RGB)x480

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

Video Input: 2AV video input

Power Supply: DC 9V-35V

Power consumption: 6W

Rear watching: Image can be changed left and right

Operate mode: The touch key operation and remote control

Remote control: a CR2025 button battery (battery not included)

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
