7'' Monitor Brake Light Rear View Backup Camera For Ford Transit Van AHD 1080P

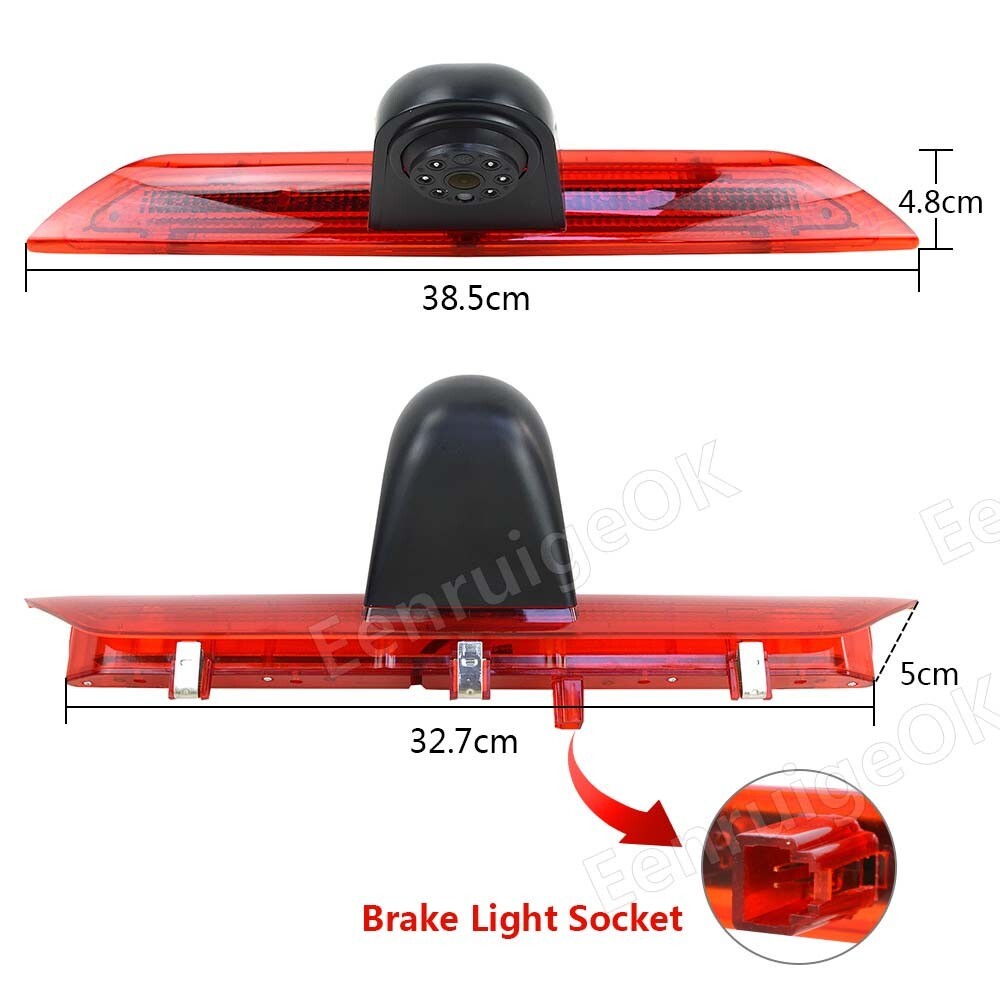

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light on your vehicle.

EnruigeOK Rear Brake Light Reverse Backup Camera For Ford Transit Van

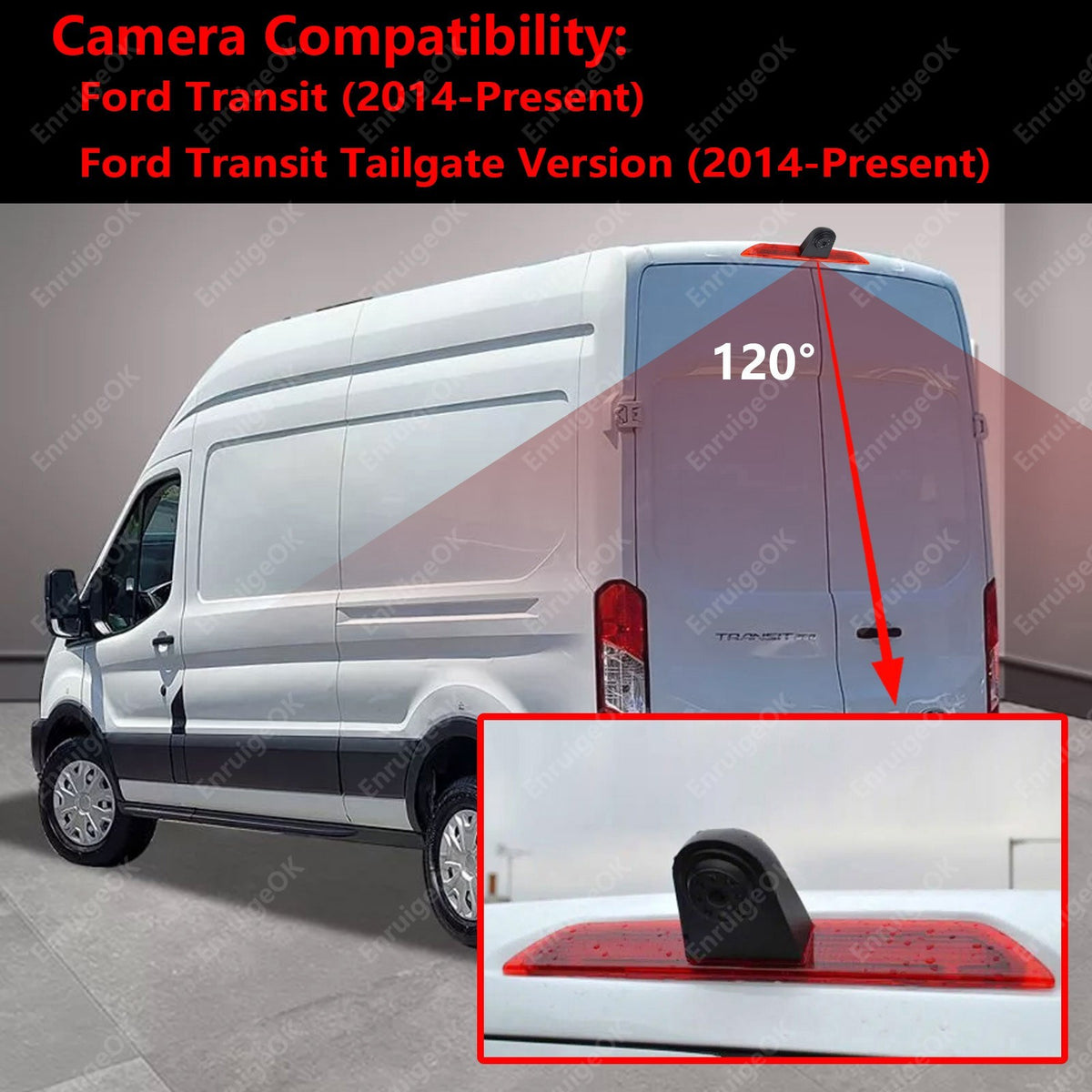

Camera Compatibility

For Ford Transit F150 F250 F350 (2014-2024)

Description

It includes a backup camera & monitor. When you are backing up, the car monitor will display the rear camera images, helping you park safely.

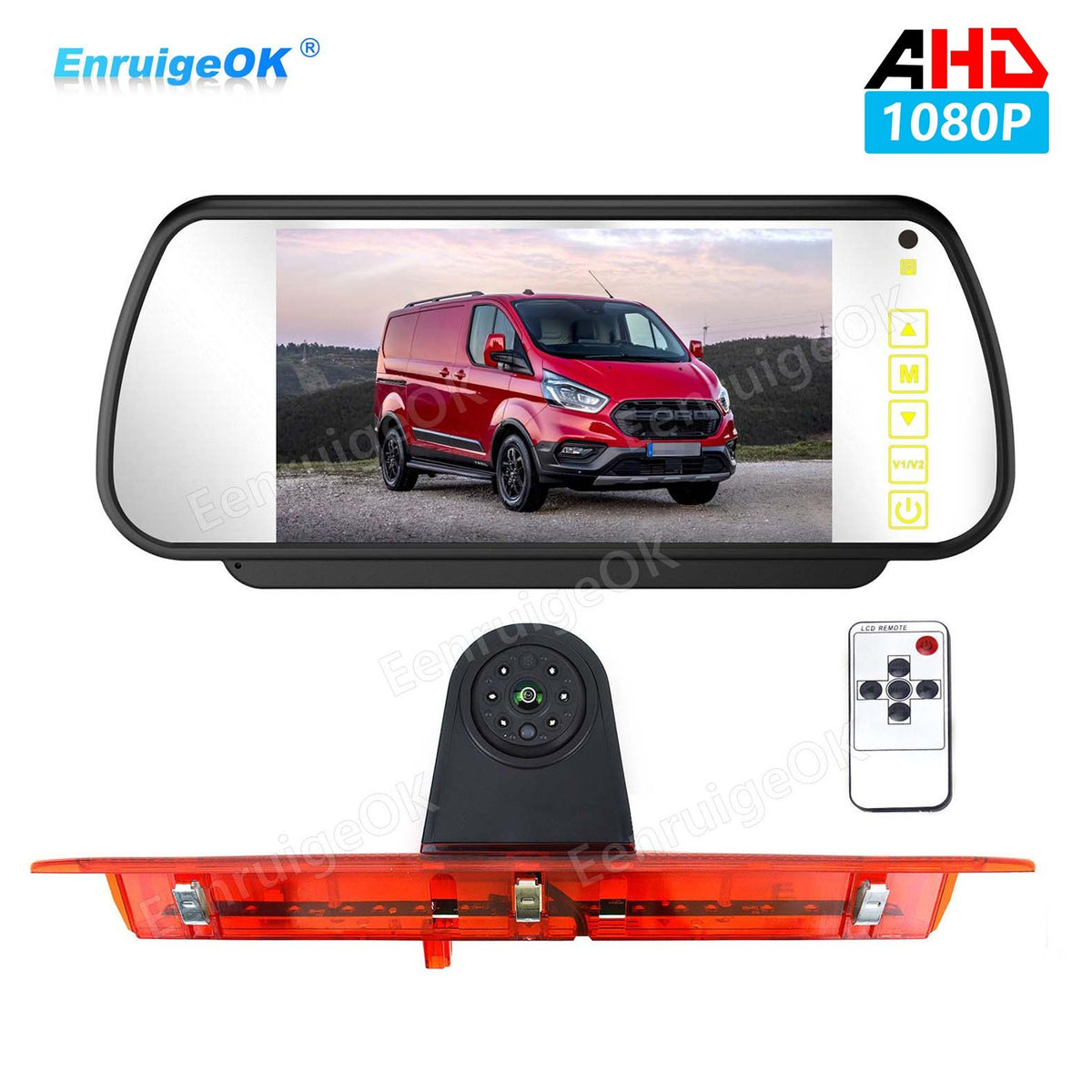

7" Color TFT HD Monitor with 2 video input, 1024*600(RGB) high resolution works perfectly with brake light rear view camera.

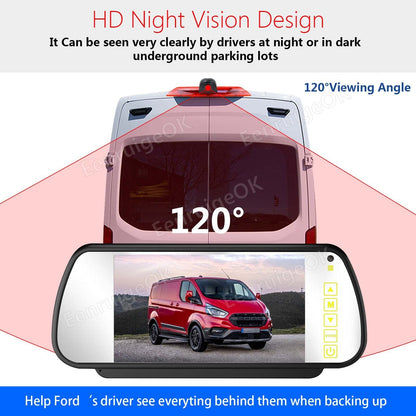

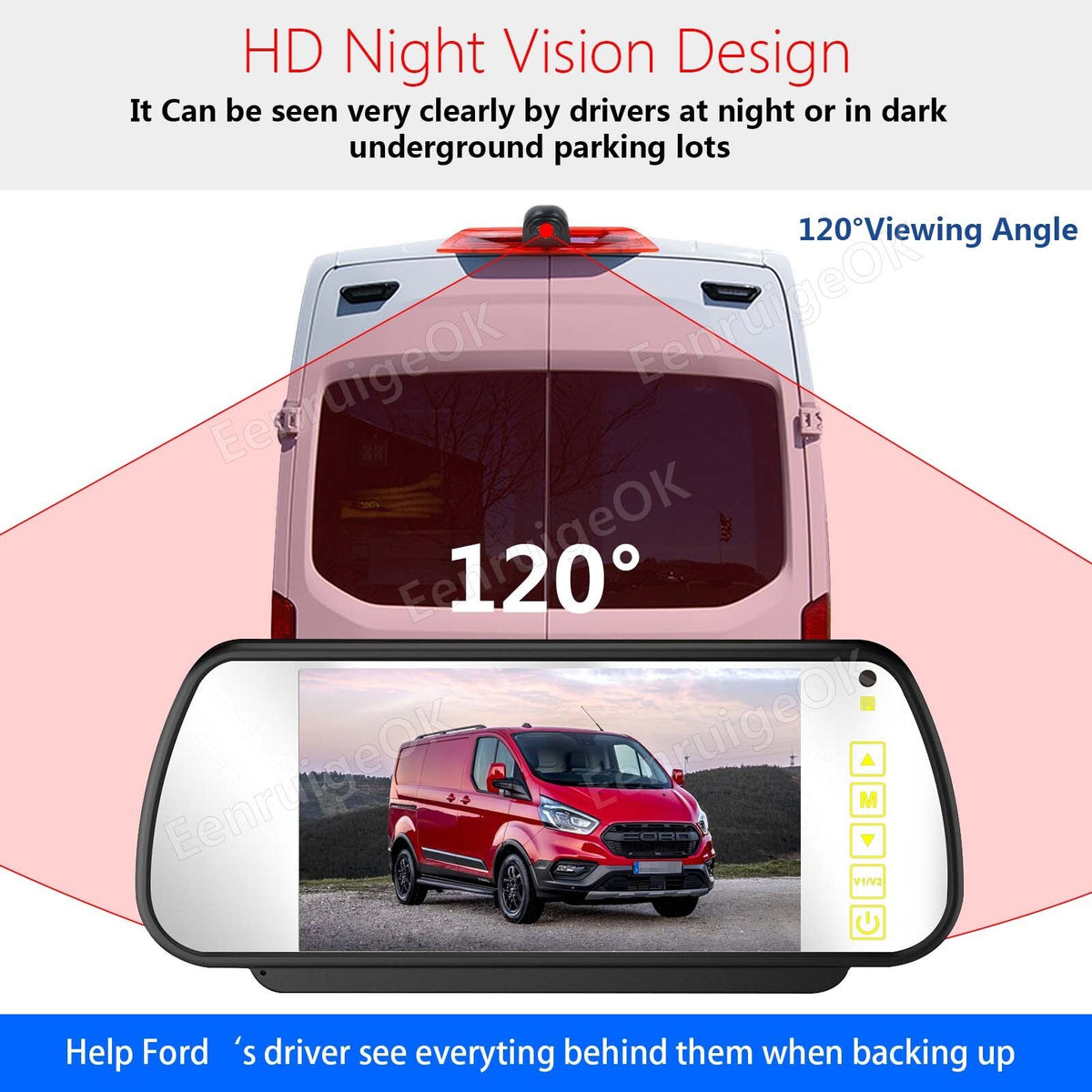

This reversing camera with 120-degree viewing angle shows rich details about the environment behind the car for you.

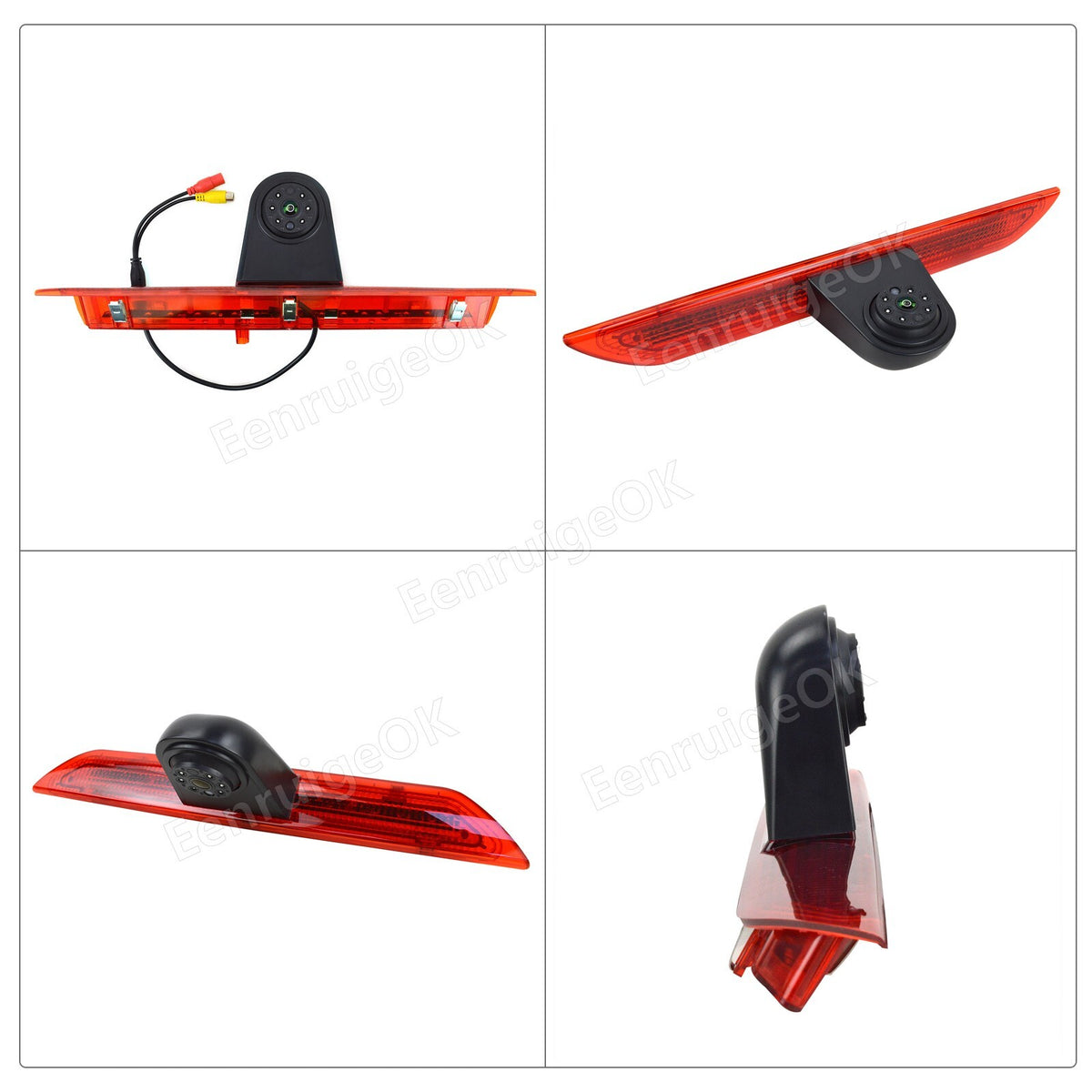

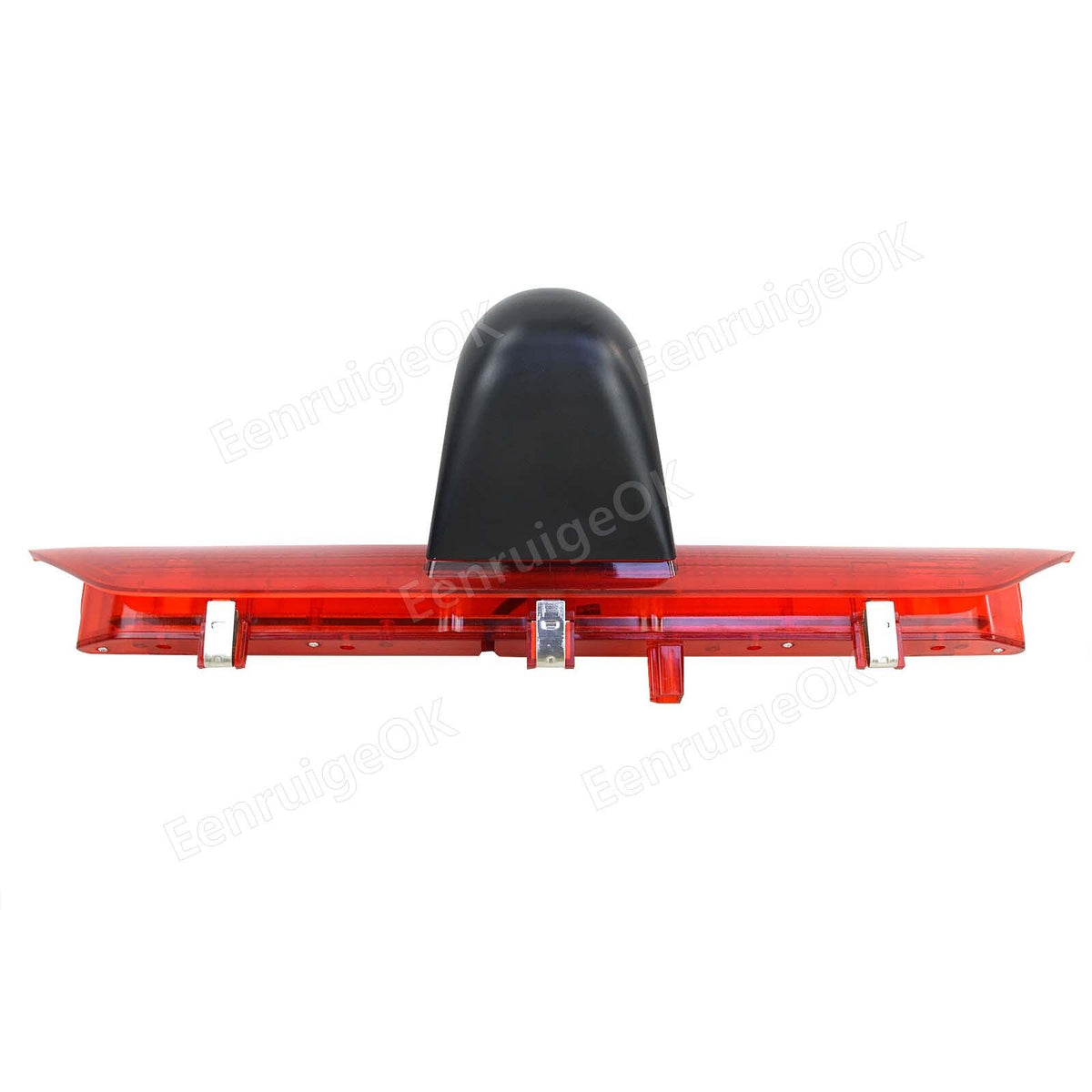

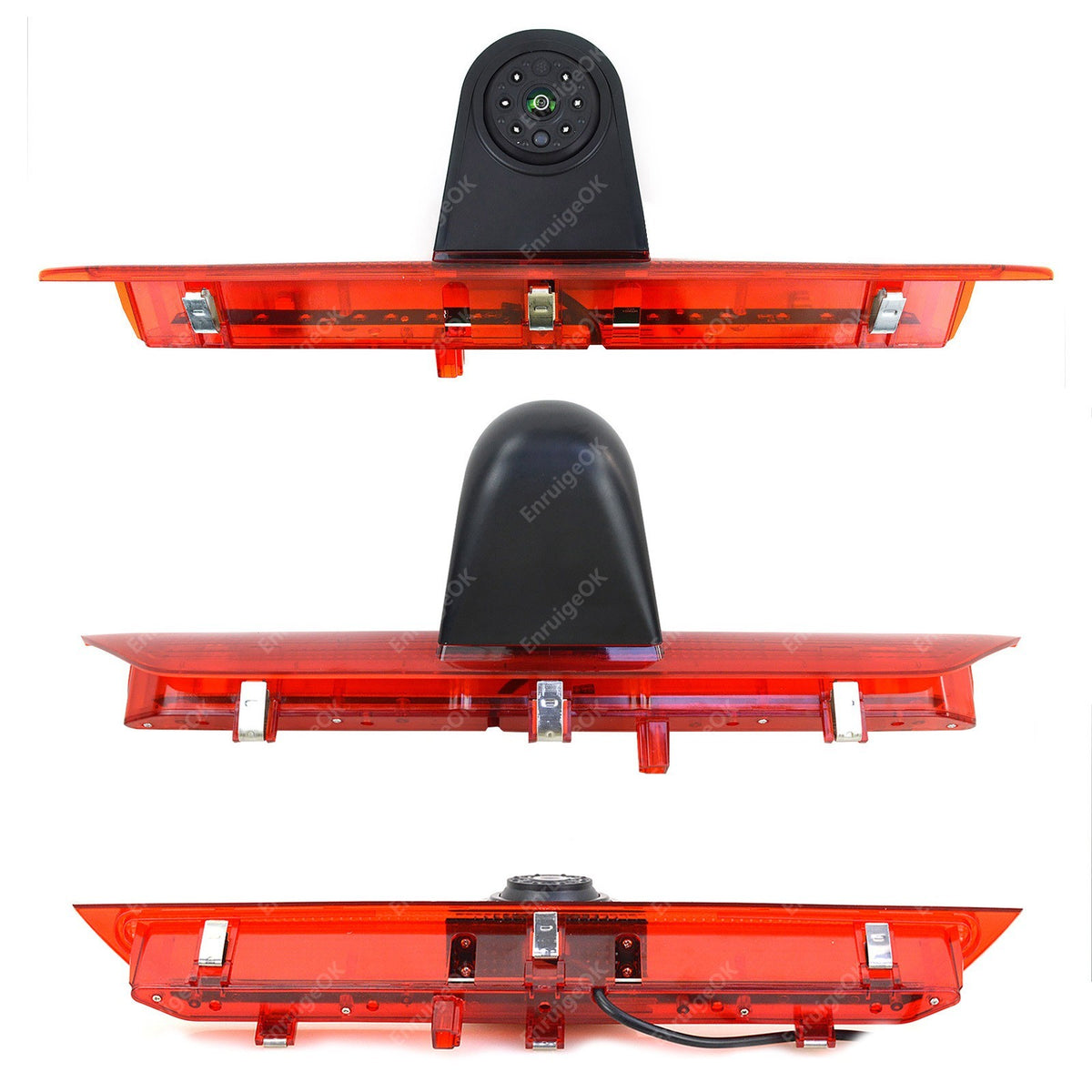

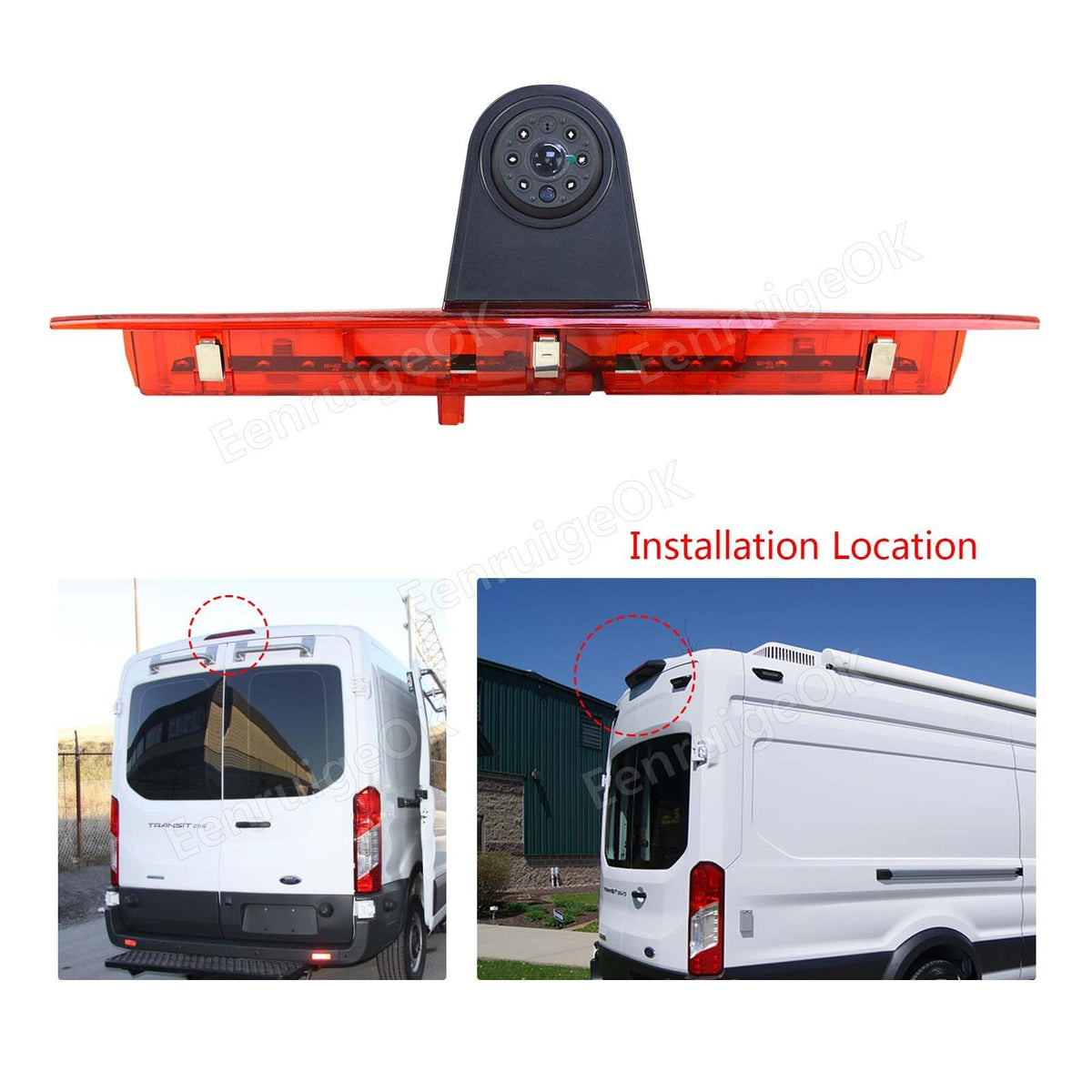

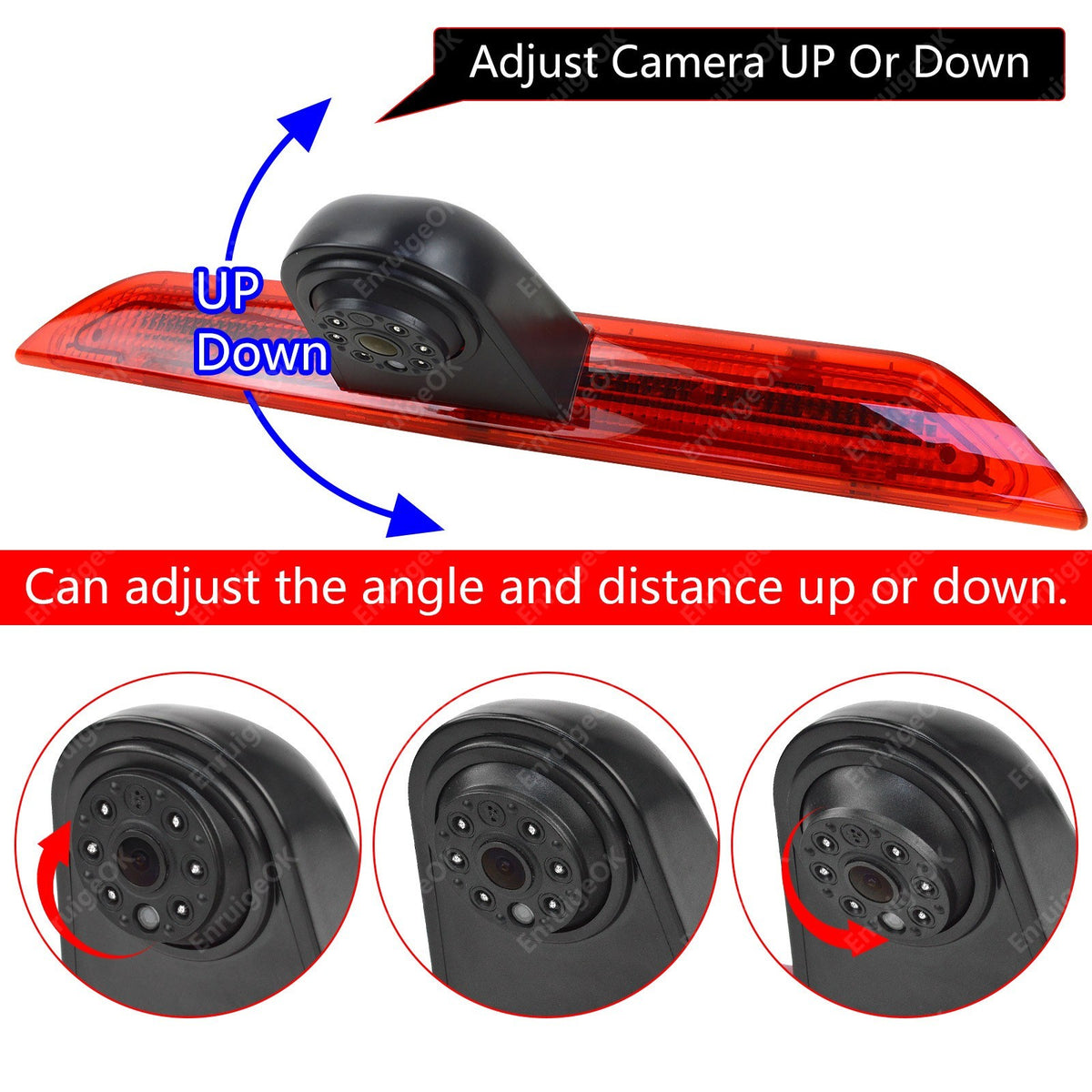

Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

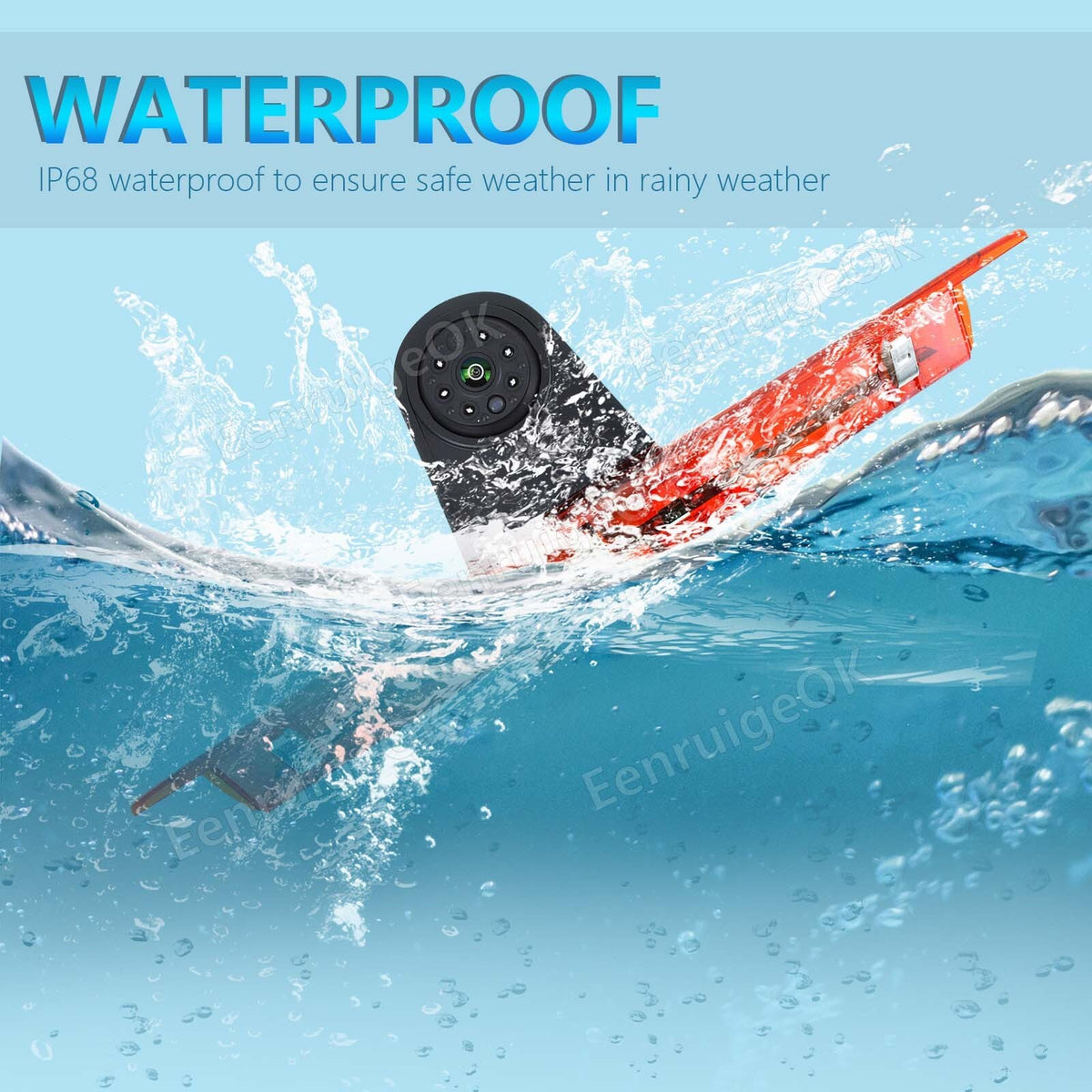

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

Camera Specifications

Image sensor: 1/3 "CMOS

TV system: PAL/NTSC option

Waterproof rating: IP68

Viewing angle: 120°

Effective pixel: 1920(H)x1080(V)

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

Resolution: AHD 1080P

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR ON)

Power supply: DC12V

Operating temperature: -20℃ to +70℃

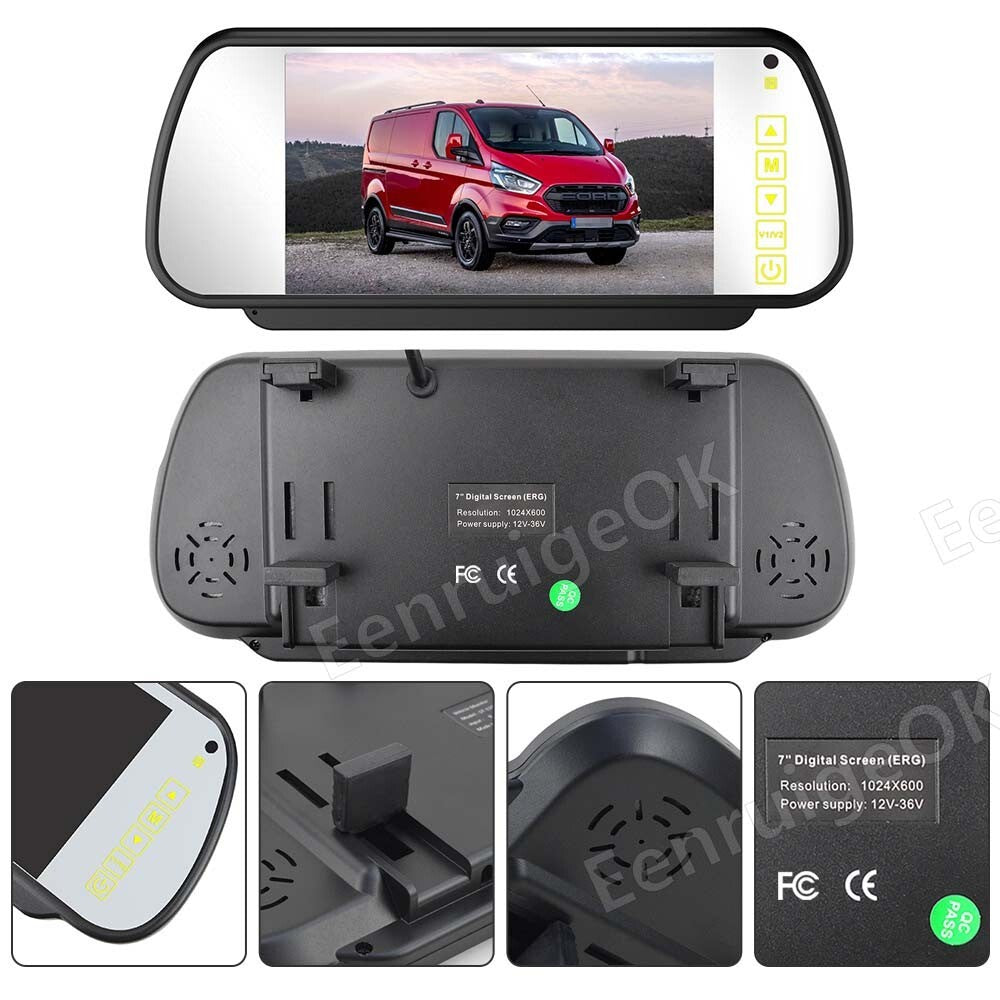

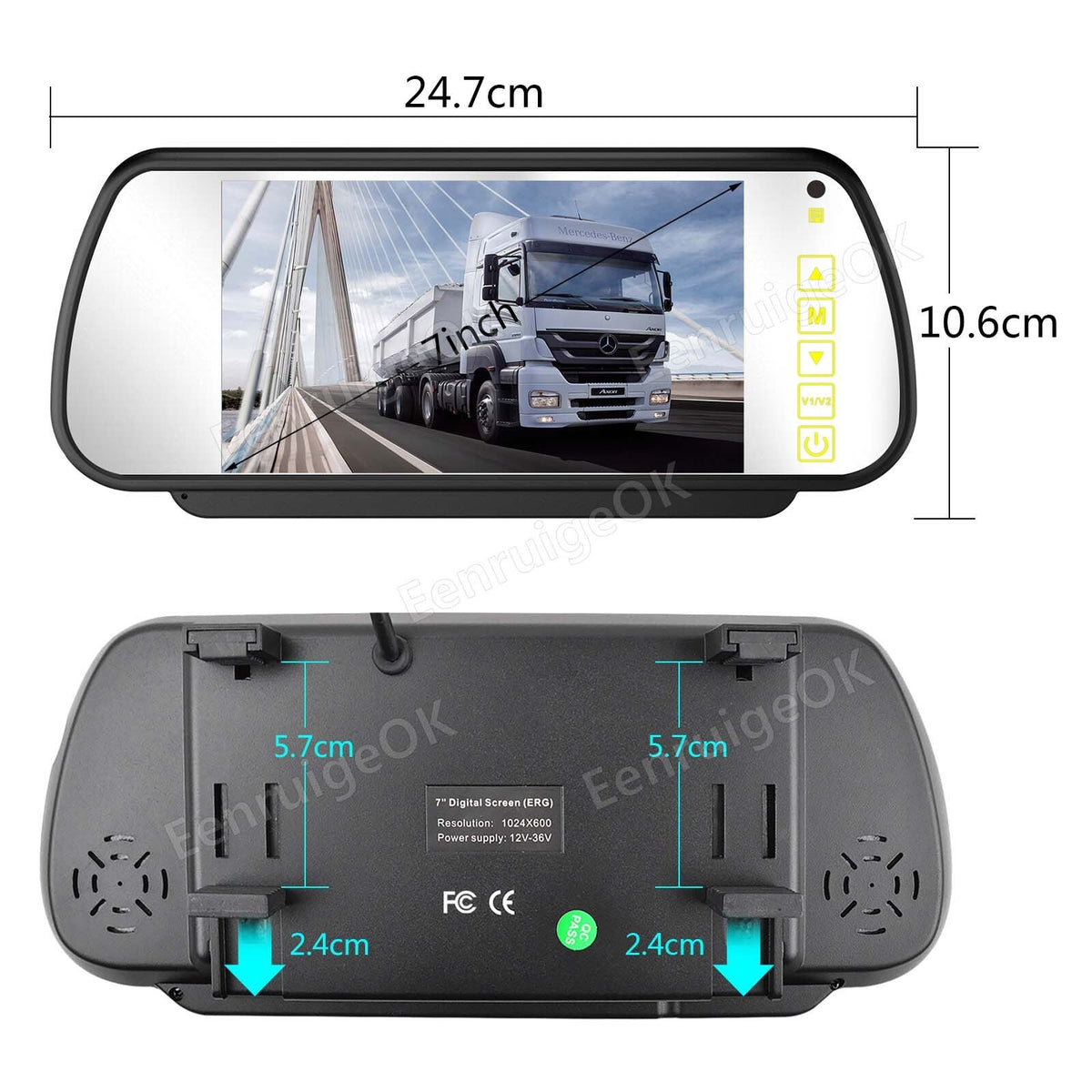

Monitor Specifications

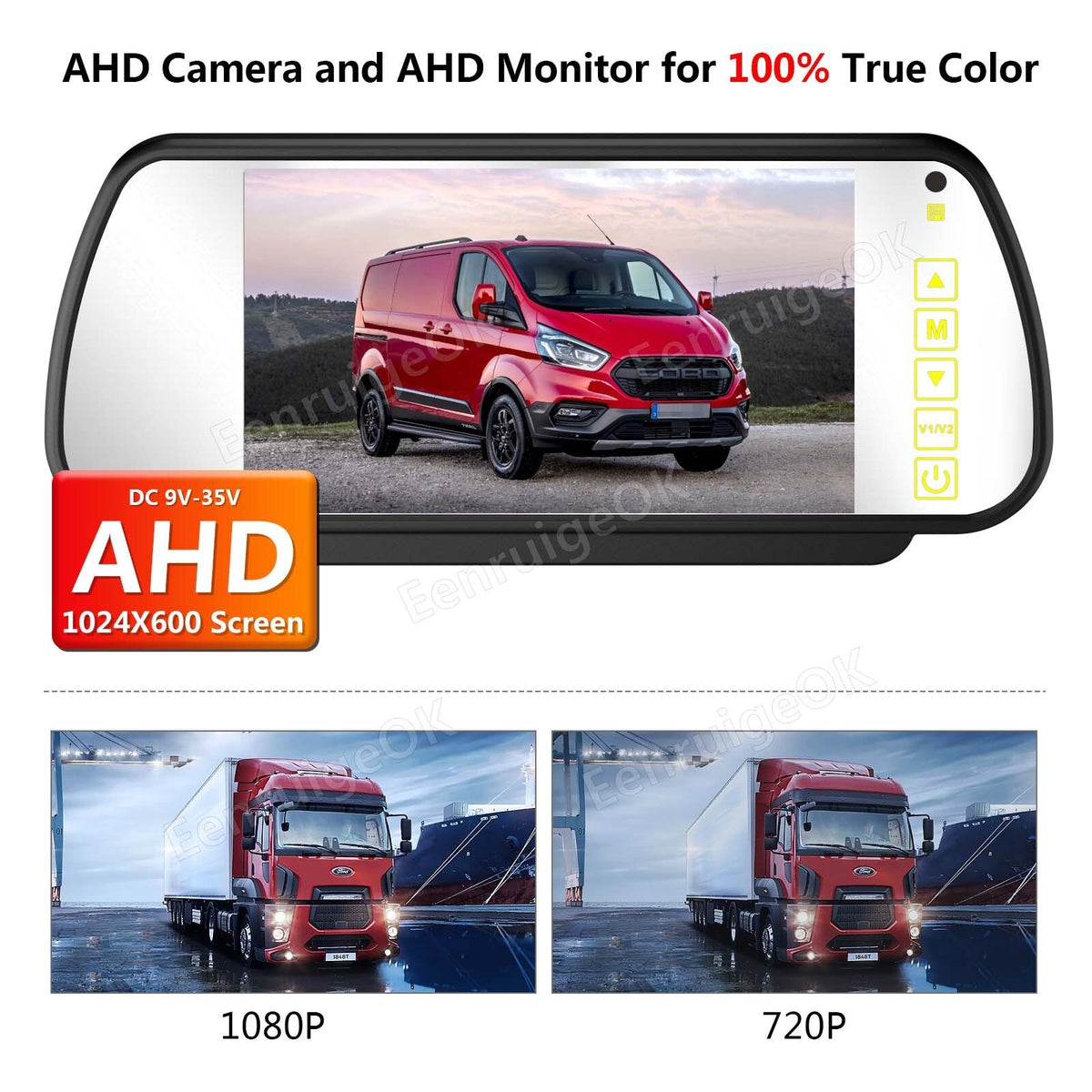

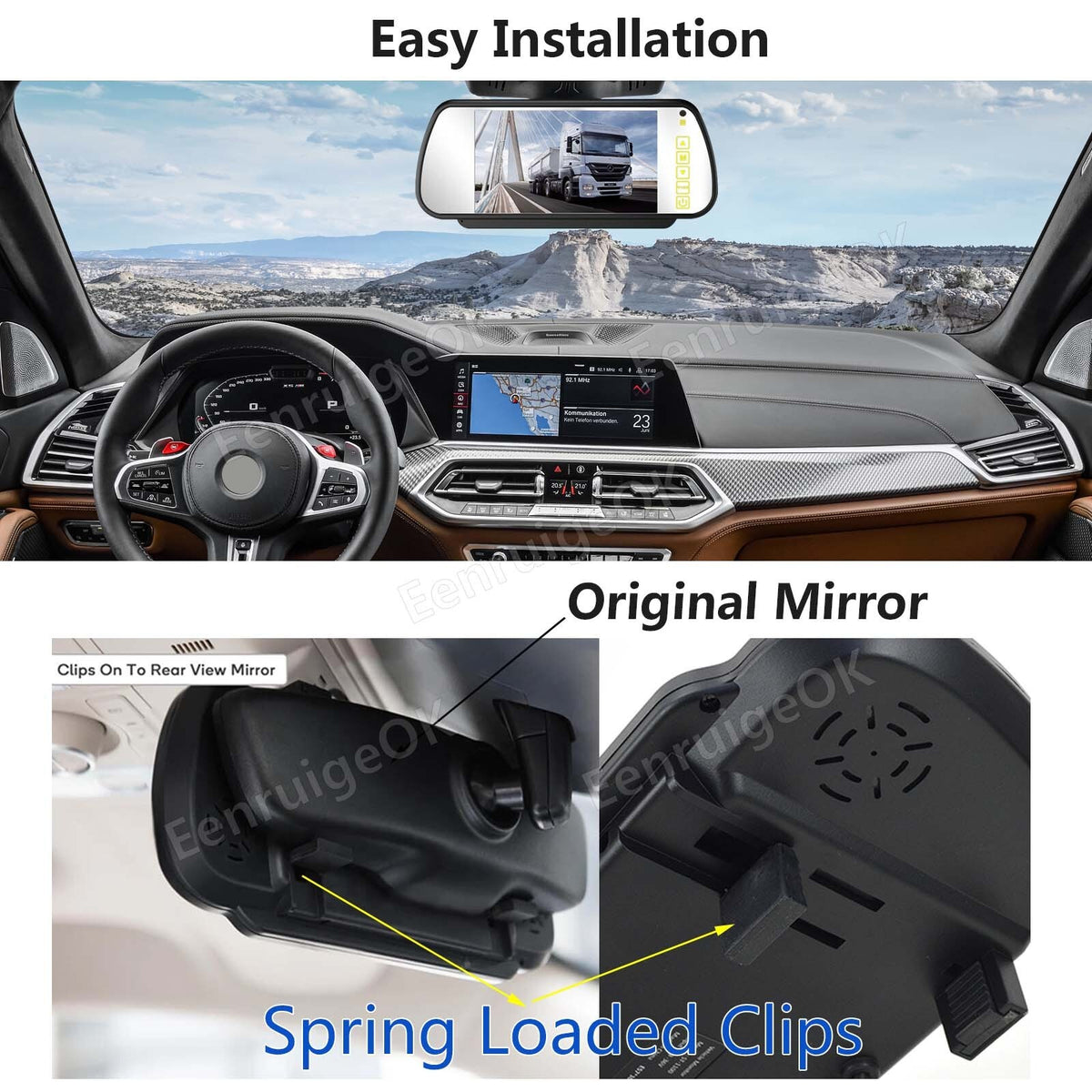

Screen: 7 inch HD mirror monitor

Resolution: 1024*600(RGB)

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

Video Input: 2AV video input

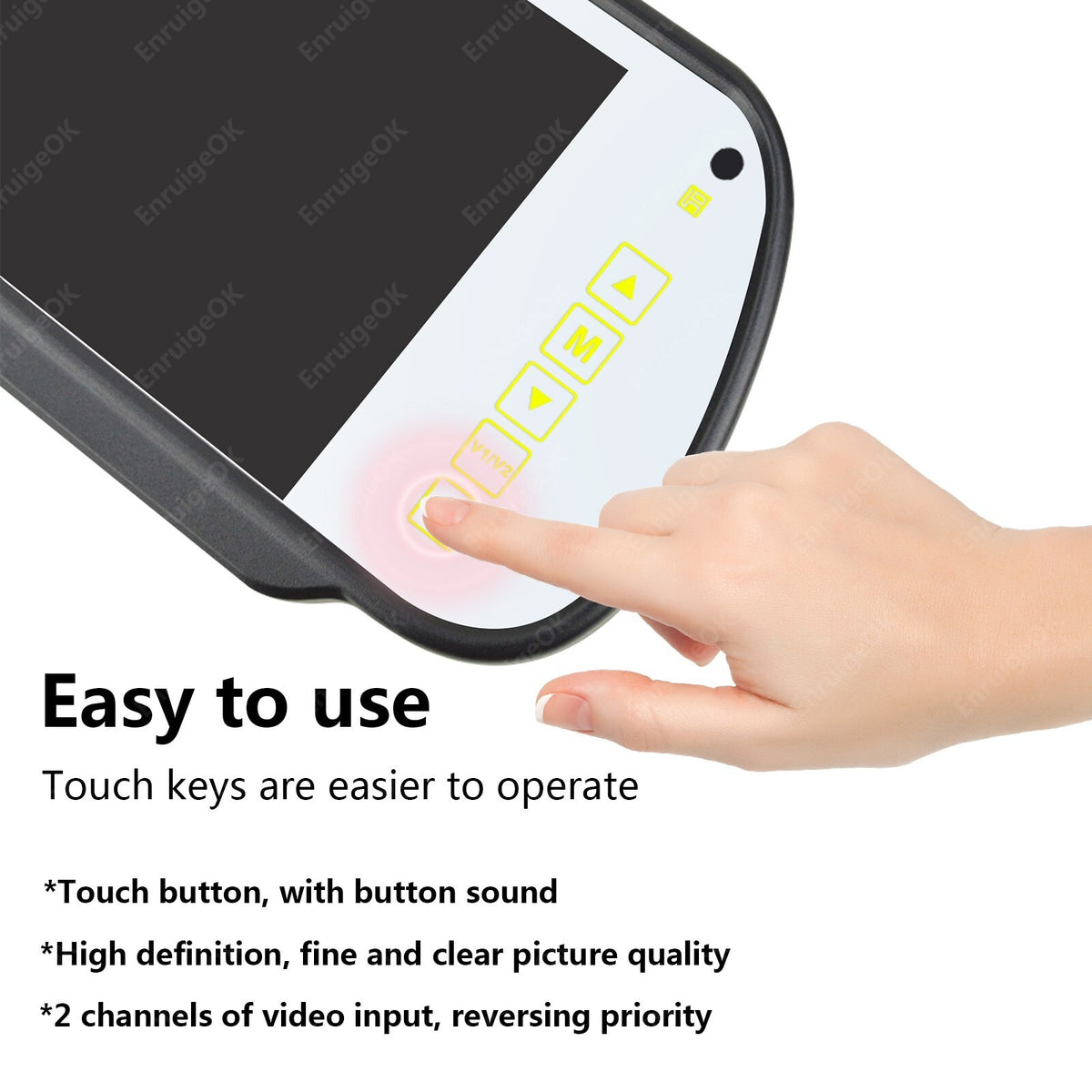

Control mode: Touch button

Power Supply: DC 9V-35V

Power consumption: 6W

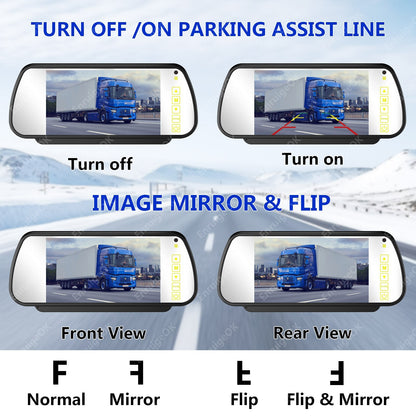

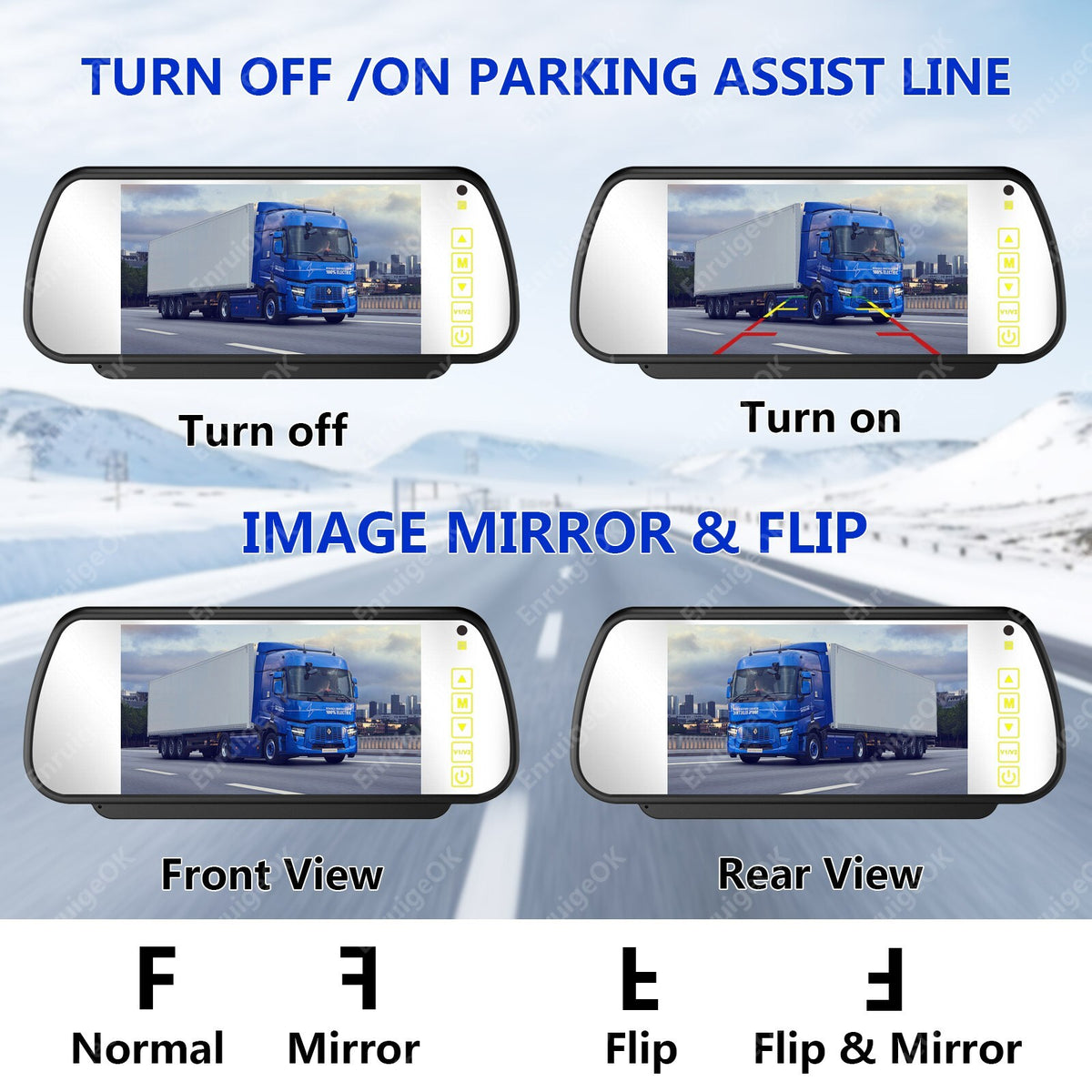

Rear watching: Image can be changed left and right

Operate mode: The key operation and remote control

Dual video inputs: One For DVD/VCD/GPS/TV, the other for the rearview camera and parking sensor, automatically switch when reversing

Applicable models: Universal- Fits in any car

Remote control: a CR2025 button battery (not included)

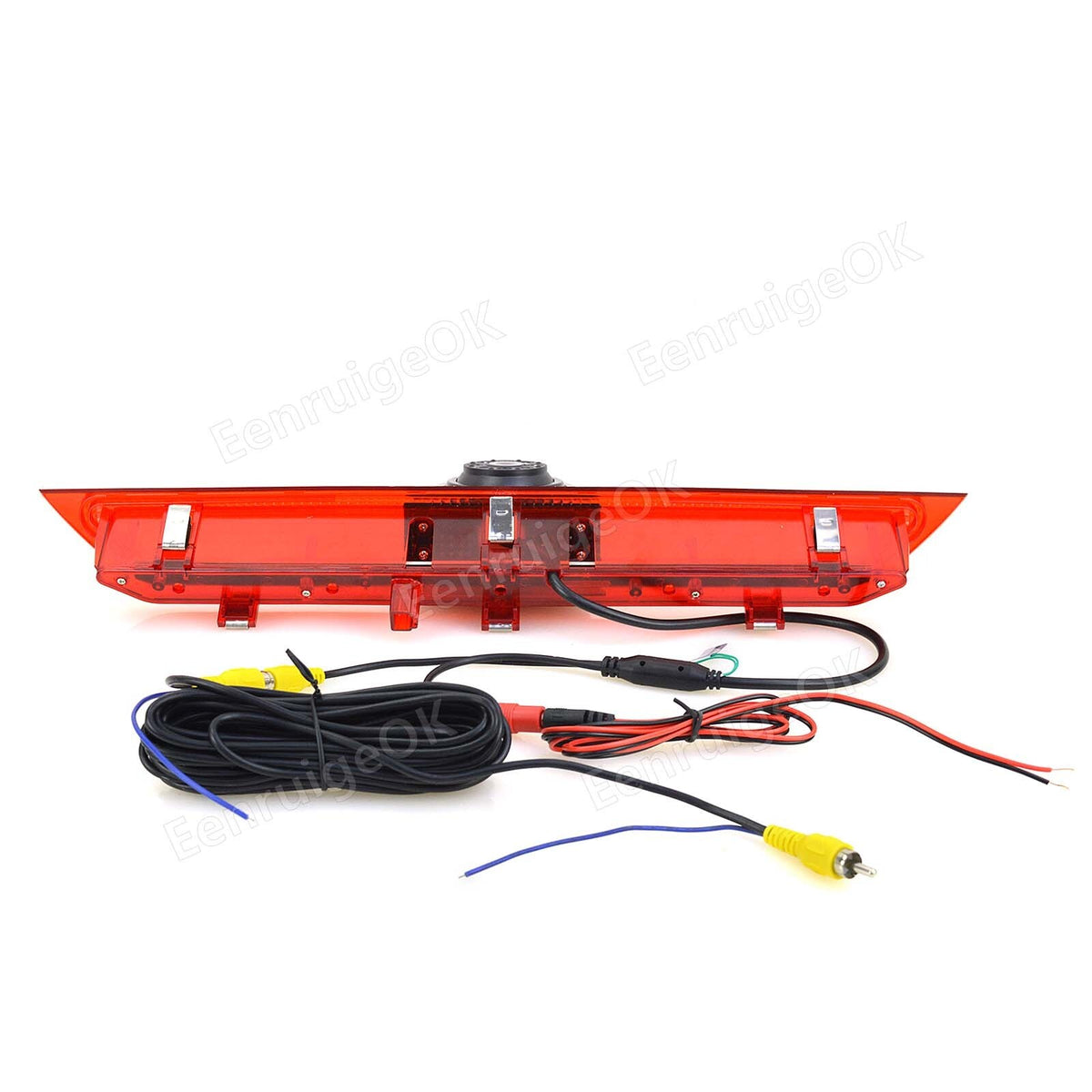

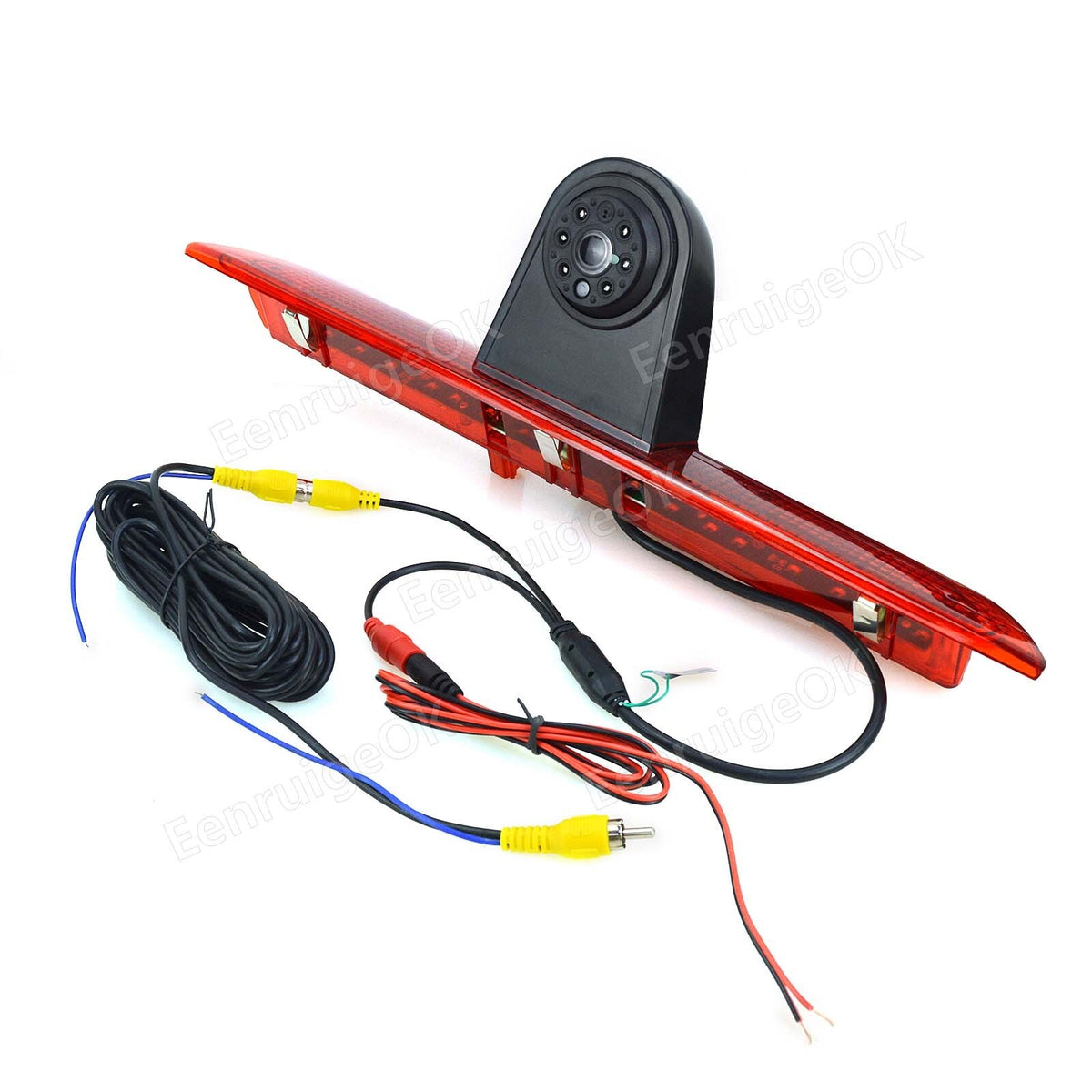

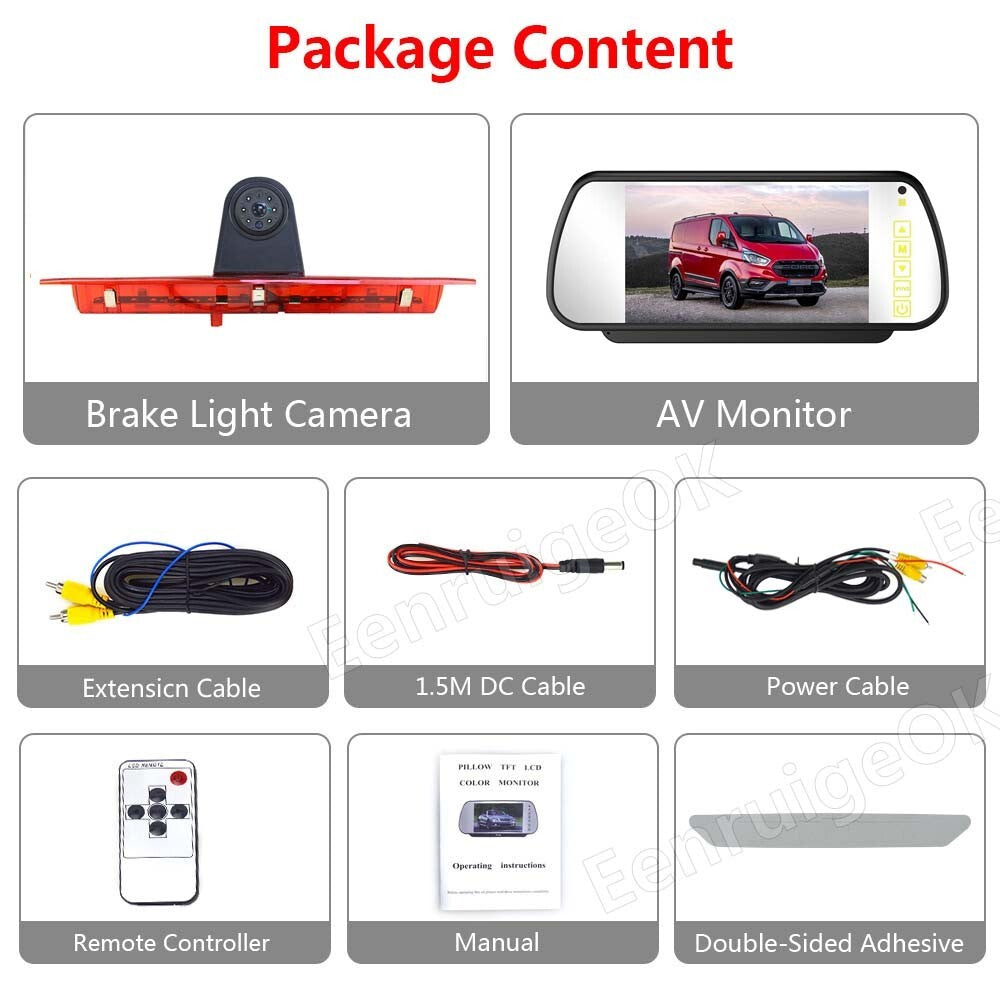

Package contents

1 X Rear View Camera

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X Monitor power cable

1 X 10 meters extension cable

1 X DC Power cable

1 X Manual

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
