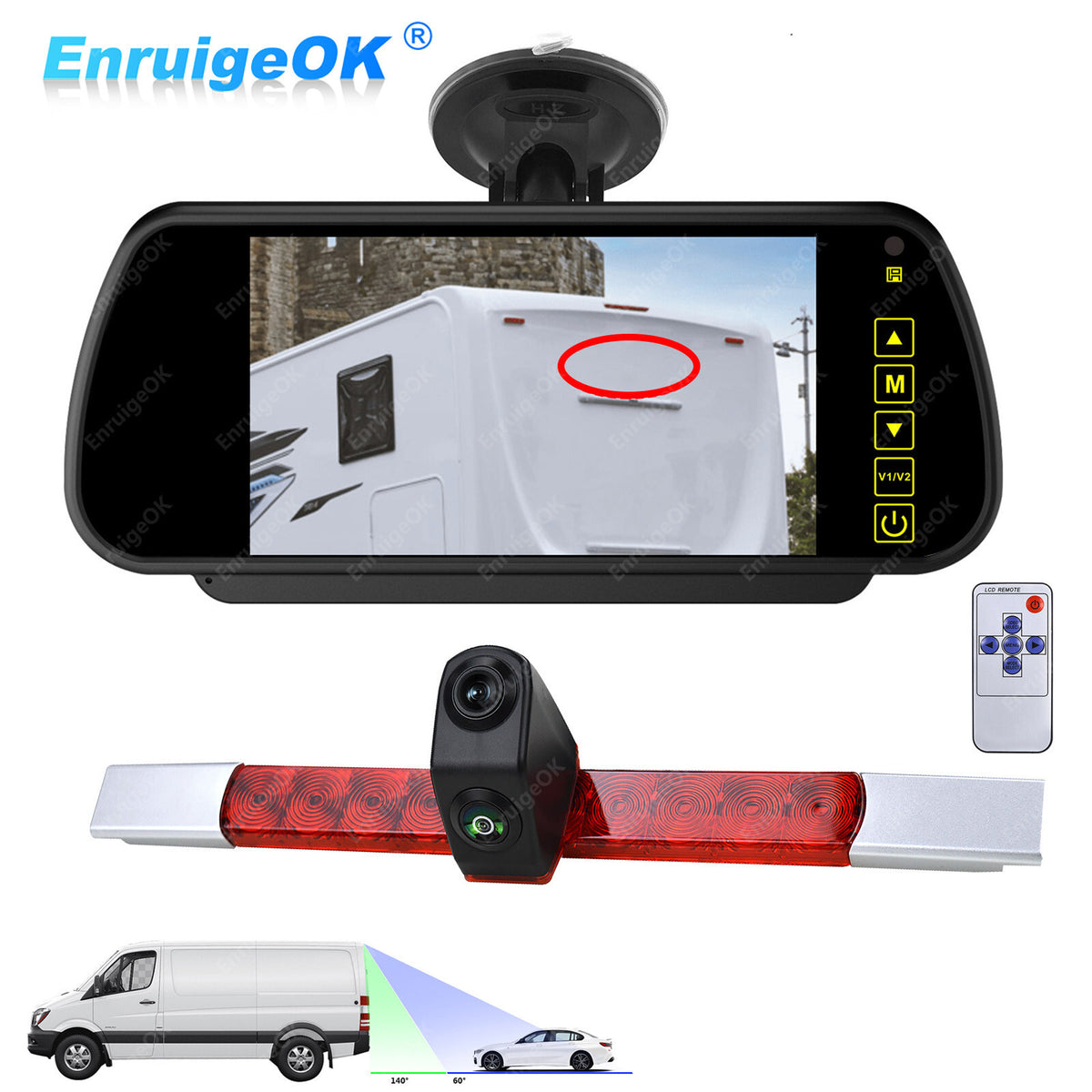

7'' Mirror Monitor & High Level Dual Brake Light Reversing Camera for Vans

Camera Compatibility

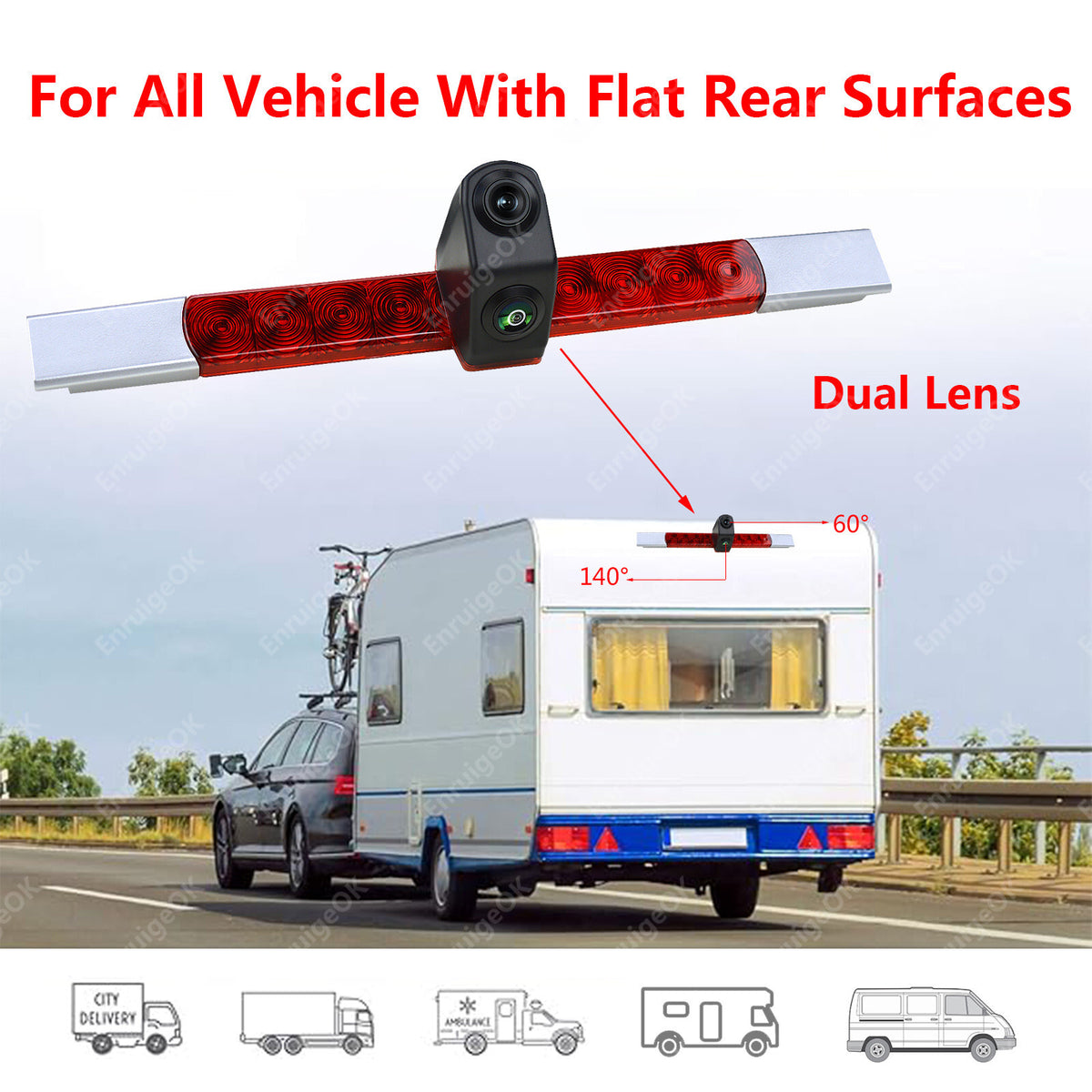

This Camera universal fit for all vehicles that have flat rear surfaces, such as cargo vans, motorhomes, and buses.

Description

It includes a backup camera & monitor. When you are backing up, the car monitor will display the rear camera images, helping you park safely.

7" Color TFT-LCD Monitor with 2 video input, 800*480(RGB) resolution works perfectly with brake light rear view camera.

This reversing camera with 120-degree viewing angle shows rich details about the environment behind the car for you.

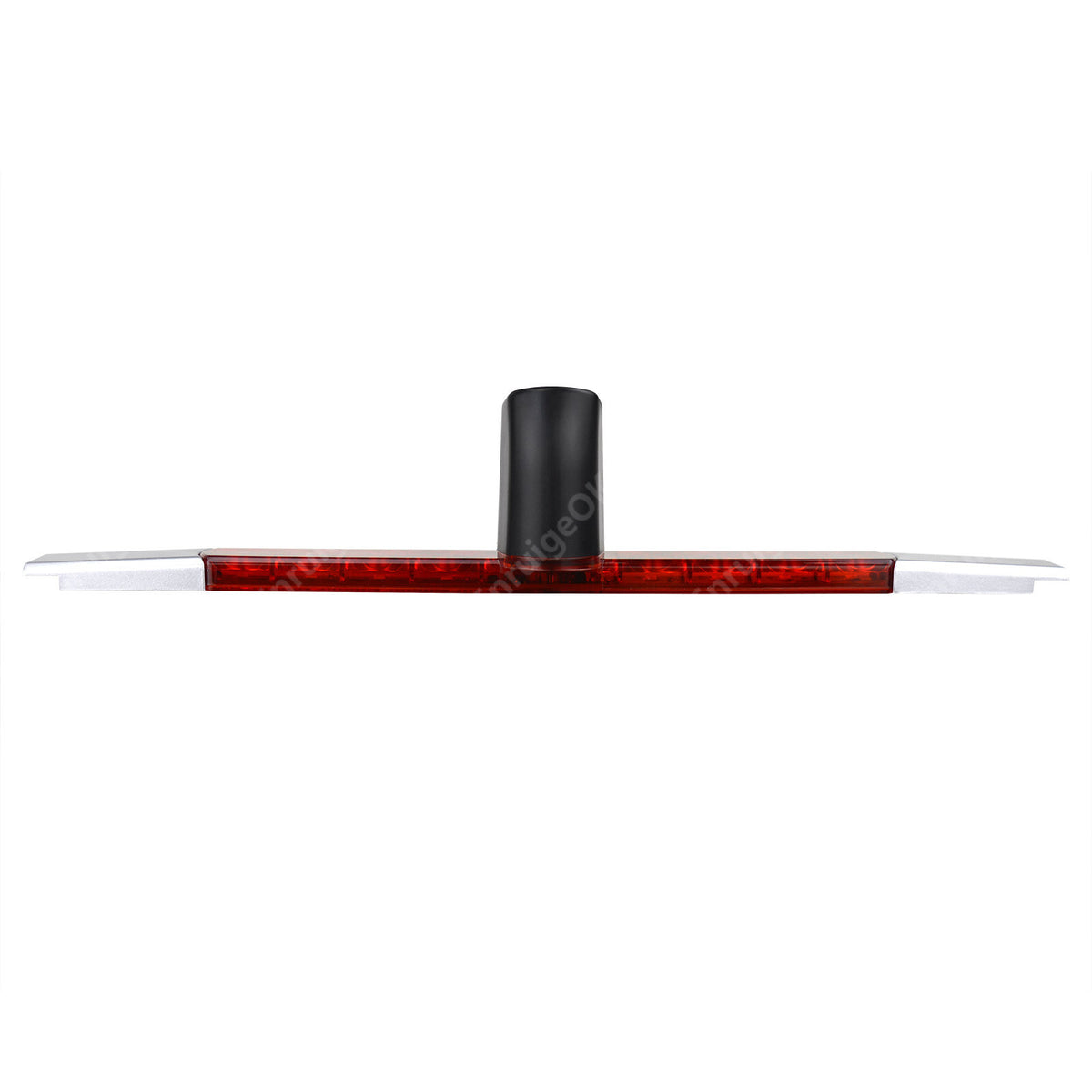

Simple replacement with the factory-set LED auxiliary stop lamp Hella 2DA 343 106-201.

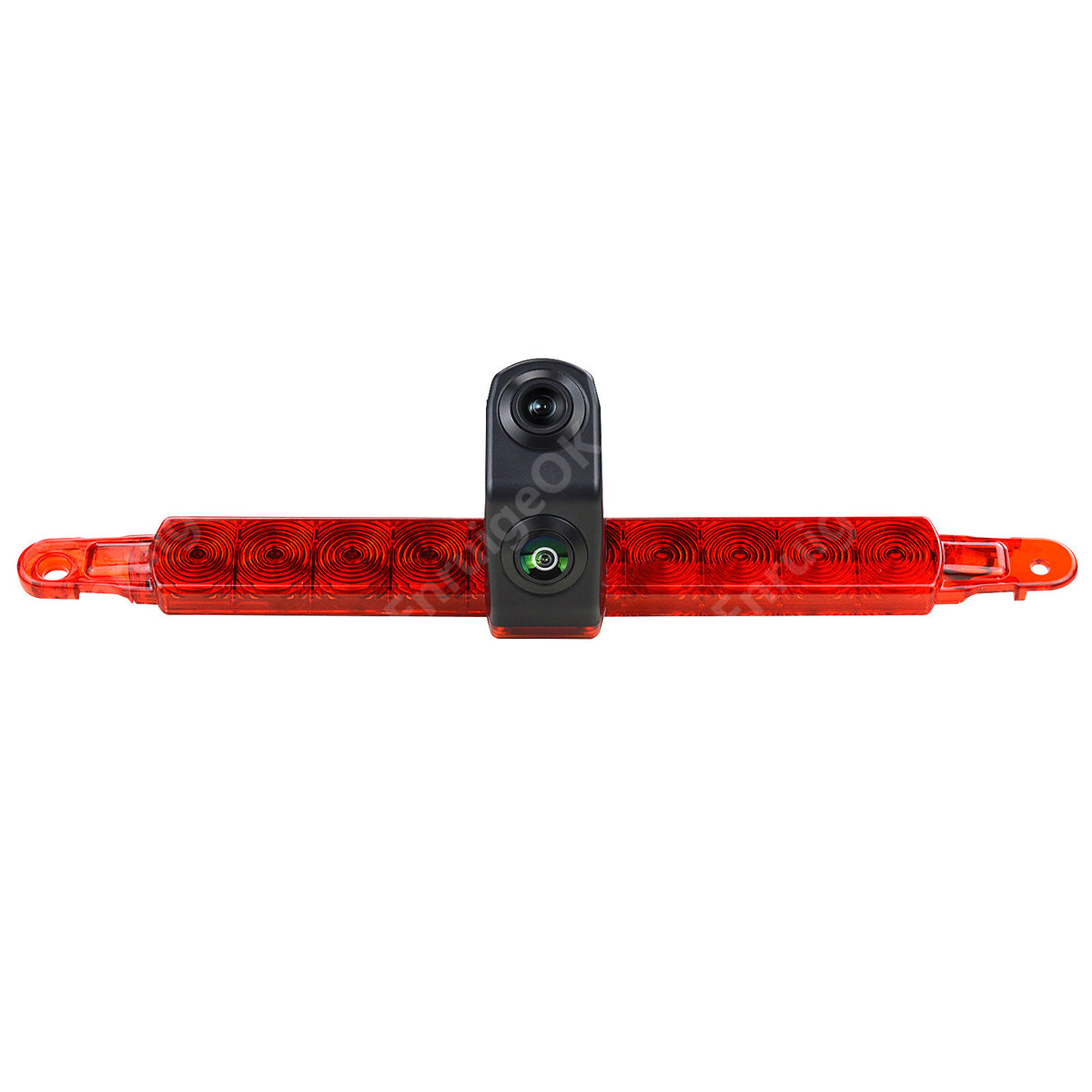

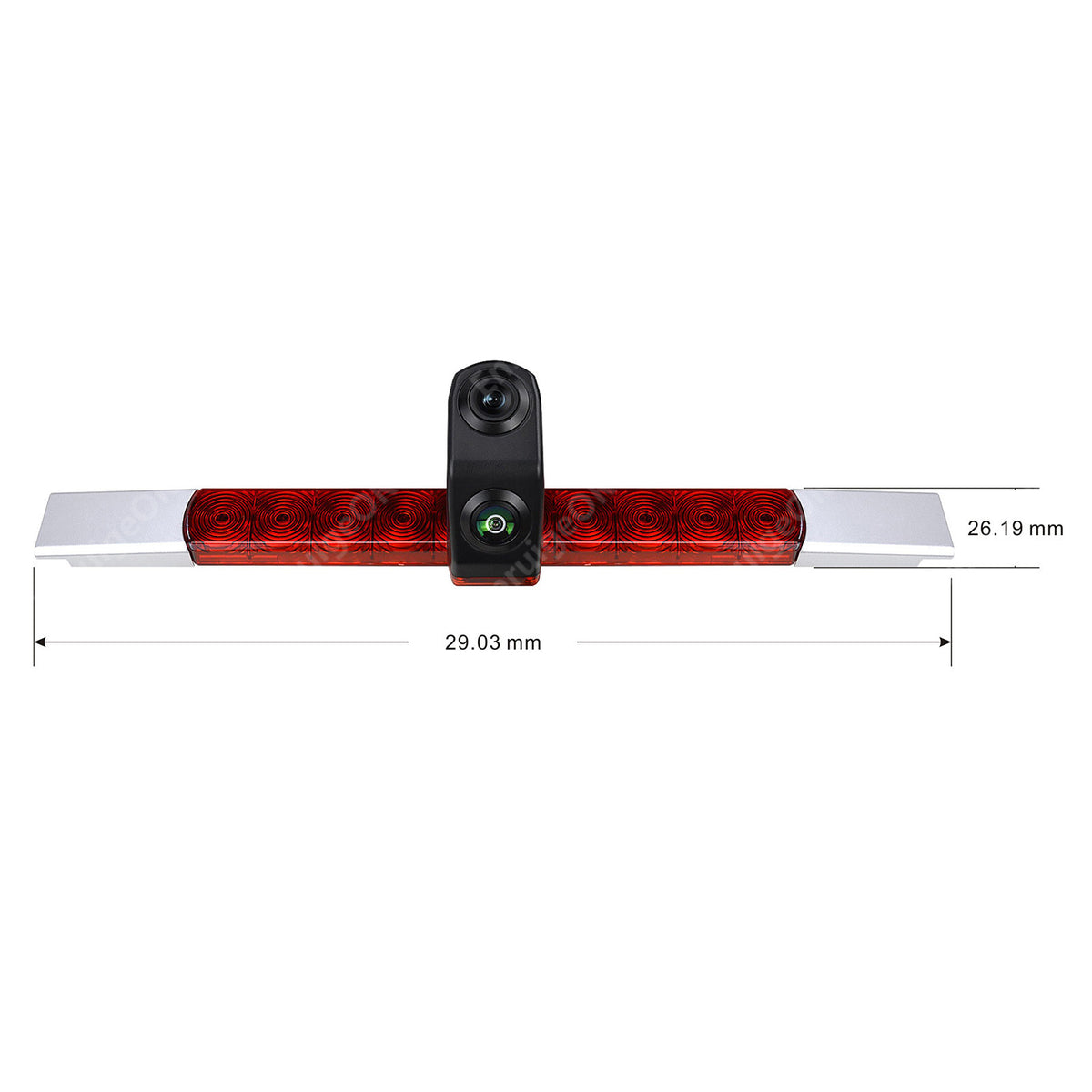

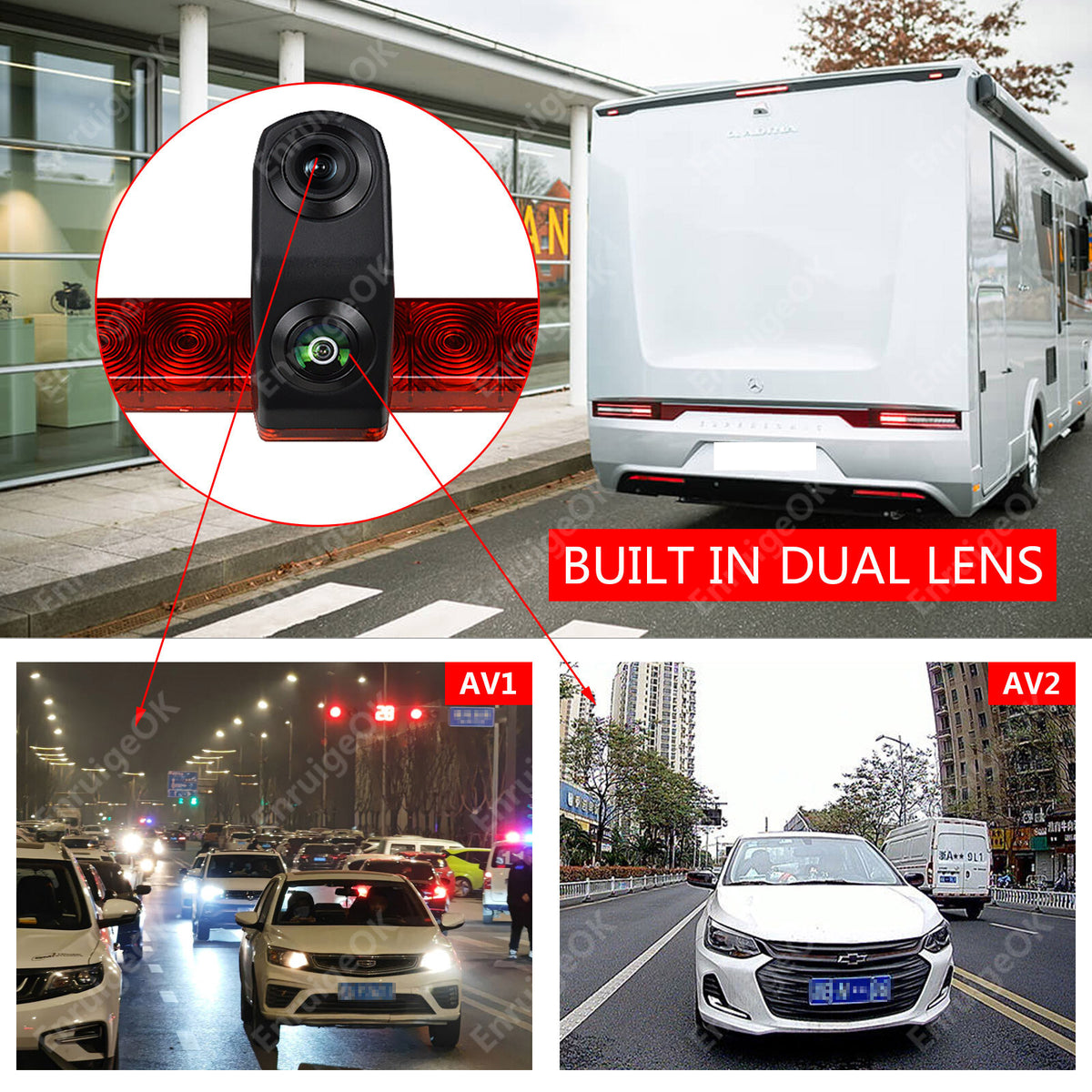

Dual lens backup camera. Its unique design allows to have one mounting with 2 cameras with different viewpoints. One reversing camera to view traffic, another to see the trailer hitch and rear bumper.

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

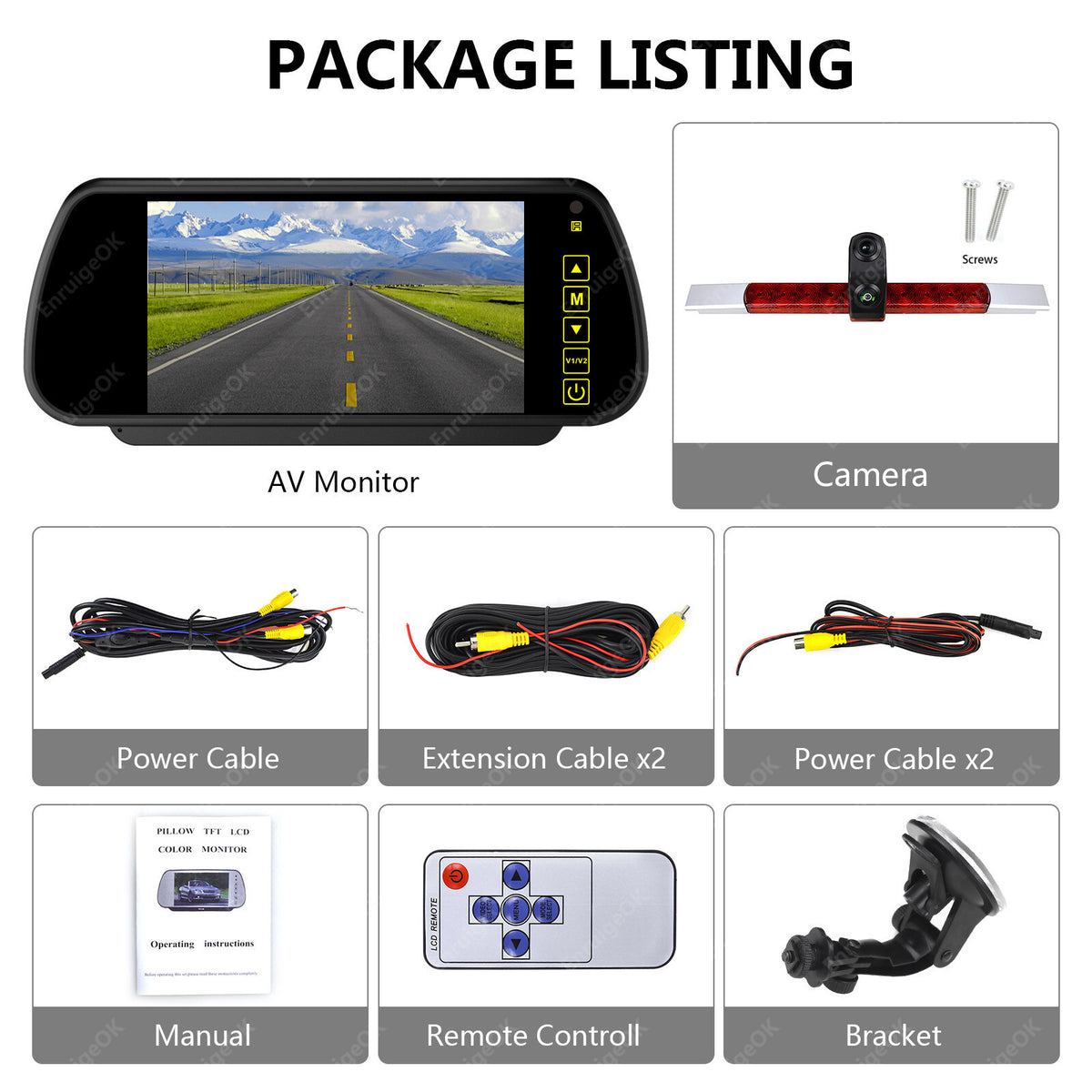

Package contents

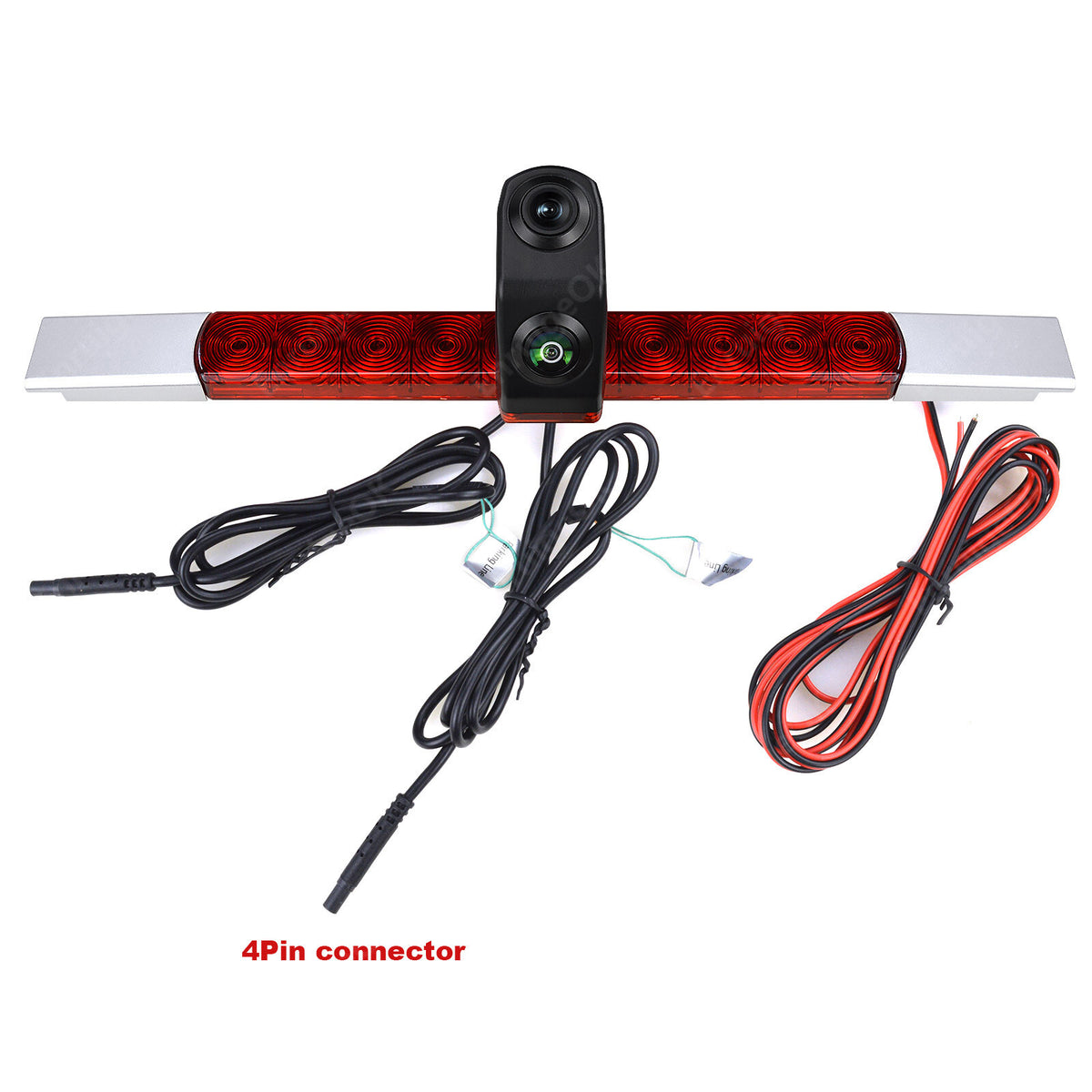

1 X Brake light camera

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X 2.5m monitor power cable

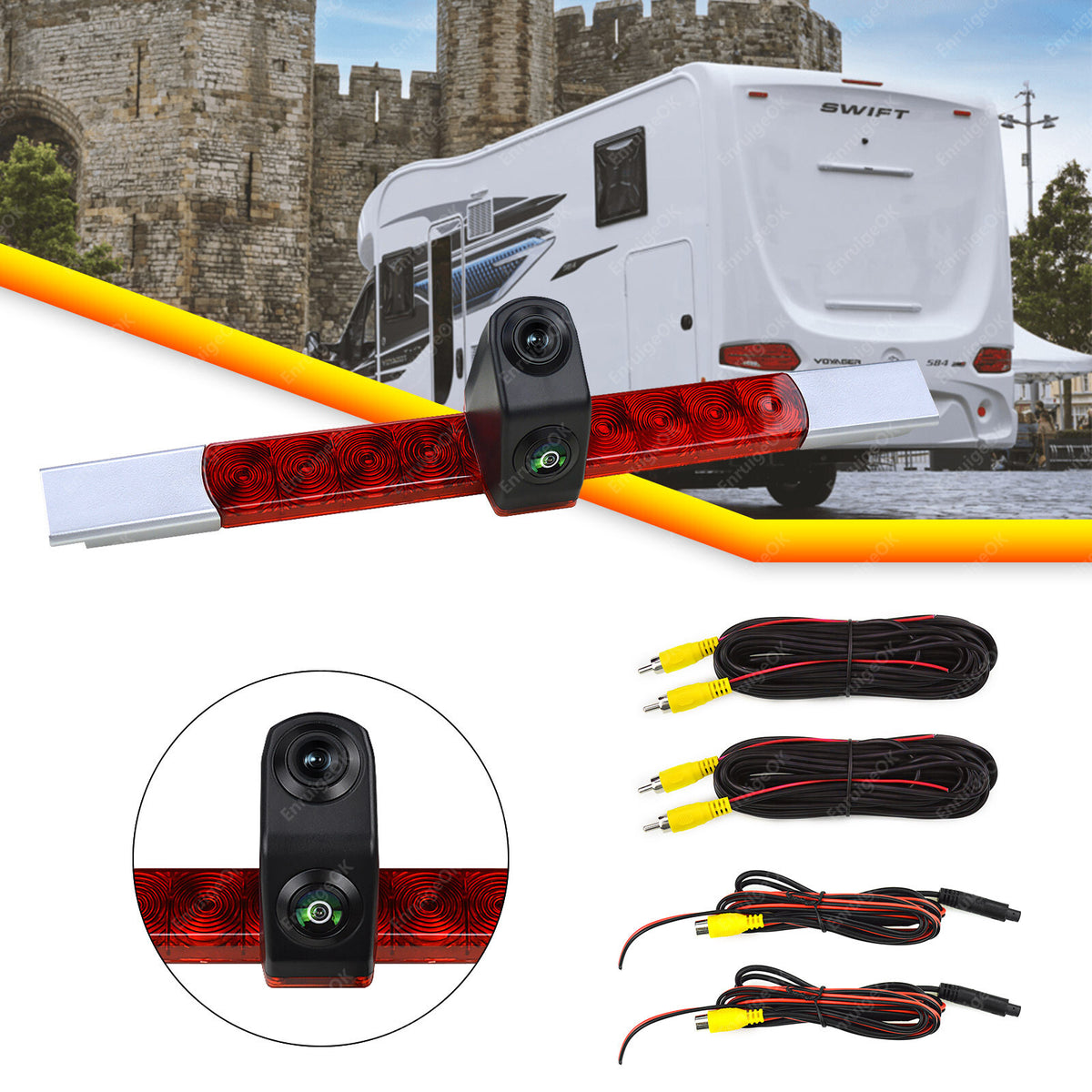

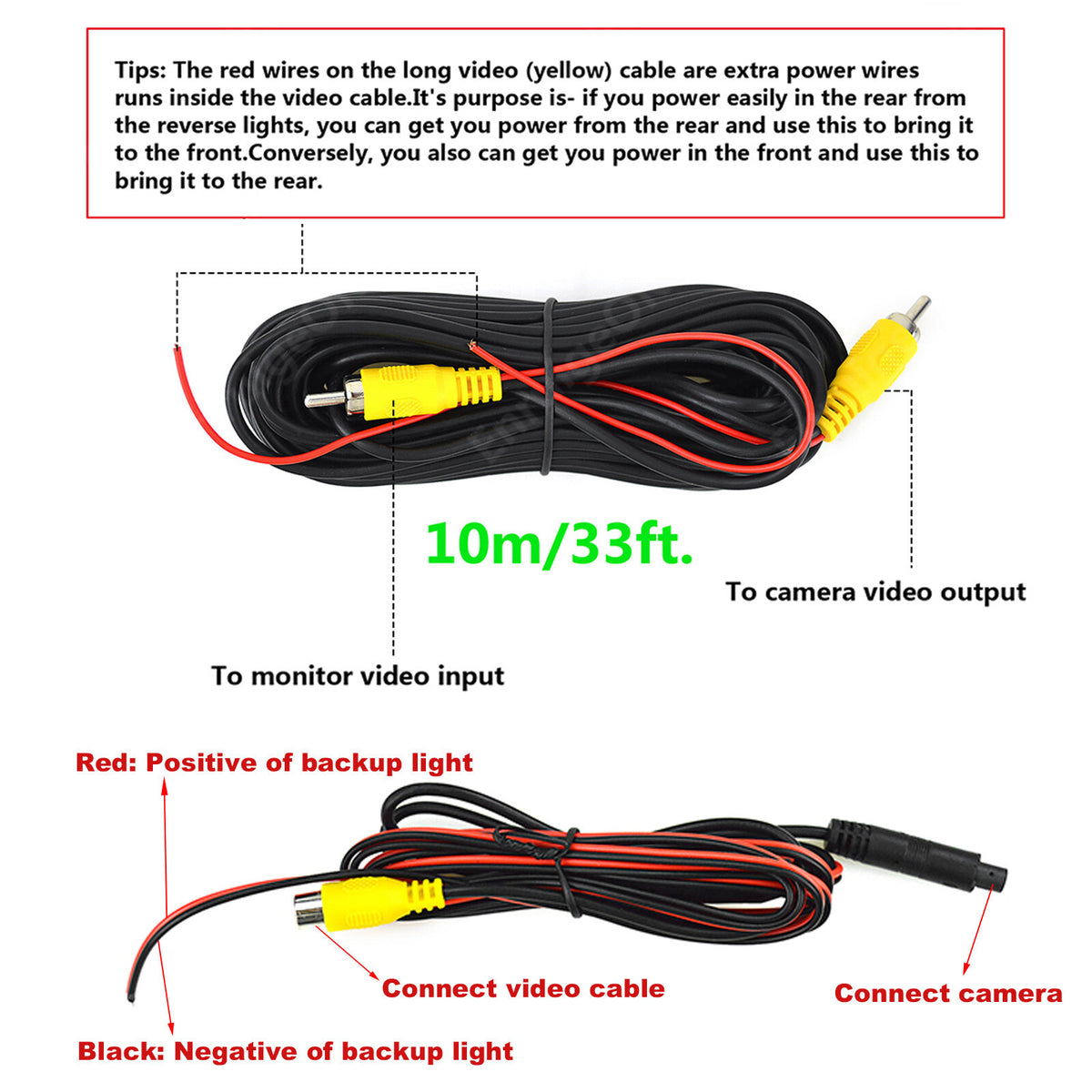

2 X 10m/33ft. video extension cable

2 X 1.8m DC power cable

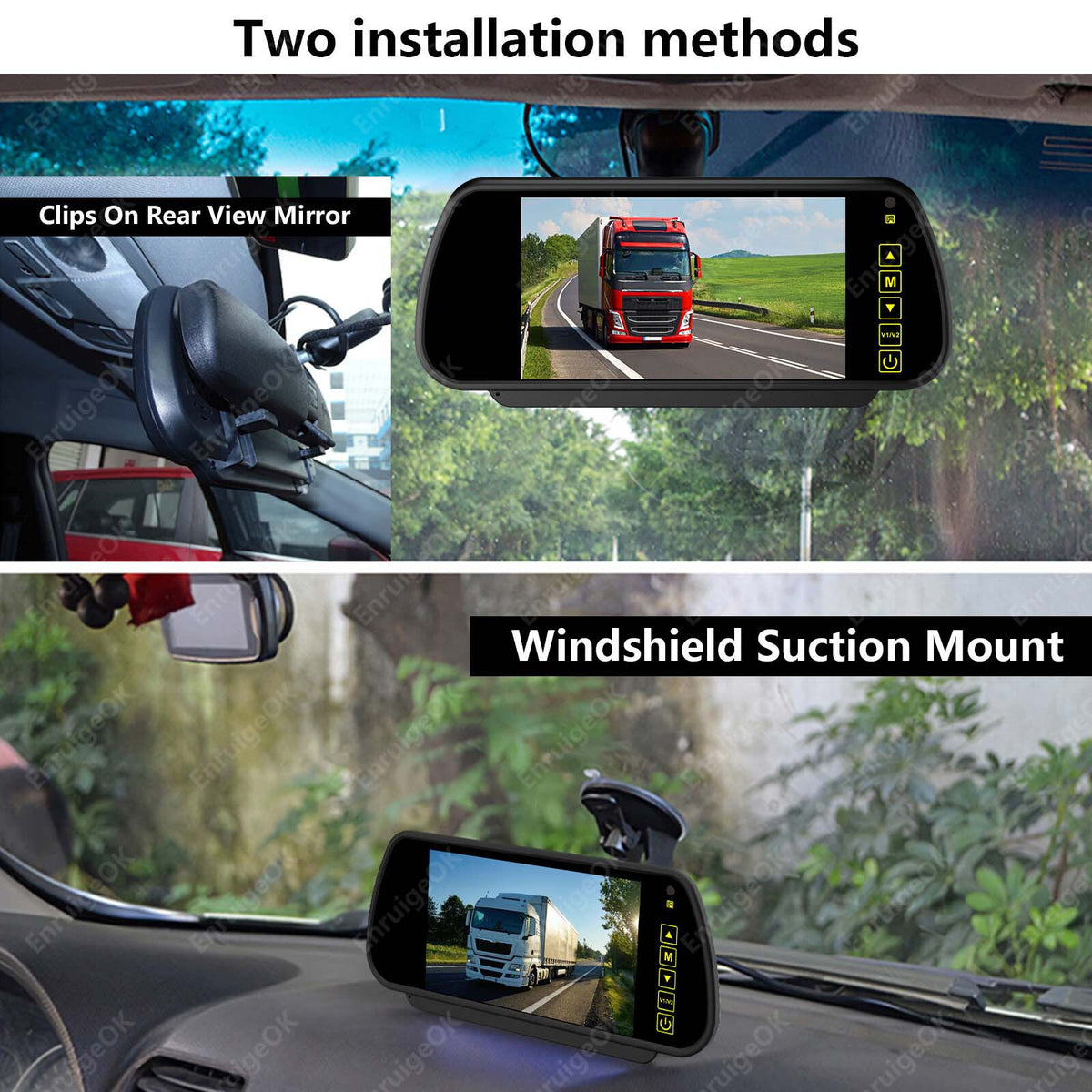

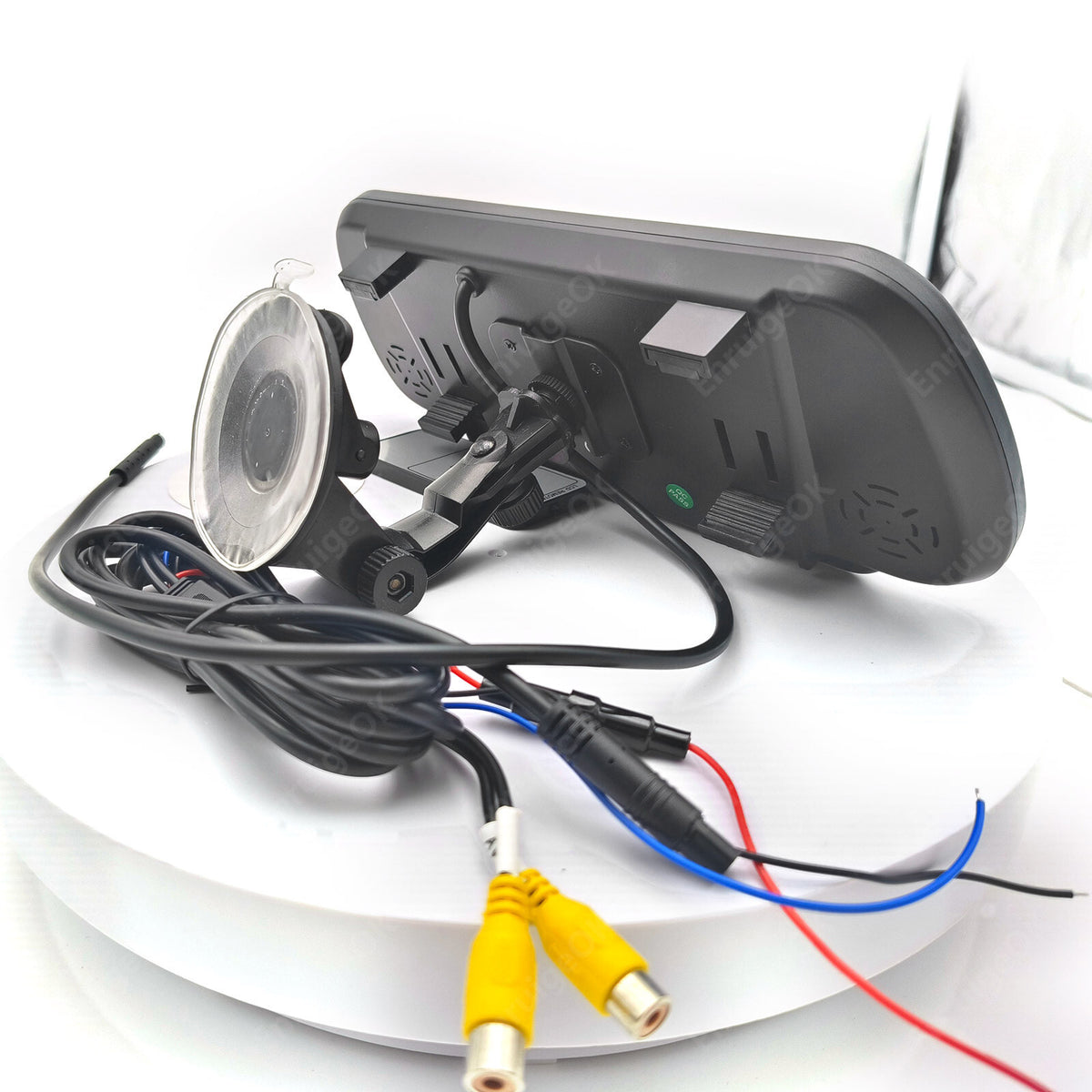

1 X Suction cup mount stand

1 X Manual

Camera Specifications

Image sensor: 1/4" CMOS

Lens: 2.8mm& 3.6mm

Effective pixel: 733(H)x493(V)

TV Line: 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

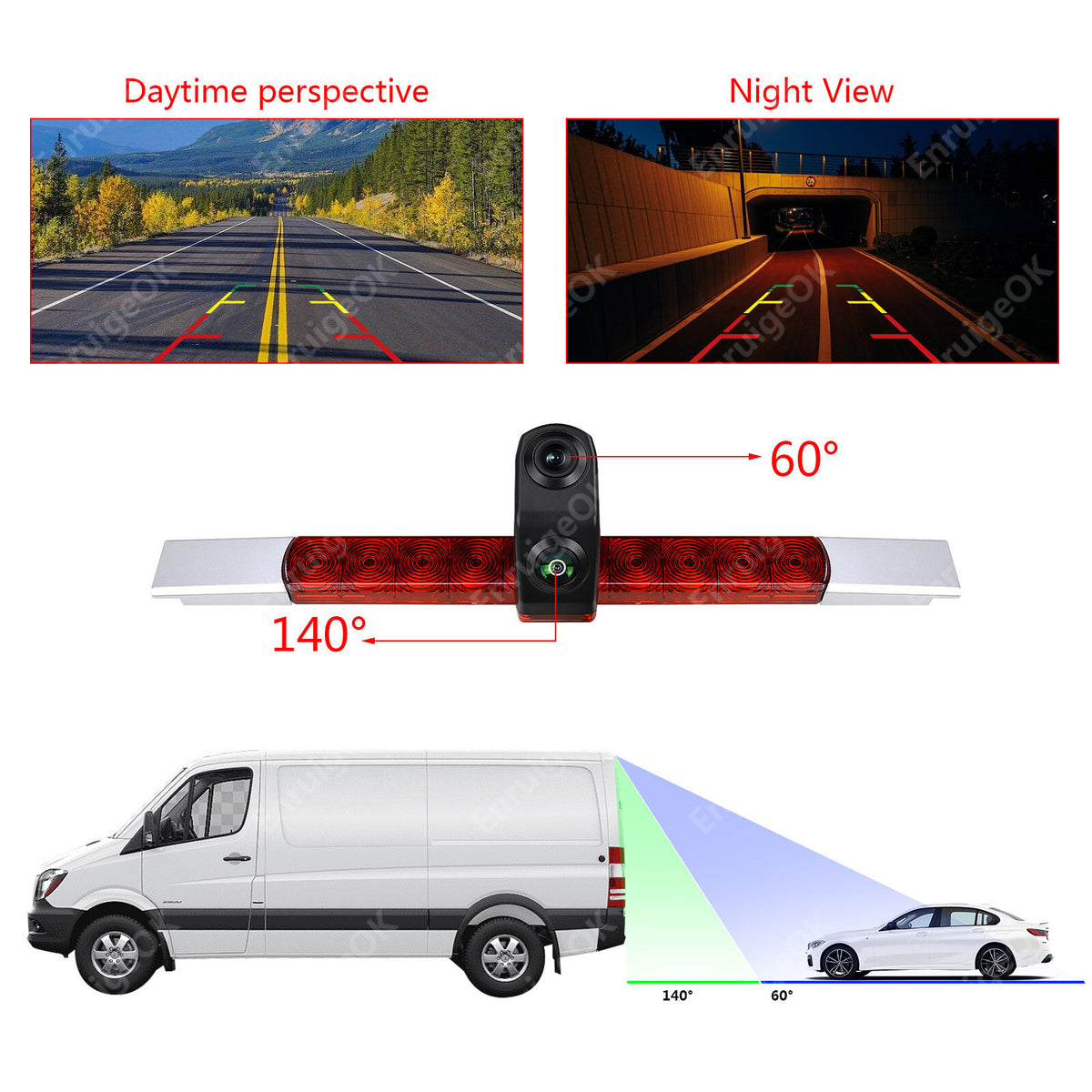

Viewing angle: 140°& 60°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1-0.5Lux/F=1.2(0 Lux with LED on)

Power: DC12V

Operating temperature: -20℃ to +70℃

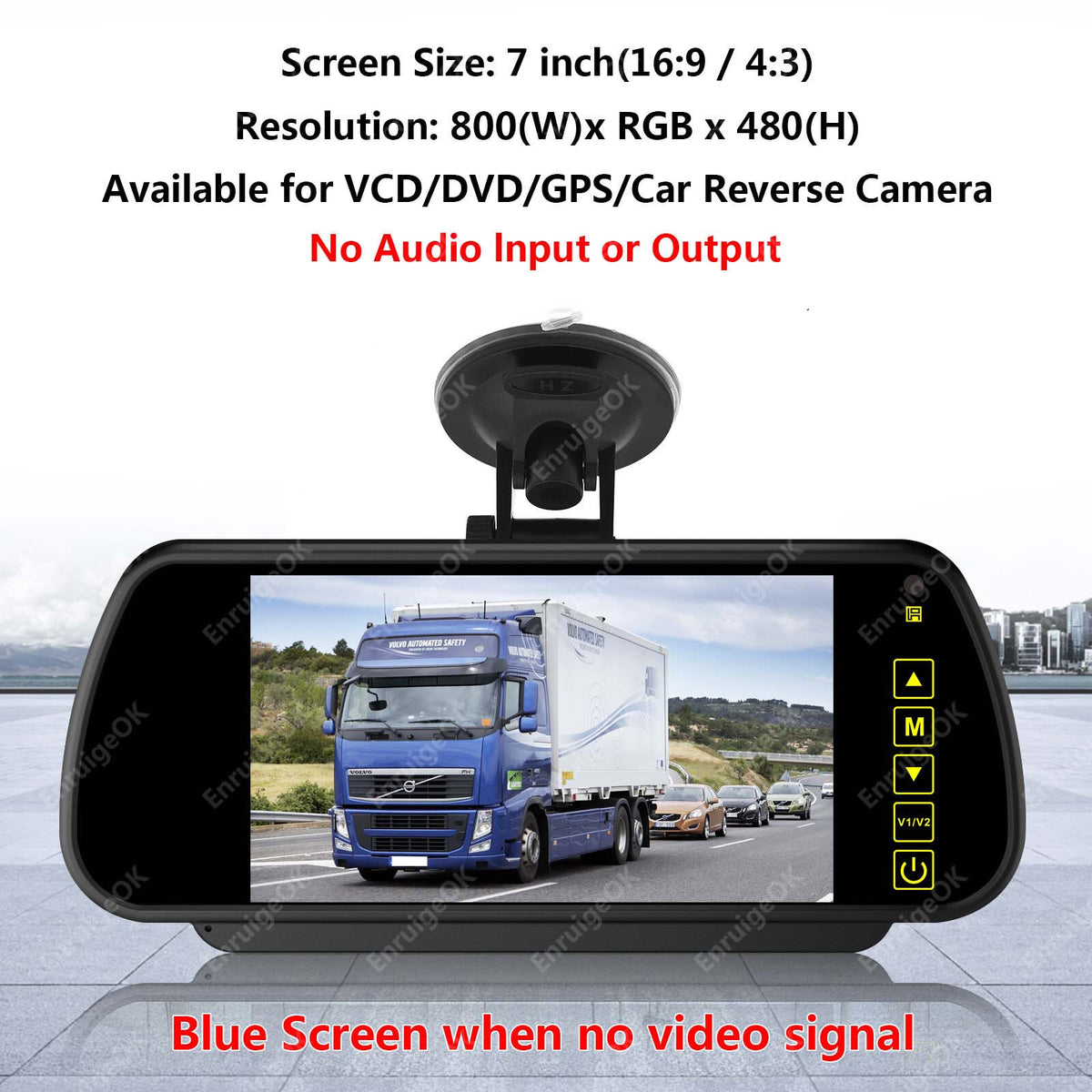

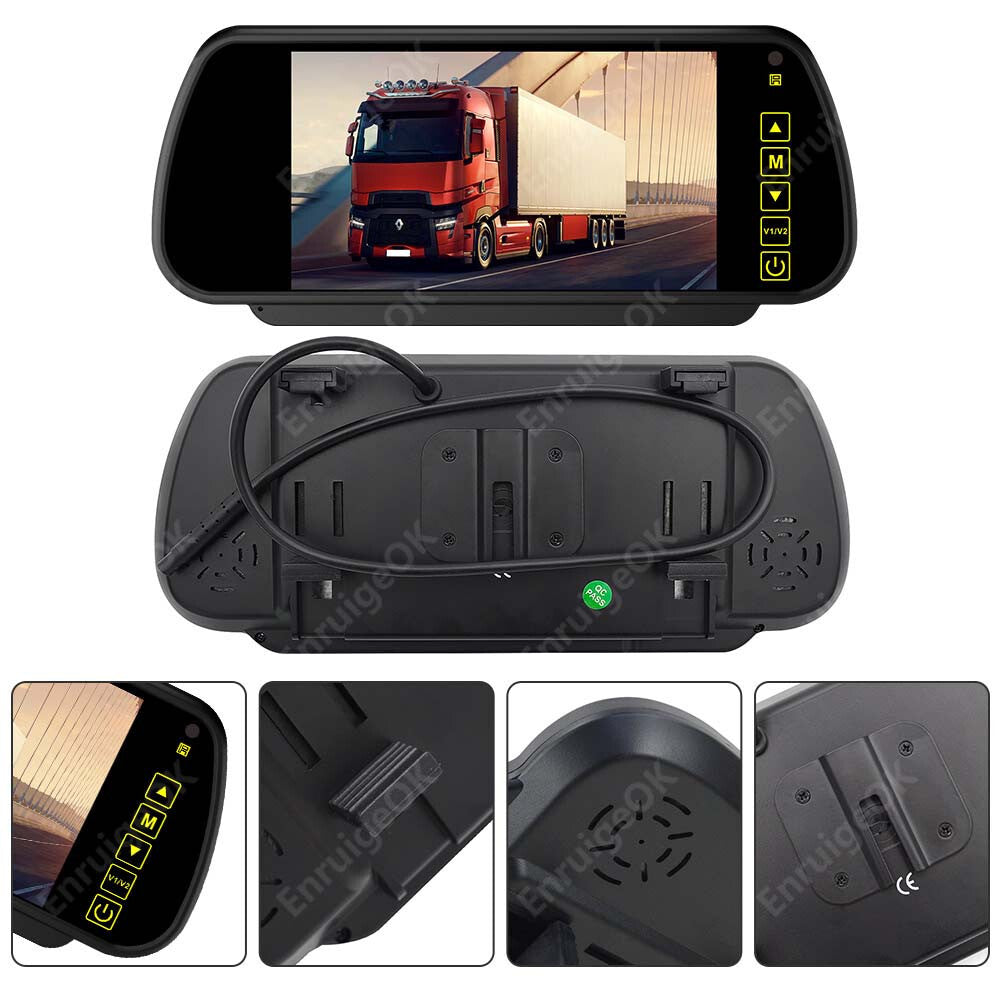

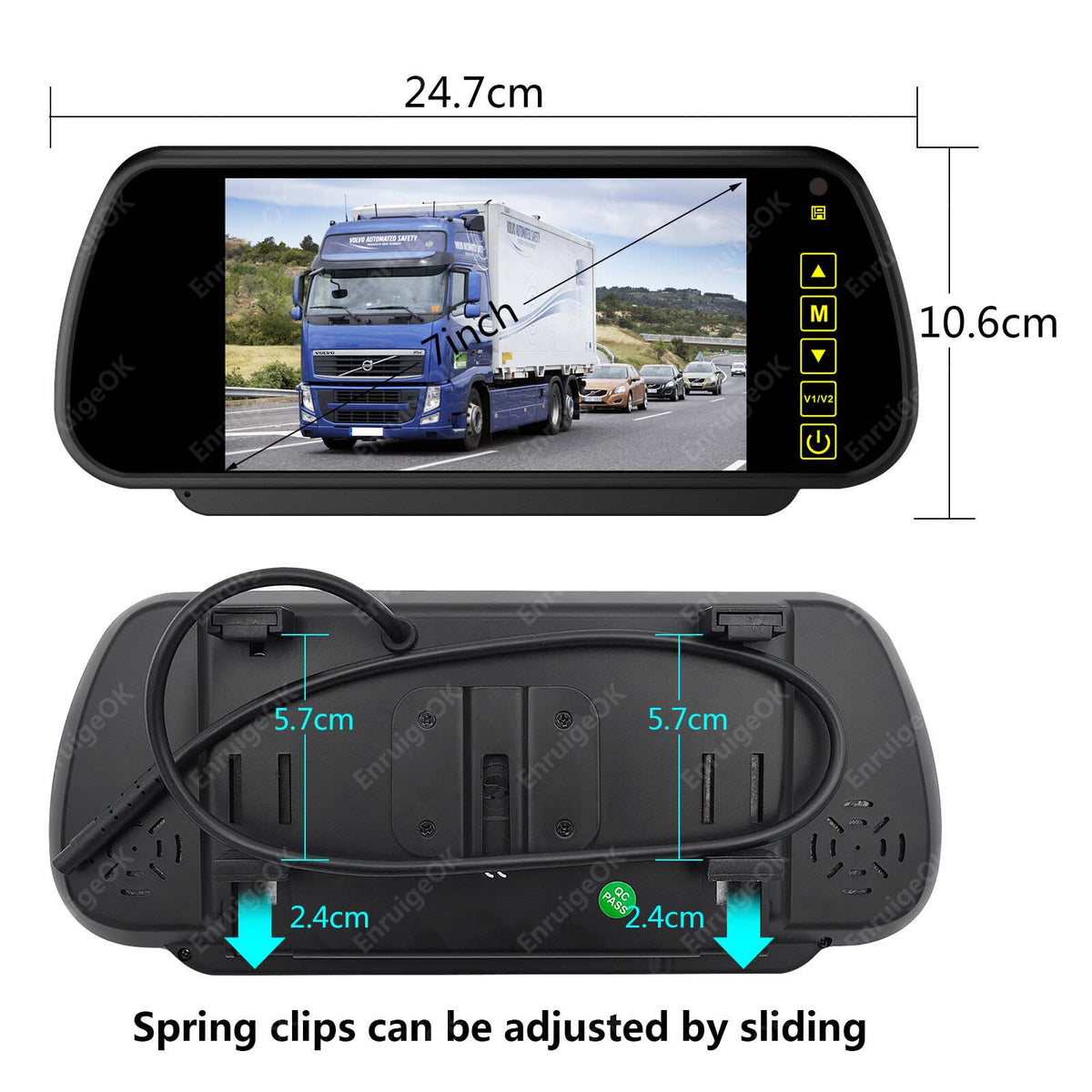

Monitor Specifications

Material: ABS+glass

Screen: 7 inch

Resolution: 800x(RGB)x480

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

Video Input: 2AV video input

Power Supply: DC 9V-35V

Power consumption: 6W

Rear watching: Image can be changed left and right

Operate mode: The touch key operation and remote control

Dual video inputs: One For DVD/VCD/GPS/TV, the other for the rearview camera and parking sensor, automatically switch when reversing

Remote control: a CR2025 button battery (battery not included)

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
