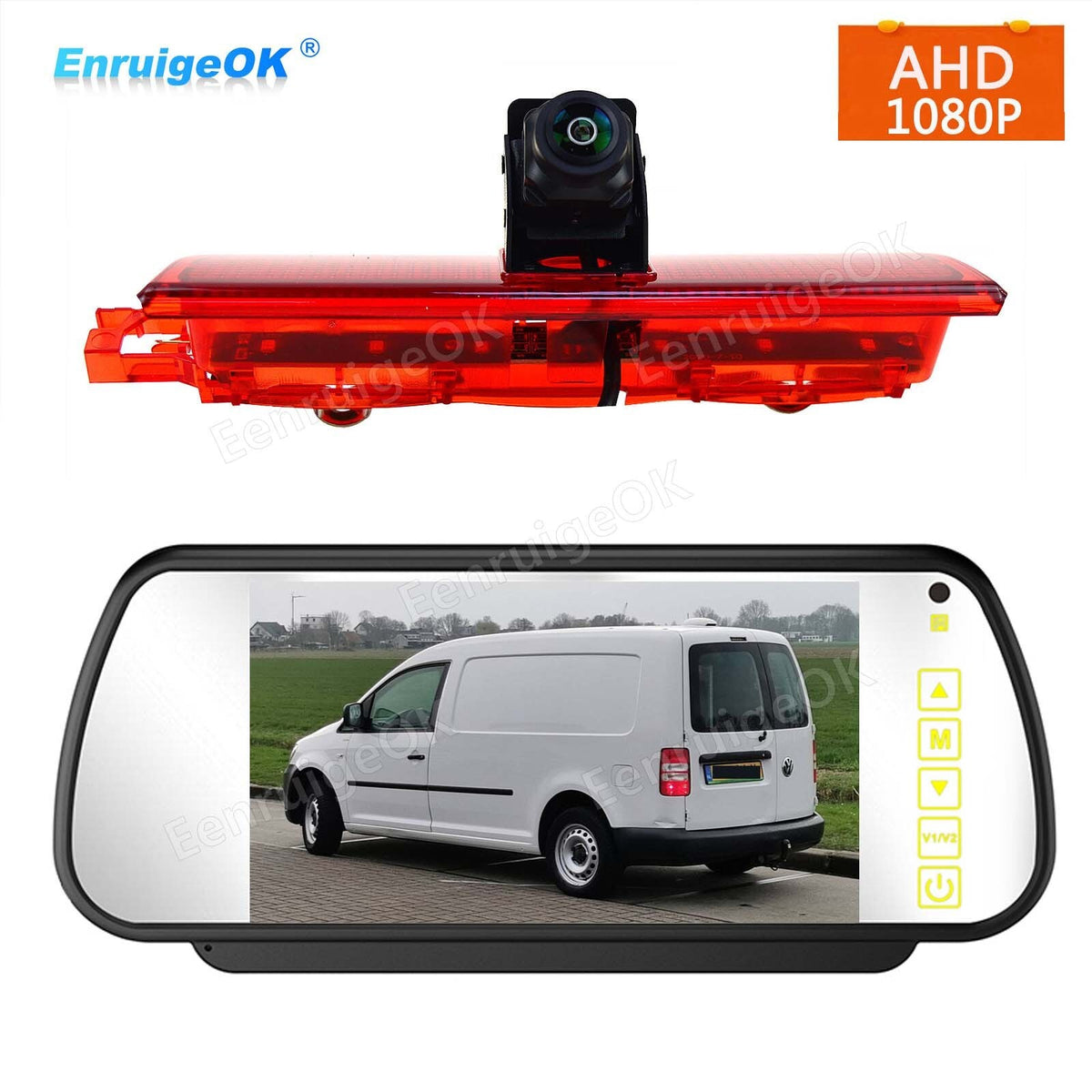

7'' Mirror Monitor & Brake Light Reversing Camera for VW Caddy [MK3] 2003-2016

About This Kit

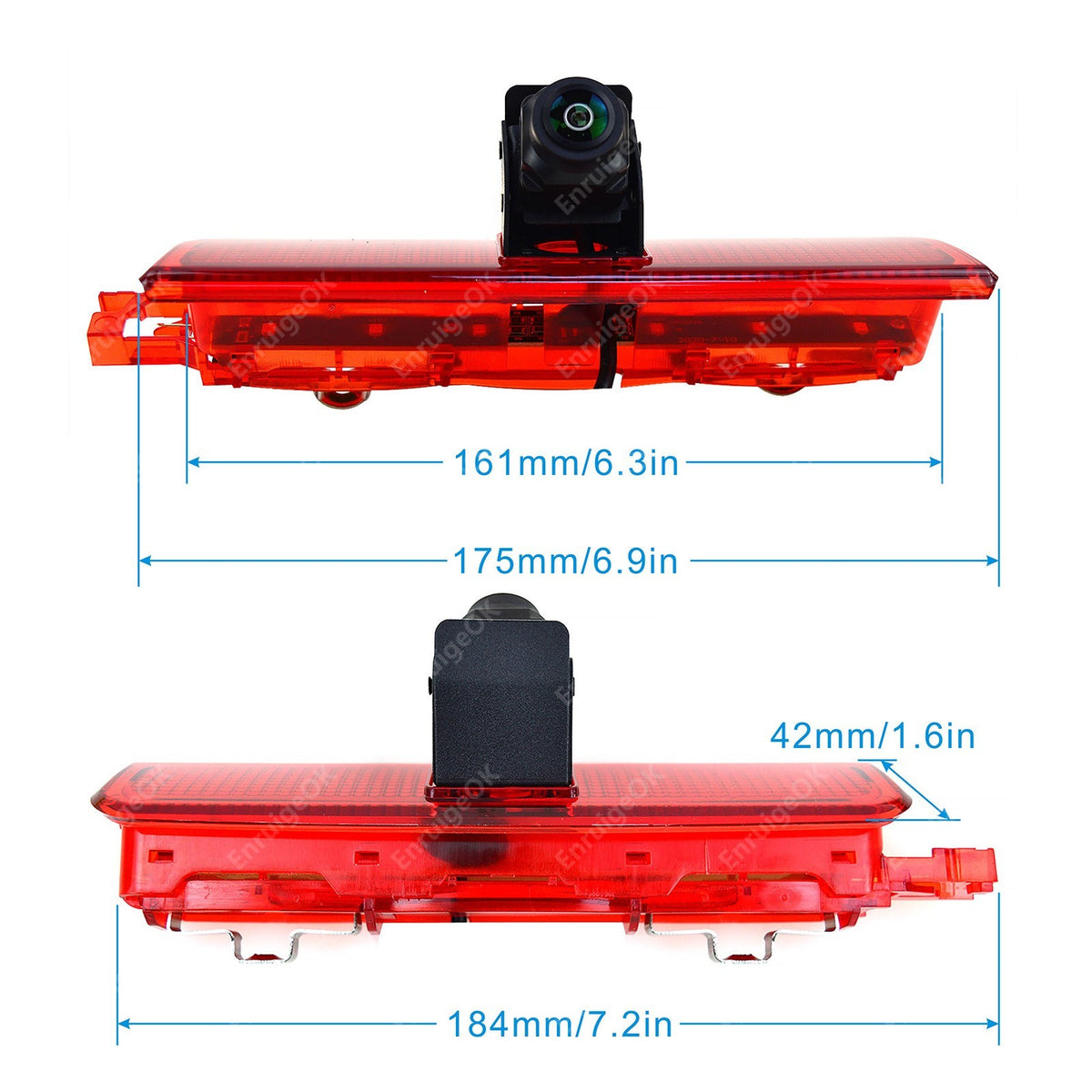

This vehicle-specific reversing camera kit combines a brake-light backup camera with a 7-inch mirror monitor for safer parking and reversing. The camera replaces the original brake-light housing for an OEM-style installation.

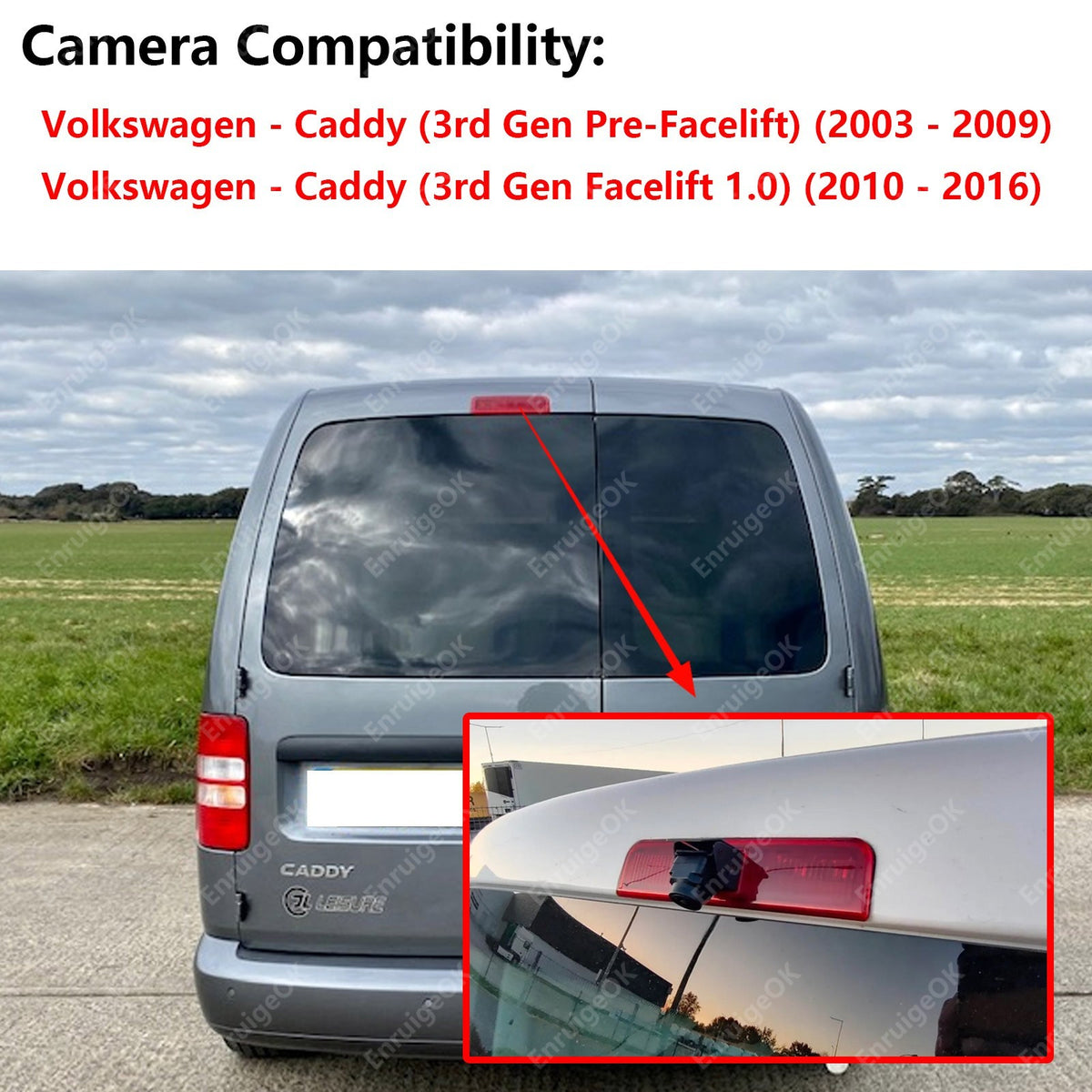

Vehicle Compatibility

• Volkswagen Caddy 3rd Gen Pre-Facelift (2003-2009)
• Volkswagen Caddy 3rd Gen Facelift 1.0 (2010-2016)

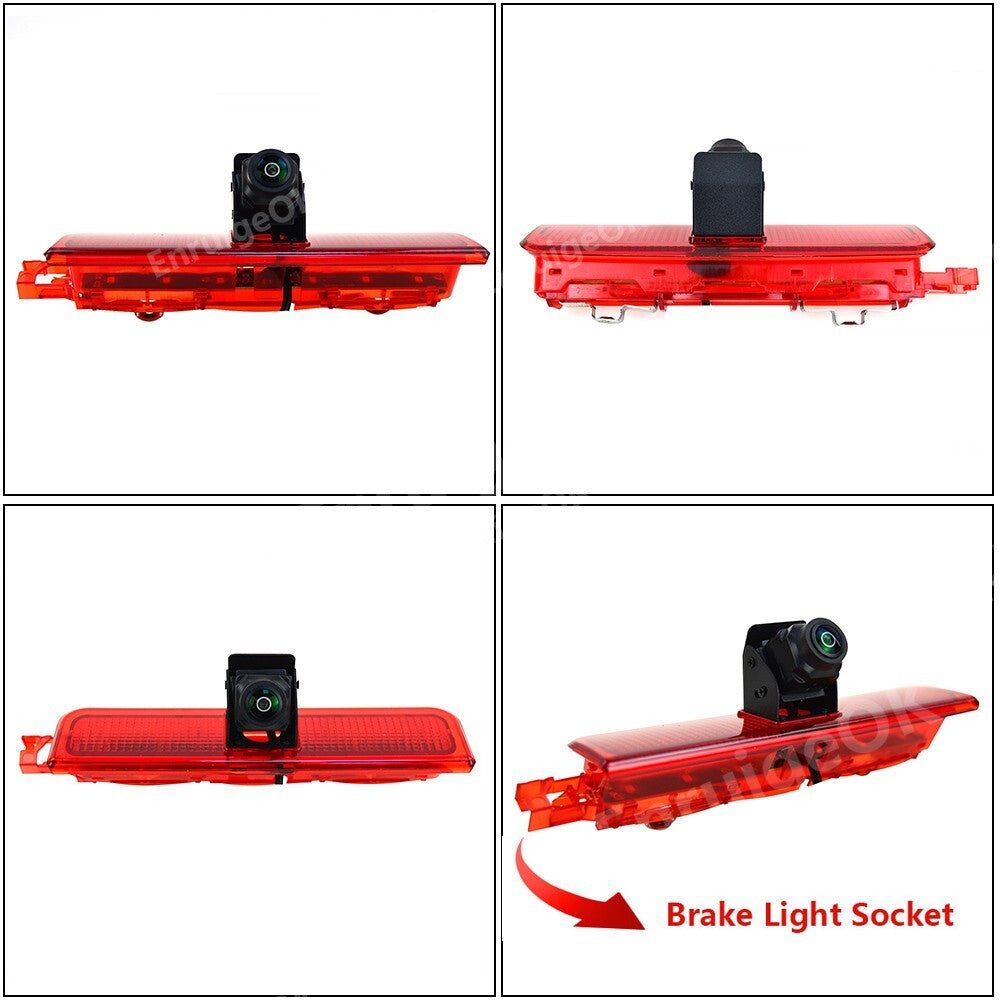

Please compare the product images and your original brake-light housing before ordering to confirm fitment.

Key Features

• 7-inch 16:9 HD digital mirror monitor
• 1024 × 600 monitor resolution
• AHD 1080P rear-view camera

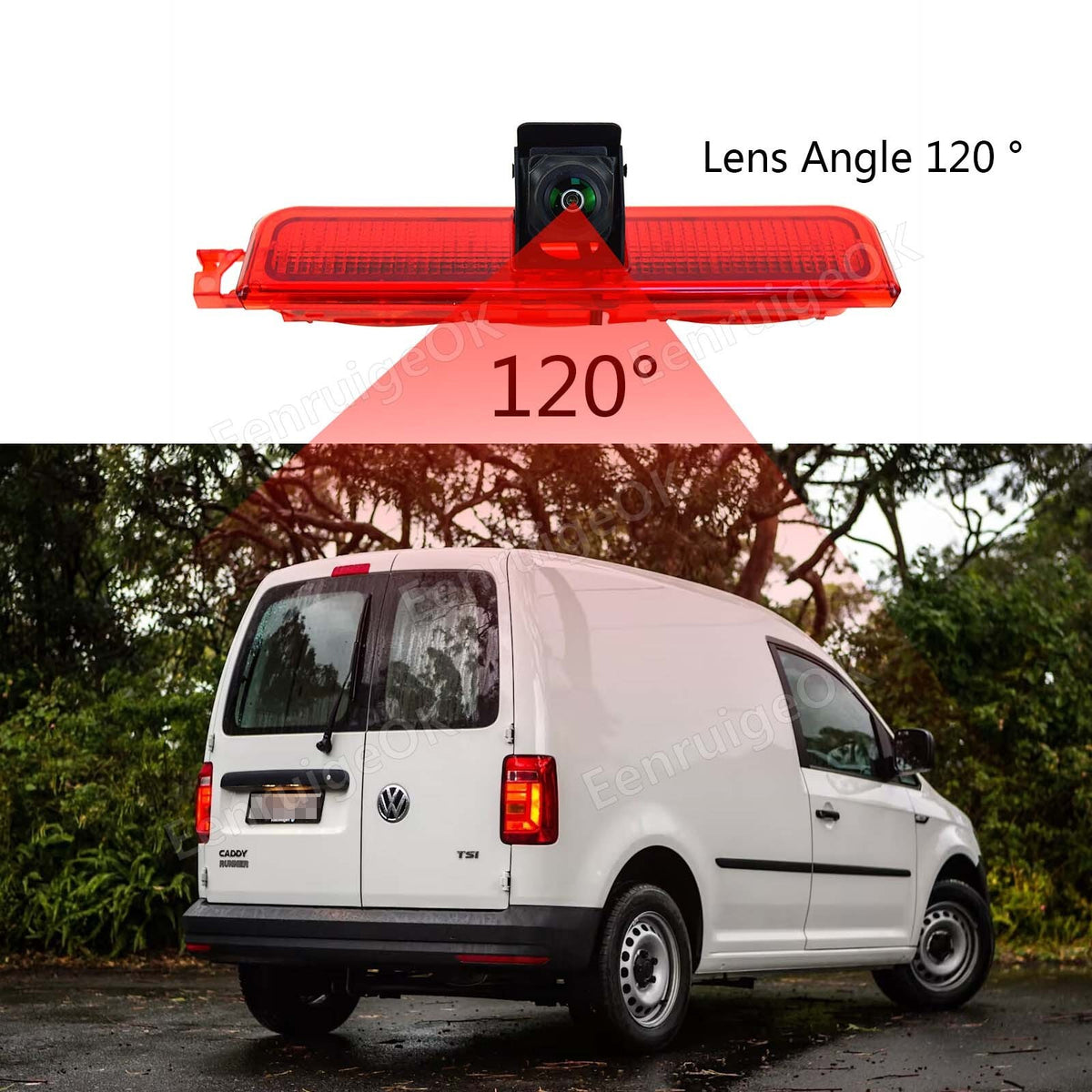

• 120° wide-angle view
• Night vision up to 35ft
• IP68 waterproof camera housing

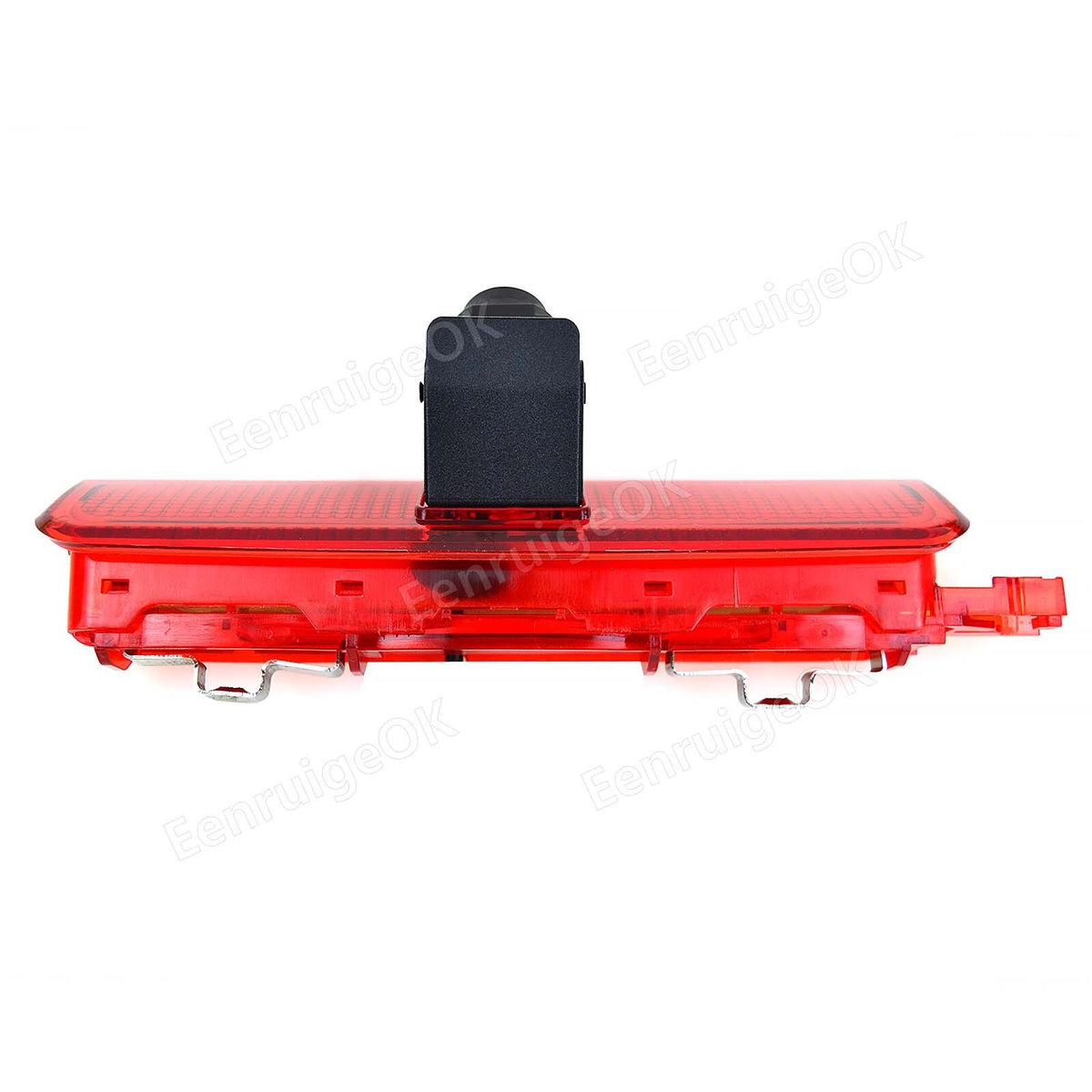

• OEM-style brake-light replacement installation
• Automatic rear-view priority when reversing

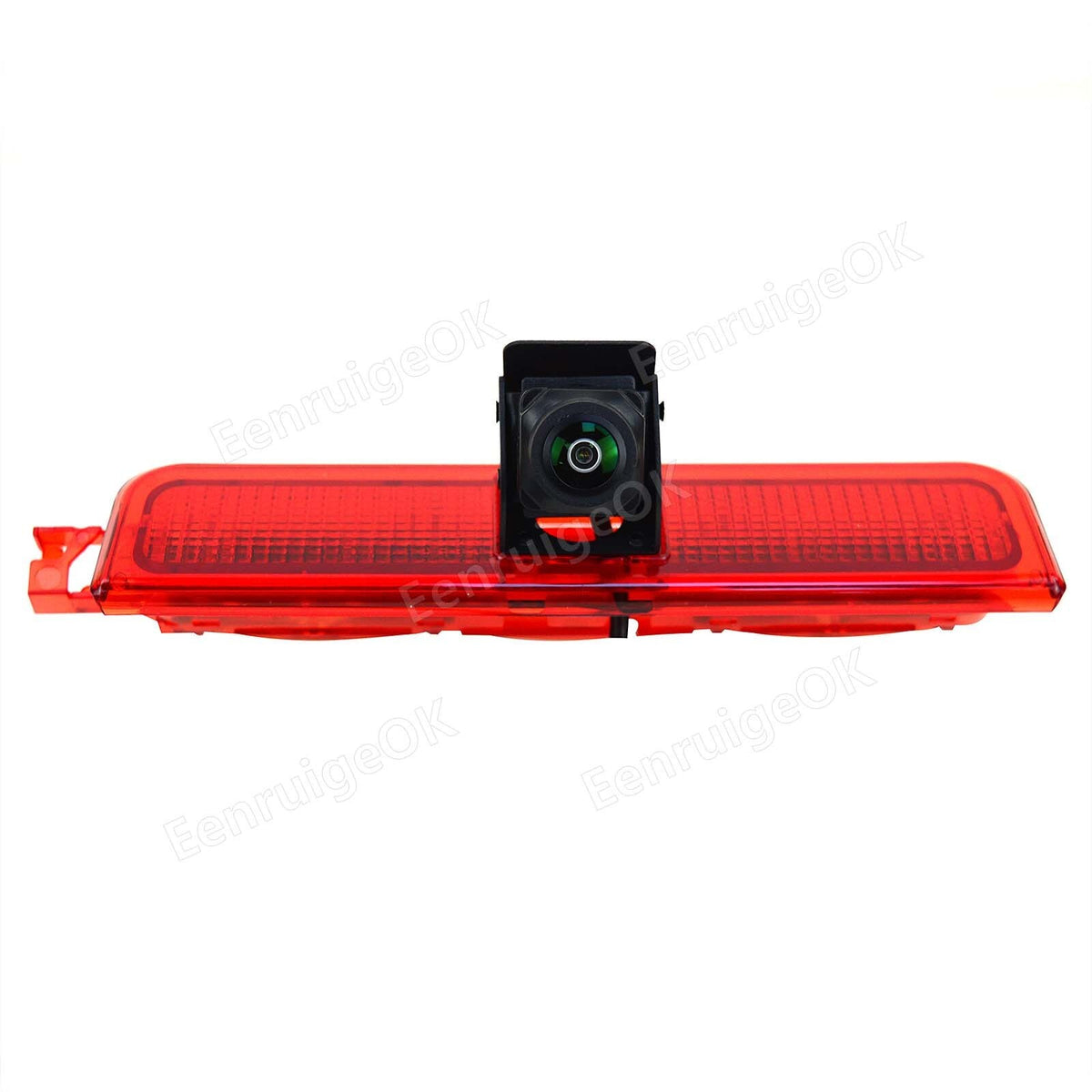

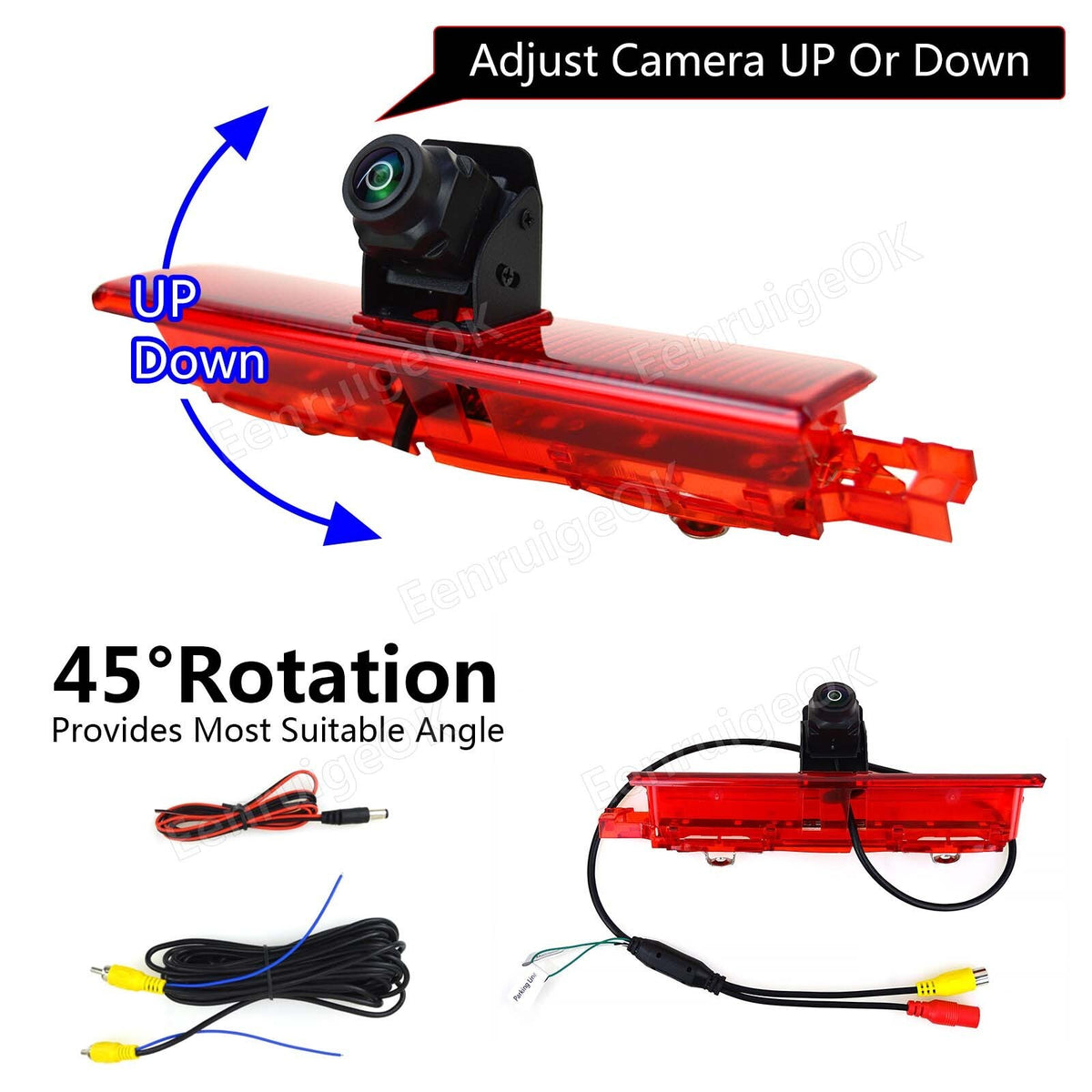

Camera Specifications

• Image sensor: 1/3" CMOS
• Effective pixels: 1920(H) × 1080(V)
• Resolution: AHD 1080P
• Video system: PAL / NTSC
• Lens: 1.7mm
• Viewing angle: 120°
• Minimum illumination: 0.1 Lux with LEDs on
• Night vision distance: 35ft
• Waterproof rating: IP68
• Signal-to-noise ratio: >48dB
• Power supply: DC 12V
• Power: 5W
• Current consumption: <150mA
• Operating temperature: -20°C to +70°C

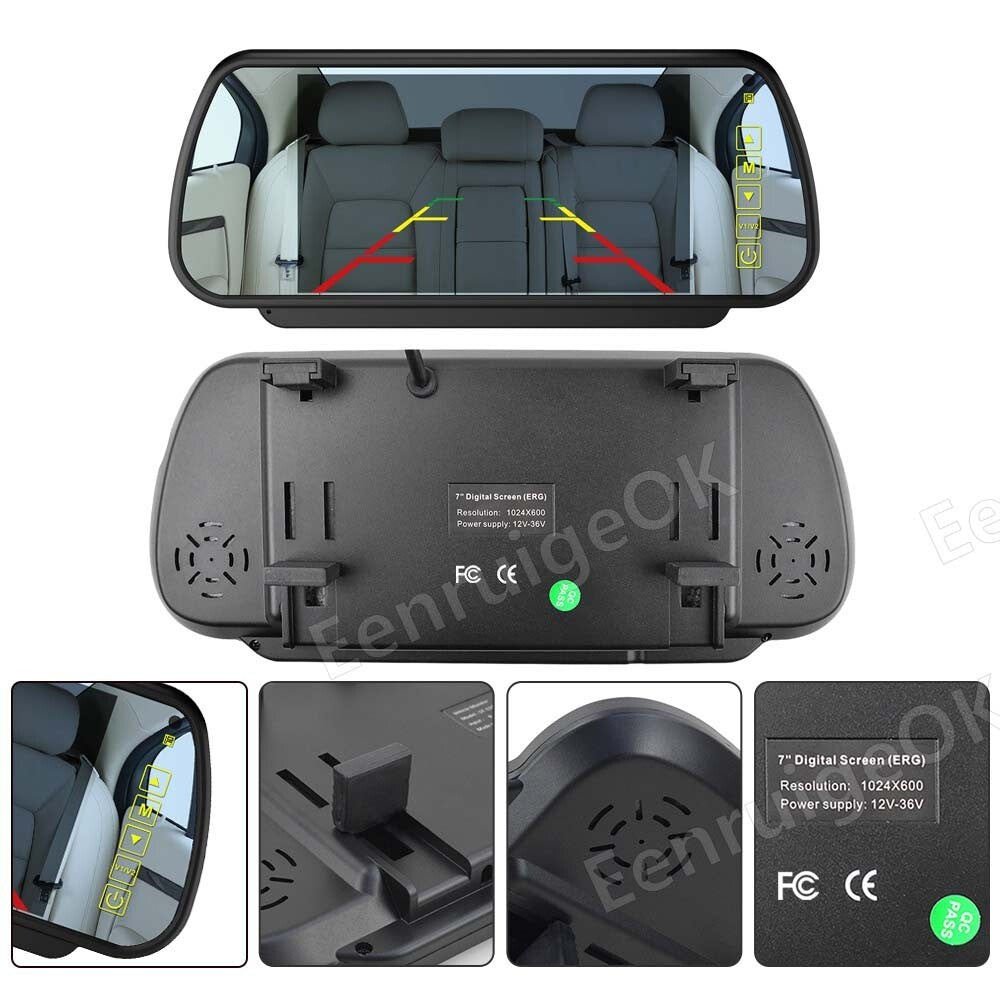

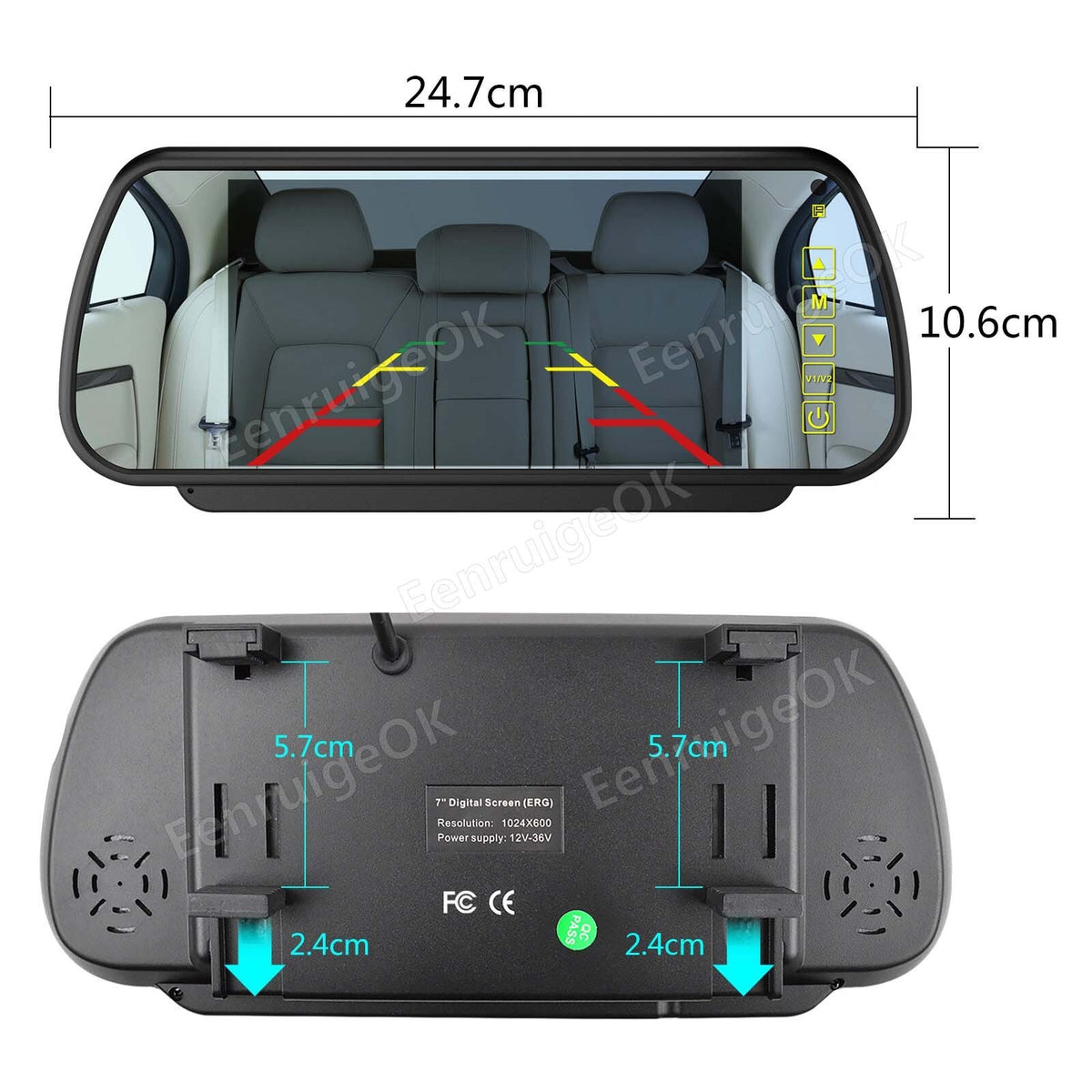

7-Inch Monitor Specifications

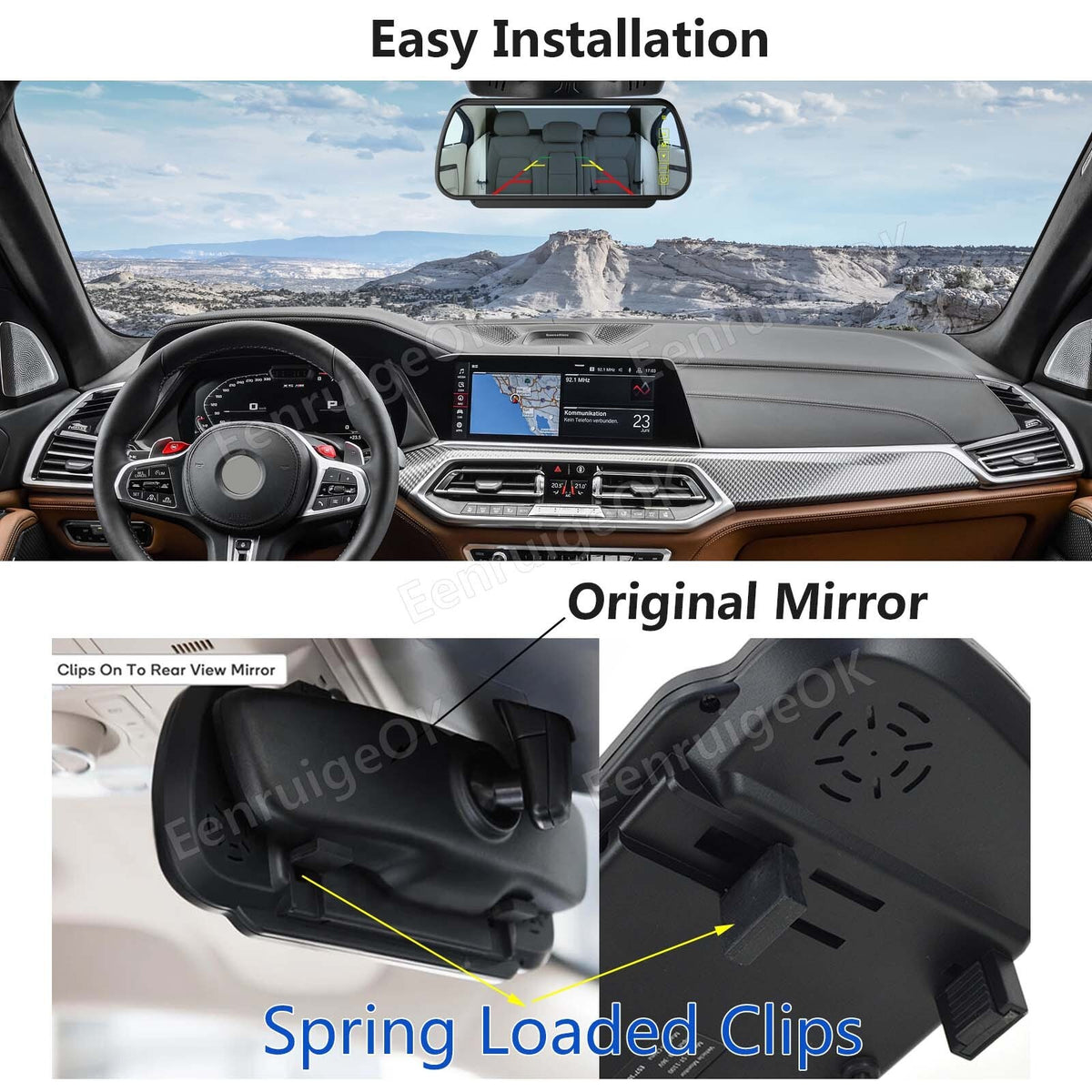

• Screen: 7 inch, 16:9 HD digital display
• Resolution: 1024 × 600
• Video inputs: 2 channels

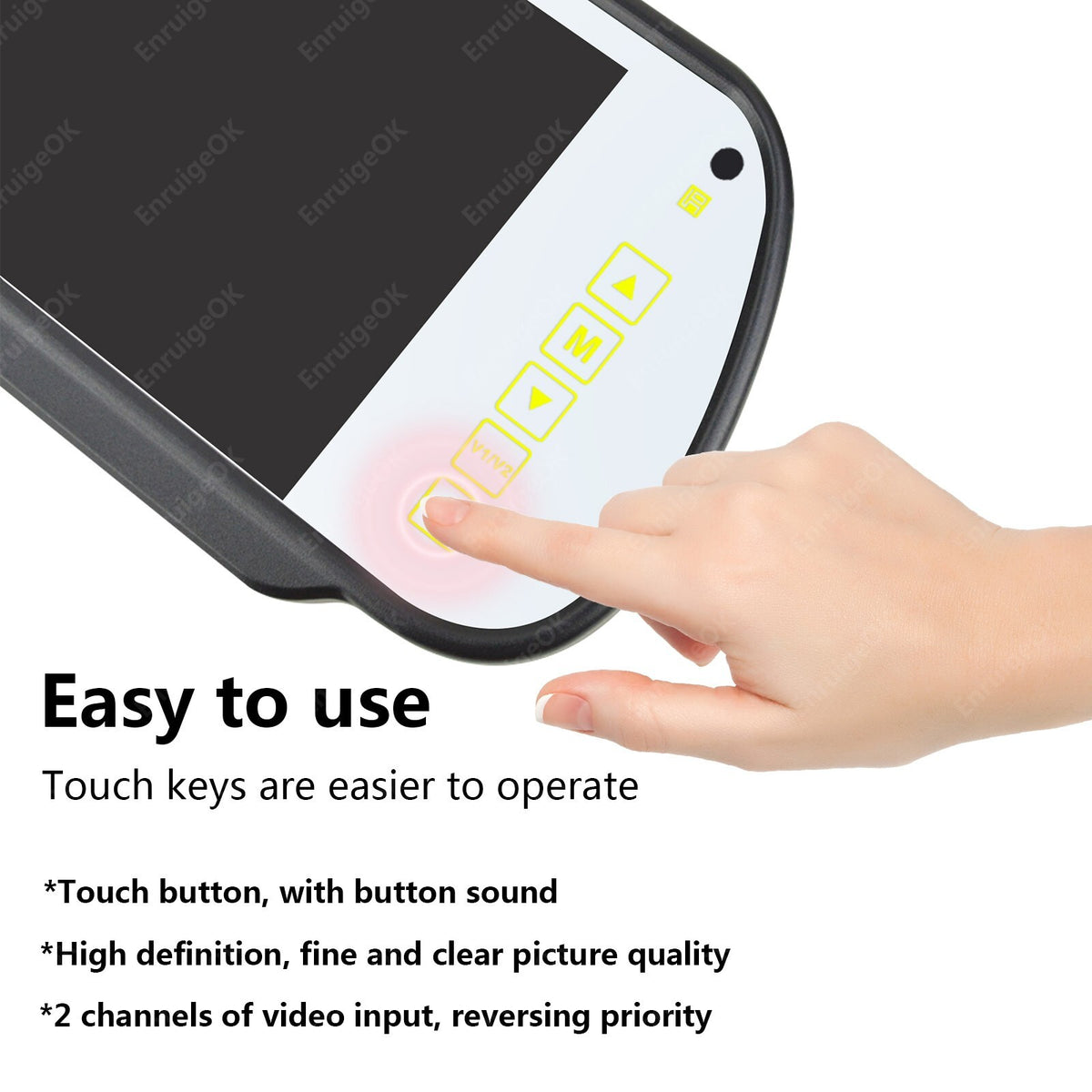

• Control: touch buttons and remote control
• Power supply: DC 9V-35V
• Power consumption: 6W

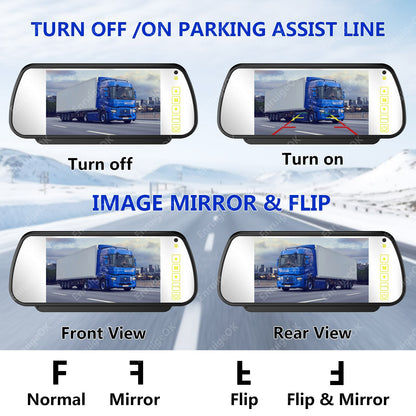

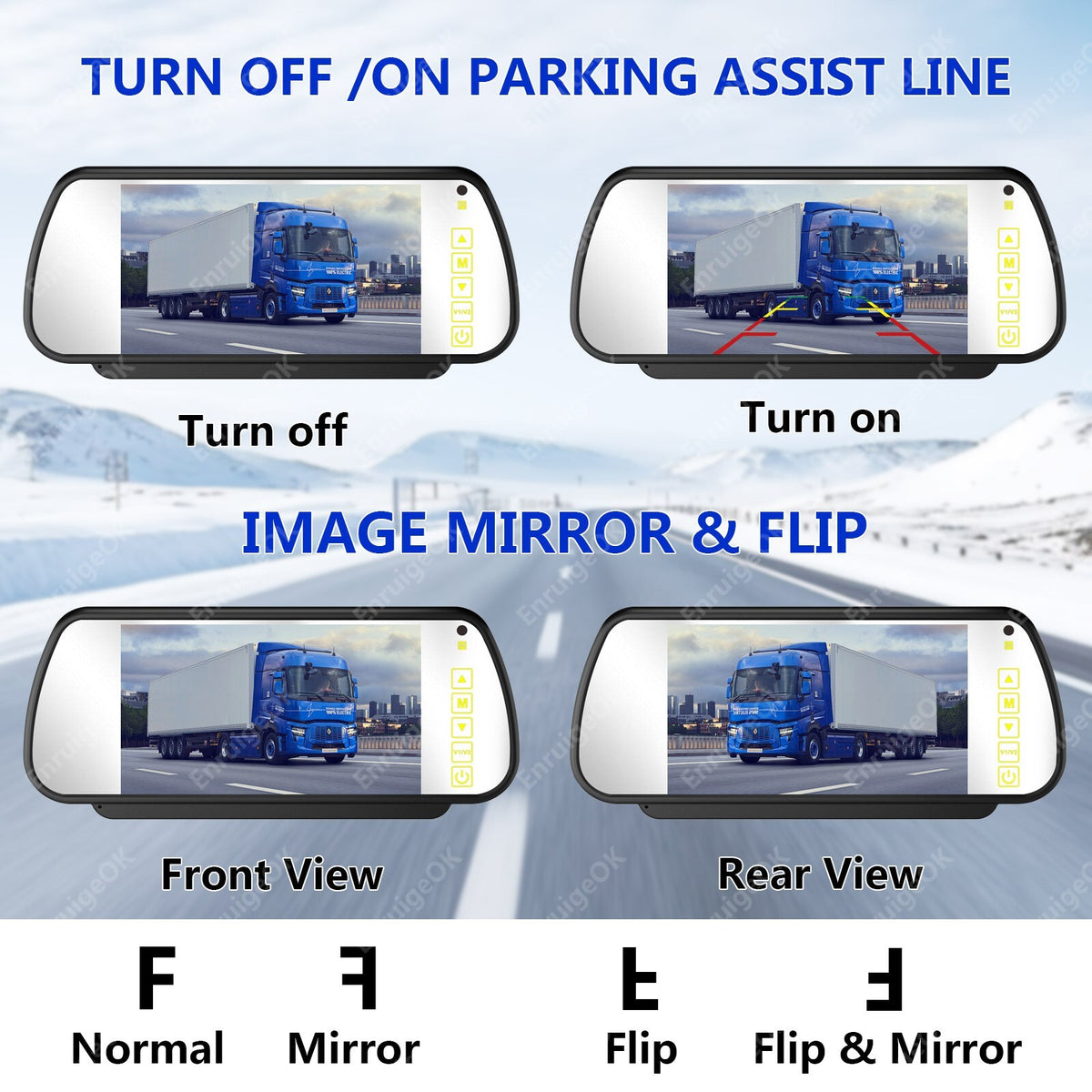

• Image can be switched left / right
• Automatic rear-view priority when reversing
• Remote control uses a CR2025 battery (not included)

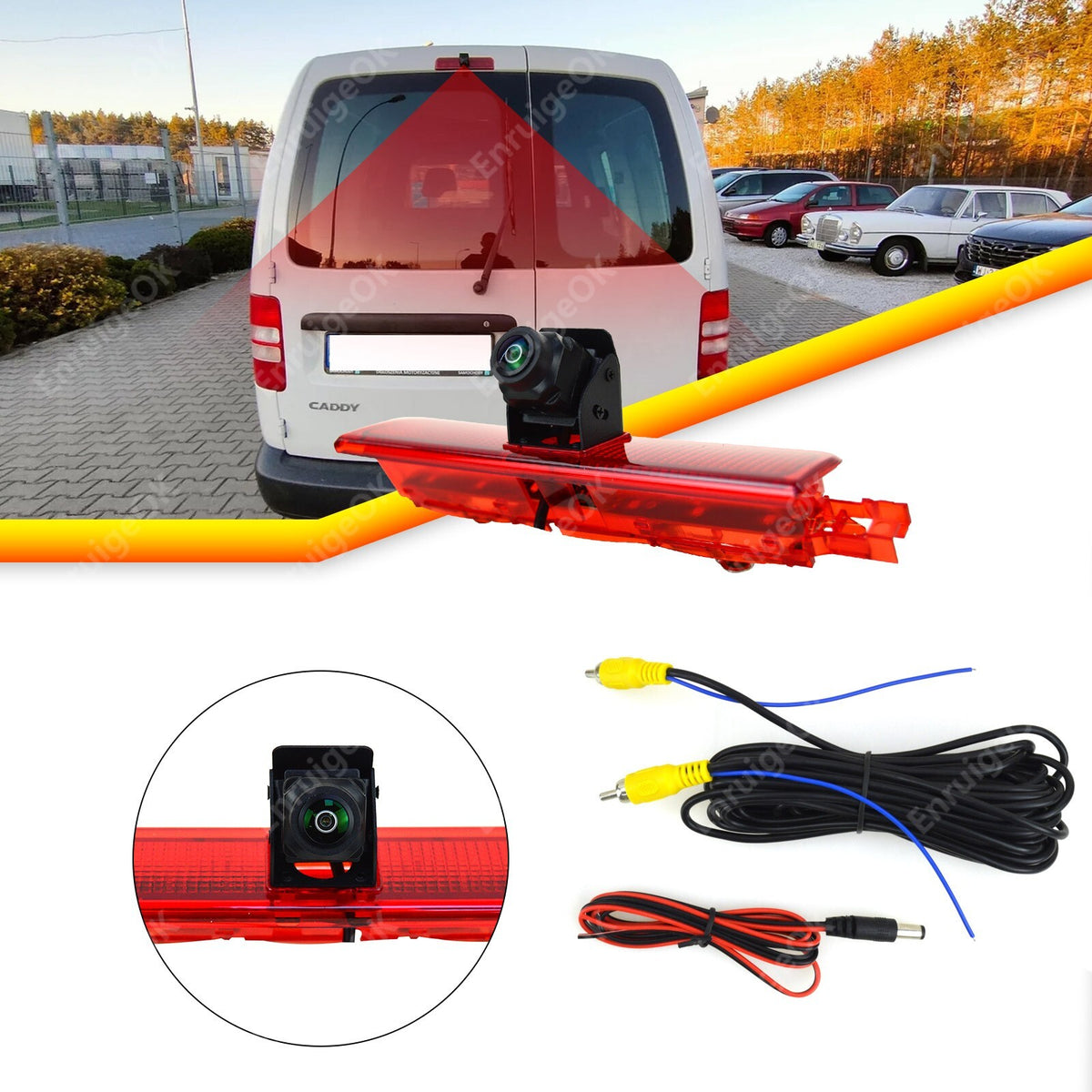

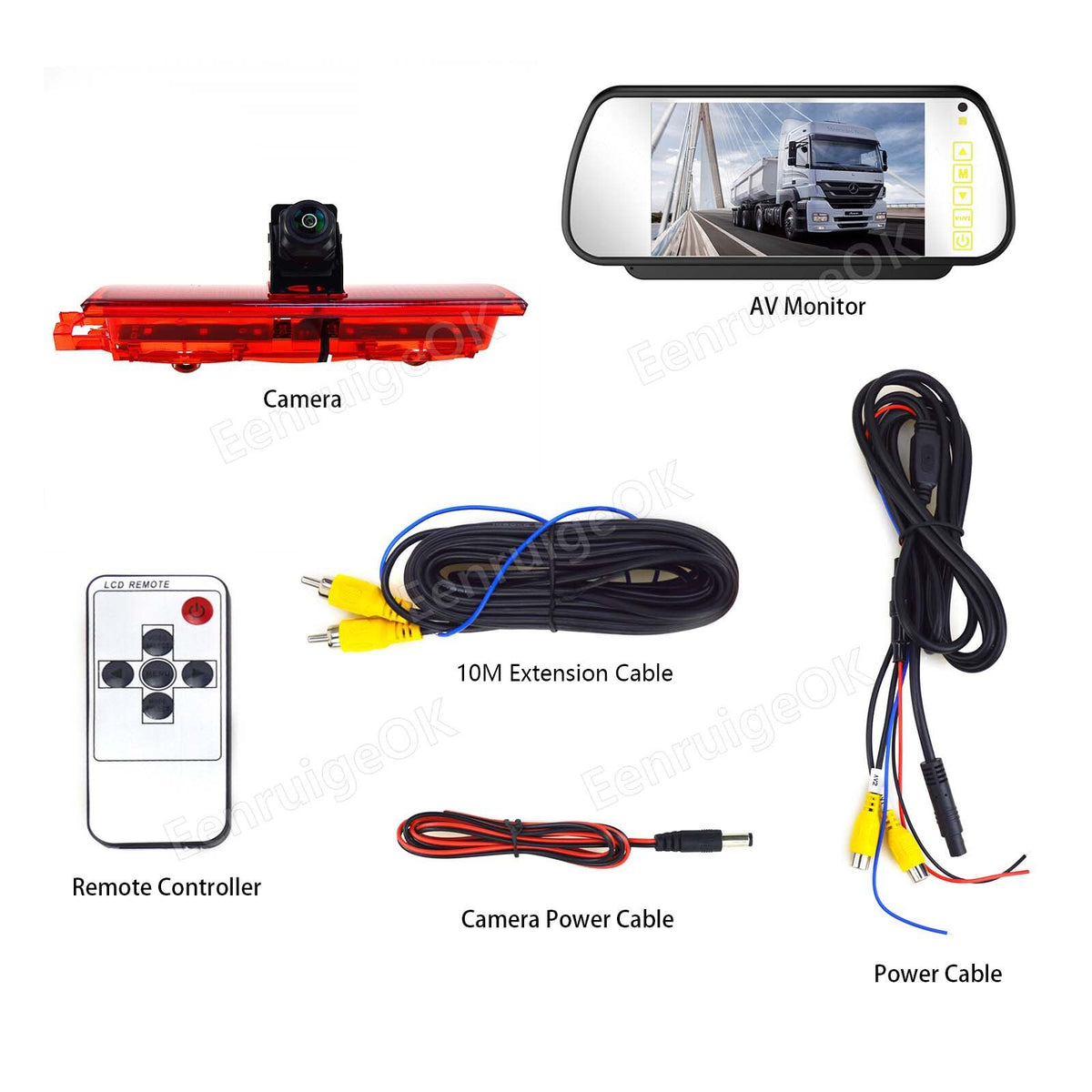

Package Includes

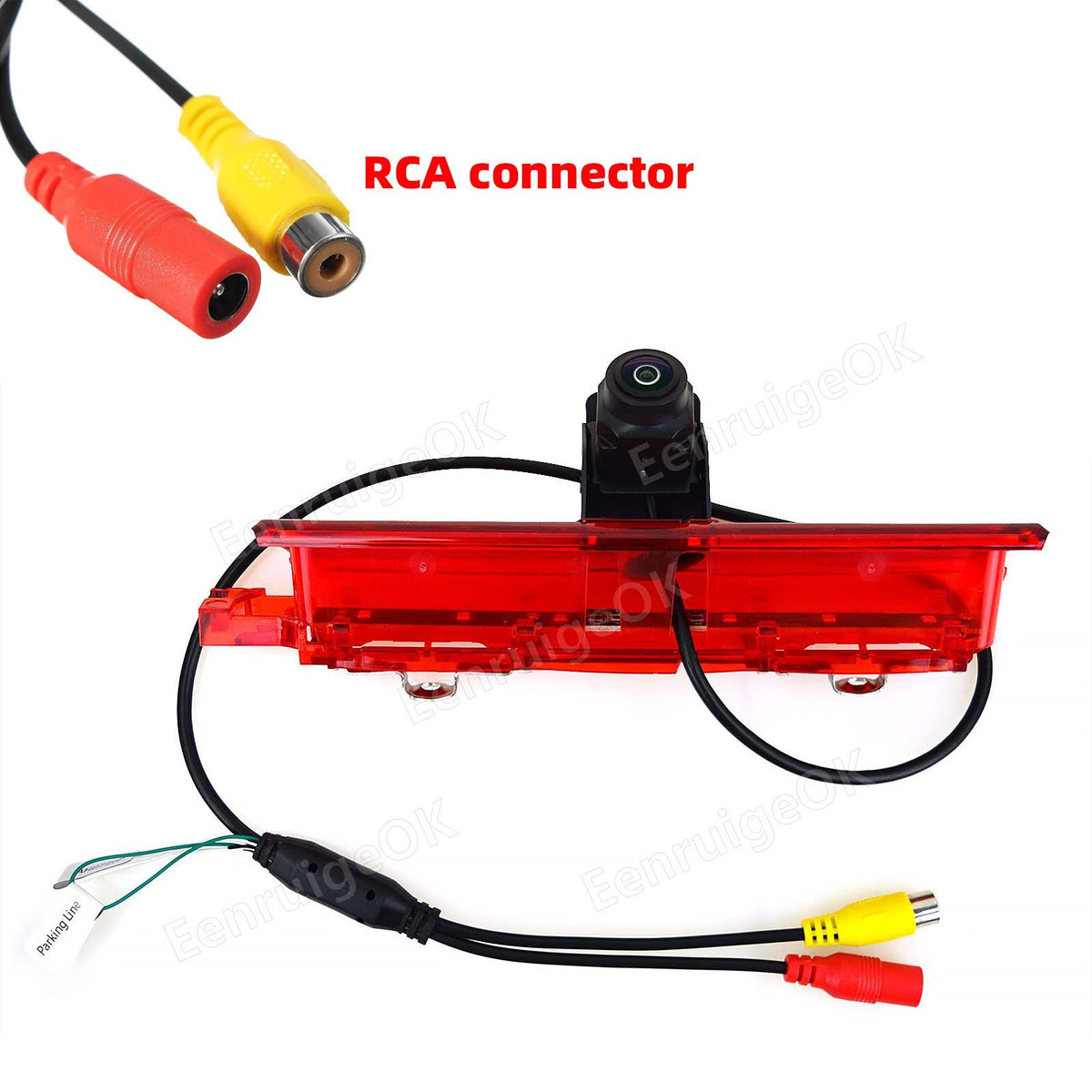

• 1 × Brake-light backup camera
• 1 × 7-inch mirror monitor
• 1 × Remote controller (battery not included)
• 1 × 10m extension cable
• 1 × DC power cable
• 1 × User manual

Care

Clean the camera lens occasionally with a soft damp cloth and refer to the user manual for installation and troubleshooting guidance.
