5" Monitor & Rear View Backup Camera Kit For Ford Transit [MK8] (2014-Present)

About This Kit

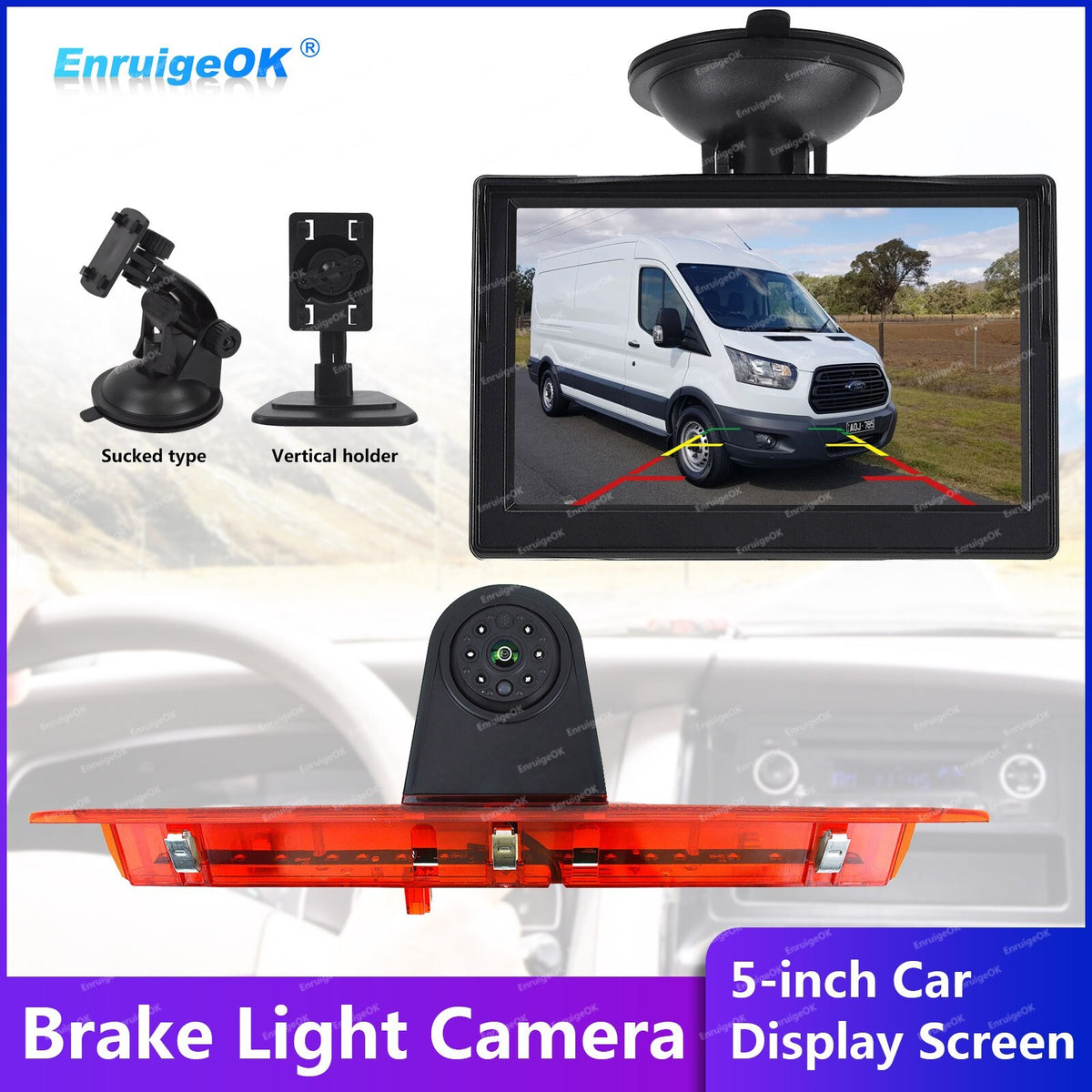

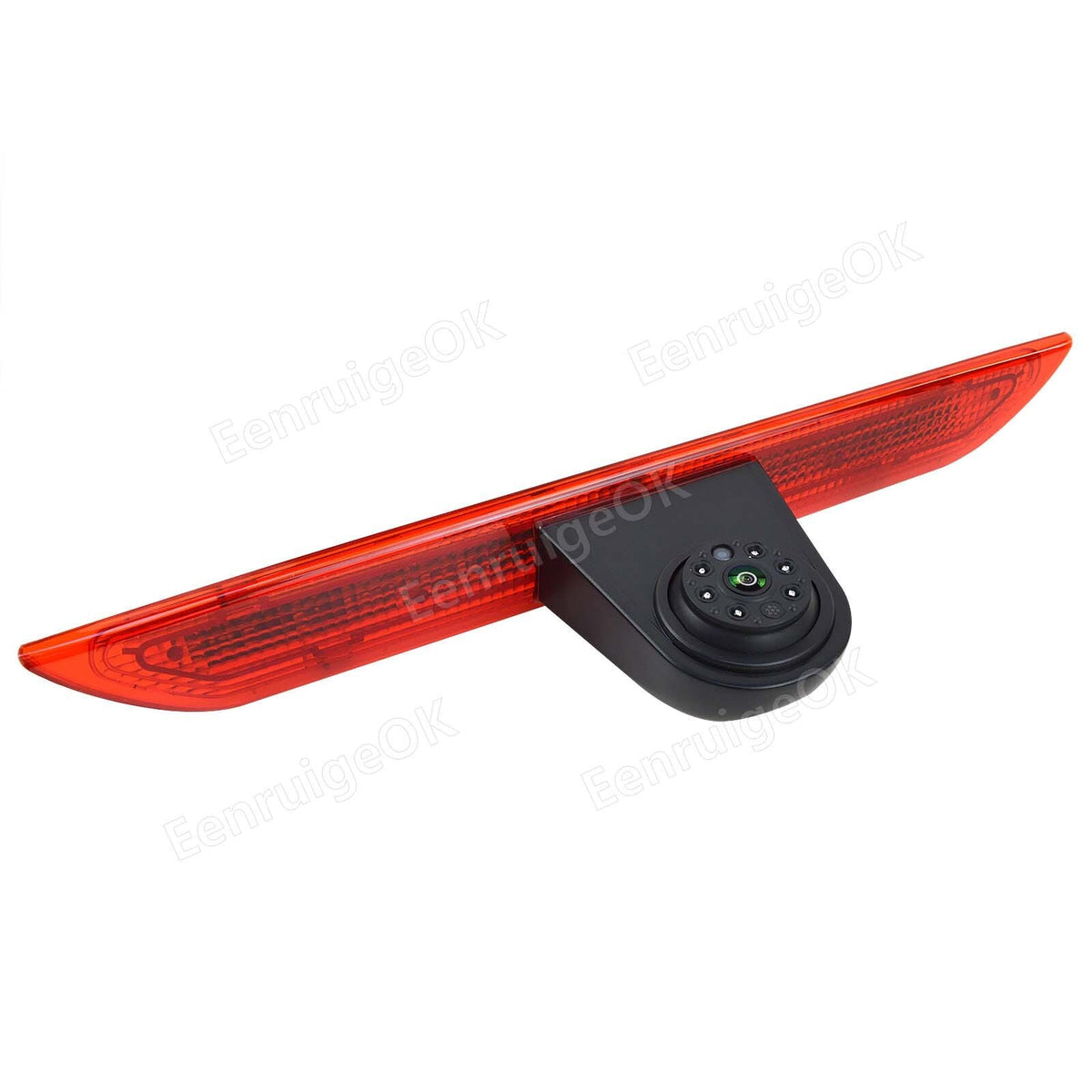

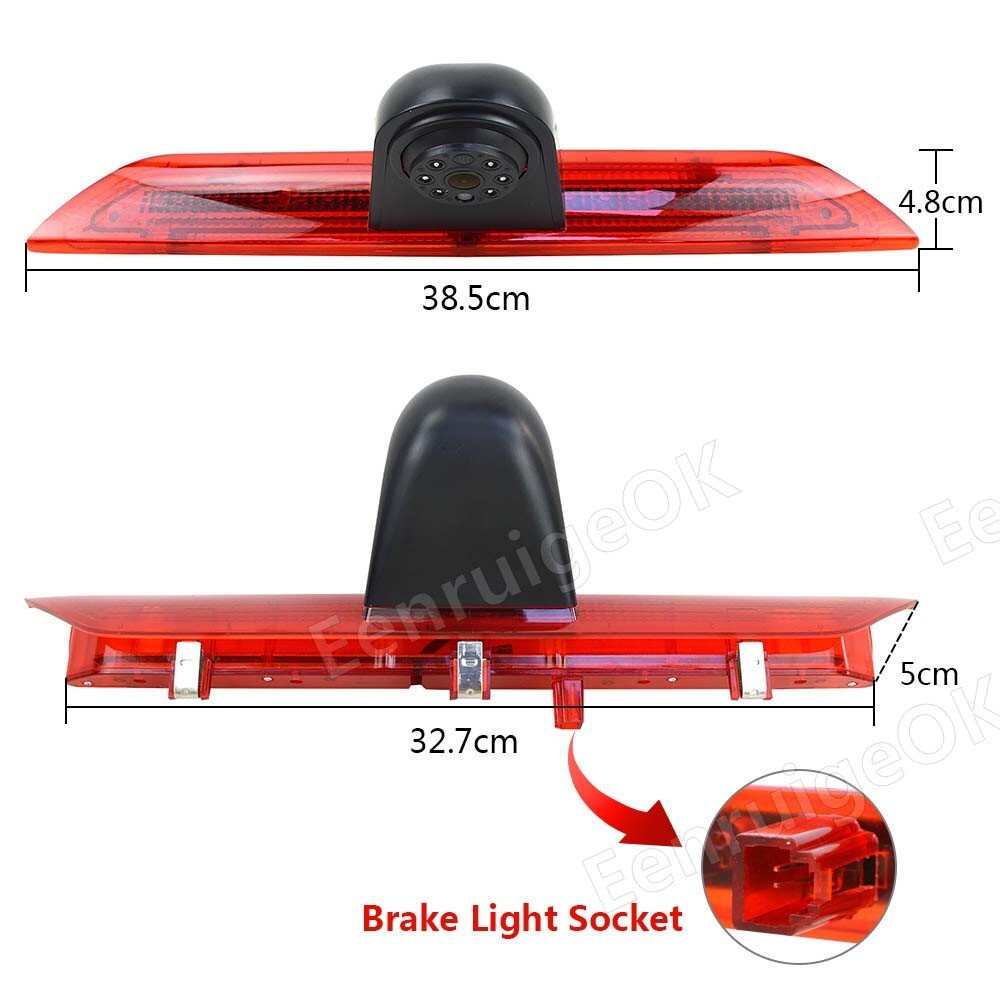

This vehicle-specific reversing camera kit combines a brake-light rear-view camera with a 5-inch IPS monitor for safer parking and reversing. The camera replaces the original brake-light housing for an OEM-style installation.

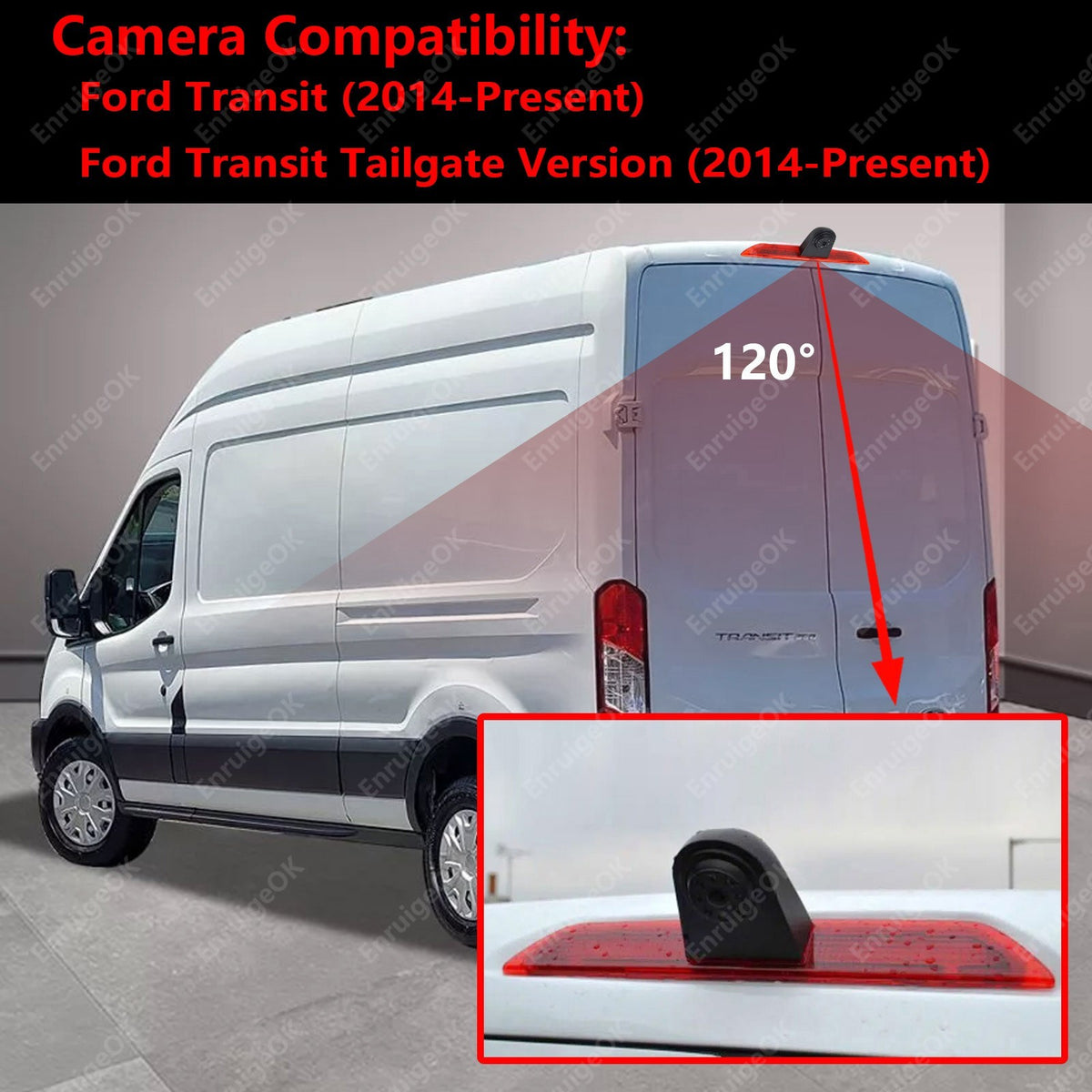

Vehicle Compatibility

• Ford Transit MK8 (2014-Present)
• Ford Transit Tailgate Version (2014-Present)

Please compare the product images and your original brake-light housing before ordering to confirm fitment.

Key Features

• 5-inch IPS color monitor with two video inputs
• 480 × 272 monitor resolution

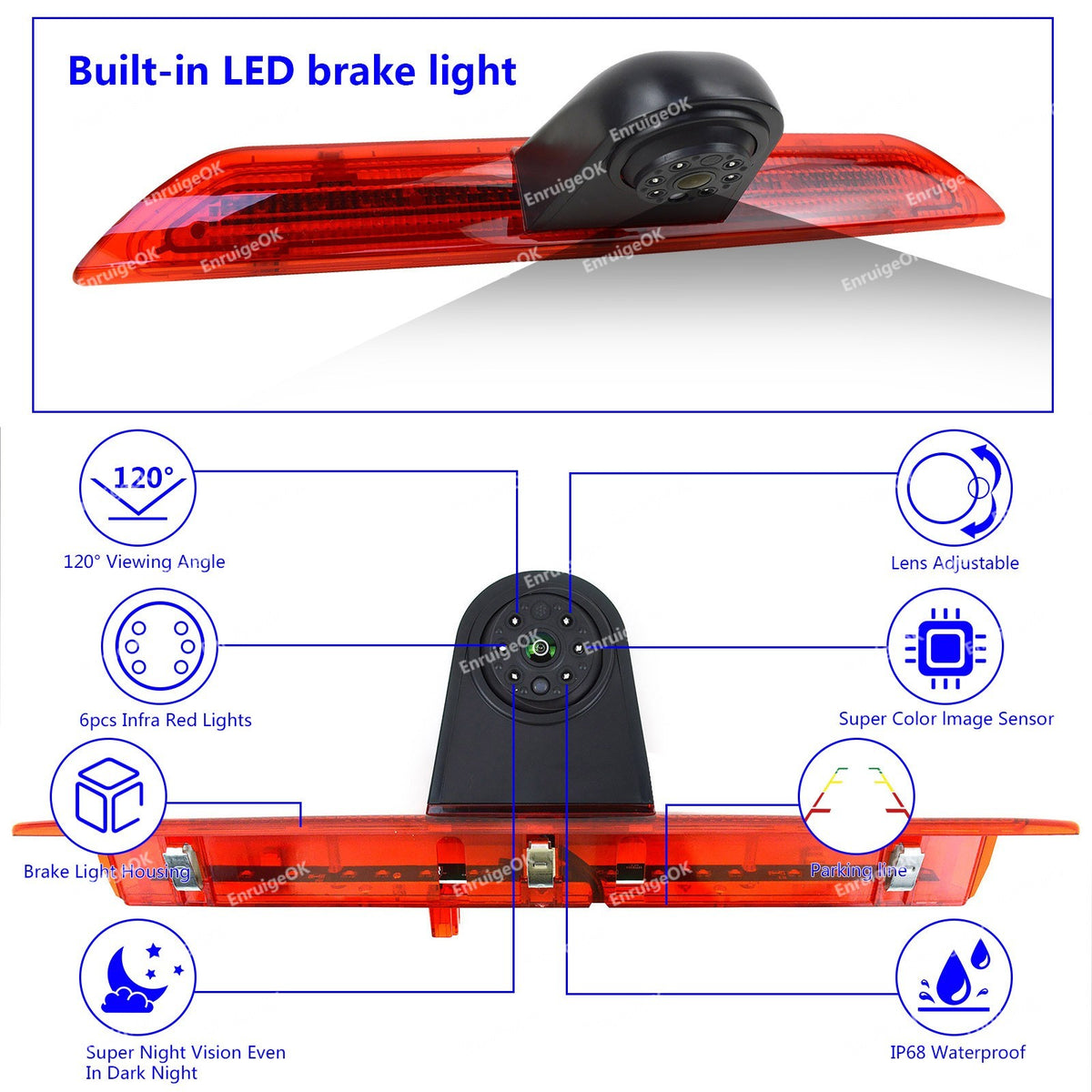

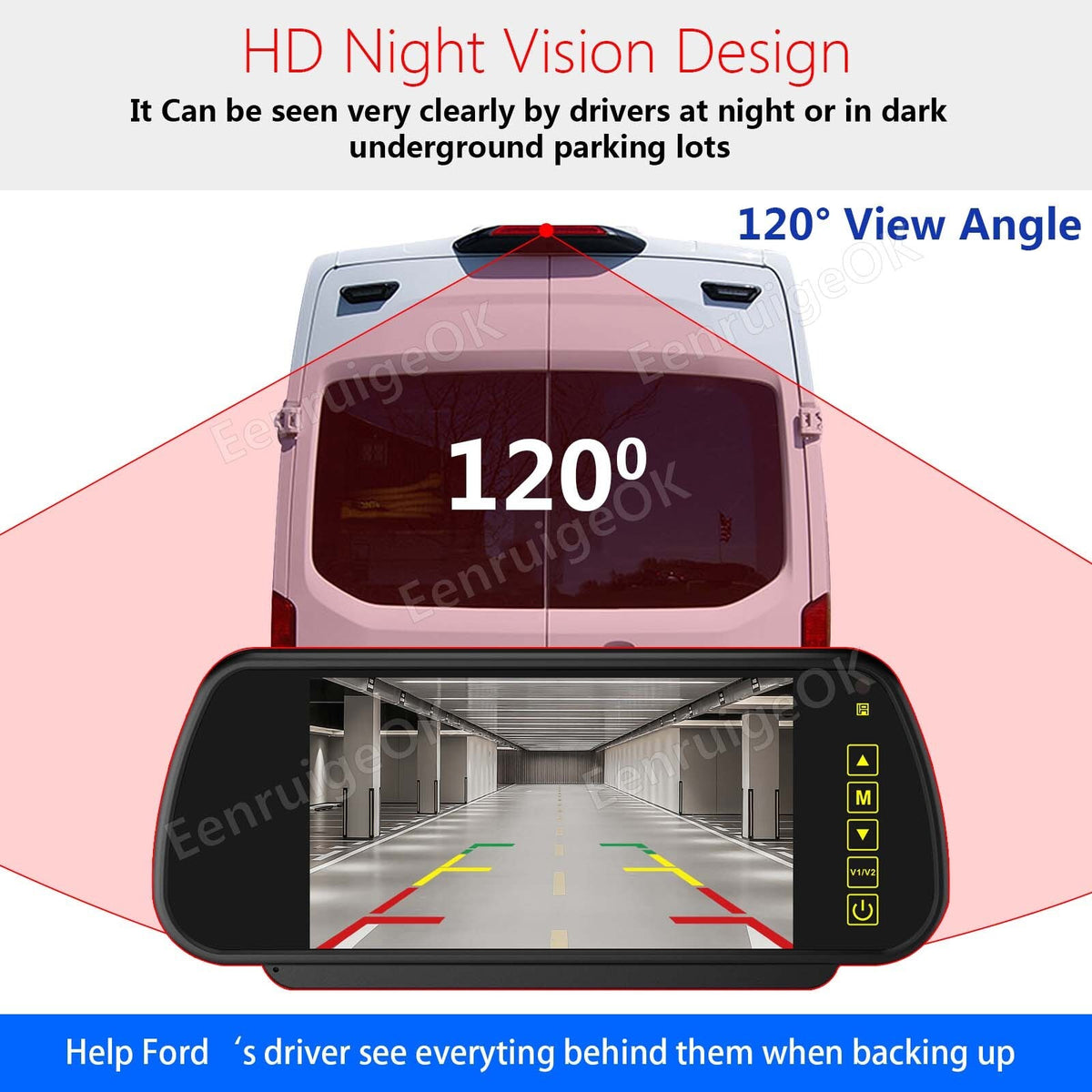

• 120° wide-angle rear camera

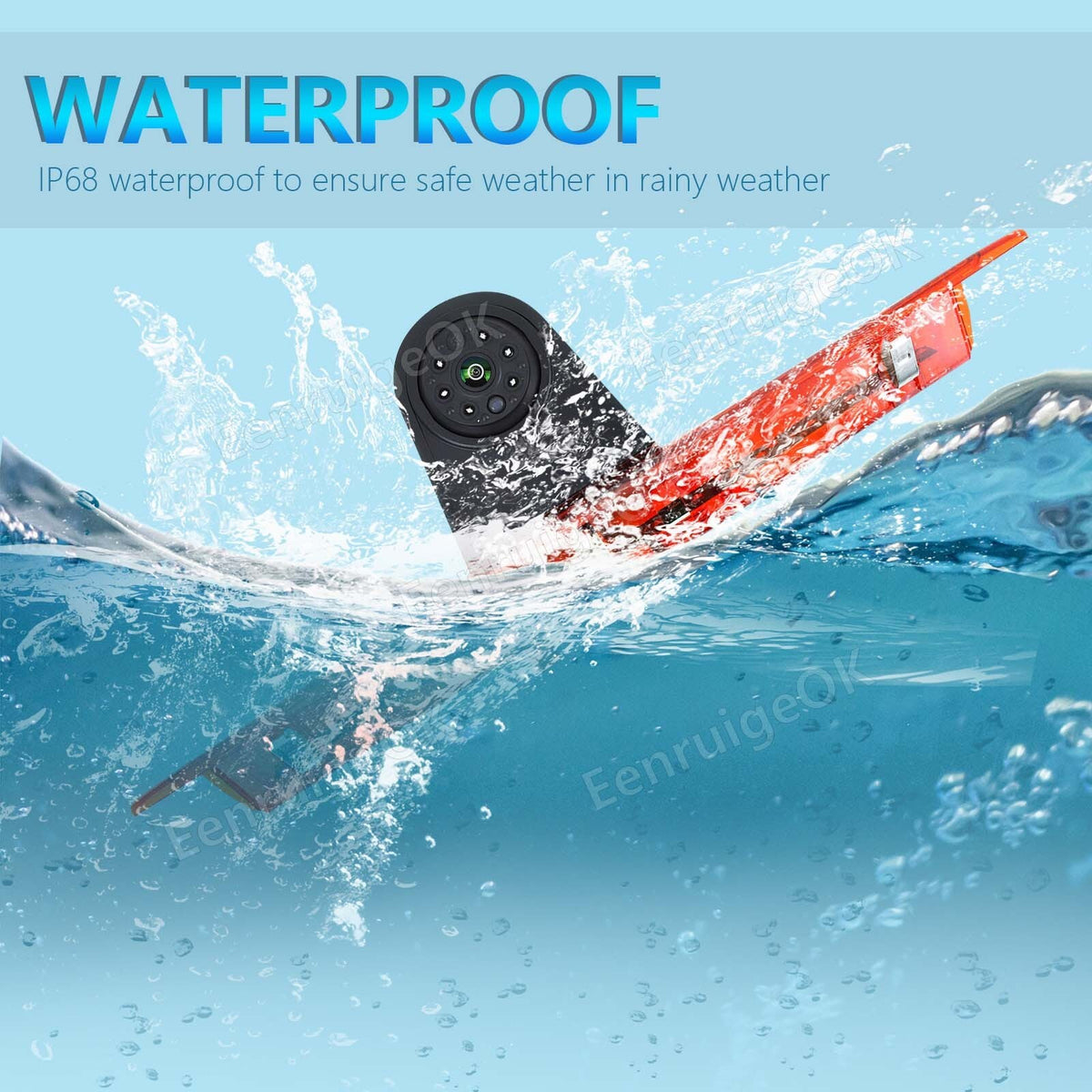

• IP68 waterproof camera housing

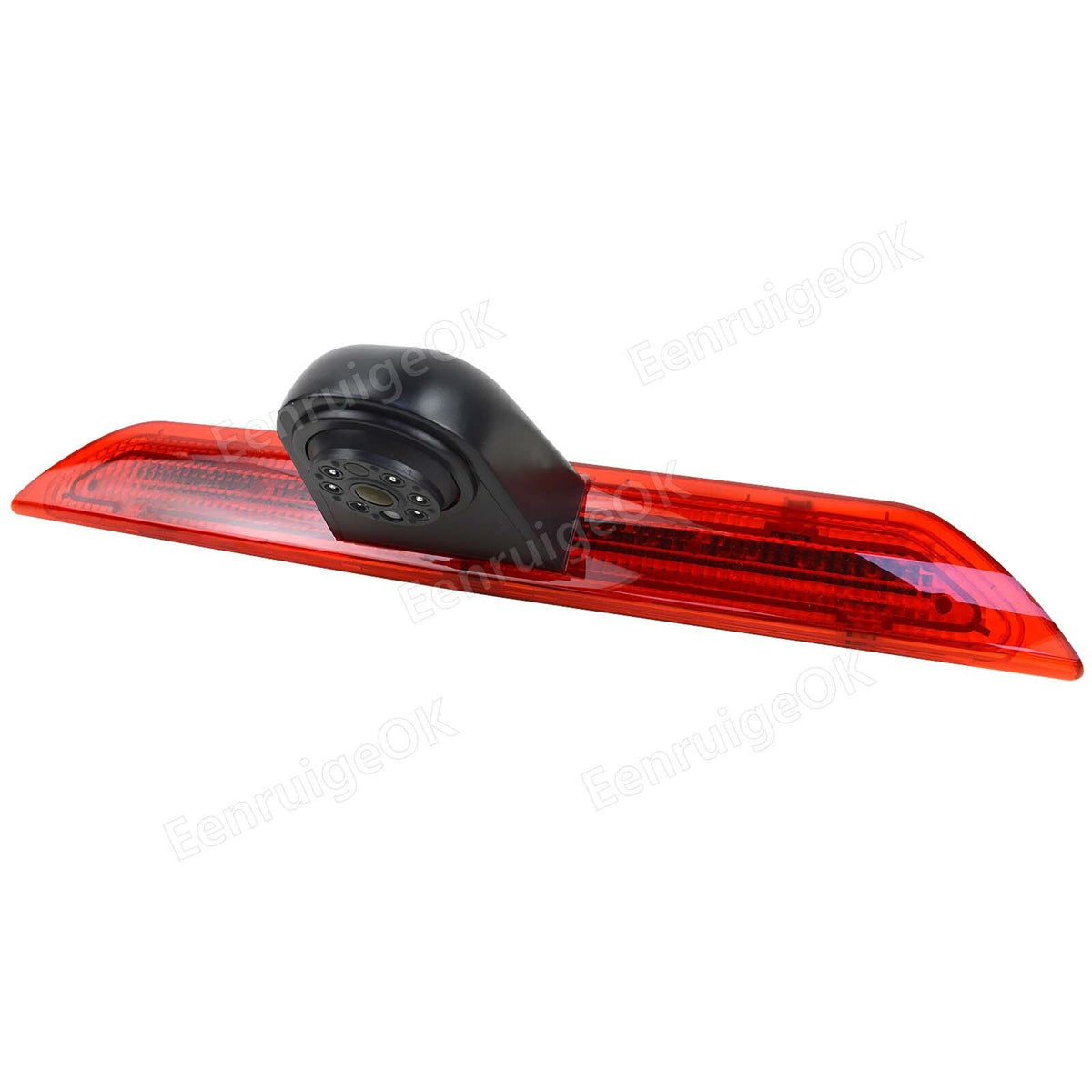

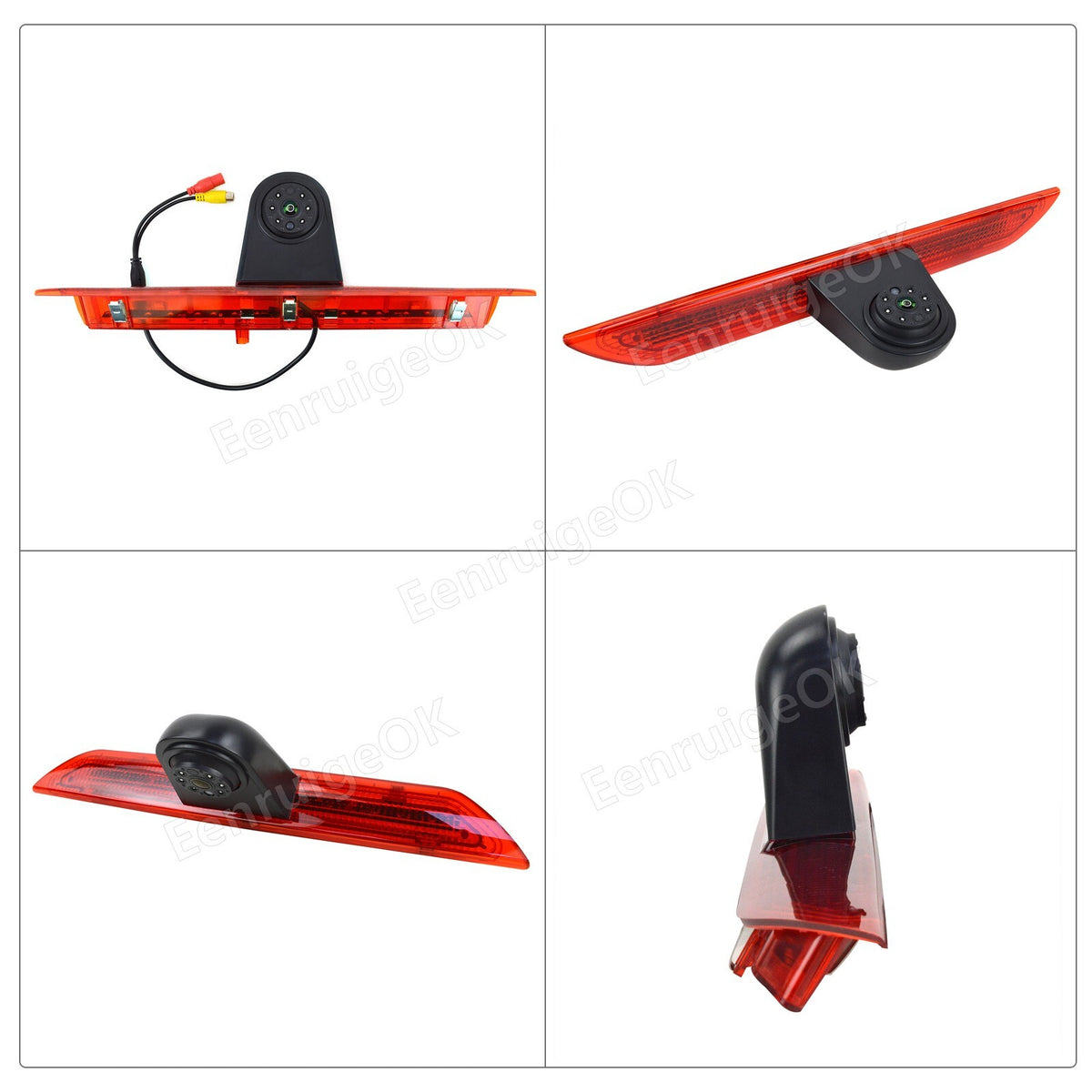

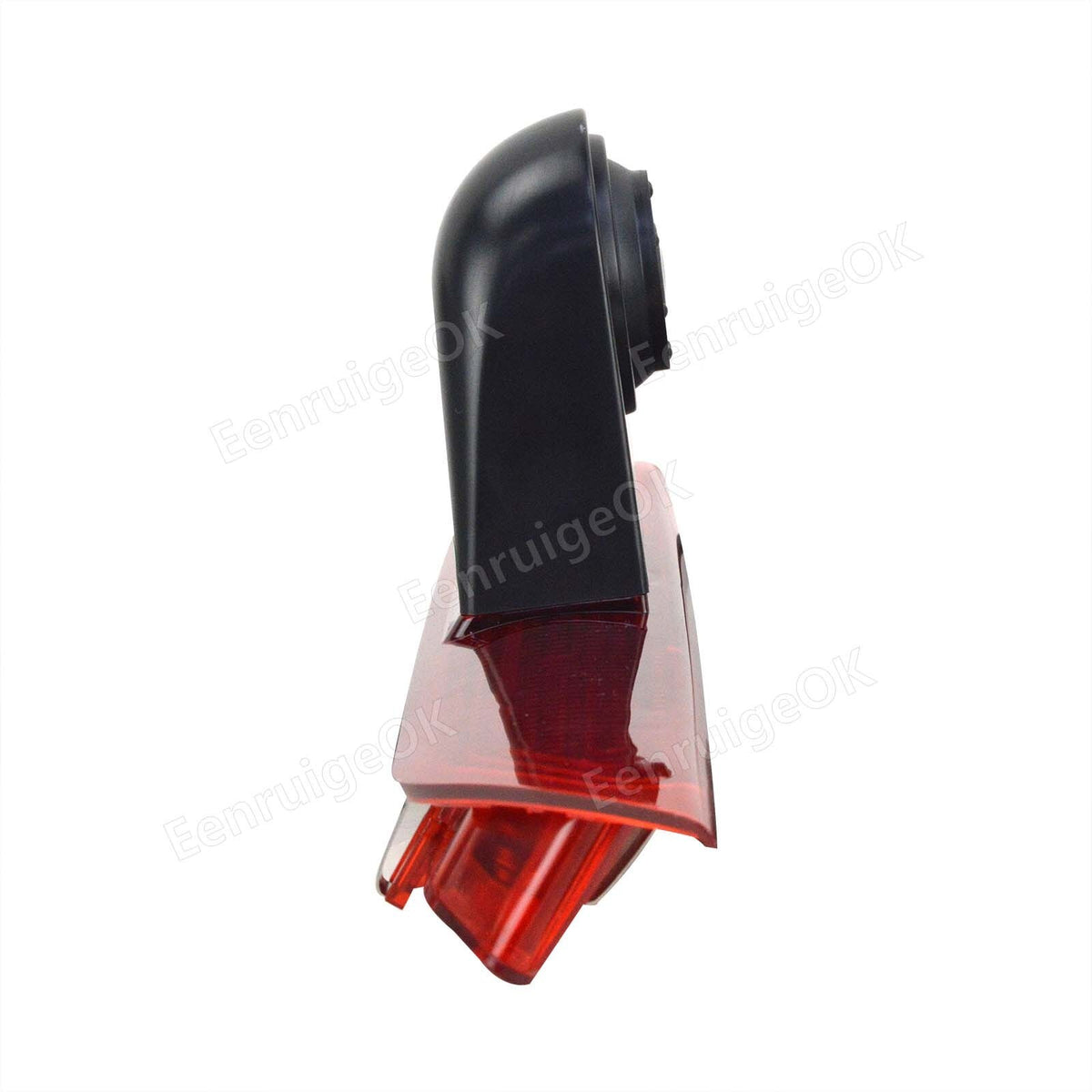

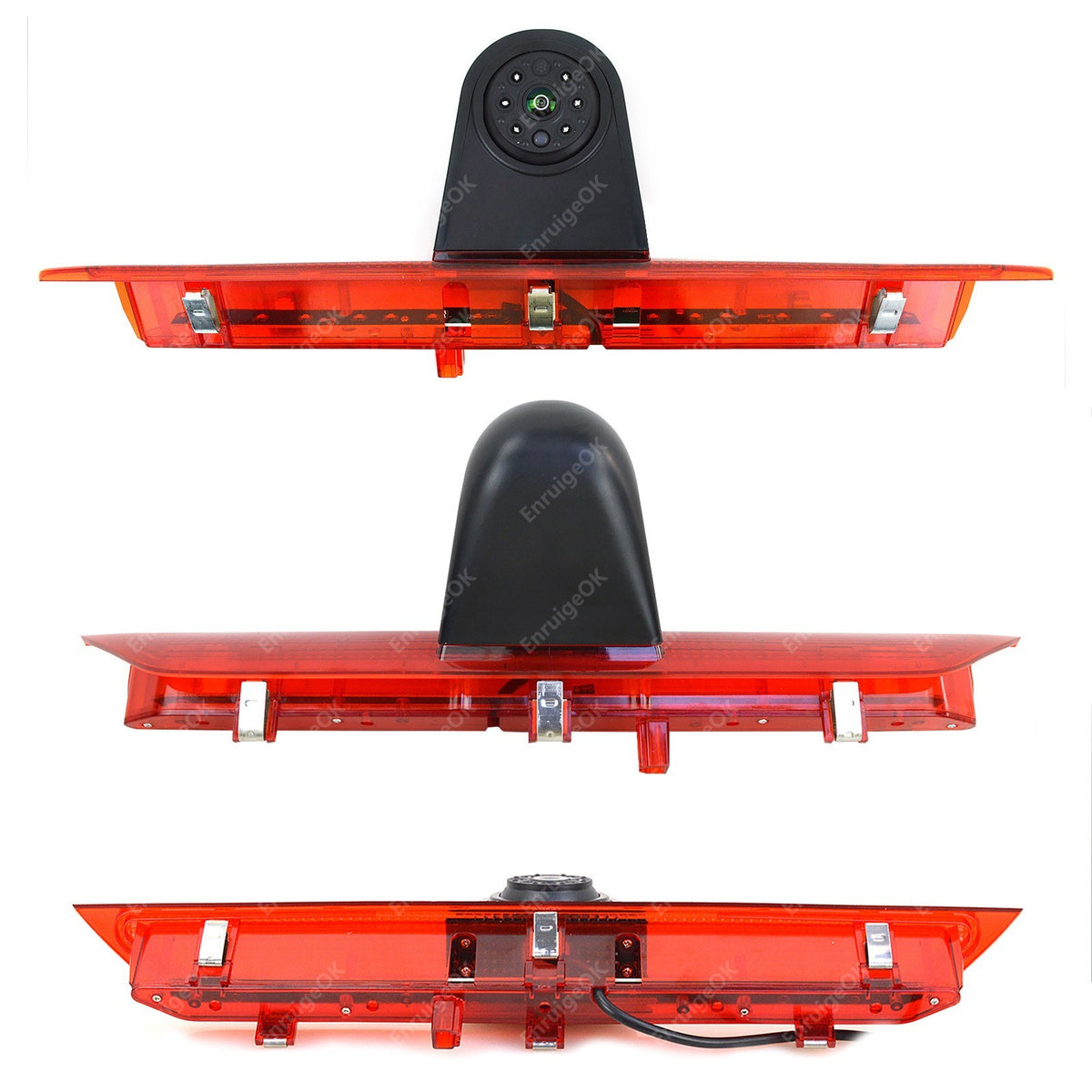

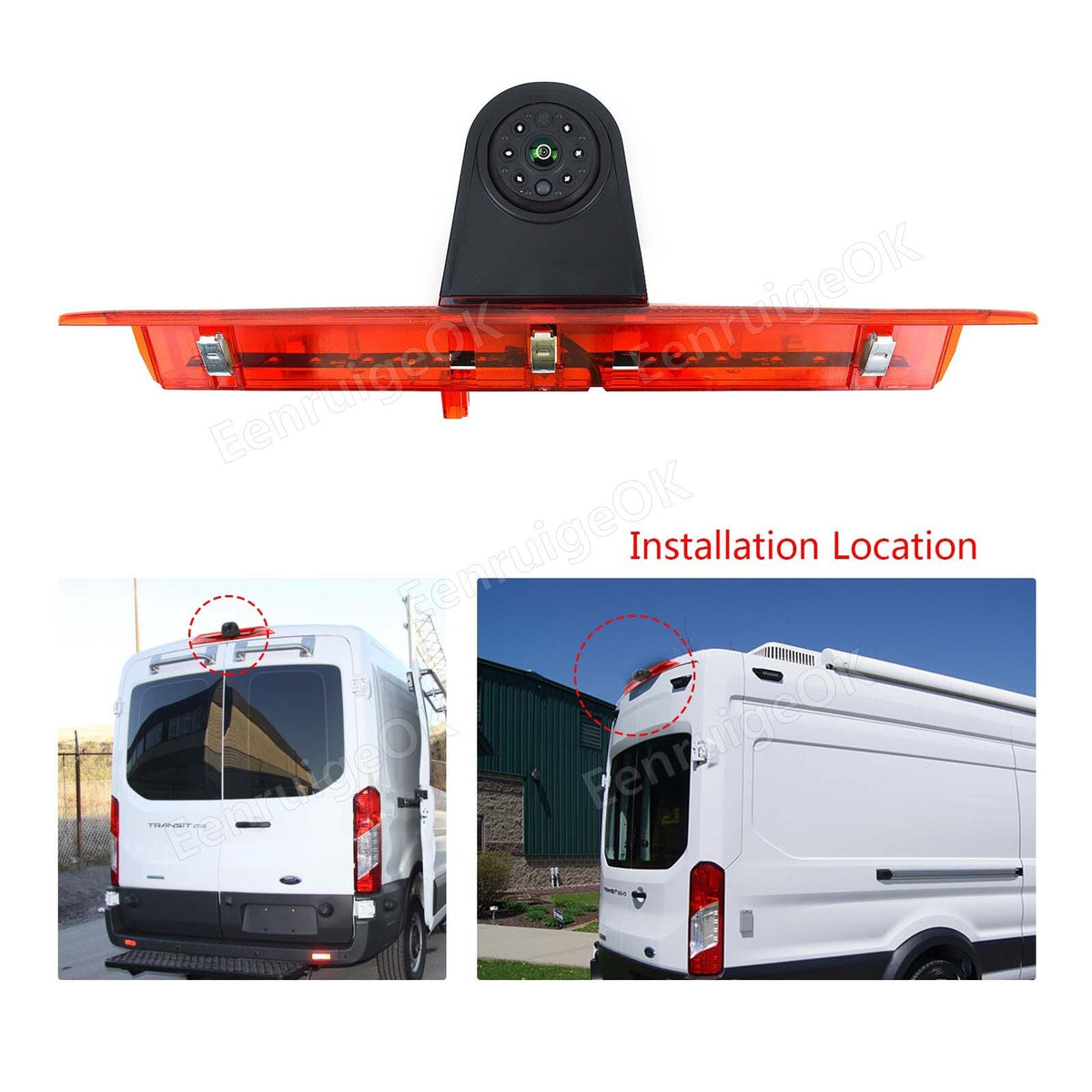

• OEM-style brake-light replacement installation

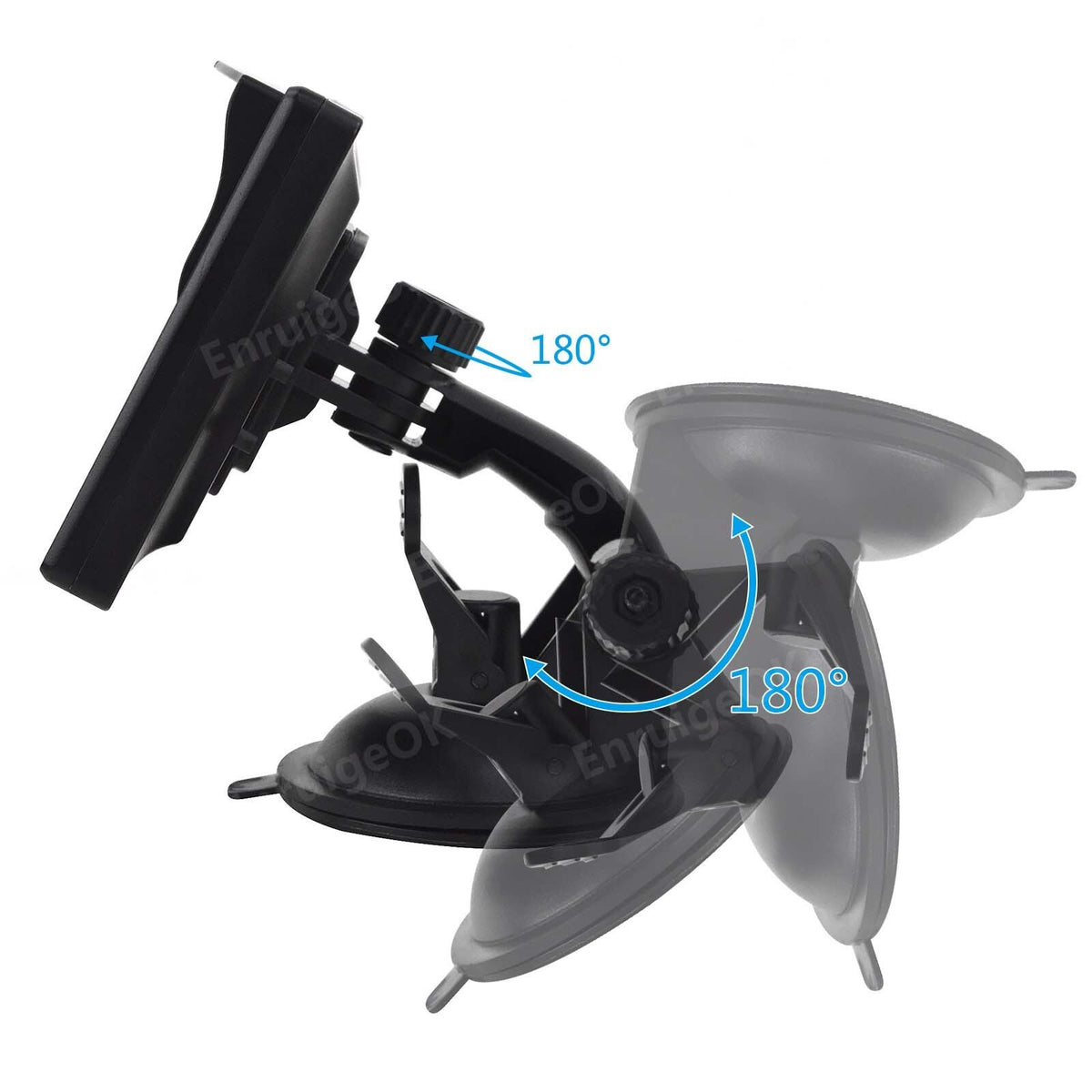

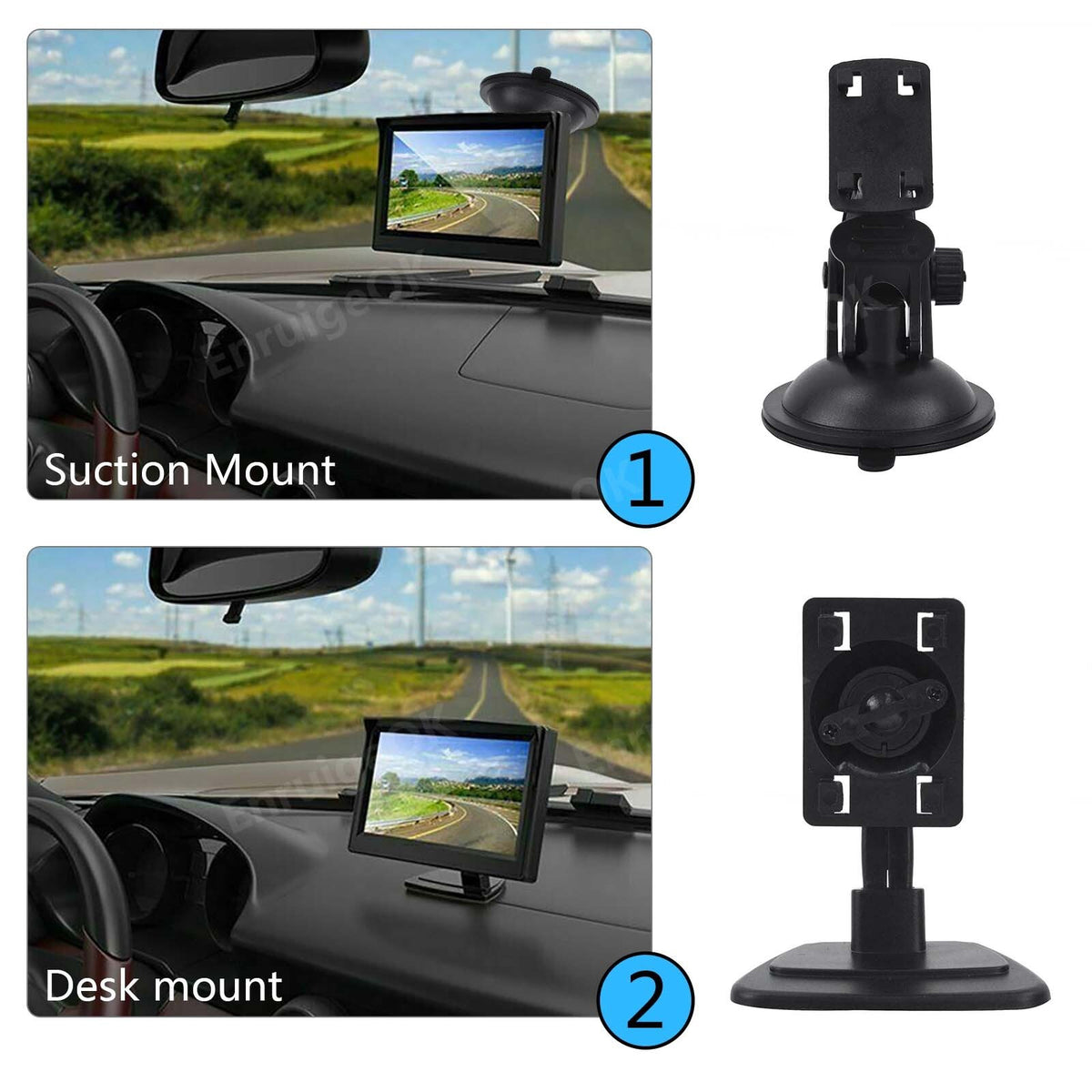

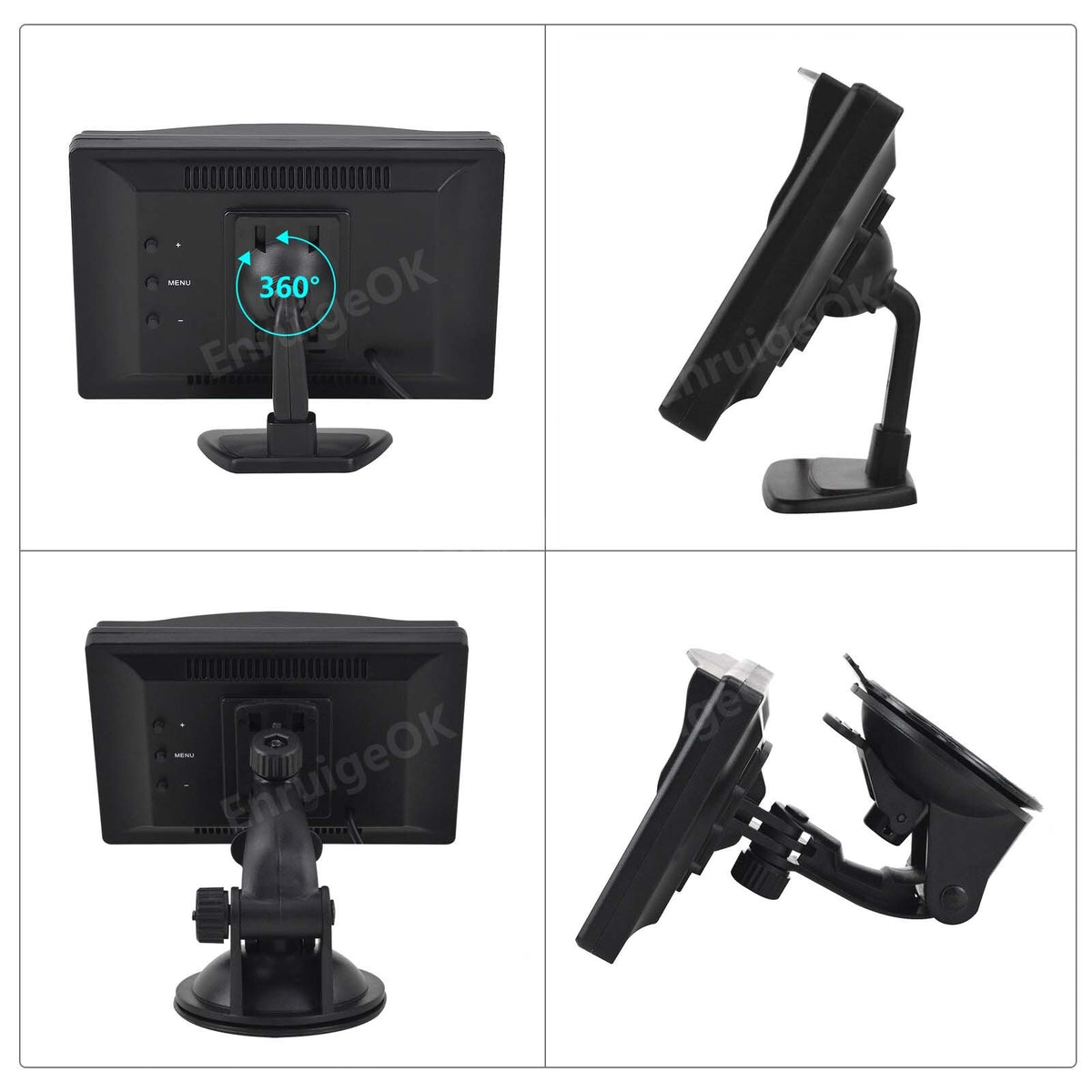

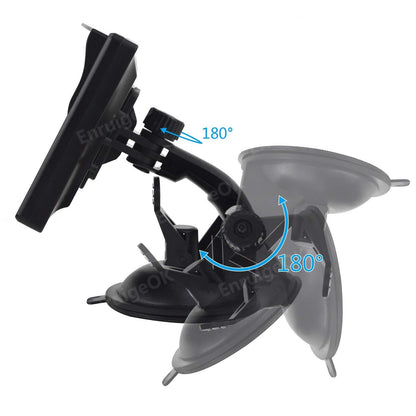

• Dashboard and windscreen suction mounting options for the monitor

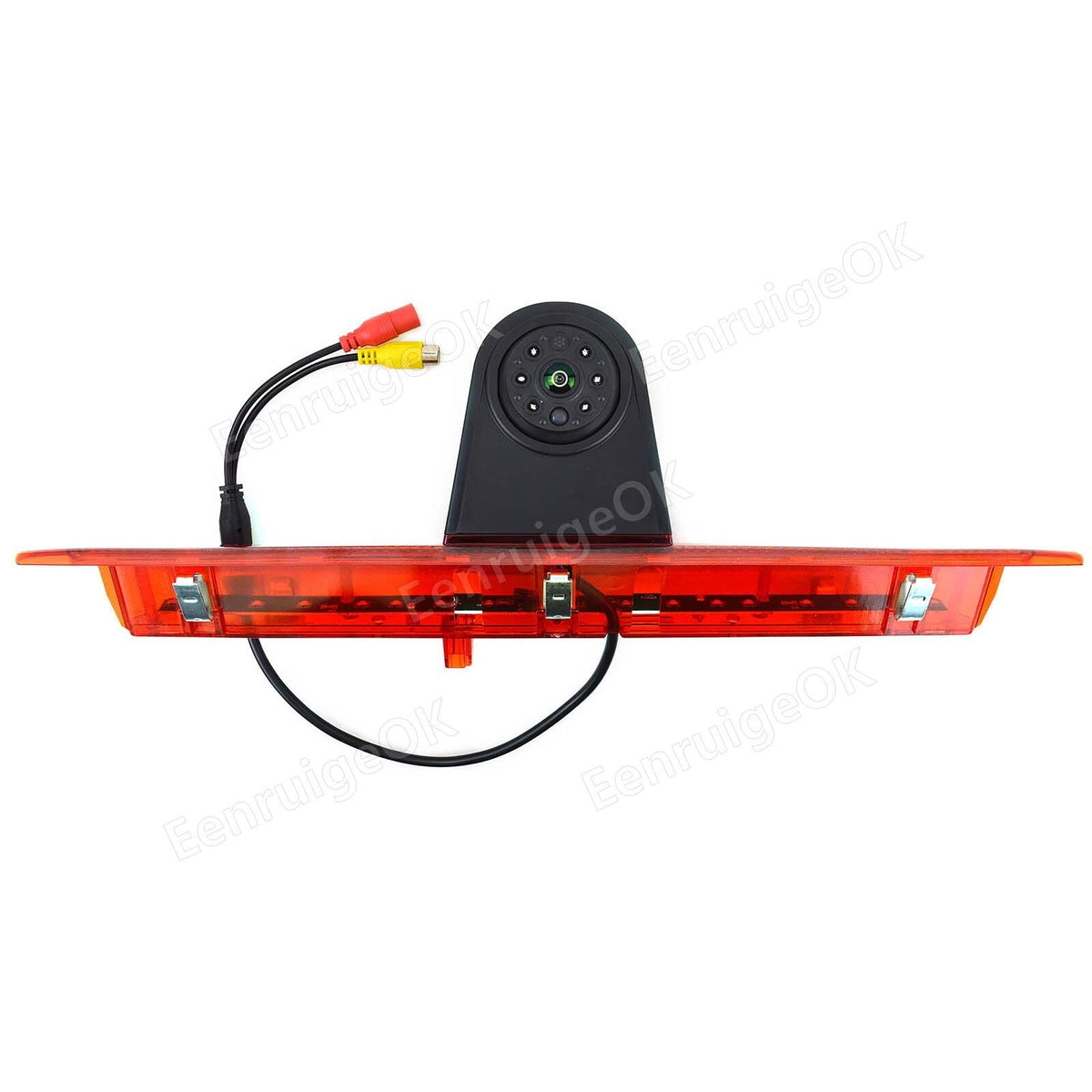

Camera Specifications

• Image sensor: 1/4" CMOS
• Video system: PAL / NTSC
• Resolution: 480 TV lines
• Effective pixels: 733(H) × 493(V)
• Viewing angle: 120°
• Waterproof rating: IP68
• Signal-to-noise ratio: >48dB
• Minimum illumination: 0.1-0.5 Lux / F1.2
• Power supply: DC 12V
• Current consumption: <150mA
• Operating temperature: -20°C to +70°C

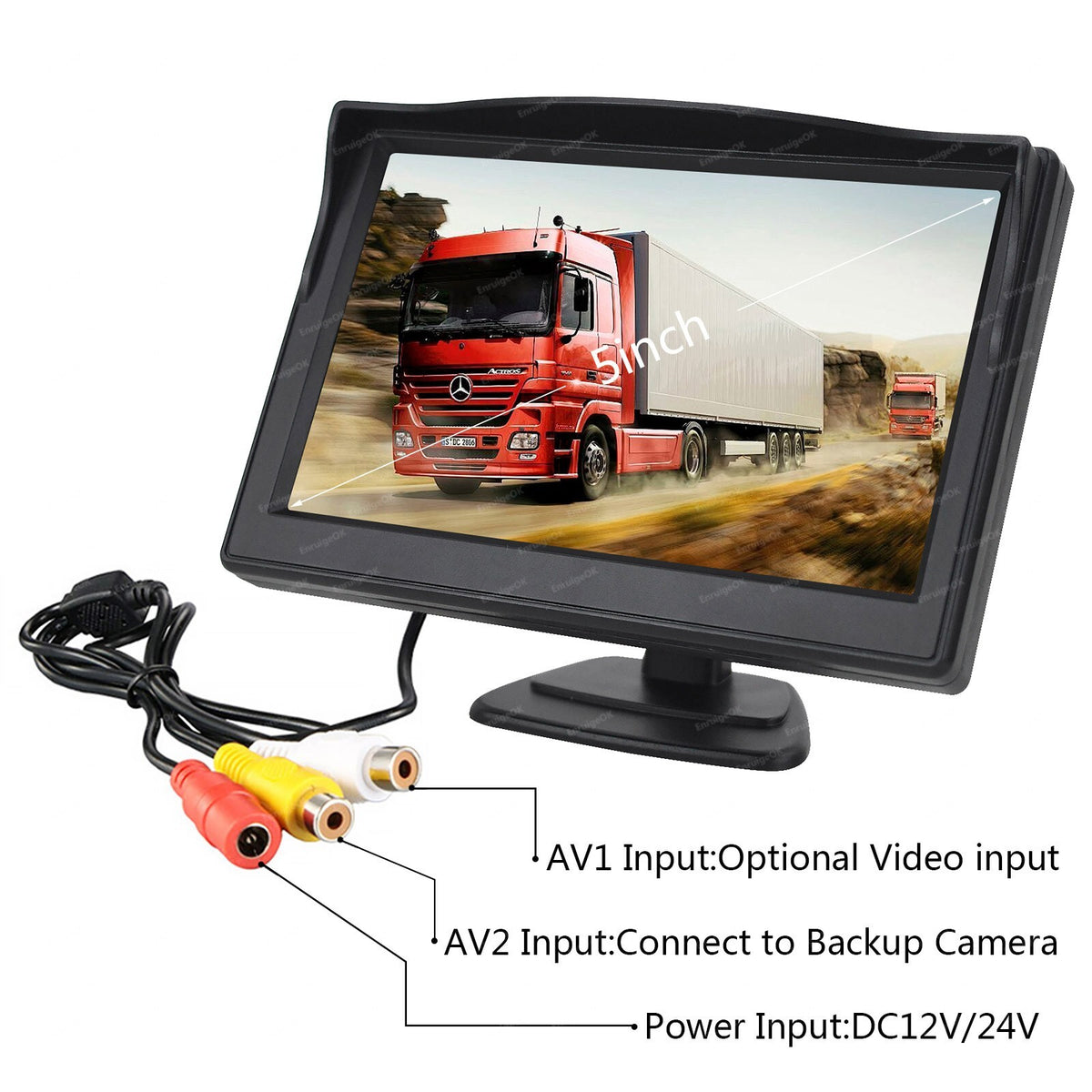

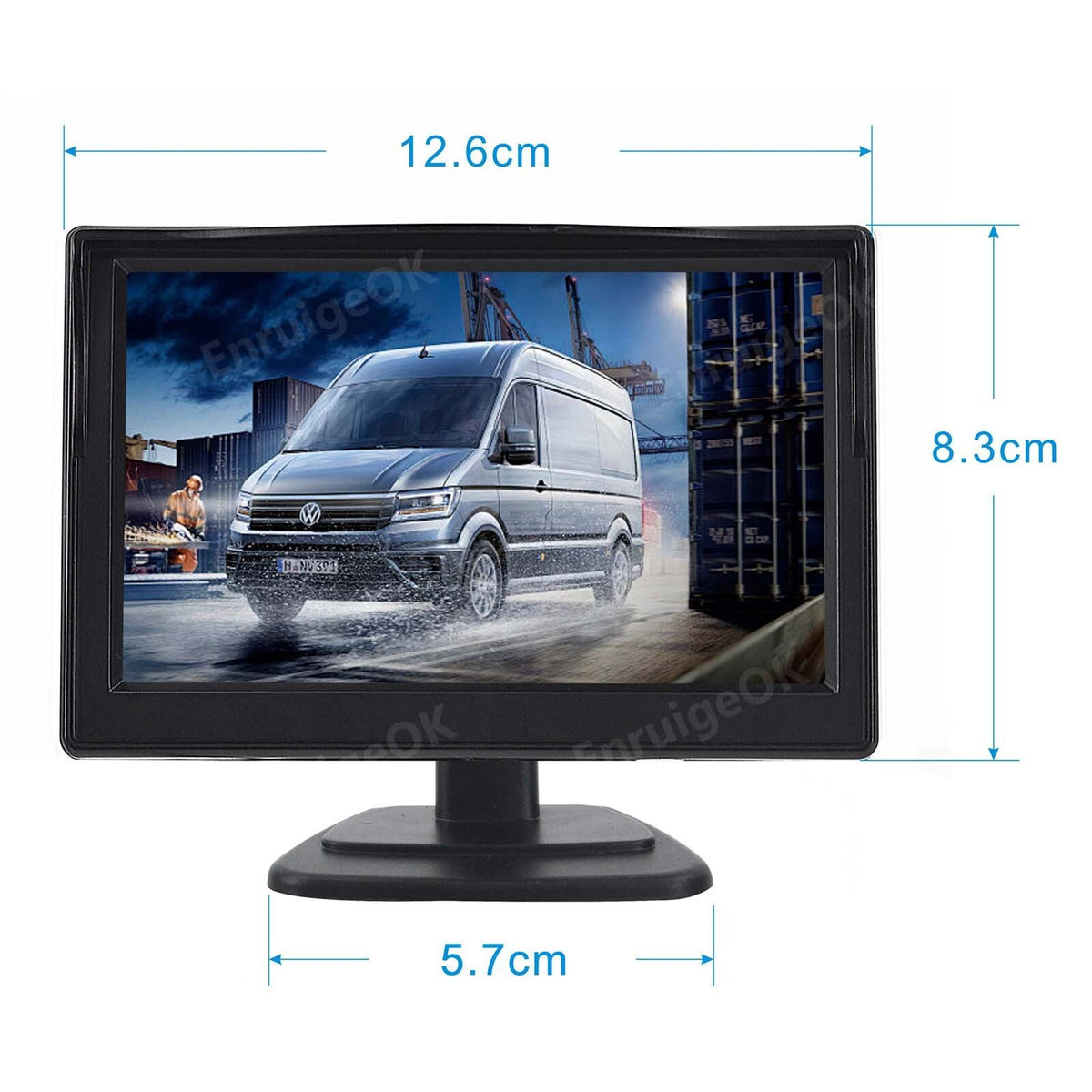

5-Inch Monitor Specifications

• Screen size: 5 inch IPS
• Resolution: 480 × 272
• Brightness: 400 cd/m²
• Contrast: 300:1
• Video inputs: 2 channels with V1/V2 switching
• PAL / NTSC automatic switching
• Rear-view priority function
• Blue screen when no signal is detected
• Power supply: DC 12V
• Power consumption: <4W
• Operating temperature: -20°C to +60°C

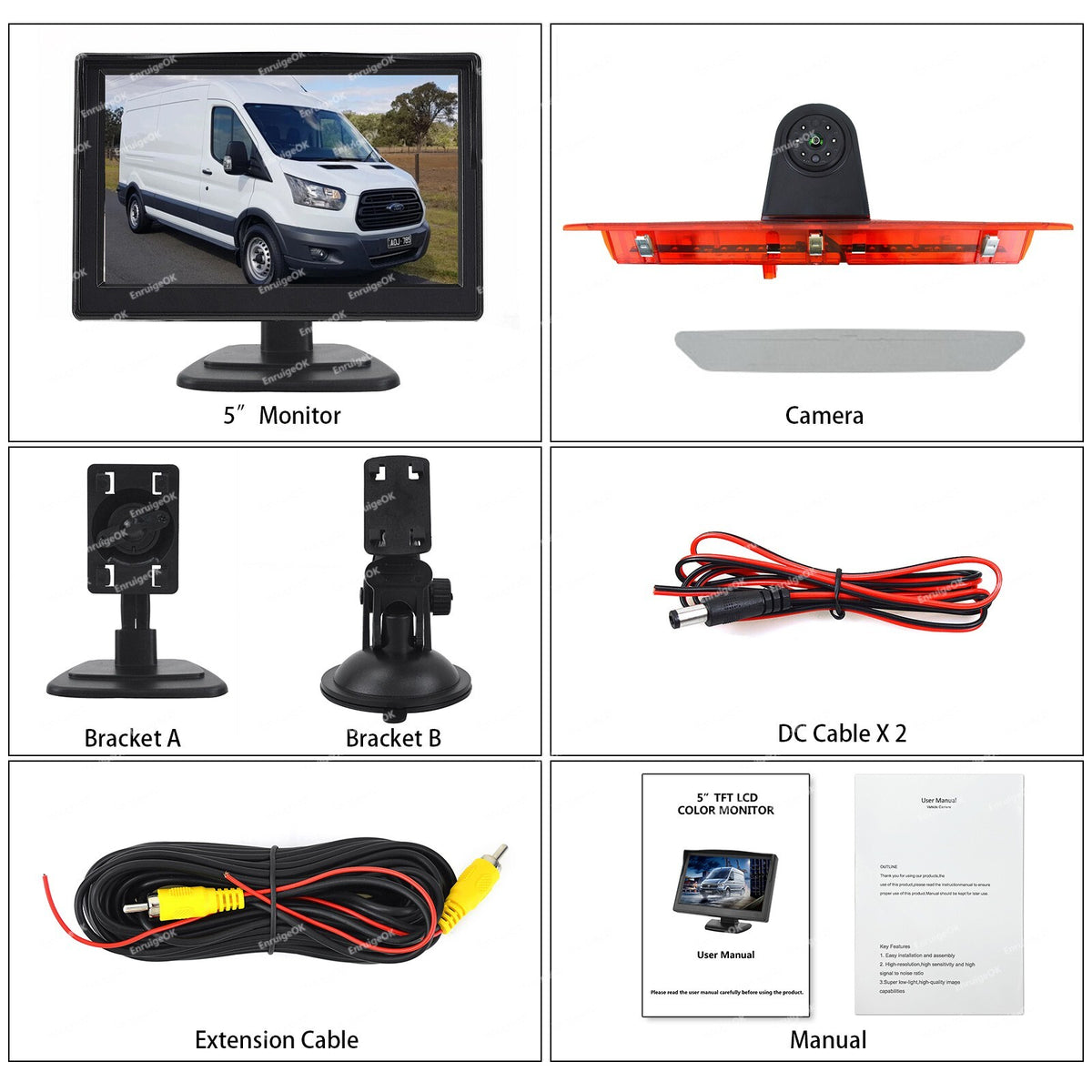

Package Includes

• 1 × Brake-light rear-view camera
• 1 × 5-inch IPS monitor
• 1 × 10m / 33ft extension cable
• 2 × DC power cables
• 1 × Dashboard mount

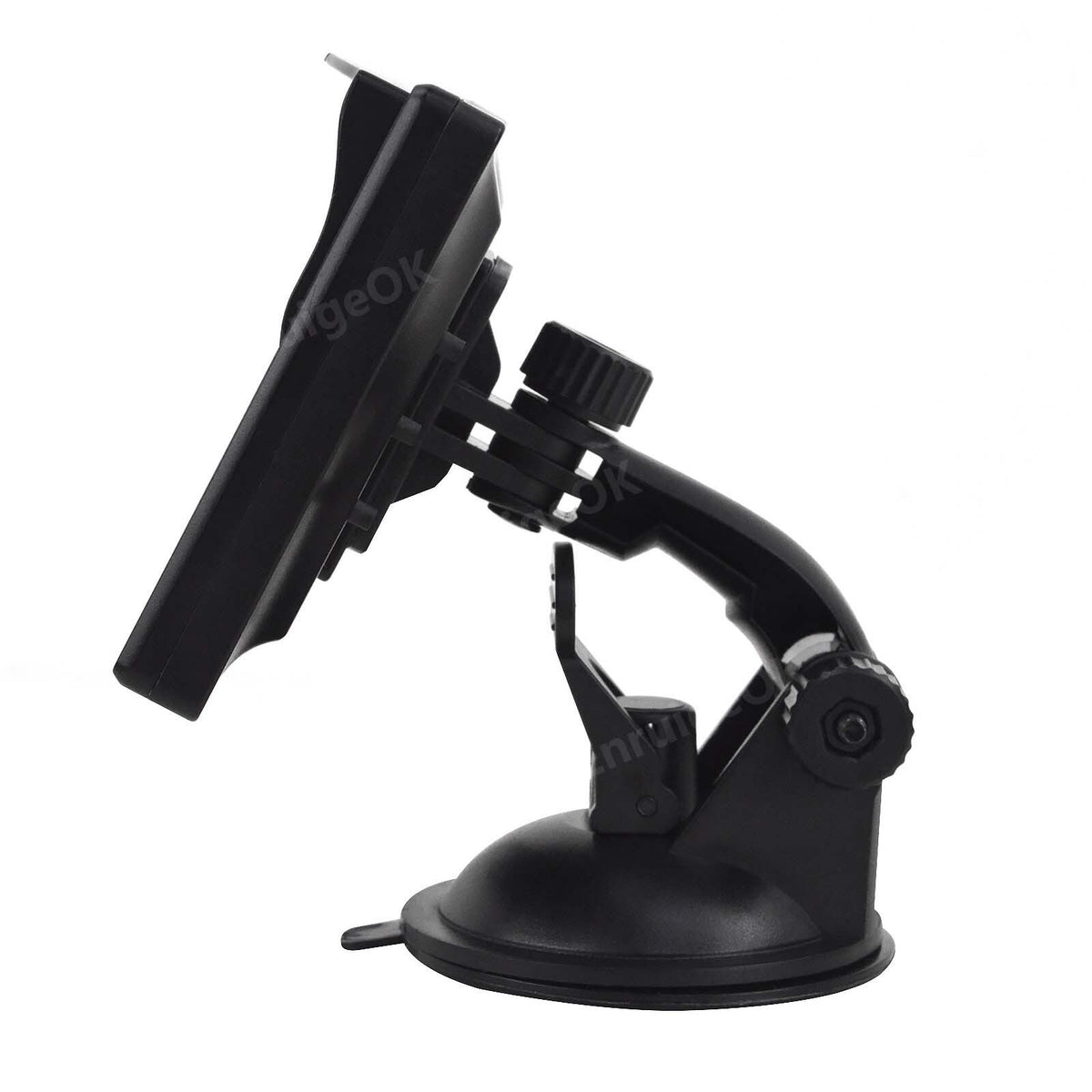

• 1 × Suction cup mount
• 1 × User manual

Care

Clean the camera lens occasionally with a soft damp cloth and refer to the user manual for installation and troubleshooting guidance.
