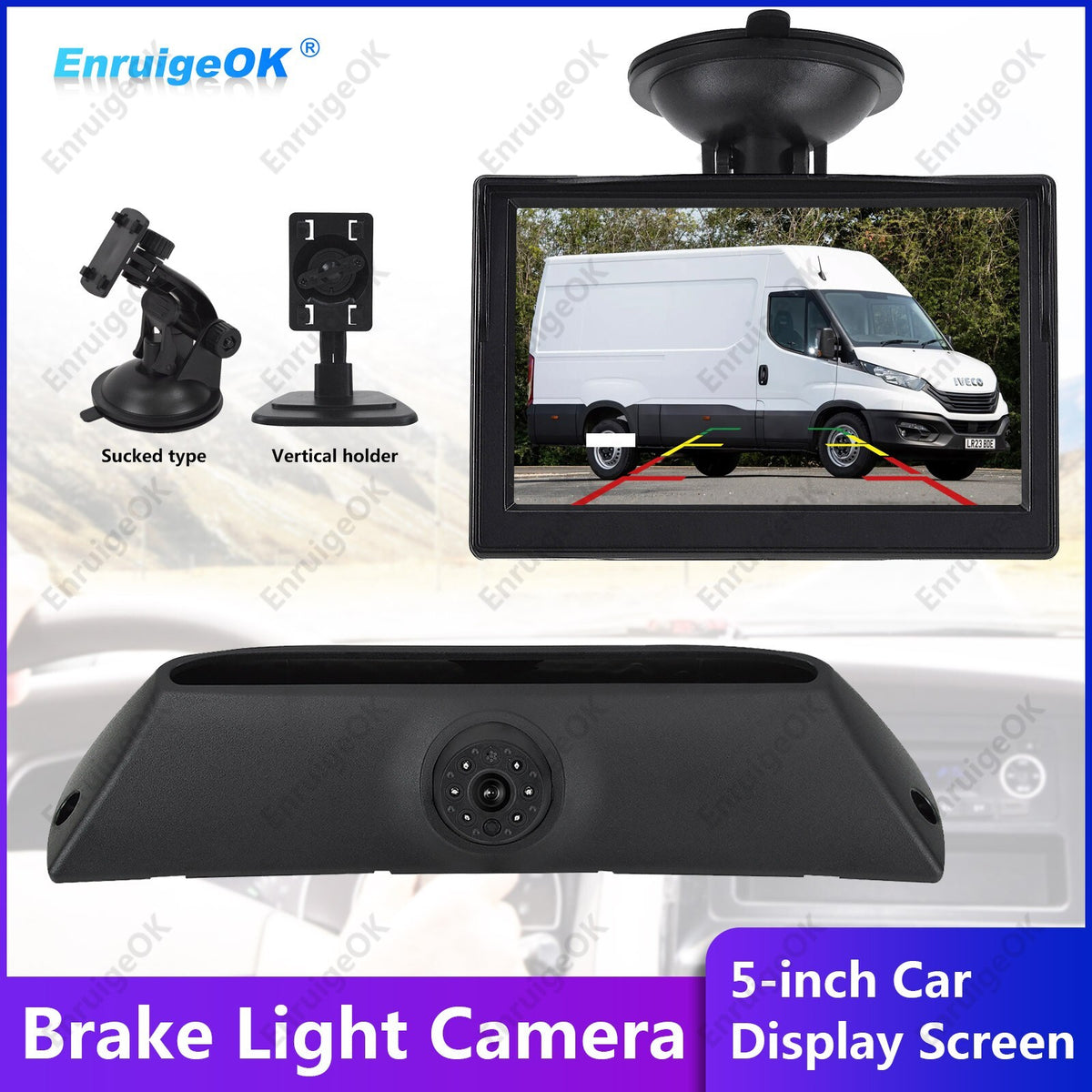

5" Monitor Rear Brake Light Reversing Camera for IVECO Daily 5Gan (2011-2014)

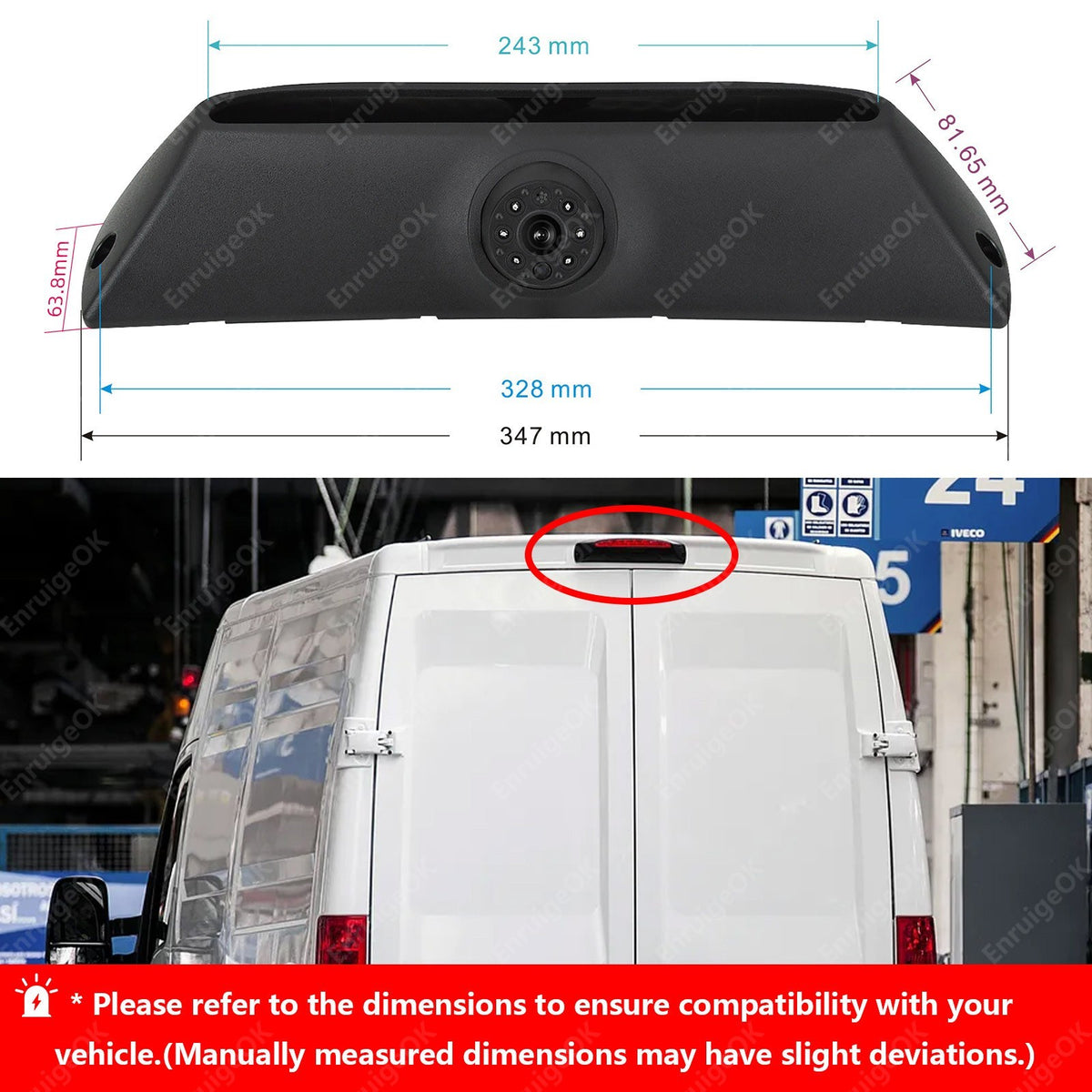

Note: Please check the camera size carefully before make the order.

Camera Compatibility

Iveco Daily [5th Gen] (2011-2014)

Description

5" Color IPS display Monitor with 2 video input, 480*272(RGB) resolution works perfectly with brake light rear view camera. Supports other CVBS signal video input.

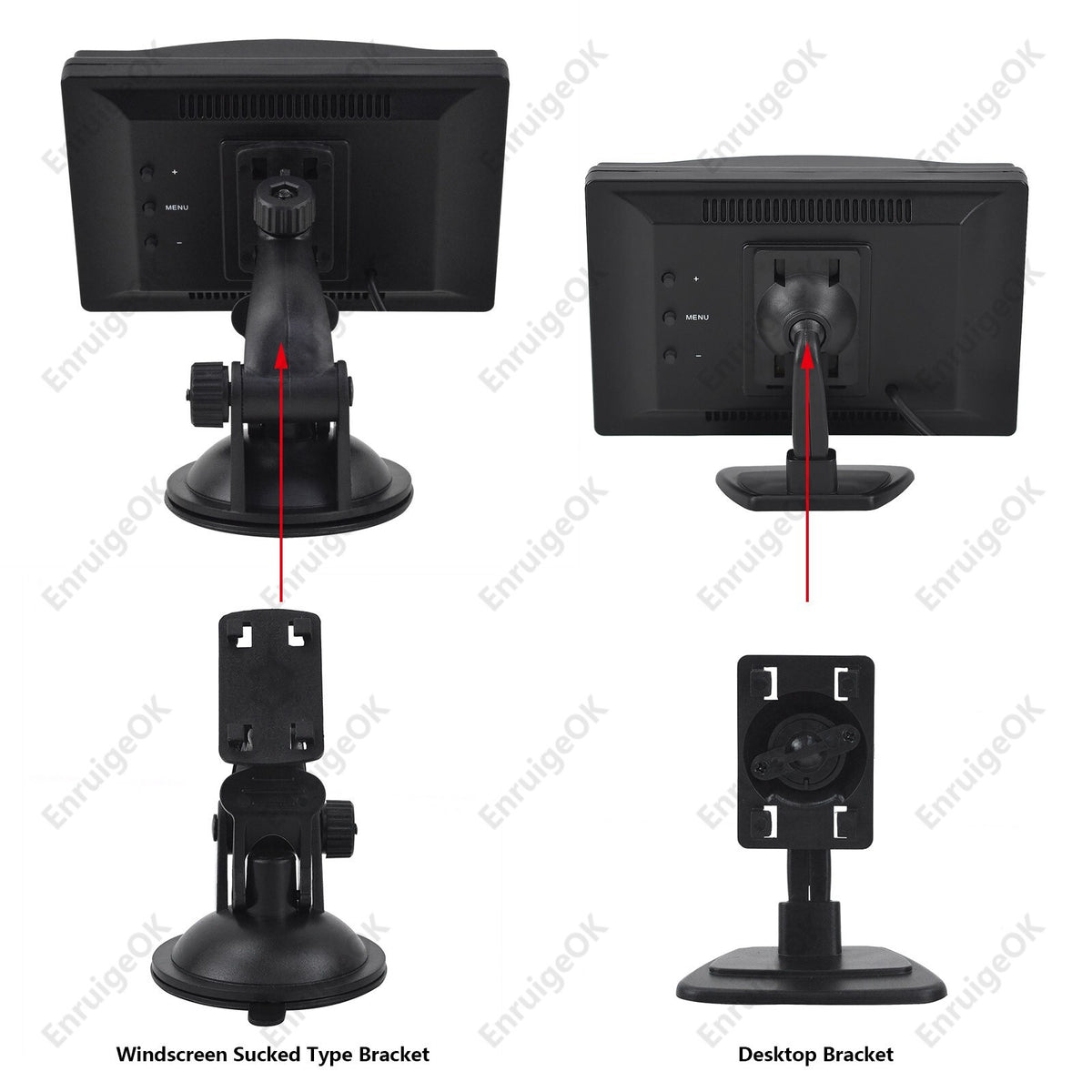

Monitor have two installation methods. Desk mount and windscreen suction mount.

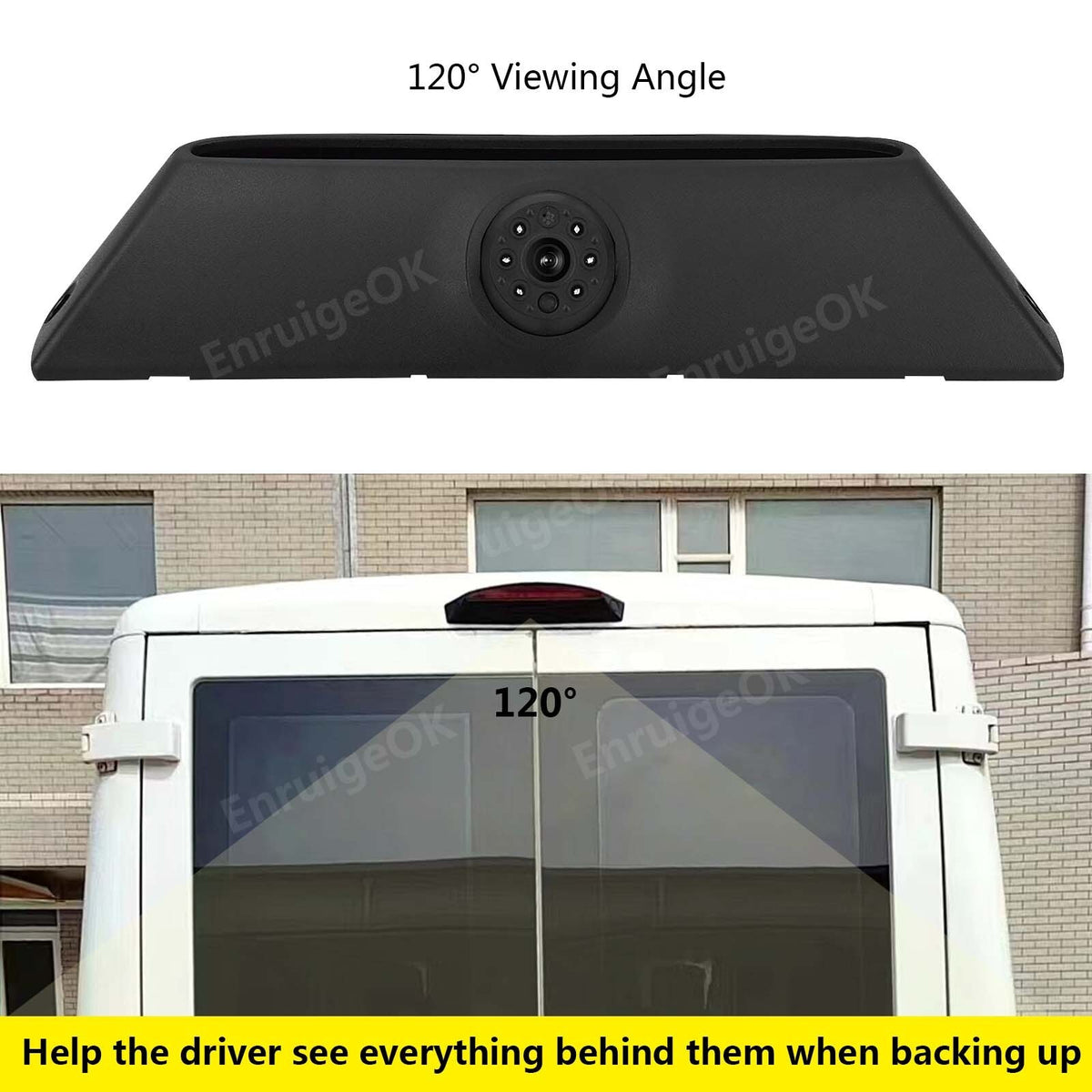

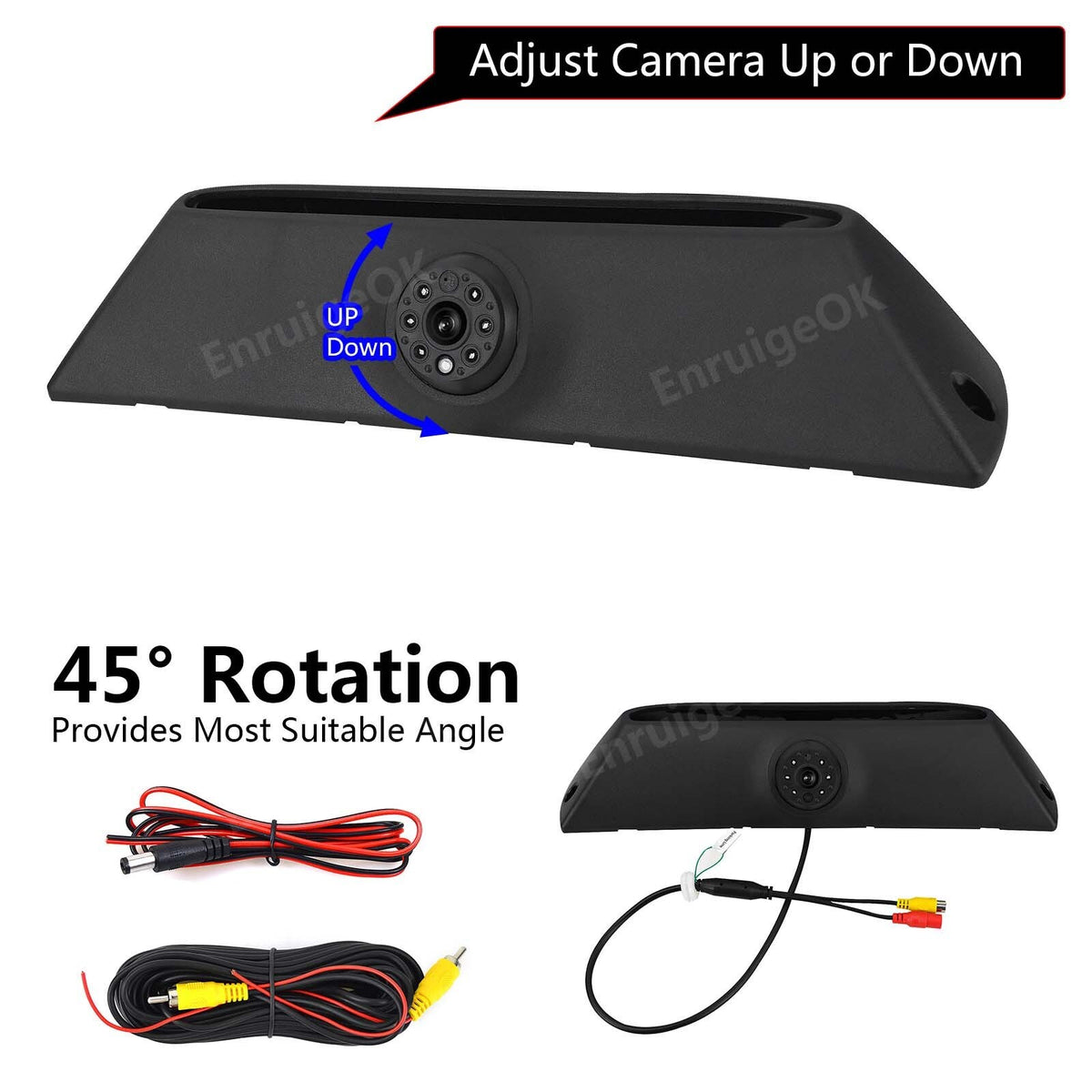

This reversing camera with 120-degree viewing angle shows rich details about the environment behind the car for you.

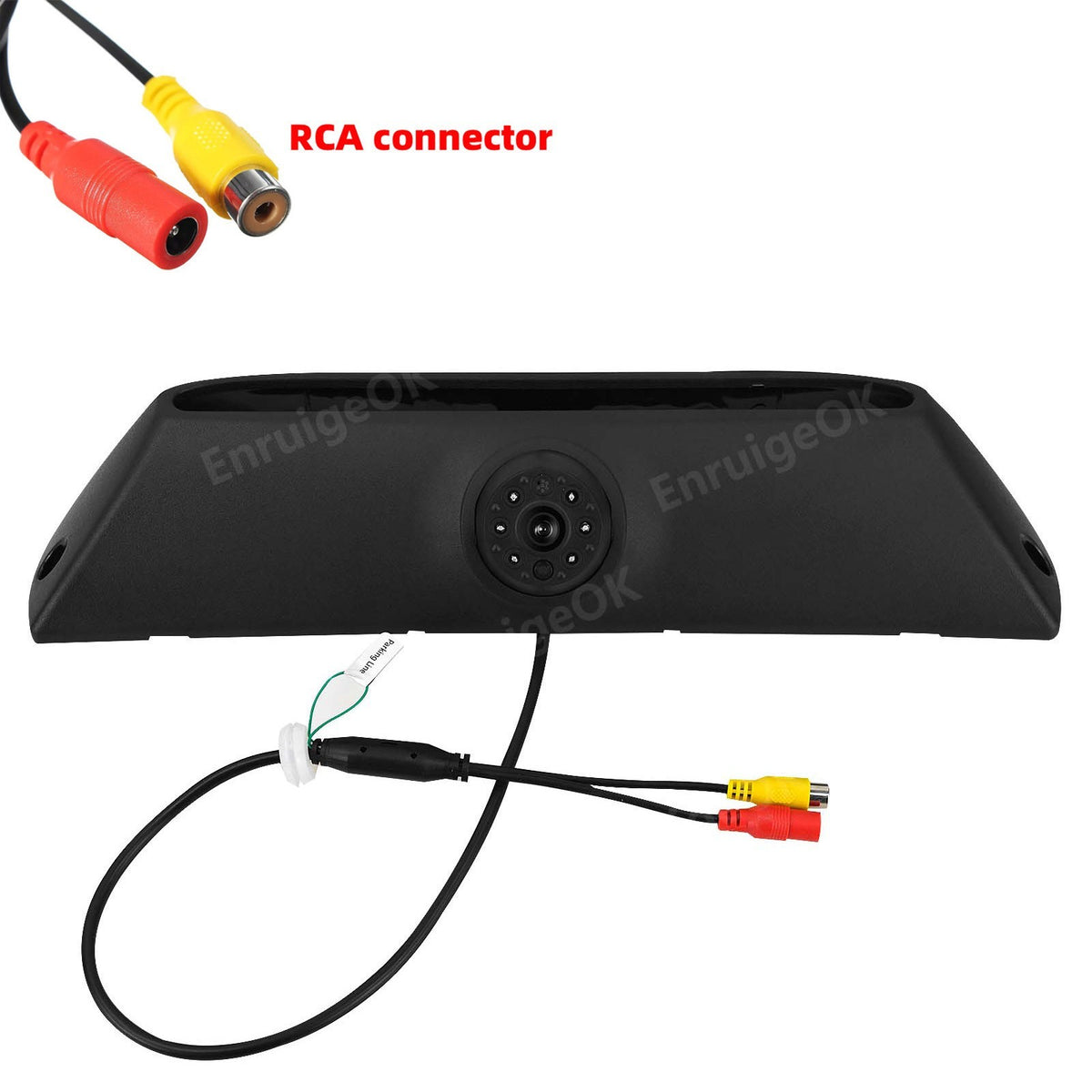

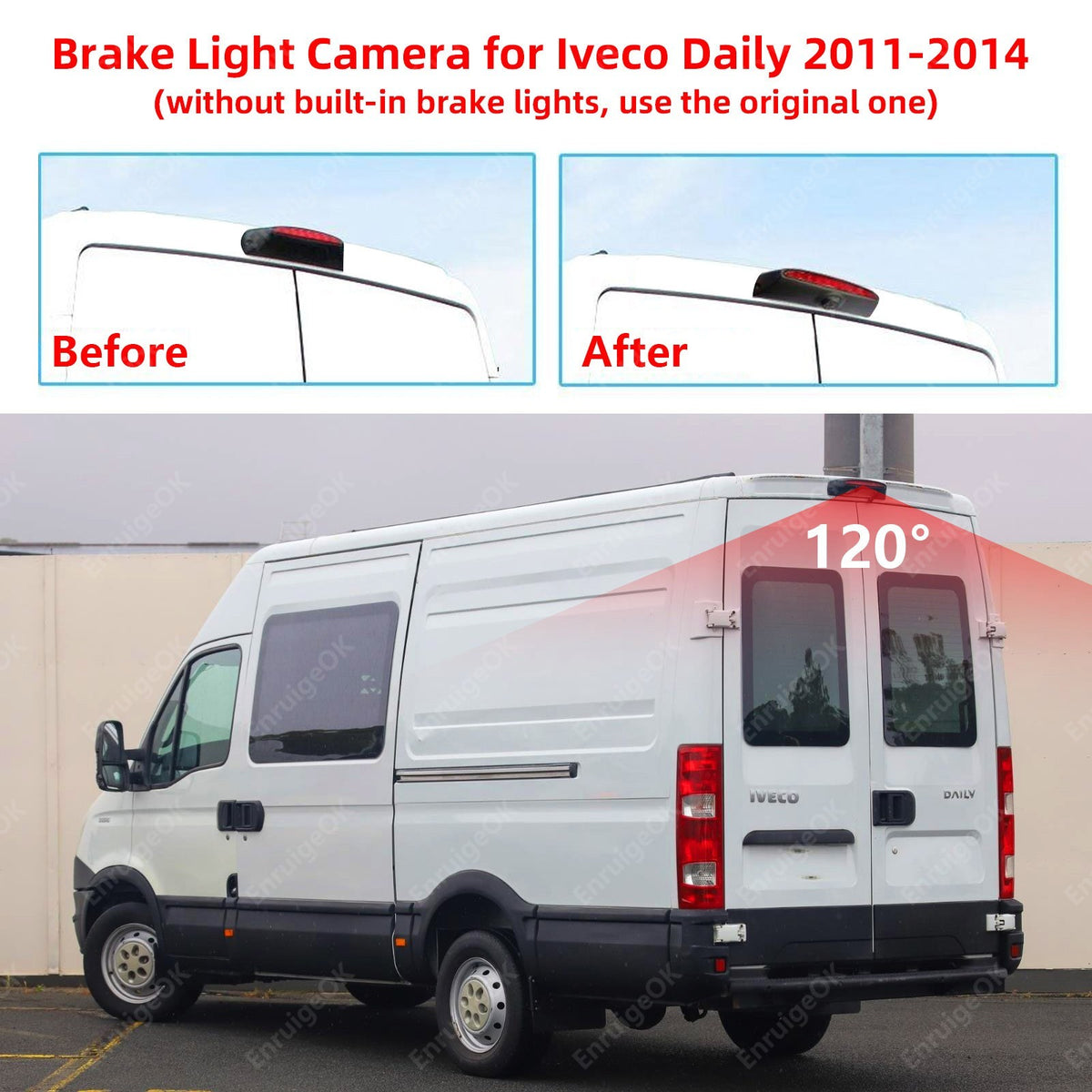

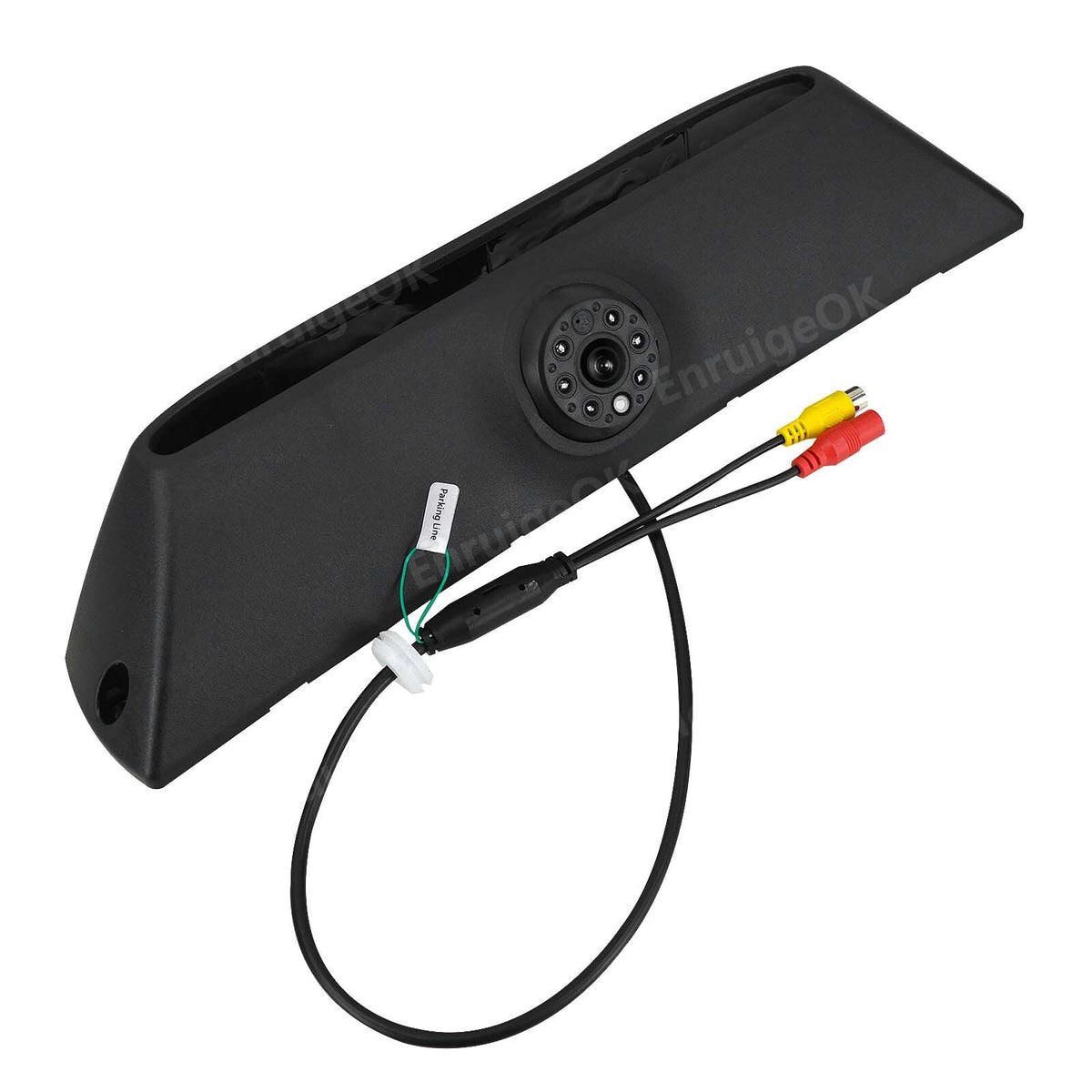

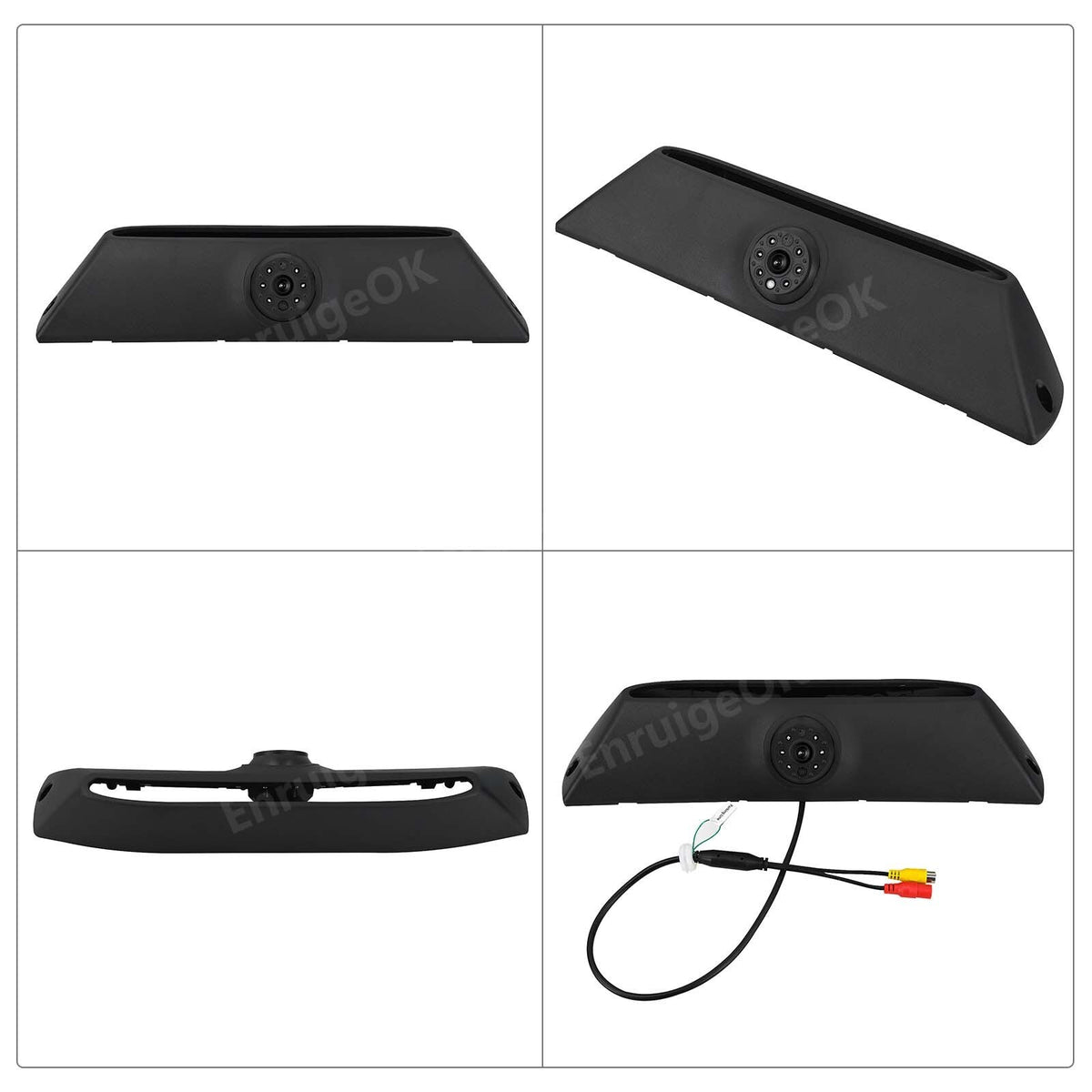

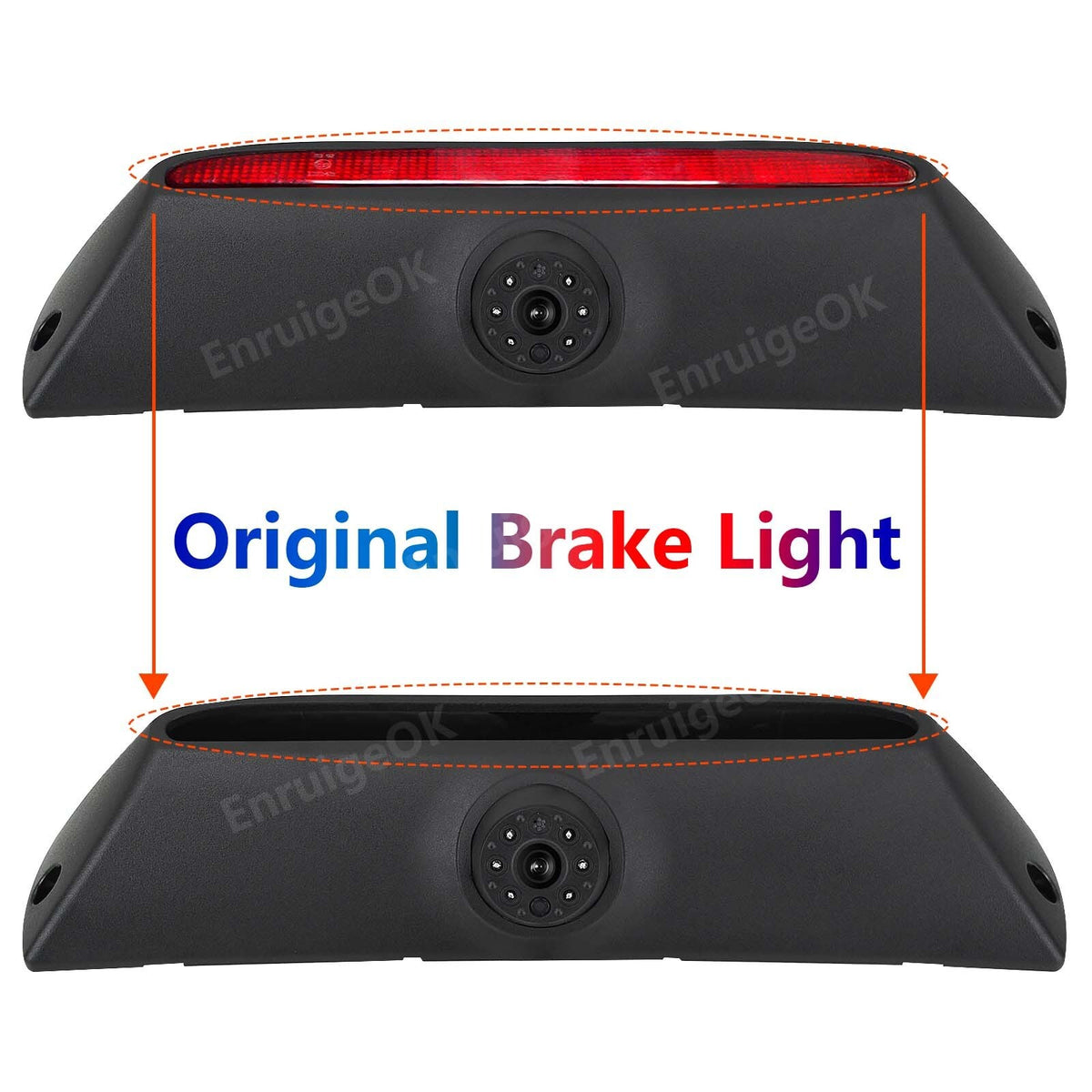

Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

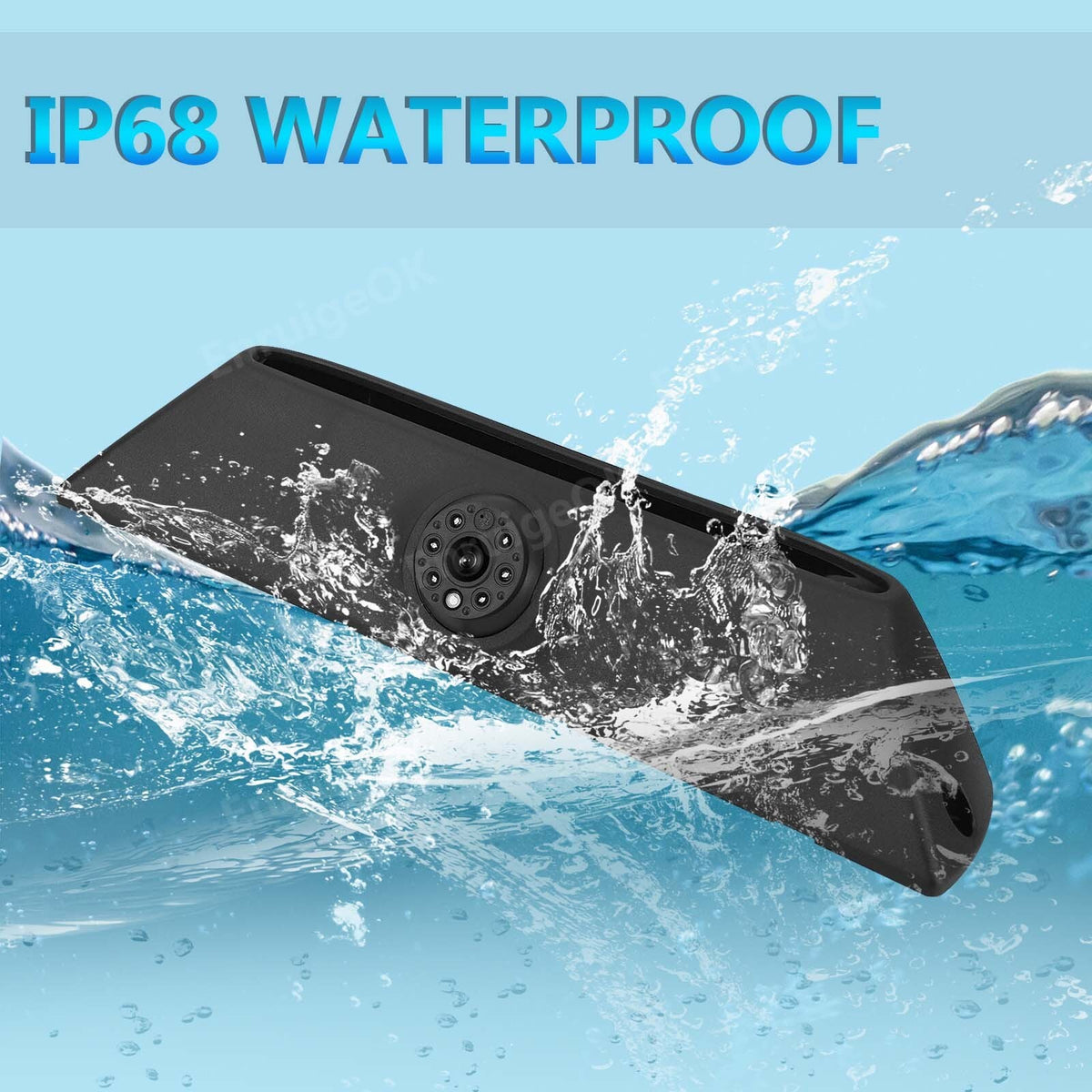

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

Camera Specifications

Sensor: 1/4" COMS

Effective pixel: 733(H)x493(V)

Resolution: 480TVL

TV Tystem: PAL/NTSC

Lens: 2.8mm

Min illumination: 0Lux(IR ON)

Waterproof: IP68

View angle: 120°

Power voltage: DC 12V

Power: 5W

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

S/N Ratio: > 48dB

Current consumption: < 150mA

Operating temperature: -20℃ to +70℃

Monitor Specifications

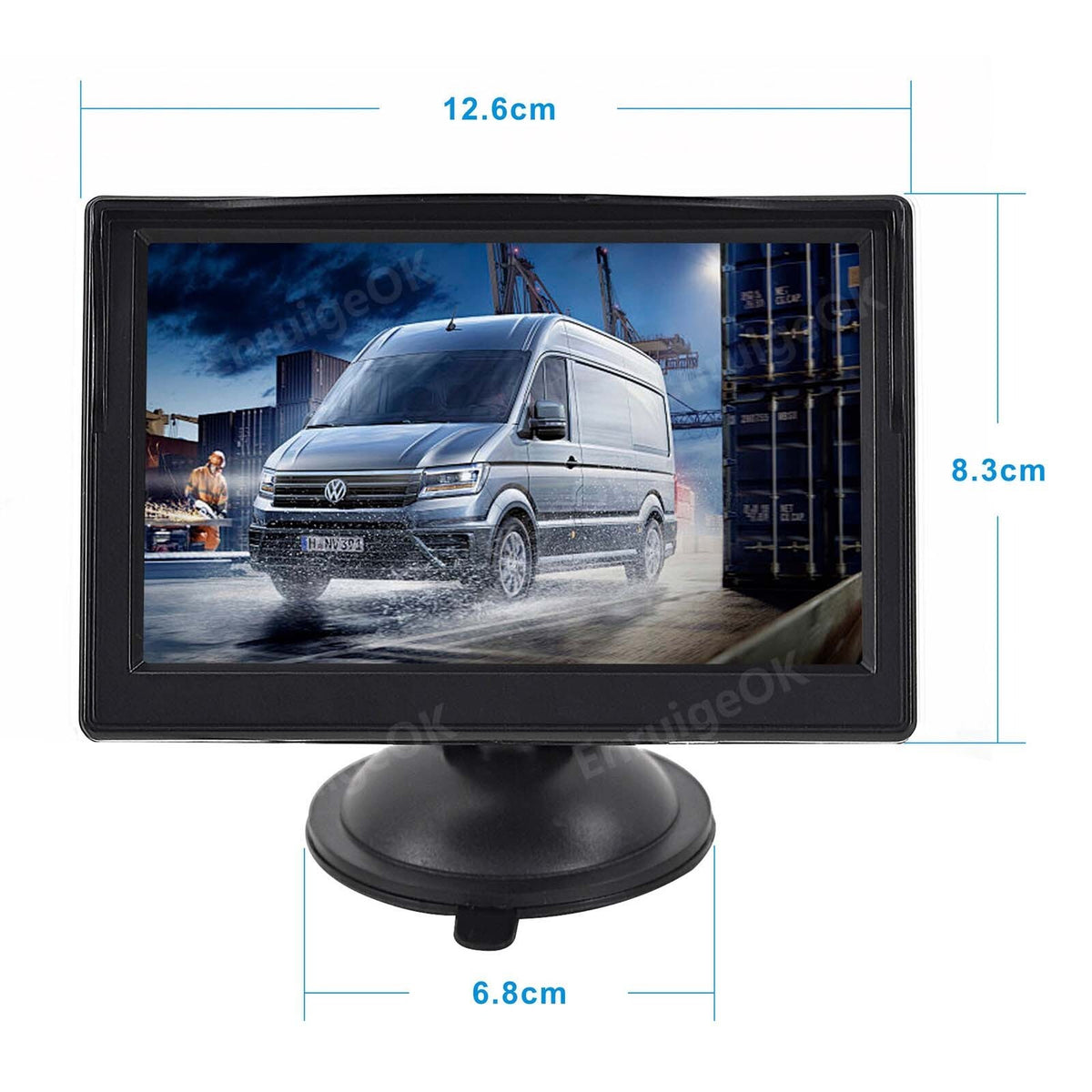

Screen size: 5 inch

Contrast: 300: 1

Brightness: 500 CD/㎡

Video: 2-channel video input; V1/V2 switching

Resolution: 480 (H) x 272 (V)

Power supply: DC 12V / 24V

Rear view in priority

Blue screen on no signal

Video system: NTSC / PAL auto switch

Current consumption: 6W

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃

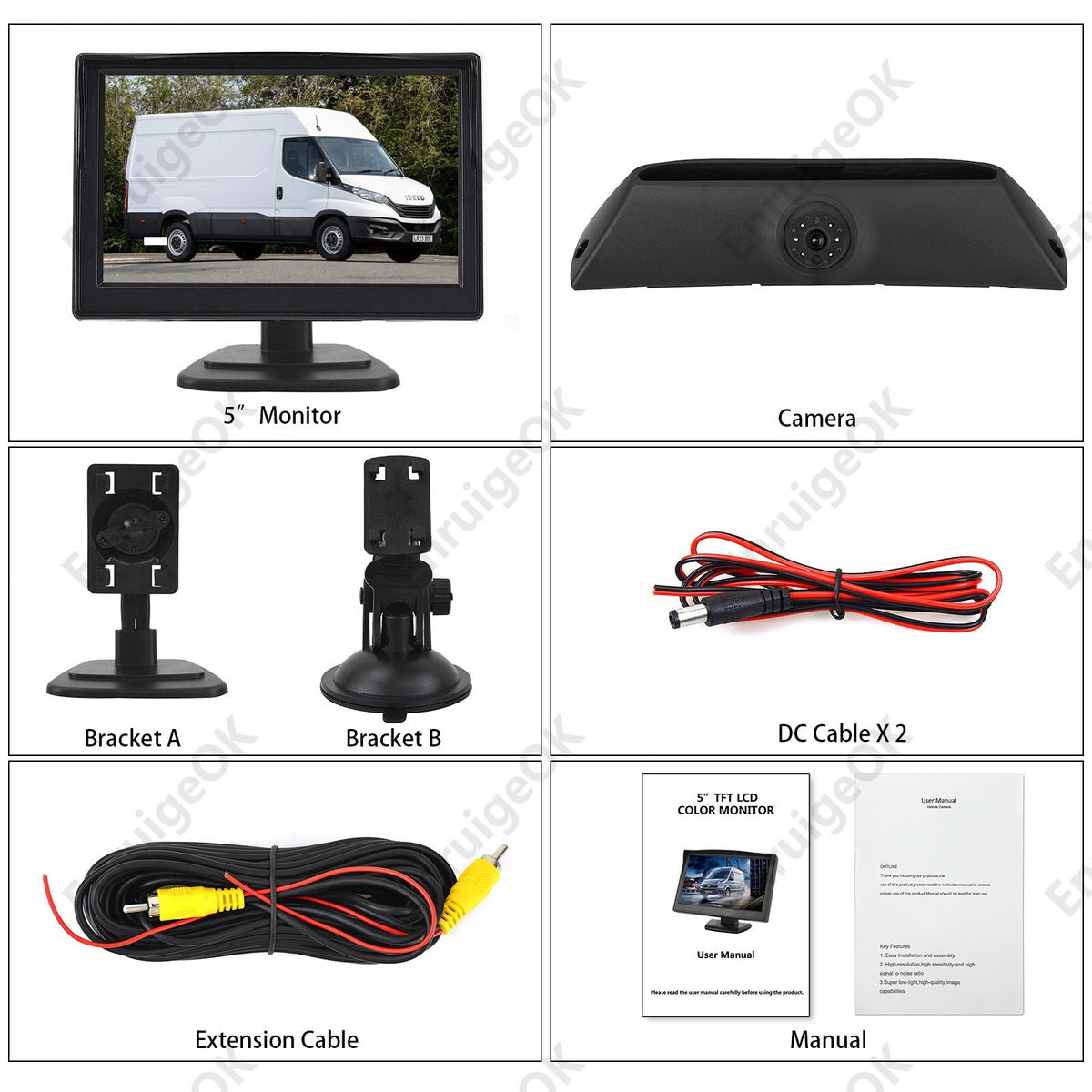

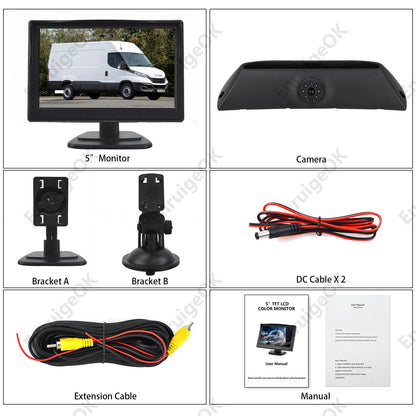

Package content

1 X Brake Light Rear View Camera

1 X 5'' IPS display monitor

1 X 10m/33ft. extension cable

2 X DC Power cable

2 X Bracket

1 X Manual

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
