5" Monitor HD Rear View Brake Light Reversing Camera For Ford Transit Custom Van

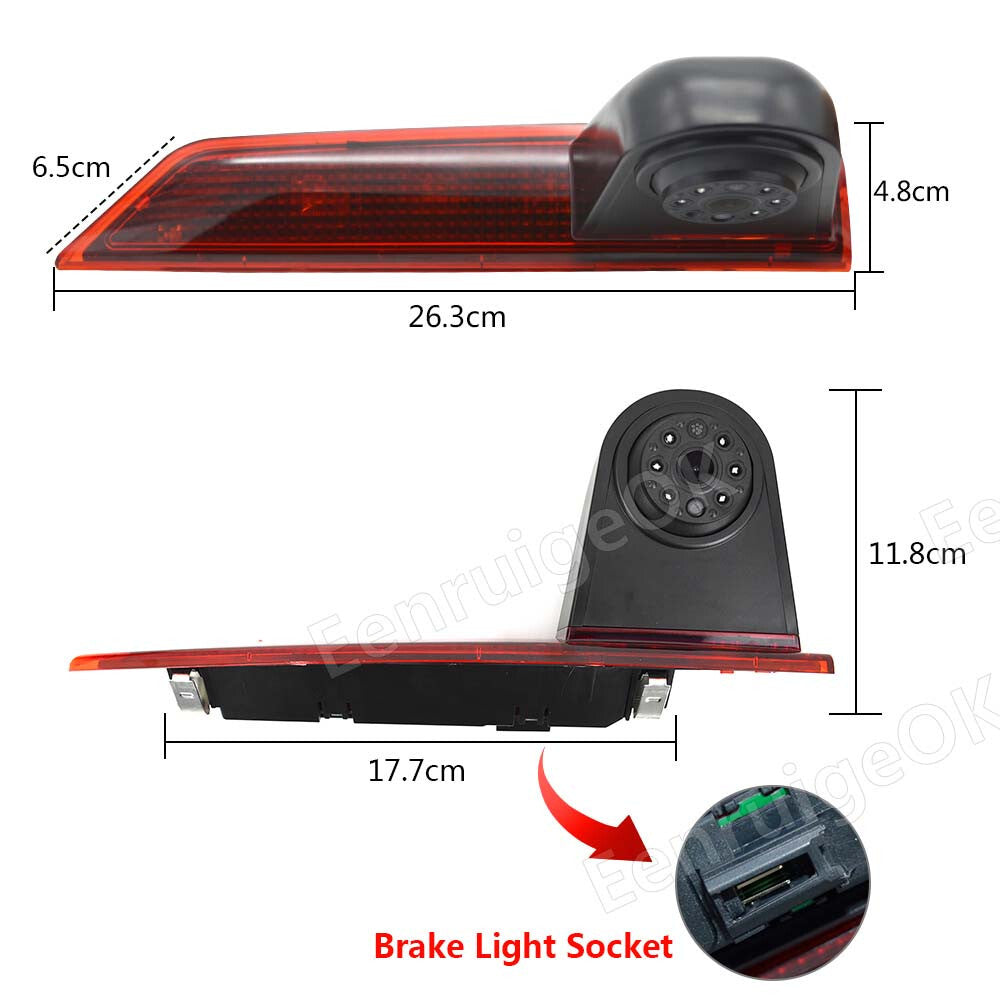

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

For use with

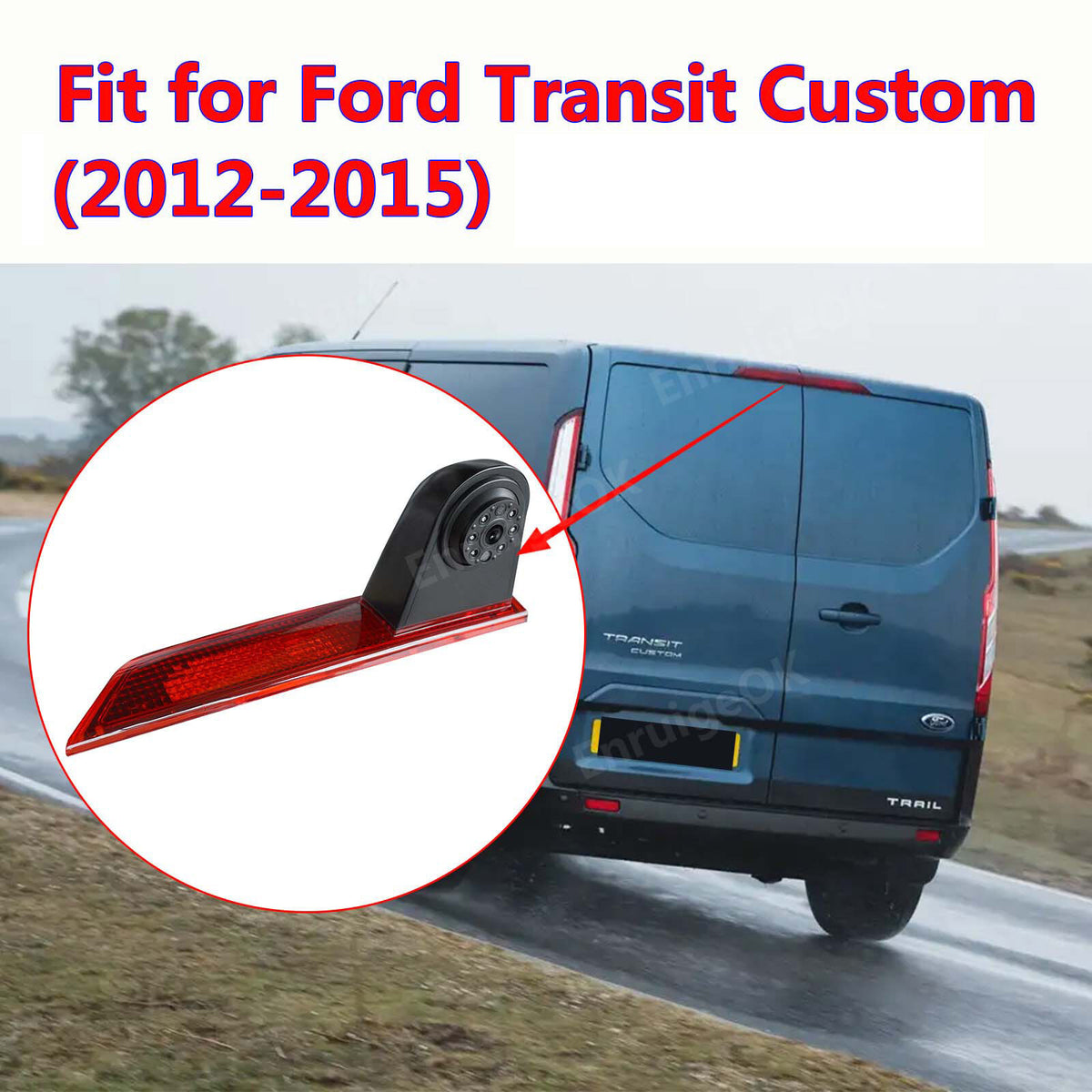

Ford Transit Custom Van(2012-2015)

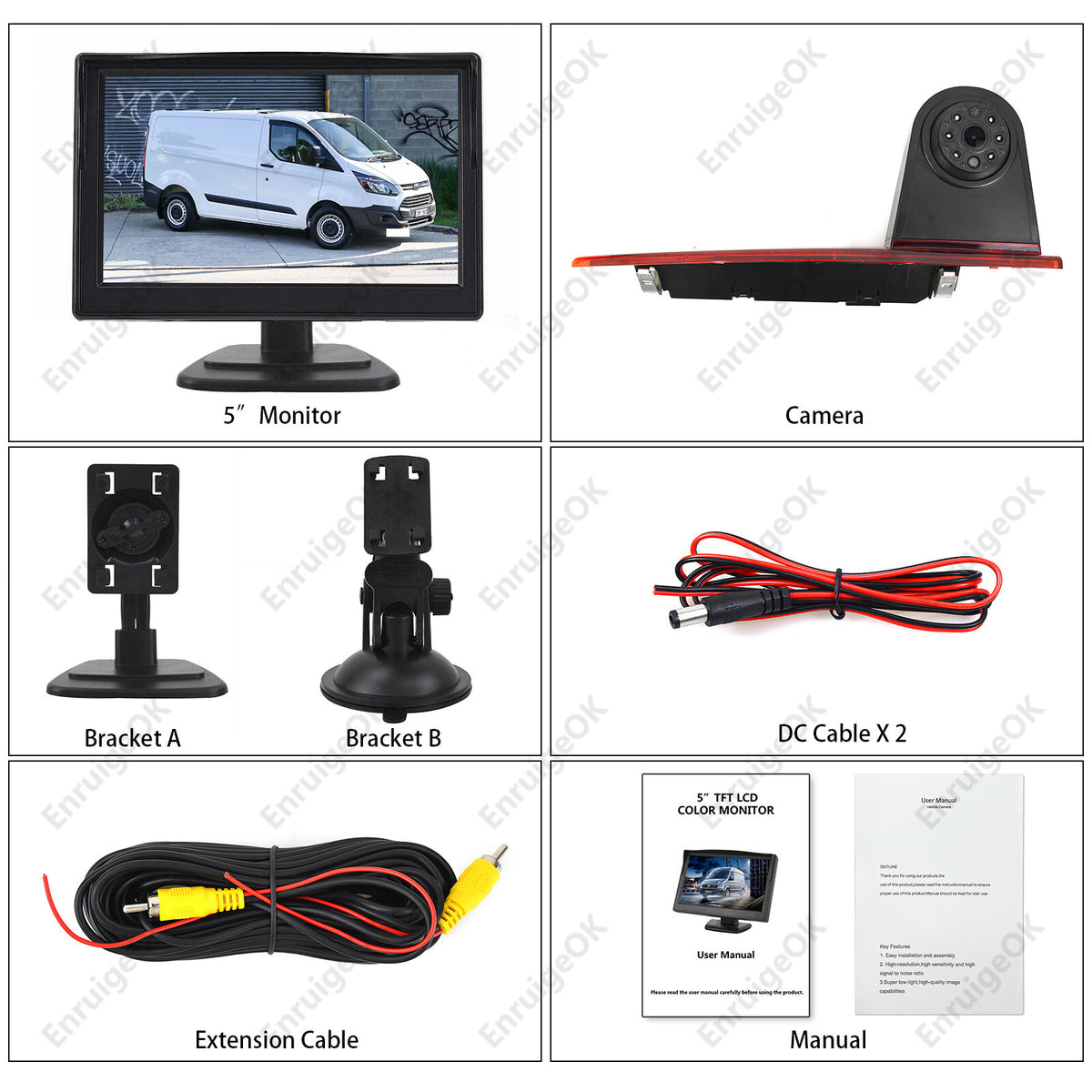

Package Contents

1 X Brake light camera

1 X 5'' IPS display monitor

1 X 10m/33ft. extension cable

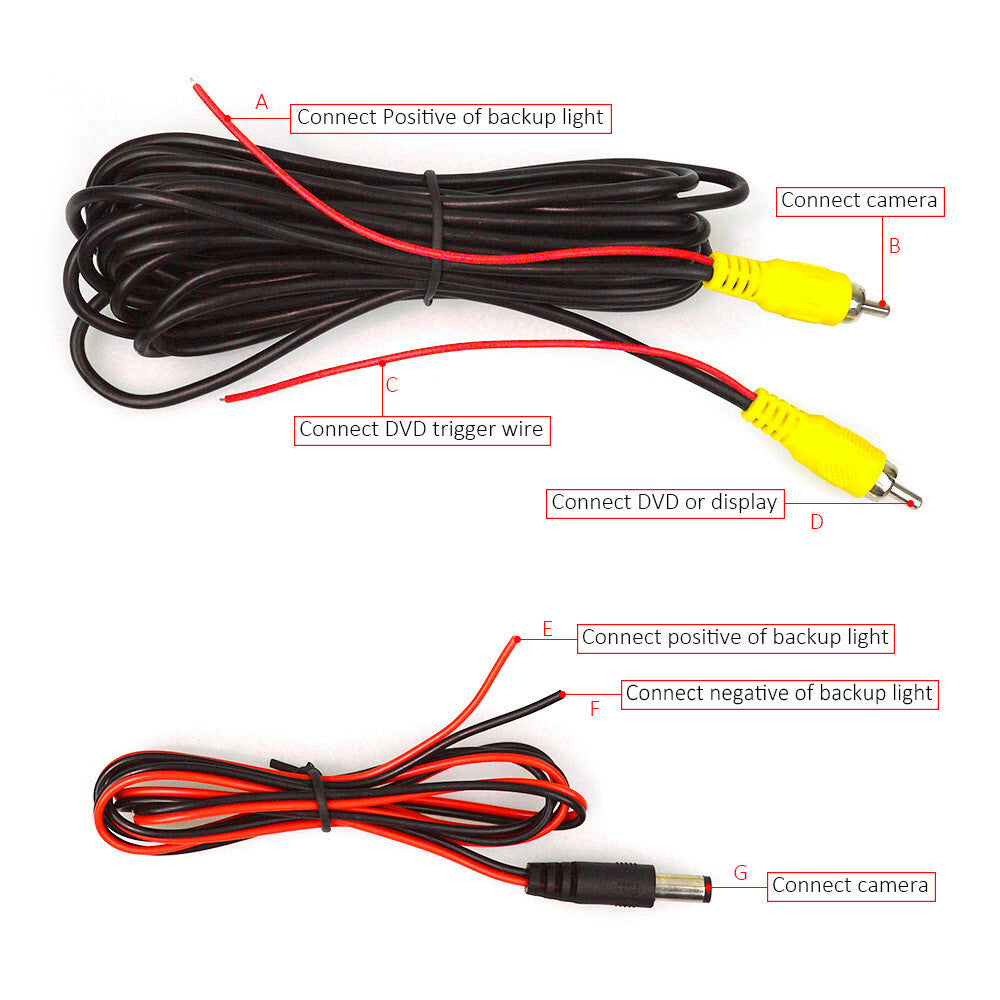

2 X DC Power cables

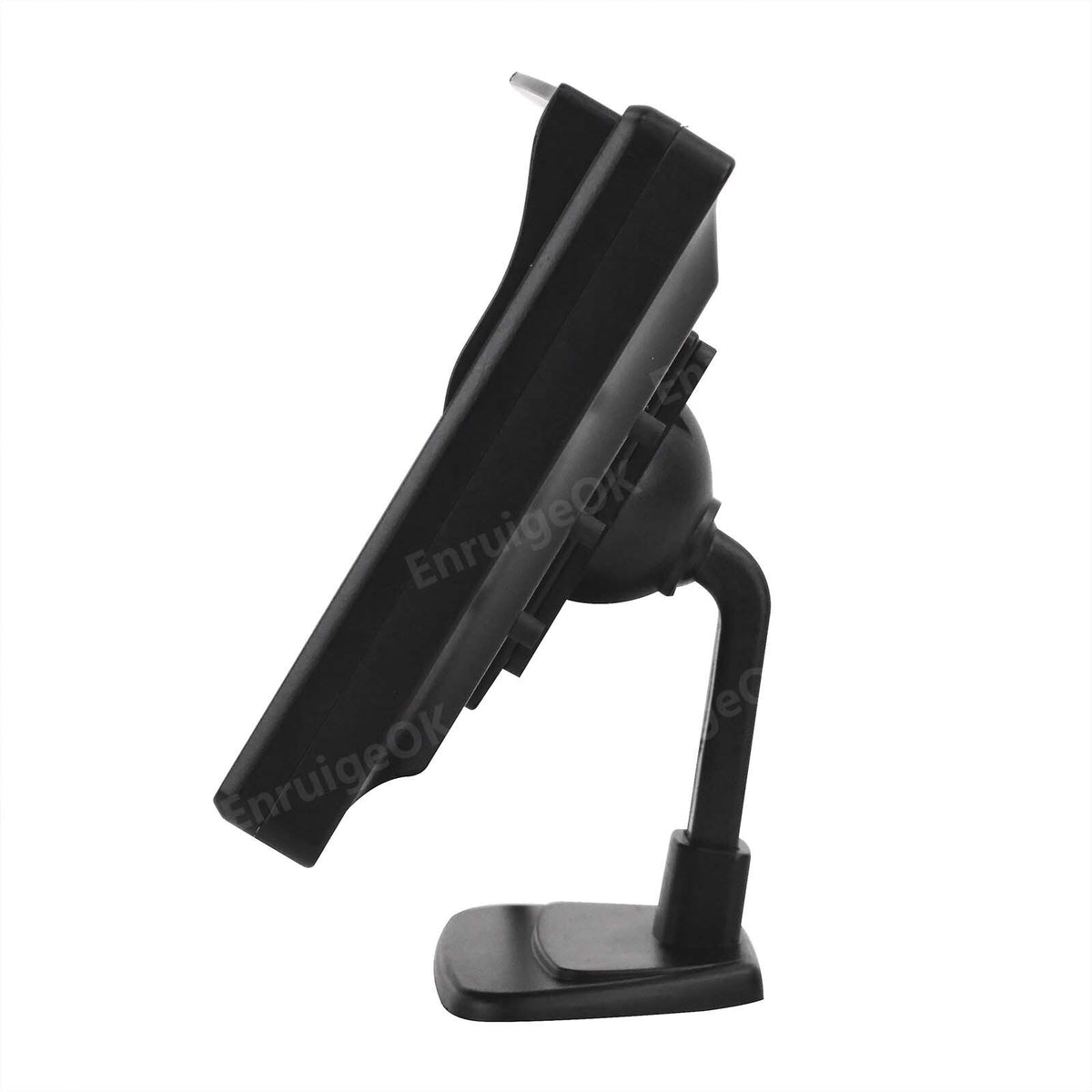

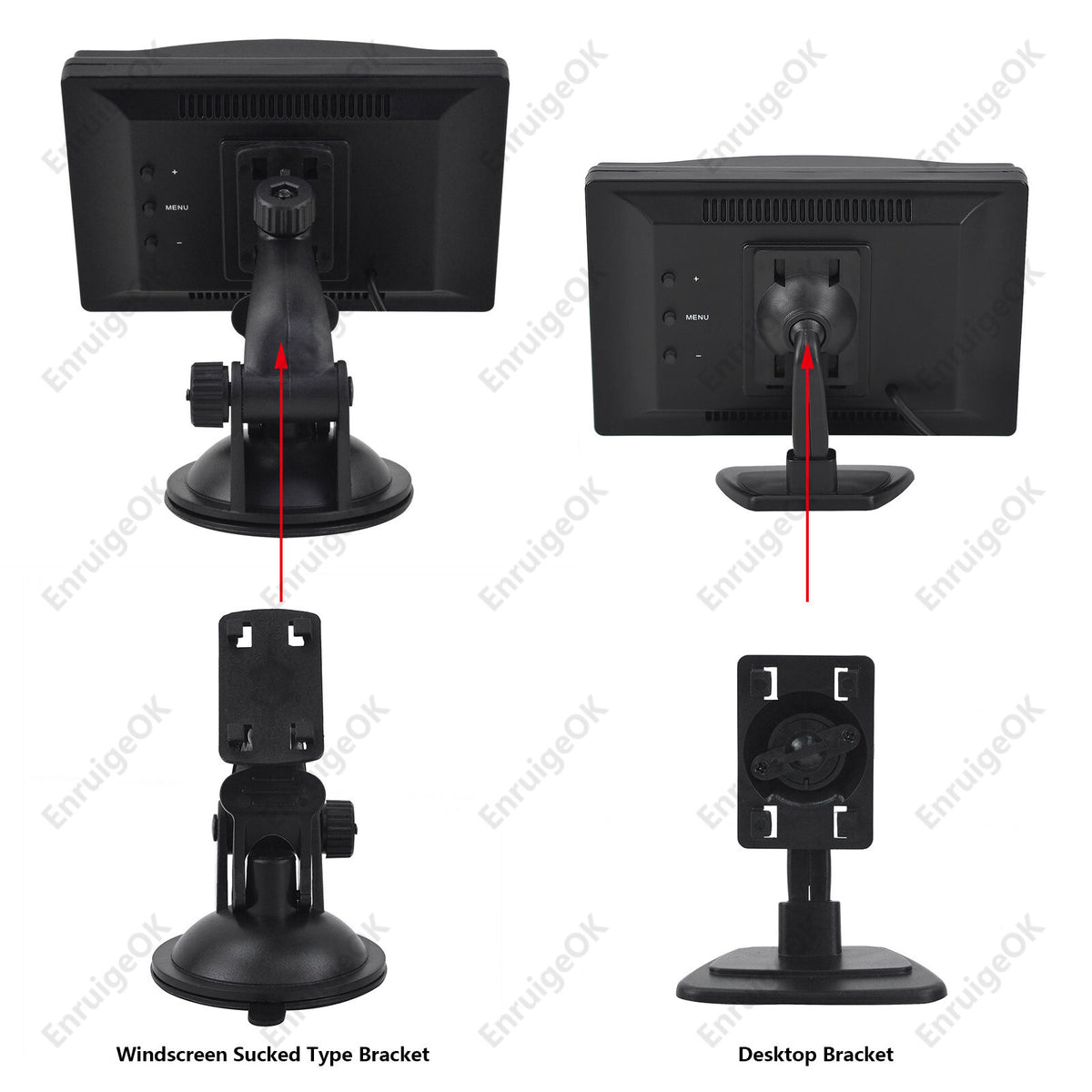

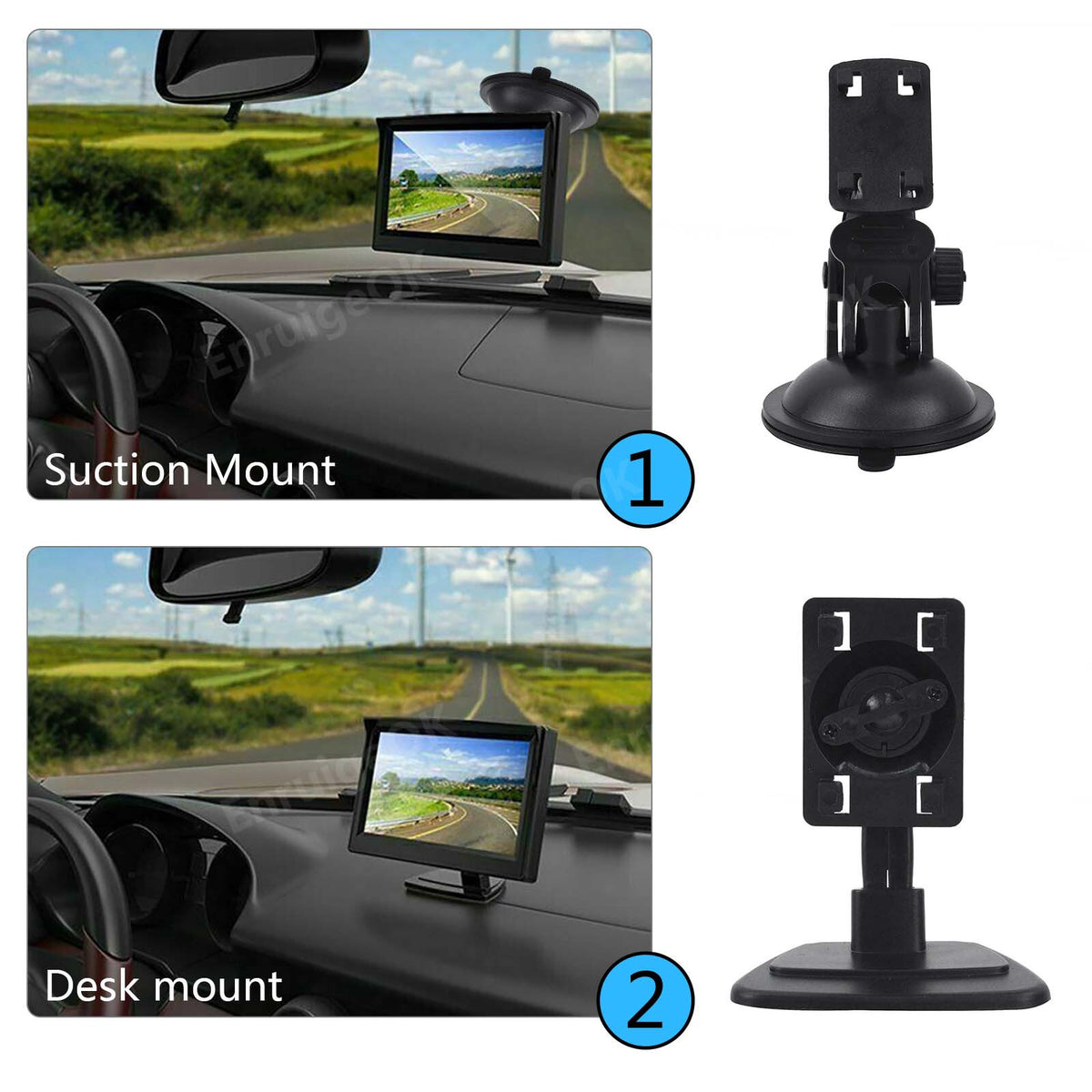

1 X Dashboard mount stand

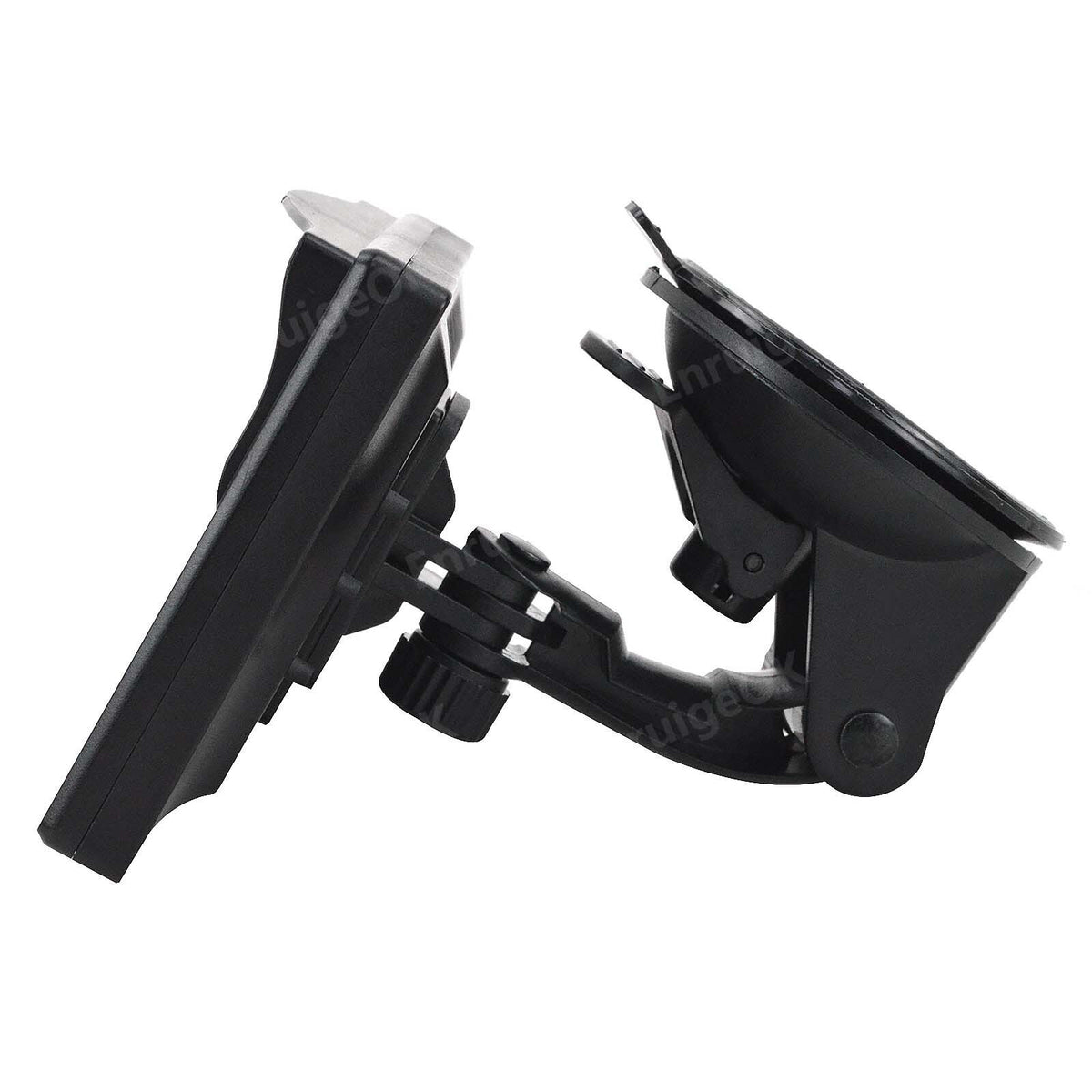

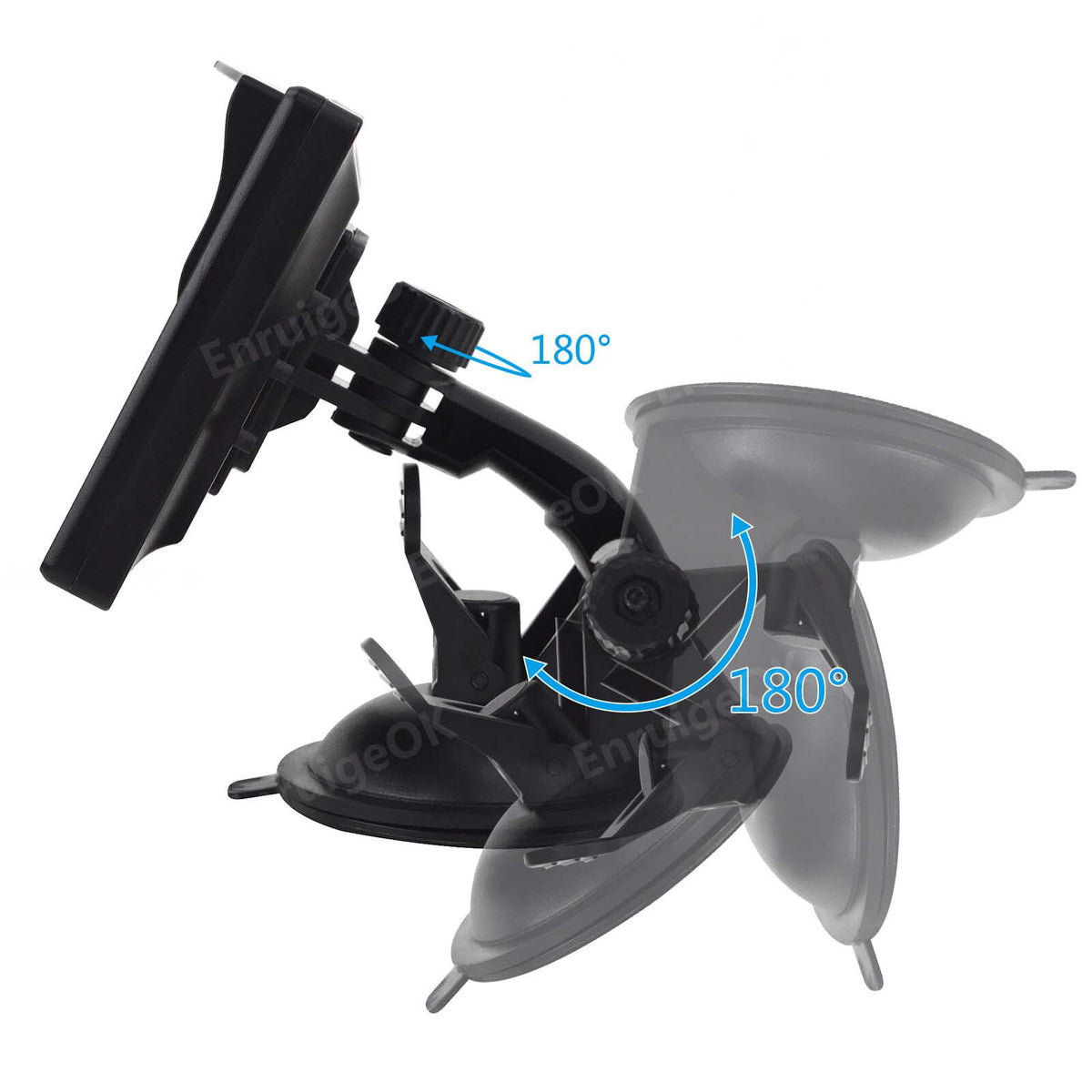

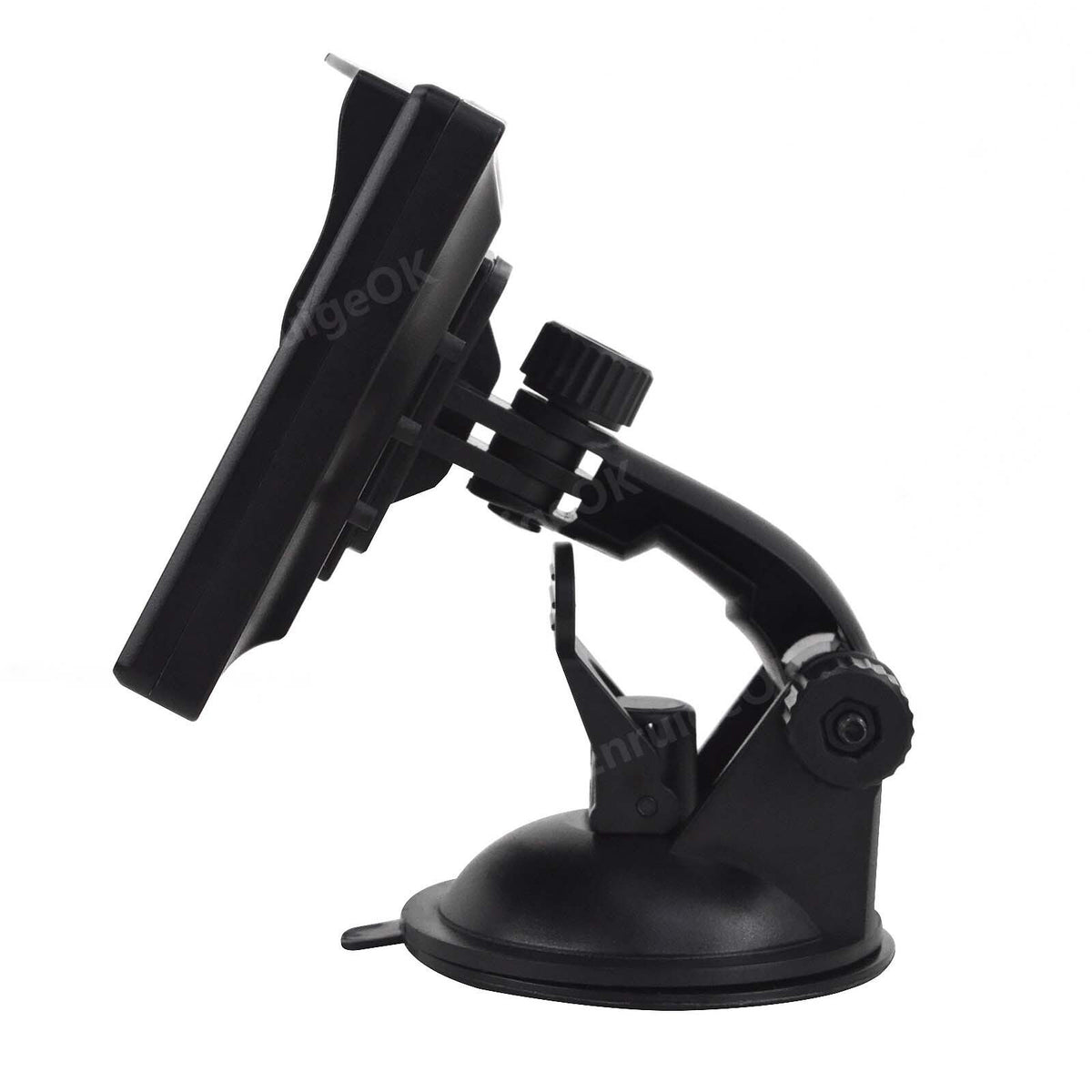

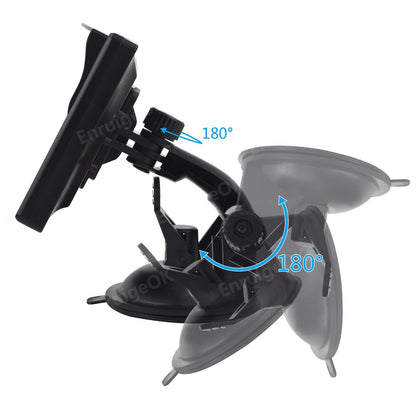

1 X Suction cup mount stand

1 X Manual

Description

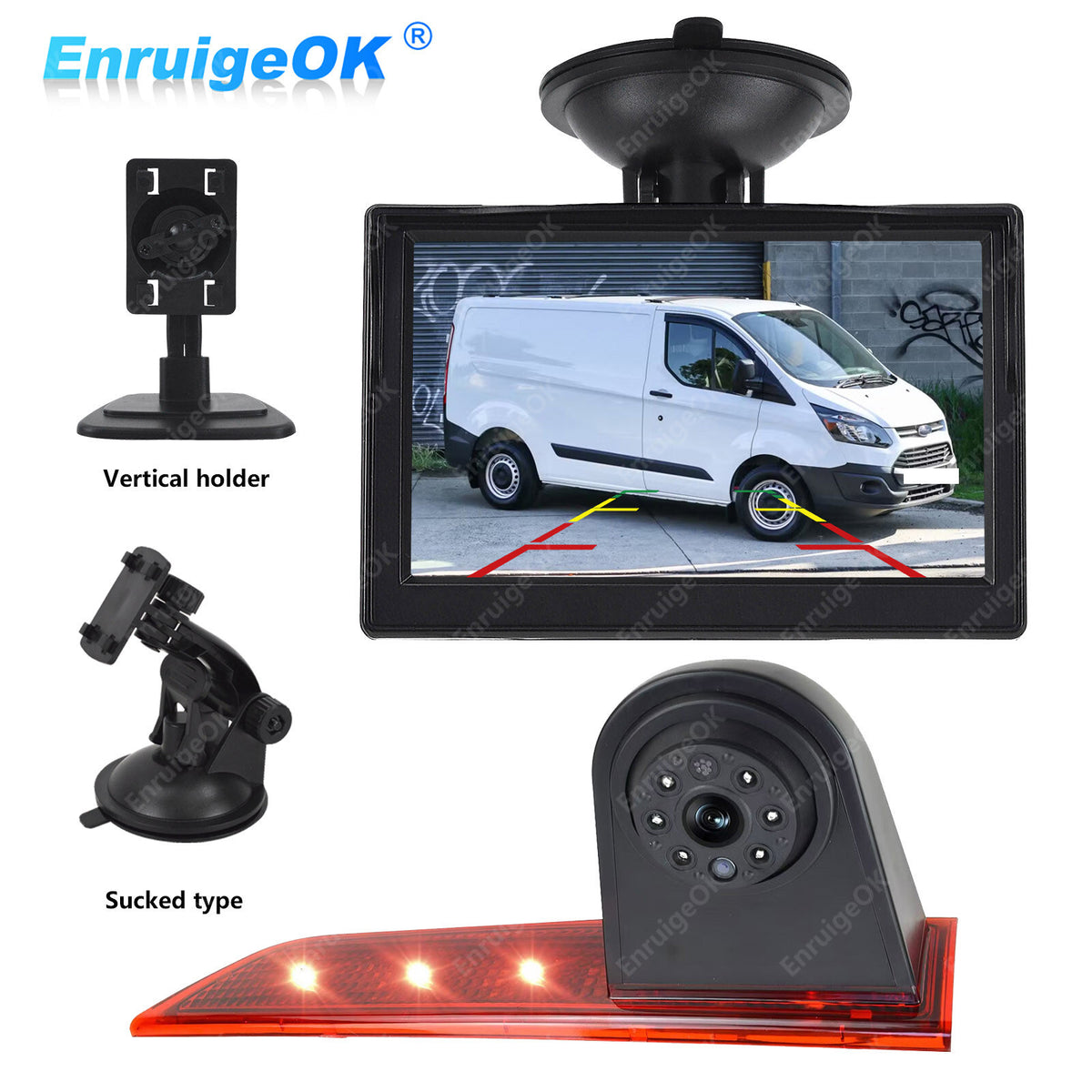

It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

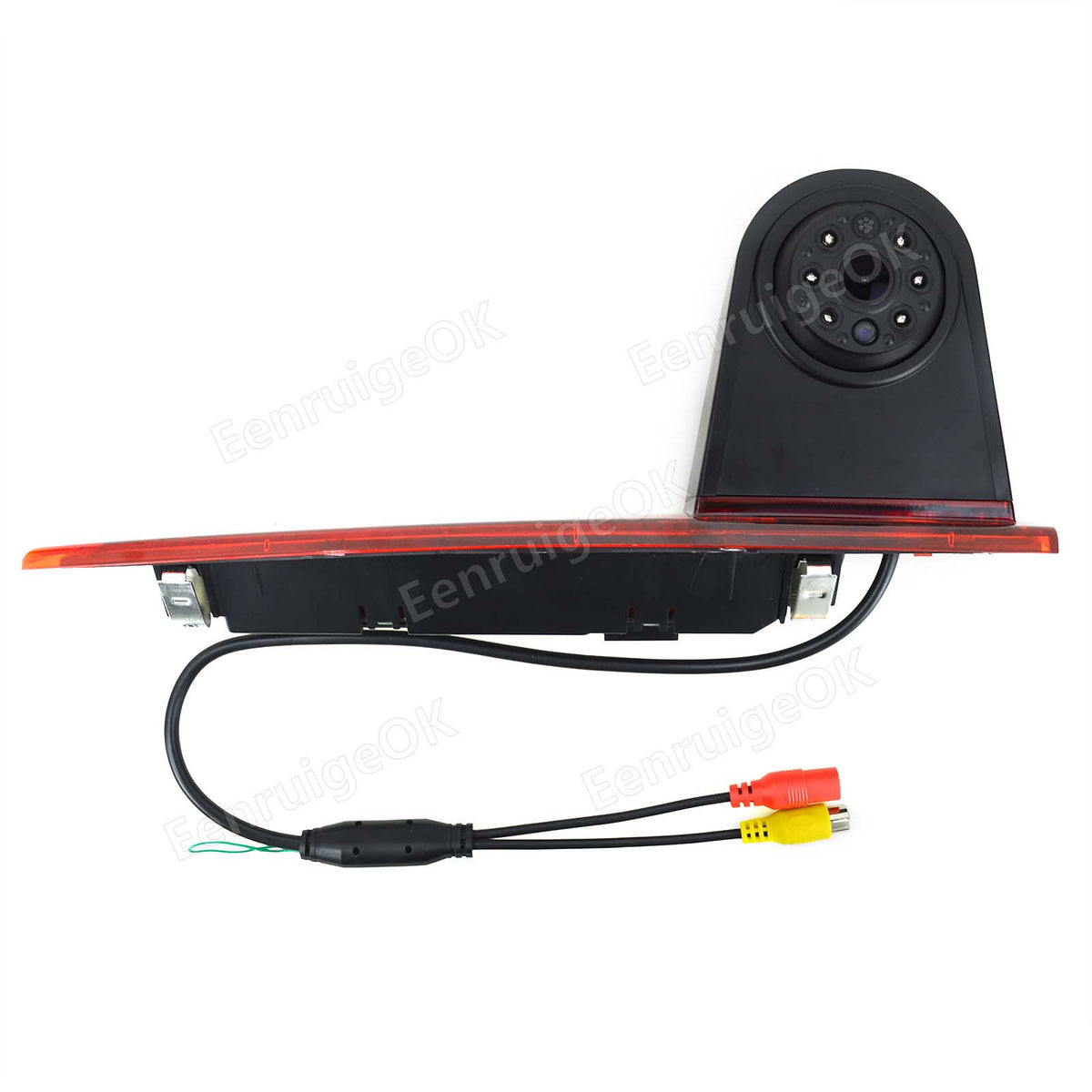

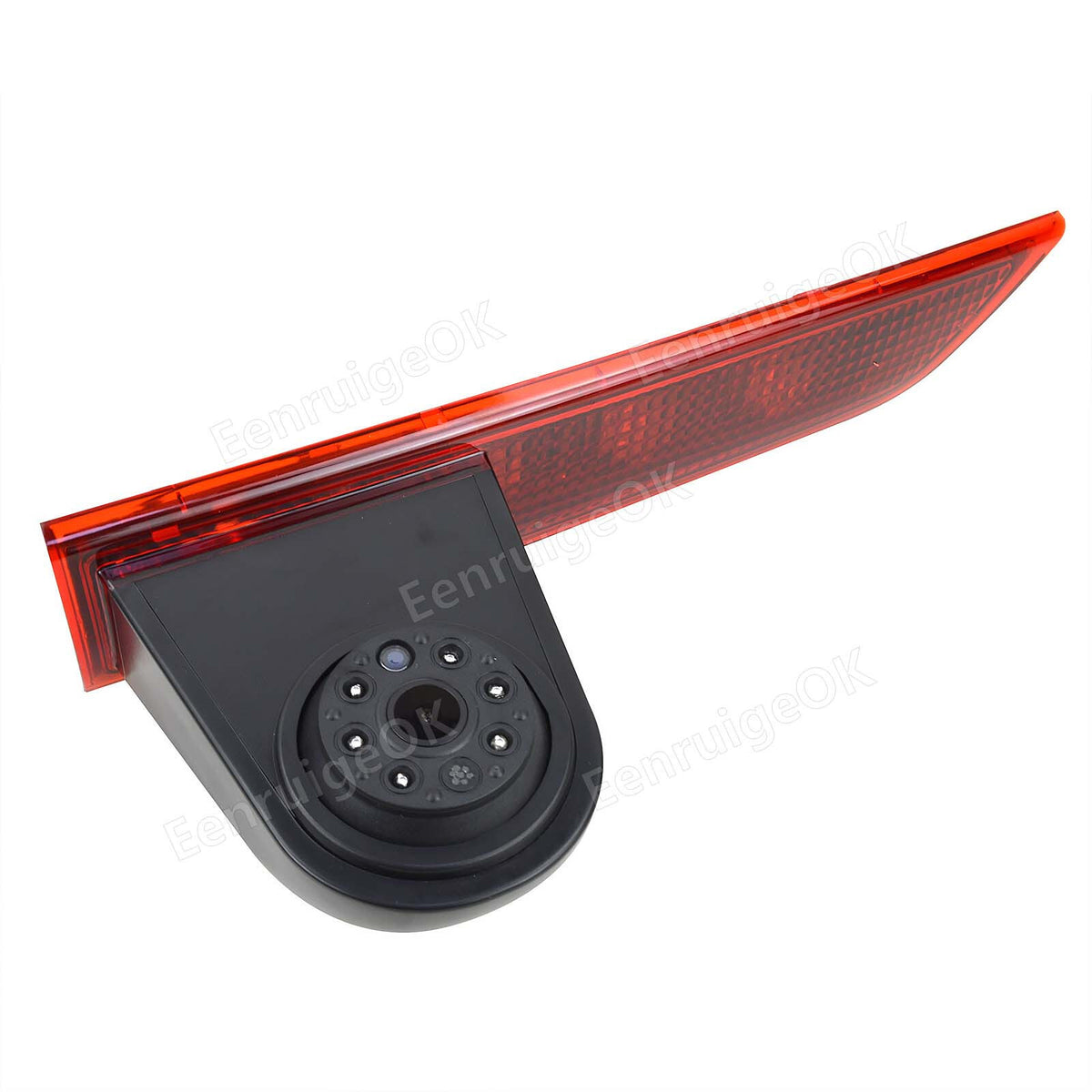

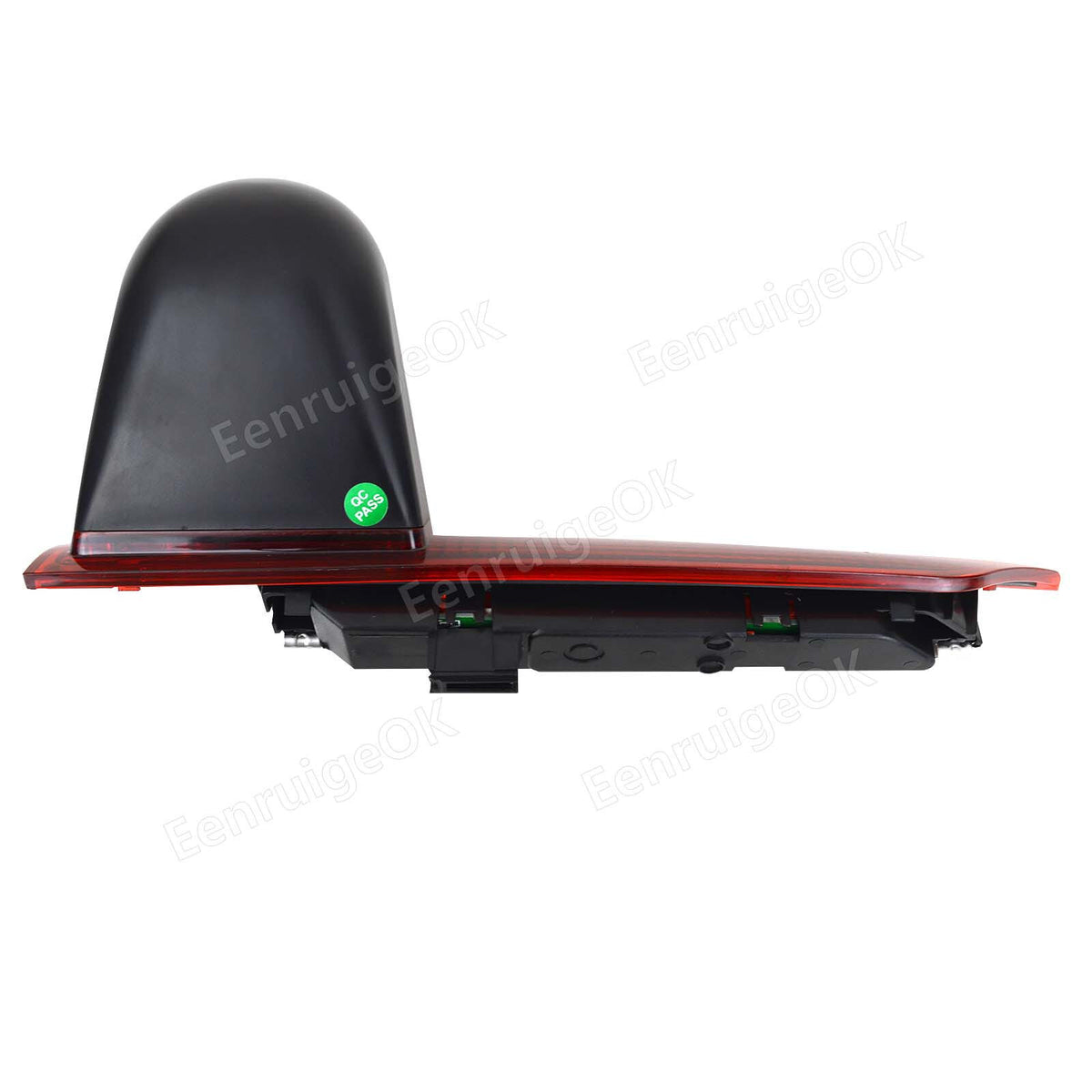

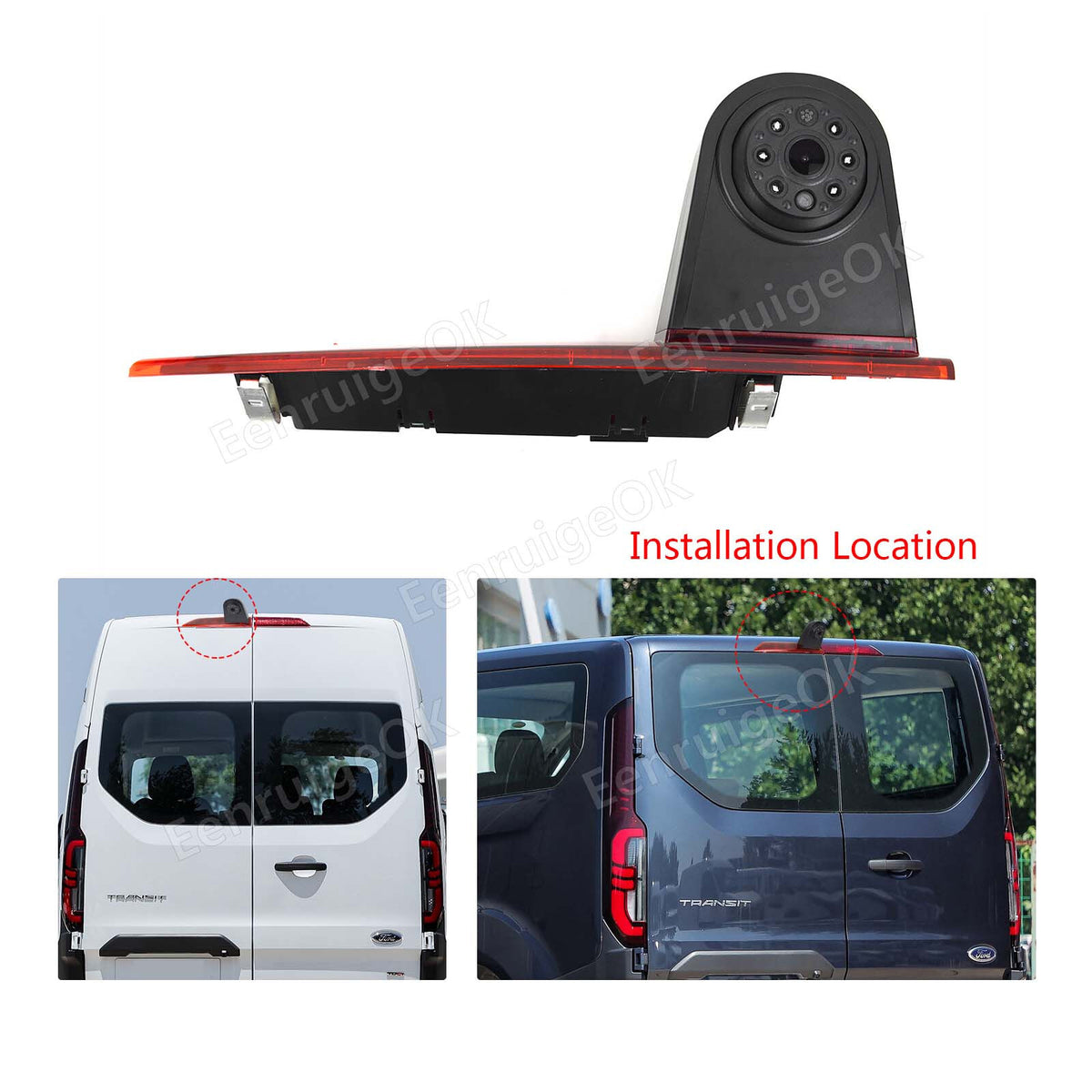

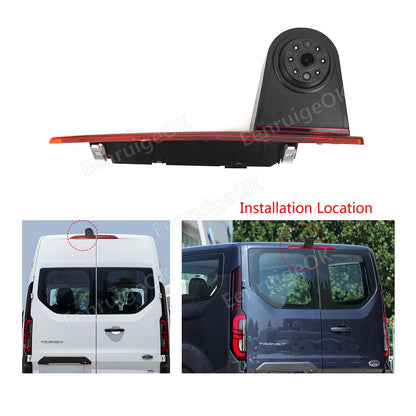

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

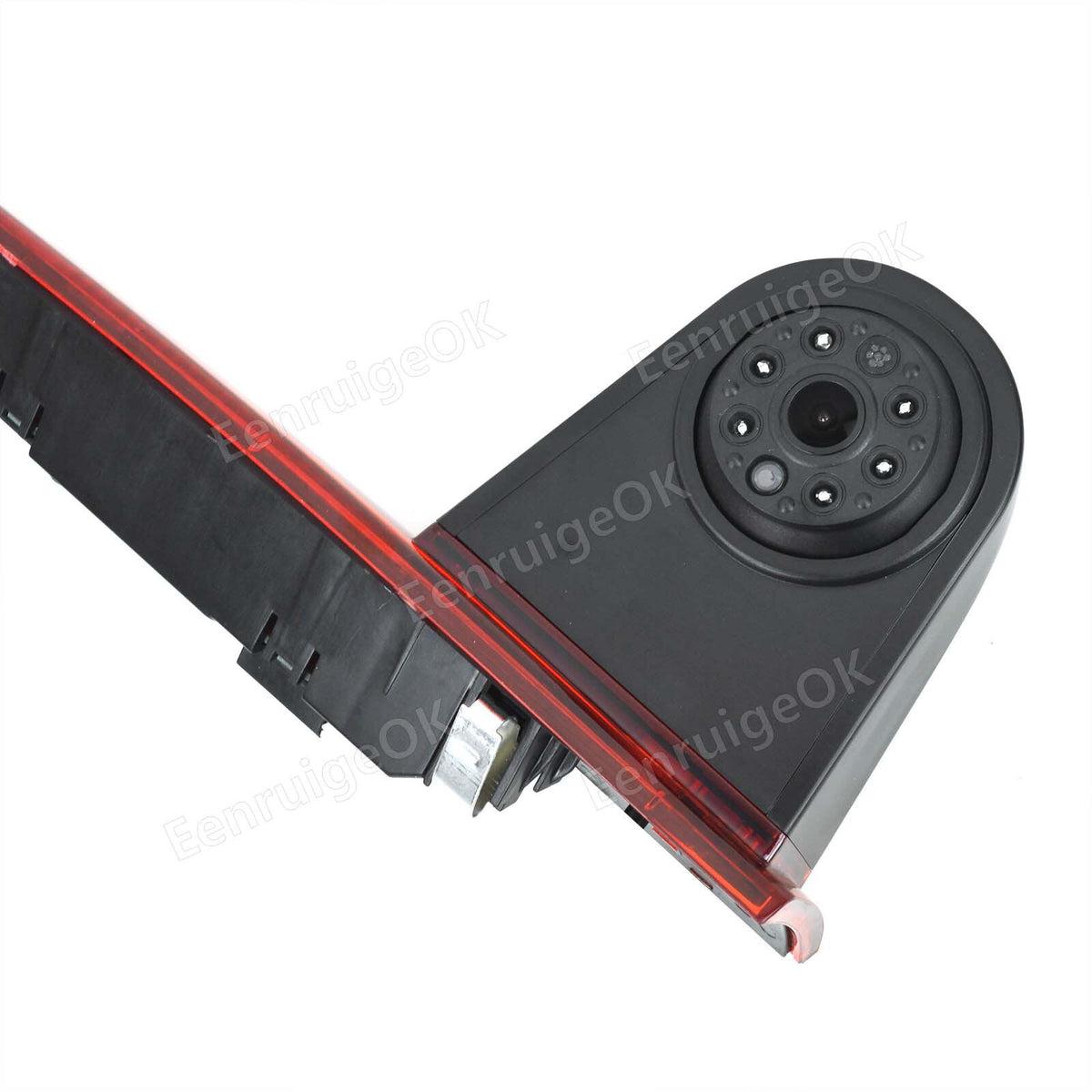

This brake light camera uses a 1/4" CMOS sensor with enhanced color imaging. Equipped with a built-in IR-CUT, the camera features 6 infrared lights around the lens to ensure excellent night vision.

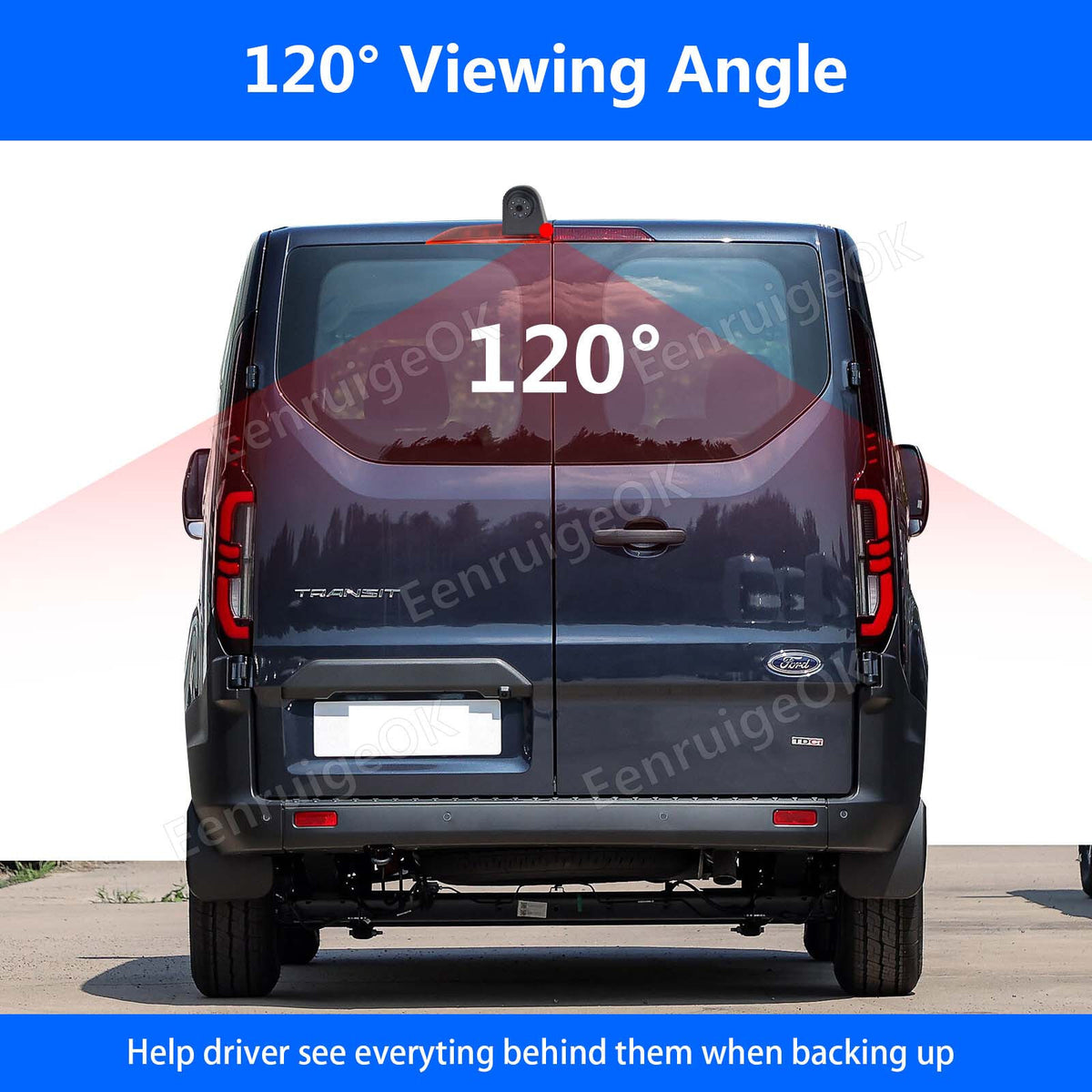

With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

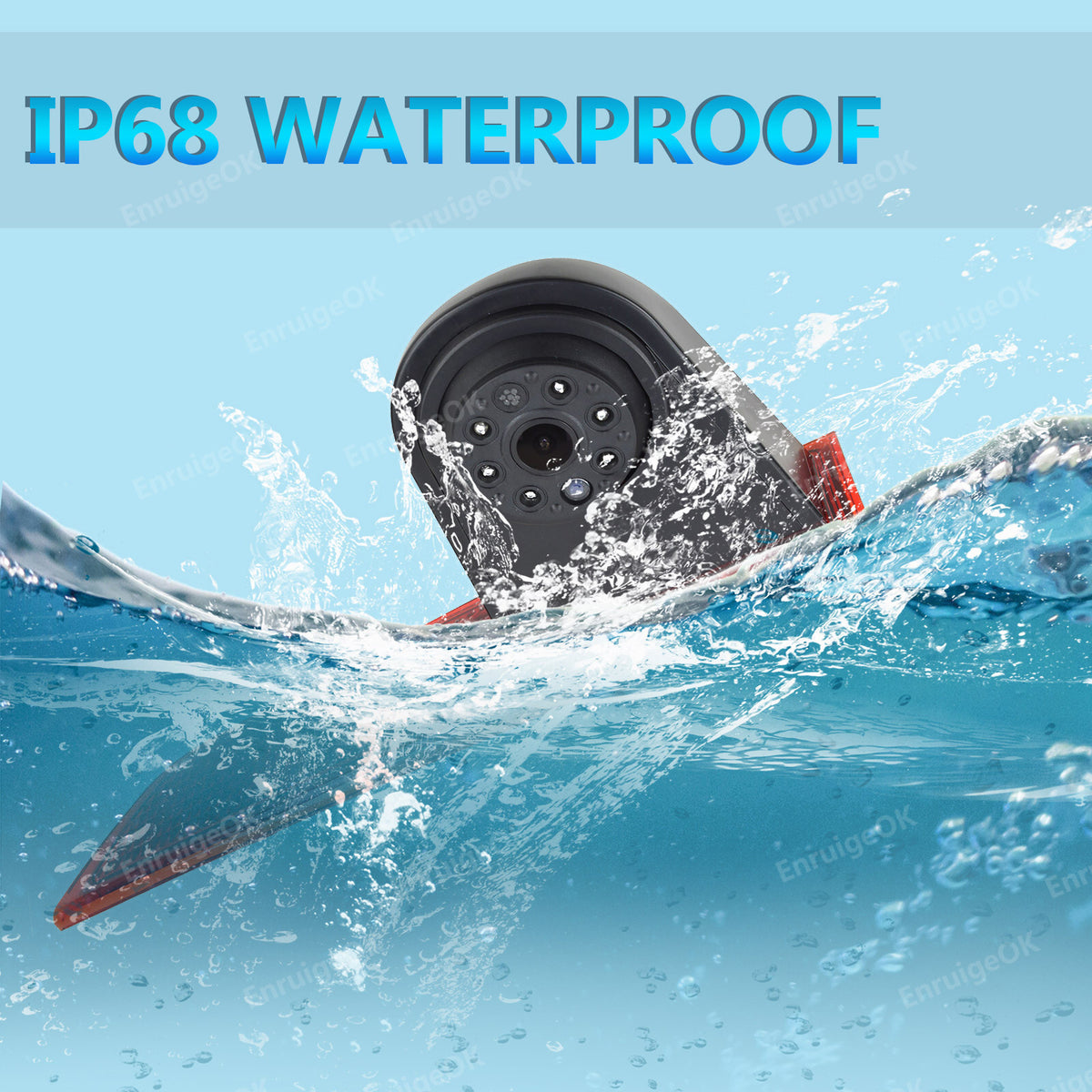

100% Waterproof: Built with an IP68 rating, this camera is fully waterproof.

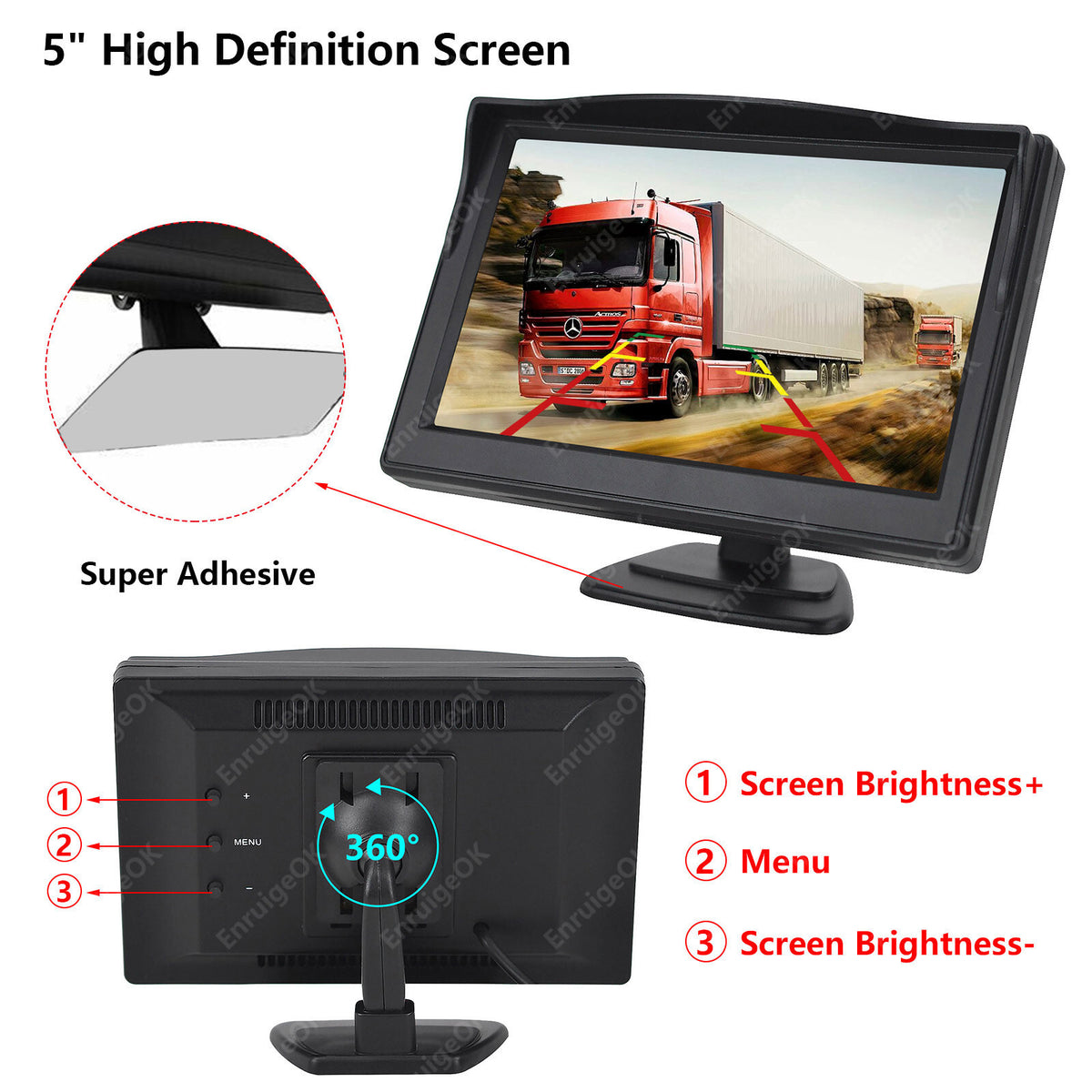

The 5" Color IPS display Monitor features 2 video inputs and an 480*272 (RGB) resolution, making it compatible with the brake light rearview camera.

Camera Specifications

Image sensor: 1/4" CMOS

Lens: 2.8mm

Effective pixel: 733(H)x493(V)

TV Line: 480TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC12V

Operating temperature: -20℃ to +70℃

Monitor Specifications

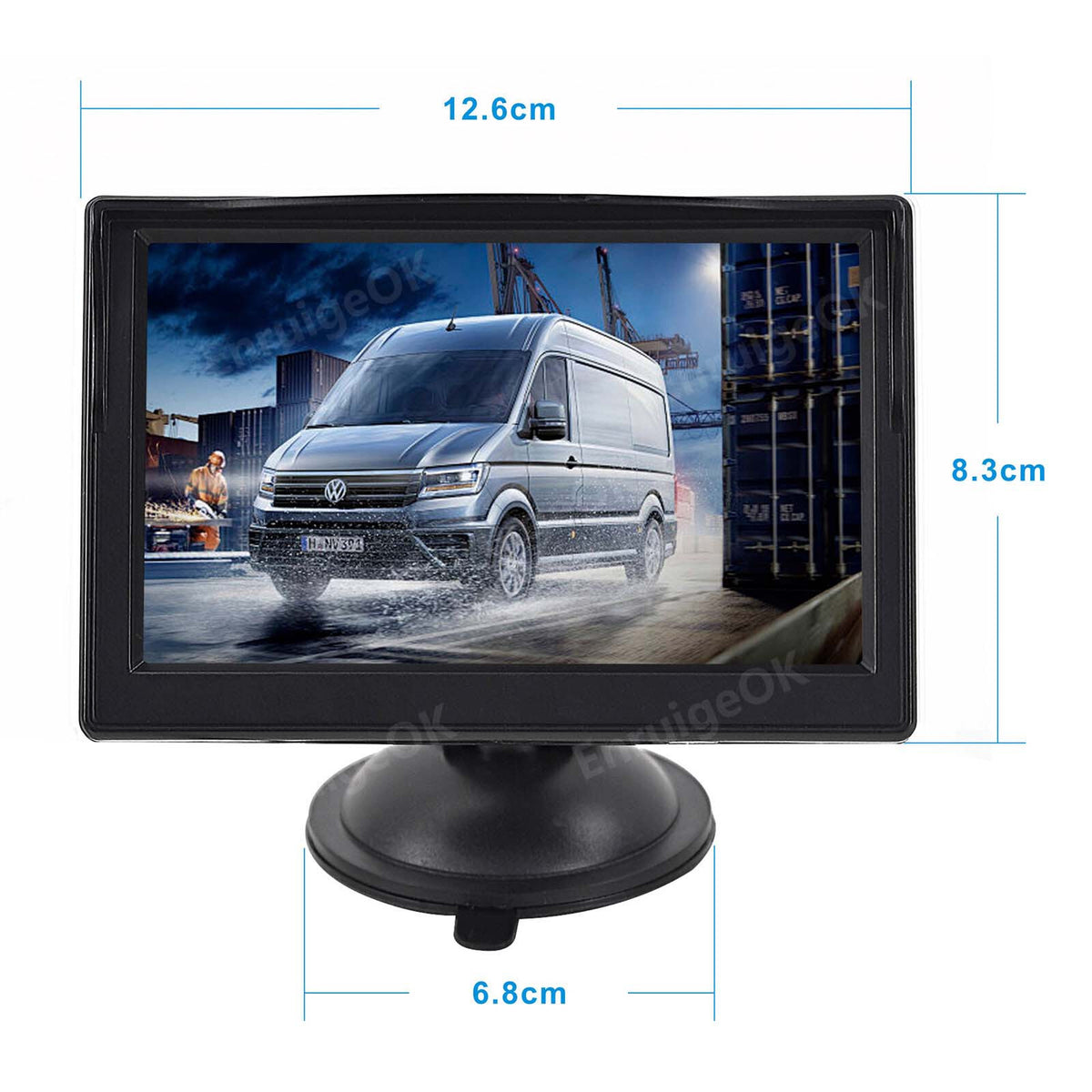

Screen size: 5 inch

Display format: 16: 9

Contrast: 300: 1

Brightness: 400 CD/㎡

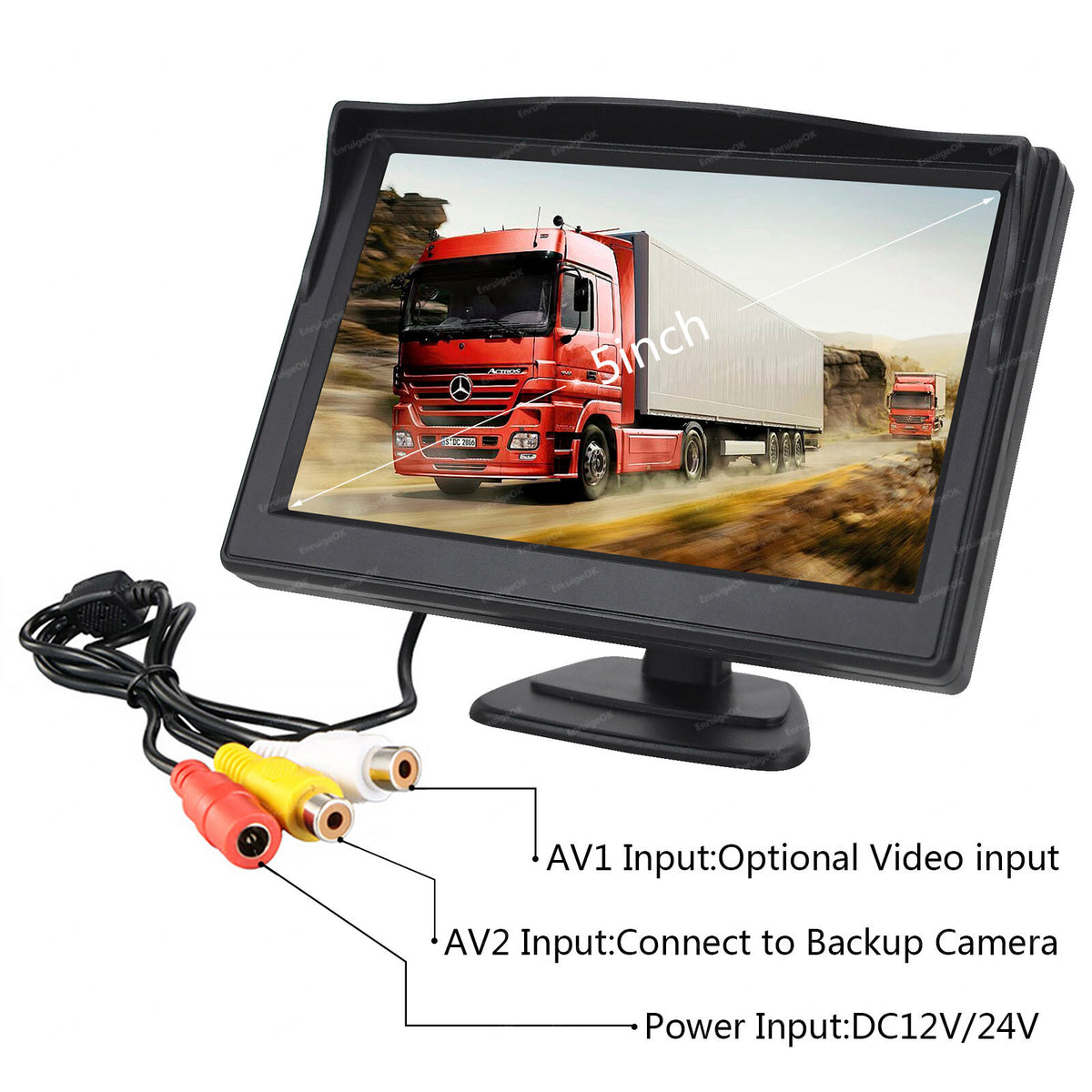

Video: 2-channel video input; V1/V2 switching

Resolution: 480 (H) x 272 (V)

Power supply: DC 12V

Rear view in priority

Video system: NTSC / PAL auto switch

Current consumption: <4W

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
