3rd Brake Light Rear View Backup Camera for Mercedes Sprinter VW Crafter Van

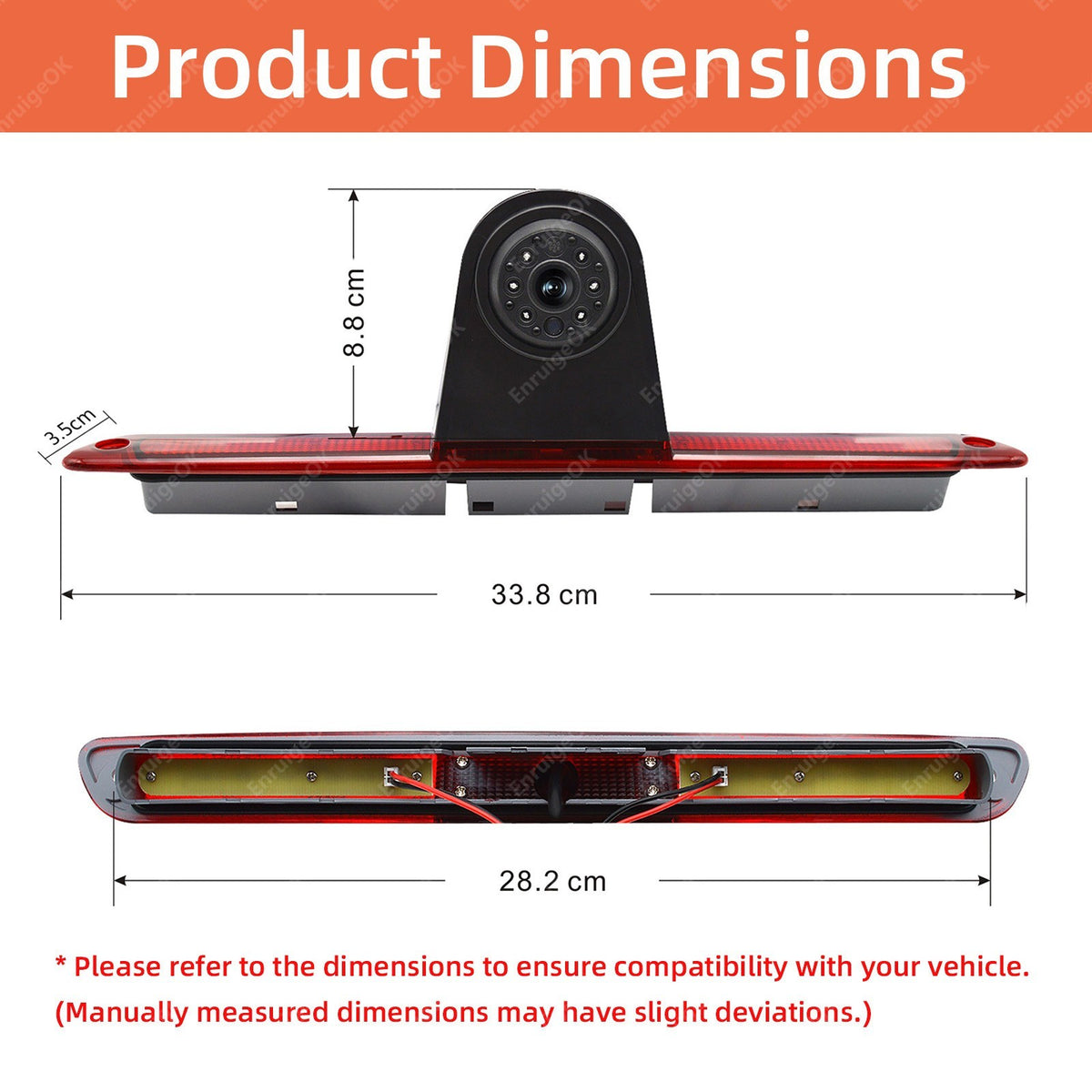

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light on your vehicle.

EnruigeOK  Rear Brake Light Backup Camera For Mercedes-Benz Sprinter& VW Crafter

Camera Compatibility

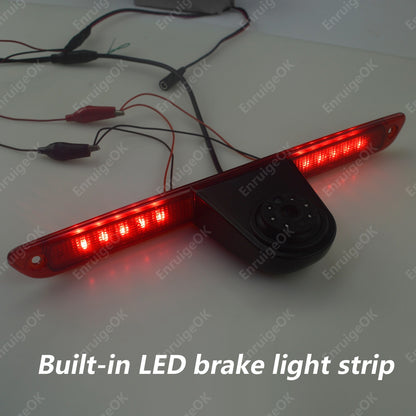

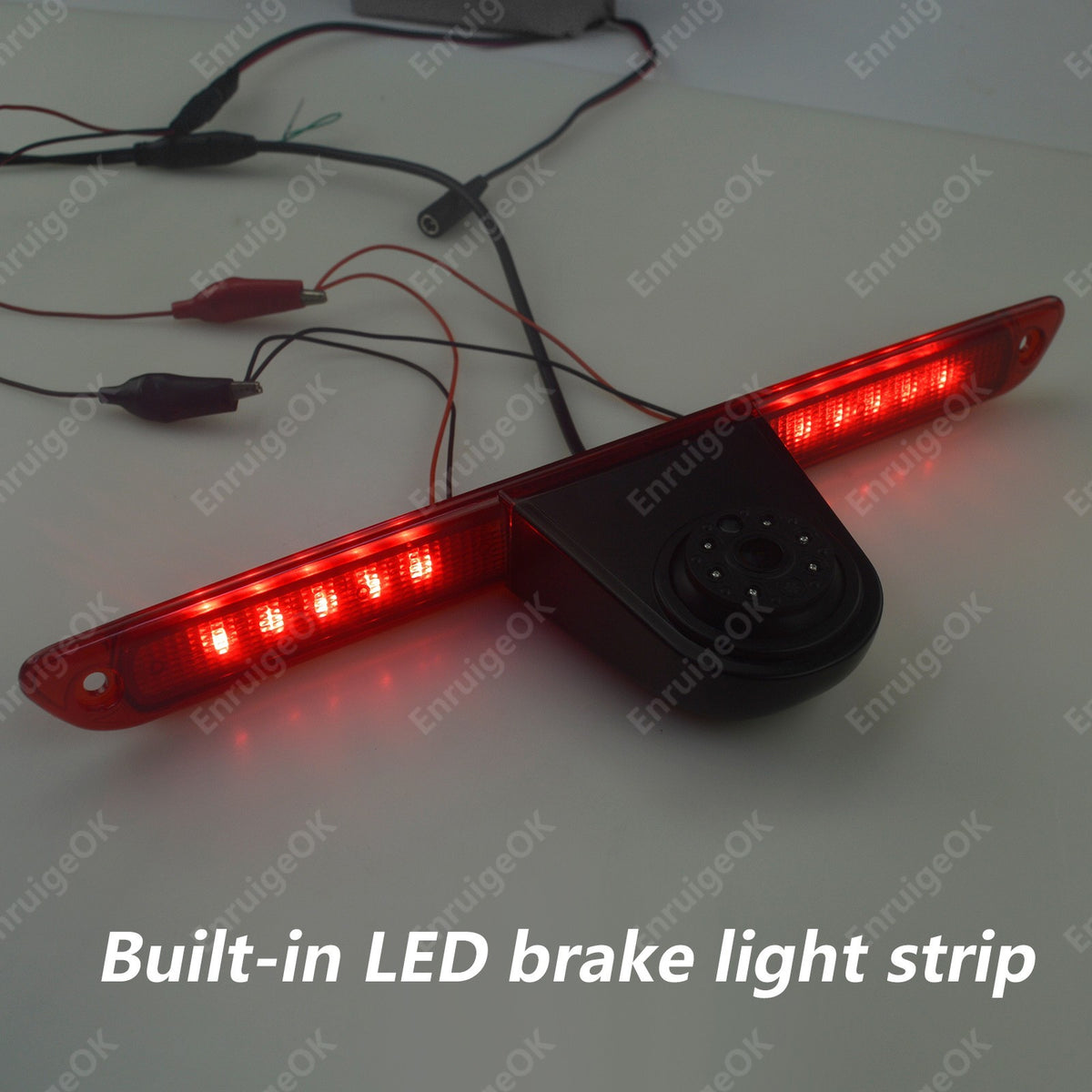

✅Mercedes Sprinter [W906 NCV3] (2006-2018)【Built-in LED brake light strip】

✅Mercedes Sprinter [W907/W910 VS30] (2019-On)【Built-in LED brake light strip】

✅Volkswagen Crafter [MK1 Type 2E/2F] (2006-2016)【Built-in LED brake light strip】

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

Reminder Friendly

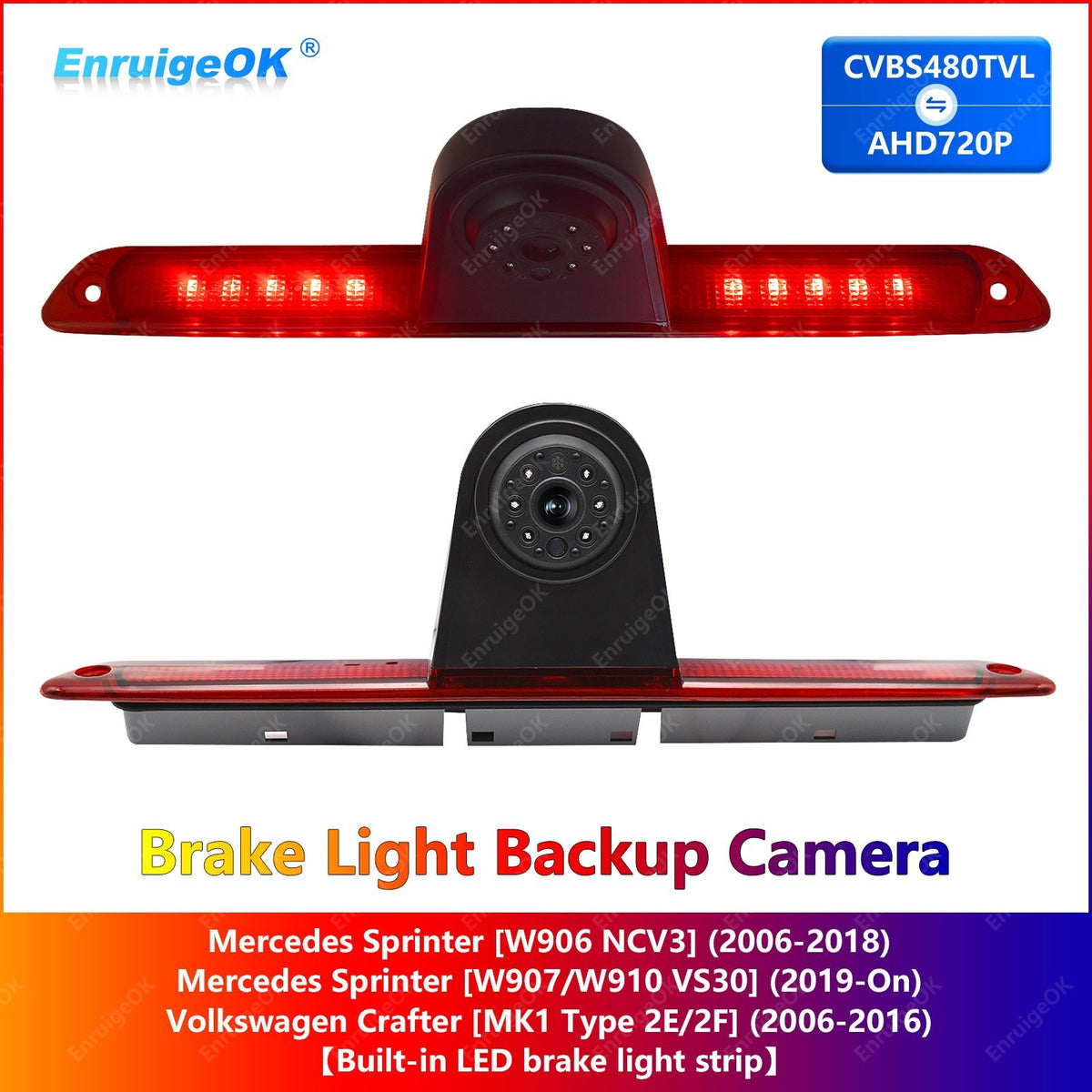

This camera defaults to a CVBS 480TVL signal and supports AHD 720P signal (by cutting the white wire).

If your Android device or monitor supports AHD 720P, you can cut the white wire to switch to AHD 720P. If it does not support AHD 720P, please leave the white wire intact. Thank you!

Description

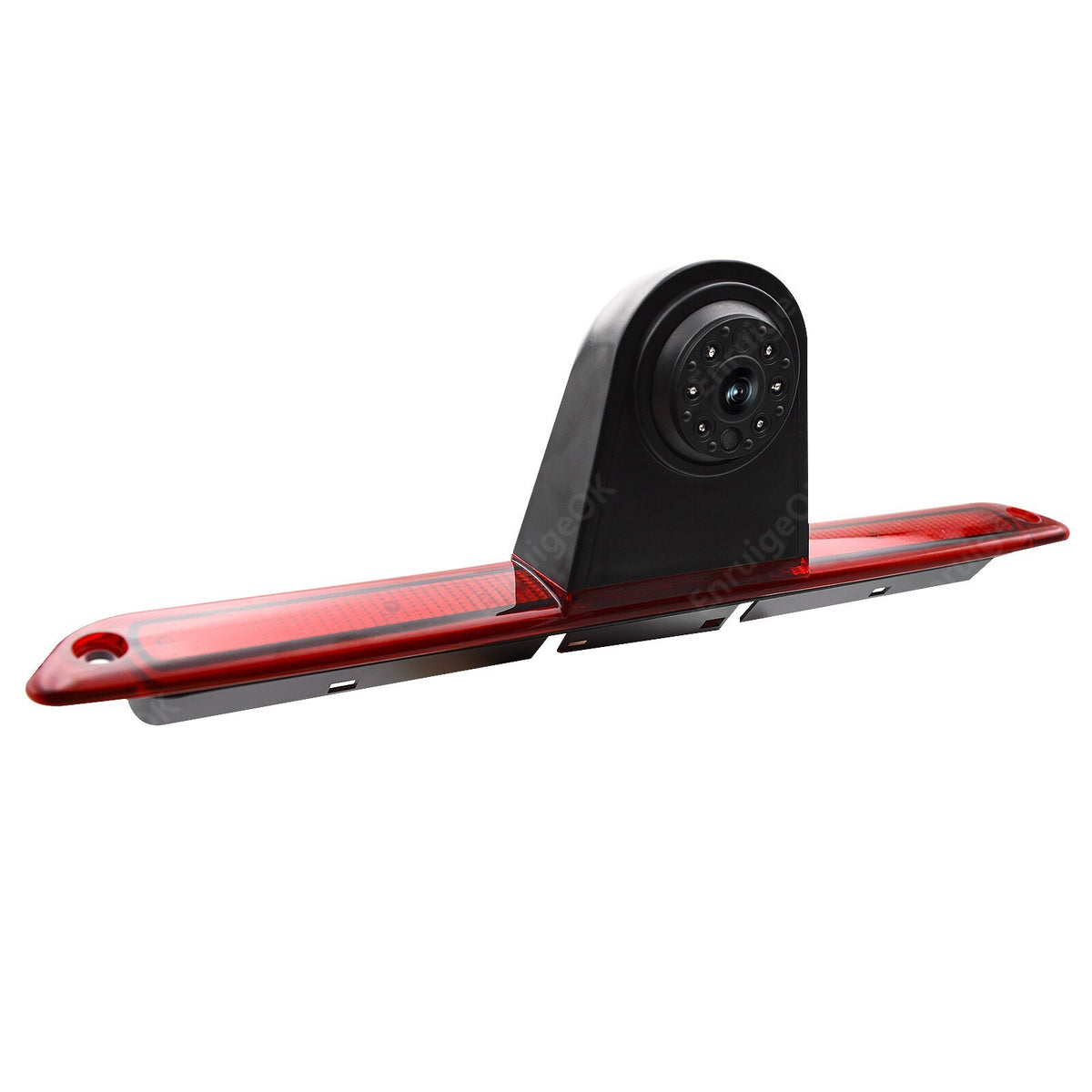

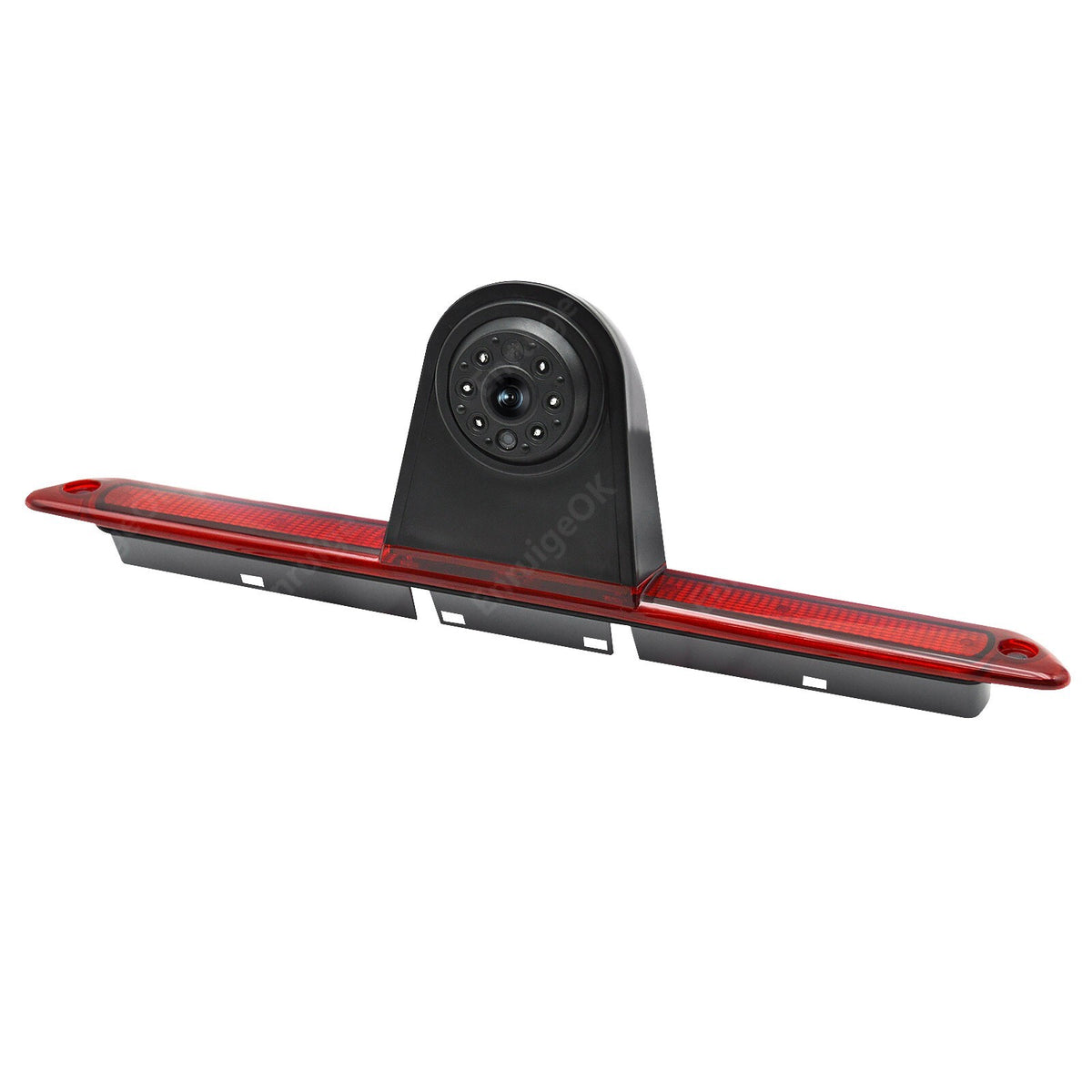

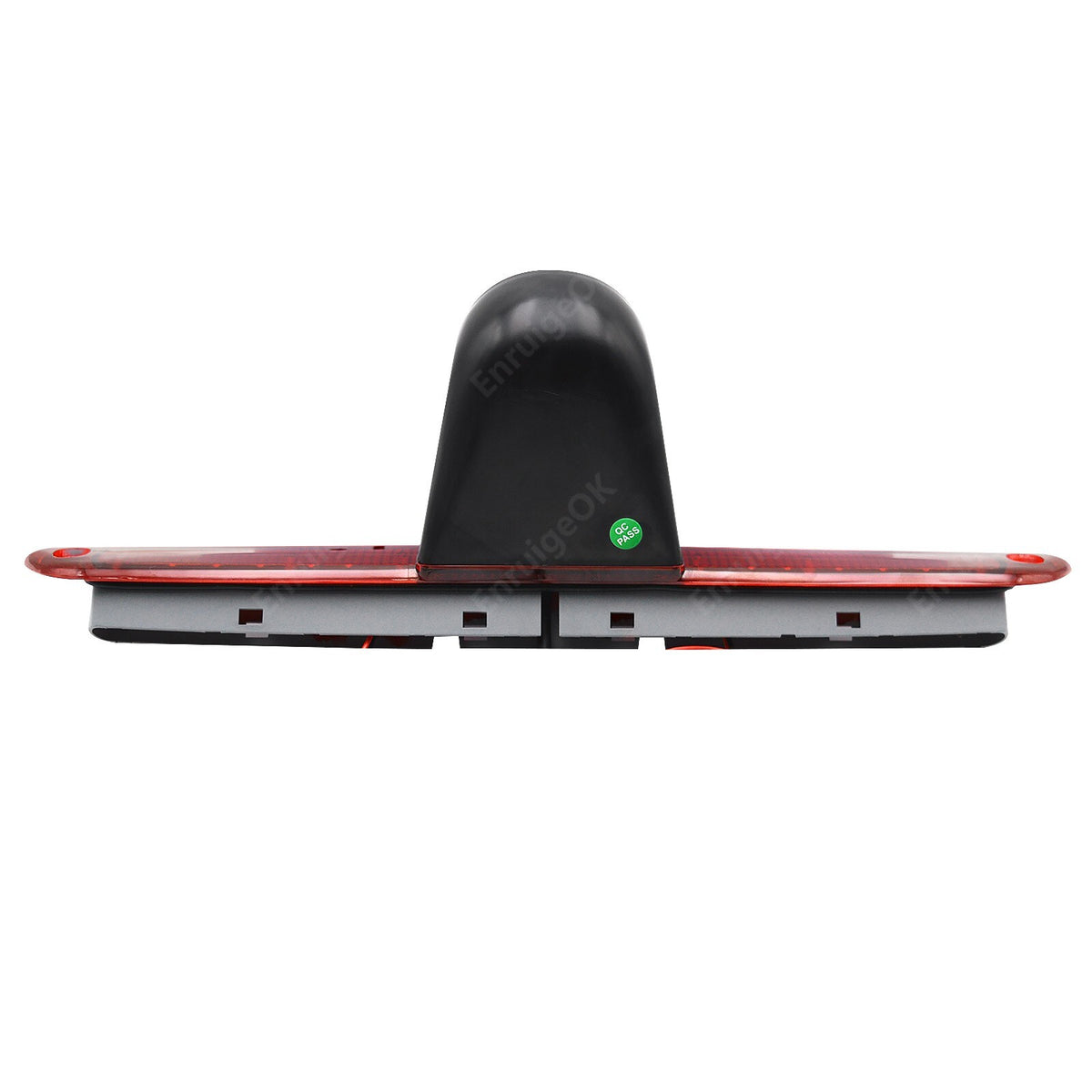

Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

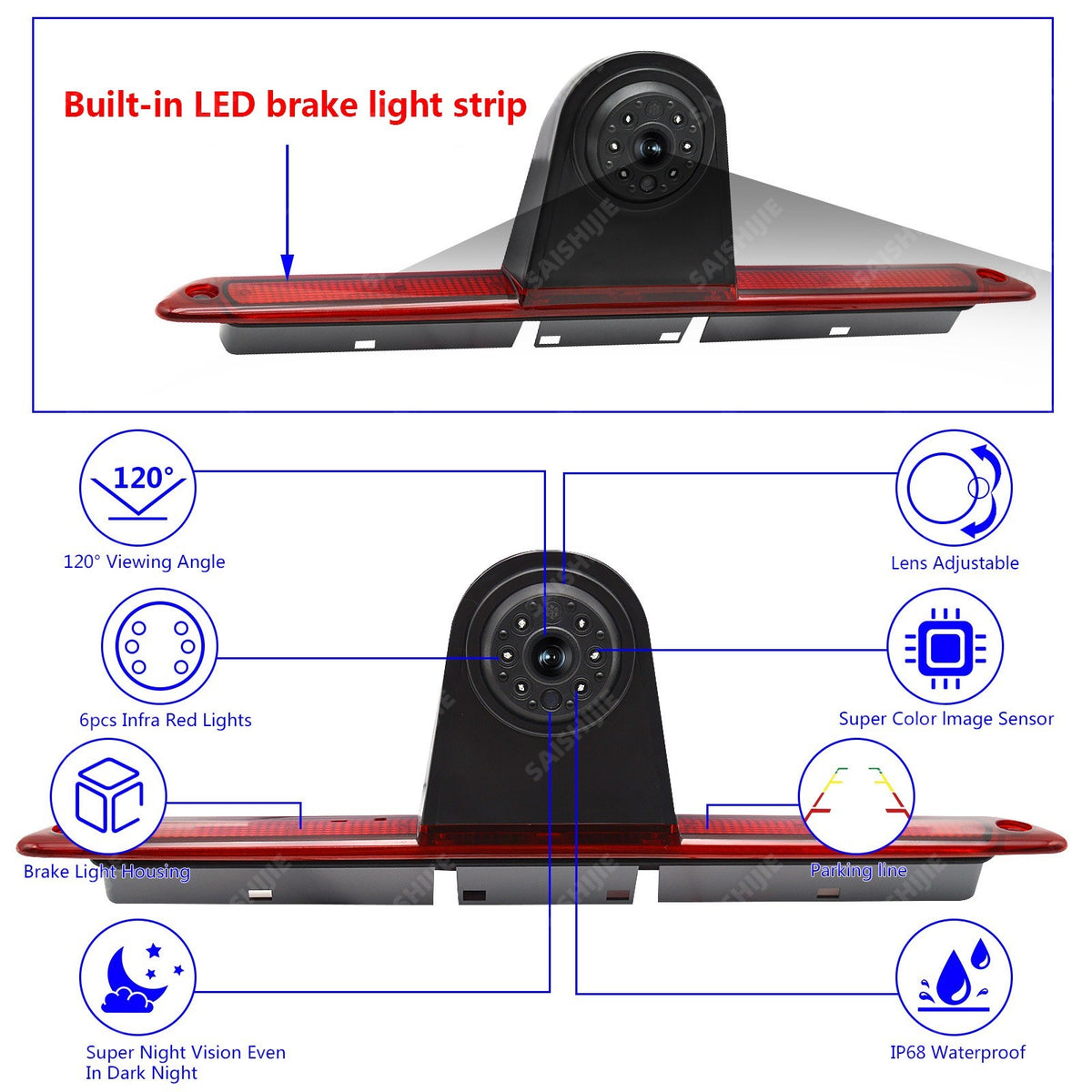

This Brake light camera used colour CMOS sensor which have more colour Image. Camera has 6 infra-red lights surrounding the camera body to guarantee great vision at night.

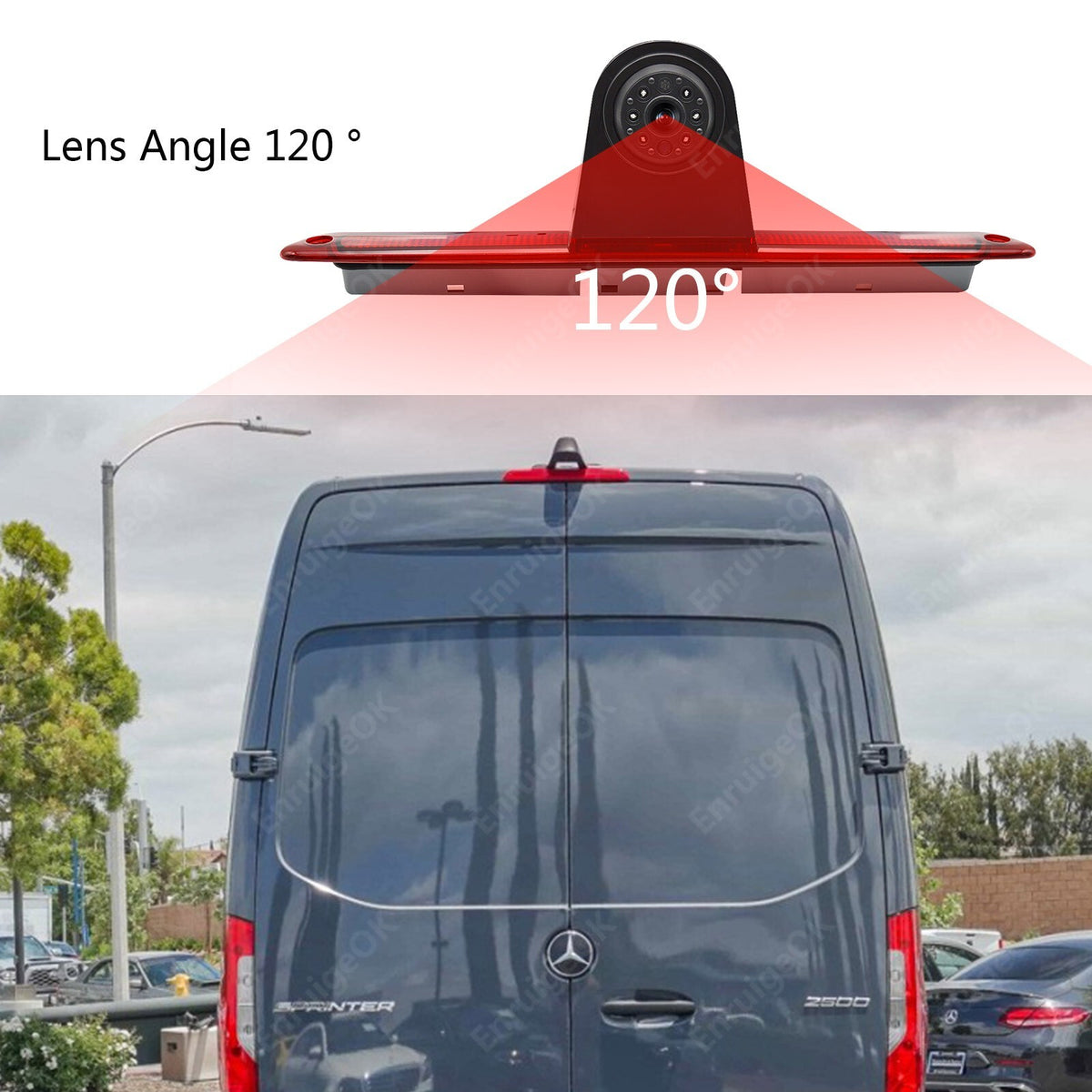

This reversing camera with 120-degree viewing angle shows rich details about the environment behind the car for you.

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

Specifications

- Image sensor: 1/3 "CMOS

- TV system: PAL/NTSC

- Waterproof rating: IP68

- Viewing angle: 120°

- Effective pixel: CVBS 733(H)x493(V); AHD 1280(H)x720(V)

- Resolution: CVBS 480TVL; AHD 720P

- Horizontal sync frequency: 15.625KHZ

- Scanning system: 2:1 interface

- Sync system: Internal

- ACG: Auto

- BLC: Auto

- S/N Ratio: > 48dB

- Current consumption: < 150mA

- Minimum illumination: 0Lux(LED ON)

- Power supply: DC12V

- Operating temperature: -20℃ to +70℃

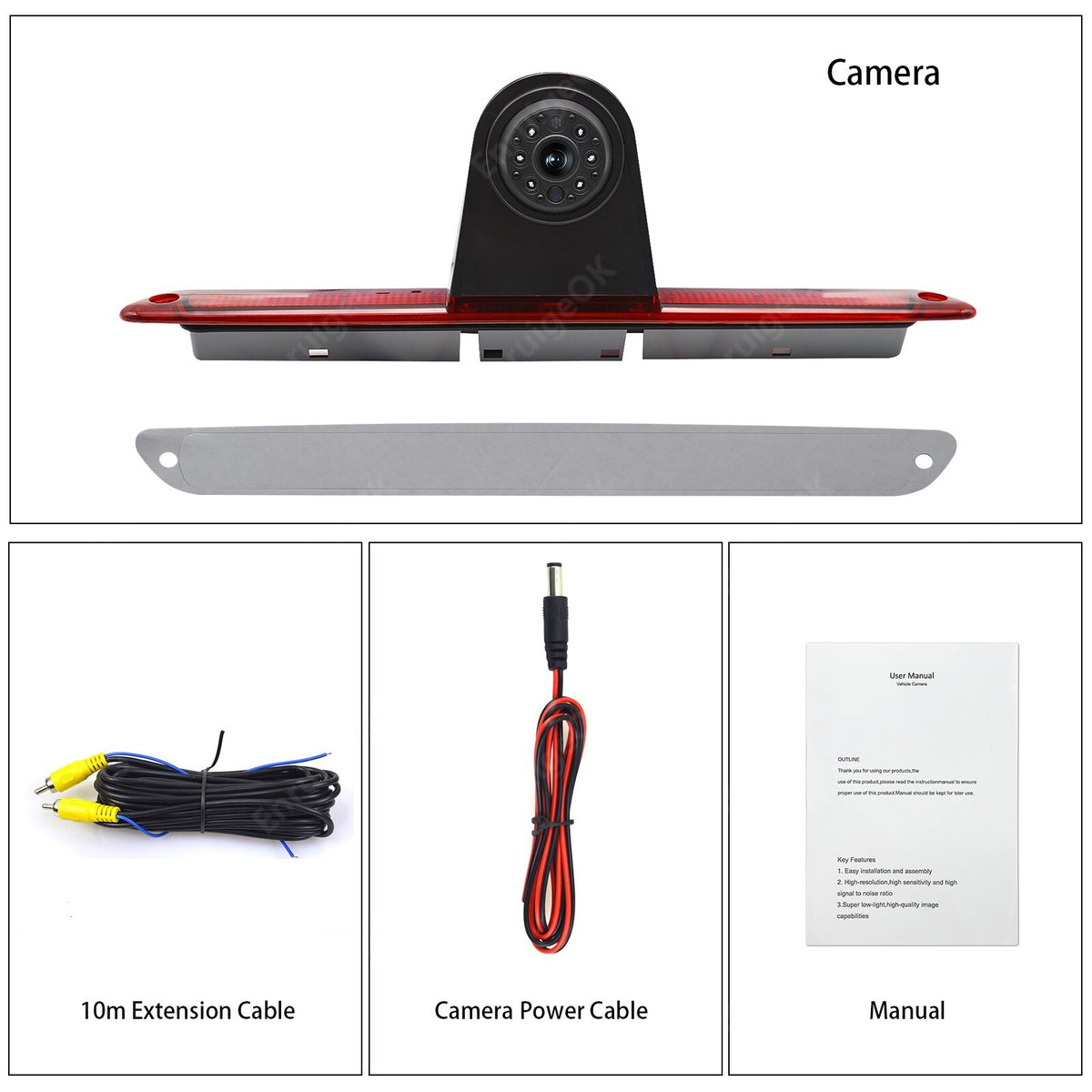

Package content

1 X Brake light rear view camera

1 X 10m/33ft. extension cable

1 X DC power cable

1 X Sticker

1 X Manual
