3rd Brake Light Backup Camera for Ford Transit Custom Van + 7'' Mirror Monitor

Note: Please check the camera size carefully before make the order.

Camera Compatibility

Ford Transit Custom(2012-2015)

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

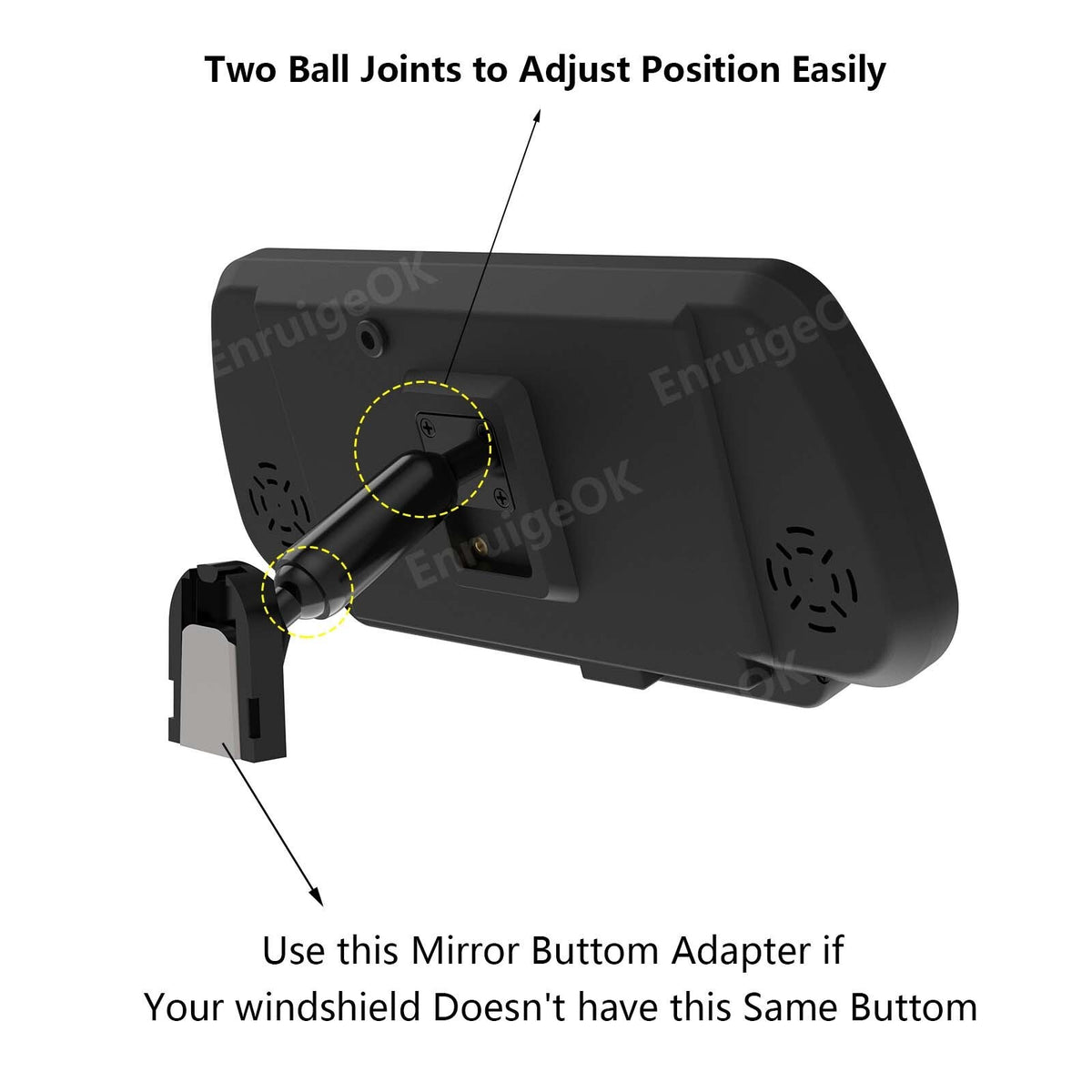

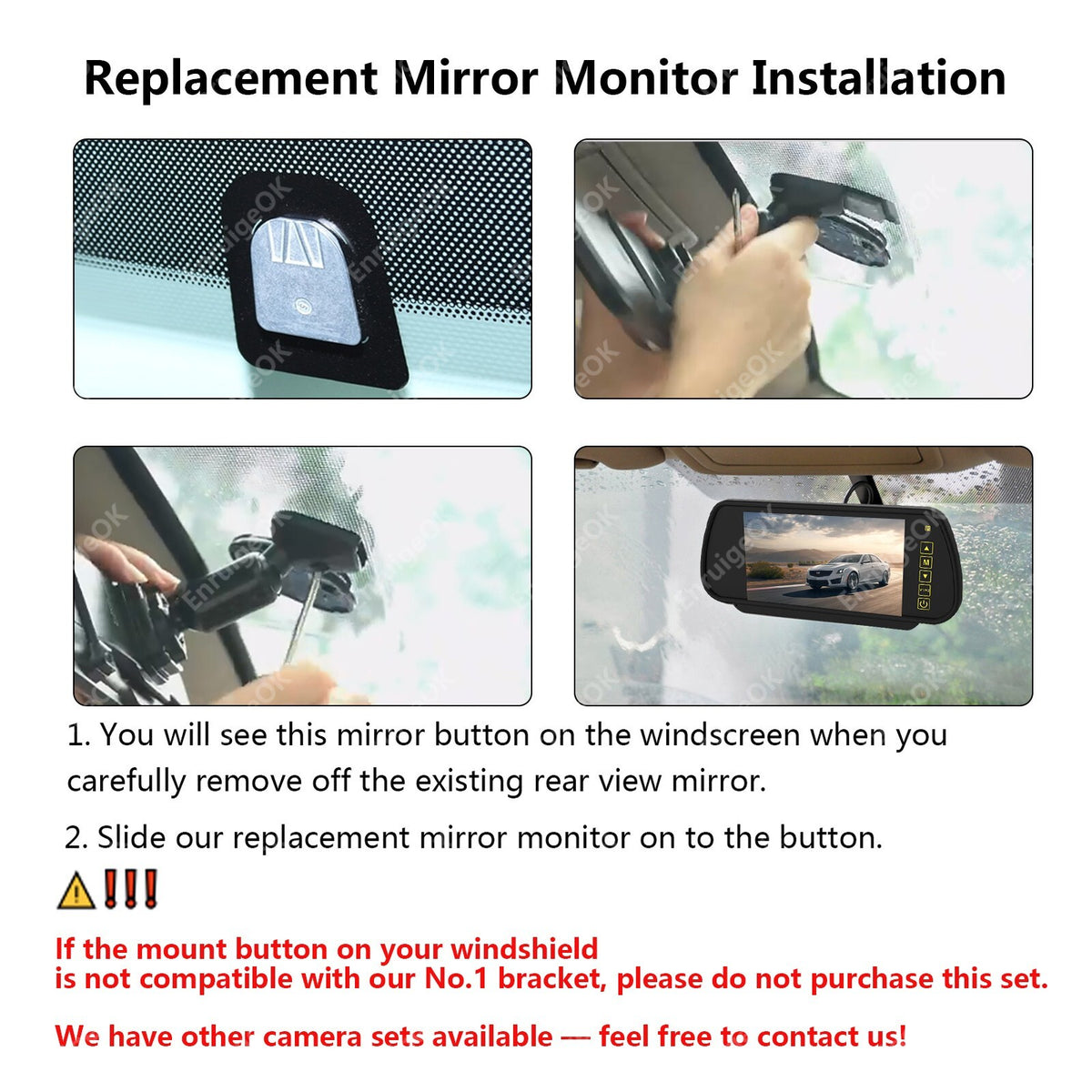

Monitor Bracket Note

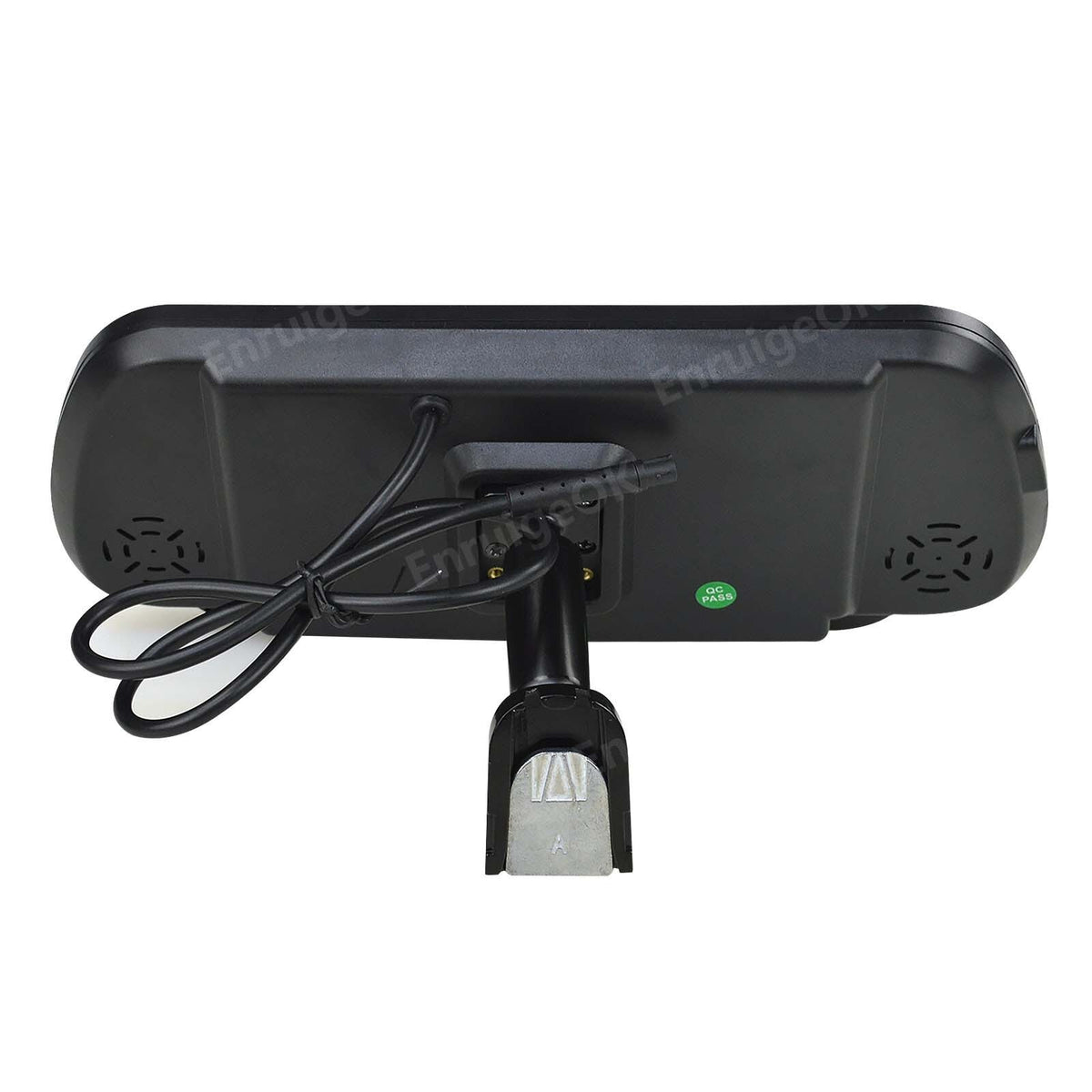

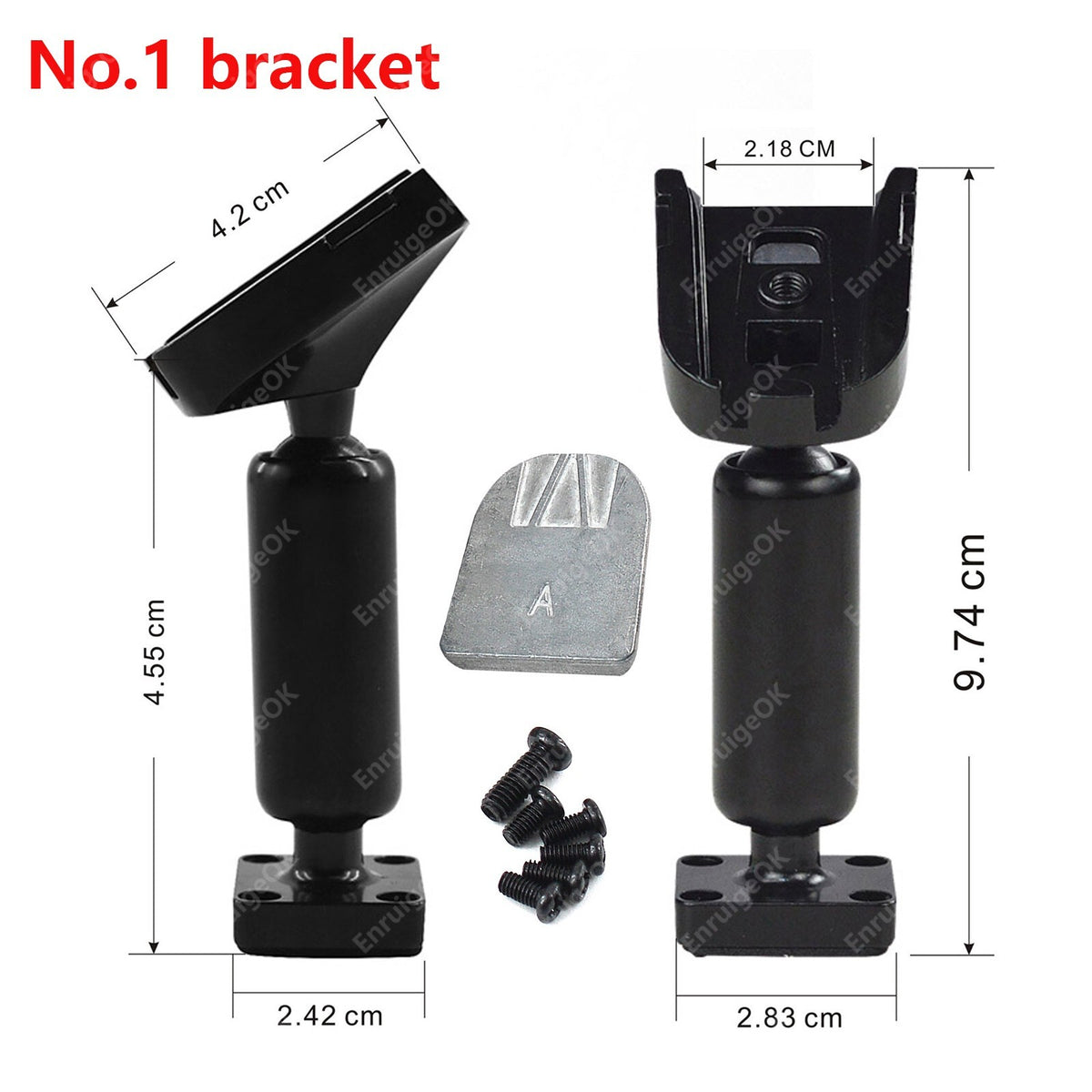

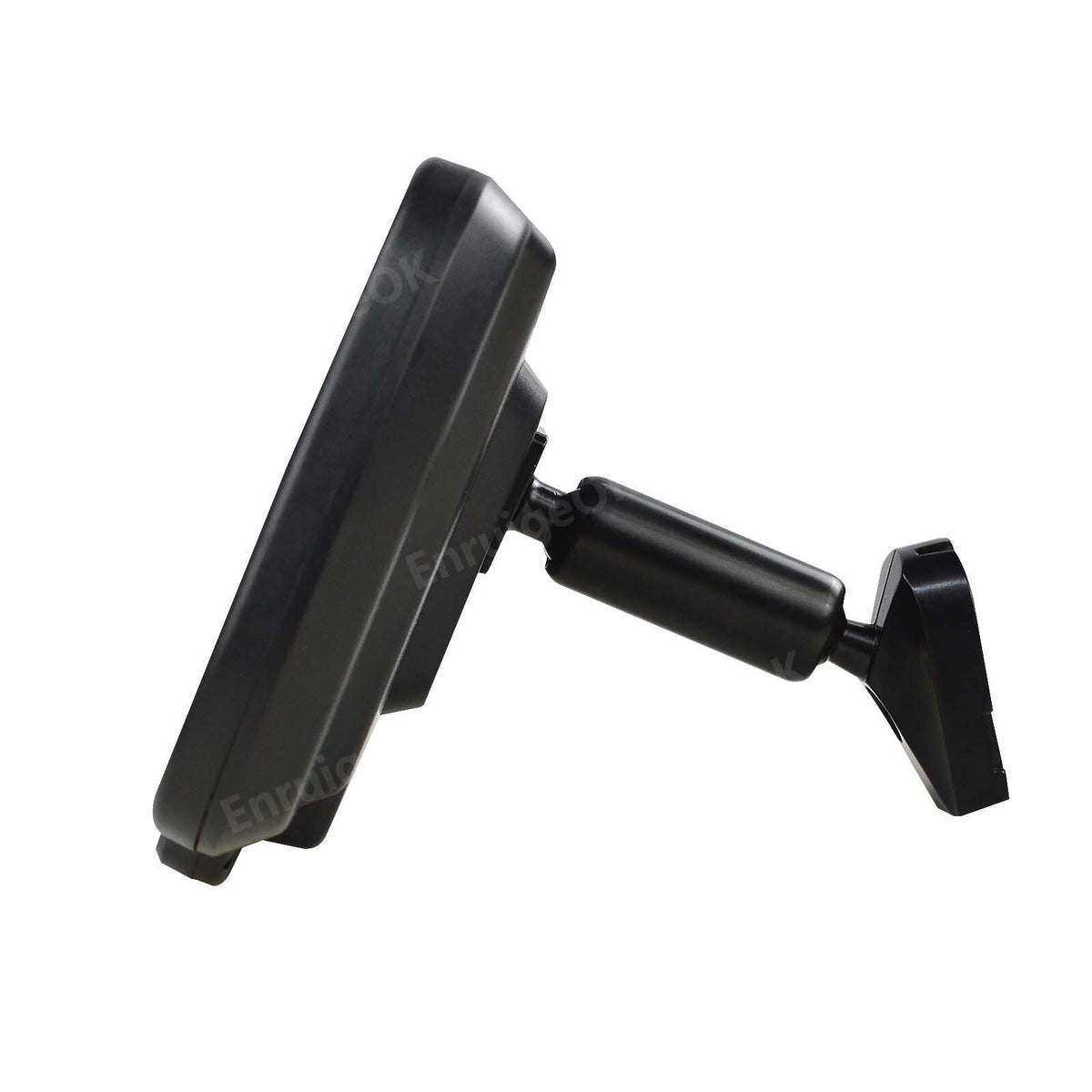

This set comes with a #1 bracket by default. Please confirm compatibility by sending us a photo of your windshield button or mirror bracket if unsure.

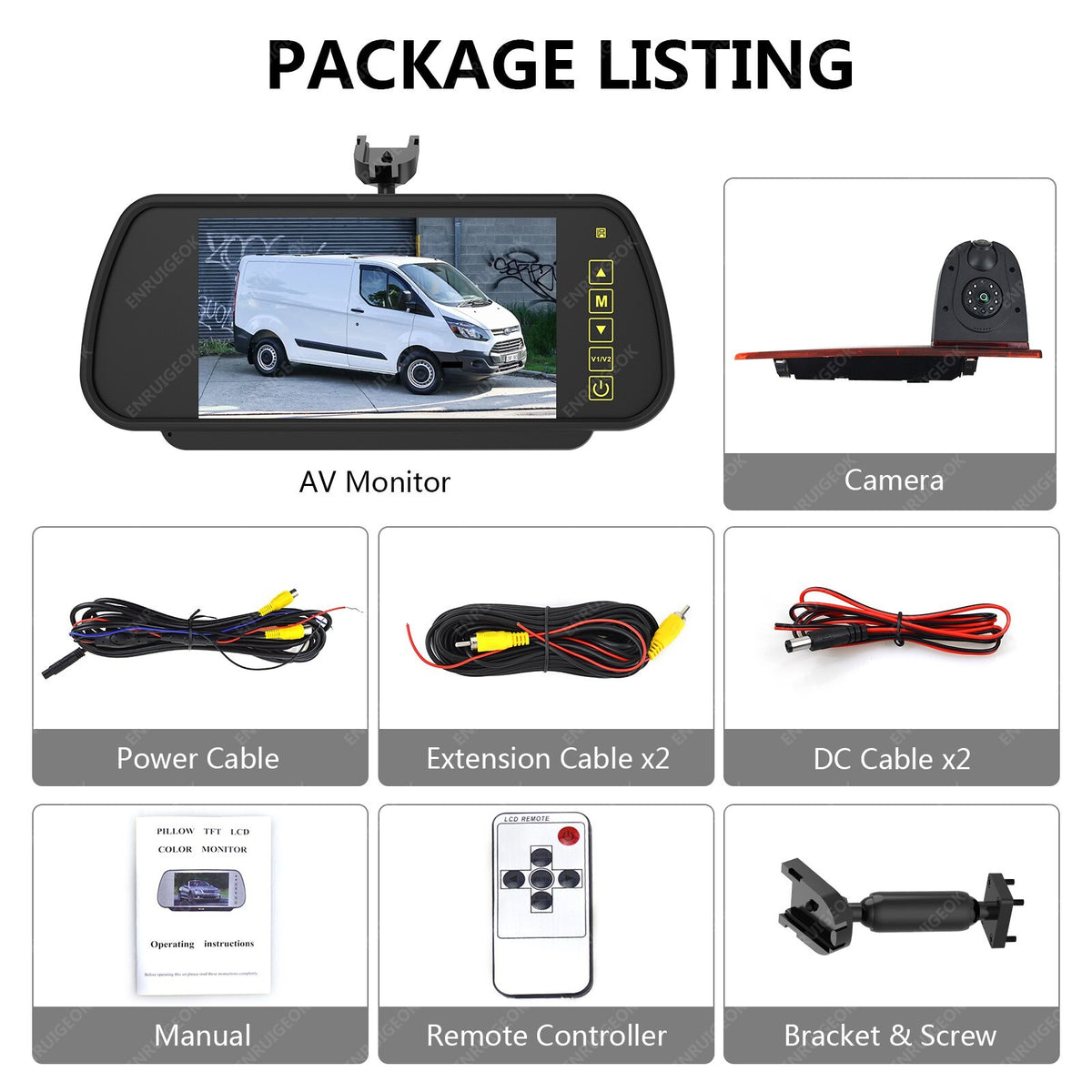

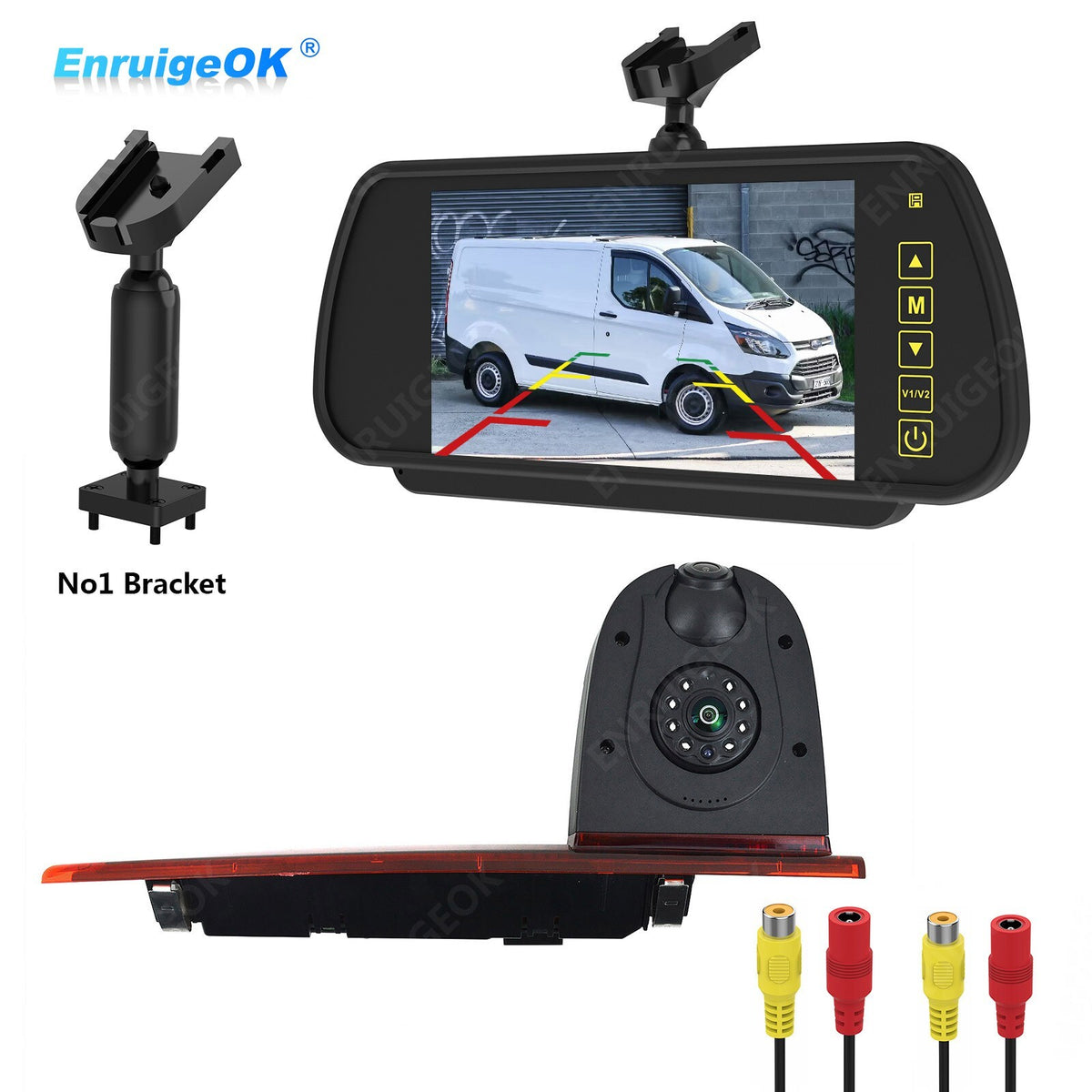

Package contents

1 X Dual lens brake light camera

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X Monitor power cable

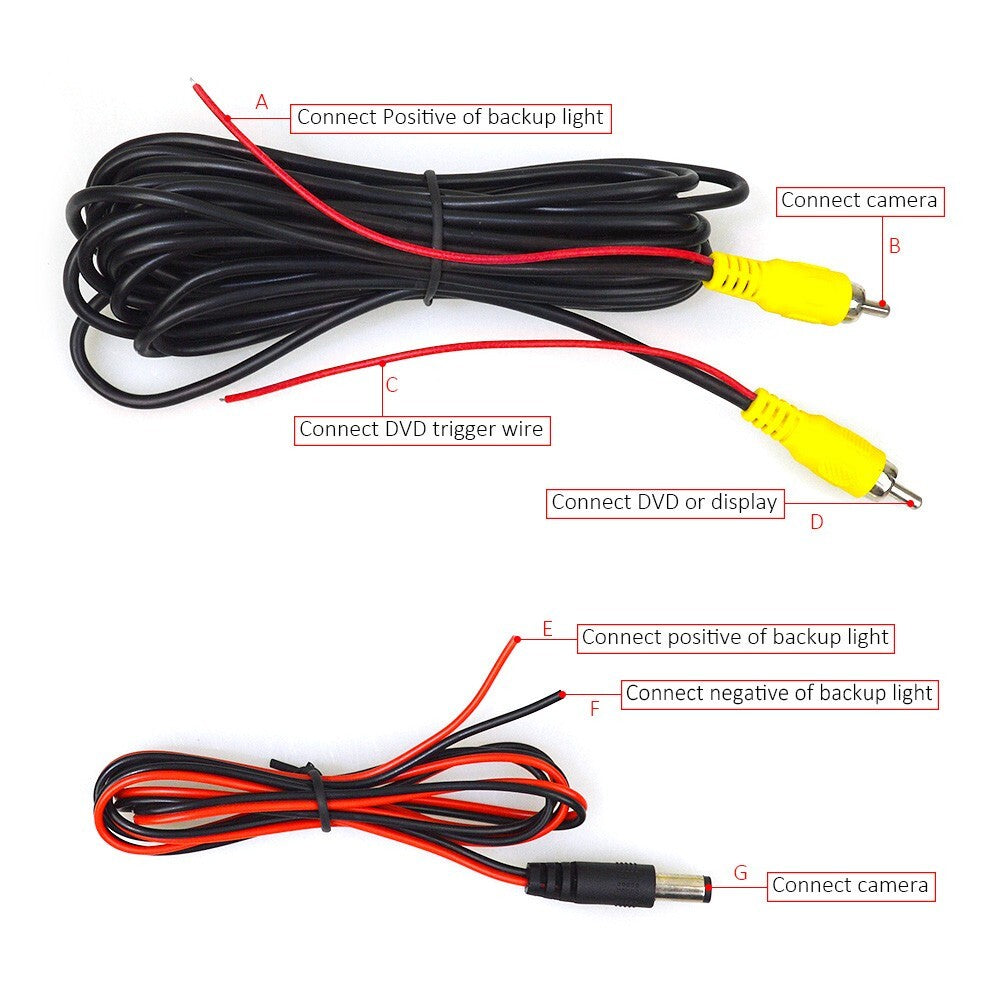

2 X 10m/33ft. extension cable

2 X 1.5m DC Power cable

1 X No1 Bracket

1 X Manual

Description

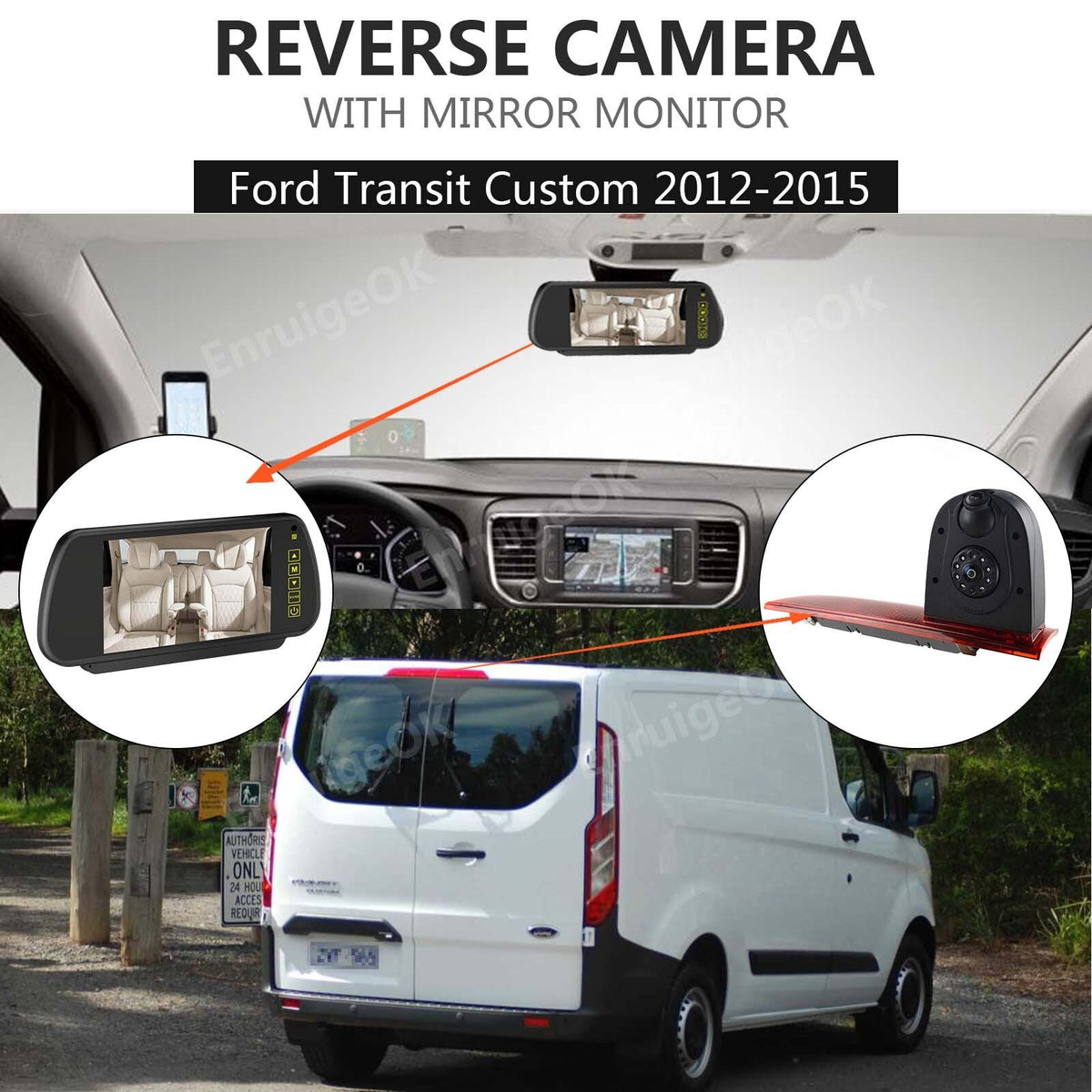

It includes a backup camera & monitor. When you are backing up, the car monitor will display the rear camera images, helping you park safely.

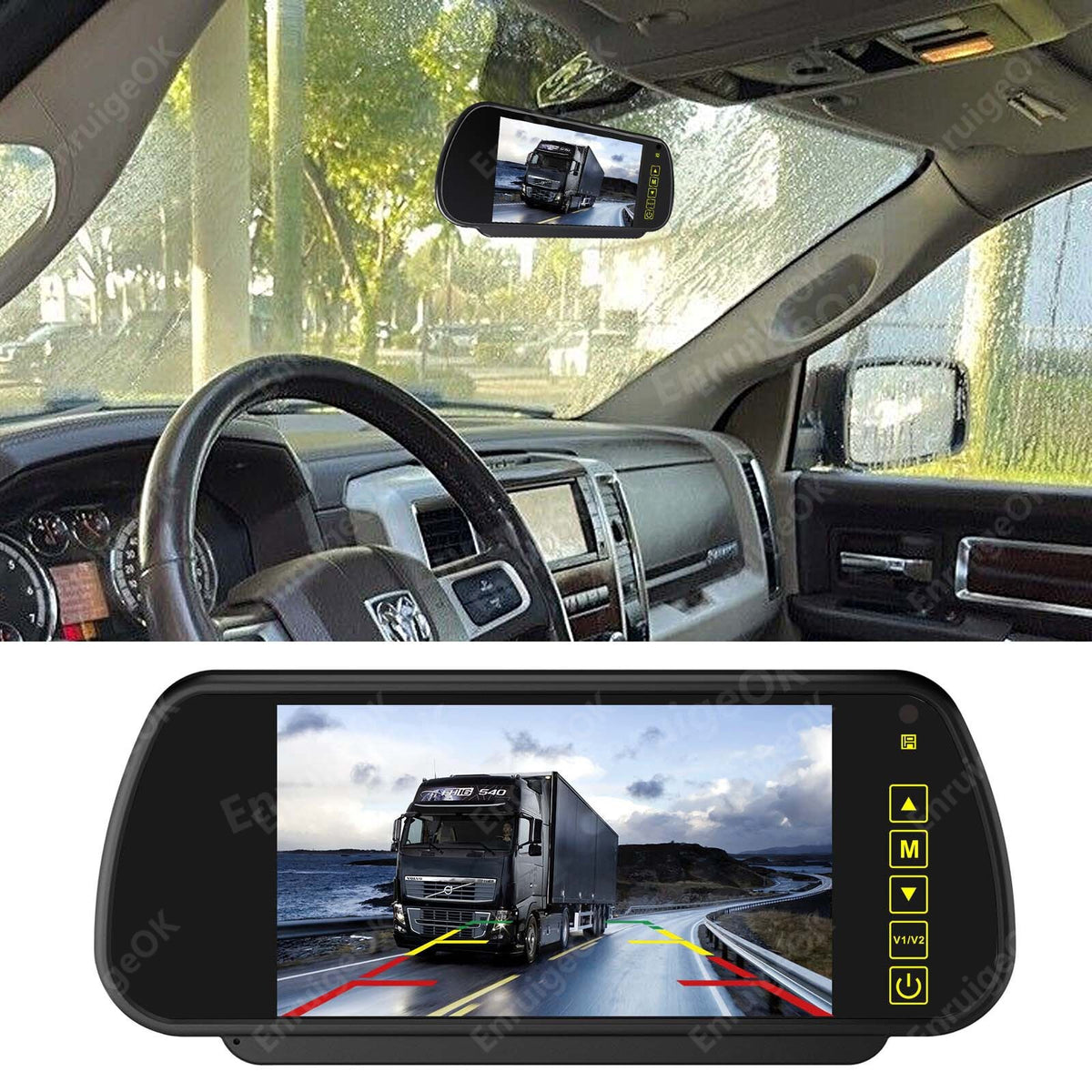

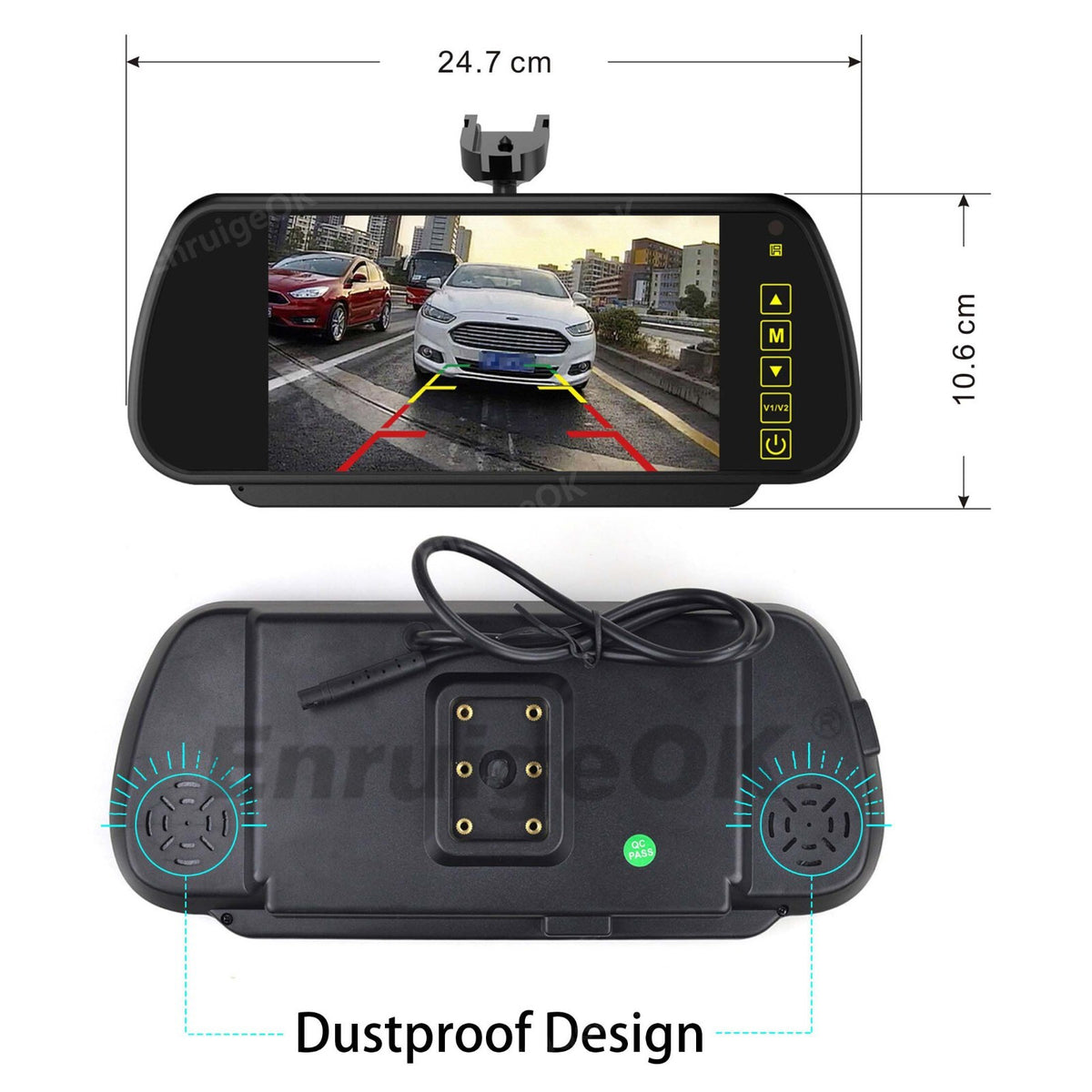

7" Color TFT-LCD Monitor with 2 video input, 800*480(RGB) resolution works perfectly with brake light rear view camera.

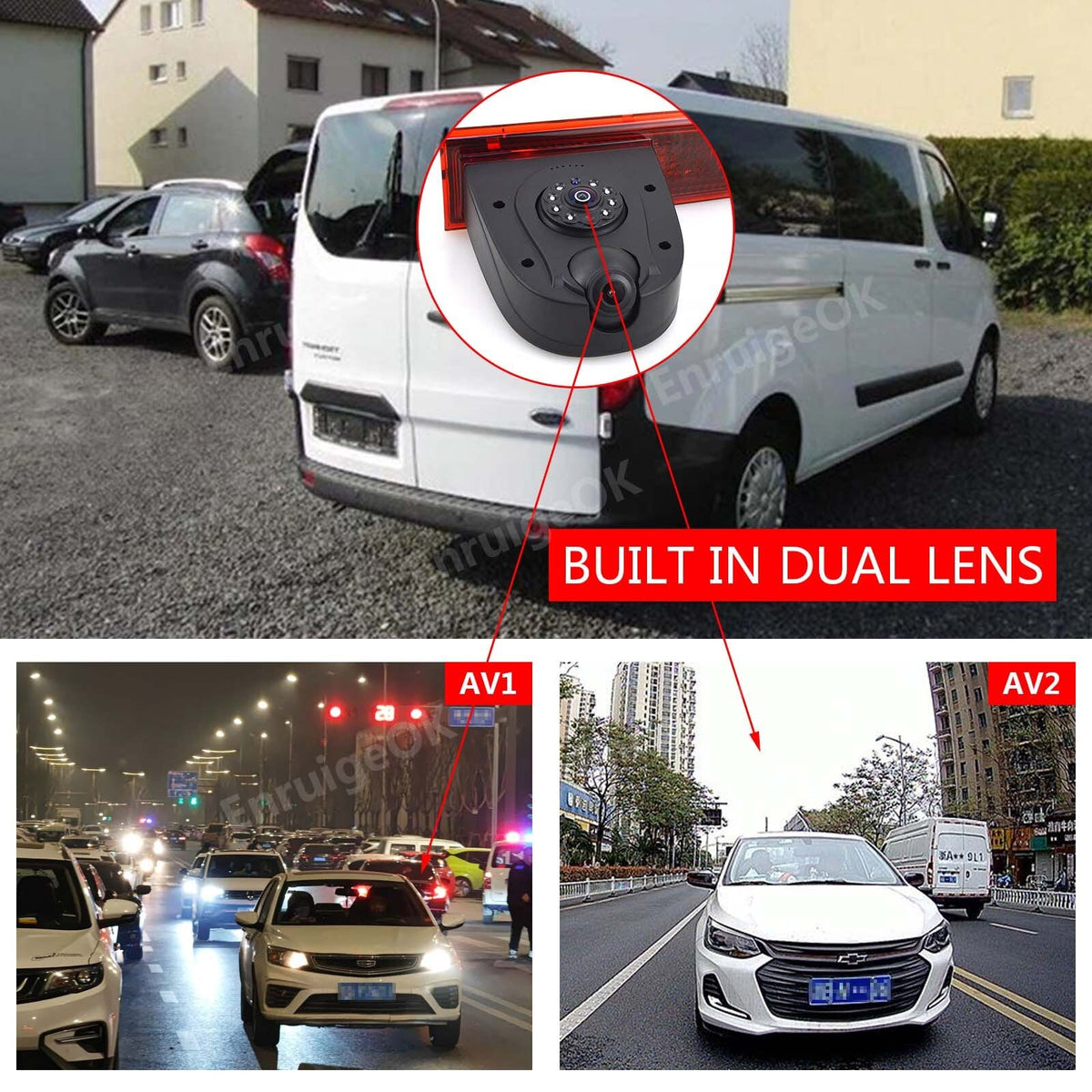

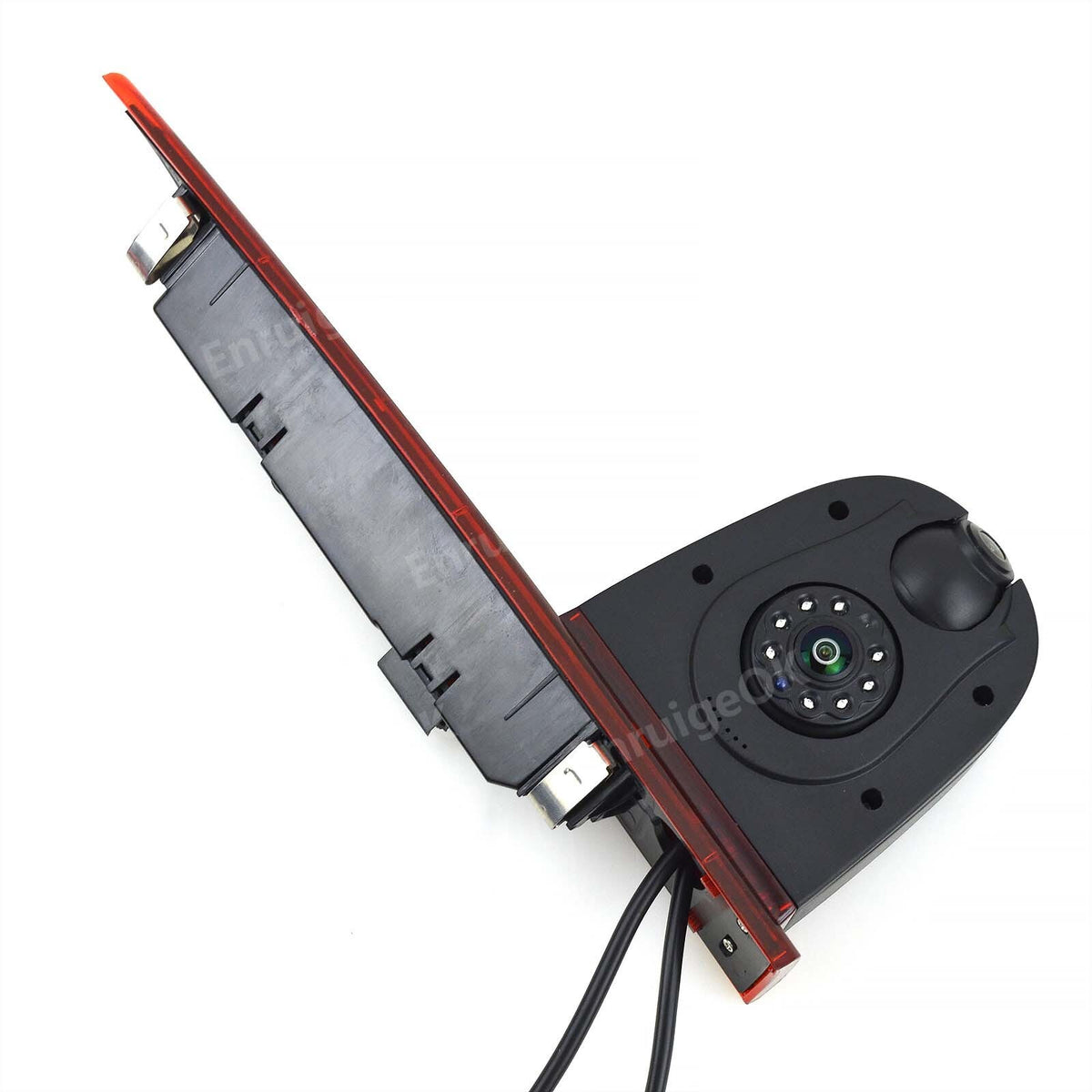

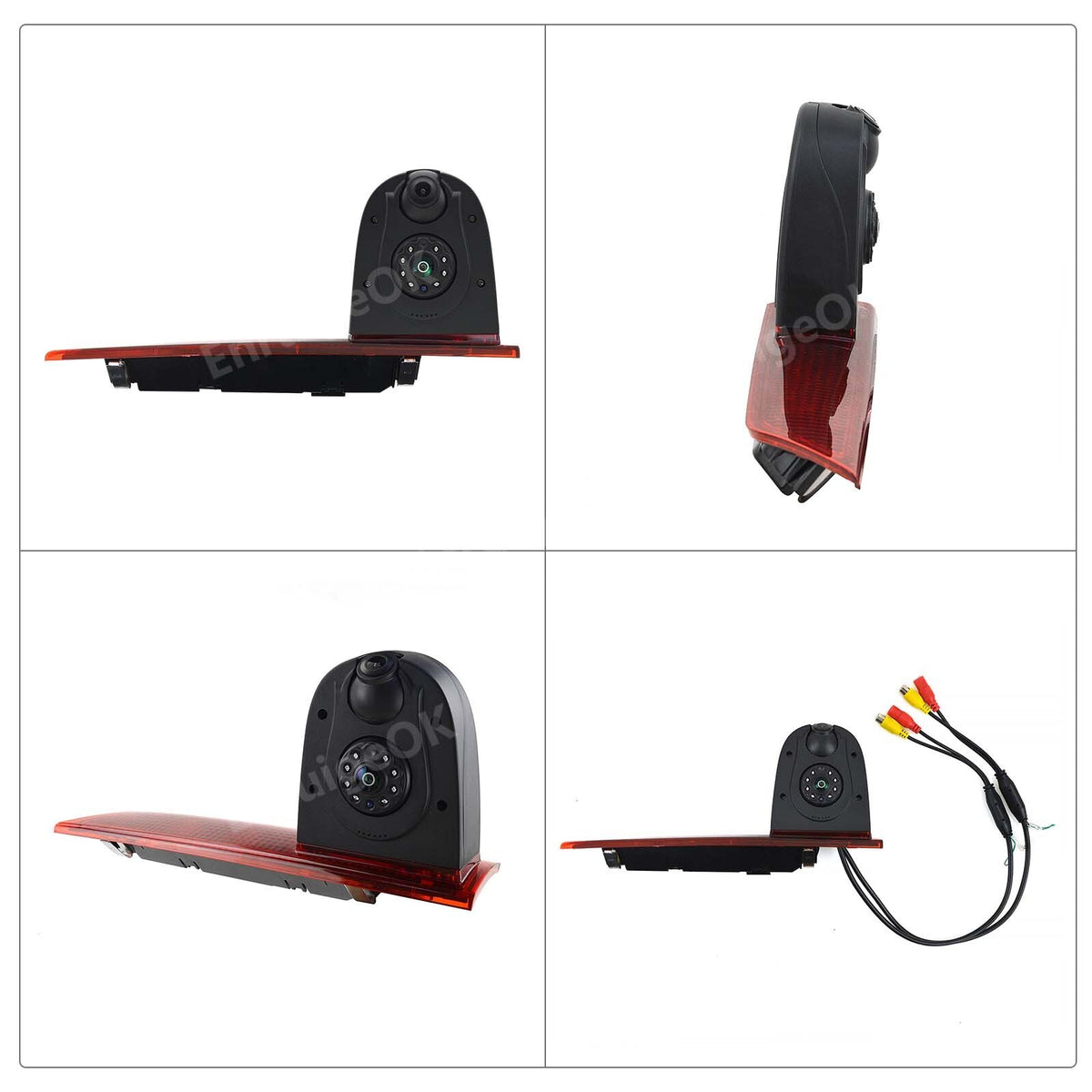

Dual lens Brake light Rear View backup camera. Its unique design allows to have one mounting with 2 cameras with different viewpoints. One camera for driving, one for parking.

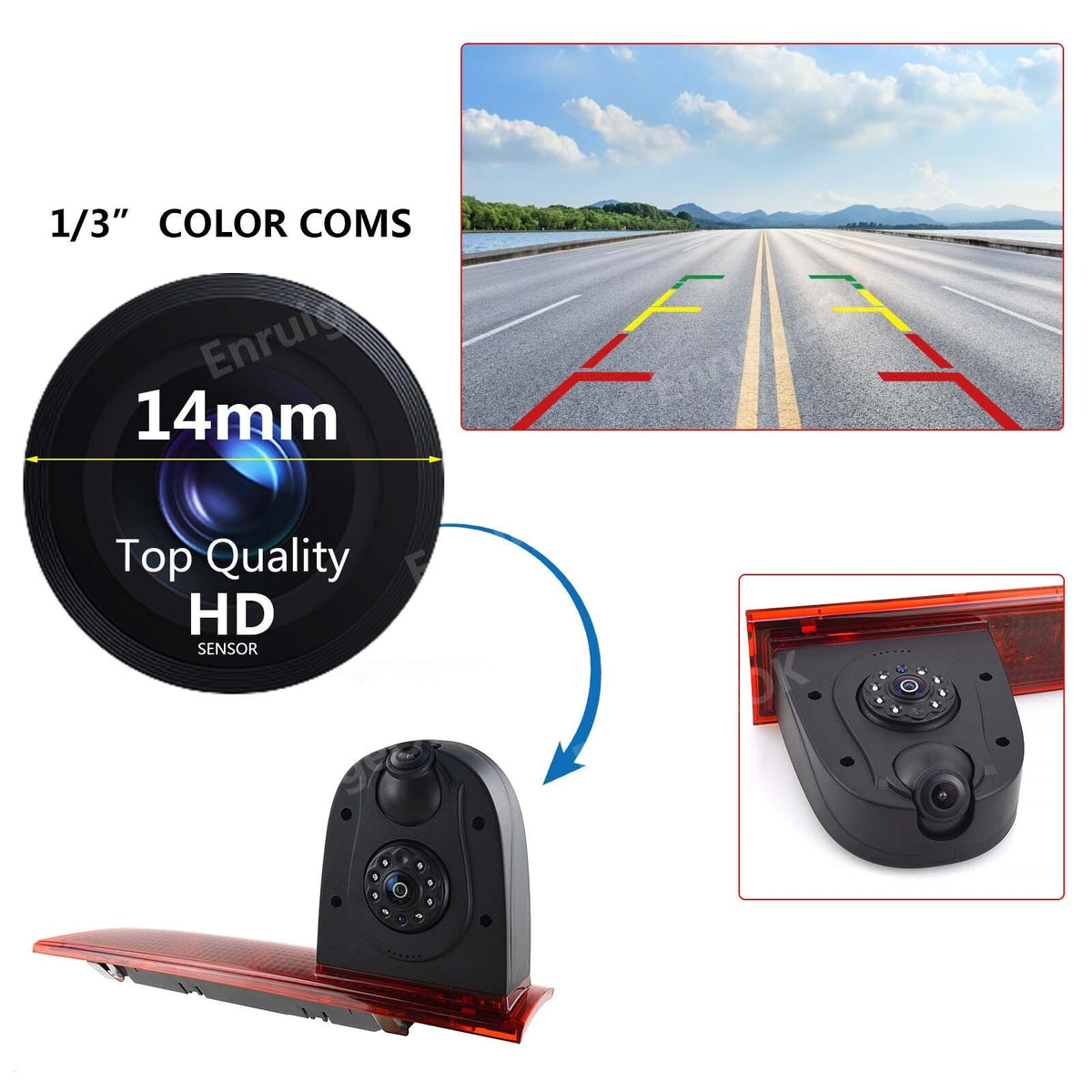

High quality image. This Brake light camera used 1/3 CMOS Sensor which have more color Image.

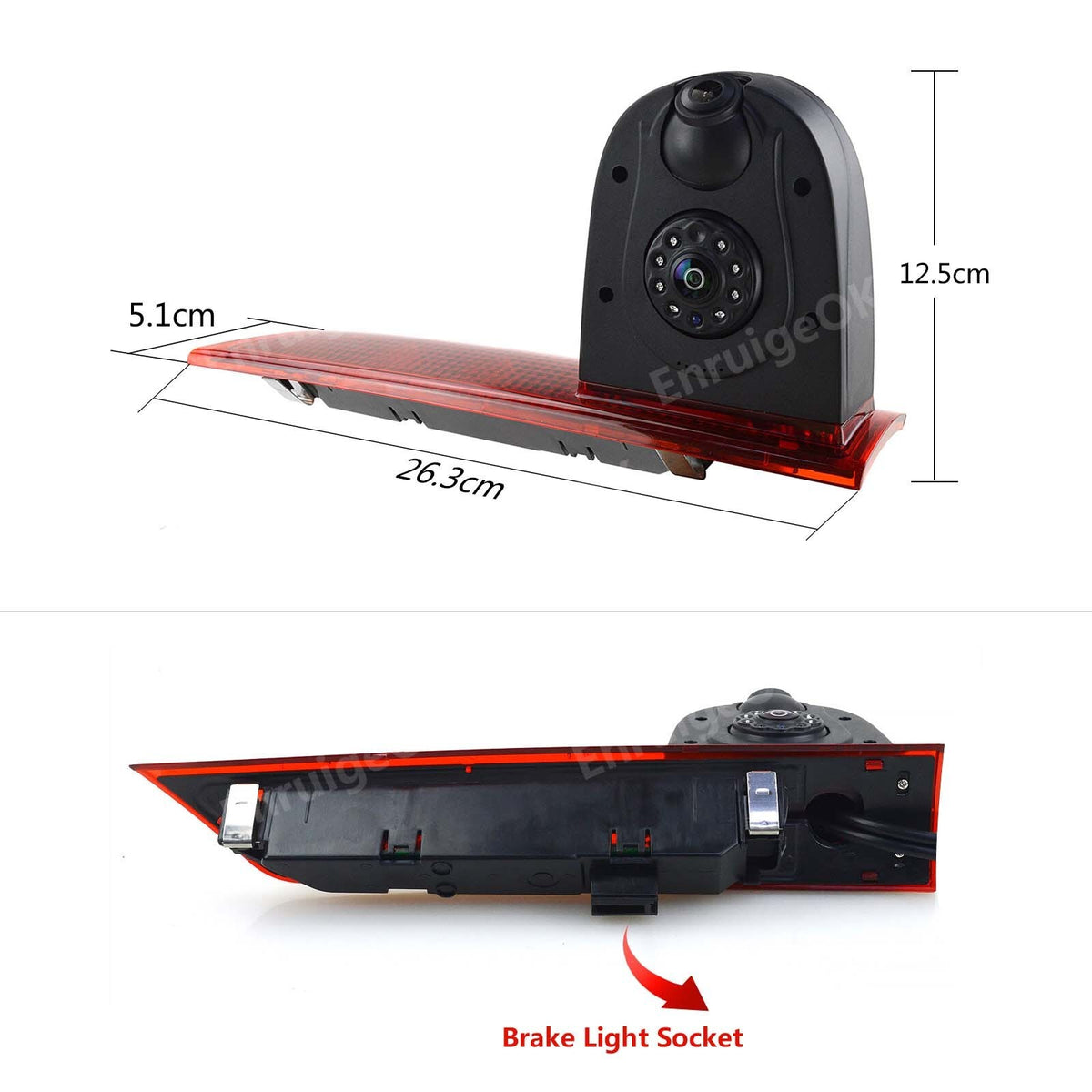

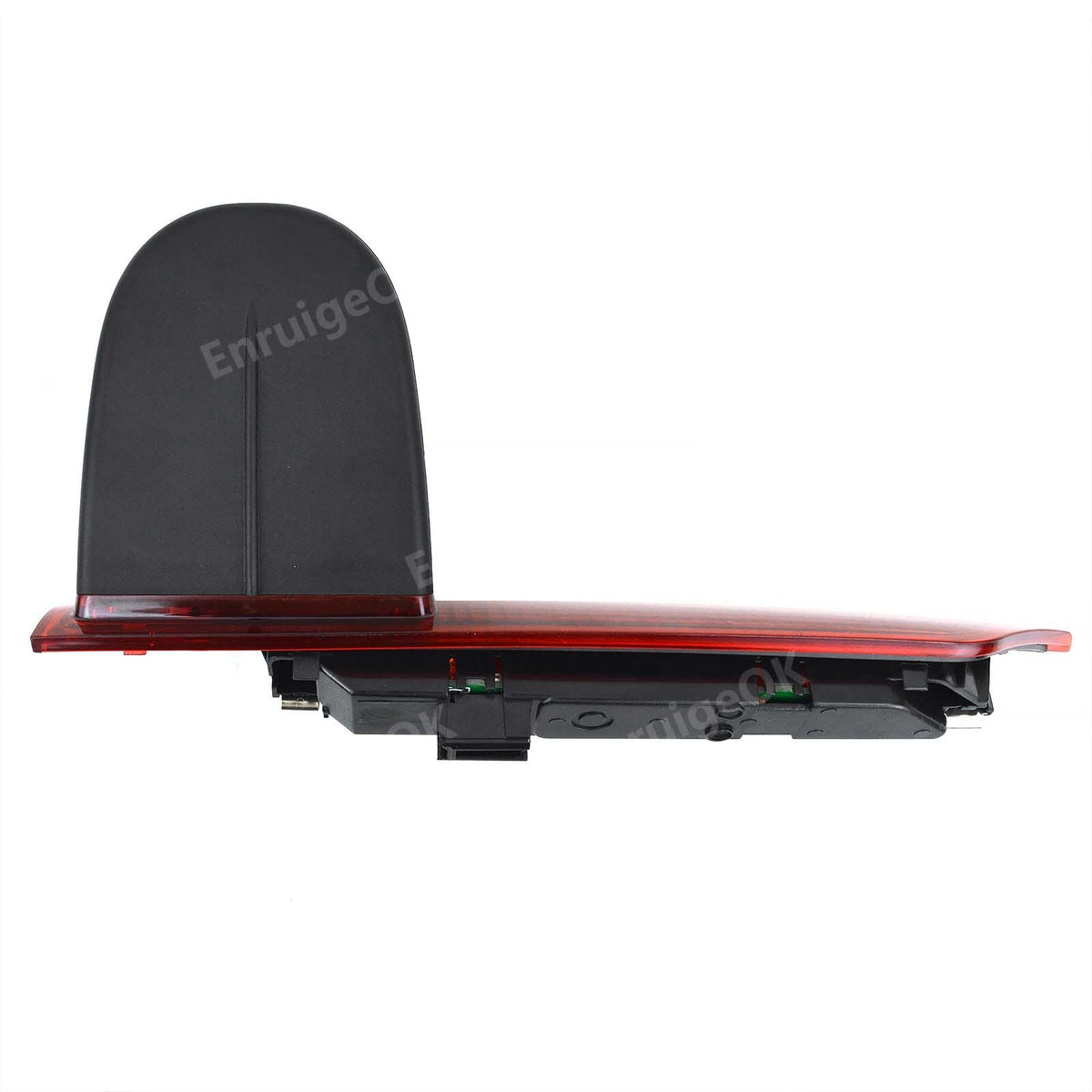

Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

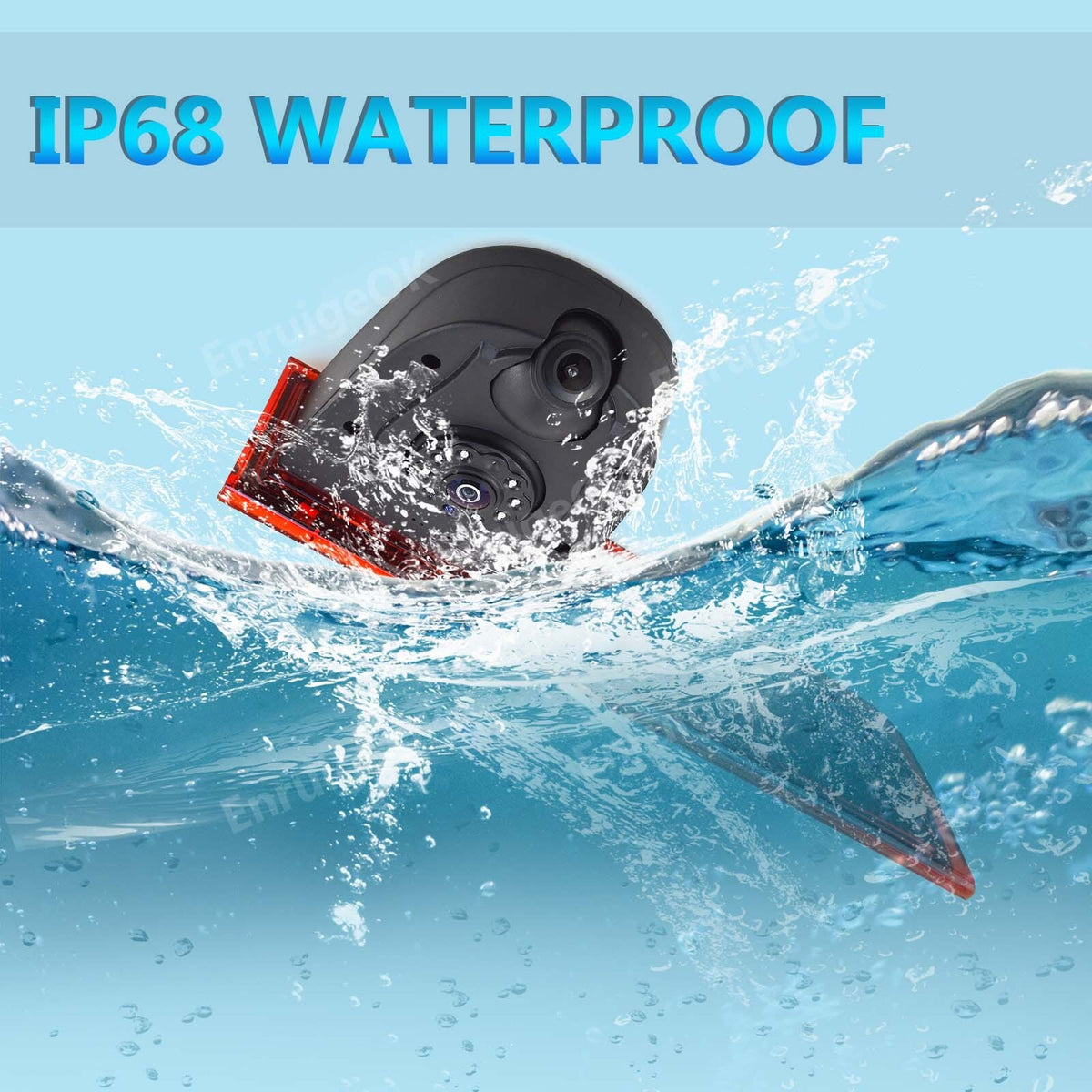

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

Camera Specifications

Image sensor: 1/3 "CMOS

TV system: PAL/NTSC option

Waterproof rating: IP68

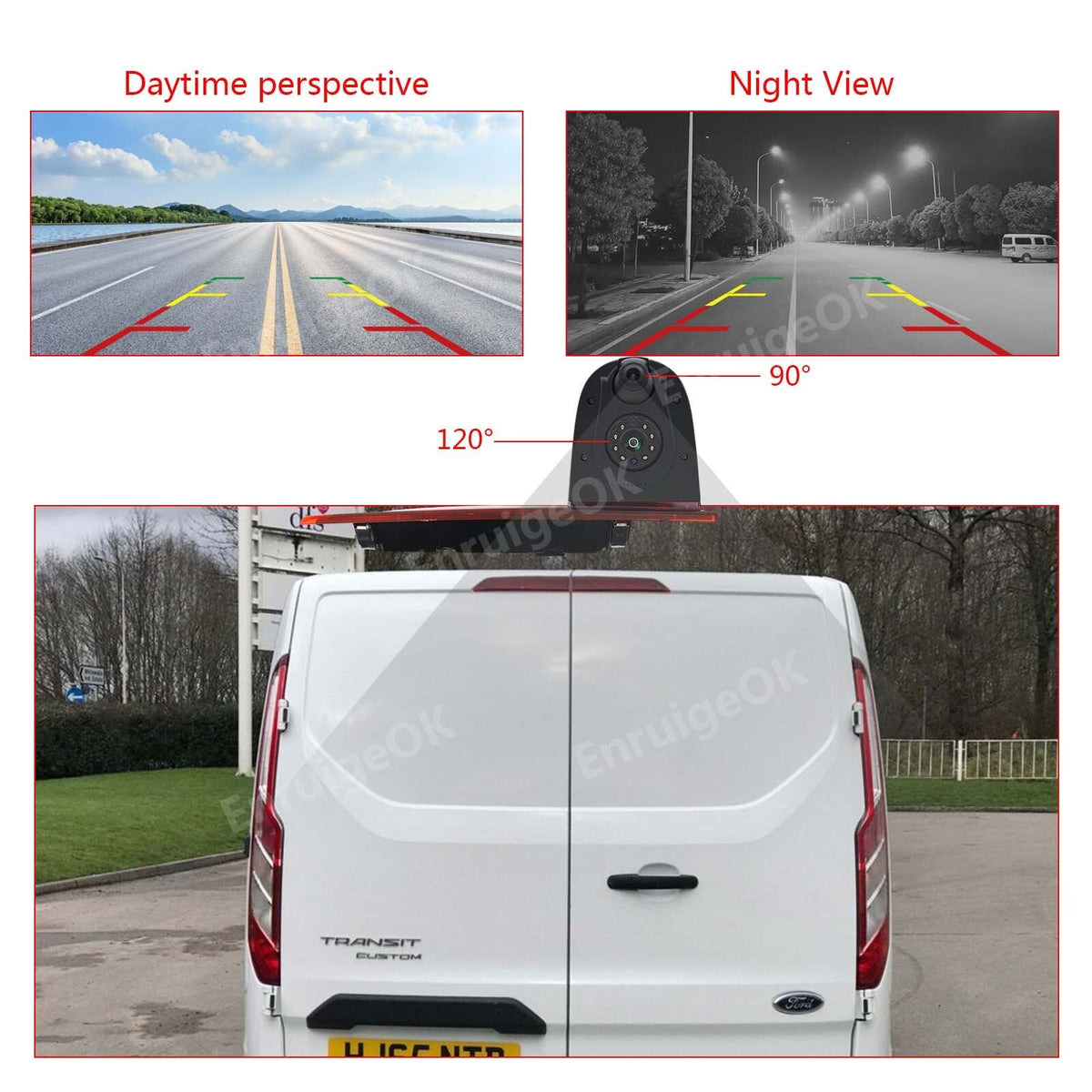

Viewing angle: 120°&90°

Effective pixel: 733(H)x493(V)

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

Resolution: CVBS 700TV Lines

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power supply: DC12V

Power: 5W

Operating temperature: -20℃ to +70℃

Monitor Specifications

Color: Black

Material: ABS

Screen: 7 inch

Resolution: 800*480(RGB)

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

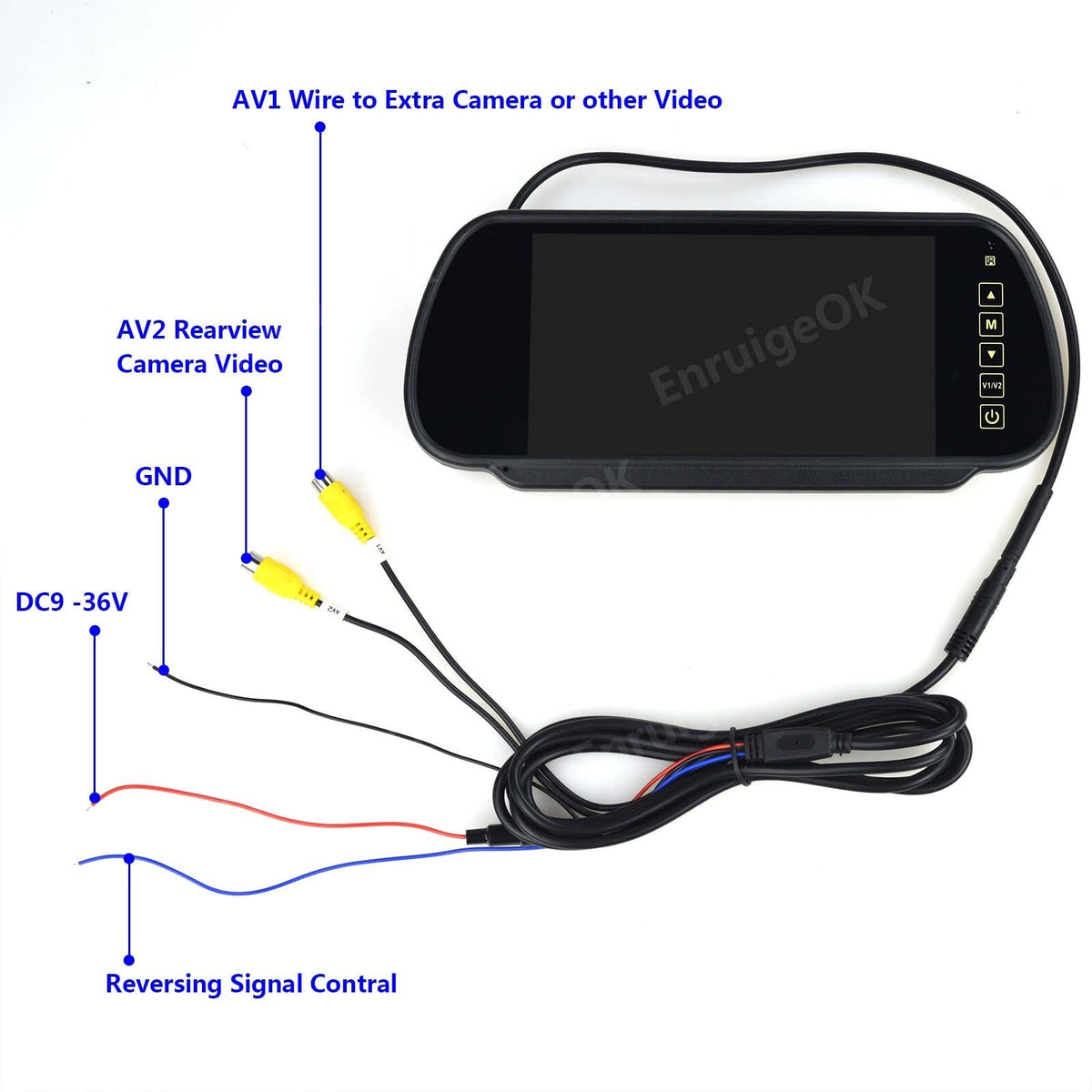

Video Input: 2AV video input

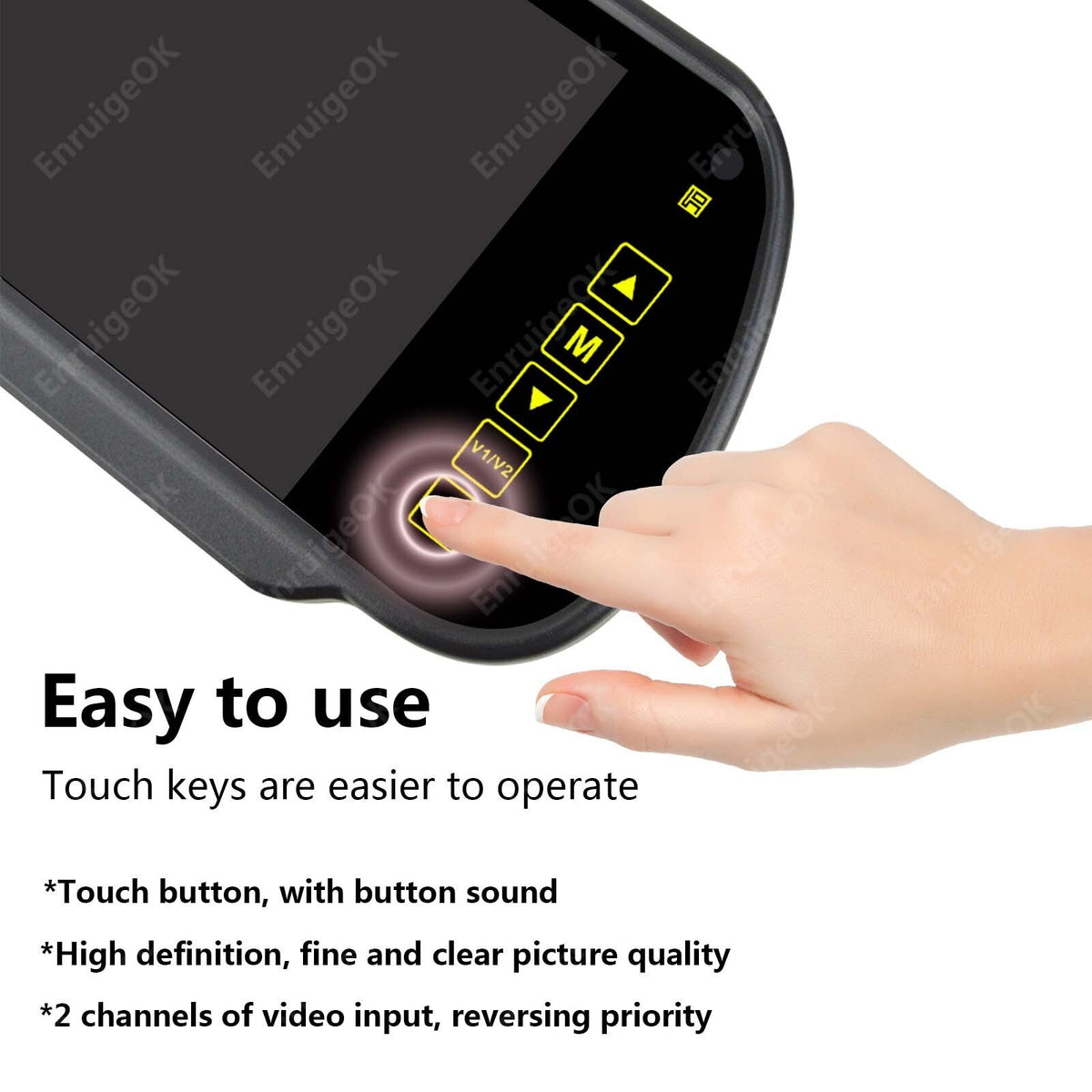

Control mode: Touch button

Power Supply: DC 9V/35V

Power consumption: 6W

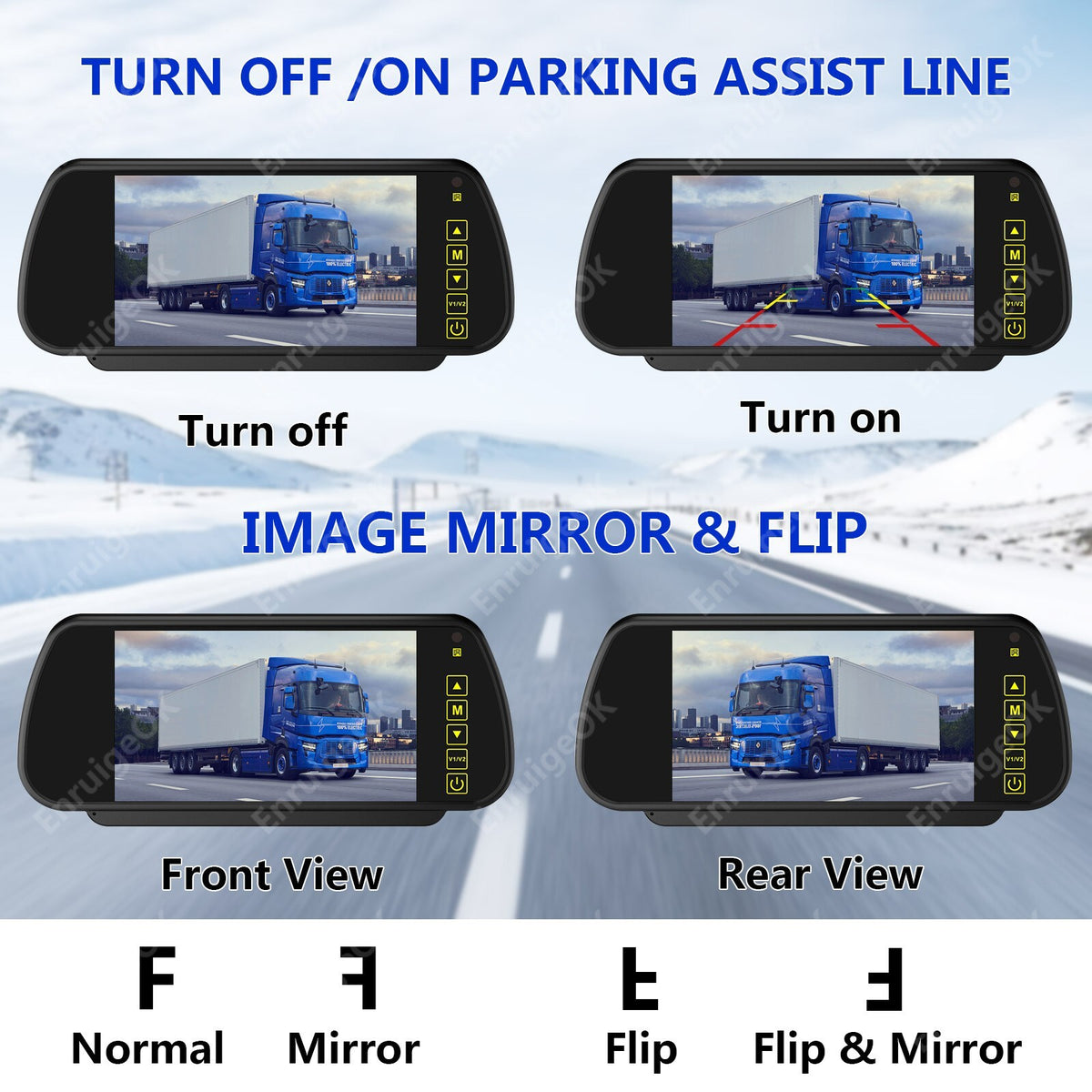

Rear watching: Image can be changed left and right

Operate mode: The key operation and remote control

Dual video inputs: automatically switch when reversing

Applicable models: Universal- Fits in any car

Remote control: a CR2025 button battery (not included)

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
