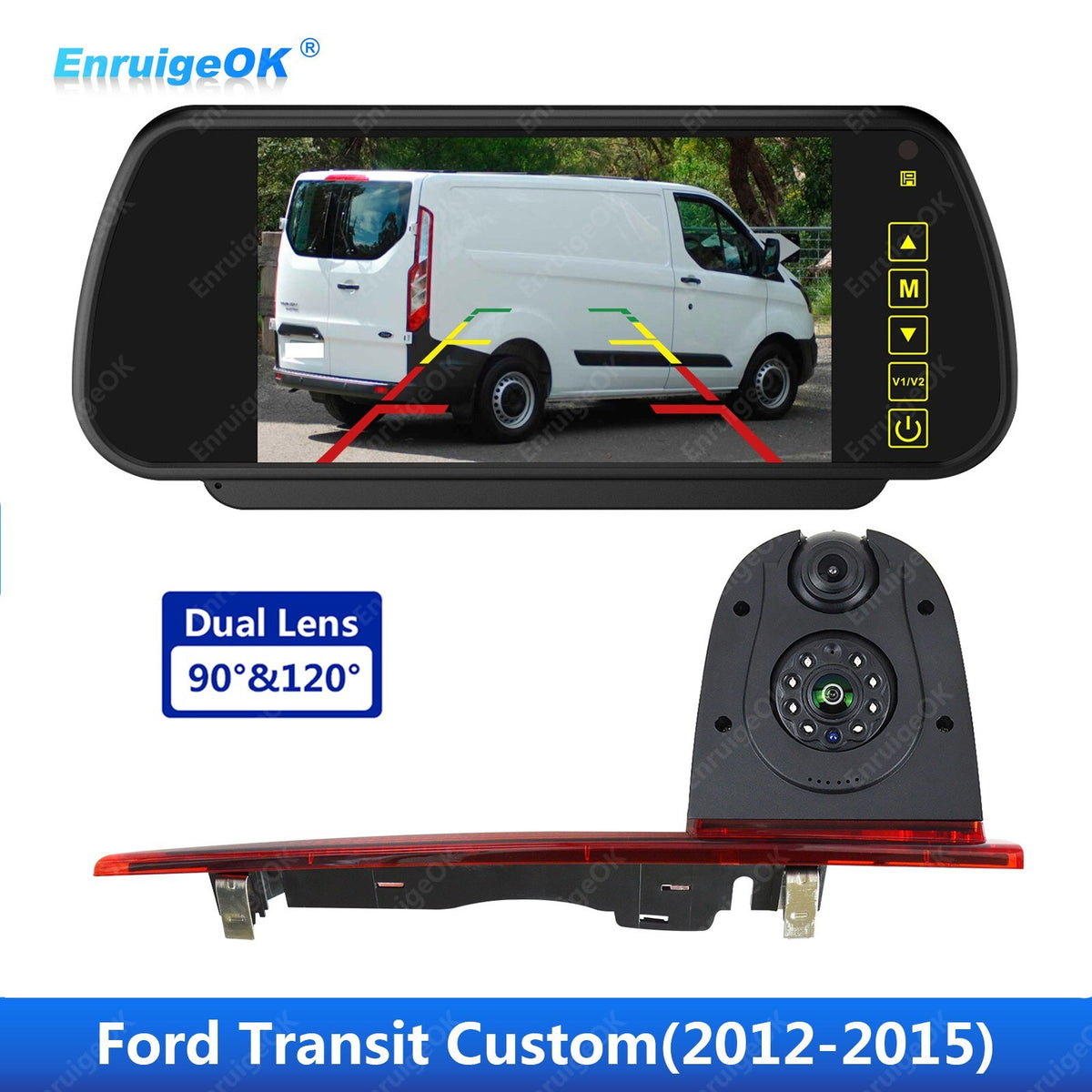

3rd Brake Light Backup Camera and Monitor Kit for Ford Transit Custom 2012-2015

Note: Please check the camera size carefully before make the order.

For use with(for reference):

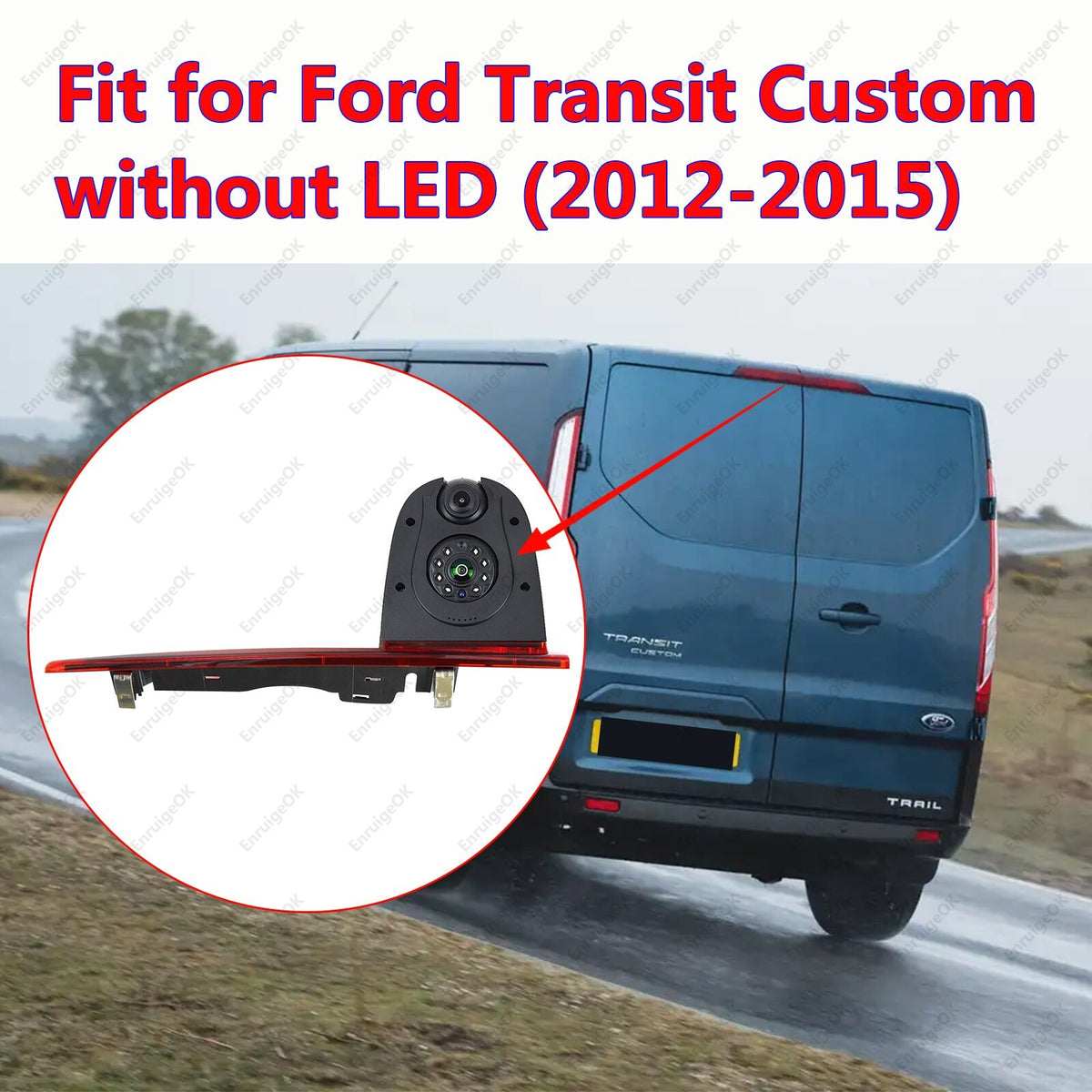

Ford Transit Custom(2012-2015)

Description

It includes a backup camera & monitor. When you are backing up, the car monitor will display the rear camera images, helping you park safely.

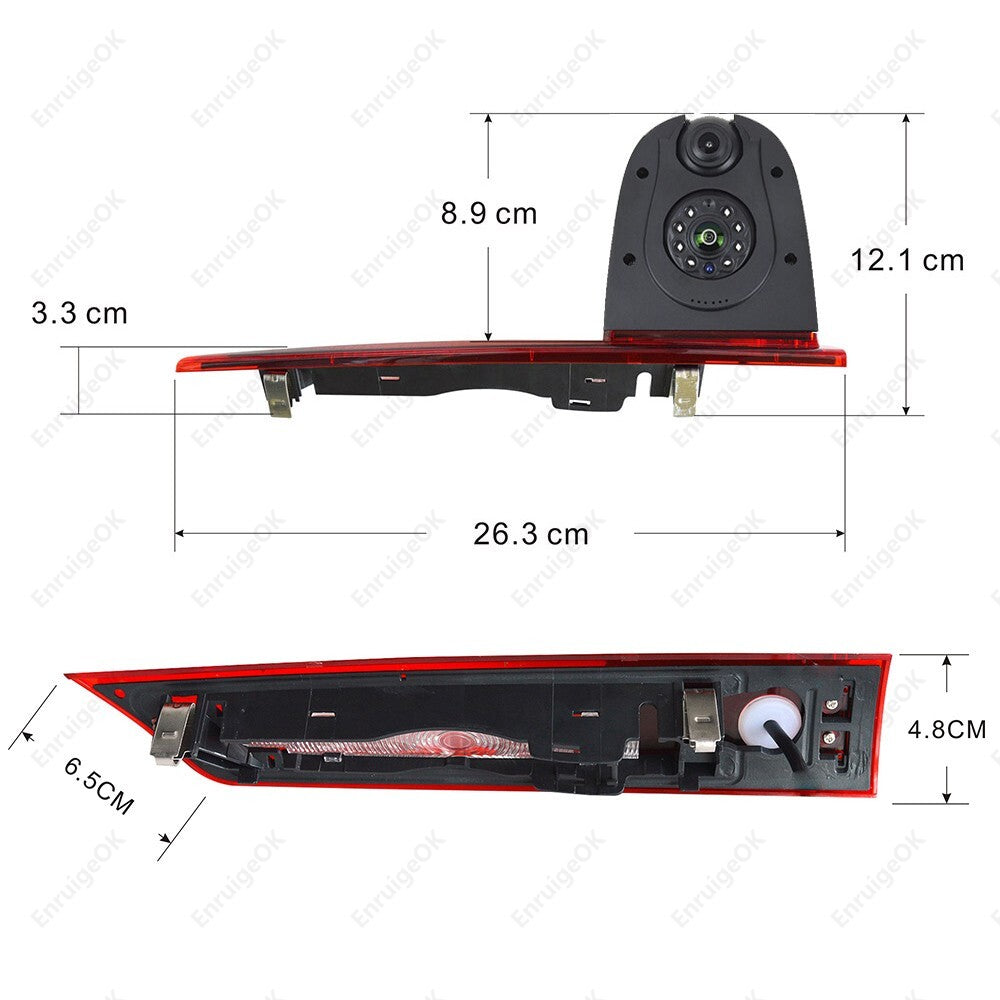

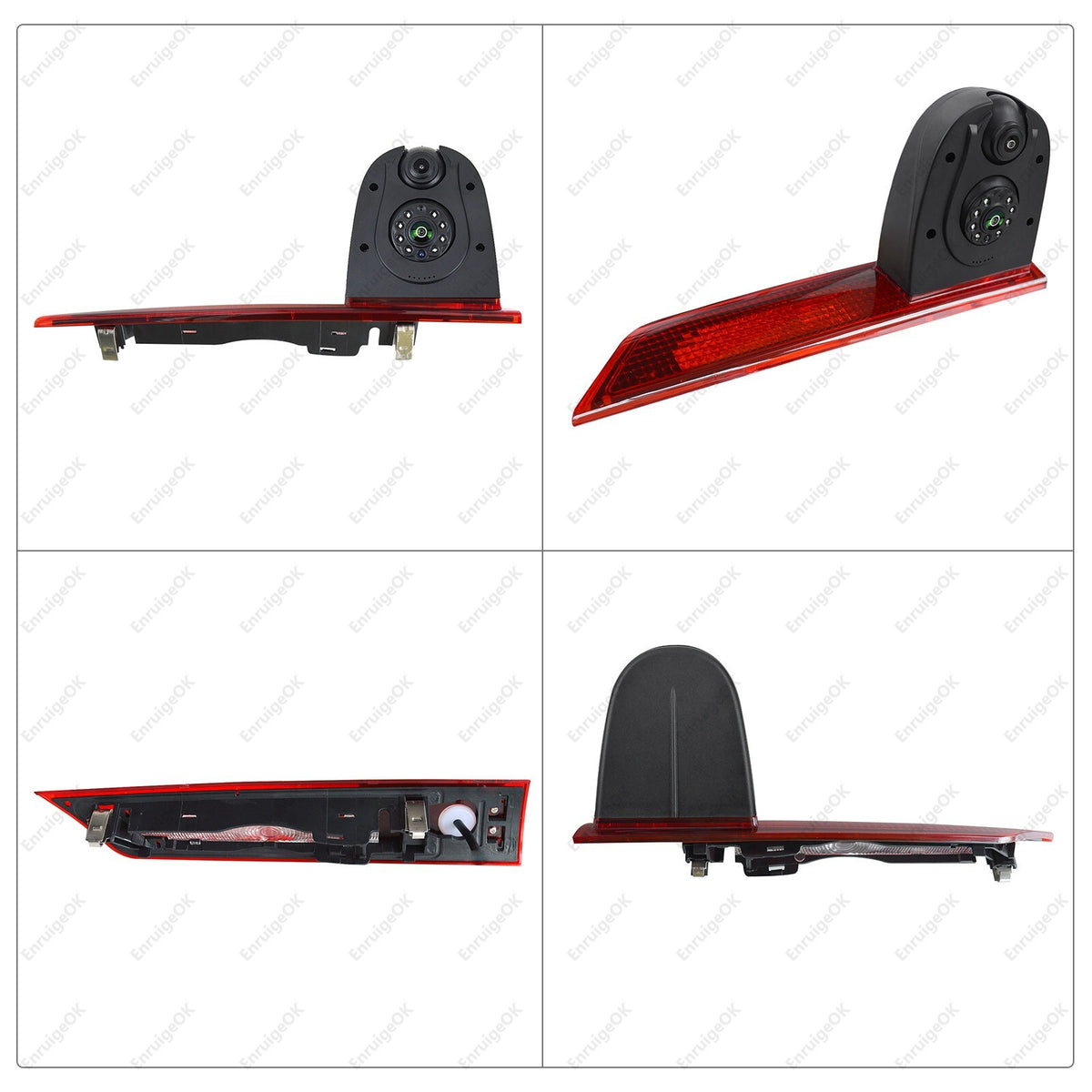

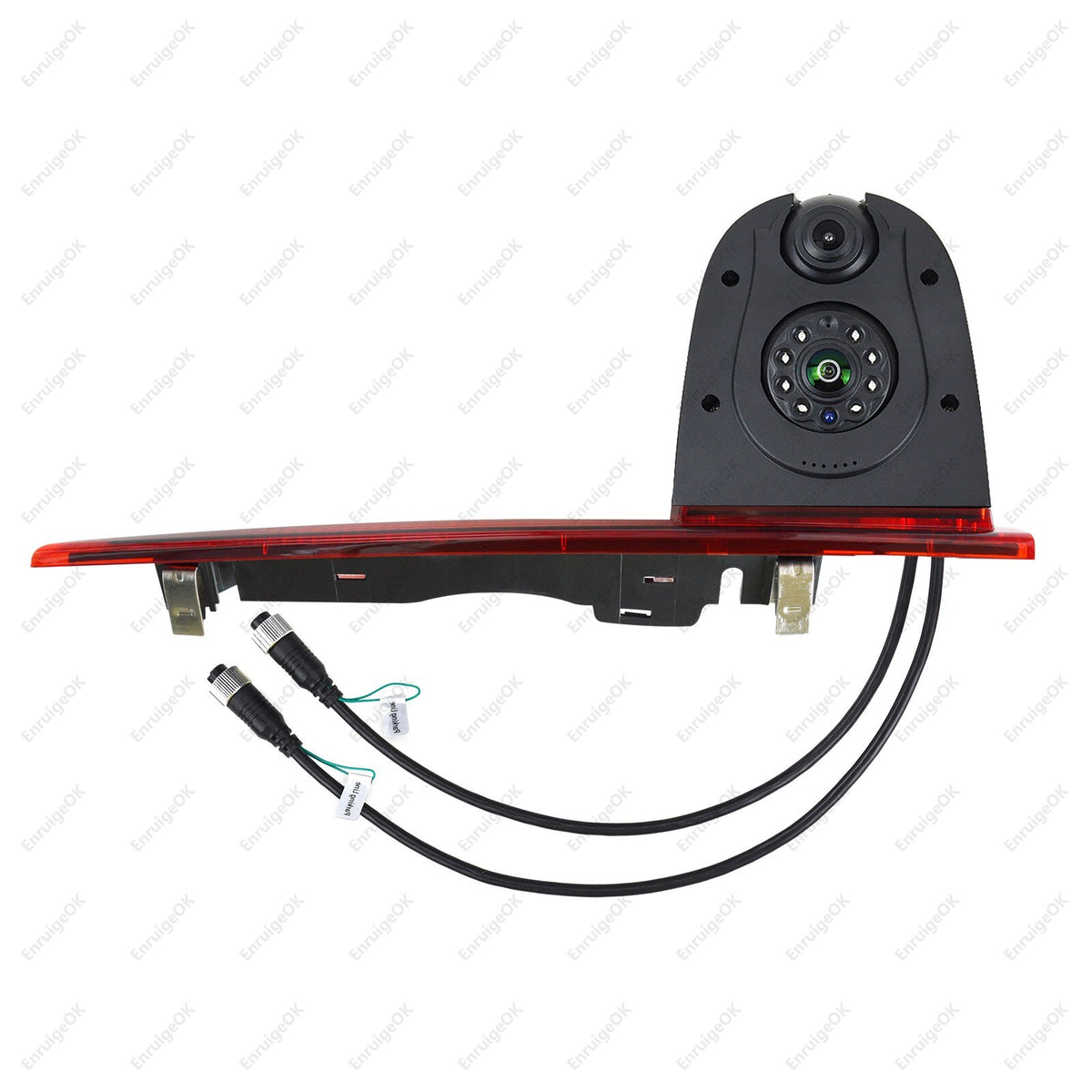

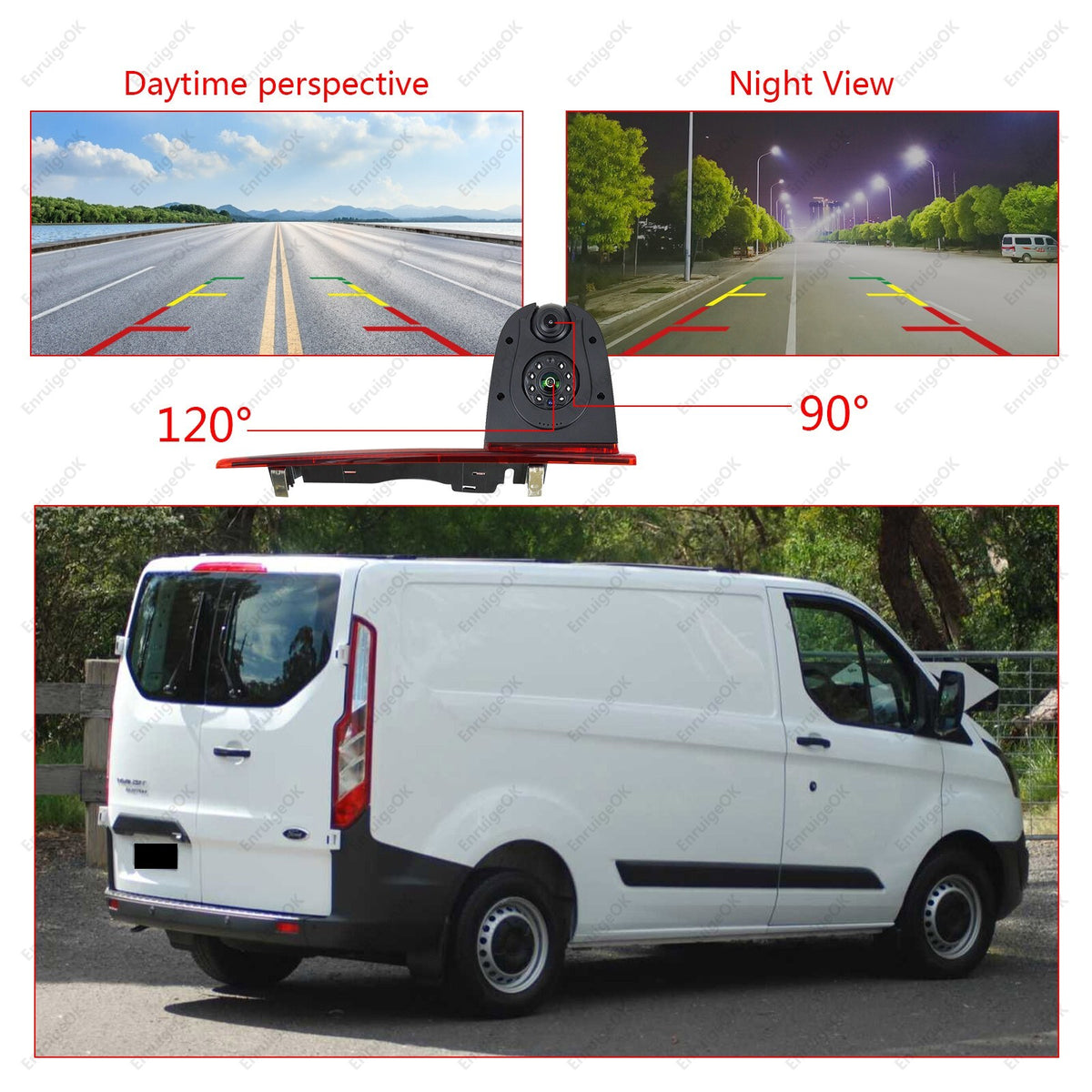

Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

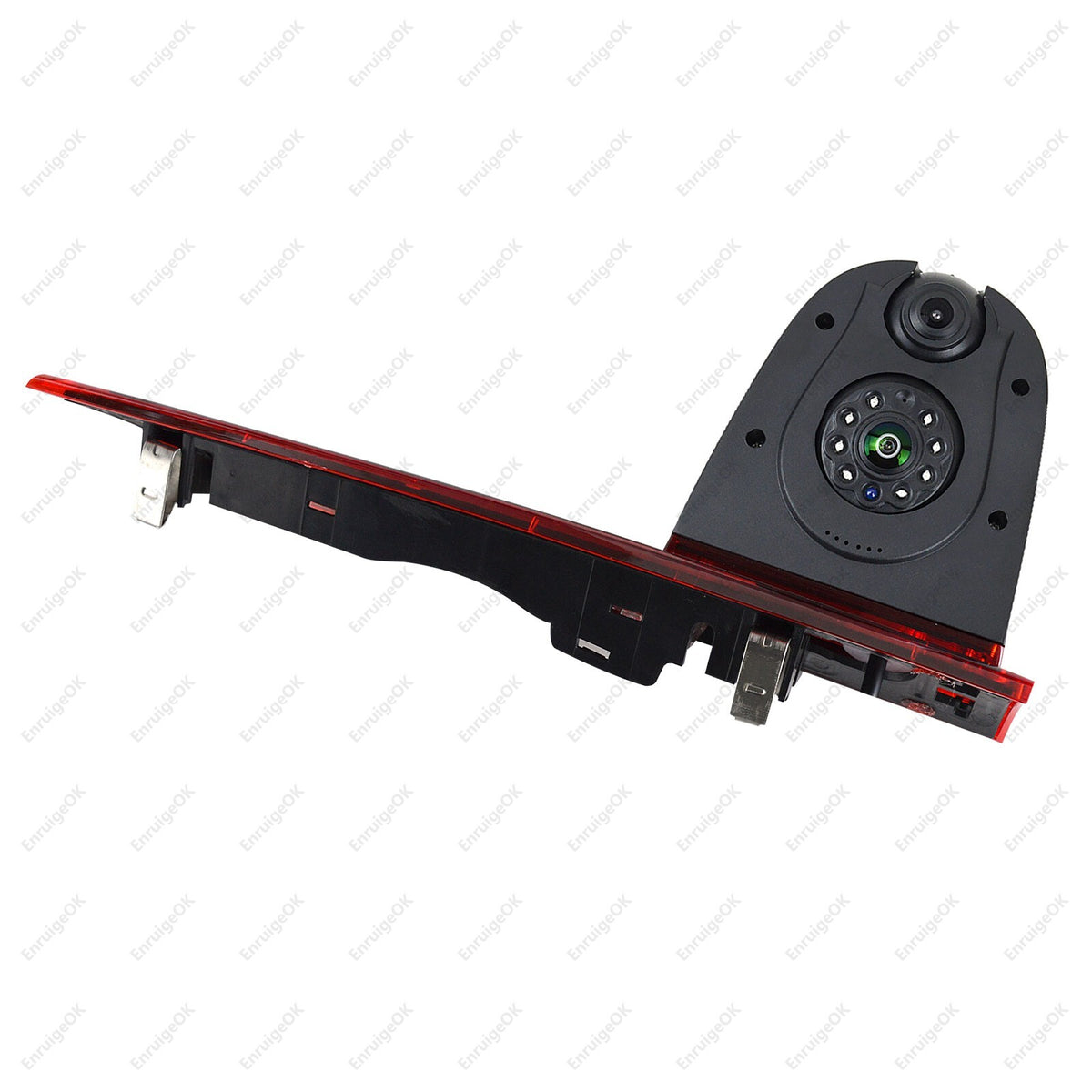

Dual lens backup camera. Its unique design allows one mounting with 2 cameras with different viewpoints: one reversing camera to view traffic, and another to see the trailer hitch and rear bumper.

This Brake light camera uses a 1/3" CMOS Sensor, which has more color Images, it comes with 8 infrared lights surrounding the camera body to guarantee great vision at night.

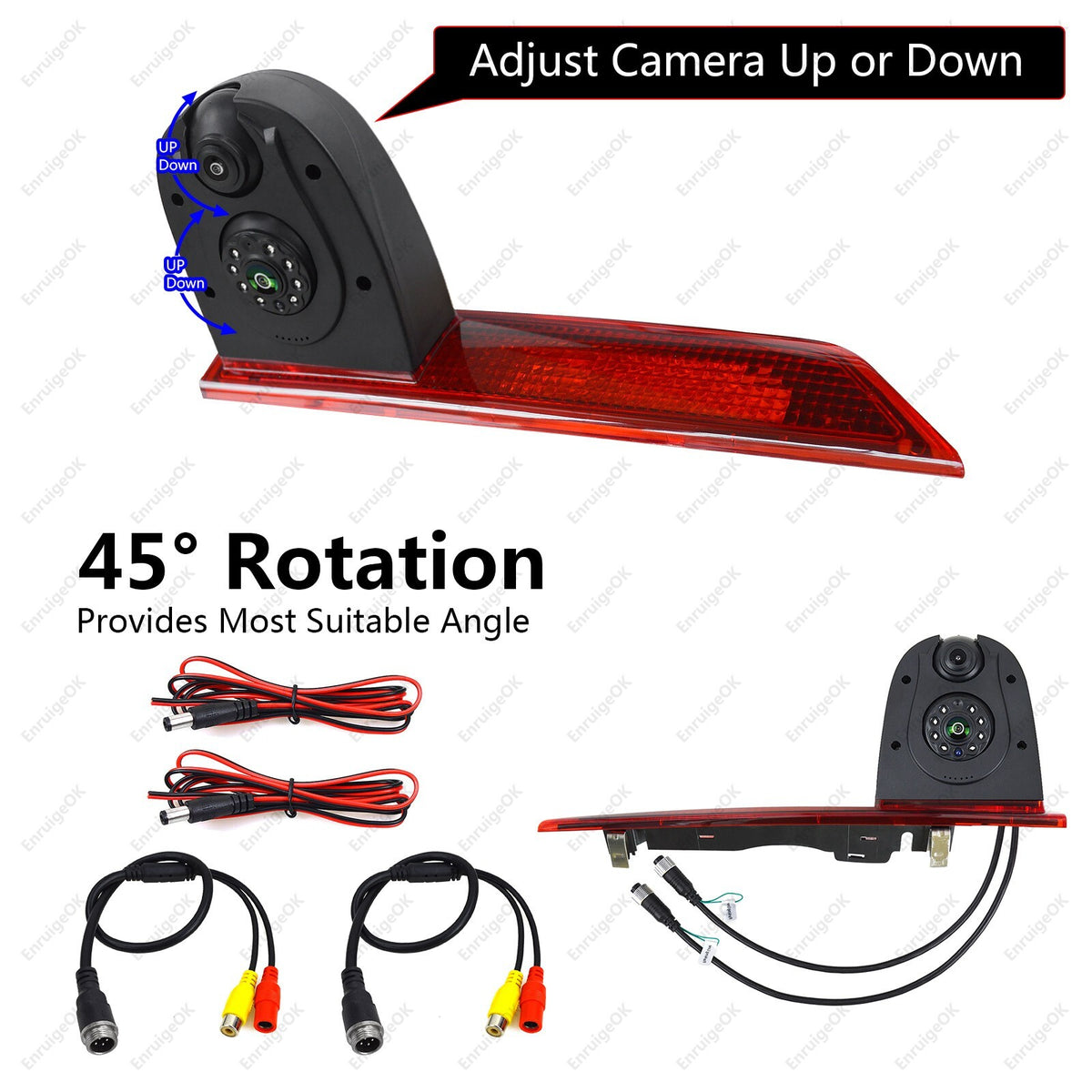

This reversing camera with 90°&120° viewing angles shows rich details about the environment behind the car for you.

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

7" Color TFT-LCD Monitor with 2 video input, 1024*600(RGB) resolution works perfectly with brake light rear view camera.

Camera Specifications

Image sensor: 1/3" CMOS

TV system: PAL/NTSC option

Waterproof rating: IP68

Viewing angle: 120°&90°

Effective pixel: 733(H)x493(V)

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

Resolution: CVBS 700TVL

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1Lux(IR ON)

Power supply: DC12V

Power: 5W

Operating temperature: -20℃ to +70℃

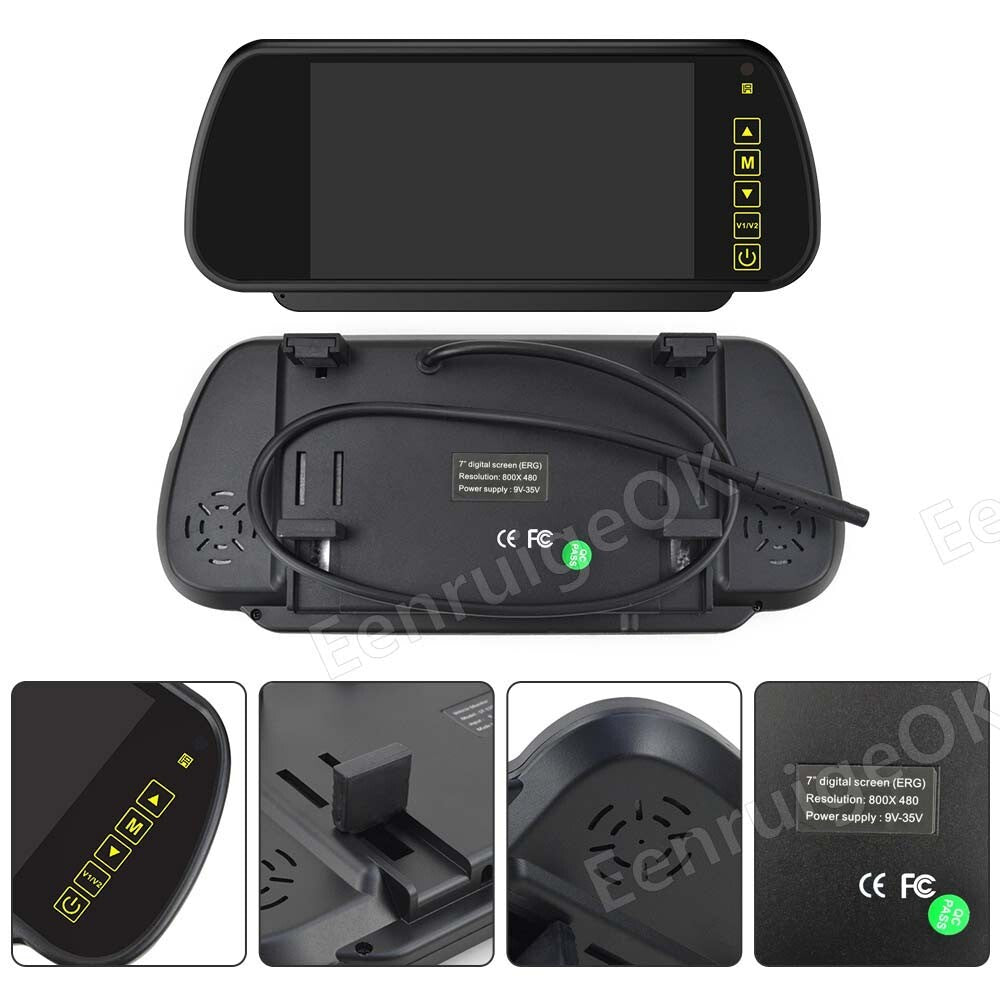

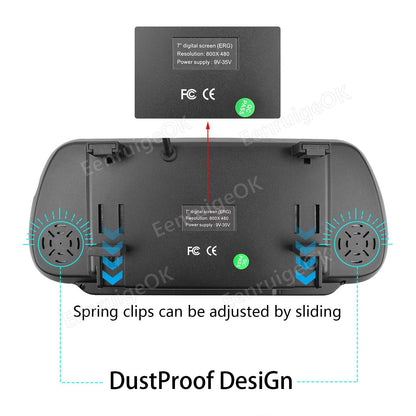

Monitor Specifications

Material: ABS+glass

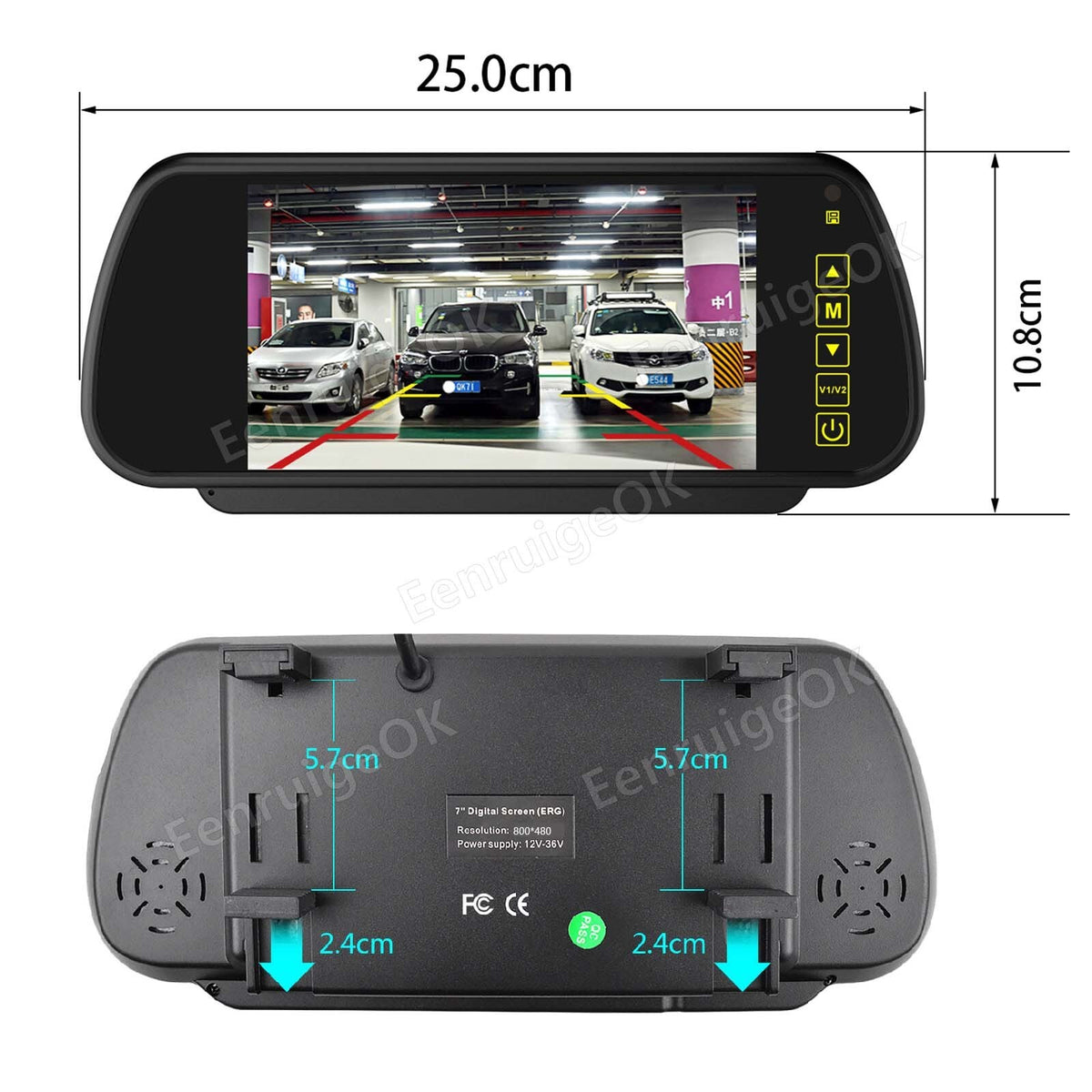

Screen: 7 inch

Resolution: 800*480(RGB)

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

Video Input: 2AV video input

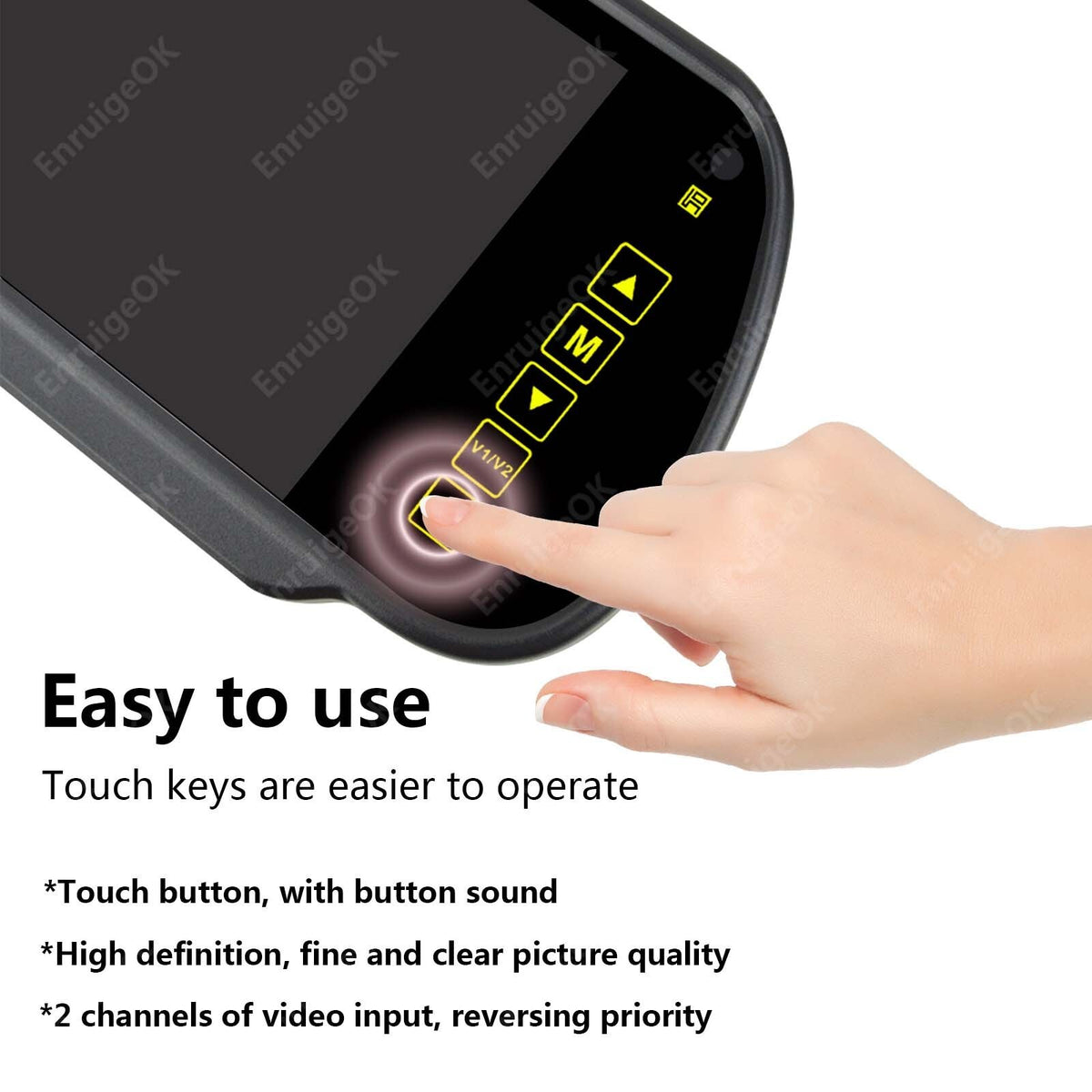

Control mode: Touch button

Power Supply: DC 9V-35V

Power consumption: 6W

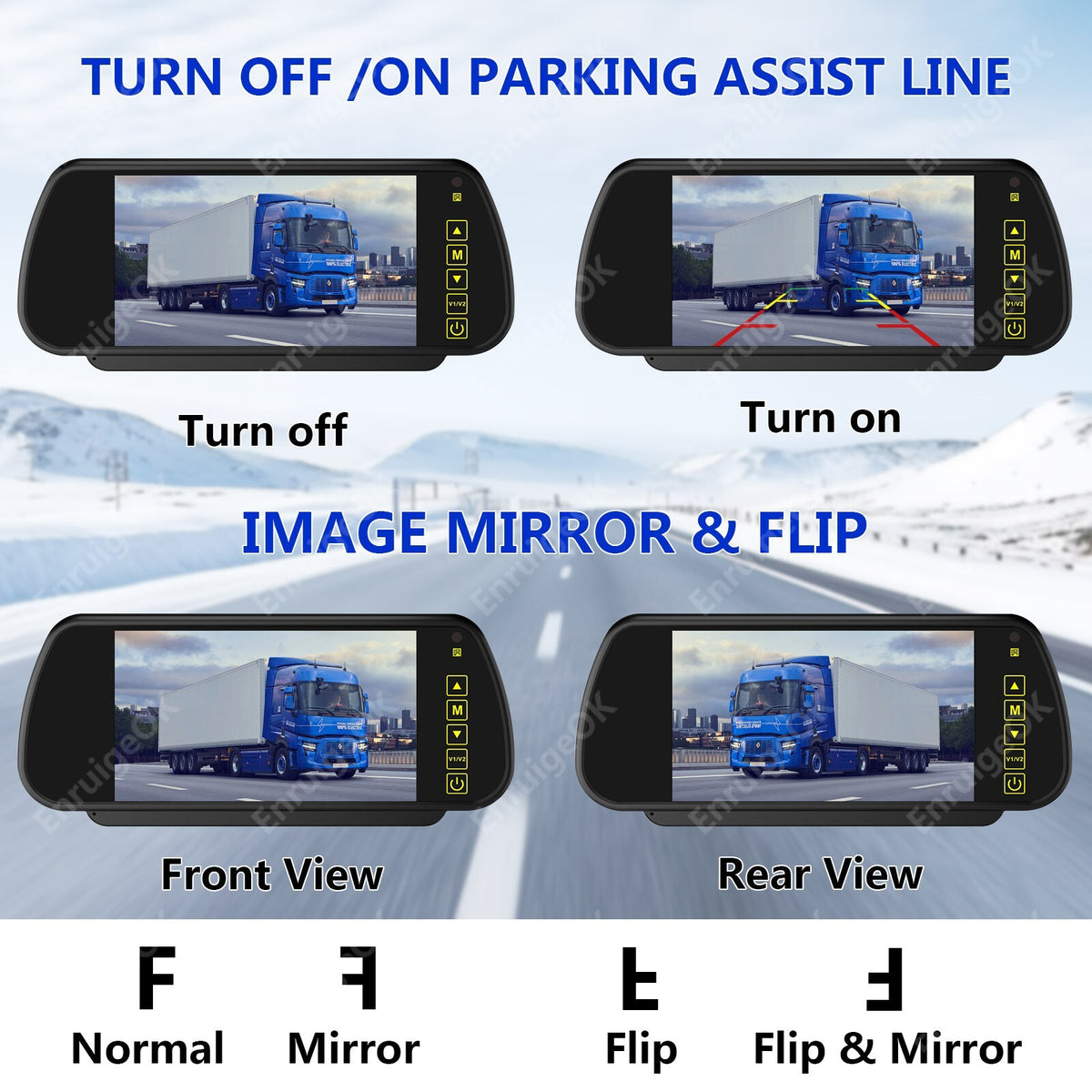

Rear watching: Image can be changed left and right

Operate mode: The key operation and remote control

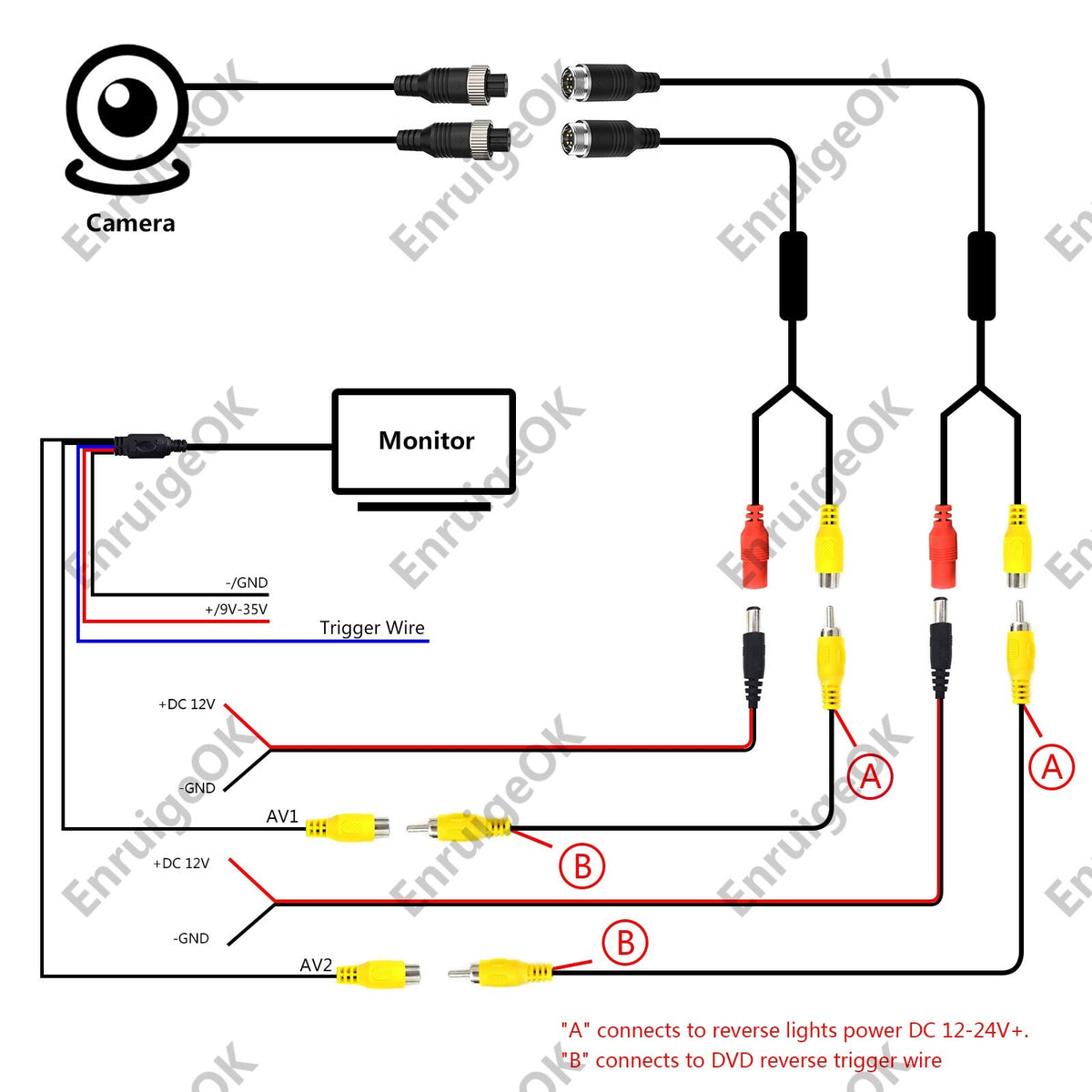

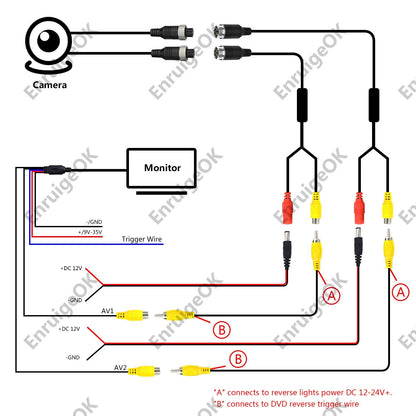

Dual video inputs: One For DVD/VCD/GPS/TV, the other for the rearview camera and parking sensor, automatically switch when reversing

Applicable models: Universal- Fits in any car

Remote control: a CR2025 button battery (not included)

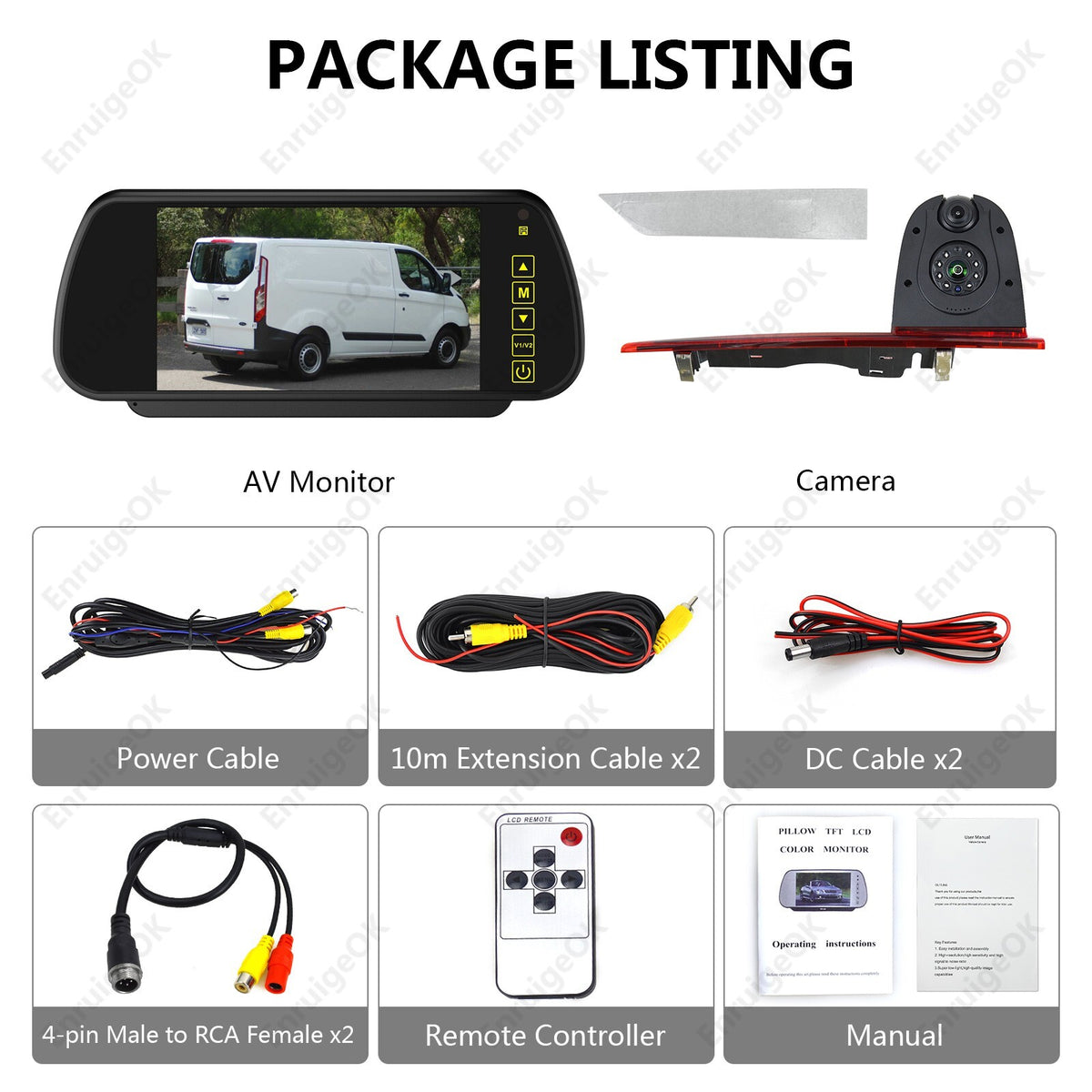

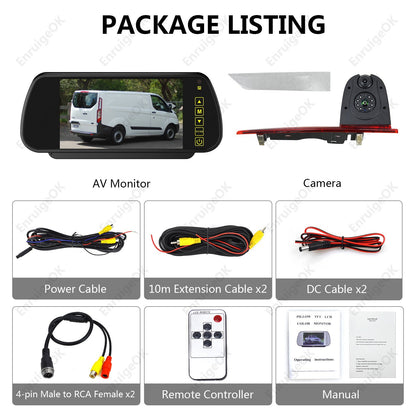

Package contents

1 X Dual lens brake light camera

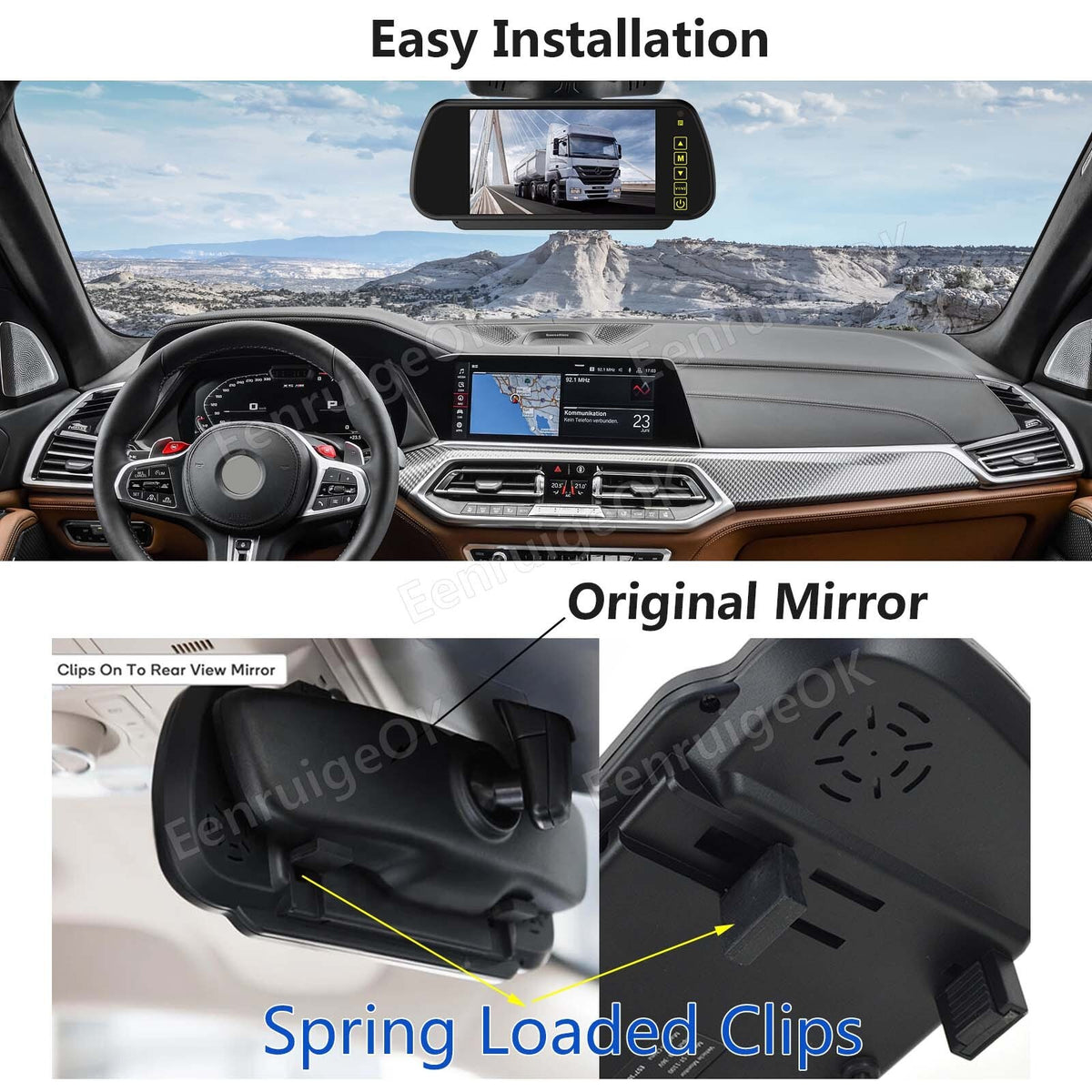

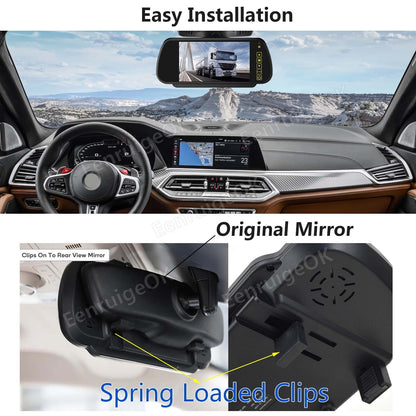

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X Monitor power cable

2 X 10m/33ft. extension cable

2 X Adapter cables

2 X 1.5m DC Power cable

1 X Manual

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
